Vynco VLWLED4 User manual

SPECIFICATIONS
WIRING
SAFETY
WARRANTY
DIMENSIONS
INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED range of Weatherproof Fixtures
Vynco Industries (NZ) Ltd Phone [phone] or [phone]
www.vynco.co.nz
Suitable for ceiling or wall mounting and suspending
ABS base and Polycarbonate cover
Voltage: 220 to 240V a.c. 50Hz
Wattage: 24W
Lamp Type: Epistar LED
Luminaire Class: Class 1
Lumen Output 1920 Lm
Colour Temperature: 4000K
Degree of Protection: IP65
Suitable for indoor and outdoor applications
LED Driver Approval No: TUV16078EA
This product should be installed by a suitably qualied person in accordance
with Australian and New Zealand Wiring rules. Always disconnect the power
to the tting before opening the cover. In the case of lamp failure, disconnect
from mains supply and return to Vynco for service.
This product is covered by the standard 3 year Vynco Warranty - proof of
purchase is required. Please contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
CODE LENGTH
(mm)
WIDTH
(mm)
HEIGHT
(mm)
WEIGHT
(kg)
No. of clips
VLWLED2 658 158 101 1.32 4
IP65
L = Live or Phase – Brown or Red
E = Earth – Green or Green/Yellow
N = Neutral – Blue or Black

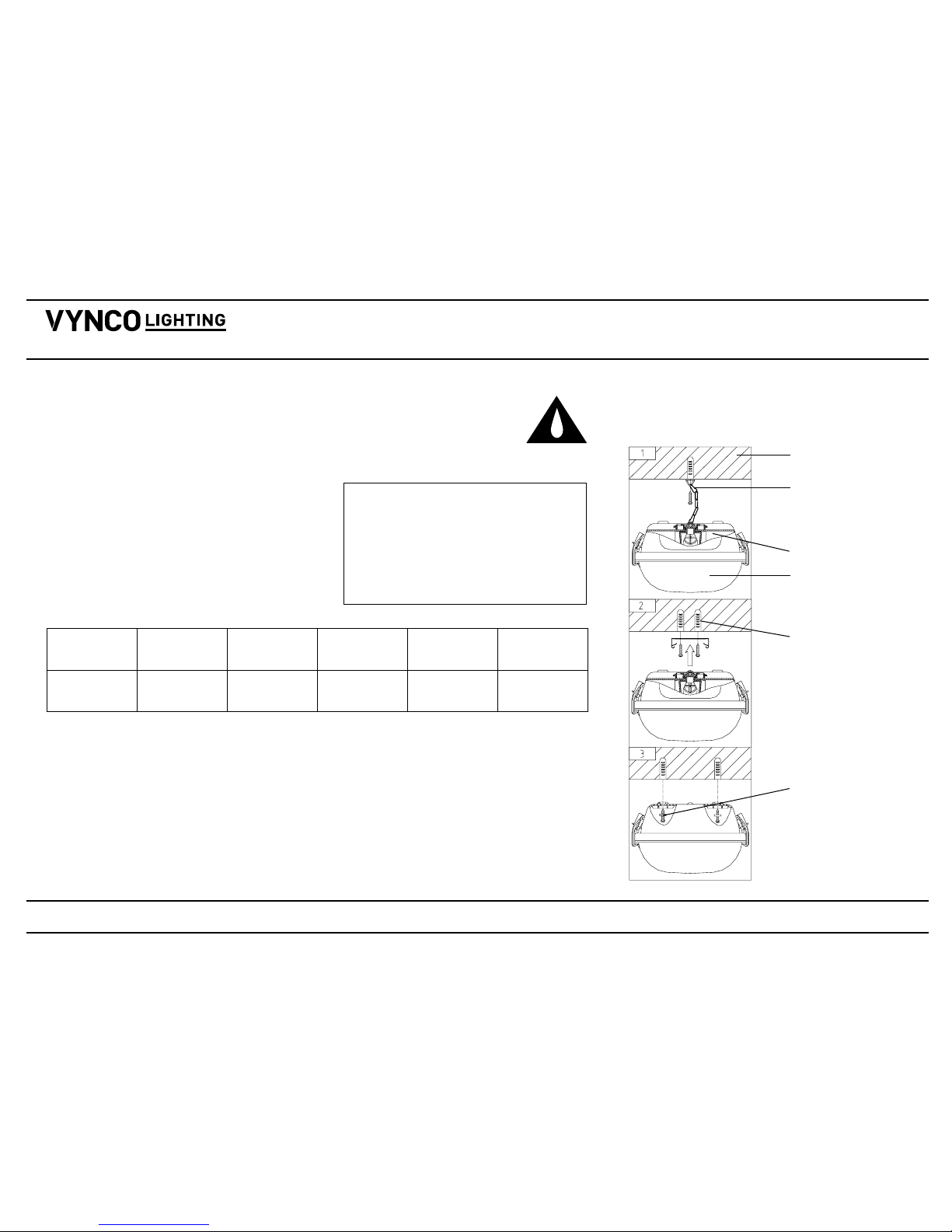

MOUNTING
CAUTION - Ensure the IP rating is maintained
when mounting on to any surface or suspending.
Ceiling (cement)
Cover
Chain (Φ2mm)
Expansion bolt (Φ6)
Rubber gasket (Φ4)
Base

SPECIFICATIONS
WIRING
SAFETY
WARRANTY
DIMENSIONS
INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED range of Weatherproof Fixtures
Vynco Industries (NZ) Ltd Phone [phone] or [phone]
www.vynco.co.nz
Suitable for ceiling or wall mounting and suspending
ABS base and Polycarbonate cover
Voltage: 220 to 240V a.c. 50Hz
Wattage: 45W
Lamp Type: Epistar LED
Luminaire Class: Class 1
Lumen Output 3600 Lm
Colour Temperature: 4000K
Degree of Protection: IP65
Suitable for indoor and outdoor applications
LED Driver Approval No: TUV16078EA
This product should be installed by a suitably qualied person in accordance
with Australian and New Zealand Wiring rules. Always disconnect the power
to the tting before opening the cover. In the case of lamp failure, disconnect
from mains supply and return to Vynco for service.
This product is covered by the standard 3 year Vynco Warranty - proof of
purchase is required. Please contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
CODE LENGTH
(mm)
WIDTH
(mm)
HEIGHT
(mm)
WEIGHT
(kg)
No. of clips
VLWLED4 1268 163 105 2.82 8
IP65
L = Live or Phase – Brown or Red
E = Earth – Green or Green/Yellow
N = Neutral – Blue or Black
MOUNTING
CAUTION - Ensure the IP rating is maintained
when mounting on to any surface or suspending.
Ceiling (cement)
Cover
Chain (Φ2mm)
Expansion bolt (Φ6)
Rubber gasket (Φ4)
Base

SPECIFICATIONS
WIRING
SAFETY
WARRANTY
DIMENSIONS
INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED4 range of Weatherproof Fixtures
Vynco Industries (NZ) Ltd Phone [phone] or [phone]
www.vynco.co.nz
Suitable for ceiling or wall mounting and suspending
ABS base and Polycarbonate cover
Voltage: 220 to 240V a.c. 50Hz
Wattage: 45W
Lamp Type: Epistar LED
Luminaire Class: Class 1
Lumen Output 3600 Lm
Colour Temperature: 4000K
Degree of Protection: IP65
Suitable for indoor and outdoor applications
LED Driver Approval No: TUV16078EA
This product should be installed by a suitably qualied person in accordance
with Australian and New Zealand Wiring rules. Always disconnect the power
to the tting before opening the cover. In the case of lamp failure, disconnect
from mains supply and return to Vynco for service.
This product is covered by the standard 3 year Vynco Warranty - proof of
purchase is required. Please contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
CODE LENGTH
(mm)
WIDTH
(mm)
HEIGHT
(mm)
WEIGHT
(kg)
No. of clips
VLWLED4 1268 163 105 2.82 8
IP65
L = Live or Phase – Brown or Red
E = Earth – Green or Green/Yellow
N = Neutral – Blue or Black
MOUNTING
CAUTION - Ensure the IP rating is maintained
when mounting on to any surface or suspending.
Ceiling (cement)
Cover
Chain (Φ2mm)
Expansion bolt (Φ6)
Rubber gasket (Φ4)
Base

INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED4 range of Weatherproof Fixtures
Vynco Industries (NZ) Ltd Phone [phone] or [phone]
www.vynco.co.nz
EMERGENCY FITTING
Run Time: 3 hours
Battery pack type: Lithium Ion 12-volt 4400mAH
Temperature range: -20°C to +40°C
Emergency light output: 30%
INSTALL PROCEDURE
For emergency tting follow the wiring diagram below.
WIRING DIAGRAM
SW A = Switched active/ Emergency controller phase
A = Live or Phase
E = Earth
N = Neutral
This tting is desitgne for permanent connection.
24 hour charging period is required before the
emergency feature can be used.
ONCE THE WIRING HAS BEEN COMPLETED,
CONNECT THE BATTERY PACK TO THE
EMERGENCY CONTROLLER.
TEST PROCEDURE
1. (A) Phase is off
2. (SW A) Phase is live
3. Remove the clear cover
4. The green LED indictor will be on
5. Press the TEST BUTTON to test the function on
the light, the light will remain on while the TEST
BUTTON is pressed and the green LED indictor will
turn off while the TEST BUTTON is pressed
Complies with AS/NZS 60598.2.22

SPECIFICATIONS
WIRING
SAFETY
WARRANTY
DIMENSIONS
INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED range of Weatherproof Fixtures
Vynco Industries (NZ) Ltd Phone [phone] or [phone]
www.vynco.co.nz
Suitable for ceiling or wall mounting and suspending
ABS base and Polycarbonate cover
Voltage: 220 to 240V a.c. 50Hz
Wattage: 64W
Lamp Type: Epistar LED
Luminaire Class: Class 1
Lumen Output 5120 Lm
Colour Temperature: 4000K
Degree of Protection: IP65
Suitable for indoor and outdoor applications
LED Driver Approval No: TUV16078EA
This product should be installed by a suitably qualied person in accordance
with Australian and New Zealand Wiring rules. Always disconnect the power
to the tting before opening the cover. In the case of lamp failure, disconnect
from mains supply and return to Vynco for service.
This product is covered by the standard 3 year Vynco Warranty - proof of
purchase is required. Please contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
CODE LENGTH
(mm)
WIDTH
(mm)
HEIGHT
(mm)
WEIGHT
(kg)
No. of clips
VLWLED5 1568 158 101 2.82 10
IP65
L = Live or Phase – Brown or Red
E = Earth – Green or Green/Yellow
N = Neutral – Blue or Black
MOUNTING
CAUTION - Ensure the IP rating is maintained
when mounting on to any surface or suspending.
Ceiling (cement)
Cover
Chain (Φ2mm)
Expansion bolt (Φ6)
Rubber gasket (Φ4)
Base

SPECIFICATIONS
WIRING (PTO FOR EMERGENCY)
SAFETY
WARRANTY
DIMENSIONS
INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED5 range of Weatherproof Fixtures
Vynco Industries (NZ) Ltd Phone [phone] or [phone]
www.vynco.co.nz
Suitable for ceiling or wall mounting and suspending
ABS base and Polycarbonate cover
Voltage: 220 to 240V a.c. 50Hz
Wattage: 64W
Lamp Type: Epistar LED
Luminaire Class: Class 1
Lumen Output 5120 Lm
Colour Temperature: 4000K/6000K
Degree of Protection: IP65
Suitable for indoor and outdoor applications
LED Driver Approval No: TUV16078EA
This product should be installed by a suitably qualied person in accordance with
Australian and New Zealand Wiring rules. Always disconnect the power to the tting
before opening the cover. In the case of lamp failure, disconnect from mains supply
and return to Vynco for service.
This product is covered by the standard 3 year Vynco Warranty - proof of purchase is
required. Please contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
CODE LENGTH
(mm)
WIDTH
(mm)
HEIGHT
(mm)
WEIGHT
(kg)
No. of clips
VLWLED5
VLWLED56 1568 158 101 2.82 10
IP65
L = Live or Phase – Brown or Red
E = Earth – Green or Green/Yellow
N = Neutral – Blue or Black
MOUNTING
CAUTION - Ensure the IP rating is maintained
when mounting on to any surface or suspending.
Ceiling (cement)
Cover
Chain (Φ2mm)
Expansion bolt (Φ6)
Rubber gasket (Φ4)
Base

INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED5 range of Weatherproof Fixtures
Vynco Industries (NZ) Ltd Phone [phone] or [phone]
www.vynco.co.nz
EMERGENCY FITTING
Run Time: 3 hours
Battery pack type: Lithium Ion 12-volt 4400mAH
Temperature range: -20°C to +40°C
Emergency light output: 30%
INSTALL PROCEDURE
For emergency tting follow the wiring diagram below.
WIRING DIAGRAM
SW A = Switched active/ Emergency controller phase
A = Live or Phase
E = Earth
N = Neutral
This tting is desitgne for permanent connection.
24 hour charging period is required before the
emergency feature can be used.
ONCE THE WIRING HAS BEEN COMPLETED,
CONNECT THE BATTERY PACK TO THE
EMERGENCY CONTROLLER.
TEST PROCEDURE
1. (A) Phase is off
2. (SW A) Phase is live
3. Remove the clear cover
4. The green LED indictor will be on
5. Press the TEST BUTTON to test the function on
the light, the light will remain on while the TEST
BUTTON is pressed and the green LED indictor will
turn off while the TEST BUTTON is pressed
Complies with AS/NZS 60598.2.22
