INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
VEF2B/W/S MAGNUM ARCHITECTURAL EXTERNAL GRILLE + FAN
• Body components made from Powdercoated Aluminum construction.
• Accepts standard150mm ducting.
• Supplied with terminal box and motor capacitor.
• Grille Cover Depth – 75 mm.
• 5 Year Warranty
• Available in:
VEF2S - Exterior Extractor Fan with Stainless Steel Grille
VEF2W - Exterior Extractor Fan with White Grille
VEF2B – Exterior Extractor Fan with Black Grille

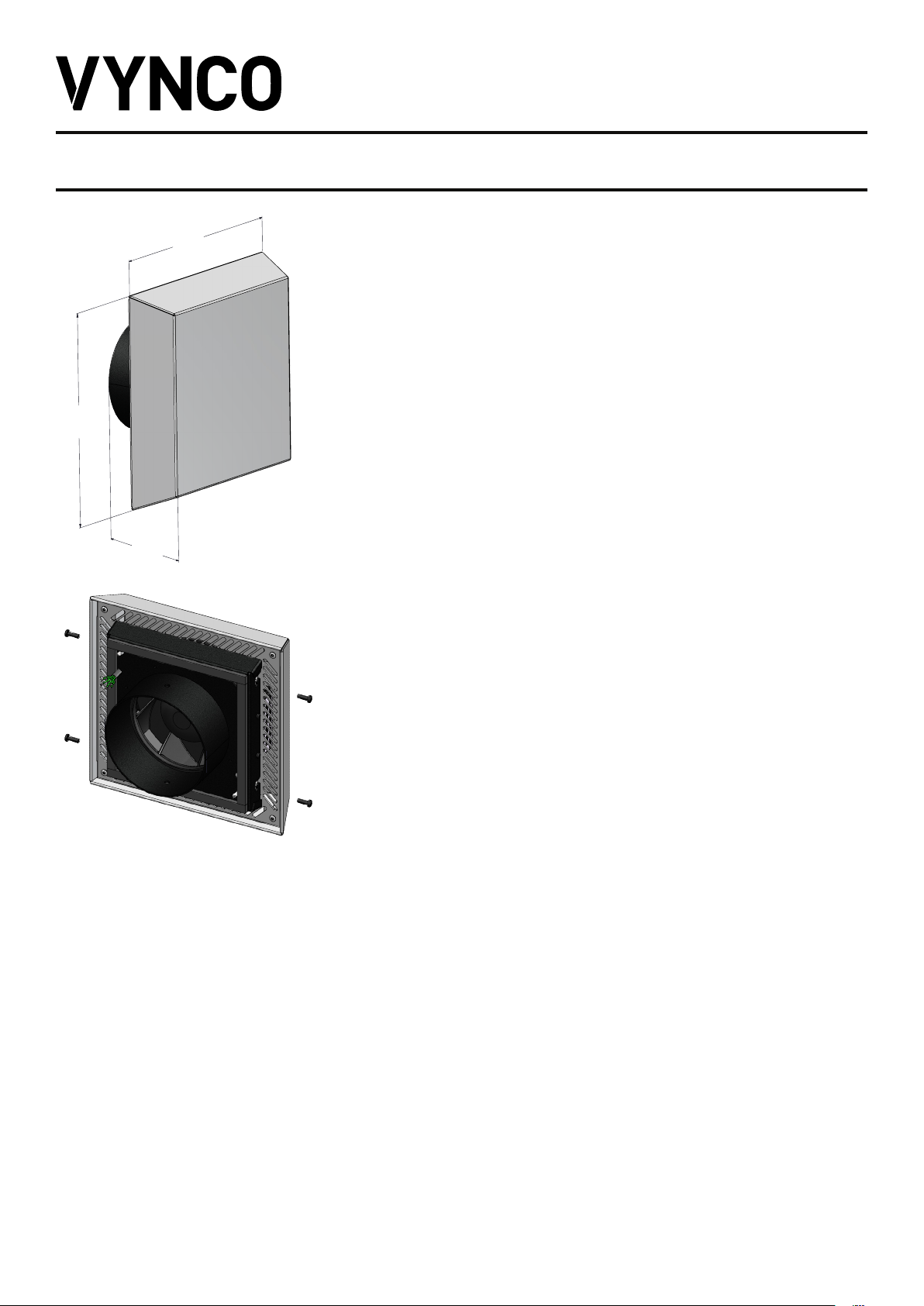

1. Loosen the 4 x M6 cover screws holding on the cover and remove the cover by
sliding it off the fan base assembly.
2. Make a hole cut-out on the mounting surface that can accommodate spigot and
electrical supply cable.
3. From the above wiring diagram, wire Fan and capacitor inside to the terminal box.
4. Securely seal the ducting to the spigot.
5. Mount the fan base assembly to the wall or soft. Ensure terminal box and duct
are placed inside the cut-out.
6. Ensure the Fan is level before tightening screws.
7. Reinstall cover to the fan base assembly by securing 4 x M6 cover screws
on both sides.
FEATURES
INSTALLATION
An exterior mounted extract fan, ideal for bathrooms, laundries and drying rooms.
Suitable for soft or side wall mounting.
145.0
287.0
287.0
Appliance Class: Class I
Voltage: 230 - 240Vac at 50/60 Hz
Power: 60W
Operating Temperature: -20° C to +70°C
Number of Blades: 7
RPM: 2490 RPM
Water Ingress: IPX4
Climate Class: T
Duct Size: 150 mm
Airow: 582 m³/h (161.7 L/s)
Air Pressure: 333.4 Pa at 50 Hz
SPECIFICATIONS
• Appliance not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of
appliance by person responsible for their safety.
• Children should be supervised to ensure they do not play with appliance.
• Ensure that the fan is switched off from supply mains before moving the guard.
• Precautions must be taken to avoid back ow of gasses into room from open ue
of gas or other fuel burning appliances (for duct and partition fans).
• If supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
SAFTEY WARNING

INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
VEF2B/W/S MAGNUM ARCHITECTURAL EXTERNAL GRILLE + FAN
WIRING DIAGRAM
MOTOR
E
L
N
CAPACITOR
(BLUE)
(YELLOW/GREEN)
(BLACK)
(BROWN)
(RED) (RED)
REVISIONS
REVISION DATE
01 03/12/2020 NEW WIRING LAYOUT CREATED TO IMPROVE INSTRUCTIONS
FINISH:
MATERIAL:
REVISION:
DESCRIPTION:
SHEET 1 OF 1
A3
SIZE
APPROVED BY:
PART No:
388 Tuam St
Christchurch
New Zealand
P: 03 379 9283
W: vynco.co.nz
UNLESS OTHERWISE STATED ALL DIMENSIONS ARE IN MILLIMETRES
ALL CRITICAL TOLERANCES SPECIFIED IN DRAWING
NON SPECIFIED TOLERANCES:
LINEAR: 0.0 ±0.5 0.00 ±0.1 ANGULAR: ±0.5°
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF VYNCO INDUSTRIES
(N.Z.) LTD. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION
OF VYNCO INDUSTRIES (N.Z.) LTD IS PROHIBITED.
DRAWN BY:
DRAWN DATE:
CHANGE BY:
CHANGE DATE:
APPROVED DATE:
- 01 DRAFT VEF2-WIRING LAYOUT
MAGNUM FAN GRILLE WIRING DIAGRAM
sangas
3/12/2020
-
-
3/12/2020
sangas
DRAWING NOT TO SCALE
