Wacker Neuson PTS 4V User manual

5000193035 05 0315
5000193035
Operator’s Manual
Pump
PTS 4V
EN

Copyright notice © Copyright 2015 by Wacker Neuson Production Americas LLC
All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the
machine. Any other type of reproduction is prohibited without express
written permission from Wacker Neuson Production Americas LLC.
Any type of reproduction or distribution not authorized by Wacker
Neuson Production Americas LLC represents an infringement of valid
copyrights. Violators will be prosecuted.
Trademarks All trademarks referenced in this manual are the property of their
respective owners.
Manufacturer Wacker Neuson Production Americas LLC
N92W15000 Anthony Avenue
Menomonee Falls, WI 53051 U.S.A.
Tel: [phone] · Fax: [phone] · Tel: [phone]
www.wackerneuson.com
Original instructions This Operator’s Manual presents the original instructions. The original
language of this Operator’s Manual is American English.

wc_tx003328gb.fm 3
PTS 4V Foreword
Foreword
SAVE THESE INSTRUCTIONS—This manual contains important instructions for
the machine models below. These instructions have been written expressly by
Wacker Neuson Production Americas LLC and must be followed during installation,
operation, and maintenance of the machines.
Machine
identification
A nameplate listing the model number, item number, revision number, and serial
number is attached to this machine. The location of the nameplate is shown above.
Serial number
(S/N)
For future reference, record the serial number in the space provided below. You will
need the serial number when requesting parts or service for this machine.
Machine
documentation
From this point forward in this documentation, Wacker Neuson Production
Americas LLC will be referred to as Wacker Neuson.
Keep a copy of the Operator’s Manual with the machine at all times.
Use the separate Parts Book supplied with the machine to order replacement
parts.
If you are missing any of these documents, please contact Wacker Neuson to
order a replacement or visit www.wackerneuson.com.
When ordering parts or requesting service information, be prepared to provide
the machine model number, item number, revision number, and serial number.
Machine Item Number
PTS 4V 0620971
PTS 4V(I) 0620972
wc_gr010879
Serial Number:

wc_tx003328gb.fm
4
Foreword PTS 4V
Expectations
for
information in
this manual
This manual provides information and procedures to safely operate and
maintain the above Wacker Neuson model(s). For your own safety and to
reduce the risk of injury, carefully read, understand, and observe all instructions
described in this manual.
Wacker Neuson expressly reserves the right to make technical modifications,
even without notice, which improve the performance or safety standards of its
machines.
The information contained in this manual is based on machines manufactured
up until the time of publication. Wacker Neuson reserves the right to change any
portion of this information without notice.
The illustrations, parts, and procedures in this manual refer to Wacker Neuson
factory-installed components. Your machine may vary depending on the
requirements of your specific region.
CALIFORNIA
Proposition
65 Warning
Combustion exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
Laws
pertaining to
spark
arresters
NOTICE: State Health Safety Codes and Public Resources Codes specify that in
certain locations spark arresters be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed to prevent accidental
discharge of sparks or flames from the engine exhaust. Spark arresters are
qualified and rated by the United States Forest Service for this purpose. In order to
comply with local laws regarding spark arresters, consult the engine distributor or
the local Health and Safety Administrator.
Manufacturer’s
approval
This manual contains references to approved parts, attachments, and
modifications. The following definitions apply:
Approved parts or attachments are those either manufactured or provided by
Wacker Neuson.
Approved modifications are those performed by an authorized Wacker
Neuson service center according to written instructions published by Wacker
Neuson.
Unapproved parts, attachments, and modifications are those that do not
meet the approved criteria.
Unapproved parts, attachments, or modifications may have the following
consequences:
Serious injury hazards to the operator and persons in the work area
Permanent damage to the machine which will not be covered under warranty
Contact your Wacker Neuson dealer immediately if you have questions about
approved or unapproved parts, attachments, or modifications.

2015-CE-PTS4V_en_FM10.fm
Manufacturer
Wacker Neuson Production Americas LLC, N92W15000 Anthony Avenue,
Menomonee Falls, Wisconsin 53051 USA
Product
Product
Product category
Product function
Item number
Net installed power
Measured sound power level
Guaranteed sound power level
PTS 4V
Centrifugal Trash Pump
To pump fluid
0620972, 0007691
11.9 kW
103 dB(A)
104 dB(A)
Conformity Assessment Procedure
According to 2000/14/EC ANNEX V
Directives and Standards
We hereby declare that this product meets and complies with the relevant regulations and
requirements of the following directives and standards:
2006/42/EC, 2000/14/EC
Authorized Person for Technical Documents
Leo Goeschka, Wacker Neuson Produktion GmbH & Co. KG, Preußenstraße 41,
80809 München
EC Declaration of Conformity
Menomonee Falls, WI, USA, 22.01.15
Dan Domanski
Technical Director
For Wacker Neuson
Travis Pound
Manager, Product Engineering
For Wacker Neuson
Keith Herr
Vice President and Managing Director
For Wacker Neuson
Original Declaration of Conformity

wc_bo5000193035_05TOC.fm 7
Table of ContentsPTS 4V
Foreword 3
EC Declaration of Conformity 5
1 Safety Information 9
1.1 Signal Words Used in this Manual ....................................................... 9
1.2 Machine Description and Intended Use ............................................. 10
1.3 Safety Guidelines for Operating the Machine ..................................... 11
1.4 Service Safety .................................................................................... 13
1.5 Operator Safety while Using Internal Combustion Engines ............... 15
2 Labels 16

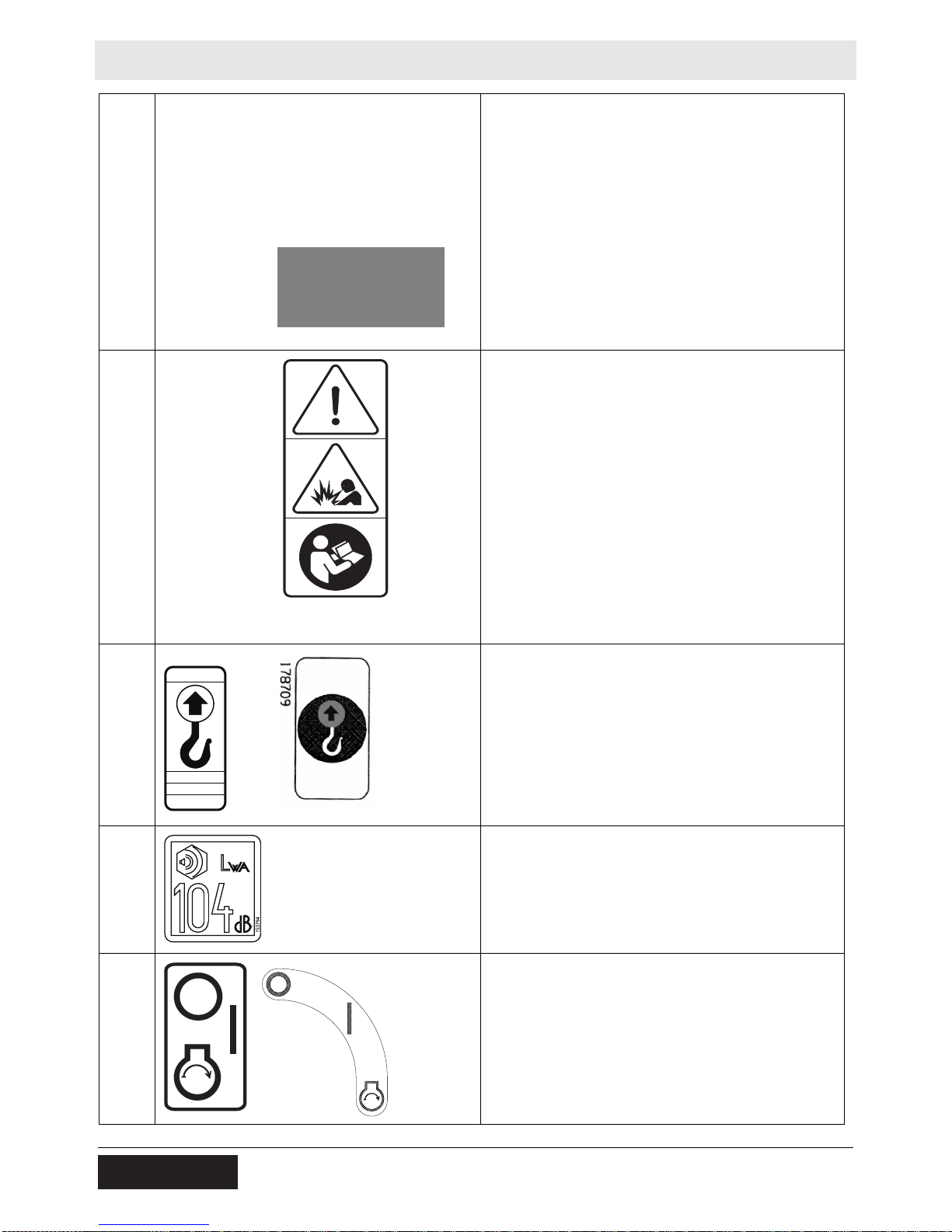

2.1 Label Locations ................................................................................. 16
2.2 Label Meanings .................................................................................. 17
3 Lifting and Transporting 20
4 Operation 21
4.1 Preparing the Machine for First Use ................................................... 21
4.2 Recommended Fuel ........................................................................... 21
4.3 Before Starting ................................................................................... 22
4.4 Starting ............................................................................................... 24
4.5 Stopping ............................................................................................. 24
4.6 Operation ............................................................................................ 26
4.7 Pump Wrench ..................................................................................... 26
4.8 Accessories ........................................................................................ 26
4.9 Hoses and Clamps ............................................................................. 27
4.10 Emergency Shutdown Procedure ....................................................... 27
5 Maintenance 28
5.1 Maintaining the Emission Control System .......................................... 28
5.2 Periodic Maintenance Schedule ......................................................... 29
5.3 Engine Oil ........................................................................................... 30
5.4 Changing the Engine Oil .................................................................... 31
5.5 Servicing the Air Cleaner .................................................................... 32
5.6 Cleaning and Checking the Spark Plug .............................................. 33
5.7 Cleaning the Muffler and Deflector ..................................................... 34
5.8 Maintaining the Fuel Filter .................................................................. 34

8 wc_bo5000193035_05TOC.fm
Table of Contents PTS 4V
5.9 Adjusting the Carburetor .....................................................................35
5.10 Changing Mechanical Seal Coolant ....................................................35
5.11 Adjusting the Impeller Clearance ........................................................36
5.12 Cleaning the Pump ..............................................................................37
5.13 Long-Term Storage .............................................................................38
6 Troubleshooting 39
7 Technical Data 40
7.1 Engine .................................................................................................40
7.2 Pump ...................................................................................................41
7.3 Sound Measurements .........................................................................41
7.4 Dimensions ..........................................................................................42
8 Emission Control Systems Information and Warranty—Gasoline 43
8.1 Emission Control System Background Information .............................43
8.2 Limited Defect Warranty for Exhaust Emission Control System .........44
8.3 Limited Defect Warranty for Wacker Neuson Evaporative
Emission Control Systems ..................................................................44
9 AEM Safety Manual 47

wc_si000770gb.fm 9
PTS 4V Safety Information
1 Safety Information
1.1 Signal Words Used in this Manual
This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE
signal words which must be followed to reduce the possibility of personal injury,
damage to the equipment, or improper service.
NOTICE: Used without the safety alert symbol, NOTICE indicates a situation
which, if not avoided, could result in property damage.
Note: A Note contains additional information important to a procedure.
This is the safety alert symbol. It is used to alert you to potential personal hazards.
fObey all safety messages that follow this symbol.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
fTo avoid death or serious injury from this type of hazard, obey all safety
messages that follow this signal word.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
fTo avoid possible death or serious injury from this type of hazard, obey all safety
messages that follow this signal word.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
fTo avoid possible minor or moderate injury from this type of hazard, obey all
safety messages that follow this signal word.

wc_si000770gb.fm
10
Safety Information PTS 4V
1.2 Machine Description and Intended Use
This machine is a centrifugal trash pump. The Wacker Neuson Trash Pump
consists of a trailer with integral fuel tank onto which are mounted a diesel engine,
and an impeller pump with ports for water suction and discharge. The engine
rotates the impeller during operation. Waste water is drawn into the pump through
the suction port and expelled through the discharge port. The operator connects
hoses to the pump and routes them so that water and solids are drained from the
work area and discharged into an appropriate location.
This machine is intended to be used for general de-watering applications. This machine
is intended for the pumping of clear water, or water containing solids up to the size
stated within the product specifications; and up to the flow, head, and suction lift limits
also stated within the product specifications.
This machine has been designed and built strictly for the intended use described
above. Using the machine for any other purpose could permanently damage the
machine or seriously injure the operator or other persons in the area. Machine
damage caused by misuse is not covered under warranty.
The following are some examples of misuse:
Pumping flammable, explosive, or corrosive fluids
Pumping hot or volatile fluids that result in pump cavitation
Operating the pump outside of product specifications due to incorrect diameter
hoses, incorrect length hoses, other inlet or outlet restrictions, or excessive
suction lift or head
Using the machine as a ladder, support, or work surface
Using the machine to carry or transport passengers or equipment
Operating the machine outside of factory specifications
Operating the machine in a manner inconsistent with all warnings found on the
machine and in the Operator’s Manual
This machine has been designed and built in accordance with the latest global
safety standards. It has been carefully engineered to eliminate hazards as far as
practicable and to increase operator safety through protective guards and labeling.
However, some risks may remain even after protective measures have been taken.
They are called residual risks. On this machine, they may include exposure to:
Heat, noise, exhaust, and carbon monoxide from the engine
Fire hazards from improper refueling techniques
Fuel and its fumes
Personal injury from improperly lifting the trailer tongue
Projectile hazard from discharge
Crushing hazards from a tipping or falling pump (placing the vibrating pump on
an uneven surface or near the edge of a trench increases the risk of the pump
falling over)
Typical hazards related to towing a trailer on roads and highways
To protect yourself and others, make sure you thoroughly read and understand the
safety information presented in this manual before operating the machine.

wc_si000770gb.fm 11
PTS 4V Safety Information
1.3 Safety Guidelines for Operating the Machine
Operator
training
Before operating the machine:
Read and understand the operating instructions contained in all manuals
delivered with the machine.
Familiarize yourself with the location and proper use of all controls and safety
devices.
Contact Wacker Neuson for additional training if necessary.
When operating this machine:
Do not allow improperly trained people to operate the machine. People
operating the machine must be familiar with the potential risks and hazards
associated with it.
Operator
qualifications
Only trained personnel are permitted to start, operate, and shut down the machine.
They also must meet the following qualifications:
have received instruction on how to properly use the machine
are familiar with required safety devices
The machine must not be accessed or operated by:
children
people impaired by alcohol or drugs
Application
area
Be aware of the application area.
Keep unauthorized personnel, children, and pets away from the machine.
Remain aware of changing positions and the movement of other equipment and
personnel in the application area/job site.
Identify whether special hazards exist in the application area, such as toxic
gases, or unstable ground conditions, and take appropriate action to eliminate
the special hazards before using the machine.
Be aware of the application area.
Do not operate the machine in areas that contain flammable objects, fuels, or
products that produce flammable vapors.
Safety
devices,
controls, and
attachments
Only operate the machine when:
All safety devices and guards are in place and in working order.
All controls operate correctly.
The machine is set up correctly according to the instructions in the Operator’s
Manual.
The machine is clean.
The machine’s labels are legible.
To ensure safe operation of the machine:
Do not operate the machine if any safety devices or guards are missing or
inoperative.
Do not modify or defeat the safety devices.
Only use accessories or attachments that are approved by Wacker Neuson.

wc_si000770gb.fm
12
Safety Information PTS 4V
Safe
operating
practices
When operating this machine:
Remain aware of the machine’s moving parts. Keep hands, feet, and loose
clothing away from the machine’s moving parts.
When operating this machine:
Do not operate a machine in need of repair.
Personal
Protective
Equipment
(PPE)
Wear the following Personal Protective Equipment (PPE) while operating this
machine:
Close-fitting work clothes that do not hinder movement
Safety glasses with side shields
Hearing protection
Safety-toed footwear
Safe
operating
practices
Do not open the priming plug when the pump is hot. Do not loosen or remove
inlet or discharge hose fittings when the pump is hot. Hot water inside could be
pressurized much like the radiator on an automobile. Allow the pump to cool to
the touch before loosening the plug and before loosening or removing the inlet
or discharge hose fittings.
Do not position the pump on a loose, uneven, or unstable surface where it can
tip, roll, slide or fall! The pump must be secure before operating. Position the
pump on a firm, flat surface; adjust the trailer jacks to be sure the pump is level
and supported firmly.
Do not open the pump housing cover while the pump is operating or start the
pump with the cover off. The rotating impeller inside the pump can cut or sever
objects caught in it.
Do not block or restrict flow from the inlet line or the discharge line. Remove
kinks from the discharge line before starting the pump. Operation with a blocked
inlet line or discharge line can cause water inside the pump to overheat.
Do not reach into or insert anything into the pump while the engine is on! The
impeller inside the pump housing is turning at all times while the engine is
running.
Do not allow anyone to stand in front of the discharge port when starting the
engine or while priming the pump! The sudden out-rush of water could push or
knock a person down.
Always make sure the hose connections on the pump are tight. A loose
connection could cause water to spray or result in a hose falling off the pump
while it is in operation.
Always make sure the water stream from the pump discharge is not directed in
such a way so as to cause erosion to the surrounding ground or damage or
weakening of nearby structures!

wc_si000770gb.fm 13
PTS 4V Safety Information
1.4 Service Safety
Service
training
Before servicing or maintaining the machine:
Read and understand the instructions contained in all manuals delivered with
the machine.
Familiarize yourself with the location and proper use of all controls and safety
devices.
Only trained personnel shall troubleshoot or repair problems occurring with the
machine.
Contact Wacker Neuson for additional training if necessary.
When servicing or maintaining this machine:
Do not allow improperly trained people to service or maintain the machine.
Personnel servicing or maintaining the machine must be familiar with the
associated potential risks and hazards.
Precautions Follow the precautions below when servicing or maintaining the machine.
Read and understand the service procedures before performing any service to
the machine.
All adjustments and repairs must be completed before operation. Do not
operate the machine with a known problem or deficiency.
All repairs and adjustments shall be completed by a qualified technician.
Turn off the machine before performing maintenance or making repairs.
Machine
modifications
When servicing or maintaining the machine:
Use only accessories/attachments that are approved by Wacker Neuson.
When servicing or maintaining the machine:
Do not defeat safety devices.
Do not modify the machine without the express written approval of Wacker
Neuson.
Replacing
parts and
labels
Replace worn or damaged components.
Replace all missing and hard-to-read labels.
When replacing electrical components, use components that are identical in
rating and performance to the original components.
When replacement parts are required for this machine, use only Wacker
Neuson replacement parts or those parts equivalent to the original in all types of
specifications, such as physical dimensions, type, strength, and material.
Cleaning When cleaning and servicing the machine:
Keep the machine clean and free of debris such as leaves, paper, cartons, etc.
Keep the labels legible.
When cleaning the machine:
Do not clean the machine while it is running.
Never use gasoline or other types of fuels or flammable solvents to clean the
machine. Fumes from fuels and solvents can become explosive.

wc_si000770gb.fm
14
Safety Information PTS 4V
Personal
Protective
Equipment
(PPE)
Wear the following Personal Protective Equipment (PPE) while servicing or
maintaining this machine:
Close-fitting work clothes that do not hinder movement
Safety glasses with side shields
Hearing protection
Safety-toed footwear
In addition, before servicing or maintaining the machine:
Tie back long hair.
Remove all jewelry (including rings).
After Use Stop the engine when the machine is not being operated.
Close the fuel valve on engines equipped with one when machine is not being
operated.
Ensure that the machine will not tip over, roll, slide, or fall when not being
operated.
Store the machine properly when it is not being used. The machine should be
stored in a clean, dry location out of the reach of children.

wc_si000770gb.fm 15
PTS 4V Safety Information
1.5 Operator Safety while Using Internal Combustion Engines
Operating
safety
When running the engine:
Keep the area around exhaust pipe free of flammable materials.
Check the fuel lines and the fuel tank for leaks and cracks before starting the
engine. Do not run the machine if fuel leaks are present or the fuel lines are
loose.
When running the engine:
Do not smoke while operating the machine.
Do not run the engine near sparks or open flames.
Do not touch the engine or muffler while the engine is running or immediately
after it has been turned off.
Do not operate a machine when its fuel cap is loose or missing.
Do not start the engine if fuel has spilled or a fuel odor is present. Move the
machine away from the spill and wipe the machine dry before starting.
Refueling
safety
When refueling the engine:
Clean up any spilled fuel immediately.
Refill the fuel tank in a well-ventilated area.
Re-install the fuel tank cap after refueling.
Use suitable tools for refueling (for example, a fuel hose or funnel).
When refueling the engine:
Do not smoke.
Do not refuel a hot or running engine.
Do not refuel the engine near sparks or open flames.
WARNING
Internal combustion engines present special hazards during operation and fueling.
Failure to follow the warnings and safety standards could result in severe injury or
death.
fRead and follow the warning instructions in the engine owner’s manual and the
safety guidelines below.
DANGER
Exhaust gas from the engine contains carbon monoxide, a deadly poison.
Exposure to carbon monoxide can kill you in minutes.
fNEVER operate the machine inside an enclosed area, such as a tunnel, unless
adequate ventilation is provided through such items as exhaust fans or hoses.

wc_si000771gb.fm
16
Labels PTS 4V
2 Labels
2.1 Label Locations
wc_gr010881
D
E
F
G
H
J
KM
N
O
A
B
C
D
C

wc_si000771gb.fm 17
PTS 4V Labels
2.2 Label Meanings
ADANGER
Asphyxiation hazard.
Engines emit carbon monoxide.
Do not run the machine indoors or in an
enclosed area.
NEVER use inside a home or garage, EVEN IF
doors and windows are open.
Only use OUTSIDE and far away from windows,
doors, and vents.
Read the Operator’s Manual.
No sparks, flames, or burning objects near the
machine.
Stop the engine before refueling.
BWARNING
Hot surface
CCAUTION
Read and understand the supplied Operator’s
Manual before operating this machine. Failure to
do so increases the risk of injury to yourself and
others.

wc_si000771gb.fm
18
Labels PTS 4V
DWARNING
Do not open if pump is hot. Hot water and/or
steam inside could be pressurized.
EWARNING
Never pump volatile, flammable, or low-flash-point
fluids. These fluids could ignite or explode.
FNOTICE
Lifting point
GGuaranteed sound power level in db(A)
HKey switch:
off
on
start
178764
178764
HINWEIS
HINWEIS
111418
111418
AVISO
AVISO
AVIS
AVIS
NOTICE
NOTICE

wc_si000771gb.fm 19
PTS 4V Labels
JThrottle control lever:
Turtle = Idle or Slow
Rabbit = Full or Fast
KThis machine may be covered by one or more
patents.
MWARNING
Operation of this equipment may create sparks
that can start fires around dry vegetation. A spark
arrester may be required. The operator should
contact local fire agencies for laws or regulations
relating to fire prevention requirements.
NCertified Performance
Contractors Pump Bureau
A Bureau of AEM
The manufacturer of this pump certifies that it was
manufactured in accordance with the standards of
the Contractors Pump Bureau.
OEmission Control Information
This equipment meets U.S. EPA EVAP standards.
Evaporative Family: CW1XNHEQCL2
Exempt from tank permeation standards under 40
CFR 1054.145.
UTILITY 159116
UTILITY 159116
U.S.PAT.Nos.: 6012285, 6471476,
U.S.PAT.Nos.: 6012285, 6471476,
D416858, D454357 OTHER U.S. AND
D416858, D454357 OTHER U.S. AND
FOREIGN PATENTS PENDING
FOREIGN PATENTS PENDING
WARNING
Operation of This Equipment May Create Sparks That Can Start Fires Around Dry
Vegetation. A Spark Arrestor May be Required. The Operator Should Contact Local
Fire Agencies For Laws or Regulations Relating to Fire Prevention Requirements.
Per CAL. PRC. CODE

wc_tx003329gb.fm
20
Lifting and Transporting PTS 4V
3 Lifting and Transporting
Lifting the
machine
Do not attempt to lift the pump unassisted. Use appropriate lifting equipment
such as slings, chains, hooks, ramps, or jacks.
Make sure lifting equipment is attached securely and has enough weight-
bearing capacity to lift or hold the pump safely.
Remain aware of the location of other people nearby when lifting the pump.
To lift the pump, attach a hook, harness, or cable through the lifting eye.
Transporting the
machine
Observe the following guidelines when transporting the pump to and from the
job site.
Drain the fuel tank before transporting the pump.
Ensure that the pump is securely strapped down in the transport vehicle to
prevent it from sliding or tipping.
Do not refuel the pump in or on the transport vehicle. Move the pump to its
operating location and then fill the fuel tank.
WARNING
Personal injury hazard. This pump is heavy enough to cause injury if proper lifting
techniques are not used.
fObserve the guidelines below when lifting the pump.
189
111891
wc_gr010882
