Wacker Neuson PG1 User manual

Operator’s Manual
Pump
PG1
5200025395 01 0115
5200025395
EN

Copyright
notice
© Copyright 2014 by Wacker Neuson Production Americas LLC
All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the machine. Any
other type of reproduction is prohibited without express written permission from
Wacker Neuson Production Americas LLC.
Any type of reproduction or distribution not authorized by Wacker Neuson Production
Americas LLC represents an infringement of valid copyrights. Violators will be
prosecuted.
Trademarks All trademarks referenced in this manual are the property of their respective owners.
Manufacturer Wacker Neuson Production Americas LLC
N92W15000 Anthony Avenue
Menomonee Falls, WI 53051 U.S.A.
Tel: [phone] · Fax: [phone] · Tel: [phone]
www.wackerneuson.com
Original
instructions
This Operator’s Manual presents the original instructions. The original language of this
Operator’s Manual is American English.

PG1 Foreword
wc_tx003929gb_FM10.fm 3
Foreword
SAVE THESE INSTRUCTIONS—This manual contains important instructions for
the machine models below. These instructions have been written expressly by
Wacker Neuson Production Americas LLC and must be followed during installation,
operation, and maintenance of the machines.
Machine
identification

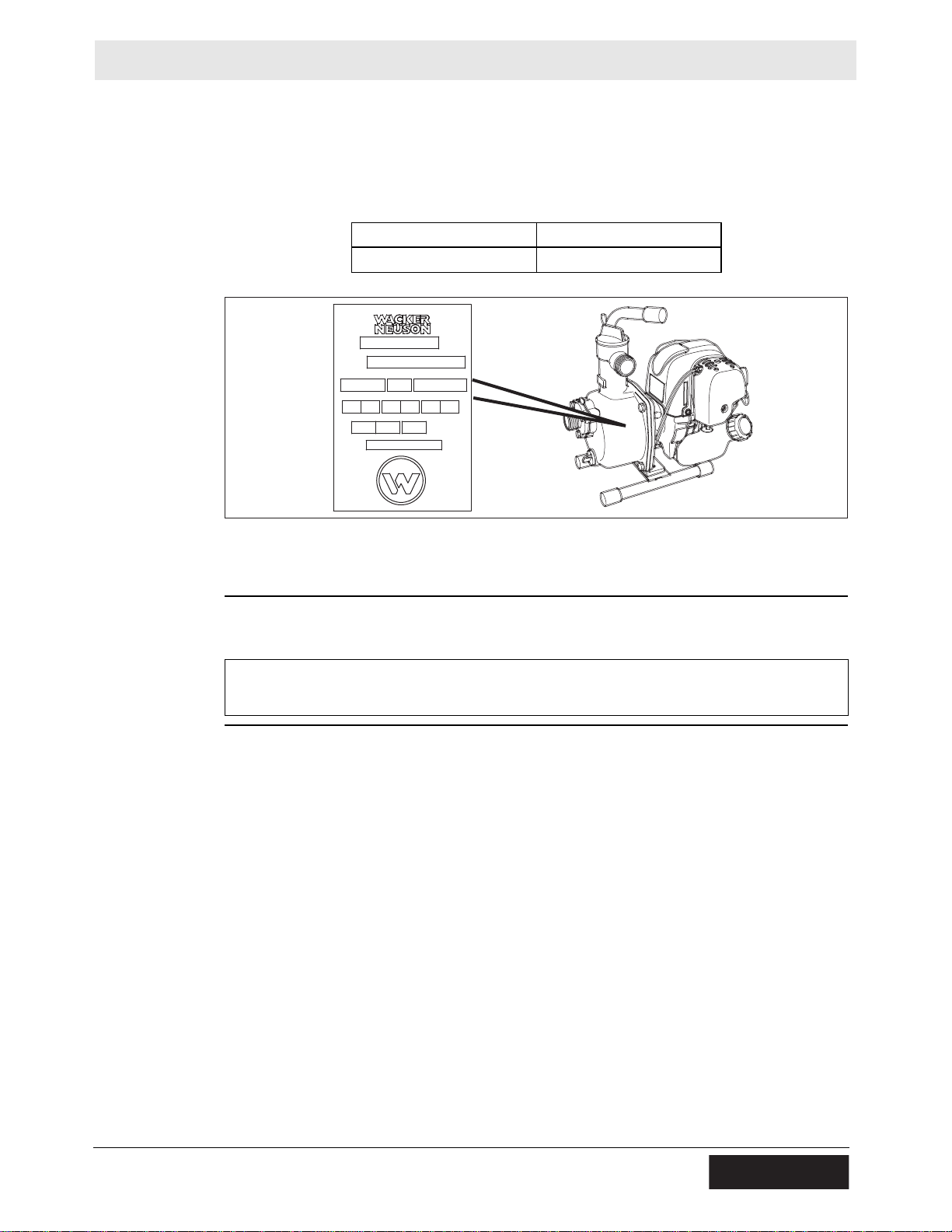

A nameplate listing the model number, item number, revision number, and serial
number is attached to this machine. The location of the nameplate is shown above.
Serial number
(S/N)
For future reference, record the serial number in the space provided below. You will
need the serial number when requesting parts or service for this machine.
Machine
documentation
From this point forward in this documentation, Wacker Neuson Production
Americas LLC will be referred to as Wacker Neuson.
Keep a copy of the Operator’s Manual with the machine at all times.
Use the separate Parts Book supplied with the machine to order replacement
parts.
If you are missing any of these documents, please contact Wacker Neuson to
order a replacement or visit www.wackerneuson.com.
When ordering parts or requesting service information, be prepared to provide
the machine model number, item number, revision number, and serial number.
Machine Item Number
PG1 5200019694
wc_gr012532
Rev.Rev.
kgkg
gpmgpm
lbslbs
hphp
kWkW
m3/hrm3/hr
Type/ModelType/Model
Item NumberItem Number
m
l/min(rpm)l/min(rpm)
Serial NumberSerial Number
ft.ft.
Serial Number:

Foreword PG1
4 wc_tx003929gb_FM10.fm
Expectations
for
information in
this manual
This manual provides information and procedures to safely operate and
maintain the above Wacker Neuson model(s). For your own safety and to
reduce the risk of injury, carefully read, understand, and observe all instructions
described in this manual.
Wacker Neuson expressly reserves the right to make technical modifications,
even without notice, which improve the performance or safety standards of its
machines.
The information contained in this manual is based on machines manufactured
up until the time of publication. Wacker Neuson reserves the right to change
any portion of this information without notice.
The illustrations, parts, and procedures in this manual refer to Wacker Neuson
factory-installed components. Your machine may vary depending on the
requirements of your specific region.
CALIFORNIA
Proposition
65 Warning
Engine exhaust, some of its constituents, and certain vehicle components contain
or emit chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Laws
pertaining to
spark
arresters
NOTICE: State Health Safety Codes and Public Resources Codes specify that in
certain locations spark arresters be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed to prevent accidental
discharge of sparks or flames from the engine exhaust. Spark arresters are
qualified and rated by the United States Forest Service for this purpose. In order to
comply with local laws regarding spark arresters, consult the engine distributor or
the local Health and Safety Administrator.
Manufacturer’s
approval
This manual contains references to approved parts, attachments, and
modifications. The following definitions apply:
Approved parts or attachments are those either manufactured or provided by
Wacker Neuson.
Approved modifications are those performed by an authorized Wacker
Neuson service center according to written instructions published by Wacker
Neuson.
Unapproved parts, attachments, and modifications are those that do not
meet the approved criteria.
Unapproved parts, attachments, or modifications may have the following
consequences:
Serious injury hazards to the operator and persons in the work area
Permanent damage to the machine which will not be covered under warranty
Contact your Wacker Neuson dealer immediately if you have questions about
approved or unapproved parts, attachments, or modifications.

Table of Contents
PG1
wc_bo5200025395_01_FM10TOC.fm 5
Foreword 3
1 Safety Information 7
1.1 Signal Words Used in this Manual ....................................................... 7
1.2 Machine Description and Intended Use ............................................... 8
1.3 Safety Guidelines for Operating the Machine ....................................... 9
1.4 Service Safety .................................................................................... 11
1.5 Operator Safety while Using Internal Combustion Engines ............... 13
2 Labels 14
2.1 Label Locations .................................................................................. 14
2.2 Label Meanings .................................................................................. 14
3 Operation 15
3.1 Preparing the Machine for First Use ................................................... 15
3.2 Machine Components ...................................................................... 16
3.3 Machine Components Descriptions .................................................... 16
3.4 Recommended Fuel ........................................................................... 17
3.5 Refueling the Machine ........................................................................ 18
3.6 Positioning and Preparing the Machine for Operation ........................ 19
3.7 Before Starting ................................................................................... 20
3.8 Starting, Operating, and Stopping the Machine ................................. 21
3.9 Emergency Shutdown Procedure ....................................................... 23
4 General Maintenance 24
4.1 Maintaining the Emission Control System .......................................... 24
4.2 Machine Disposal / Decommissioning ................................................ 24
5 Engine Maintenance: Subaru/Robin EH025 25
6 Troubleshooting 27

Table of Contents PG1
wc_bo5200025395_01_FM10TOC.fm
6
7 Technical Data 28
7.1 Engine .................................................................................................28
7.2 Pump ...................................................................................................28
7.3 Dimensions ..........................................................................................29
8 AEM Safety Manual 31

wc_si000920gb_FM10.fm 7
PG1 Safety Information
1 Safety Information
1.1 Signal Words Used in this Manual
This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE
signal words which must be followed to reduce the possibility of personal injury,
damage to the equipment, or improper service.
NOTICE: Used without the safety alert symbol, NOTICE indicates a situation
which, if not avoided, could result in property damage.
Note: A Note contains additional information important to a procedure.
This is the safety alert symbol. It is used to alert you to potential personal hazards.
►Obey all safety messages that follow this symbol.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
►To avoid death or serious injury from this type of hazard, obey all safety mes-
sages that follow this signal word.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
►To avoid possible death or serious injury from this type of hazard, obey all safety
messages that follow this signal word.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
►To avoid possible minor or moderate injury from this type of hazard, obey all
safety messages that follow this signal word.

wc_si000920gb_FM10.fm
8
Safety Information PG1
1.2 Machine Description and Intended Use
This machine is a centrifugal de-watering pump. The Wacker Neuson Pump
consists of a gasoline engine, handle, frame, and an impeller with ports for water
suction and discharge. The engine rotates the impeller during operation. Water is
drawn into the pump through the suction port and expelled through the discharge
port. The operator connects hoses to the pump and routes them so that water is
drained from the work area and discharged into an appropriate location.
This machine is intended to be used for general de-watering applications. This machine
is intended for the pumping of clear water up to the flow, head, and suction lift limits also
stated within the product specifications.
This machine has been designed and built strictly for the intended use described
above. Using the machine for any other purpose could permanently damage the
machine or seriously injure the operator or other persons in the area. Machine
damage caused by misuse is not covered under warranty.
The following are some examples of misuse:
■Pumping flammable, explosive, or corrosive fluids
■Pumping water containing solids
■Pumping hot or volatile fluids that result in pump cavitation
■Operating the pump outside of product specifications due to incorrect diameter
hoses, incorrect length hoses, other inlet or outlet restrictions, or excessive
suction lift or head
■Operating the machine outside of factory specifications
■Operating the machine in a manner inconsistent with all warnings found on the
machine and in the Operator’s Manual
This machine has been designed and built in accordance with the latest global
safety standards. It has been carefully engineered to eliminate hazards as far as
practicable and to increase operator safety through protective guards and labeling.
However, some risks may remain even after protective measures have been taken.
They are called residual risks. On this machine, they may include exposure to:
■Heat, noise, exhaust, and carbon monoxide from the engine
■Fire hazards from improper refueling techniques
■Fuel and its fumes
■Projectile hazard from discharge
To protect yourself and others, make sure you thoroughly read and understand the
safety information presented in this manual before operating the machine.

wc_si000920gb_FM10.fm 9
PG1 Safety Information
1.3 Safety Guidelines for Operating the Machine
Operator
training
Before operating the machine:
■Read and understand the operating instructions contained in all manuals
delivered with the machine.
■Familiarize yourself with the location and proper use of all controls and safety
devices.
■Contact Wacker Neuson for additional training if necessary.
When operating this machine:
■Do not allow improperly trained people to operate the machine. People
operating the machine must be familiar with the potential risks and hazards
associated with it.
Operator
qualifications
Only trained personnel are permitted to start, operate, and shut down the machine.
They also must meet the following qualifications:
■have received instruction on how to properly use the machine
■are familiar with required safety devices
The machine must not be accessed or operated by:
■children
■people impaired by alcohol or drugs
Application
area
Be aware of the application area.
■Keep unauthorized personnel, children, and pets away from the machine.
■Remain aware of changing positions and the movement of other equipment and
personnel in the application area/job site.
■Identify whether special hazards exist in the application area, such as toxic
gases, or unstable ground conditions, and take appropriate action to eliminate
the special hazards before using the machine.
Be aware of the application area.
■Do not operate the machine in areas that contain flammable objects, fuels, or
products that produce flammable vapors.
Safety
devices,
controls, and
attachments
Only operate the machine when:
■All safety devices and guards are in place and in working order.
■All controls operate correctly.
■The machine is set up correctly according to the instructions in the Operator’s
Manual.
■The machine is clean.
■The machine’s labels are legible.
To ensure safe operation of the machine:
■Do not operate the machine if any safety devices or guards are missing or
inoperative.
■Do not modify or defeat the safety devices.
■Only use accessories or attachments that are approved by Wacker Neuson.

wc_si000920gb_FM10.fm
10
Safety Information PG1
Safe
operating
practices
When operating this machine:
■Remain aware of the machine’s moving parts. Keep hands, feet, and loose
clothing away from the machine’s moving parts.
When operating this machine:
■Do not operate a machine in need of repair.
Personal
Protective
Equipment
(PPE)
Wear the following Personal Protective Equipment (PPE) while operating this
machine:
■Close-fitting work clothes that do not hinder movement
■Safety glasses with side shields
■Hearing protection
■Safety-toed footwear
Safe
operating
practices
■Do not open the priming plug when the pump is hot. Do not loosen or remove
inlet or discharge hose fittings when the pump is hot. Hot water inside could be
pressurized much like the radiator on an automobile. Allow the pump to cool to
the touch before loosening the plug and before loosening or removing the inlet
or discharge hose fittings.
■Do not position the pump on a loose, uneven, or unstable surface where it can
tip, roll, slide or fall! The pump must be secure before operating. Position the
pump on a firm, flat surface.
■Do not open the pump housing cover while the pump is operating or start the
pump with the cover off. The rotating impeller inside the pump can cut or sever
objects caught in it.
■Do not block or restrict flow from the inlet line or the discharge line. Remove
kinks from the discharge line before starting the pump. Operation with a blocked
inlet line or discharge line can cause water inside the pump to overheat.
■Do not reach into or insert anything into the pump while the engine is on! The
impeller inside the pump housing is turning at all times while the engine is
running.
■Do not allow anyone to stand in front of the discharge port when starting the
engine or while priming the pump.
■Always make sure the hose connections on the pump are tight. A loose
connection could cause water to spray or result in a hose falling off the pump
while it is in operation.
■Always make sure the water stream from the pump discharge is not directed in
such a way so as to cause erosion to the surrounding ground or damage or
weakening of nearby structures.

wc_si000920gb_FM10.fm 11
PG1 Safety Information
1.4 Service Safety
Service
training
Before servicing or maintaining the machine:
■Read and understand the instructions contained in all manuals delivered with
the machine.
■Familiarize yourself with the location and proper use of all controls and safety
devices.
■Only trained personnel shall troubleshoot or repair problems occurring with the
machine.
■Contact Wacker Neuson for additional training if necessary.
When servicing or maintaining this machine:
■Do not allow improperly trained people to service or maintain the machine.
Personnel servicing or maintaining the machine must be familiar with the
associated potential risks and hazards.
Precautions Follow the precautions below when servicing or maintaining the machine.
■Read and understand the service procedures before performing any service to
the machine.
■All adjustments and repairs must be completed before operating the machine.
Do not operate the machine with a known problem or deficiency.
■All repairs and adjustments shall be completed by a qualified technician.
■Turn off the machine before performing maintenance or making repairs.
■Remain aware of the machine’s moving parts. Keep hands, feet, and loose
clothing away from the machine’s moving parts.
■Re-install the safety devices and guards after repair and maintenance
procedures are complete.
Machine
modifications
When servicing or maintaining the machine:
■Use only accessories/attachments that are approved by Wacker Neuson.
When servicing or maintaining the machine:
■Do not defeat safety devices.
■Do not modify the machine without the express written approval of Wacker
Neuson.
Replacing
parts and
labels
■Replace worn or damaged components.
■Replace all missing and hard-to-read labels.
■When replacing electrical components, use components that are identical in
rating and performance to the original components.
■When replacement parts are required for this machine, use only Wacker
Neuson replacement parts or those parts equivalent to the original in all types of
specifications, such as physical dimensions, type, strength, and material.

wc_si000920gb_FM10.fm
12
Safety Information PG1
Cleaning When cleaning and servicing the machine:
■Keep the machine clean and free of debris such as leaves, paper, cartons, etc.
■Keep the labels legible.
When cleaning the machine:
■Do not clean the machine while it is running.
■Never use gasoline or other types of fuels or flammable solvents to clean the
machine. Fumes from fuels and solvents can become explosive.
Personal
Protective
Equipment
(PPE)
Wear the following Personal Protective Equipment (PPE) while servicing or
maintaining this machine:
■Close-fitting work clothes that do not hinder movement
■Safety glasses with side shields
■Hearing protection
■Safety-toed footwear
In addition, before servicing or maintaining the machine:
■Tie back long hair.
■Remove all jewelry (including rings).
After use ■Stop the engine when the machine is not being operated.
■Close the fuel valve on engines equipped with one when the machine is not
being operated.
■Ensure that the machine will not tip over, roll, slide, or fall when not being
operated.
■Store the machine properly when it is not being used. The machine should be
stored in a clean, dry location out of the reach of children.

wc_si000920gb_FM10.fm 13
PG1 Safety Information
1.5 Operator Safety while Using Internal Combustion Engines
Operating
safety
When running the engine:
■Keep the area around exhaust pipe free of flammable materials.
■Check the fuel lines and the fuel tank for leaks and cracks before starting the
engine. Do not run the machine if fuel leaks are present or the fuel lines are
loose.
When running the engine:
■Do not smoke while operating the machine.
■Do not run the engine near sparks or open flames.
■Do not touch the engine or muffler while the engine is running or immediately
after it has been turned off.
■Do not operate a machine when its fuel cap is loose or missing.
■Do not start the engine if fuel has spilled or a fuel odor is present. Move the
machine away from the spill and wipe the machine dry before starting.
Refueling
safety
When refueling the engine:
■Clean up any spilled fuel immediately.
■Refill the fuel tank in a well-ventilated area.
■Re-install the fuel tank cap after refueling.
■Use suitable tools for refueling (for example, a fuel hose or funnel).
When refueling the engine:
■Do not smoke.
■Do not refuel a hot or running engine.
■Do not refuel the engine near sparks or open flames.
WARNING
Internal combustion engines present special hazards during operation and fueling.
Failure to follow the warnings and safety standards could result in severe injury or
death.
►Read and follow the warning instructions in the engine owner’s manual and the
safety guidelines below.
DANGER
Exhaust gas from the engine contains carbon monoxide, a deadly poison.
Exposure to carbon monoxide can kill you in minutes.
►NEVER operate the machine inside an enclosed area, such as a tunnel, unless
adequate ventilation is provided through such items as exhaust fans or hoses.

wc_si000921gb_FM10.fm
14
Labels PG1
2 Labels
2.1 Label Locations
2.2 Label Meanings
wc_gr012512
A
A
Danger
Asphyxiation hazard. Engines emit carbon
monoxide. Do not run the machine indoors or in
an enclosed area.
Warning
Hot surface

wc_tx003931gb_FM10.fm 15
PG1 Operation
3 Operation
3.1 Preparing the Machine for First Use
1. Make sure all loose packaging materials have been removed from the machine.
2. Check the machine and its components for damage. If there is visible damage,
do not operate the machine! Contact your Wacker Neuson dealer immediately
for assistance.
3. Take inventory of all items included with the machine and verify that all loose
components and fasteners are accounted for.
4. Attach component parts not already attached.
5. Add fluids as needed and applicable, such as fuel and engine oil.
6. Move the machine to its operating location.

wc_tx003931gb_FM10.fm
16
Operation PG1
3.2 Machine Components
3.3 Machine Components Descriptions
a
b
c
d
e
f
g
h
j
k
Ref. Description Ref. Description
aHandle fPrimer button
bPriming plug gThrottle lever
cDischarge port hStop switch
dSuction port jStarter grip
eDrain plug kChoke lever

wc_tx003931gb_FM10.fm 17
PG1 Operation
3.4 Recommended Fuel
This engine is certified to operate on automotive unleaded gasoline. Use only
fresh, clean gasoline. Gasoline containing water or dirt will damage fuel system.
Use of
oxygenated
fuels
Some conventional gasolines are blended with alcohol. These gasolines are
collectively referred to as oxygenated fuels. If you use an oxygenated fuel, be sure
it is unleaded and meets the minimum octane rating requirement.
Before using an oxygenated fuel, confirm the fuel’s contents. Some states and
provinces require this information to be posted on the fuel pump.
The following is the Wacker Neuson approved percentage of oxygenates:
ETHANOL - (ethyl or grain alcohol) 10% by volume. You may use gasoline
containing up to 10% ethanol by volume (commonly referred to as E10). Gasoline
containing more than 10% ethanol (such as E15, E20, or E85) may not be used
because it could damage the engine.
If you notice any undesirable operating symptoms, try another service station, or
switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use of an
oxygenated fuel containing more than the percentages of oxygenates mentioned
above are not covered under warranty.

wc_tx003931gb_FM10.fm
18
Operation PG1
3.5 Refueling the Machine
Requirements ■Machine shut down
■Engine cool
■Machine/fuel tank level with the ground
■Fresh, clean fuel supply
Procedure Perform the procedure below to refuel the machine.

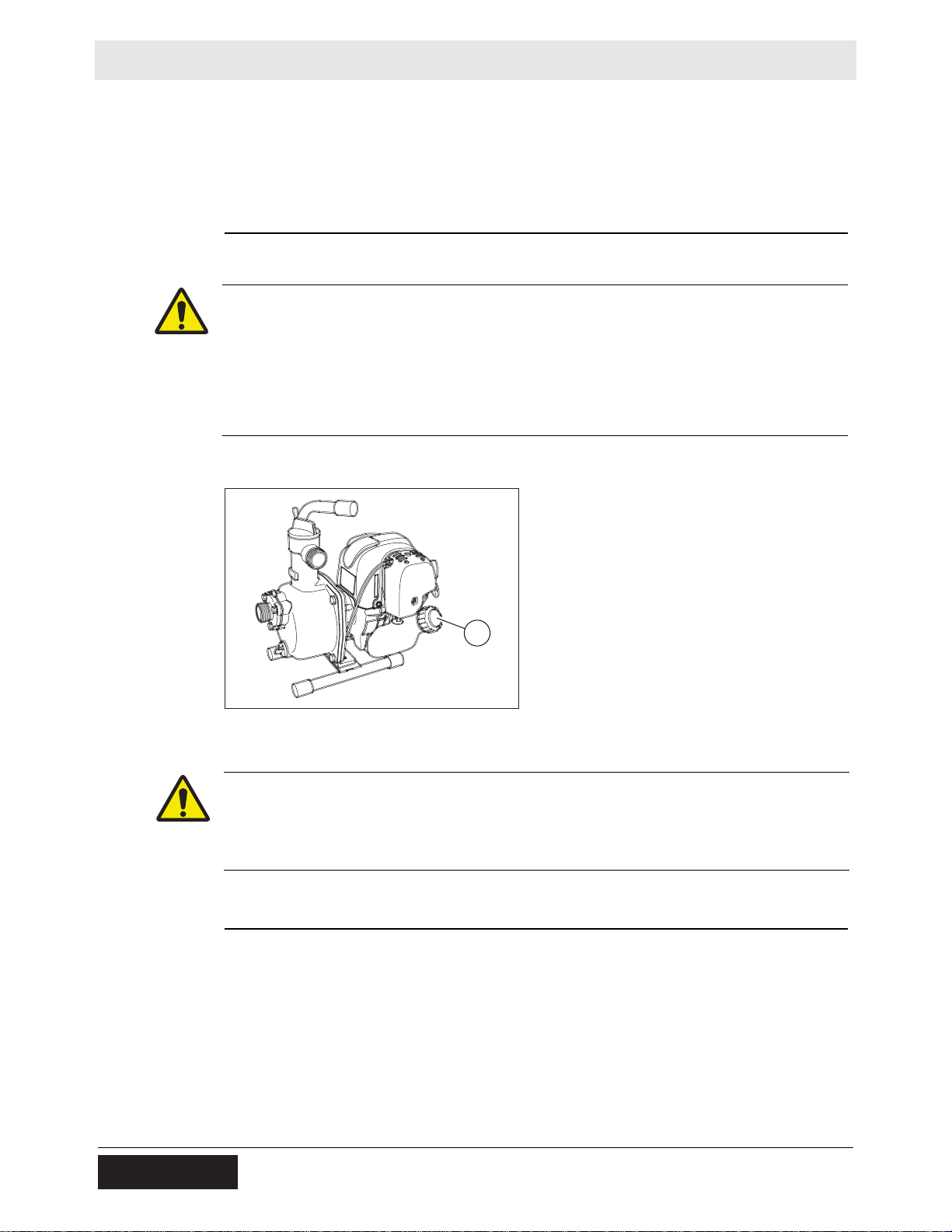

1. Remove the fuel cap (a).
2. Fill the fuel tank to the base of the neck.
3. Re-install the fuel cap.
Result The procedure to refuel the machine is now complete.
WARNING
Fire hazard. Fuel and its vapors are extremely flammable. Burning fuel can cause
severe burns.
►Keep all sources of ignition away from the machine while refueling.
►Refuel only when the machine is outdoors.
►Clean up spilled fuel immediately.
wc_gr012476
a
CAUTION
Fire and health hazard. Fuel expands when heated. Expanding fuel in an over-filled
tank can lead to spills and leaks.
►Do not overfill the fuel tank.

wc_tx003931gb_FM10.fm 19
PG1 Operation
3.6 Positioning and Preparing the Machine for Operation
Pre-operation
setup
Perform the procedure below to position and prepare the machine for operation.
1. Position the pump as near to the water as possible, on a firm, flat surface. Keep
the pump level.
Connect the
suction hose
2. Connect the suction hose (a) to the suction port (b).
■Suction hoses must be rigid enough not to collapse.
■At least one hose clamp is recommended for connecting the suction hose to
the suction port.
Connect the
strainer
3. Connect the strainer (c) to the suction hose.
■Always use a strainer on the end of the suction hose to prevent pulling in
debris which could clog the pump or jam the impeller.
This procedure continues on the next page.
WARNING
Personal injury hazard. Failure to follow the listed procedures may cause injury to
personnel or damage to the machine.
►All persons setting up the machine must be fully trained on the installation of the
machine.
wc_gr012477
d
a
b
c
d
e
f
WARNING
Personal injury hazard. A loose connection between the suction hose and the
suction port can result in personal injury should the suction hose break loose while
the pump is operating.
►Only operate the machine when the suction hose is securely fastened to the
suction port.

wc_tx003931gb_FM10.fm
20
Operation PG1
Continued from the previous page.
Submerge the
hose
4. Submerge the suction hose.
■Always keep the strainer suspended in the liquid being pumped.
■Do not run the pump in less than 100 mm (4.0 in.) of water. At this level and
lower, water begins to form a funnel down to the bottom of the suction line
and strainer, allowing the pump to draw in air. The mixture of air and water
leads to a condition known as cavitation, which will quickly destroy the
impeller and the water chamber inside the pump housing.
Connect the
discharge
hose
Connect the discharge hose (d) to the discharge port (e).
Note: Lay the discharge hose as straight as possible. Avoid sharp bends and
turns.
Prime the
pump
5. Prime the pump. To do so:
a.Open the priming plug (f).
b.With the suction hose submerged, fill the pump housing full of water.
NOTICE: Do not operate the machine without priming the pump. Extended dry
operation will damage the mechanical seal.
c.Close the priming plug.
3.7 Before Starting
Before starting the machine, check the following items:
Pre-operation
checks
Read and follow the safety instructions found in the front of this Operator’s
Manual.
Read and understand the engine owner’s manual.
External
checks
Check the suction hose and discharge hose for holes or tears.
Make sure that the hose clamps are attached.
Check the tightness of the bolts and nuts—tighten as necessary.
Internal
checks
Check engine oil and fuel levels—fill as required.
Check the condition of the air cleaner—remove debris or replace the air cleaner.
Check the condition of the fuel lines.
