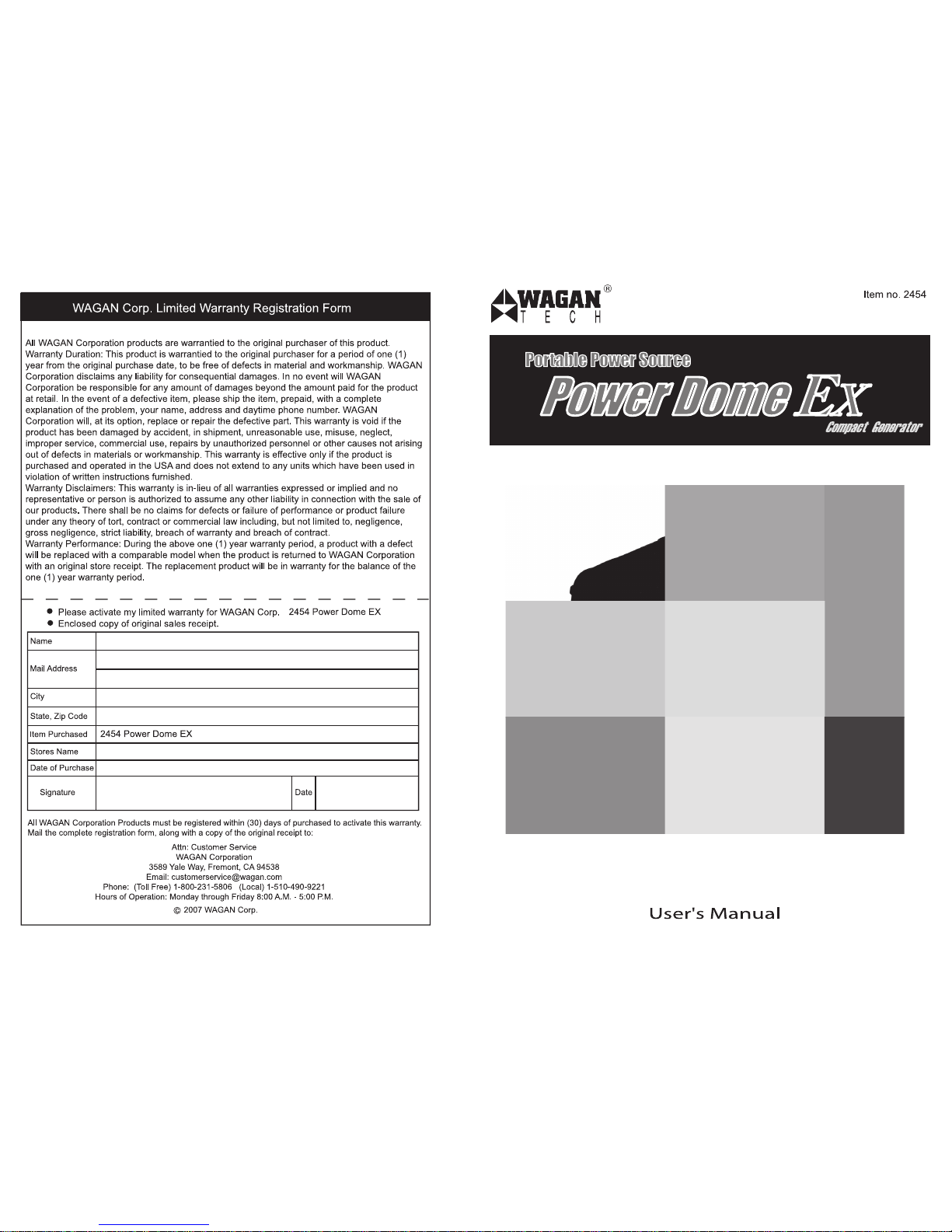

Wagan Power Dome EX User manual

Power Dome EX
by Wagan Tech USER’S MANUAL — Please read before using this equipment.
______________________________________________________________________________________________________________________________________________________________
www.wagan.com
© 2007 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
Thank you for purchasing the Power Dome EX Compact Generator by
Wagan Tech. With minimal care and proper treatment it will provide
years of reliable use.
IMPORTANT INFORMATION
BEFORE POWER DOME USE, READ AND UNDERSTAND ALL
WARNINGS, CAUTIONS AND NOTES INCLUDED IN THIS
MANUAL. FOLLOW INSTRUCTIONS PROVIDED BY YOUR
VEHICLE MANUFACTURER AND MANUFACTURER OF
DEVICES INTENDED TO BE USED WITH THIS UNIT. KEEP
THESE INSTRUCTIONS FOR FUTURE REFERENCE.
MAKE SURE THE POWER DOME IS FULLY CHARGED BEFORE
FIRST USE.
MAJOR FEATURES:
1. 600 Amp Jumpstarter with heavy duty cable and clamps.
2. 260 PSI High Flow Air Compressor for inflating tires and
accessories
3. Easy-Read Analog Pressure Gauge
4. 400 Watt Power Inverter – 800 watts peak – Two Outlets 115
Volts AC
5. One 12 Volt Accessory Outlet for powering DC appliance loads
to 11 Amps.
6. One USB Power Port for charging/operating cell phones, PDAs
and MP3 players.
7. AM-FM Radio with built-in speaker and Audio Input jack for
headphones
8. Bright Area light – LED type for long battery life.
9. AC Recharging Adapter
10. DC Recharging Adapter (fused)
11. Easy-Read analog voltmeter for checking Battery Status.
12. Jumpstart cable polarity indicator for safety.
FRONT VIEW
This view shows the locations of the Power Inverter, DC Power
Outlet and Battery Status/Charging
BATTERY STATUS
Battery Status provides the user with a current state of charge on the internal
battery. It is the user’s responsibility to periodically monitor the battery charge and
to recharge the battery after each use. Recharge every three months even if the
Power Dome is not used.
•Press and Hold the BATTERY STATUS Button
•The Battery Status meter (DC Voltmeter) will display the battery voltage.
•Battery status (voltage) is read with charging adapters disconnected.
o12.6 VDC and above – Battery is ready for use
o12.0 VDC and below – battery needs some charging
oBelow 10.5 VDC – battery is discharged - charge immediately

Power Dome EX
by Wagan Tech USER’S MANUAL — Please read before using this equipment.
______________________________________________________________________________________________________________________________________________________________
www.wagan.com
© 2007 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
CHARGING THE POWER DOME
AC Charging
Make sure the supplied AC Charging Adapter is to be powered by the
correct voltage. (i.e. 110 VAC or 220 VAC). Only use the AC charging
adapter supplied with this unit.
•Make sure all Power Dome switches are set to OFF.
•Open the dust cover on the Charging Jack
•Connect the AC Charging Adapter to the AC outlet.
•Plug the Charging Adapter’s cord into the Power Dome’s
Charging Jack
•The Charging Indicator will light during the charging process
•Initial AC charge can take up to 34 hours.
•Do not charge for more than 48 hours
•After charging the battery, disconnect the adapter from the AC
outlet first, then from the charging jack.
•Replace the dust cover on the charging jack
DC Charging in your Vehicle or Boat
Only use the DC charging adapter supplied with this unit.
•Note that the engine must be operating while charging Power
Dome.
•Make sure all Power Dome switches are set to OFF
•Open the dust cover on the Charging Jack
•Plug the Charging Adapter’s cord into the Power Dome’s
Charging Jack
•Plug the DC Charging Adapter into an accessory outlet (cigarette
lighter).
•The Charging Indicator will light during the charging process
•Do not charge more than 16 hours using the DC method.
•After charging the battery, disconnect the adapter from the
accessory socket first, then from the charging jack.
•Replace the dust cover on the charging jack
DC TO AC POWER INVERTER
The Power Dome’s inverter can operate most AC appliances or a combination of
appliances up to 400 watts. Operating time is dependant on the AC load (watts)
and the charge and condition of Power Dome’s internal battery. Reduced AC loads
and full charge on the battery will result in longer operating time. Be sure to turn
off or disconnect any AC appliance not in use. There is a user replaceable 40 amp
automotive type fuse below the inverter ON/OFF Switch. This fuse protects the
inverter from an unlikely excessive input current. Ordinary overloads will cause
the inverter to automatically shut down. Reduce the load and restart the inverter.
USING THE POWER INVERTER
1. Open the AC outlet dust cover.
2. Connect the AC appliance or appliances to either AC outlet.
3. Turn on the Inverter using the Inverter’s ON/OFF switch.
4. If the Inverter Power Indicator LED lights green, the inverter is operating.
5. Turn on one AC appliance and observe the Power Indicator.
•If the LED remains green, then turn on the second appliance.
•If the Power Indicator remains green, then both appliances are
operating properly.
•After use, remove the appliance plug and close the dust cover.
•If the Power indicator LED is not lit, then reduce the AC load. If the
inverter is still not operating, refer to the troubleshooting table at the
end of this User’s Manual.
•Recharge Power Dome as soon as convenient..
CAUTION:
Some rechargeable devices are equipped with a separate AC charger. These
devices will likely operate properly with this inverter. Rechargeable devices that
have built-in chargers (see device owner's manual), may not be operate properly
with this type of inverter.
Some motorized devices may operate at excessively elevated temperature when
used with this inverter. During first use with this inverter, check for excessive
motor temperature. Abnormally elevated temperature of the device is an indication
that they should not be used with this inverter.

Power Dome EX
by Wagan Tech USER’S MANUAL — Please read before using this equipment.
______________________________________________________________________________________________________________________________________________________________
www.wagan.com
© 2007 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
DC POWER PORT
DC POWER PORT (accessory socket) is located to the left of the Battery
Status meter (voltmeter). The port can power a DC load of up to 11 Amps
a Overloading the port results in “tripping” a self-resetting circuit breaker.
Removing the overload automatically restores power to the DC Power
Port.
•Uncover the dust cover from the Power Port.
•Insert the 12 VDC accessory plug into the Power Port
•Operate the appliance as usual.
•After use, disconnect the accessory plug from the Power Port
and store the accessory.
•Replace the Power Port’s dust cover.
•Recharge the Power Dome as soon as convenient.
REAR VIEW
This view shows the Radio, Safety Switch and the Compressor sections
AM-FM RADIO
The Radio can receive frequencies in the standard AM and FM broadcast
bands. AM-520 to 1710 kHz; FM 88 to 108 MHz An extendable rod
antenna provides adequate signal to receive all local radio stations. When
not in use, the antenna should be stored in its parking location. This will prevent
damage to the antenna while Power Dome is being moved. All Radio controls are
conveniently located in one area. The controls are: ON/OFF Volume, AM-FM
Selection Switch, a Tuning Dial and an Audio Input Jack for external audio
devices such as MP3s or CD players (Required 3.5mm mini audio cable-not
included).
A USB Power Port is to the right of the Audio Output Jack can power/charge
devices that require 5Volts at up to 500 mA through the use of a user-supplied
cord.
To save energy, first raise and extend the antenna and select the AM or FM band
before turning on the radio.
NOTE: All AM band radios are subject to receiving noise interference from
electronic devices, static lightning strikes and some motorized equipment. If you
are operating the Power Dome inverter and noise is being received on the AM
band, either turn OFF the inverter or change the radio to receive the FM band.
USING THE AM-FM RADIO
1. Carefully raise and extend the multi-section antenna.
2. Select either AM or FM band.
3. Turn on the Radio by turning the ON/OFF Volume knob clockwise.
4. Rotate the Tuning Dial to the desired frequency.
5. Adjust the Volume control to desired loudness.
6. Adjust the position of the antenna for best reception.
7. After use Turn OFF the Radio by rotating the ON/OFF Volume knob
counterclockwise until the knob “clicks”.
8. Carefully retract the antenna and return it to the parked position.
AIR COMPRESSOR
The Air Compressor can inflate a variety of tires and inflatable. It can provide
inflation pressures to 260 PSI (pounds per square inch). Be careful not to over
inflate. Monitor the compressor gauge while inflating. The Compressor’s
ON/OFF Switch is located

Power Dome EX
by Wagan Tech USER’S MANUAL — Please read before using this equipment.
______________________________________________________________________________________________________________________________________________________________
www.wagan.com
© 2007 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
above the compressor hose and nozzle compartment.
Compressor hose compartment
USING THE AIR COMPRESSOR
CAUTION: Never connect or disconnect the nozzle with the compressor
operating.
1. Before any tire inflation, look for the recommended inflation
pressure information on the sidewall of the tire.
2. Open the compartment door at the rear of the Power Dome and
extend the air hose.
3. Position the Power Dome so that you can see the Pressure
Gauge.
4. Make sure the chuck lever is positioned UP (away from the
chuck opening)
5. Remove the valve cap from the valve stem.
6. Attach the chuck to the tire’s valve stem.
7. Move the chuck lever DOWN to secure the chuck to the valve
stem.
8. Turn compressor switch on to ON position.
9. Monitor the pressure gauge while inflating the tire.
10. When recommended tire pressure has been reached, turn
compressor switch OFF.
11. Disconnect hose and replace valve cap.
12. Store the hose in the Air hose Compartment
13. Recharge the Power Dome as soon as convenient.
JUMPSTART WARNINGS
• Lead-acid batteries can release explosive gasses. Failure to follow instructions
may cause property damage, explosion hazard, and/or personal injury.
• Do not smoke while jump starting
• Jumpstart a vehicle or boat in a well ventilated area.
• Do not attempt to jumpstart a frozen battery.
• Do not wear vinyl clothing when jumpstarting -- friction can cause static
electricity sparks.
• Remove all metal jewelry - this can cause short circuits.
Always use safety glasses when jump starting battery acid can cause blindness
and/or severe burns.
• Never touch red and black clamps together - this can cause, power arcing,
and/or explosion.
• Do not attempt to jumpstart a frozen battery
• After use as jump starter, turn OFF Power Safety Switch.
• Keep out of reach of children
• Excessive engine cranking can damage the vehicle's starter motor. If the engine
fails to start after the recommended number of attempts, discontinue jumpstart
procedure and look for other problems that may need to be corrected.
• If vehicle to be started has a Positive Grounded System (positive battery terminal
is connected to chassis):
•Connect negative (-) black clamp to vehicle battery's negative terminal.
•Connect positive (+) red clamp to vehicle chassis or a solid, non-moving,
metal vehicle component or body part. DO NOT clamp directly to
positive battery terminal or moving part.
JUMPSTARTING
1. Review the Jumpstart Warnings
2. Make sure all vehicle appliances, lights, radio, etc. are turned OFF.
3. Make sure the vehicle’s brake is set and the transmission is in “Park”
4. Make sure all Power Dome switches are OFF.
5. Securely connect the Red (+) cable Clamp to the vehicle’s Positive (+)
battery terminal.

Power Dome EX
by Wagan Tech USER’S MANUAL — Please read before using this equipment.
______________________________________________________________________________________________________________________________________________________________
www.wagan.com
© 2007 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
6. Connect the Black (-) cable Clamp to a non-moving part on the
vehicle.
7. Observe the color of the REVERSE POLARITY LED that is
located between the Battery Status and Work Light Switches.
a. If the LED is RED – DO NOT TURN ON THE
CABLE JUMPER SWITCH
•Cable Clamps need to be reversed.
•Disconnect the Black Clamp first and then the
RED Cable Clamp.
•Reconnect and observe the LED.
b. If the LED is green, turn ON the Jumper Safety Switch.
•Inside the vehicle, turn on the ignition switch and
attempt to start the engine.
•Crank a maximum of three seconds. If the engine
does not start, wait three minutes before the next
attempt.
•After the engine starts, turn OFF the Jumper Safety
Switch.
•Disconnect the Black Clamp first, and then
disconnect the Red Clamp.
8. Be sure that the cables and clamps are securely stored.
9. Recharge the Power Dome as soon as convenient.
NOTE: If the engine does not start, there may be a problem other than a
discharged battery. Call for service.
WORK LIGHT
The Work Light is a cluster of bright LEDs located above the
negative Jumper Cable storage area.
The location of the Work Light allows the light to be used while the
Power Dome is being carried.
• Turn the work light switch (on front panel) to ON position
• The light will illuminate.
• Turn OFF while not in use.
EXTENDING RUN TIME
Extending the run time of Power Dome’s inverter, compressor or radio can be
accomplished by powering these functions from a charged external 12 volt
automotive-type battery.
•Follow the procedure for jumpstarting an engine as far as connecting the
cables checking for correct battery polarity and turning on the Cable
Switch.
•Now the compressor or inverter can operate for an extended time.
•The low voltage protection feature will shut off the inverter when the
external and internal batteries discharge to 10 volts.
•The compressor does not have a low battery shut down feature so the user
must check the Battery Status meter on the Power Dome.
•After The Power Dome is used in an extended run time configuration,
turn off the compressor or inverter.
•Turn off the Cable Switch and store the cables and clamps.
•Recharge the Power Dome and external battery as soon as possible.

Power Dome EX
by Wagan Tech USER’S MANUAL — Please read before using this equipment.
______________________________________________________________________________________________________________________________________________________________
www.wagan.com
© 2007 Wagan Corporation.
All Rights Reserved.
Wagan and Wagan.com are trademarks used by Wagan Corporation.
TROUBLESHOOTING GUIDE - INVERTER
Trouble Cause Remedy
Power Dome battery voltage below
10 volts. Recharge the Power Dome immediately.
Reduce load to maximum of
400 watts.
Excessive current drawn by
appliance being operated.
1. Turn OFF the device and
inverter.
2. Disconnect device.
3. Turn the inverter ON and
leave running for a
minimum of 2 minutes.
4. Turn OFF inverter,
quickly plug in device to
inverter making sure
device is OFF prior to
connection.
5. Turn ON the inverter and
the device.
Lack of power
output
Inverter fuse blown. Check and replace if necessary.
Be sure any replacement fuse is
the same type and rating.
Excessive voltage drop. Check Power Dome and
recharge if voltage drops below
10 volts.
Inverter Power
Indicator is not lit.
Inverter is overloaded. Reduce load to maximum of
400 watts.
Television/Power
Tool will not start High surge wattage requirement to start-up.
Toggle the On/Off switch in
quick succession a total of five
times. If the device does not
start the device is not going to
work with this type of inverter
Place the Power Dome as far as
possible from TV, the antenna
and the coaxial cable.
Television
Interference Picture breaking up (snow).
TV station may be out or range.
Trouble Cause Remedy
Do not use inverter with low
quality audio AC filtering
system.
Static/Noise
interference in
audio system
Sound system has weak alternating
current shielding. Replace audio system with high quality noise filtering.
SPECIFICATIONS
Sealed Lead Acid - Rechargeable I2-Volt, 17 Amp Hour
Work Light with On/Off Switch 5 x LED's
Compressor 260 PSI Analog Gauge
Inverter Output - Two AC outlets 115 Volts AC 60Hz
Maximum Inverter Output Power
Peak Power 400 Watts – 800 Watts peak For a max of 0.3 sec
I2V Accessory Outlet I2-volt 11 Amps max
USB Power Port 5V up to 500 mA.
AM – FM Radio self contained
speaker. AM 520 to 1710 kHz FM 88 to 108 MHz
Audio Output Jack 3.5 mm diameter (1/8 in.)
Max AC Charging Time from
discharge 34 hours
Max DC Charging Time (engine
operating) 12 hours
JumpStart Cables and Clamps 6 Gauge, heavy duty clamps.
24 in length.
