WAGO 750-642 User manual

Fieldbus Independent
I/O Modules
EnOcean Radio Receiver
750-642
Manual
Version 1.0.2

ii • General
WAGO-I/O-SYSTEM 750
I/O Modules
Copyright ©2006 by WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]
Web: http://www.wago.com
Technical Support
Phone: [phone] – 5 55
Fax: [phone] – 85 55
E-Mail: [email protected]
Every conceivable measure has been taken to ensure the correctness and com-
pleteness of this documentation. However, as errors can never be fully ex-
cluded, we would appreciate any information or ideas at any time.
E-Mail: [email protected]
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally trademark or patent protected.

Content • iii
WAGO-I/O-SYSTEM 750
I/O Modules
CONTENT
1Important Comments ................................................................................. 4
1.1 Legal Principles........................................................................................4
1.1.1 Copyright............................................................................................. 4
1.1.2 Personnel Qualification .......................................................................4
1.1.3 Intended Use ........................................................................................4
1.2 Symbols....................................................................................................5
1.3 Number Notation......................................................................................5
1.4 Safety Notes .............................................................................................6
1.5 Scope ........................................................................................................6
2I/O Modules ................................................................................................. 7
2.1 Special Modules .......................................................................................7
2.1.1 750-642 [EnOcean Radio Receiver]....................................................7
2.1.1.1 View................................................................................................ 7
2.1.1.2 Description......................................................................................8
2.1.1.3 Display Elements ..........................................................................10
2.1.1.4 Schematic Diagram.......................................................................10
2.1.1.5 Technical Data ..............................................................................11
2.1.1.6 Process Data..................................................................................13
2.1.1.6.1 For PFC Application ................................................................13
2.1.1.6.2 For Coupler Application with Primary Controller...................15
2.1.1.7 Notes on Application .................................................................... 19
2.1.1.8 Notes on Installation ..................................................................... 20
2.1.1.9 Installation in Case of mechanical Stress (Vibration, Shock) ......22
2.1.1.10 EnOcean Key Data........................................................................22
2.1.1.11 Further Performance Features....................................................... 23
2.1.1.12 EC Certificate of Conformity........................................................24
2.1.1.12.1 English...................................................................................... 24
2.1.1.12.2 German.....................................................................................25
2.1.1.12.3 French.......................................................................................26

4 • Important Comments
Legal Principles
WAGO-I/O-SYSTEM 750
I/O Modules
1 Important Comments
To ensure fast installation and start-up of the units described in this manual,
we strongly recommend that the following information and explanations are
carefully read and abided by.
1.1 Legal Principles
1.1.1 Copyright
This manual is copyrighted, together with all figures and illustrations
contained therein. Any use of this manual which infringes the copyright
provisions stipulated herein, is not permitted. Reproduction, translation and
electronic and photo-technical archiving and amendments require the written
consent of WAGO Kontakttechnik GmbH & Co. KG. Non-observance will
entail the right of claims for damages.
WAGO Kontakttechnik GmbH & Co. KG reserves the right to perform
modifications allowed by technical progress. In case of grant of a patent or
legal protection of utility patents all rights are reserved by WAGO
Kontakttechnik GmbH & Co. KG. Products of other manufacturers are always
named without referring to patent rights. The existence of such rights can
therefore not be ruled out.
1.1.2 Personnel Qualification
The use of the product detailed in this manual is exclusively geared to
specialists having qualifications in PLC programming, electrical specialists or
persons instructed by electrical specialists who are also familiar with the valid
standards. WAGO Kontakttechnik GmbH & Co. KG declines all liability
resulting from improper action and damage to WAGO products and third party
products due to non-observance of the information contained in this manual.
1.1.3 Intended Use
For each individual application, the components supplied are to work with a
dedicated hardware and software configuration. Modifications are only
permitted within the framework of the possibilities documented in the
manuals. All other changes to the hardware and/or software and the non-
conforming use of the components entail the exclusion of liability on part of
WAGO Kontakttechnik GmbH & Co. KG.
Please direct any requirements pertaining to a modified and/or new hardware
or software configuration directly to WAGO Kontakttechnik GmbH & Co.
KG.

Intended Use • 5
View
WAGO-I/O-SYSTEM 750
I/O Modules
1.2 Symbols
Danger
Always abide by this information to protect persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Attention
Marginal conditions must always be observed to ensure smooth operation.
ESD (Electrostatic Discharge)
Warning of damage to the components by electrostatic discharge. Observe
the precautionary measure for handling components at risk.
Note
Routines or advice for efficient use of the device and software optimization.
More information
References on additional literature, manuals, data sheets and INTERNET
pages
1.3 Number Notation
Number Code Example Note
Decimal 100 normal notation
Hexadecimal 0x64 C notation
Binary '100'
'0110.0100'
Within ',
Nibble separated with dots

6 • Important Comments
Safety Notes
WAGO-I/O-SYSTEM 750
I/O Modules
1.4 Safety Notes
Warning
Switch off the system prior to working on bus modules!
In the event of deformed contacts, the module in question is to be replaced, as
its functionality can no longer be ensured on a long-term basis.
The components are not resistant against materials having seeping and
insulating properties. Belonging to this group of materials is: e.g. aerosols,
silicones, triglycerides (found in some hand creams).
If it cannot be ruled out that these materials appear in the component
environment, then additional measures are to be taken:
- installation of the components into an appropriate enclosure
- handling of the components only with clean tools and materials.
Attention
Cleaning of soiled contacts may only be done with ethyl alcohol and leather
cloths. Thereby, the ESD information is to be regarded.
Do not use any contact spray. The spray may impair the functioning of the
contact area.
The WAGO-I/O-SYSTEM 750 and its components are an open system. It
must only be assembled in housings, cabinets or in electrical operation
rooms. Access must only be given via a key or tool to authorized qualified
personnel.
The relevant valid and applicable standards and guidelines concerning the
installation of switch boxes are to be observed.
ESD (Electrostatic Discharge)
The modules are equipped with electronic components that may be destroyed
by electrostatic discharge. When handling the modules, ensure that the
environment (persons, workplace and packing) is well grounded. Avoid
touching conductive components, e.g. gold contacts.
1.5 Scope
This manual describes the Special Module 750-642 EnOcean Radio Receiver
of the modular WAGO-I/O-SYSTEM 750.
Handling, assembly and start-up are described in the manual of the Fieldbus
Coupler/Controller. Therefore this documentation is valid only in the
connection with the appropriate manual.

750-642 [EnOcean Radio Receiver] • 7
View
WAGO-I/O-SYSTEM 750
I/O Modules
2 I/O Modules
2.1 Special Modules
2.1.1 750-642 [EnOcean Radio Receiver]
EnOcean Radio Receiver
Attention
Accessories required: WAGO RF-ANTENNA 868MHz/SMA,
Item-No.: 758-910 (not included in delivery)!

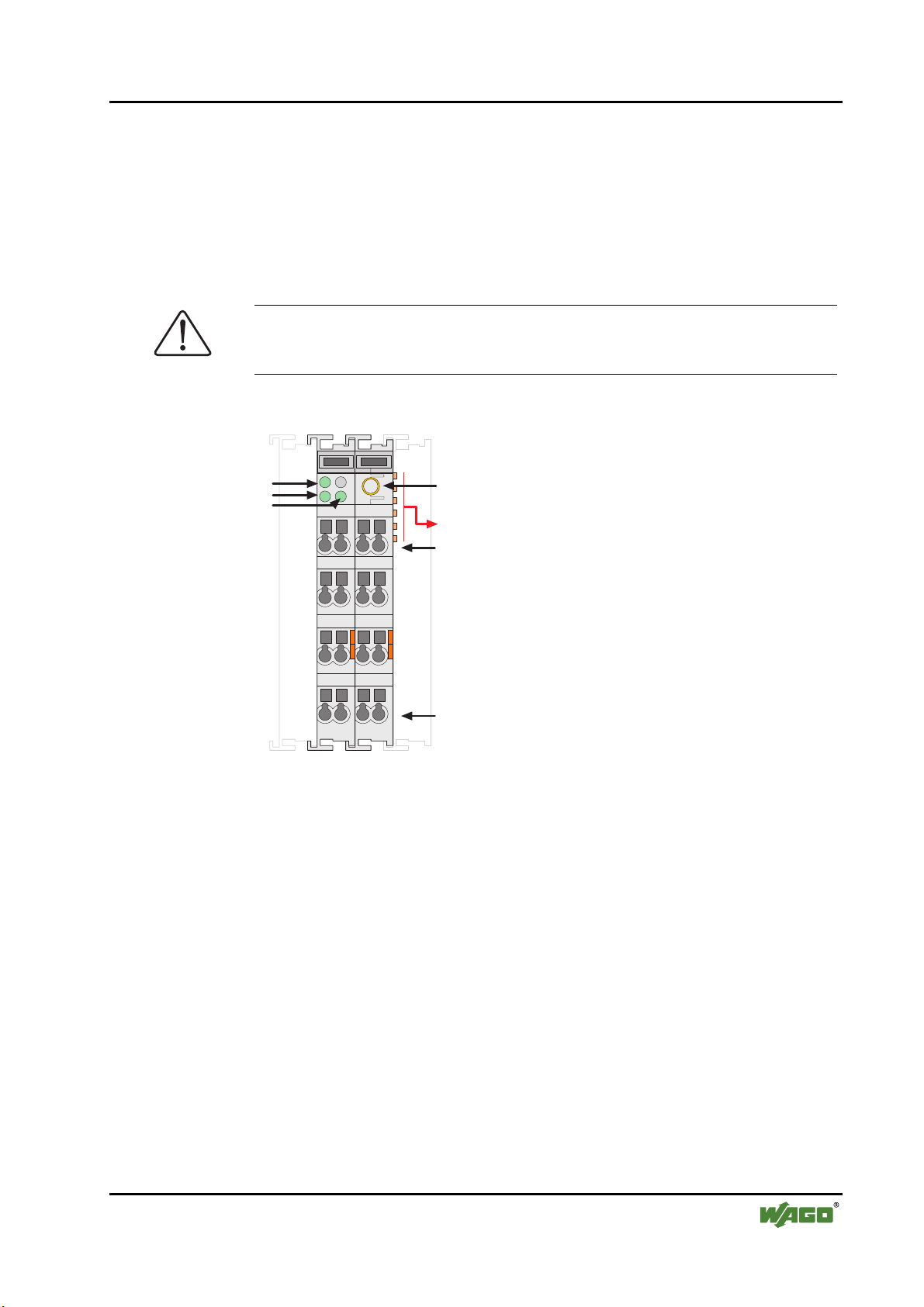

2.1.1.1 View
C
D
B
A
750-642
B
A
D
Data contacts
Antenna socket (SMA)
1
2
Fig. 2.1.1-1: EnOcean Radio Receiver 750-642 g064200e

8 • 750-642 [EnOcean Radio Receiver]
Description
WAGO-I/O-SYSTEM 750
I/O Modules
2.1.1.2 Description
The 750-642 Radio Receiver module receives digital and analogue sensor
signals from the field area by radio link.
Danger
The radio receiver modules must not be used in any relation with equipment
that supports, directly or indirectly, human health or life or with applications
that can result in danger for people, animals or real value.
This results from the classification of the radio receiver module in class 2
Equipment according to ETSI EN 301 489-3 V1.4.1 (2202-08) "Specific
conditions for short-range devices (SRD)".
The module receives the radio transmitter data via an antenna with a carrier
frequency of 868.3 MHz situated outside the enclosure.
For this an antenna equipped with an SMA plug (WAGO RF ANTENNA
868 MHz/SMA, Item-no.: 758-910) is connecting to the SMA socket fitted to
the module.
Attention
The WAGO RF-ANTENNA 868MHz/SMA is not included in delivery of the
Radio Receiver module!
It is to order separately as accessories under the Item-No.: 758-910.
The module has two potential free CAGE CLAMP®connections (1 and 2)
without electrical function. These make the mechanical fixing of the antenna
line possible.
Attention
Mechanical stress such as vibration or shock may cause wire breakage. For
that reason, appropriate action needs to be taken to fix the antenna cable (see
chapter 2.1.1.9 "Installation in Case of mechanical Stress (Vibration,
Shock)".
The applications for this module are, for example, in operator, control and
signaling systems in building automation (office, exhibition halls, private
households...), in cabin automation on ships, and anywhere sensors (radio
transmitters) require intelligent controllers or gateways to other bus systems.
The revolutionary EnOcean radio technology offers the decisive advantage
that the specially developed sensors have very low power consumption.
They require no external power supply or batteries for radio transmission. This
means that the sensors need no servicing (battery replacement), can be
installed retrospectively without difficulty and, due to the wireless technology,
can be freely positioned, even on glass facades.
For the necessary electrical energy, the sensors use either mechanical energy
converted by piezo elements or solar energy. This provides sufficient energy
for the respective sensor to send a unidirectional radio signal.
The number of sensors can be chosen virtually at will, although the maximum
per module is around 100 sensors due to increasing density with growing
numbers.

750-642 [EnOcean Radio Receiver] • 9
Description
WAGO-I/O-SYSTEM 750
I/O Modules
Further Information
Partner sites for suppliers of radio sensors and other accessories for the radio
technology can be found at www.enocean.com (References/Partners).
To be able to use the installed radio transmitters for an application, these must
be uniquely identified. With some sensors, the ID can be directly read from
the back of the sensor. If this is not the case, the 32-bit ID code of the sensor
can be read using an IEC 61131-3 application. The IEC application can be
implemented in the connected programmable fieldbus controller (PFC) of the
fieldbus node using the WAGO-I/O-PRO programming tool or, where a
fieldbus coupler is connected, in a primary controller.
The data of individual sensors is not mapped in the process image of the
connected coupler/controller, but packaged in EnOcean radio telegrams and
tunneled unmodified to a function block of the application, via an internal
RS 232 interface. The function block decodes the messages to enable the
analogue or digital sensor data to be interpreted and processed at application
level.
LEDs indicate the operational readiness of the module and fault-free
communication on the internal data bus.
Any configuration of the modules is possible when designing the fieldbus
node. Grouping of module types is not necessary.
Attention
This module has no power contacts. For field supply to downstream I/O
modules, a supply module will be needed
Note
The receiver module cannot be used in a combination of LONWORKS®
fieldbus coupler 750-319 with WAGO TOPLON®IF and PRIO plug-ins.
The module is directly supported by the controllers of the
WAGO-I/O-SYSTEM 750. Where a coupler is used, the use of a primary
controller is necessary for control of the module.
This module can be used with all couplers/controllers of the
WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, -323, -324
and -327).

10 •750-642 [EnOcean Radio Receiver]
Display Elements
WAGO-I/O-SYSTEM 750
I/O Modules
Fig. 2.1.1-2: Operating principle of the EnOcean Radio Receiver module g064217e
2.1.1.3 Display Elements
LED Designation State Function
off No operational readiness or the internal data
bus communication is interrupted
A
green Function
on Operational readiness and trouble-free internal
data bus communication
off no or insufficient receiver field intensity
B
green RSSI on sufficient receiver field intensity,
time of persistence 0.5 sec.
off no signal transmission RxD
D
B
A
C
D
B
A
B
A
D
Fig. 2.1.1-3: Display
Elements g064229x
D
green RxD on Signal transmission RxD
2.1.1.4 Schematic Diagram
750-642
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Function
RxDRSSI
RSSI
RxD
Logic
Radio
module
Antenna
Antenna
socket
(SMA)
Fig. 2.1.1-4: EnOcean Radio Receiver 750-642 g064201e

750-642 [EnOcean Radio Receiver]• 11
Technical Data
WAGO-I/O-SYSTEM 750
I/O Modules
2.1.1.5 Technical Data
Module Specific Data
Current consumption max
(internal)
< 80mA
Voltage supply via system voltage DC/DC
Isolation 500 V antenna connection/system
Bit width 1x 24 Bit in / out 1) (3 Byte Data)
1 x 8 Bit Control / Status
Front side connections Antenna input (SMA socket),
2 CC contacts, potential free, to the optional mechanical
fixing of the ferrite core on the antenna cable
Frequency band 868.3 MHz
Transmission protocol
(Radio telegram)
EnOcean 53-130 Bit depending on the sensor type
(32 Bit Sensor Identity number, up to 4 Byte sensor data,
CRC)
Range approx. 300 m (in the open)
approx. 30 m (within buildings) 2)
Dimensions (mm) W x H x L 24 x 64*)x 100
*)from upper edge of carrier rail
(excess length of the SMA socket ca. 6.5 mm)
Weight 85 g
Pollutants acc. to IEC 60068-2-42
Vibration and
Shock resistance
acc. to IEC 60068-2-6
acc. to IEC 60068-2-27
Protection class IP20
1) The module does not support transmitting of signals (receive only) i.e. the 3 bytes of
output data are unused.
2) The actual range depends on the prevailing conditions within the building. The relevant
information can be found in the section: “Notes on installation”.
Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)
EMC-Immunity to interference
(CE)
acc. to EN 61000-6-2 (01)
EMC-Emission of interference
(CE)
acc. to EN 61000-6-3 (01)
EMC-Immunity to interference
(Ship building)
acc. to Germanischer Lloyd (01) *)
EMC-Emission of interference
(Ship building)
acc. to Germanischer Lloyd (01) *)

12 •750-642 [EnOcean Radio Receiver]
Technical Data
WAGO-I/O-SYSTEM 750
I/O Modules
Approvals (cf. Chapter 2.2 of the Coupler/Controller Manual)
CULUS (UL508)
Conformity Marking
Accessories
External antenna external antenna with magnetic stand, SMA plug and
2.5 m supply line 758-910
Miniature WSB quick marking
system
More Information
Detailed references to the approvals are listed in the document "Overview
Approvals WAGO-I/O-SYSTEM 750", which you can find on the CD ROM
ELECTRONICC Tools and Docs (Item-No.: 0888-0412)
or in the internet under:
www.wago.com !Documentation !WAGO-I/O-SYSTEM 750 !
System Description

750-642 [EnOcean Radio Receiver]• 13
Process Data
WAGO-I/O-SYSTEM 750
I/O Modules
2.1.1.6 Process Data
The data of individual sensors is not mapped in the process image of the
connected coupler/controller, but packaged in EnOcean radio telegrams and
tunneled unmodified via an internal RS 232 interface to the application.
The EnOcean Radio Receiver module maps 4 data bytes into both the input
and output areas of the process image of the coupler/controller (in exactly the
same way as the WAGO RS 232 interface module, part no.: 750-650).
Up to 3 input bytes are employed for transfer of the received data. Since the
transmit channel of the interface is not used, the 3 bytes for output data are
unused.
The additional control and status byte of the module is used for the handling
of the data transmission on the internal I/O bus.
An EnOcean radio telegram tunneled by means of these data bytes has a total
length of 14 bytes. These include a 32-bit sensor ID number, up to 4 bytes of
sensor data depending on the type of sensor and CRC (cyclic redundancy
checksum) as error control procedure.
As a result, several module bus cycles are required to completely map the
message in the controller or primary controller.
Depending on whether the module is used in a fieldbus node with PFC or with
a coupler and primary controller, different detail information is relevant for
the accessing and interpretation of the process data.
2.1.1.6.1 For PFC Application
Appropriate IEC 61131-3 function blocks are available for WAGO-I/O-PRO
for reading the process data via the controller.
In the WAGO-I/O-PRO application, the function block ENOCEAN_RECEIVE
receives the data packets arriving from several module bus cycles.
After assembling the packets into a radio telegram, this block tests the message
for checksum errors.
Further function blocks then interpret and process the message content.
Further Information
The function blocks for WAGO-I/O-PRO can be downloaded free of charge
from the Internet. These can be found at:
www.wagotoplon.com/html/ger/products/wago_toplon/software/
applications/index.htm

14 •750-642 [EnOcean Radio Receiver]
Process Data
WAGO-I/O-SYSTEM 750
I/O Modules
Function Blocks for WAGO-I/O-PRO
Function block Description
FbEnocean_Receive Used to communicate with the radio module via WAGO
fieldbus controllers 750-8xx
FbEnocean_Show_ID_By_
Button
Used to identify the transmitter ID of PTM radio sensors
FbEnocean_Show_ID_By_Click Used to identify the transmitter ID of radio sensors
FbEnocean_Touch Converts radio telegrams of individual touch sensors into
boolean output signals
FbEnocean_Touch_One Converts radio telegrams of individual touch sensors into
boolean output signals
FbEnocean_1_BYTE_Sensor Used to output the analogue signal of a sensor
FbEnocean_4_BYTE_Sensor Used to output three analogue signals of a sensor
FbEnocean _Learn_Switch Learns up to 16 touch sensors via their transmitter ID
FbSR04 Used to the evaluation of the room control devices of type
series SR04
FbSR65 Used to the evaluation of the outside temperature sensor
of type series SR65
FbSRW01 Used to the evaluation of the window contact SRW01
Identification of PTM Sensors
The function block ENOCEAN_SHOW_ID_BY_BUTTON can only be used
to read the ID of PTM sensors.
At the input of this block, you enter how many buttons must be
simultaneously pressed to cause the block to display the transmitter IDs
contained in the radio telegram at the output. Radio telegrams in which, for
example, only one button is pressed, are ignored.
Identification of digital and analogue Sensors
The function block ENOCEAN_SHOW_ID_BY_CLICK is used to read the
32-bit ID code of digital and analogue sensors.
At the input of this block, you first enter the type of sensor (PTM, STM or
CTM) of which the ID is to be read. In addition, you enter how often a button
must be pressed so that the block displays the transmitter IDs contained in the
radio telegram at the output. Radio telegrams in which only one button is
pressed, are ignored.

750-642 [EnOcean Radio Receiver]• 15
Process Data
WAGO-I/O-SYSTEM 750
I/O Modules
2.1.1.6.2 For Coupler Application with Primary Controller
The detailed process image of the module and the structure of the radio
telegram is only relevant in applications where a coupler is used, when you
need to create an IEC 61131-3 application for the primary controller.
Process Image
Input Data Output Data
S Status byte C Control byte
D0 Input byte 0 D0 Output byte 0 – not used
D1 Input byte 1 D1 Output byte 1 – not used
D2 Input byte 2 D2 Output byte 2 – not used
Control byte
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 0 0 0 0 IR RA TR
TR Transmit request
RA Receive acknowledge
IR Initialization request
0 Constant value should always be 0.
Status byte
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 BUF_F IL 2 IL 1 IL 0 IA RR TA
TA Transmit acknowledge
RR Receive request
IA Initialization acknowledge
IL 0,
IL 1,
IL 2
Frames available in input area IL2 is always 0.
I.e. IL2, IL1, IL0 = 0,1,0
2 characters were received and reside in input 0 and input 1.
BUF_F Input buffer is full.
0 Constant value should always be 0.
The control byte is sent from the controller to the module and the status byte
from the module to the controller. Requests are indicated by a change of a bit.
An assigned bit indicates execution by adopting the value of the request bit.
Further Information
A detailed description of the method of operation of the internal interface can
be found in the manual for the RS 232 C serial interface (item-no. 750-650).
This is available on the Internet at: www.wago.com.
Attention
In opposite to the description in the manual for the RS 232 C serial interface
(item-no. 750-650) the bit sequence of the status byte changed!

16 •750-642 [EnOcean Radio Receiver]
Process Data
WAGO-I/O-SYSTEM 750
I/O Modules
EnOcean Telegram
Bit7 Bit0
SYNC_BYTE 1 (A5 Hex)
SYNC_BYTE 0 (5A Hex)
H_SEQ LENGTH
ORG
DATA_BYTE 3
DATA_BYTE 2
DATA_BYTE 1
DATA_BYTE 0
ID_BYTE 3
ID_BYTE 2
ID_BYTE 1
ID_BYTE 0
STATUS
CHECKSUM
SYNC_BYTE 0...1 (8 bit each) Synchronization Bytes
H_SEQ (3 bit) Header identification:
0 dec for unknown transmitter ID received
1 dec for known transmitter ID received
2 dec for new transmitter learned
LENGTH (5 bit) Number of octets following the header octet (11 dec)
ORG (8 bit) Type of telegram
DATA_BYTE 0...3 (8 bit each) Data bytes 0...3
ID_BYTE 0...3 (8 bit each) 32-bit transmitter ID
STATUS (8 bit) Status field
CHECKSUM (8 bit) Checksum (Last LSB from addition of all octets
except sync bytes and checksum
ORG Field Description
ORG Field
Value
(decimal)
Acronym Description
5 RPS Telegram from a Piezo Transmitter Module (PTM) received (original or repeated
message)
6 1BS 1 Byte data telegram from a Solar Transmitter Module (STM) received
7 4BS 4 Byte data telegram from a Solar Transmitter Module (STM) received
8 HRC
(Hand Remote
Control)
Telegram from a solar supplied hand remote control (CTM) received
0-4, 9-255 - Reserved

750-642 [EnOcean Radio Receiver]• 17
Process Data
WAGO-I/O-SYSTEM 750
I/O Modules
STATUS Field Description
a) if ORG = 5 (Telegram from a Piezo Transmitter Module (PTM):
Bit7 Bit0
Reserved T21 NU RP_COUNTER
Reserved (2 bit) For future use
T21 (1 bit) T21=0 !PTM switch module of type 1,
T21=1 !PTM switch module of type 2
NU (1 bit) NU=1 !N-message, NU=0 !U- message.
RP_COUNTER (4 bit) =0..15 Repeater level: 0 is original message (not repeated)
PTM switch modules of Type 1 (e.g. PTM 100) do not support interpretation
of operating more than one rocker at the same time:
• N- message received !Only one pushbutton was pressed.
• U- message received !No pushbutton was pressed when activating the
energy generator, or more than one pushbutton was pressed.
PTM switch modules of Type 2 allow interpretation of operating two buttons
simultaneously:
• N- message received !Only one or two pushbuttons have been pressed.
• U- message received !No pushbutton was pressed when activating the
energy generator, or more than two pushbuttons have been pressed.
Note
For telegrams from Piezo Transmitter Modules PTM 100:
In most rocker switch device implementations, pressing the rocker sends a
N-message and releasing the rocker sends an U-message.
b) if ORG = 6, 7 or 8 (all other telegrams):
Bit7 Bit0
Reserved RP_COUNTER
Reserved (4 bit) for future use
RP_COUNTER (4 bit) Repeater level: 0 is original message (not repeated)

18 •750-642 [EnOcean Radio Receiver]
Process Data
WAGO-I/O-SYSTEM 750
I/O Modules
DATA_BYTE 3..0 Field Description
a) if ORG = 5 and NU = 1 (N-message from a Piezo Transmitter Module
(PTM):
DATA_BYTE2..0 always = 0
DATA_BYTE3 as follows:
Bit7 Bit0
RID UD PR SRID SUD SA
RID*)(2 bit) Rocker ID, from left (A) to right (D): 0, 1, 2 and 3 (decimal)
UD (1 bit) UD=1 !O-button, UD=0 !I-button
PR (1 bit) PR=1 !Button pressed, PR=0 !Button released
SRID (2 bit) Second Rocker ID, from left to right: 0, 1, 2 and 3
SUD (1 bit) (Second) SUD=1 !Up button, SUD=0 !Down button
SA (1 bit) SA=1 !Second action, SA=0 !No second action
*)The Rocker ID (RID) is checked in addition to the Header Identification (H_SEQ).
H_SEQ indicates, whether the Transmitter is known or not.
b) if ORG = 5 and NU = 0 (U-message of a Piezo Transmitter Module
(PTM):
DATA_BYTE2..0 always = 0
DATA_BYTE3 as follows:
Bit7 Bit0
BUTTONS PR Reserved
BUTTONS (3 bit) Number of simultaneous pressed buttons, as following:
0 = 0 Buttons
1 = 2 Buttons (PTM of Type 1 only)
2 = 3 Buttons
3 = 4 Buttons
4 = 5 Buttons
5 = 6 Buttons
6 = 7 Buttons
7 = 8 Buttons
PR (1 bit) PR = 1 !Button pressed, PR = 0 !Button released
Reserved (4 bit) For future use
c) if ORG = 6 (1 Byte Data telegram from a Solar Transmitter Module
(STM):
DATA_BYTE2..0 always = 0
DATA_BYTE3 Sensor data byte.

750-642 [EnOcean Radio Receiver]• 19
Notes on Application
WAGO-I/O-SYSTEM 750
I/O Modules
d) if ORG = 7 (4 Byte Data telegram from a Solar Transmitter Module
(STM):
DATA_BYTE3 Value of third sensor analog input
DATA_BYTE2 Value of second sensor analog input
DATA_BYTE1 Value of first sensor analog input
DATA_BYTE0 Sensor digital inputs as follows:
Bit7 Bit0
Reserved DI_3 DI_2 DI_1 DI_0
e) if ORG = 8 (Telegram from a solar supplied hand remote control (CTM)
set into HRC operation:
DATA_BYTE2..0 always = 0
DATA_BYTE3 as follows:
Bit7 Bit0
RID UD PR SR Reserved
RID*)(2 bit) Rocker ID, from left (A) to right (D): 0, 1, 2 and 3 (decimal)
UD (1 bit) UD=1 !O-button, UD=0 !I-button
PR (1 bit) PR=1 !Button pressed, PR=0 !Button released
SR**)(1 bit) SR=1 !Store, SR=0 !Recall
Reserved (3 bit) for future use
*)The Rocker ID (RID) is checked in addition to the Header Identification (H_SEQ).
H_SEQ indicates, whether the Transmitter is known or not.
**)The bit SR is used only when the lower 3 bits from ID_BYTE0 = ’111’ (scene switch), and RID ≠0
(indicates that the memory buttons M0-M6 are operated in the handled remote control.
2.1.1.7 Notes on Application
Danger
The radio receiver modules must not be used in any relation with equipment
that supports, directly or indirectly, human health or life or with applications
that can result in danger for people, animals or real value.
This results from the classification of the radio receiver module in class 2
Equipment according to ETSI EN 301 489-3 V1.4.1 (2202-08) "Specific
conditions for short-range devices (SRD)".
Attention
The use of the devices does not need to be registered and is free in the
European Union, Switzerland, Cyprus, the Czech Republic, Poland and in
Slovenia.
The use in other countries requires explicit clarification!

20 •750-642 [EnOcean Radio Receiver]
Notes on Installation
WAGO-I/O-SYSTEM 750
I/O Modules
2.1.1.8 Notes on Installation
Avoid installing the module, the antenna and the antenna line close to sources
of transient interferences, such as fluorescent tubes with defective starter,
frequency converters and power cables. As a result, communication failures
may occur leading to faulty digital and analog values.
Notes on external Antenna Installation
1) Use only suitable antennas.
Recommended is the WAGO RF-ANTENNA 868MHz/SMA.
Attention
The WAGO RF-ANTENNA 868MHz/SMA is not included in delivery of the
radio receiver module!
It is to order as accessories under the Item-No.: 758-910.
2) The antenna is to be mounted on a plate measuring at least 9.8 x 9.8 inches
(25 x 25 cm).
3) The distance of interfering sources to the antenna and antenna line must be
at least 11.8 inches (30 cm) and the free space between the antenna and the
next wall must be at least 13.78 inches (35 cm).
4) The antenna cable should, under no circumstances, be bent sharply, since
irreversible damage may result to the antenna line (RG174 bend radius >
0.6 inches/15 mm).
Notes concerning Antenna Extension
Antenna kits are provided by EnOcean if an antenna extension is required.
More Information
Please have a look at: www.enocean.com.
Typical maximum Transmission Ranges
1) Visual line of sight: 98 ft (30 m) in corridors, up to 328 ft (100 m) in halls
2) Gypsum board/wood partition walls: 98 ft (30 m) transmission range
through max. 5 partition walls
3) Brick/lightweight concrete partitions: 65 ft (20 m) transmission range
through max. 3 partition walls
4) Reinforced concrete walls/ceilings: 33 ft (10 m) transmission range
through max. 1 ceiling
Switchgear cabinets and elevator shafts are obstacles to the transmission.
