Waldorf RN8510GC User manual

Installation and Operation Manual
RN8510GC
RN8610GC
RN8810GC
Gas Range
Convection Oven
Date Purchased
Serial Number
Dealer
Service Provider
228680-23
RNL8510GC
RNL8610GC
RNL8810GC
For use in GB, IE & DK

The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in
writing by the manufacturer.
In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and
design without prior notice. © Copyright Moffat Ltd. May 2014.
MANUFACTURED BY
Moffat Limited
Christchurch
New Zealand
INTERNATIONAL CONTACTS
AUSTRALIA
Moffat Pty Limited
Web: www.moffat.com.au
E.Mail: [email protected]
Main Office: (tel) [phone]
(fax) [phone]
Service: (tel): 1800 622 216
Spares: (tel): 1800 337 963
Customer Service: (tel): 1800 335 315
(fax): 1800 350 281
CANADA
Serve Canada
Web: www.servecanada.com
E.Mail: [email protected]
Sales: (tel): 800 551 8795 (Toll Free)
Service: (tel): 800 263 1455 (Toll Free)
NEW ZEALAND
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]
Main Office: (tel): 0800 663328
UNITED KINGDOM
Blue Seal
Web: www.blue-seal.co.uk
E.Mail: [email protected]
Sales: (tel): [phone]
(fax): [phone]
Spares: (tel): [phone]
(fax): [phone]
Service: (tel): [phone]
(fax): [phone]
UNITED STATES
Moffat
Web: www.moffat.com
Sales: (tel): 800 551 8795 (Toll Free)
(tel): [phone]
(fax): [phone]
Service: (tel): 800 858 4477 (Toll Free)
(tel): [phone]
(fax): [phone]
REST OF WORLD
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]

Contents
Waldorf Gas Convection Oven Range
RN(L)8510GC Gas Range Convection Oven - 750mm wide.
RN(L)8610GC Gas Range Convection Oven - 900mm wide.
RN(L)8810GC Gas Range Convection Oven - 1200mm wide.
Introduction .............................................................................................. 2
Specification.............................................................................................. 3
Model Numbers Covered in this Specification
General
Gas Supply Requirements
Gas Connection
Electrical Supply Requirements
Dimensions................................................................................................ 6
Installation................................................................................................ 9
Installation Requirements
Unpacking
Location
Clearances
Assembly
Gas Connection
Electrical Connection
Commissioning
Operation................................................................................................. 12
Operation Guide

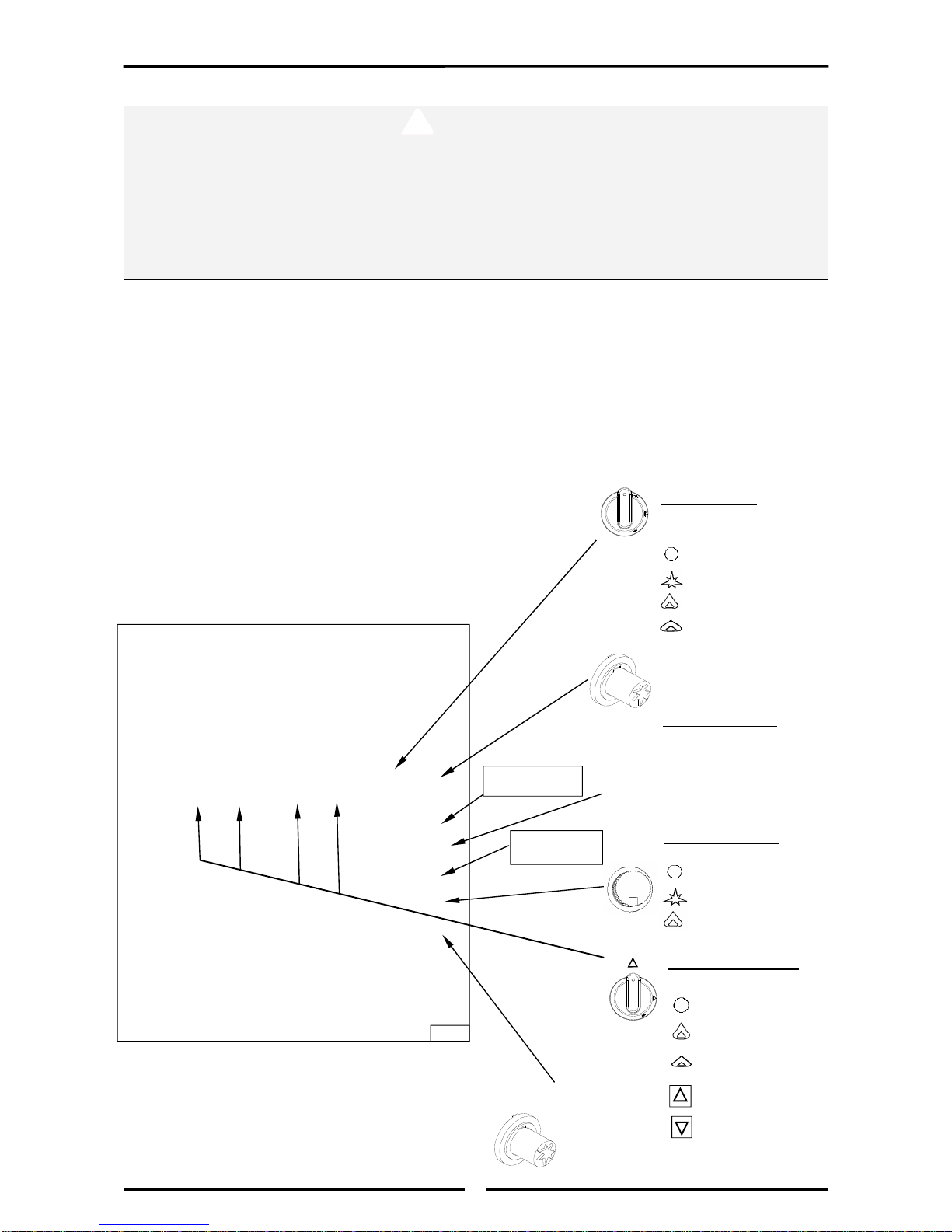

Description of Controls
Open Burners
Griddles
Oven Pilot Ignition
Oven - Main Burner / Thermostat
Oven Fan
Turning the Oven to ‘Stand-By’ (Pilot ‘ON’ Only)
Oven ‘Shut Down’
Cleaning and Maintenance ...................................................................... 16
Before Commencing Cleaning
Open Burner Cleaning
Griddle Plate Cleaning
Oven Interior Cleaning
Stainless Steel Surfaces
Fault Finding............................................................................................ 19
Wiring Schematic .................................................................................... 20
Gas Conversion and Specifications ......................................................... 21
Conversion Procedure
Gas Specifications
Replacement Parts List ........................................................................... 27

2
Introduction
We are confident that you will be delighted with your WALDORF Gas Range Convection Oven, and it will
become a most valued appliance in your commercial kitchen.
To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things
you can do.
Firstly:
Please read the instruction book carefully and follow directions given. The time taken will be well spent.
Secondly:
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your WALDORF dealer promptly. In many cases a phone call could answer your question.
CE Only:
These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK OF
FIRE.
 THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
 ITIS RECOMMENDED THAT AREGULAR INSPECTION IS MADE BY ACOMPETENT SERVICE PERSON TO
ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
 DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
 DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
Warning
 This appliance is for professional use and is only to be used by qualified
persons.
 Only authorised service persons are to carry out installation, servicing or gas
conversion operations.
 Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.
 DO NOT operate the appliance without the legs supplied fitted.
Caution
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.
Warning
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN APROMINENT
LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.
Warning

Specifications
3
Model Numbers Covered in this Specification
RN[1]8510GC [2] Gas Range Convection Oven + 4 Open Burners.
RN[1]8513GC [2] Gas Range Convection Oven + 2 Open Burners + 300mm Griddle.
RN[1]8610GC [2] Gas Range Convection Oven + 6 Open Burners.
RN[1]8613GC [2] Gas Range Convection Oven + 4 Open Burners + 300mm Griddle.
RN[1]8616GC [2] Gas Range Convection Oven + 2 Open Burners + 600mm Griddle.
RN[1]8619GC Gas Range Convection Oven + 900mm Griddle.
RN[1]8810GC [2] Gas Range Convection Oven + 8 Open Burners.
RN[1]8813GC [2] Gas Range Convection Oven + 6 Open Burners + 300mm Griddle.
RN[1]8816GC [2] Gas Range Convection Oven + 4 Open Burners + 600mm Griddle.
RN[1]8819GC Gas Range Convection Oven + 2 Open Burners + 900mm Griddle.
NOTE:
[1]: - Back Options;
- - Standard Models.
L - Low Back Models.
[2] - Open Burner Options;
F - With Flame Failure Protection.
PF - With Pilot and Flame Failure Protection.
General
A heavy duty, general purpose gas range created for compact modular kitchens. It has a high option
Cooktop / Griddle arrangement and is available on industrial adjustable feet or on robust rollers.
Open Burners are available in either 'PF' (Pilot and Flame Failure) or 'F' (Flame Failure Only) options.
Open Burner and Griddle options are fitted with individual flame failure for each open burner.
Griddles are fitted with pilot, flame failure and piezo ignition as standard.
Range is fitted with a turbofan convection oven which has pilot and flame failure with piezo ignition.
Easy clean stainless external finish.

Specifications
4
Gas Supply Requirements
- Australia:
- New Zealand:
- UK Only:
Category: II2H3P (20, 37).
Flue Type: A1.
*Measure burner operating pressure at manifold test point with two burners operating at full
setting. Operating pressure is ex-factory set through the appliance regulator and is not to be
adjusted, apart from when carrying out gas conversion, if required. (Refer to ‘Gas
Conversion’ section for details).
Natural Gas (G20) Propane (G31)
Open Burner
(each) Griddle (each 300mm section) Oven Open Burner (each) Griddle (each 300mm section) Oven
Heat Input
(nett) Nominal 6.5 kW 5.5 kW 7.8 kW 6.5 kW 5.5 kW 7.8 kW
Reduced 1.75 kW 1.85 kW --- 1.75 kW 1.95 kW ---
Gas Rate
(nett) Nominal 0.69 m3/hr 0.58 m3/hr 0.83 m3/hr 0.51 kg/hr 0.43 kg/hr 0.61 kg/hr
Reduced 0.19 m3/hr 0.20 m3/hr --- 0.14 kg/hr 0.15 kg/hr ---
Supply Pressure 20 mbar 37 mbar
Burner Operating
Pressure (*) 9.5 mbar 26 mbar
Gas Connection 3/4” B.S.P. Male
Natural Gas LP Gas (Propane)
Input Rate (N.H.G.C.)
- each Open Burner 28 MJ/hr 28 MJ/hr
- each 300mm Griddle Section 21 MJ/hr 21 MJ/hr
- Oven 30 MJ/hr 30 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.95 kPa 2.6 kPa
Gas Connection 3/4” B.S.P. Male
Natural Gas LP Gas
Input Rate (N.H.G.C.)
- each Open Burner 28 MJ/hr 28 MJ/hr
- each 300mm Griddle Section 21 MJ/hr 21 MJ/hr
- Oven 30 MJ/hr 30 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.95 kPa 2.6 kPa
Gas Connection 3/4” B.S.P. Male

Specifications
5
- All Other Markets:
NOTE:
 (*) Measure Burner operating pressure at manifold test point with 2 burners operating at
'High Flame' setting.
 NAT, LPG & Butane Only - Operating pressure is ex-factory set and is not to be adjusted,
unless when converting between gases, if required.
 (**) TOWN GAS Only - Adjust burner operating pressure using adjustable gas regulator
supplied.
 Refer to ‘Gas Conversion and Specifications' section in this manual for further details.
Gas Connection
Gas supply connection point is located at rear of appliance, approximately 130mm from right hand
side, 32mm from rear and 655mm from floor and is reached from beneath appliance. (Refer to
‘Dimensions’ section).
Connection is ¾" BSP male thread.
Electrical Supply Requirements
230-240 V a.c, 50 Hz, 1.6A, 1P+N+E.
0.4kW.
Oven Fan Motor - 100W.
Natural Gas Town Gas (**)
Input Rate (N.H.G.C.)
- each Open Burner 28MJ/hr 28MJ/hr
- each 300mm Griddle Section 21MJ/hr 21MJ/hr
- Oven 30 MJ/hr 30 MJ/hr
Supply Pressure 1.13 - 3.40kPa 0.75 - 1.50kPa
Burner Operating Pressure (*) 0.95kPa 0.63 Pa
Gas Connection See ‘Gas Connection’ information overleaf
LP Gas (Propane) Butane
Input Rate (N.H.G.C.)
- each Open Burner 28MJ/hr 28MJ/hr
- each 300mm Griddle Section 21MJ/hr 21MJ/hr
- Oven 30 MJ/hr 30 MJ/hr
Supply Pressure 2.75 - 4.50kPa 2.75 - 4.50kPa
Burner Operating Pressure (*) 2.6kPa 2.6kPa
Gas Connection See ‘Gas Connection’ information overleaf

Dimensions
6
RN(L)8510GC
RN(L)8510GC RN(L)8513GC
Cooktop Options

Dimensions

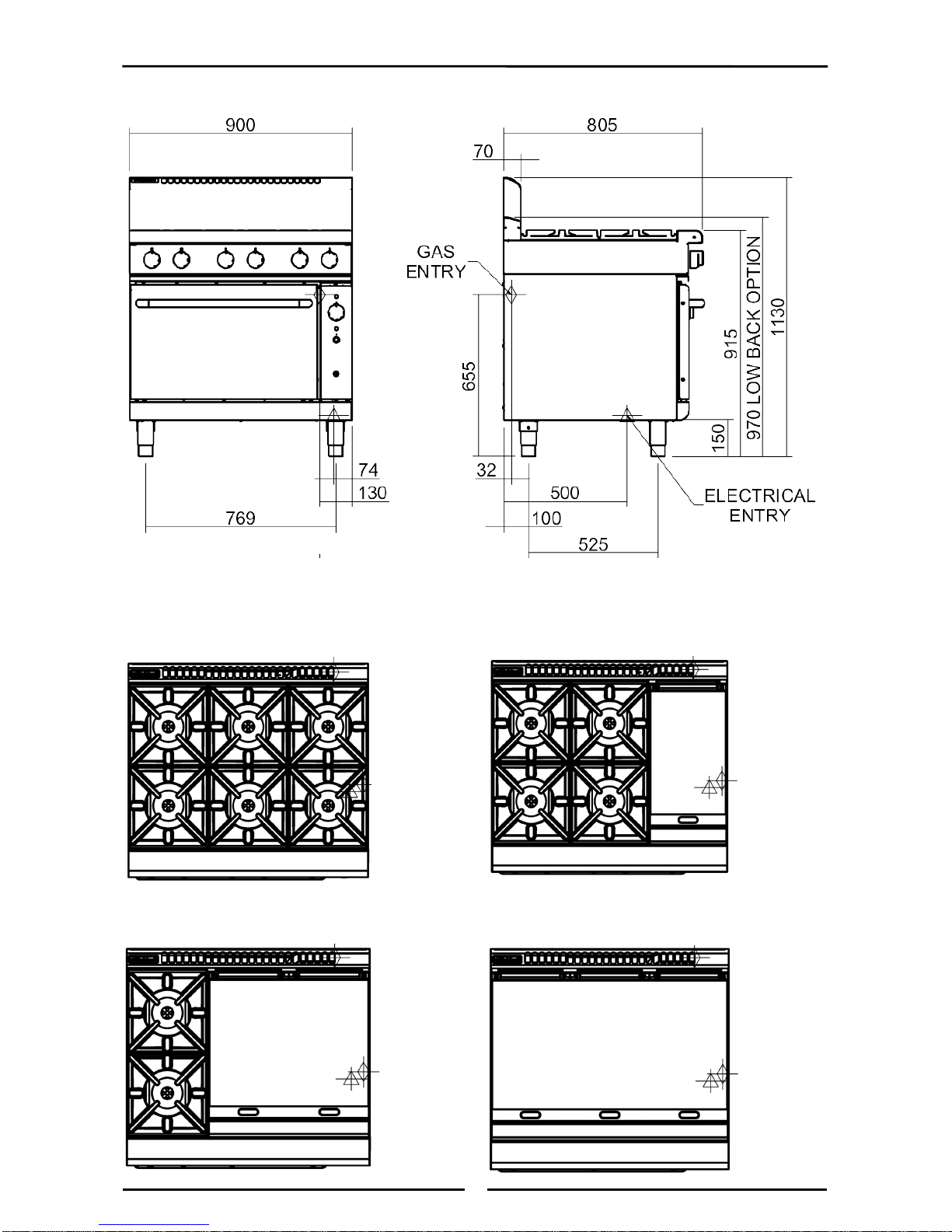

7
RN(L)8610GC
RN(L)8610GC RN(L)8613GC
RN(L)8616GC RN(L)8619GC
Cooktop Options

Dimensions
8
RN(L)8810GC
RN(L)8810GC RN(L)8813GC
RN(L)8816GC RN(L)8819GC
Cooktop Options

Installation
9
Installation Requirements
NOTE:
 It is most important that this appliance is installed correctly and that operation is correct
before use. Installation shall comply with local gas, electrical and health and safety
requirements.
 This appliance shall be installed with sufficient ventilation to prevent occurrence of
unacceptable concentrations of health harmful substances in room, appliance is installed
in.
Waldorf Gas Range Convection Ovens are designed to provide years of satisfactory service, and correct
installation is essential to achieve the best performance, efficiency and trouble-free operation. This
appliance must be installed in accordance with National installation codes and in addition, in accordance
with relevant National / Local codes covering gas, electrical and fire safety.
AUSTRALIA: - AS 5601 - Gas Installations.
NEW ZEALAND: - NZS 5261 - Gas Installation.
Australia / New Zealand: - AS/NZS 3000 - Wiring Rules.
UNITED KINGDOM: - Gas Safety (Installation & Use) Regulations 1998.
- BS 6173 - Installation of Catering Appliances.
- BS 5440 1 & 2 - Installation Flueing & Ventilation.
- BS 7671 - Requirements for Electrical Installation.
IRELAND: - IS 820 - Non - Domestic Gas Installations.
Installation must be carried out by authorised persons only. Failure to install equipment to
relevant codes and manufacturer’s specifications shown in this section will void the
warranty.
Components having adjustments protected (e.g. paint sealed) by manufacturer are only
to be adjusted by an authorised service agent. They are not to be adjusted by the installation
person.
Unpacking
 Remove all packaging and transit protection from appliance including all protective plastic coating
from exterior stainless steel panels.
 Check equipment and parts for damage. Report any damage immediately to carrier and distributor.
 Report any deficiencies to distributor who supplied appliance.
 Check that available gas and electrical supply is correct to as shown on rating plate located on front
right hand corner of bottom sill.
Location
1. Installation must allow for a sufficient flow of fresh air for the combustion air supply.
2. Installation must include adequate ventilation means, to prevent dangerous build up of combustion
products.
3. Never directly connect a ventilation system to appliance flue outlet.
4. Position appliance in its approximate working position.
5. All air for burner combustion is supplied from beneath the appliance. Legs must always be fitted and
no obstructions placed under or around base of appliance, as obstructions will cause incorrect
operation and / or failure of the appliance.
NOTE: Do not obstruct or block the appliances flue. Never directly connect a ventilation system to
the appliance flue outlet.
Combustion Air Requirements:
RN8510GC RN8610GC RN8810GC
Natural Gas 37 m3/hr 51 m3/hr 66 m3/hr
LPG / Butane 38 m3/hr 53 m3/hr 68 m3/hr
Town Gas 37 m3/hr 51 m3/hr 66 m3/hr

Installation
10
Clearances
NOTE: Only non-combustible materials can be used in close proximity to this appliance.
* Side clearances can be 50mm when the adjacent surface is at least 100mm below cooking surface.
Assembly
NOTE:
 All Models are delivered completely assembled. No further assembly is required. Refer to
the information below for installation instructions.
 This appliance is fitted with adjustable feet to enable appliance to be positioned securely
and level. This should be carried out on completion of gas connection. Refer to ‘Gas
Connection’ section.
Optional Accessories (Refer to Replacement Parts List)
 Rear Roller Kit. For installation details, refer to instructions supplied with each kit.
 Plinth Kit. For installation details, refer to instructions supplied with each kit.
1. Check that all feet (or castors) are securely fitted.
2. Adjust feet to make convection oven range steady and level.
Gas Connection
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON.
1. It is essential that gas supply is correct for appliance being installed and that adequate supply
pressure and volume are available. The following checks should be made before installation:-
a. Gas Type the appliance has been supplied for is shown on
coloured stickers located above gas connection and on rating
plate. Check that this is correct for gas supply, appliance is being
installed for. Gas conversion procedure is detailed in this manual.
b. Supply Pressure required for this appliance is shown in
‘Specifications’ section of this manual. Check gas supply to ensure
adequate supply pressure exists.
c. The Input Rate of this appliance is shown on Rating Plate and in
‘Specifications’ section of this manual. Input rate should be
checked against available gas supply line capacity. Particular
note should be taken if appliance is being added to an
existing installation.
NOTE: It is important that adequately sized piping runs directly to connection joint on appliance
with as few tees and elbows as possible to give maximum supply volume.
2. Fit gas regulator supplied, into gas supply line as close to appliance as possible.
NOTE: Gas pressure regulator provided with this appliance is convertible between Natural Gas and
LPG as shown in ‘Gas Conversion Section’ in this manual.
Ensure regulator is converted to correct gas type that appliance will operate on.
Regulator outlet pressure is fixed ex-factory for gas type that regulator is converted to and it
is NOT to be adjusted.
Combustible Surface Non Combustible Surface
Left / Right hand side 250mm (*) 0mm
Rear 100mm 0mm
Rating Plate
Location
Fig 1
 This appliance is for professional use and is only to be used by qualified
persons.
 Only authorised service persons are to carry out installation, servicing or gas
conversion operations.
Caution

Installation
11
Regulator connections are 3/4" BSP female.
Connection to the appliance is 3/4" BSP male.
(Refer to ‘Specifications’ section for gas supply location dimensions).
NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line.
3. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that
appliance is level and at correct height.
4. Connect gas supply to appliance. A suitable jointing compound which resists breakdown action of
LPG must be used on every gas line connection, unless compression fittings are used.
5. Check all gas connections for leakages using soapy water or other gas detecting equipment.
6. Check gas operating pressure is as shown in ‘Specifications’ section.
NOTE: Measure burner operating pressure at manifold test point
with two burners operating at ‘Full’ setting.
7. Verify operating pressure remains correct.
Electrical Connection
NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED
OUT BY A QUALIFIED PERSON.
Each appliance should be connected to an adequately protected power supply and an isolation switch
mounted adjacent to, but not behind appliance. This switch must be clearly marked and readily accessible
in case of fire.
1. Check electricity supply is correct as shown on Rating Plate attached to front right hand corner of
bottom sill.
2. Appliance is fitted with a 10 Amp, 3 pin plug cordset for connection to a properly earthed, 3 pin
switched electrical socket.
Commissioning
1. Before leaving the new installation;
a. Check the following functions in accordance with operating instructions specified in ‘Operation’
section of this manual.
 Lighting the Griddle.
 Light the Open Burners. (F - Flame Failure Option).
 Light the Open Burners. (PF - Pilot and Flame Failure Option).
 Check the Low Fire Burner operation.
 Check the High Fire Burner operation.
 Light the Oven Pilot and Main Burners.
 Check the Oven Main Burner Thermostat operation.
 Check the Oven Fan operation.
b. Ensure operator has been instructed in areas of correct lighting, operation, and shutdown
procedure for appliance.
2. This manual must be kept by owner for future reference, and a record of Date of Purchase, Date
of Installation
and Serial Number of Appliance recorded and kept with this manual. ( These
details can be found on Rating Plate attached to front right hand corner of bottom sill.
Refer to ‘Gas Connection’ section)
.
NOTE: If for some reason it is not possible to get appliance to operate correctly, shut off gas
supply and contact supplier of this appliance.
Fig 2
Manifold
Test Point
DONOT USE ANAKED FLAME TO CHECK FOR GAS LEAKAGES.
Warning

Operation
12
Operation Guide
1. Waldorf appliances have been designed to provide simplicity of operation and 100% safety
protection.
2. Improper operation is almost impossible, however bad operation practices can reduce the life of the
appliance and produce a poor quality product. To use this appliance correctly please read the
following sections carefully:-
 Lighting the Open Burners (F - Flame Failure Option).
 Lighting the Open Burners (PF - Pilot and Flame Failure Option).
 Lighting the Griddles (If fitted).
 Oven Pilot Ignition.
 Oven Main Burner / Thermostat.
 Oven Fan.
 Turning Oven to ‘Stand-By’ Mode.
 Oven ‘Shut-Down’.
Description of Controls
Heating Indicator
Lamp (Amber)
Power Indicator
Lamp (green)
Fig 3
Griddle Option
Burner Control
OFF Position
PILOT Burner
HIGH Flame
LOW Flame
Gas Control Knobs
Piezo Igniter
(Located here when fitted
with Griddle Option)
Open Burner Option
OFF Position
HIGH Flame
LOW Flame
Rear Burner
Front Burner
(Indicators located above
the Gas Control Knobs).
Piezo Igniter (Oven)
Oven Thermostat
Temperature
Graduations 50°C to
320°C
Oven Gas Control
OFF Position
PILOT Burner
HIGH Flame
 This appliance is for professional use and is only to be used by qualified
persons.
 Only authorised service persons are to carry out installation, servicing or gas
conversion operations.
 Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.
Caution

Operation
13
Open Burners ('F' - Flame Failure Option)
Lighting the Open Burners
Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which
will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not
expelled.
a. Select burner required, depress and turn the gas control knob anti-clockwise to ‘HIGH’ position.
b. Hold gas control knob depressed and manually light main burner.
c. Release gas control knob after approximately 10-20 seconds after lighting burner.
d. Burner should stay alight - if not, repeat Steps (a. to (c. above.
e. To adjust the temperature required, depress and rotate gas control knob between ‘HIGH’ and
‘LOW’ positions.
Turning 'OFF' the Open Burners
a. When main burner is not required, depress and turn gas control knob clockwise back to ‘OFF’
position. 'MAIN' burner will extinguish.
Open Burners ('PF' - Pilot and Flame Failure Option)
Lighting the Open Burners
These hobs are fitted with individual standing pilots for each open burner which allows main burners
to be turned 'ON' - 'OFF' without having to manually re-light burner each time that it is turned 'ON',
as burner will automatically light itself off the pilot burner.
Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which
will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not
expelled.
a. Select burner required, depress and turn the gas control knob anti-clockwise to ‘PILOT’ position.
b. Hold gas control knob depressed and manually light pilot burner.
c. Release gas control knob after approximately 10-20 seconds after lighting pilot burner.
d. Pilot burner should stay alight - if not, repeat Steps (b. to (c. above.
e. To select ‘Full Flame’, depress and rotate gas control knob anti-clockwise to first stop 'HIGH'
flame position.
f. To select ‘Low Flame’, depress and rotate gas control knob fully anti-clockwise to ‘LOW' flame
position.
g. To adjust the temperature required, depress and rotate gas control knob between ‘HIGH’ and
‘LOW’ positions.
Turning 'OFF' the Open Burners / Pilots
a. To turn 'OFF' main burner, but keep pilot burner alight, rotate gas control knob to 'PILOT'
position. Main burner will extinguish and pilot will remain alight.
b. To turn 'OFF' the 'PILOT', depress and turn gas control knob clockwise back to ‘OFF’ position.
'PILOT' burner will extinguish.

Operation
14
Griddle
Lighting the Griddle
a. Depress gas control knob and rotate anti-clockwise to ‘PILOT’ position.
b. Hold gas control knob depressed, press piezo ignition button to ignite pilot burner. Repeat Items
1 to 2 until pilot is lit.
c. Release gas control knob approximately 10-20 seconds after lighting pilot.
d. Pilot should now remain alight - if not, repeat Steps (b. to (c. above.
e. To select ‘Full Flame’, depress and rotate gas control knob anti-clockwise to ‘HIGH’ position.
f. To select ‘Low Flame’, depress and rotate gas control knob fully anti-clockwise to ‘Low Flame’
position.
g. When main burner is not required, depress and turn gas control knob clockwise back to ‘OFF’
position.
Turning 'OFF' the Griddle Burner / Pilot
a. To turn 'OFF' griddle, but keep pilot burner alight, rotate gas control knob to 'PILOT' position.
Griddle burner will extinguish and pilot will remain alight.
b. To turn 'OFF' 'PILOT', depress and turn gas control knob clockwise back to ‘OFF’ position. 'PILOT'
burner will extinguish.
Oven Pilot Ignition
This oven is fitted with a pilot as a standard option and flame failure protection, which is incorporated by
way of a thermo-electric system for the main burner. Flame failure protection will shut off gas supply to
burner in the event that pilot burner goes out, so that un-burnt gas is not expelled.
This is an important
safety feature which is slowly becoming law throughout the world .
1. Open oven door.
2. Depress oven gas control knob and rotate anti-clockwise
to ‘PILOT’ position.
3. While holding oven gas control knob depressed, press
piezo ignition button to ignite pilot burner. Repeat Items
1 and 2 until pilot burner is lit.
4. Release gas control knob approximately 10-20 seconds
after lighting pilot.
5. Pilot should now remain alight - if not, repeat Steps 2 to
3 above.
6. Ensure that pilot burner is alight by opening pilot burner
inspection covers and looking through pilot burner
viewing holes in cast oven sole plate.
NOTE: Ensure that pilot burner inspection covers are closed once pilot is lit.
! IMPORTANT DO NOT USE aluminium foil or trays directly on cast iron sole plate(s).
NEVER block or cover openings on each side of sole plate(s).
Pilot Burner
viewing holes
Pilot Burner
Inspection Covers
Sole Plate Fig 4

Operation
15
Oven - Main Burner / Thermostat
1. Ensure oven door is closed.
2. Turn ‘ON’ electrical power at mains supply, (green) power indicator light will illuminate on oven
control panel.
3. With pilot burner alight, depress and rotate oven gas control knob to 'Main Flame' position. (This
puts gas valve in 'Stand-By' position and control of main burner is now carried out through oven
thermostat control).
4. Turn oven thermostat to desired oven temperature setting required, this will regulate gas supply to
oven main burner.
5. Oven fan will start and oven main burner will ignite.
6. Amber heating indicator light will show that oven main burner is ‘ON’ and oven is heating. When
amber heating indicator light goes out, oven has reached pre-selected temperature, burner will cycle
‘OFF’.
Oven Fan
1. Fan is operational only when oven thermostat is set to a temperature. Fan is controlled by a
microswitch which in turn is controlled by opening and closing oven door. Oven fan is operational
only with oven door closed.
Turning the Oven to ‘Standby’ (Pilot ‘ON’ Only)
1. To turn ‘Off’ oven main burner / heating, set oven thermostat to '0' temperature position, this will
turn oven main burner ‘OFF’, but will leave oven pilot burner ‘ON’.
2. In this position pilot burner will remain alight, but oven main burner will not operate until thermostat
control knob is set to a temperature.
3. If oven pre-heating is required, set thermostat control knob to temperature 190°C and allow 20
minutes before cooking in oven to allow oven to warm up.
Oven ‘Shut-Down’
1. To ‘Shut Down’ oven, turn oven thermostat to ‘0’ position, oven main burners will go out.
2. Turn gas control valve to 'OFF' position and this will extinguish pilot burner. (To relight pilot burner,
refer to ‘Oven Pilot Ignition’ above).
3. Turn ‘OFF’ electrical power at mains supply, (green) power indicator light will extinguish.
NOTE: If main burner has recently been turned 'OFF', should you wish to re-light oven, the
interlock will not allow gas valve to be turned to main burner position until interlock has
reset (Approximately 1 minute). DO NOT FORCE GAS VALVE TO MAIN BURNER POSITION
UNTIL INTERLOCK HAS RESET, as this will damage gas control valve.
IMPORTANT:
Should any abnormal operation like;
- ignition problems,
- abnormal burner flame,
- burner control problems,
- partial or full loss of burner flame in normal operation, appliance requires IMMEDIATE
service by a qualified service person and should not be used until a service is carried out.

Cleaning and Maintenance
16
Before Commencing Cleaning
NOTE:
 Allow appliance to cool before commencing cleaning.
 DO NOT use abrasive or strong caustic detergents as they could corrode or damage the
Cooktop.
 Ensure that any detergent or cleaning material has been completely removed after each
cleaning.
To keep your Cooktop clean and operating at peak efficiency, follow the procedures shown overleaf:-
Always turn off the gas / electrical supply before cleaning the appliance.
This appliance is not water proof. Do not use water jet spray to clean interior
or exterior of this appliance.
Caution
Burner Body
Griddle Plate
Grease Tray
Spill Tray
Pot Stand
Burner Cap
Burner Mounting Rail

Cleaning and Maintenance
17
Open Burner Cleaning
1. Remove pot stands, burner caps, burner bowls
and pot stand supports from top of cooktop.
Wash with hot soapy water, using a soft
bristled brush. Dry thoroughly with a dry cloth.
Any baked-on deposits can be scraped off
using a scraper tool.
NOTE: Pot stands, burner bowls and pot stand
supports can be washed in a dish
washer. Do Not wash burner caps in
dishwasher.
2. Burner mounting rails should not be removed.
Clean in situ with hot soapy water.
3. Clean burner venturi with a bottle brush and
hot soapy water, as required.
4. Empty spill tray and wash with warm soapy
water.
5. Dry all components thoroughly and
re-assemble.
Griddle Plate Cleaning
It is recommended that a flat blade scraper is used
to clean the griddle surface, these are not supplied
with griddle but may be purchased separately.
Refer to 'Replacement Parts List' at rear of this
manual.
1. Clean griddle plate surface thoroughly with a
scraper tool and brush off any deposits with a
soft bristled brush.
2. Stubborn or accumulated carbon deposits can
be removed with a griddle stone or a scotch
bright pad.
3. Wipe down griddle surface with a cloth and
then clean with hot soapy water and a soft
bristled brush. Dry thoroughly with a dry cloth.
4. Occasionally bleach griddle plate with vinegar
when plate is cold.
5. Empty grease tray and wash with warm soapy
water. Dry thoroughly with a dry cloth. Refit
grease tray.
6. Briefly turn ‘On’ griddle until griddle plate is
dry.
7. Spread a thin smear of cooking oil over griddle
plate to form a protective film.
Always ensure that even pressure is
applied over whole surface of scraper tool
when using on flat surface of griddle, to
prevent scoring of griddle surface.
NEVER bang sharp edge of scraper tool on
flat surface of griddle as this will damage
the griddle and invalidate the warranty.
Caution
THE BLADES FITTED TO THE SCRAPER TOOL ARE EXTREMELY SHARP
AND ARE TO BE USED WITH CARE.
Warning
Burner Cap
Burner Body
Burner Mounting
Rail
Pot Stand
Support
Burner Venturi
Bottle Brush

Cleaning and Maintenance
18
Oven Interior Cleaning
1. Do not use wire brushes, steel wool or other
abrasive materials to clean oven interior.
2. Clean oven regularly with a good quality
domestic oven cleaner.
3. Weekly - Remove and clean any built up of
grease etc. from oven racks and bottom spill
cover.
4. Dry oven thoroughly with a dry cloth and polish
with a soft dry cloth.
Stainless Steel Surfaces
1. Clean stainless steel surfaces with hot soapy
water and a soft bristled brush.
2. Baked on deposits or discolouration, use a
good quality stainless steel cleaner or stainless
steel wool. Always rub in direction of grain.
