Walton 5x5 Corner Playhouse Instruction manual

P 1
02CORPLAY0505-V1
5x5 Corner Playhouse

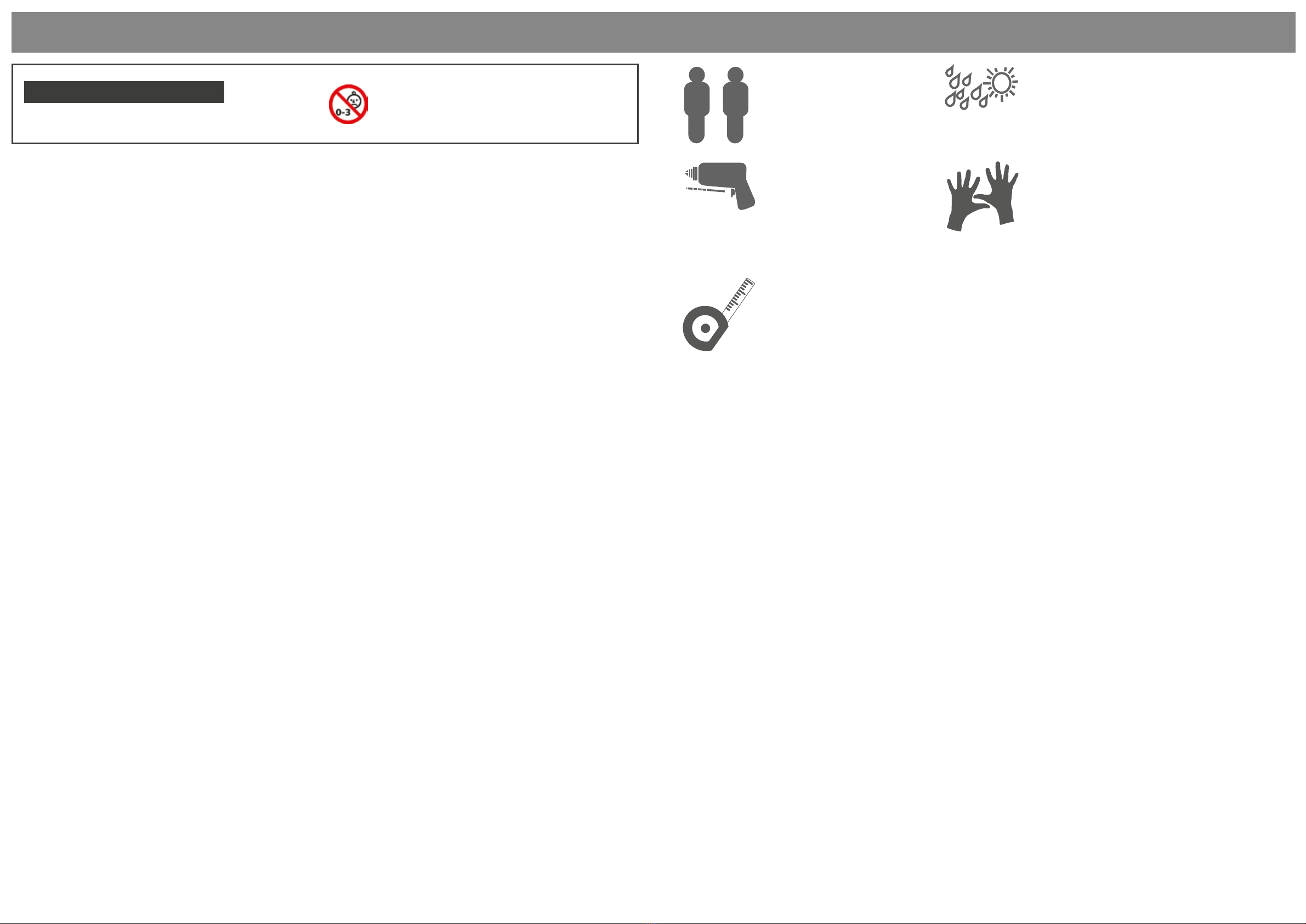

2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
**Protim Aquatan T5 (621)**
Your building has been treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, Wood saw, Step ladder, Hammer and a
Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to protect
the product during transit and for upto 3 months against mould. To validate your
guarantee and ensure longevity of the product, it is ESSENTIAL the building is treated
with a wood preserver within the rst three months of assembly and thereafter in
accordance with the manufactures recommendations. Care must be taken to ensure
the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for you specic product code
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
WARNING: Only for domestic use
Not suitable for children under 36 month
To be used under direct supervision of an adult

P 2
02CORPLAY0505-V1
Overall Dimensions:
Width = 1516mm
Depth = 1516mm
Height = 1384mm
Base Dimensions:
Width = 1405mm
Depth = 1405mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Door Panel
AI-02CORPLAY0505-V1DP
Window Panel QTY 2
AI-02CORPLAY0505-V1WP
Left Gable
AI-02CORPLAY0505-V1GL
Right Gable
AI-02CORPLAY0505-V1GR
Door
AI-02CORPLAY0505-V1D
Window QTY 2
AI-03FW540X1132-V1
Roof
PI-03-****
Floor
AI-02CORPLAY0505-V1F
Panel Frame - 28x28x1240mm
FS2828-1240mm
Eaves Frame - 28x28x884mm QTY 2
FS2828-884mm
Eaves Frame - 28x28x1436mm QTY 2
FS2828-1436mm
Eaves Frame - 28x28x819mm
FS2828-819mm
Fascia - 95x12x1492mm QTY 2
SR1295-1492mm
Fascia - 95x12x896mm QTY 2
SR1295-896mm
Fascia - 95x12x860mm
SR1295-860mm
Cover Trim - 40x12x1344mm QTY 4
S1240-1344mm
Ridge Bar - 28x28x1354mm
FS2828-1354mm
Ply Triangle - 100x9x100mm
Ply Triangle
Hinge QTY 3
PI-07-0113
“L” Bracket QTY 2
PI-07-0012
Window Block QTY 8
PI-07-0011
Door Knob
PI-04-0024
Felt
PI-01-0014
1 2 3 4
567 8
9
10
11
12
13
14
15
16
17
18
19 20 21 22
23

Pre Assembly
Before beginning assembly remove the
transportation blocks from the bottom
of each panel.
Nail Bag
50mm Screws x20
40mm Screws x37
30mm Screws x80
30mm Black Screws x23
Felt Tacks x80
30mm
screw
6
30mm
screw
20mm Black Screws x5
P 3
Please retain product label and instructions for future reference

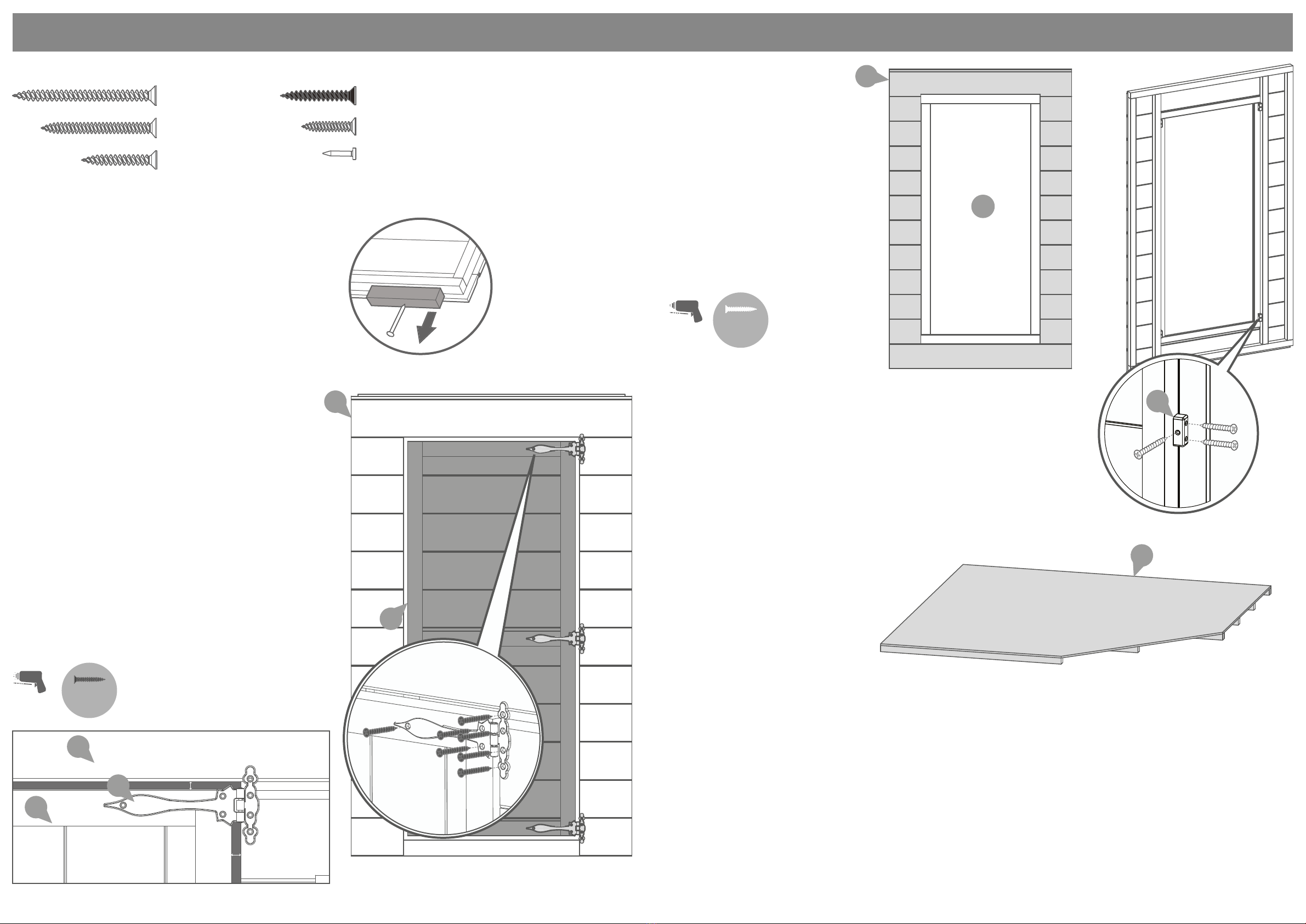

Step 1
Place the door panel (No. 1) onto a rm and
level surface and place the door (No. 5) into
the opening making sure there is an equal
space of 12mm around the door.
*Use 2x fascia’s from the xing kit as a guide
to achieve the correct spacing.
Once in position x the door to the door panel
with the 3x hinges (No. 19) securing each
hinge using 7x30mm black screws.
21x30mm black screws.
Pre drill
hole
1
19
5
1
2
21
Step 2
Position a window (No. 6) into each
window panel (No. 2) and secure the
window into place using 4x window
blocks (No. 21) and 3x30mm screws
per block.
Ensure to x the window blocks at
each corner of the window and then
to the upright framing on the window
panel.
24x30mm Screws
Pre drill
hole
8
Step 3
Place the oor (No. 8) onto a rm
and level base, making sure that
there is suitable drainage and is
free from areas where standing
water can collect.
12mm
12mm
5

P 4
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
3
9

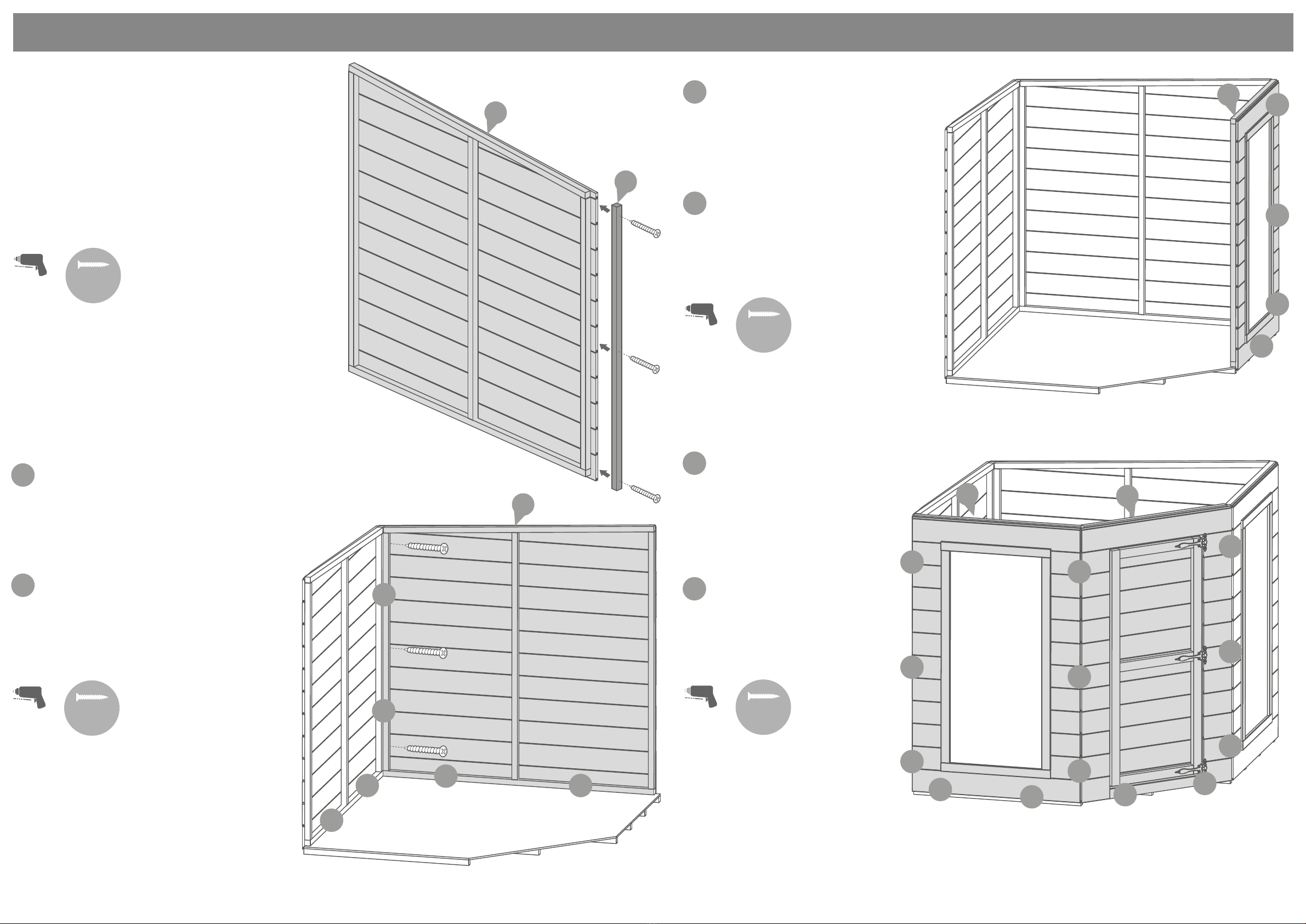

Step 4
Attach the panel frame (No. 9) to the
rear of the left gable (No. 3) using
3x50mm screws.
*Ensure the panel frame is level with
the framing at the bottom of the
left gable.
3x50mm Screws
Pre drill
hole
50mm
screw
4
a
b
a
bb
b
Step 5
Place the left and right gable(s)
(No’s. 3 & 4) onto the oor and
x together using 3x50mm
screws. Ensure to secure through
the right gable into the panel
frame.
Do NOT secure the building to
the oor until after the roof has
been tted.
3x50mm Screws
a
b
Pre drill
hole
50mm
screw
2a
b
a
a
Step 5
Following the same method
outlined in Step 4 x the rst
window panel (No. 2) into
position, securing at the
corner with 3x50mm screws.
Do NOT secure the building to
the oor until after the roof has
been tted.
3x50mm Screws
a
b
Pre drill
hole
50mm
screw
Step 6
Following the same method
outlined in Step 4 x the
second window panel (No. 2)
and door panel (No. 1) into
position, securing at the
corner(s) with 3x50mm screws.
Do NOT secure the building to
the oor until after the roof has
been tted.
9x50mm Screws
a
b
Pre drill
hole
50mm
screw
a
a
a
a
a
a
a
a
a
bbbb
21

P 5
Please retain product label and instructions for future reference
712
10
10
11
11

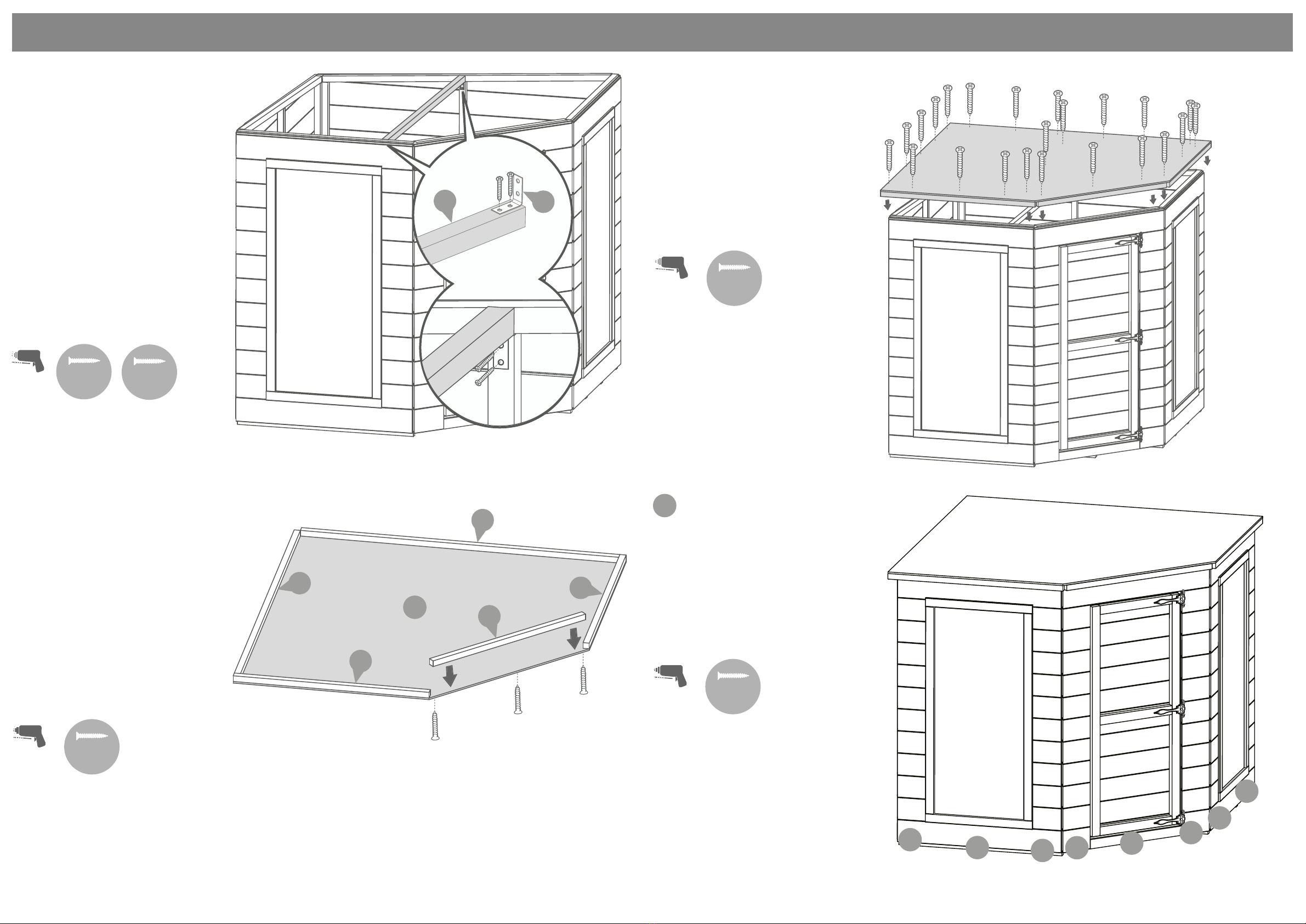

Step 8
Arrange the eaves frames (No’s. 10,
11 & 12) around the edge of the
roof sheet (No. 7) as shown in the
illustration.
Secure the framing in position using
30mm screws, ensuring to screw
through the roof sheet into the
frames.
16x30mm Screws
Pre drill
hole
30mm
screw
17 20
Step 7
Fix the 2x “L” brackets to either end of
the ridge bar using 2x20mm screws
per bracket.
*Ensure the bracket plate(s) are
ush with each end of the ridge
bar.
Once in place position the ridge bar
between the gable and window
panel, securing into position using
2x30mm screws per side.
4x20mm Screws
4x30mm Screws
Pre drill
hole
20mm
screw
30mm
screw
Step 9
Place the assembled roof panel on top
of the building and x into position
using 30mm screws.
*Ensure to screw through the roof
sheet into the panel’s framing and
ridge bar.
22x30mm Screws
Pre drill
hole
30mm
screw
Step 10
Once the roof has been xed into
place, secure the building to the
oor using 40mm screws.
*Ensure to screw through the oor into
the oor bearers using the nail pattern
as a guide.
16x40mm Screws
b
Pre drill
hole
40mm
screw
bbb
b
b
b
b
b

HANDLE
WITH CARE
12
3
4
Felt
tacks
P 6
Please retain product label and instructions for future reference
Please retain product label and instructions for future reference
2
1

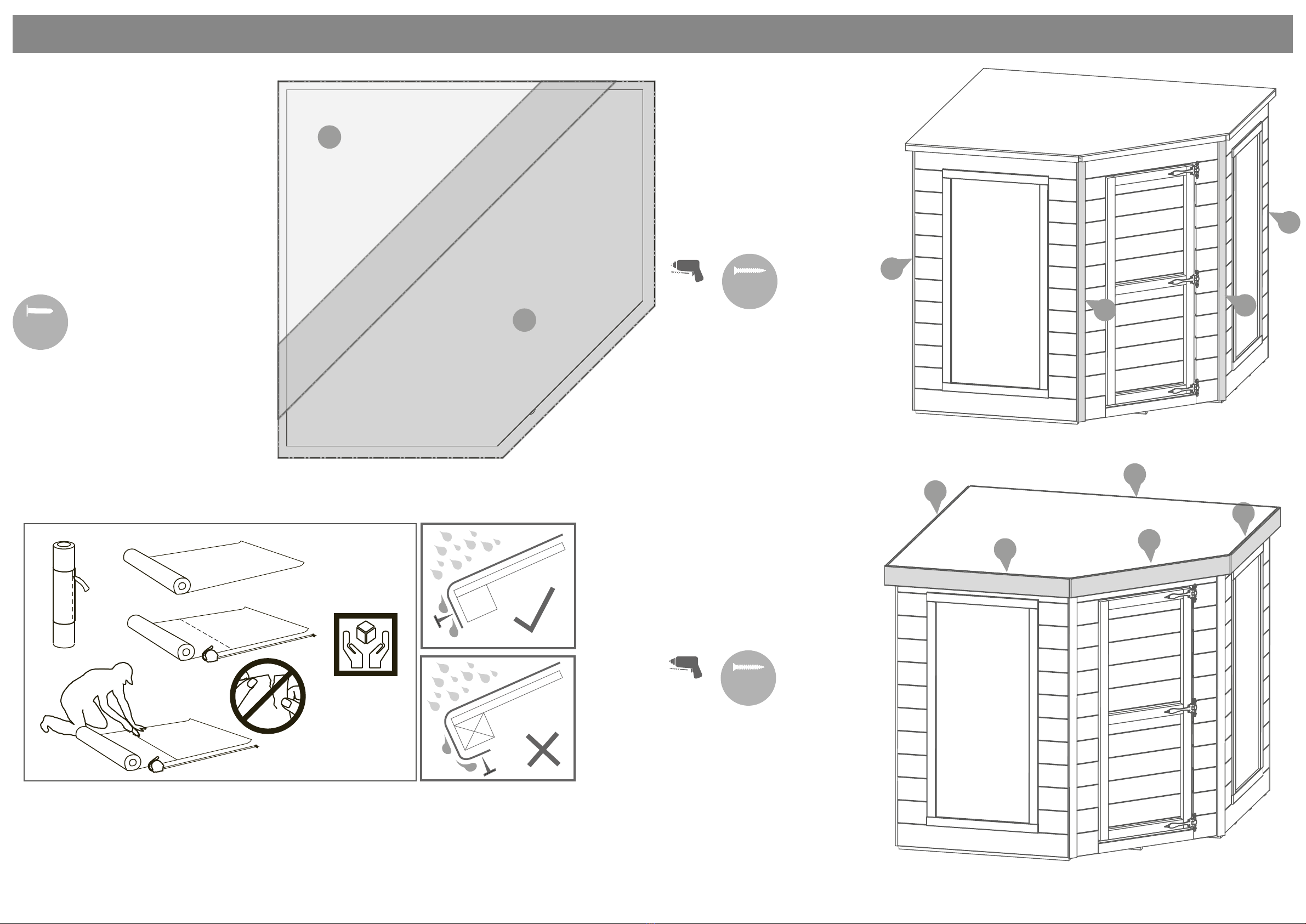

Step 11
Cut the felt (No. 23) into 2x strips and lay
onto the roof, making sure to lay the felt
from the rear of the building to the front
as shown in the illustration.
*Ensure there is approximatley 50mm
of overhanging felt around the building.
Once in position secure the felt to the roof
using 78x felt tacks.
78x Felt Tacks
Step 12
Arrange the cover strips (No. 16) at front
and side(s) of the building and x into
place using 3x30mm screws per strip.
*At the front of the building measure
the space between the roof & bottom
board and cut 2 cover trims to match.
12x30mm Screws
Pre drill
hole
30mm
screw
16
16
16
16
**Trim o excess felt following the shape
of the roof.
15
14
14
13
13
Step 13
Secure the fascia’s (No’s. 13, 14 & 15)
around the top of the building using
40mm screws as shown in the
illustration.
*Make sure to trap the felt between
the building and the facia.
19x40mm Screws
Pre drill
hole
40mm
screw

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Please retain product label and instructions for future reference
17
Step 13
Place the door knob (No. 22) on the outside of the
door, screwing into the desired position.
Pre drill
hole
