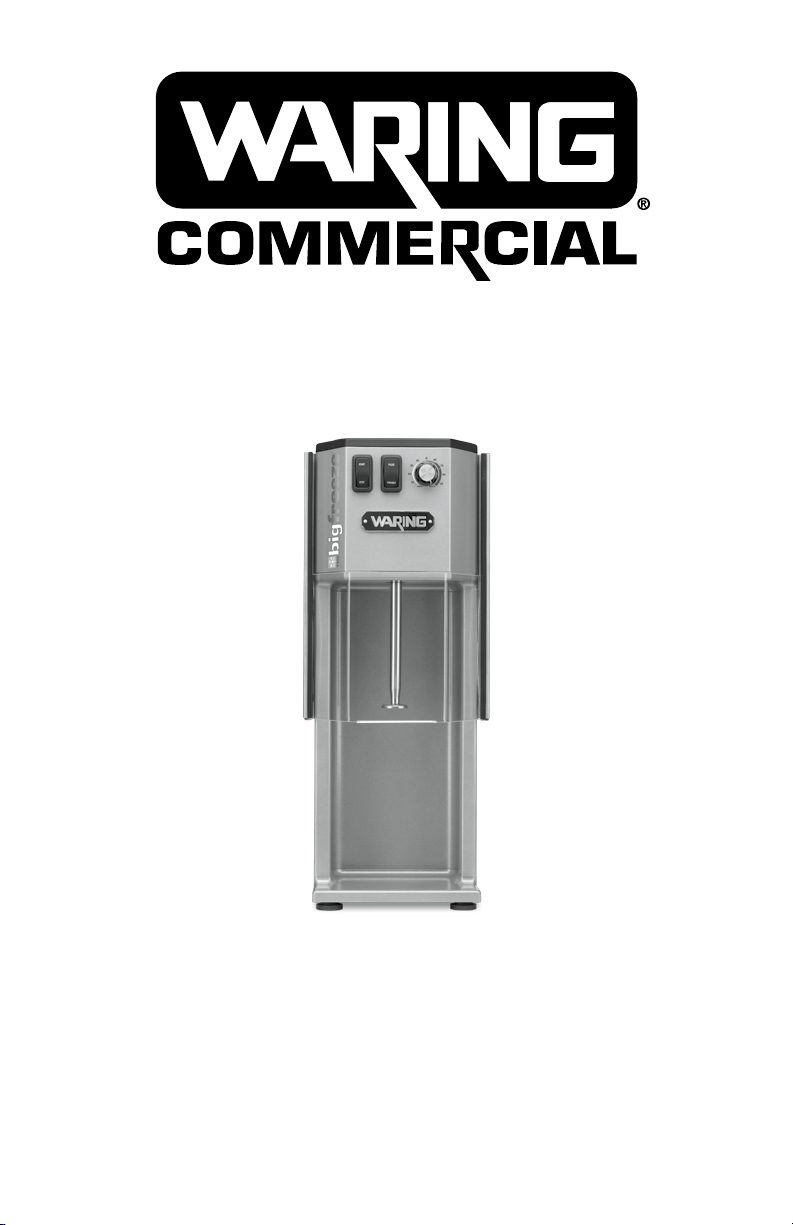

Waring BIG FREEZE WDM500 User manual

WDM500
THE BIG FREEZE™
VARIABLE SPEED DRINK MIXER
For your safety and continued enjoyment of this product,
always read the instruction book carefully before using.
Para su seguridad y para disfrutar plenamente de este producto,
siempre lea las instrucciones cuidadosamente antes de usarlo.
An que votre appareil vous procure en toute sécurité beaucoup de
satisfaction, lire attentivement le mode d’emploi avant de l’utiliser.

2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be taken, including the following:
1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on
or taking off parts, and before cleaning.
3. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
4. Children should be supervised to ensure that they do not
play with the appliance.
5. To protect against electrical hazards, do not put the Waring®
Commercial Drink Mixer in water or other liquids.
6. Avoid contact with moving parts.
7. Do not operate the Waring®Commercial Drink Mixer or any
other electrical equipment with a damaged cord or plug, or
after the unit malfunctions or is dropped or damaged in any
manner. Return it to the nearest authorized service facility
for examination, repair or adjustment.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch
hot surfaces.
10. Put this instruction manual in a safe place. Do not discard.
SAVE THESE INSTRUCTIONS
APPROVED FOR COMMERCIAL USE
GROUNDING INSTRUCTIONS
For your protection, the Waring®Commercial Drink Mixer is
equipped with a 3-conductor cord set.
120-volt units are supplied with a molded 3-prong grounding-
type plug, and should be used in combination with a properly
connected grounding-type outlet as shown in Figure 1.

3
If a grounding-type outlet is not available, an adapter, shown in
Figure 2, may be obtained to enable a 2-slot wall outlet to be
used with a 3-prong plug.
As shown in Figure 3, the adapter must be grounded by attaching
its grounding lug under the screw of the outlet cover plate.
CAUTION: Before using an adapter, it must be determined that
the outlet cover plate screw is properly grounded. If in doubt,
consult a licensed electrician.
Never use an adapter unless you are sure it is properly grounded.
NOTE: Use of an adapter is not permitted in Canada.
INTRODUCTION
The Waring®Commercial Big Freeze™drink mixer is designed
specically to process thick, ice cream-based mixtures in
standard milk shake cups, utilizing a powerful and quiet, direct-
drive motor without noise-producing gears or belts.
OPERATION
Manual Operation
1. Be sure clear plastic splash shield is in position and slides
up and down freely.
2. Plug power cord into properly grounded electrical outlet of
correct voltage.
3. Set toggle switch to “ON” position.
4. Allow motor to reach full speed (1–2 seconds).
5. Bring mixing cup up into position under rotating agitator.
6. Lift cup upward in one slow continuous motion until agitator
bottoms out, then lower cup back down slowly until agitator
begins to emerge. Withdraw cup from spindle slowly enough

4
to allow mix residues to spin off agitator and be retained
in cup.
IMPORTANT: DO NOT RUSH THE MIXING PROCESS! The secret
to complete mixing is to work slowly. Proper mixing requires
10–20 seconds (5–10 seconds up, and 5–10 seconds down).
7. Set toggle switch to “OFF” position.
8. The Pulse switch will operate at whatever speed the dial
is set to. The Pulse switch will only operate while pressed
forward or backward. Keep a rm grip on the cup while
using the Pulse switch.
CLEANING & MAINTENANCE INSTRUCTIONS
1. Add 36 ounces of clean rinse water to metal mixing cup.
Bring cup into normal operation position and run for two (2)
minutes. Empty cup.
2. UNPLUG MIXER POWER CORD FROM ELECTRICAL
OUTLET.
3. Remove clear plastic splash shield by lifting straight up until
it clears the top of the mixer housing.
4. Remove left and right splash shield guide tracks (the
grooved plastic posts in which the splash shield slides up
and down) by tilting their top ends inward and lifting out.
5. Wash, rinse and sanitize the splash shield and both guide
tracks. Sanitize these parts by immersion in sanitizing
solution for two (2) minutes. Shake off excess moisture and
allow to air dry.
CAUTION: High temperatures may distort the splash shield
and guide tracks. These parts must be hand-washed.
DO NOT PUT IN DISHWASHER.
6. Working from the top down, wash, rinse and sanitize all
parts of the mixer housing located above, around and below
the spindle and agitator, and that portion of the spindle itself
which is above the agitator using absorbent wiping cloths
moistened with cleaning solution, rinse water and sanitizing
solution.
7. Reassemble the splash shield guide tracks and the splash
shield to the mixer housing.
8. Wash, rinse and sanitize the agitator as follows.

5
– Plug mixer power cord into electrical outlet.
- Add 36 ounces of washing solution to cleaning container.
- Bring container into normal operating position with agitator
immersed in solution before turning motor on.
- Turn motor on and run for 2 minutes.
- Withdraw container slowly, allowing excess solution to spin
off and be retained by the container.
- Turn motor off.
- Empty container, and repeat two-minute run with 36
ounces of rinse water.
- Empty container, and repeat two-minute run with 36
ounces of sanitizing solution.
- Empty container. Do not rinse container, spindle or agitator
after sanitizing is completed. Allow all parts to air dry.
The following washing, rinsing and sanitizing solutions, or their
equivalents, may be used:
HELPFUL HINTS
1. Always unplug the Waring®Commercial Big Freeze™
Variable Speed Drink Mixer before disassembling or
assembling parts.
2. Be sure to keep all the instructions, parts lists and service
information in a safe and handy place.
3. If using ice, only use crushed ice or small cubes in the
Waring®Commercial Big Freeze™ Variable Speed Drink
Mixer.
4. Clean the Waring®Commercial Big Freeze™ Variable Speed
Drink Mixer thoroughly before initial use.
5. Keep mixing cup clean. Wash, rinse and sanitize thoroughly
after use.
SOLUTION PRODUCT DILUTION IN WATER TEMPERATURE
Washing: Calgon
®
Calgolac 1 Tablespoon/Gallon Hot (115°F)
Rinsing: Plain Water Warm (95°F)
Sanitizing: Clorox
®
Institutional 1 Tablespoon/Gallon Cold (50°F– 70°F)
Bleach
Calgon®is a registered trademark owned by Calgon Corporation.
Clorox®is a registered trademark owned by the Clorox Corporation.

6
6. Be sure that all detachable parts are fastened tightly before
operating the Waring®Commercial Big Freeze™ Variable
Speed Drink Mixer.
7. Operate the Waring®Commercial Big Freeze™ Variable
Speed Drink Mixer only when it is fully assembled.
8. To avoid splashing drinks of thin consistency, operate
on low speed.
Any other servicing should be performed by an authorized service
representative.
LIMITED ONE YEAR WARRANTY
Waring warrants every new Waring®Commercial Big Freeze™
Variable Speed Drink Mixer to be free from defects in material and
workmanship for a period of one year from the date of purchase
when used with foodstuffs, nonabrasive liquids (other than
detergents) and nonabrasive semiliquids, provided it has not been
subject to loads in excess of the indicated rating. In addition, the
motor in this appliance has a full three-year warranty.
Under this warranty, the Waring Commercial Division will repair
or replace any part that, upon our examination, is defective in
materials or workmanship, provided the product is delivered
prepaid to the Waring Service Center at:
314 Ella T. Grasso Ave. Torrington, CT 06790, or any Factory
Approved Service Center.
This warranty does not: a) apply to any product that has become
worn, defective, damaged or broken due to use or due to repairs
or servicing by other than the Waring Service Center or a Factory
Approved Service Center, or due to abuse, misuse, overloading
or tampering; or b) cover incidental or consequential damages of
any kind.
The one-year warranty is applicable only to appliances used in
the United States or Canada; this supersedes all other express
product warranty or warranty statements. For Waring products
sold outside of the U.S. and Canada, the warranty is the
responsibility of the local importer or distributor. This warranty
may vary according to local regulations.
Warning: This warranty is void if appliance is used on Direct
Current (DC).

7
SERVICE
Should service on this product in the U.S. or Canada be required
at any time, call or write to:
Waring Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tel. [phone] • FAX [phone] or Nearest Authorized
Service Center
Replacement parts for Waring Out of Warranty repairs are
obtainable at the above address.
Note: If your application involves the processing of biologically
active materials, any items returned for service must be sterilized
before being shipped. Such items must be clearly identied as
having been sterilized, both by a tag on the item itself and by a
statement in the accompanying correspondence. Waring will not
accept delivery of any returns unless they are so identied.

©2014 Waring Commercial
314 Ella T. Grasso Ave
Torrington, CT 06790
www.waringcommercialproducts.com
Printed in Taiwan
Impreso en Taiwán
Imprimé à Taïwan
WDM500
14WC004194
IB -12811
