Introduction

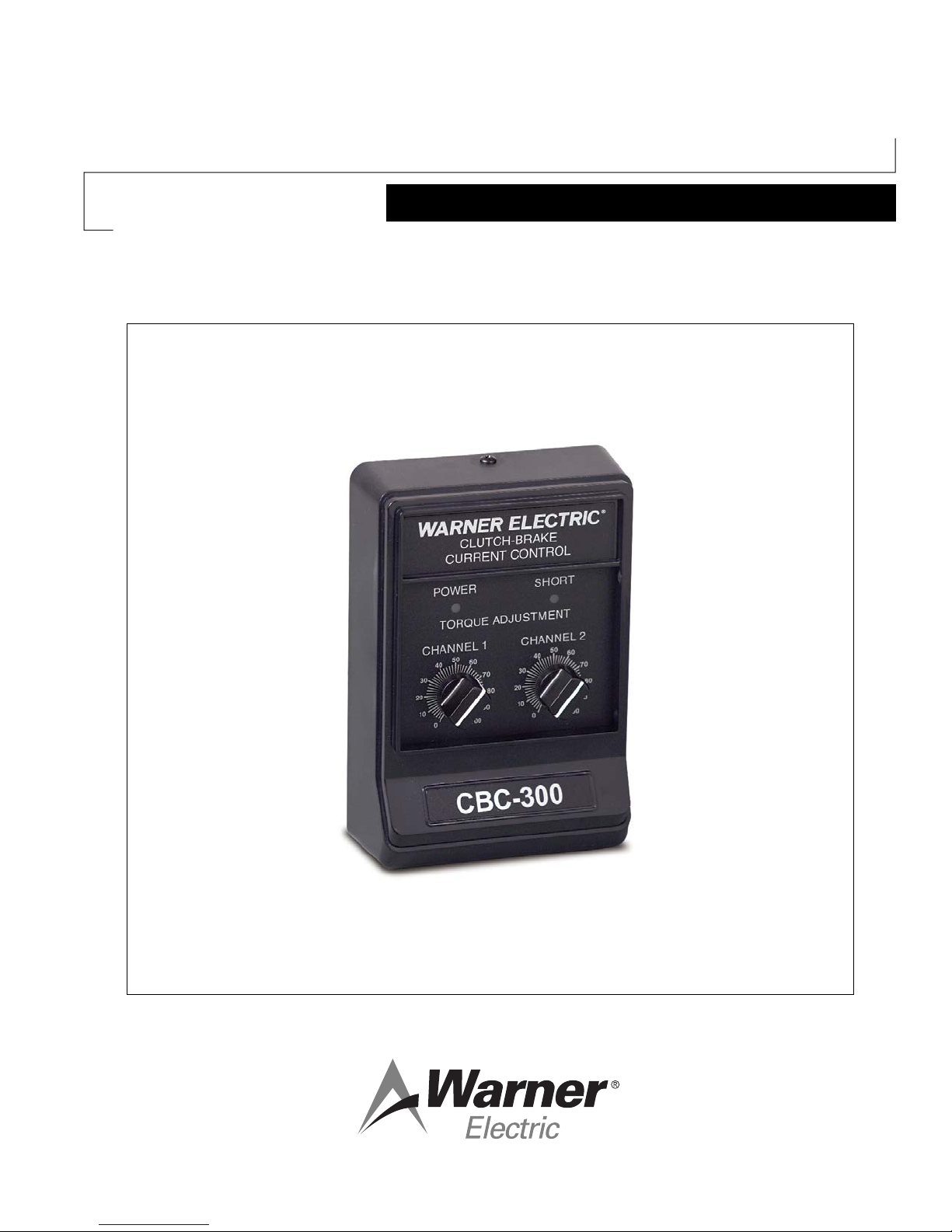

Warner Electric’s CBC-300 and CBC-300-1 are constant
current, solid state electronic power supplies designed
to operate any of the Warner Electric 90 Volt clutches
and brakes, including fail safe designs. They can operate
a single clutch or brake, two clutches, two brakes,
a combination clutch and brake, or a combination
clutch and fail safe brake, depending on the switching
arrangement used and the application requirements.
The CBC-300 series controls operate from 120 VAC
single-phase input power. They provide constant current
output as set by the torque adjustment potentiometers
on the front panel or remote potentiometer. On the CBC-
300 series both outputs are adjustable. Output current
ranges are selectable for the adjustable output channels
in one of five ranges by the DIP switches located on the
control’s printed circuit board.
Two versions of the CBC-300 are provided to handle
a wide range of applications. The standard version
is offered the same as before. The CBC-300-1
version is available where an external limit adjustment
potentiometers are required.
Operations of both units are identical except for the
method of the control potentiometer mounting. The

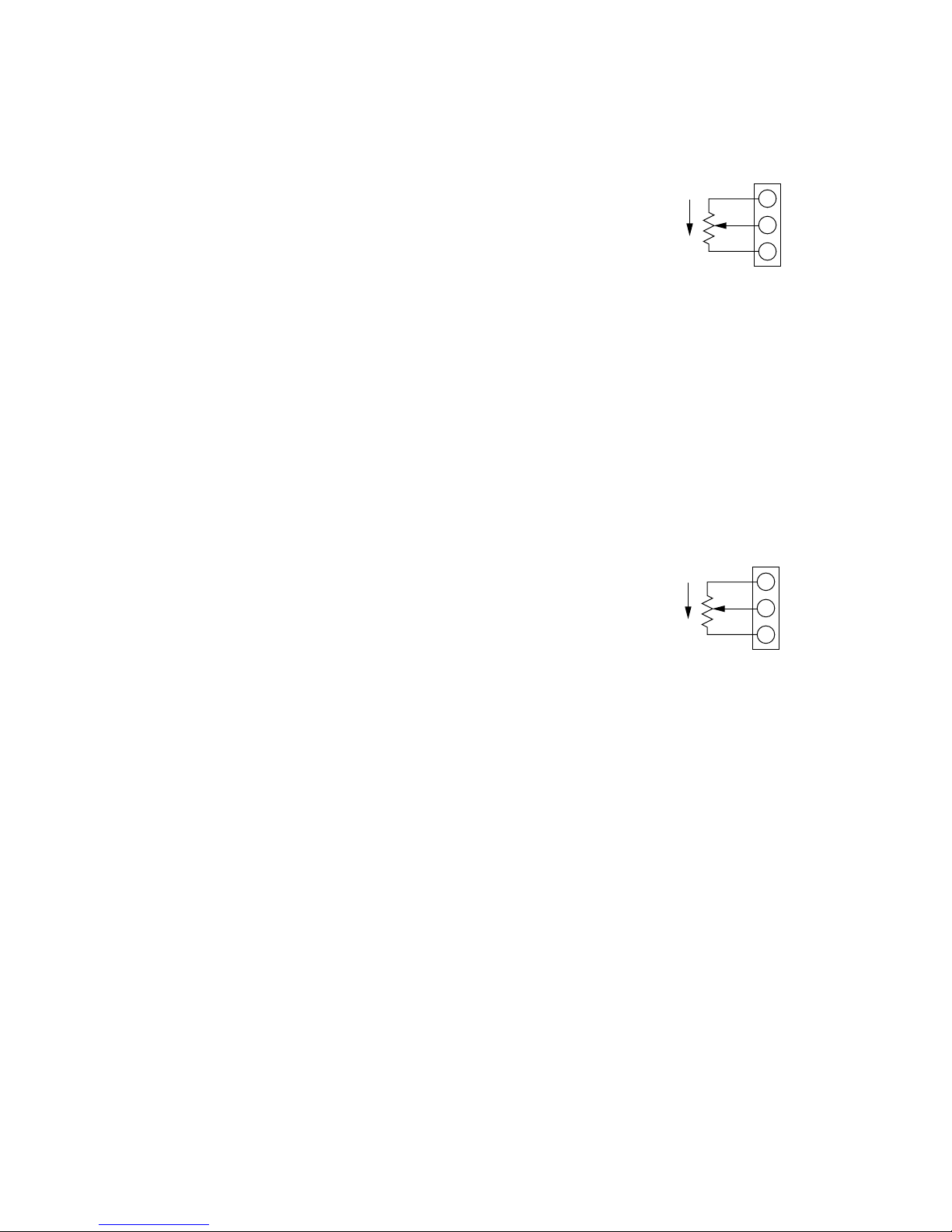

CBC-300-1, external potentiometer option, has terminal
blocks mounted on the PC boards for connection of the
potentiometers.
The potentiometers used can be supplied either as
optional accessory items or be obtained from a local
electronic supply house.
An internal 1.5A FA fuse is provided for line to ground
shorts.
Two LED indicators are provided on the front panel of
the control for “POWER” and “SHORT” indications.
The green indicator marked “POWER” is illuminated
whenever the AC input power is applied to the control. A
red indicator marked “SHORT” is illuminated whenever
a short circuit condition occurs in either of the outputs.
To reset, power must be removed, the shorted condition
cleared, and the AC input power reapplied to the control.
The enclosed version may be used with or without the
cover. Removal of the plastic cover when the control
is used in an enclosure will increase the operating
temperature range of the control.
