Warren rupp HDB1 User manual

WARREN RUPP, INC. • A Unit of IDEX Corporation • P.O. Box 1568, Manseld, Ohio 44901-1568 USA
Telephone [phone] • Fax [phone] • www.warrenrupp.com
hdb15dl6sm-Rev0208 ©Copyright 2008 Warren Rupp, Inc. All rights reserved.
Table of Contents
Principle of Operation............................................................................................ 1
Installation and Start-Up........................................................................................ 1
Air Supply .............................................................................................................. 1
Installation Guide................................................................................................... 2
Air Inlet & Priming.................................................................................................. 3
Air Exhaust ............................................................................................................ 3
Between Uses ....................................................................................................... 3
Check Valve Servicing ........................................................................................... 3
Diaphragm Servicing ............................................................................................. 3
Air Valve Lubrication .............................................................................................. 3
ESADS+Plus®:
Externally Serviceable Air Distribution System ................................ 5
Pilot Valve .............................................................................................................. 5
Pilot Valve Actuator................................................................................................ 5
Service Instructions: Troubleshooting ................................................................... 6
Warranty ................................................................................................................ 6
Recommended Accessories.................................................................................. 6
Important Safety Information ................................................................................. 7
Recycling............................................................................................................... 7

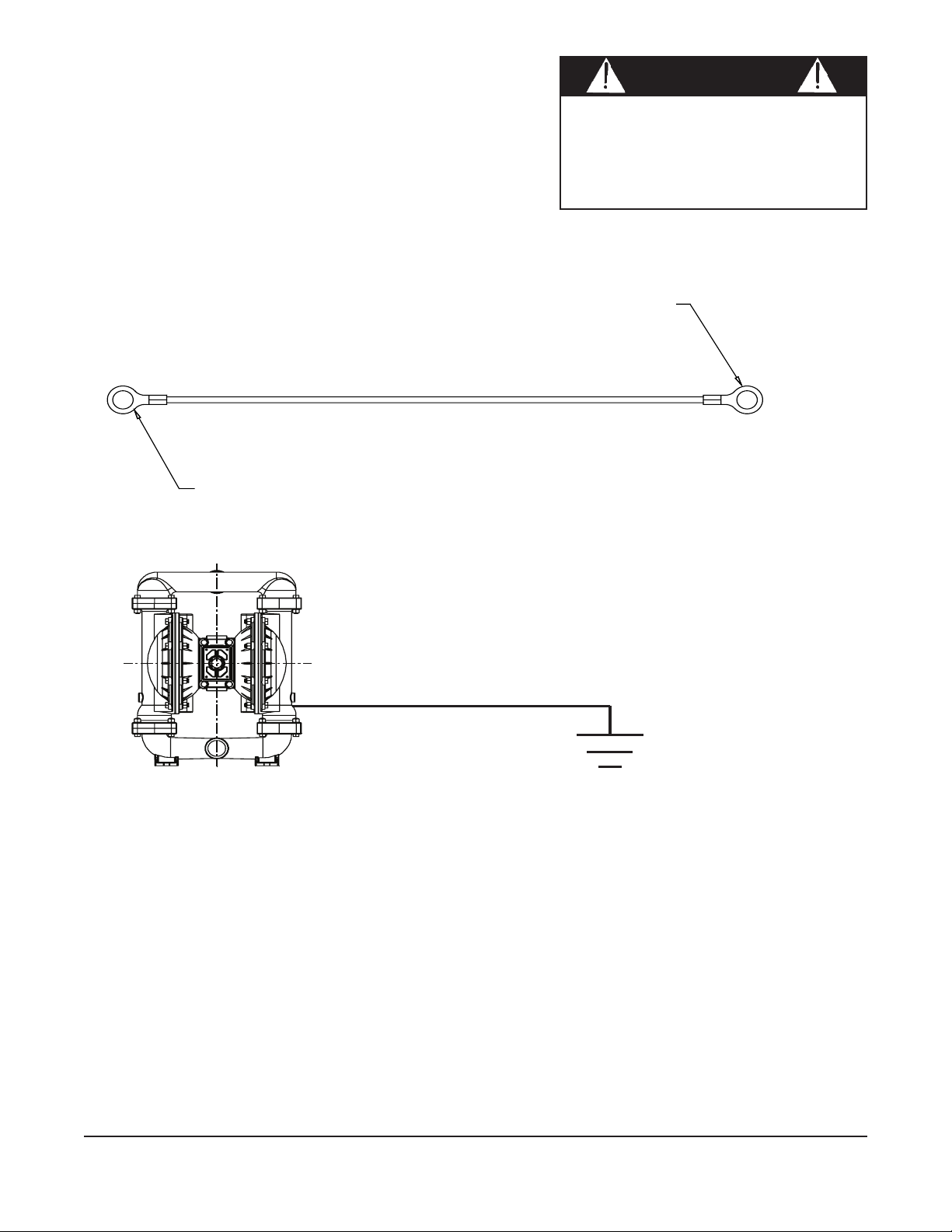

Grounding The Pump ............................................................................................ 8
Material Codes ...................................................................................................... 9
Declaration of Conformity .................................................................................... 10

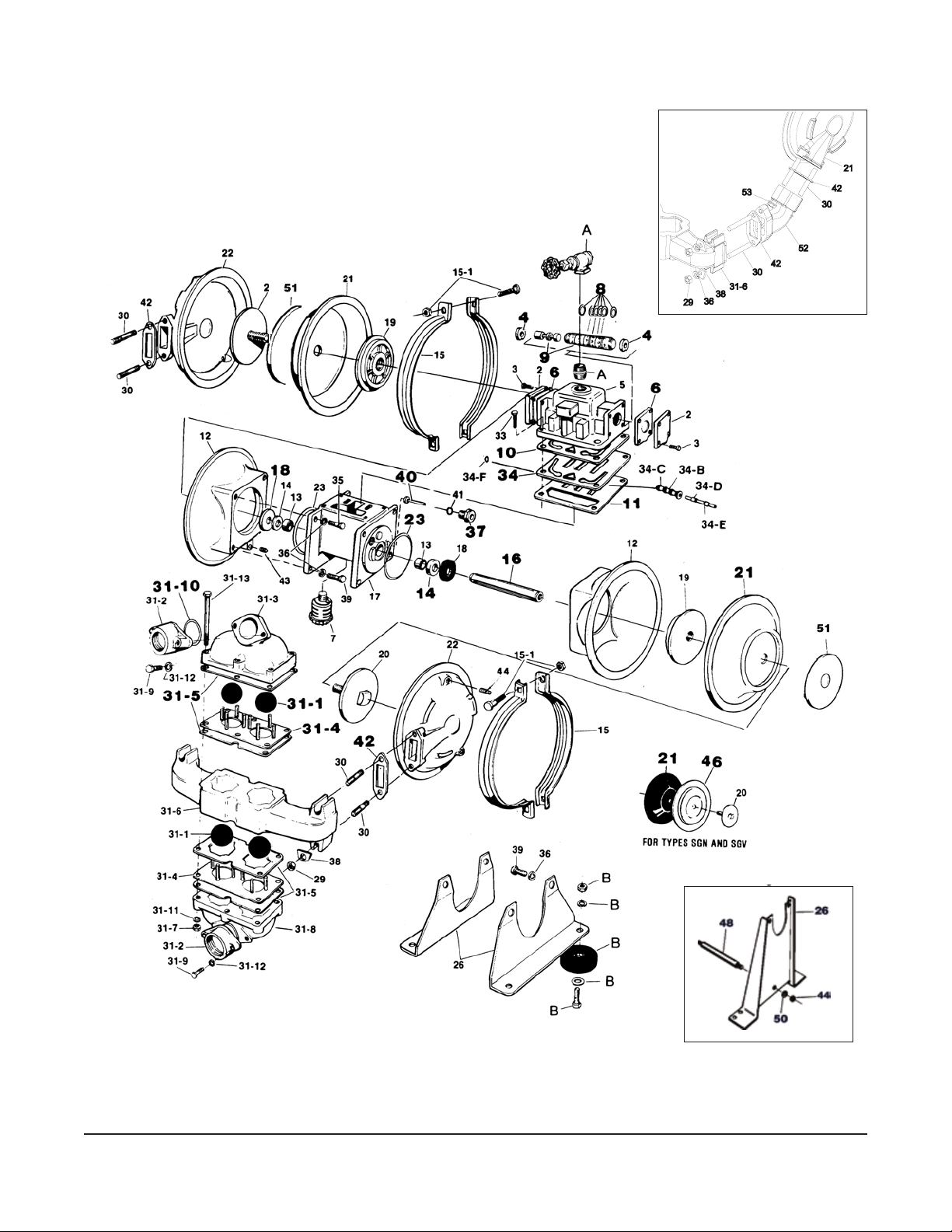

Composite Repair Parts List...........................................................................11-13
Composite Repair Drawing.................................................................................. 14
SERVICE AND OPERATING MANUAL
Model HDB1½-A Type 6
Model HDB40-A Type 6
I M2 c T5
II 2GD T5
CE

hdb15dl6sm-REV0208 Models HDB1½-A, HDB40-A Page 1
PLEASE NOTE!
The photos shown in this manual are for general instruction only. YOUR SPECIFIC
MODEL MAY NOT BE SHOWN. Always refer to the parts list and exploded view
drawing for your specific model when installing, disasembling or servicing
your pump.
PRINCIPLE OF PUMP OPERATION
This ball type check valve pump is powered by compressed air and is a 1:1 pres-
sure ratio design. It alternately pressurizes the inner side of one diaphragm chamber,
while simultaneously exhausting the other inner chamber. This causes the diaphragms,
which are connected by a common rod, to move endwise. Air pressure is applied over
the entire surface of the diaphragm, while liquid is discharged from the opposite side.
The diaphragm operates under a balanced condition during the discharge stroke,
which allows the unit to be operated at discharge heads over 200 feet (61 meters) of
water head.
Since the diaphragms are connected by a common rod, secured by plates to the
center of the diaphragms, one diaphragm performs the discharge stroke, while the
other is pulled to perform the suction stroke in the opposite chamber.
For maximum diaphragm life, keep the pump as close to the liquid being pumped
as possible. Do not install on suction head in excess of 10 feet of liquid (3.048 meters).
Consult factory if conditions exceed this recommendation.
Alternate pressuring and exhausting of the diaphragm chamber is performed by
means of an externally mounted, pilot operated, four-way spool type air distribution
valve. When the spool shifts to one end of the valve body, inlet air pressure is applied
to one diaphragm chamber and the other diaphragm chamber exhausts. When the
spool shifts to the opposite end of the valve body, the porting of chambers is reversed.
The air distribution valve spool is moved by an internal pilot valve which alternately
pressurizes one side of the air distribution valve spool, while exhausting the other
side. The pilot valve is shifted at each end of the diaphragm stroke by the diaphragm
plate coming in contact with the end of the pilot spool. This pushes it into position for
shifting of the air distribution valve.
The chambers are manifolded together with a suction and discharge check valve
for each chamber, maintaining ow in one direction through the pump.
INSTALLATION & START-UP
Locate the pump as close to the product being pumped as possible, keeping suc-
tion line length and number of ttings to a minimum. Do not reduce line size.
For installations of rigid piping, short exible sections of hose should be installed
between pump and piping. This reduces vibration and strain to the piping system. A
Warren Rupp Tranquilizer® surge suppressor is recommended to further reduce pulsa-
tion in ow. Tighten all gaskets prior to start-up.
This pump was tested at the factory prior to shipment and is ready for operation.
AIR SUPPLY
Air supply pressures cannot exceed 125 psi (8.61 bar). Connect the pump air inlet
to an air supply of sufcient capacity and pressure required for desired performance.
When the air line is solid piping, use a short length of exible hose [not less than 3/4"
(19mm) in diameter] between pump and piping to eliminate strain to pipes.
WARREN RUPP, INC. A Unit of IDEX Corporation P.O. Box 1568 Manseld, Ohio 44901-1568 USA [phone] Fax [phone]
SERVICE AND OPERATING MANUAL
Model HDB1½-A Type 6
Model HDB40-A Type 6
WARNING
HAZARD WARNING -POSSIBLE
EXPLOSION HAZARD can result if
1,1,1-Trichloroethane, Methylene
Chloride or other Halogenated
Hydrocarbon solvents are used in
pressurized fluid systems having
Aluminum or Galvanized wetted parts.
Death, serious bodily injury and/or
property damage could result. Consult
with the factory if you have questions
concerning Halogenated Hydrocarbon
solvents.
I M2 c T5
II 2GD T5
CE

Models HDB1½-A, HDB40-A Page 2 hdb15dl6sm-REV0208
1
2
3
Tranquilizer®/Surge Supressor
Filter/Regulator
Air Dryer
Available from
Warren Rupp
1
3
INSTALLATION GUIDE
Top Discharge Ball or Flap Valve Unit
Surge
Suppressor
2
CAUTION
The air exhaust should be
piped to an area for safe
disposition of the product
being pumped, in the event
of a diaphragm failure.

hdb15dl6sm-REV0208 Models HDB1½-A, HDB40-A Page 3
AIR INLET & PRIMING
For start-up, open an air valve approximately 1/2 to 3/4 turn. After the unit primes,
an air valve can be opened to increase ow as desired. If opening the valve increases
cycling rate, but does not increase ow rate, cavitation has occurred, and the valve
should be closed slightly.
For the most efcient use of compressed air and the longest diaphragm life, throttle
the air inlet to the lowest cycling rate that does not reduce ow.
AIR EXHAUST
If a diaphragm fails, the pumped liquid or fumes can enter the air end of the pump,
and be exhausted into the atmosphere. When pumping hazardous or toxic materials,
pipe the exhaust to an appropriate area for safe disposition.
This pump can be submerged if materials of construction are compatible with the
liquid. The air exhaust must be piped above the liquid level. Piping used for the air
exhaust must not be smaller than 1" (2.54 cm). Reducing the pipe size will restrict
air ow and reduce pump performance .When the product source is at a higher level
than the pump (ooded suction), pipe the exhaust higher than the product source to
prevent siphoning spills.
Freezing or icing-up of the air exhaust can occur under certain temperature and
humidity conditions. Use of an air dryer unit should eliminate most icing problems.
BETWEEN USES
When used for materials that tend to settle out or transform to solid form, the pump
should be completely ushed after each use, to prevent damage. Product remaining
in the pump between uses could dry out or settle out. This could cause problems with
valves and diaphragms at re-start. In freezing temperatures, the pump must be drained
between uses in all cases.
CHECK VALVE SERVICING
For best priming and most efcient pumping performance, it is important to maintain
check valves and valve seats in good condition for proper sealing. Need for inspection
or service of ball valves is usually indicated by poor priming, unstable cycling, reduced
performance, or pump cycles but will not pump.
Inspection and service of check valves requires the removal of six bolts which
provide access to all four ball valves and both, suction and discharge, valve seats.
New ball check valves are 21/4" (5.715 cm) diameter and will require replacement when
worn to approximately 2" (5.08 cm) diameter.
DIAPHRAGM SERVICING
Need for inspection, or service, of diaphragm is usually indicated when unit pumps
from one chamber only and air is discharged out pump discharge port or when liq-
uid being pumped is discharged through air exhaust port. To service diaphragms,
remove V-Band clamp (no. 15) and two hex nuts (no. 29) which secure chamber port
to manifold. To remove diaphragms, loosen diaphragm assembly (outer plate no. 20,
diaphragm no. 21, inner plate no. 19) by turning out of the shaft using a wrench. A 1"
(2.54 cm) square lug is provided on the outer plate (no. 20) for this purpose. Removal
of opposite outer chamber will permit removal of second diaphragm assembly and
shaft as a unit. To disassemble the diaphragm assemblies, clamp the inner diaphragm
plate (no. 19) around the outer diameter between jaws of a vise to hold it while you
turn the outer diaphragm plate (no. 20) loose using a wrench. Interior components
consisting of shaft seals and sleeve bearings are now accessible for service if required.
REASSEMBLY
All procedures for reassembling the diaphragms are just in reverse of previous
instructions for disassembly. The diaphragms are to be installed with their natural
bulge outward or toward the outer diaphragm plate (no. 20). Make sure the inner plate
is installed with the at face against the diaphragm.
After all components are in position in vise and hand tight, tighten with wrench to
approximately 40 ft. lbs. (54.23 Newton meters) torque. After each diaphragm assembly
has been made, thread one assembly into shaft (no. 16) (hold shaft near middle in vise
having soft jaws to protect nish). Install this sub assembly into pump and secure by
placing the outer chamber (no. 22) on the end with the diaphragm. This will hold the

Models HDB1½-A, HDB40-A Page 4 hdb15dl6sm-REV0208
assembly in place while the opposite side is installed. Make sure the last diaphragm
assembly is torqued to 30 ft. lbs. (40.67 Newton meters). This nal torquing will lock
the diaphragm assemblies together. Place remaining outer chamber on open end and
secure. Snug ange bolts of chamber to port manifold to square the anges before
the nal tightening of the V-Band clamps. Tighten ange bolts securely after tightening
V-Band clamp. IMPORTANT: Do not tighten the V-Band clamp without loosen-
ing manifold flange bolts at outer chamber ports. The chamber flange may be
broken this way.
A Note about Air Valve Lubrication
The SANDPIPER pump’s pilot valve and main air valve assemblies are designed
to operate WITHOUT lubrication. This is the preferred mode of operation. There may
be instances of personal preference, or poor quality air supplies when lubrication of
the compressed air supply is required. The pump air system will operate with properly
lubricated compressed air supplies. Proper lubrication of the compressed air supply
would entail the use of an air line lubricator (available from Warren Rupp) set to deliver
one drop of 10 wt., non-detergent oil for every 20 SCFM of air the pump consumed at
its point of operation. Consult the pump’s published Performance Curve to determine
this.
It is important to remember to inspect the sleeve and spool set routinely. It should
move back and forth freely. This is most important when the air supply is lubricated.
If a lubricator is used, oil accumulation will, over time, collect any debris from the
compressed air. This can prevent the pump from operating properly.
Water in the compressed air supply can create problems such as icing or
freezing of the exhaust air causing the pump to cycle erratically, or stop operating. This
can be addressed by using a point of use air dryer to supplement a plant’s air drying
equipment. This device will remove excess water from the compressed air supply and
alleviate the icing or freezing problem.
ESADS: Externally Serviceable Air Distribution System
Please refer to the exploded view drawing and parts list in the Service Manual
supplied with your pump. If you need replacement or additional copies, contact your
local Warren Rupp Distributor, or the Warren Rupp factory Literature Department at
the number shown below. To receive the correct manual, you must specify the MODEL
and TYPE information found on the name plate of the pump.
Models with 1" suction/discharge or larger, and METAL center sections:
The main air valve sleeve and spool set is located in the valve body mounted on
the pump with four hex head capscrews. The valve body assembly is removed from
the pump by removing these four hex head capscrews.
With the valve body assembly off the pump, access to the sleeve and spool set
is made by removing four hex head capscrews (each end) on the end caps of the
valve body assembly. With the end caps removed, slide the spool back and forth in
the sleeve. The spool is closely sized to the sleeve and must move freely to allow for
proper pump operation. An accumulation of oil, dirt or other contaminants from the
pump’s air supply, or from a failed diaphragm, may prevent the spool from moving freely.
This can cause the spool to stick in a position that prevents the pump from operating.
If this is the case, the sleeve and spool set should be removed from the valve body
for cleaning and further inspection.
Remove the spool from the sleeve. Using an arbor press or bench vise (with an
improvised mandrel), press the sleeve from the valve body. Take care not to damage
the sleeve. At this point, inspect the o-rings on the sleeve for nicks, tears or abrasions.
Damage of this sort could happen during assembly or servicing. A sheared or cut
o-ring can allow the pump’s compressed air supply to leak or bypass within the air
valve assembly, causing the pump to leak compressed air from the pump air exhaust
or not cycle properly. This is most noticeable at pump dead head or high discharge
pressure conditions. Replace any of these o-rings as required or set up a routine,
preventive maintenance schedule to do so on a regular basis. This practice should
include cleaning the spool and sleeve components with a safety solvent or equivalent,
inspecting for signs of wear or damage, and replacing worn components.
IMPORTANT
Do not tighten the V-Band clamp without
loosening maniford flange bolts at outer
chamber ports. The chamber flange
may be broken this way.

hdb15dl6sm-REV0208 Models HDB1½-A, HDB40-A Page 5
To re-install the sleeve and spool set, lightly lubricate the o-rings on the sleeve
with an o-ring assembly lubricant or lightweight oil (such as 10 wt. air line lubricant).
Re-install one end cap, gasket and bumper on the valve body. Using the arbor press
or bench vise that was used in disassembly, carefully press the sleeve back into the
valve body, without shearing the o-rings. You may have to clean the surfaces of the
valve body where the end caps mount. Material may remain from the old gasket. Old
material not cleaned from this area may cause air leakage after reassembly. Take care
that the bumper stays in place allowing the sleeve to press in all the way. Re-install
the spool, the opposite end cap, gasket and bumper on the valve body. After inspect-
ing and cleaning the gasket surfaces on the valve body and intermediate, re-install
the valve body on the pump using new gaskets. Tighten the four hex head capscrews
evenly and in an alternating cross pattern.
PILOT VALVE
The pilot valve assembly is accessed by removing the main air distribution valve
body from the pump and lifting the pilot valve body out of the intermediate housing.
Most problems with the pilot valve can be corrected by replacing the o-rings.
Always grease the spool prior to inserting it into the sleeve. If the sleeve is removed
from the body, reinsertion must be at the chamfered side. Grease the o-rings to slide
the sleeve into the valve body. Securely insert the retaining ring around the sleeve.
When reinserting the pilot valve, push both plungers (see #40 on drawing), located
inside the intermediate bracket, out of the path of the pilot valve spool ends to avoid
damage.
PILOT VALVE ACTUATOR
The bushings (no. 37) for the pilot valve actuators threaded into the intermediate
bracket (no. 17) from the outside. The plunger (no. 40) may be removed for inspection
or replacement from the inside by removing the air distribution valve body (no. 5) and
the pilot valve body (no. 34) from the pump. The plungers (no. 40) should be visible
as you look down into the intermediate from the top. Depending on their position, you
may nd it necessary to use a ne piece of wire to pull them out.
Under rare circumstances, it may become necessary to replace the o-ring seal
(no. 41). If it cannot be removed in much the same manner as the plunger (no. 40), the
bushing (no. 37) can be turned out through the inner chamber (no. 12) by removing
the manifold assembly (no. 31) and the outer chamber (no. 22) to reach the bushing
(no. 37).

Models HDB1½-A, HDB40-A Page 6 hdb15dl6sm-REV0208
TROUBLESHOOTING
PROBLEM: Pump cycles but will not pump. (Note: higher suction lifts require faster
cycling speed for priming.)
POSSIBLE CAUSES:
A. Air leak in suction line.
B. Excessive suction lift.
C. Check valve not seating properly.
D. Leakage at joint of suction manifold or elbow ange.
E. Suction line or strainer plugged.
F. Diaphragm ruptured.
PROBLEM: Pump will not cycle. (Note: Always disconnect air supply to relieve air
pressure before disassembling any portion of pump.)
POSSIBLE CAUSES:
A. Discharge hose or line plugged, or discharge head requirement greater than air
supply pressure. (Disconnect discharge line to check.)
B. Spool in air distribution valve not shifting. (Remove end cap and check spool —
must slide freely.)
C. Diaphragm ruptured. (Air will escape out discharge line in this case.)
D. Blockage in diaphragm chamber preventing movement. (Shut off air supply and
reopen after pressure is relieved.)
E. Mufer clogged.
PROBLEM: Uneven discharge ow. (Indicates one chamber not operating properly.)
POSSIBLE CAUSES:
A. Check valve not sealing properly in one chamber.
B. Diaphragm failure in one chamber.
C. Air leak at suction manifold joint or elbow ange one side.
D. Mufer clogged.
For additional information, see the Warren Rupp Troubleshooting Guide.
WARRANTY:
This unit is guaranteed for a period of ve years against defective material and
workmanship.
RECOMMENDED WARREN RUPP ACCESSORIES
TO MAXIMIZE PUMP PERFORMANCE:
• Tranquilizer®Surge Suppressor: For nearly pulse-free flow.
• WarrenRuppFilter/Regulator:Formodularinstallationandservice
convenience.
• WarrenRuppSpeedControl:Formanualorprogrammableprocess
control. Manual adjustment or 4-20mA reception.
For more detailed information on these accessories,
contact your local Warren Rupp Factory-Authorized Distributor,
or Warren Rupp corporate headquarters.

hdb15dl6sm-REV0208 Models HDB1½-A, HDB40-A Page 7
This pump is pressurized
internally with air pressure
during operation. Always
make certain that all bolting
is in good condition and
that all of the correct
bolting is reinstalled during assembly.
WARNING
Before pump operation,
inspect all gasketed
fasteners for looseness
caused by gasket creep. Re-
torque loose fasteners to
prevent leakage. Follow recommended torques
stated in this manual.
CAUTION
When used for toxic or
aggressive fluids, the pump
should always be flushed
clean prior to disassembly.
WARNING
Before maintenance or
repair, shut off the com-
pressed air line, bleed the
pressure, and disconnect
the air line from the pump.
The discharge line may be
pressurized and must be bled of its pressure.
WARNING Before doing any main-
tenance on the pump, be
certain all pressure is
completely vented from the
pump, suction, discharge,
piping, and all other openings and connections.
Be certain the air supply is locked out or made
non-operational, so that it cannot be started
while work is being done on the pump. Be certain
that approved eye protection and protective
clothing are worn all times in the vicinity of the
pump. Failure to follow these recommendations
may result in serious injury or death.
WARNING
WARNING
Airborne particles and
loud noise hazards.
Wear ear and eye
protection.
WARNING
In the event of diaphragm
rupture, pumped material
may enter the air end of the
pump, and be discharged
into the atmosphere. If
pumping a product which is hazardous or toxic,
the air exhaust must be piped to an appropriate
area for safe disposition.
IMPORTANT SAFETY
INFORMATION Take action to prevent static
sparking. Fire or explosion
can result, especially when
handling flammable liquids.
The pump, piping, valves,
containers or other miscellaneous equipment
must be grounded. (See page 32)
WARNING
IMPORTANT
Read these safety warnings
and instructions in this
manual completely, before
installation and start-up
of the pump. It is the responsibility of the
purchaser to retain this manual for reference.
Failure to comply with the recommendations
stated in this manual will damage the pump,
and void factory warranty.
Read these safety warnings
and instructions in this
manual completely, before
installation and start-up
of the pump. It is the responsibility of the
purchaser to retain this manual for reference.
Failure to comply with the recommendations
stated in this manual will damage the pump,
and void factory warranty.
RECYCLING
Many components of SANDPIPER® AODD pumps are made
of recyclable materials (see chart on page 9 for material
specications). We encourage pump users to recycle worn out parts
and pumps whenever possible, after any hazardous pumped uids
are thoroughly ushed.
I M2 c T5
II 2GD T5
CE
Pump complies with EN809 Pumping Directive, Directive 98/37/
EC Safety of Machinery, and Directive 94/9/EC, EN13463-1
Equipment for use in Potentially Explosive Environments. For
reference to the directive certicates visit: www.warrenrupp.com.
The Technical File No. AX1 is stored at KEMA, Notied Body 0344,
under Document #203040000.

Models HDB1½-A, HDB40-A Page 8 hdb15dl6sm-REV0208
Grounding The Pump
Take action to prevent static spark-
ing. Fire or explosion can result,
especially when handling flammable
liquids. The pump, piping, valves,
containers or other miscellaneous
equipment must be grounded.
WARNING
The eyelet end is fastened to the pump hardware.
The clamp end is installed to a true earth ground.
To reduce the risk of static electrical sparking, this pump must be
grounded. Check the local electrical code for detailed grounding
instruction and the type of equipment required, or in the absence of local
codes, an industry or nationally recognized code having juristiction over
specic installations.
This 8 foot long (244
centimeters) Ground Strap, part
number 920-025-000 can be
ordered as a service item.

hdb15dl6sm-REV0208 Models HDB1½-A, HDB40-A Page 9

Models HDB1½-A, HDB40-A Page 10 hdb15dl6sm-REV0208
Warren Rupp, Inc., 800 North Main Street, Manseld, Ohio,
certies that Air-Operated Double Diaphragm Metallic Pumps Series:
HDB, HDF, M Non-Metallic, S Non-Metallic, M Metallic, S Metallic,
Containment Duty, Gas, UL, High Pressure, W, Submersible and
Tranquilizers comply with the European Community Directive 98/37/EC,
Safety of Machinery. This product has used EN 809, Pumps and Pump
Units for Liquids - Common Safety Requirements harmonized standard
to verify conformance.
Signature of authorized person Date of issue
Printed name of authorized person Title
Declaration of Conformity
CE
David Roseberry Engineering Manager
October 20, 2005

hdb15dl6sm-REV0208 Models HDB1½-A, HDB40-A Page 11
ITEM TOTAL
NO. PART NUMBER DESCRIPTION RQD.
2 165.011.157. Cap, End 2
165.011.010. Cap, End 2
3 170.032.330. Capscrew, Hex Head 8
4 132.014.358. Bumper, Valve 2
5 095.043.156. Body, Valve 1
095.043.010. Body, Valve 1
6 360.010.425. Gasket, End Cap
22
7 530.036.000. Mufer, Exhaust 1
8 560.020.360. O-Ring
26
9 031.012.000. Sleeve & Spool Set
21
10 360.048.425. Gasket, Valve Body
21
11 360.041.379. Gasket, Valve Body
21
12 196.025.157. Chamber, Inner 2
196.025.010. Chamber, Inner 2
13 070.006.170. Bearing, Sleeve 2
14 720.004.360. Seal, U-Cup
22
15 200.009.330. Clamp, V-Band 2
15-1 475.028.000. Service Kit 2
16 685.007.120. Rod, Diaphragm 1
17 114.002.156. Bracket, Intermediate 1
114.002.010. Bracket, Intermediate 1
18 132.002.360. Bumper 2
19 612.052.157. Plate, Inner 2
612.052.010. Plate, Inner 2
20 612.039.157. Plate, Assembly, Outer 2
612.039.010. Plate, Assembly, Outer 2
612.097.110. Plate, Assembly, Outer 2
612.097.112. Plate, Assembly, Outer 2
21 286.005.365. Diaphragm 2
286.005.354. Diaphragm 2
286.005.364. Diaphragm 2
286.005.363. Diaphragm 2
286.005.360. Diaphragm 2
22 196.007.156. Chamber, Outer 2
196.007.010. Chamber, Outer 2
196.007.110. Chamber, Outer 2
196.007.112. Chamber, Outer 2
23 560.022.360. O-Ring 2
26 115.046.080. Bracket, Foot (Side Ported Only) 2
115.057.080. Bracket, Foot (Bottom Ported Only) 1
29 545.007.330. Nut, Hex 4
30 807.017.330. Stud (Side Ported Only) 4
807.017.330. Stude (Bottom Ported Only) 8
31 518.005.000. Manifold Assembly 1
(Const. Of:) (Not Sold As Assembly)
31-1 050.005.365W. Ball, Weighted 4
050.005.364. Ball, Check Valve 4
050.005.354. Ball, Check Valve 4
050.005.360W. Ball, Weighted 4
050.005.363. Ball, Check Valve 4
050.010.600. Ball, Check Valve 4
31-2 334.008.156. Flange, Threaded 2
334.008.010. Flange, Threaded 2
334.008.110. Flange, Threaded 2
334.008.112. Flange, Threaded 2
334.008.156E. Flange, Threaded (SB40 Only) BSP 2
334.008.110E. Flange, Threaded (SB40 Only) BSP 2
E
SERVICE AND OPERATING MANUAL
Model HDB1½-A Type 6
Model HDB40-A Type 6
I M2 c T5
II 2GD T5
CE

Models HDB1½-A, HDB40-A Page 12 hdb15dl6sm-REV0208
ITEM TOTAL
NO. PART NUMBER DESCRIPTION RQD.
334.008.010E. Flange, Threaded (SB40 Only) BSP 2
334.008.112E. Flange, Threaded (SB40 Only) BSP 2
31-3 334.006.156. Flange, Discharge 1
334.006.010. Flange, Discharge 1
334.006.110. Flange, Discharge 1
334.006.112. Flange, Discharge 1
31-4 722.010.110. Seat Assembly 2
722.010.112. Seat Assembly 2
722.031.110. Seat Assembly (Discharge)
(Use w/Teon and Santoprene Balls Only) 1
722.031.112. Seat Assembly (Discharge)
(Use w/Teon Balls Only) 1
31-5 360.017.379. Gasket, Manifold/Seat 4
360.017.384. Gasket, Manifold/Seat 4
360.017.608. Gasket, Manifold/Seat 4
31-6 518.003.156. Manifold, Suction/Discharge 1
518.003.010. Manifold, Suction/Discharge 1
518.003.110. Manifold, Suction/Discharge 1
518.003.112. Manifold, Suction/Discharge 1
31-7 545.005.330. Nut, Hex 6
31-8 334.007.156. Flange, Suction 1
334.007.010. Flange, Suction 1
334.007.110. Flange, Suction 1
334.007.112. Flange, Suction 1
31-9 170.035.330. Capscrew (SS Pumps Only) 4
170.023.330. Capscrew 4
31-10 560.028.360. O-Ring 2
560.028.610. O-Ring 2
(Use w/FKM & overlay units only)
31-11 900.005.330. Washer, Lock 6
31-12 900.006.330. Washer, Lock 4
31-13 170.040.330. Capscrew, Hex Head 6
33 170.045.330. Capscrew, Hex Head 4
34 095.073.000. Pilot Valve Body Assembly1,2 1
095.115.000. Pilot Valve Body Assembly (CI Only) 1
34-A 095.070.551. Pilot Valve Body 1
34-B 755.025.000. Sleeve (w/O-Ring) 1
34-C 560.033.360. O-Ring (Sleeve) 4
34-D 775.026.000. Spool (w/O-Ring) 1
34-E 560.023.360. O-Ring (Spool) 2
34-F 675.037.080. Retaining Ring 1
35 170.024.330. Capscrew, Hex Head 4
36 900.006.330. Washer, Lock (Side Ported) 12
37 135.016.162. Bushing, Threaded
2 2
38 905.001.330. Washer, Taper 4
39 170.058.330. Capscrew, Hex Head 4
40 620.011.114. Plunger, Actuator
22
41 560.001.360. O-Ring (Sold with Item 37) 2
42 360.022.425. Gasket, Manifold (Side Ported Only) 2
360.022.425. Gasket, Manifold (Bottom Ported Only) 4
360.022.600. Gasket, Manifold (Side Ported Only) 2
360.022.600. Gasket, Manifold (Bottom Ported Only) 4
(Use w/FKM & overlay units only)
43 618.003.330. Plug, Pipe 2
44 618.003.330. Plug, Pipe (Alum. & CI Only) 4
031.019.156. Valve Body Assembly 1
031.019.010. Valve Body Assembly 1
(Includes Items 2, 3, 4,
5, 6, 8, 9)
46 286.026.604. Overlay Diaphragm 2
48 685.032.080. Rod, Connecting (Bottom Ported Only) 1
1 Available in kit form. Order P/N 031.055.000., which also includes items 10, 11, 34, 40 and 47.
2 Available as Air End Kit 476.100.000.

hdb15dl6sm-REV0208 Models HDB1½-A, HDB40-A Page 13
1 Available in kit form. Order P/N 031.055.000., which also includes items 10, 11, 34, 40 and 47.
2 Available as Air End Kit 476.100.000.
© 2006 Warren Rupp, Inc. All rights reserved.
® Warren Rupp and SANDPIPER are registered tradenames of Warren Rupp, Inc.
Printed in U.S.A.
ITEM TOTAL
NO. PART NUMBER DESCRIPTION RQD.
49 545.004.330. Nut, Hex (Bottom Ported Only) 2
50 900.004.330. Washer, Lock (Bottom Ported Only) 2
51 570.009.360. Wear Pad 2
570.009.363. Wear Pad 2
570.009.364. Wear Pad 2
570.009.365. Wear Pad 2
(Use w/Santoprene Fitted Pumps)
52 312.020.156. Elbow (Bottom Ported Only) 1
312.020.110. Elbow (Bottom Ported Only) 1
53 544.001.330. Nut, Flange (Bottom Ported Only) 4

Models HDB1½-A, HDB40-A Page 14 hdb15dl6sm-REV0208
© 2006 Warren Rupp, Inc. All rights reserved.
® Warren Rupp and SANDPIPER are registered tradenames of Warren Rupp, Inc.
Printed in U.S.A.
B = These Items Available in Kit Form Only.
Order Rubber Foot Kit P/N 475-101-000.
A = These Items Available in Kit Form Only.
Order Angle Valve Kit P/N 475-102-000.
