Water Right Impression Plus Series Service manual

Installation Instructions & Owner’s Manual
Impression Plus Series®
Metered Water Softeners
For Certified Models:
• IMP-844
• IMP-948
• IMP-1044
• IMP-1054
• IMP-1248
• IMP-1354
Certified Cabinet
Models:
• IMPC-835
• IMPC-1035

TABLE OF CONTENTS
Pre-Installation Instructions for Dealers ................................................3
Bypass Valve ......................................................................4
Installation ........................................................................5
Programming Procedures............................................................8
Start-up Instructions................................................................9
Operating Displays and Maintenance .................................................10
Troubleshooting Guide.............................................................12
Replacement Parts ................................................................17
Installation Fitting Assemblies ......................................................24
Specifications.....................................................................25
Warranty.........................................................................26
Quick Reference Guide .............................................................27
Your Impression Series water softener is a precision built, high quality product. These units will deliver softened water for
many years to come when installed and operated properly. Please study this manual carefully and understand the cautions
and notes before installing. This manual should be kept for future reference. If you have any questions regarding your water
softener, contact your local dealer.
YOUR WATER TEST
Hardness ______________________ gpg
Iron __________________________ ppm
pH ___________________________ number
*Nitrates ______________________ ppm
Manganese ____________________ ppm
Sulphur _______________________ yes/no
Total Dissolved Solids ____________
*Over 10 ppm may be harmful for human consumption.
Water conditioners do not remove nitrates or coliform bacteria,
this requires specialized equipment.
Look for our
Water-Right
instructional
videos on
PRODUCT INFORMATION
MODEL NUMBER
SERIAL NUMBER
DEALER INFORMATION:

3
PRE-INSTALLATION INSTRUCTIONS
THE DEALER SHOULD...
•Read this page and guide the installer
regarding hardness, day override and time of
regeneration.
THE INSTALLER SHOULD...
•Program installer settings including hardness,
day override, and time of regeneration.
•Read Operating Displays and Maintenance
section.
•Set the time of day
•Read Power Loss and Error Display section.
•Ensure that system and installation are in
compliance with all state and local laws and
regulations.
THE HOMEOWNER SHOULD...
•Read Programming Procedures section.
•Read Operating Displays and Maintenance
section.
The manufacturer has preset the water treatment unit’s sequence of cycles, cycle times, salt dose, exchange capacity and salt dose refill time.
GENERAL OPERATING DISPLAYS & NAVIGATION
During normal operation, the default user displays are “time of day” and “gallons per minute”. Flow rate, capacity remaining, and days to a
regeneration are optional displays. For more explanation, consult the “operating displays and maintenance section”. Pressing the NEXT button on a
general operating screen will cycle through the available operating displays.
In any screen other than a general operating display, the NEXT button will proceed to the next step, the REGEN button will return to a previous step,
and the CLOCK button will return to the general operating displays. Any changes made prior to the exit will be incorporated. If no buttons are pressed
within five minutes, the display will return to the general operating displays.
DOUBLE REGENERATION
Two generations within 24 hours are possible with a return to the preset program. To initiate a double regeneration:
1. Press the REGEN button once. “REGEN TODAY” will flash on the display.
2. Press and hold the REGEN button for three seconds until a regeneration begins.
Once the valve has completed the immediate regeneration, the valve will regenerate once more during the preset time.

4
“TREATED”
WATER EXITS
SUPPLY
WATER ENTERS
NORMAL OPERATION
POSITION BYPASS POSITION DIAGNOSTIC POSITION SHUT OFF POSITION
FIGURE 1
SUPPLY
WATER EXITS
SUPPLY
WATER ENTERS
FIGURE 3
SUPPLY
WATER EXITS
SUPPLY
WATER ENTERS
FIGURE 2
NO
WATER EXITS
SUPPLY WATER IS
SHUT OFF
TO THE HOUSE
AND THE VA LV E
FIGURE 4
BYPASS VALVE
The bypass valve is typically used to isolate the control valve from the plumbing system’s water pressure in order to perform control
valve repairs or maintenance. The 1” full flow bypass valve incorporates four positions, including a diagnostic position that allows a
service technician to have pressure to test a system while providing untreated bypass water to the building. Be sure to install bypass
valve onto main control valve before beginning plumbing or make provisions in the plumbing system for a bypass. The bypass body and
rotors are glass-filled Noryl® and the nuts and caps are glass-filled polypropylene. All seals are self-lubricating EPDM to help prevent
valve seizing after long periods of non-use. Internal “O” Rings can easily be replaced if service is required.
The bypass consists of two interchangeable plug valves that are operated independently by red arrow shaped handles. The handles
identify the direction of flow. The plug valves enable the bypass valve to operate in four positions.
1. NORMAL OPERATION POSITION: The inlet and outlet handles point in the direction of flow indicated by the engraved
arrows on the control valve. Water flows through the control valve for normal operation of a water softener or filter. During the
regeneration cycle this position provides regeneration water to the unit, while also providing untreated water to the distribution
system (Fig. 1).
2. BYPASS POSITION: The inlet and outlet handles point to the center of the bypass. The system is isolated from the water
pressure in the plumbing system. Untreated water is supplied to the building (Fig. 2).
3. DIAGNOSTIC POSITION: The inlet handle points toward the control valve and the outlet handle points to the center of bypass
valve. Untreated supply water is allowed to flow to the system and to the building, while not allowing water to exit from the system
to the building (Fig. 3). This allows the service technician to test the unit and perform other functions without disrupting the water
going to the building.
NOTE:The system must be rinsed before returning the bypass valve to the normal position.
4. SHUT OFF POSITION: The inlet handle points to the center of the bypass valve and the outlet handle points away from the
control valve. The water is shut off to the building. The water treatment system will depressurize upon opening a tap in the building.
A negative pressure in the building combined with the unit being in regeneration could cause a siphoning to the building. If water
is available on the outlet side of the unit, it is an indication of water bypassing the system (Fig. 4) (i.e. a plumbing cross-connection
somewhere in the building).

4 5
GENERAL INSTALLATION & SERVICE WARNINGS
The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments. There is a small amount of “give” to properly
connect the piping, but the water treatment unit is not designed to support the weight of the plumbing.
Do not use Vaseline, oils, other hydrocarbon lubricants, or spray silicone anywhere. A silicone lubricant may be used on black “O” Rings, but is not
necessary. Avoid any type of lubricants, including silicone, on red or clear lip seals.
Do not use pipe dope or other sealants on threads. Teflon® tape must be used on the threads of the 1” NPT inlet and outlet and on the threads for
the drain line connection. Teflon® tape is not used on the nut connections or caps because “O” Ring seals are used. The nuts and caps are designed
to be unscrewed or tightened by hand or with the special plastic Service Wrench, #CV3193-02. If necessary, pliers can be used to unscrew the nut or
cap. Do not use a pipe wrench to tighten nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer.
SITE REQUIREMENTS
• Water pressure – 30-100 psi • Current draw is 0.5 amperes
• Water temperature – 33-100°F (0.5-37.7°C) • The plug-in transformer is for dry locations only
• Electrical – 115/120V, 60Hz uninterrupted outlet
INSTALLATION
1. The distance between the drain and the water treatment unit should be as short as possible (see #9).
2. Since salt must be added periodically to the brine tank, it should be in an easily accessible location.
3. The media tank should be installed on a firm, level surface (above or below grade).
4. It is NOT recommended to install any water treatment unit with less than 10 feet of piping between its outlet and the inlet of a water heater.
CAUTION: To protect the unit in the event of a hot water heater backup, the manufacturer recommends the use of an expansion tank
on the outlet side of the unit (see diagram).
5. Do not locate unit where it or its connections (including the drain and overflow lines) will ever be subjected to temperatures under 33°F.
6. Do not subject the tank to any vacuum as this may cause an “implosion” and could result in leaking. If there is a possibility a vacuum could
occur, please make provision for a vacuum breaker in the installation.
7. INLET/OUTLET PLUMBING: Be sure to install Bypass Valve onto main control valve before beginning plumbing. If it is desired to
bypass outside hydrants, a cold water kitchen sink, or other locations, provisions should be made at this time. Install an inlet shutoff
valve and plumb to the unit’s bypass valve inlet located at the right rear as you face the unit. There are a variety of installation fittings
available. They are listed under the Installation Fitting Assemblies section of the manual. When assembling the installation fitting package
(inlet and outlet), connect the fitting to the plumbing system first and then attach the nut, split ring and “O” Ring. Heat from soldering
or solvent cements may damage the nut, split ring or “O” Ring. Solder joints should be cool and solvent cements should be set before
installing the nut, split ring and “O” Ring. Avoid getting solder flux, primer, and solvent cement on any part of the “O” Rings, split rings, bypass
valve or control valve. If the building’s electrical system is grounded to the plumbing, install a copper grounding strap from the inlet to the outlet
pipe. Plumbing must be done in accordance with all applicable local codes.

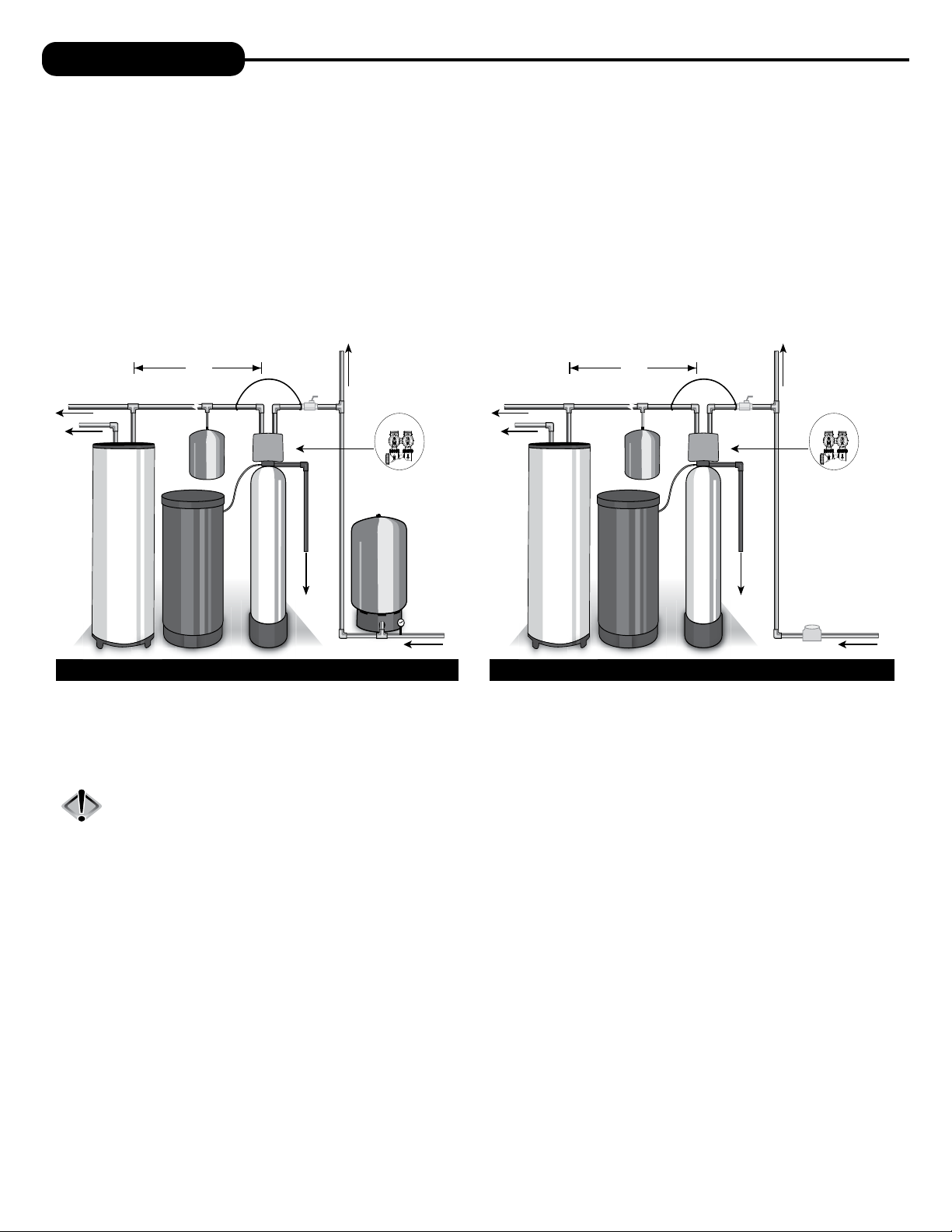

WELL WATER INSTALLATION MUNICIPAL INSTALLATION
COLD
HOT
EXPANSION
TANK
PRESSURE
TANK
MAY NOT
BE REQUIRED
SHUTOFF
VALV E
GROUND
STRAP
10 FEET
OUTSIDE TAP
WATER SUPPLY
TO
DRAIN
WATER
HEATER
A
E
R
I
A
L
V
I
E
W
O
F
B
Y
P
A
S
S
V
A
L
V
E
OUT IN
COLD
HOT
EXPANSION
TANK
MAY NOT
BE REQUIRED
SHUTOFF
VALV E
GROUND
STRAP
10 FEET
OUTSIDE TAP
WATER SUPPLY
WATER
METER
TO
DRAIN
WATER
HEATER
A
E
R
I
A
L
V
I
E
W
O
F
B
Y
P
A
S
S
V
A
L
V
E
OUT IN

6
8. INSTALLING GROUND: To maintain an electrical ground in metal plumbing of a home’s cold water piping
(such as a copper plumbing system), install a ground clamp or jumper wiring.
NOTE: If replacing an existing unit, also replace the ground clamps/wire. If removing a unit, replace
the piping with the same type of piping as the original to assure plumbing integrity and grounding.
9. DRAIN LINE: First, be sure that the drain can handle the backwash rate of the system. Solder joints near
the drain must be done prior to connecting the drain line flow control fitting. Leave at least 6” between
the drain line flow control fitting and solder joints. Failure to do this could cause interior damage to the
flow control. Install a 1/2” I.D. tube to the Drain Line Assembly in accordance with plumbing regulations or
discard the tubing nut and use the 3/4” NPT fitting for rigid pipe (recommended). If the backwash rate is
greater than 7 gpm, use a 3/4” drain line. Where the drain line is elevated but empties into a drain below the
level of the control valve, form a 7” loop at the discharge end of the line so that the bottom of the loop is level with the drain connection on the
control valve. This will provide an adequate anti-siphon trap. Piping the drain line overhead <10 ft is normally not a problem. Be sure adequate
pressure is available (40-60 psi is recommended). Where the drain empties into an overhead sewer line, a sink-type trap must be used with
appropriate air gap (see drawing). Run drain tube to its discharge point in accordance with plumbing codes. Pay special attention to codes for
air gaps and anti-siphon devices.
CAUTION: Never insert a drain line into a drain, sewer line, or trap. Always allow an air gap of 1-1/2” or twice the pipe
diameter, whichever is greater, between the drain line and the wastewater to prevent the possibility of sewage
being back-siphoned into the softener.
SHUTOFF
VALV E
GROUND
STRAP
TYPICAL DRAIN LINE INSTALLATIONS
GROUND STRAP
INSTALLATION
1. Floor Drain 2. Standpipe 3. Laundry Tub
10. SAFETY BRINE TANK CONNECTION: Install the 3/8” O.D. polyethylene tube from the Refill Elbow to the Brine Safety Float valve in the
brine tank.
11. OVERFLOW LINE CONNECTION: An overflow drain line is recommended where a brine overflow could damage furnishings or the building
structure. Your unit is equipped with a brine tank safety float which greatly reduces the chance of an accidental brine overflow. In the event of
a malfunction, however, an overflow line connection will direct the “overflow” to the drain instead of spilling on the floor where it could cause
considerable damage. This fitting is an elbow on the side of the brine tank. Attach a length of 1/2” I.D. tubing to fitting and run to drain. Do not
elevate overflow line higher than 3” below bottom of overflow fitting. Do not connect this tube into the drain line of the control valve. Overflow
line must be a direct, separate line from overflow fitting to drain, sewer, or tub. Allow an air gap as per the drain line instructions.
Connection at Refill Elbow on the control valve Connection at Brine Safety Float in brine tank

6 7
This page intentionally left blank.

8

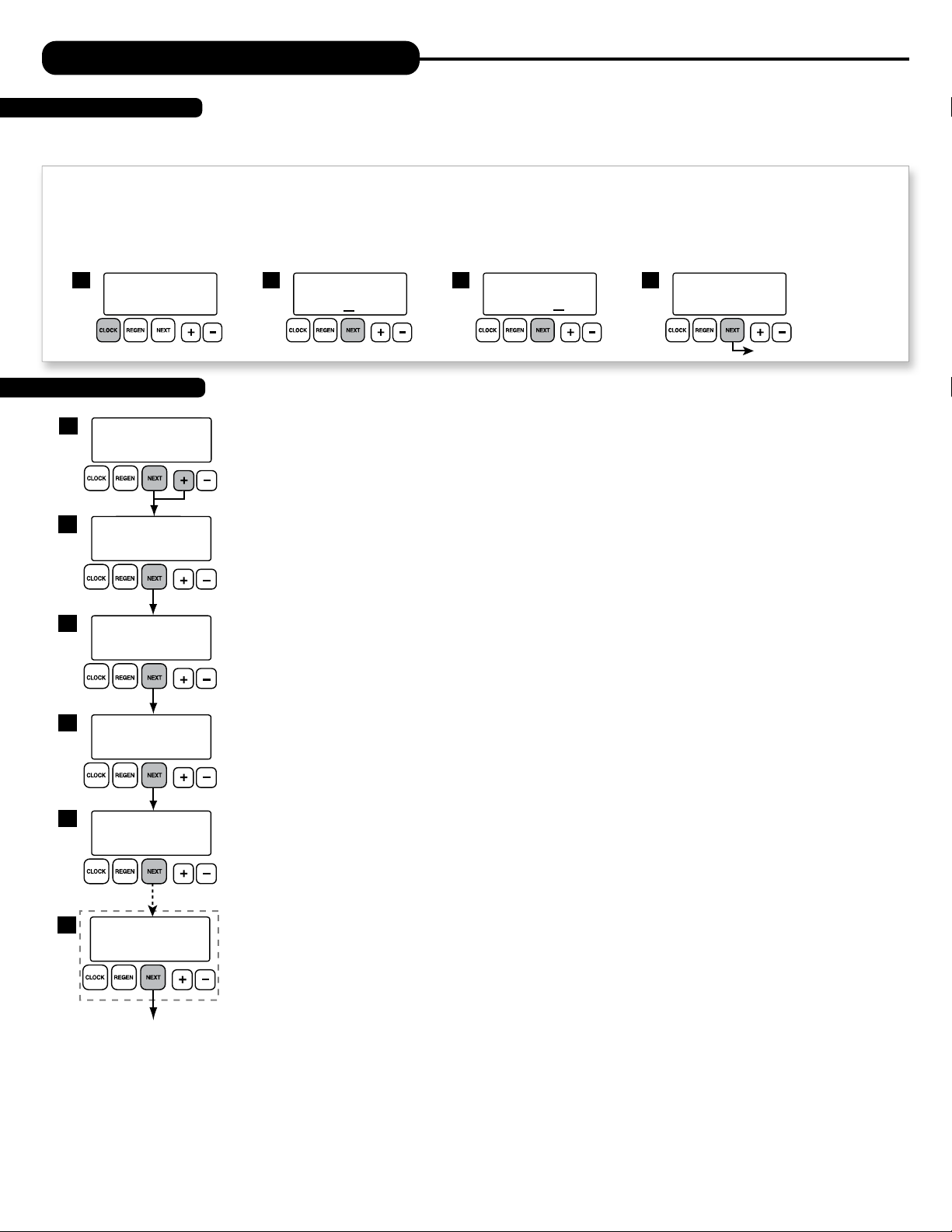

PROGRAMMING PROCEDURES
1
DAYS BETWEEN REGEN
SET
12
3
WATER HARDNESS
SET
20
2
REGEN TIME HOUR
AM
GR
SET
2:00
4
REGEN TIME MINUTES
AM
SET
2:00
5
Return to general display.
LIGHT NORMALLY
SET
ON
6Optional
Display
Typically, time of day should only need to be set after extended power outages or when daylight saving time begins or ends or after the battery has
been replaced. If an extended power outage occurs, the time of day will flash on and off indicating that the time should be reset. To set the clock:
STEP 1 – Press the CLOCK button.
STEP 2 – Set the hour of the day using +or –buttons. AM/PM toggles after 12. Press NEXT to go to step 3.
STEP 3 – Set the minutes using +or –buttons. Press NEXT to go to step 4 or REGEN to return to previous step.
STEP 4 – Set the day of the week using +or –buttons. Press NEXT to exit clock setting or REGEN to return to previous step.
1TIME HOUR
AM
SET
2:00
TIME MINUTES
AM
SET
2:00
2 3 CURRENT DAY
SET
MON
4
return to general display
TIME OF DAY MON
PM
GPM
2:408
1. Set Time of Day
The manufacturer has preset the unit so that the gallons between regenerations will be automatically calculated
after the hardness is entered. Press NEXT to cycle to the next step or REGEN to return to the previous step.
STEP 1 – Press and hold the NEXT and +buttons simultaneously for 3 seconds.
STEP 2 – HARDNESS: Use the +or –buttons to adjust the hardness value in grains per gallons. Adjustable
from 1 to 150 gpg in 1 grain increments (default setting is 20).
The hardness value is based on the actual compensated hardness of the water and must be set by
an authorized dealer following an on-site water analysis. Adjusting the number will only impact the
frequency of regeneration and will not alter or affect the hardness of the water treated by the unit.
Note: If a resin media is used, increase the grains per gallon if soluble iron is present
(1 ppm = 4 gpg). This screen will not display if “FILTER” mode is selected.
STEP 3 – Use the +or –buttons to adjust the day
override. Adjustable from 1-28 days or OFF. The manufacturer has factory set 12 days as the default.
The Day Override value represents the maximum number of days between regenerations. If any number
is set (1-28 days), a regeneration will be scheduled for that day if the gallon capacity has not been met. If
OFF is set, the unit will only initiate a regeneration once the gallon capacity has been met.
STEP 4 – REGENERATION HOUR: Use the +or –buttons to adjust the time of day the unit will regenerate.
AM/PM toggles after 12. The manufacturer has factory set 2:00 A.M. as the default setting which is
recommended for a normal household.
STEP 5 – REGENERATION MINUTES: Use the +or –buttons to set minutes.
STEP 6 –
BACKLIGHT DISPLAY CONTROL: Use the +or –buttons to turn the backlight setting ON or OFF. If unit
is set to OFF, the backlight will turn off after 5 minutes of inactivity. This setting is not available on all
models.
Press NEXT to return to General Display.
2. Programming

8 9
STARTUP INSTRUCTIONS
FLUSHING OF SYSTEM:
To flush the system of any debris and air after installation is complete, please perform the following steps:
1. Rotate bypass handles to the bypass mode (Fig. 2 on page 4) .
2. Turn on inlet water and check for leaks in the newly installed plumbing.
3. Fully open a cold water faucet, preferable at a laundry sink or bathtub without an aerator.
4. Wait two to three minutes or until water runs clear, then turn water off and follow start-up instructions.
Below is the name of each cycle as it appears on the screen with a description of the cycle position. The timing of each cycle will vary
depending on the unit size as set from the factory.
Name of Cycle Description
FILL BRINE TANK FILL
SOFTENING SOFT WATER BRINE MAKING
BACKWASH BACKWASH
REGENERANT DRAW DN (DOWN) BRINE DRAW AND SLOW RINSE
RINSE FAST RINSE
The system is now ready for filling with water and for testing.
1. With the softener in the bypass mode (Fig. 2 on page 4) and the control valve in normal operation where the display
shows either the time of day or the gallons remaining, manually add 3” of water to the brine tank.
NOTE: If too much water is put into the brine tank during softener start up, it could result in a “salty water”
complaint after the first regeneration.
During the first regeneration the unit will draw out the initial volume of brine/regenerant and refill it with the correct preset amount.
2. With the softener in bypass mode, press and hold the  button until the motor starts. Release button. The display reads “FILL”
and the remaining time in this step is counting down. Since the brine tank was already filled in Step 1, press  again and the
display will read SOFTENING 240 (During a full regeneration this will be a 4 hour period for salt to dissolve). Press  again to put
the valve into “BACKWASH.” Once valve has stopped in position, unplug the transformer so that the valve will not cycle to the next
position. Open the inlet handle of the bypass valve very slightly allowing water to fill the tank slowly in order to expel air.
CAUTION: If water flows too rapidly, there will be a loss of media to the drain.
3. When the water is flowing steadily to the drain without the presence of air, slowly open the inlet valve. Restore power and
momentarily press the  button to advance the control to the “BRINE” position.
4. With the bypass now in diagnostic mode (Fig. 3 on page 4), check to verify that water is being drawn from brine tank with no air leaks or
bubbles in the brine line. There should be a slow flow to the drain. Disconnect brine line from the safety float valve in the brine tank and
check for a vacuum. After proper confirmation, reconnect brine line, making sure to tighten securely.
5. Momentarily press  again until the display reads “RINSE.” There should be a rapid flow to the drain. Unplug transformer to keep
the valve in the “RINSE” position. Allow to run until steady, clear and without air. While the unit is rinsing, load the brine tank with
water softener salt (Refer to Brine Tank Maintenance and Salt Section). Restore power.
6. Place bypass valve in the normal operating mode (Fig. 1 on page 4) by opening the outlet bypass handle.
Press  and the unit will return to the service position with time of day being displayed.
7. CONDITIONING OF MEDIA:
To flush any remaining debris and air from the system again:
1. Full open a cold water faucet, preferably at a laundry sink or bathtub without an aerator.
2. Wait two to three minutes or until water runs clear, then turn water off.
3. Turn on hot water and check for air, then turn water off after air is discharged.
8. SANITIZING OF UNIT UPON INSTALLATION AND
At this time, it is advised to sanitize the softener:
1. Open brine tank and remove brine well cover.
2. Pour 1 oz. of household bleach into the brine well.
NOTE: Avoid pouring bleach directly onto the safety float components in the brine well.
3. Replace brine well cover.
Unit sanitizing will be complete when the first cycle is run and the bleach is flushed from the unit.
9. Check time of day. Start-up is now complete.
FOR DOWNFLOW REGENERATING UNITS

10
OPERATING DISPLAYS AND MAINTENANCE
1. GENERAL OPERATION: When the system is operating, one of five displays may be shown and will alternate with the installing dealer’s name
and phone number for future service. Pressing NEXT will alternate between the displays.
1. Time of Day Screen: Displays the current time of day, the day of the week, and flow rate.
2. Flow Rate Screen: Displays the current treated water flow rate through the system in Gallons Per Minute.
3. Capacity Remaining Screen: Displays the amount of gallons of treated water remaining until the system triggers a regeneration.
4. Days to a Regen Screen: Displays the number of days until the system triggers a regeneration. Based on the days override value.
5. Dealer Name Screen: Displays dealer specific name and phone number. This scrolling display will only appear if set by the dealer.
If the system has called for a regeneration that will occur at the preset time of regeneration, the words “REGEN TODAY” will appear on the display.
If a water meter is installed, “GPM” flashes on the display when water is being treated, indicating gallons per minute flowing through the system.
2. REGENERATION MODE: Typically, a system is set to regenerate at a time of no water usage.
If there is a demand for water when the system is regenerating, untreated water will be delivered.
When the system begins to regenerate, the display will include information about the step of the
regeneration process and the time remaining for that step to be completed. The system runs through
the steps automatically and will reset itself to provide treated water when the regeneration has been
completed.
3. MANUAL REGENERATION: Sometimes there may be a need to regenerate a unit before the control
valve calls for it. This may be needed if a period of heavy water use is anticipated or when the system has been
operating without salt.
• To initiate a manual regeneration at the next preset regeneration time, press and release the REGEN
button. The words “REGEN TODAY” will flash on the display to indicate that the system will regenerate
at the scheduled regeneration time (see the Programming Procedures section). If you pressed the
REGEN button in error, pressing and releasing the button again will cancel the command.
• To initiate a manual regeneration immediately, press and hold the REGEN button for three seconds. The system will begin to regenerate
immediately. This command cannot be canceled.
Once a manual regeneration is initiated, the unit will enter the FILL position. This position allows water to enter the brine tank until it reaches the
proper level. Once this position is complete, you will notice a 240 minute (4 hours) SOFTENING position. This 4 hour window allows the salt to
dissolve and achieve proper brine strength. During these FILL and SOFTENING positions, you will have softened water available for use. Once the
unit advances to the BACKWASH position and subsequent positions thereafter (see Start Up Instructions for regeneration sequence), the unit will
deliver water, but it will be untreated.
IMPORTANT: With the Dry Salt Storage Feature, the brine tank will refill 4 hours before the actual regeneration occurs. You may
experience a small amount of noise for a short period of time at 10:00 p.m. (with factory settings) on the night that the
regeneration is to occur. This noise is only the brine tank filling and at no time during this process will you be without
treated water.
1FLOW RATE
GPM
8.0
CAPACITY REMAINING
2
5
TIME OF DAY MON
PM
GPM
2:408
GAL
GPM
16008
GPM
38
3
DAYS TO A REGEN
4
555 5555555
DEALER NA
REGENERATION MODE
BACKWASH
8:22
Current Regen
Cycle Stage
Time Remaining
in Stage
MANUAL REGEN
REGEN TODAY MON
GPM
2:408
PM
REGENTODAY and TIMEOFDAY
will flash alternately if a regeneration
is expected tonight.

10 11
OPERATING DISPLAYS AND MAINTENANCE
4. POWER LOSS AND BATTERY REPLACEMENT: If an extended power outage occurs, the
control valve will retain the time of day settings until the board’s battery is depleted. Once the
battery is depleted, the display will appear dark and absent of any information. If this occurs,
following these steps will determine if the problem is a low battery or a board failure.
To determine if the battery is depleted:
1. Remove valve cover. Disconnect power from PC Board at the four pin connector at the
bottom of the board.
2. Wait five minutes for board to de-energize. Remove battery with a non-conductive/non-
metallic material. Reference the Parts Breakdown section of this manual for location.
3. Wait five minutes for board to de-energize.
4. With the battery out, re-connect the power supply to the board. The board’s display
should begin to show information.
This indicates that the board is operating correctly. If the display does not work, call installing dealer for service.
5. To replace with new battery, unplug transformer from outlet. Install a 3 volt Lithium Coin Cell type 2032 battery, available at most stores.
Plug unit back into outlet.
It is important to replace the battery with the valve unplugged to avoid causing a short and potentially ruining the board.
6. Reset the time of day (see programming procedures) and initiate regeneration (see operating displays and maintenance).
If these procedures do not remedy the problem, please consult the installing dealer for service.
5. ERROR MESSAGE: If the word “ERROR” appears and flashes alternately with the dealer name and phone
number, record the ERROR number and contact your servicing dealer promptly. This indicates that the control
valve was not able to function properly.
6. BRINE TANK MAINTENANCE AND SALT: Refill the brine tank as necessary, making sure at least 1/3 of the
brine tank is full at all times. Without proper salt levels, the water softener may not operate properly.
Because “typical” settings of this water softener include a dry salt storage feature (a small amount of water in brine tank between regeneration),
the manufacturer recommends the use of solar salt for best results. The brine tank is manufactured for the use of solar, pellets or rock salt. Do
not use block salt. If pellet or rock salt is used, a cleaning of the brine tank every six months is recommended. If the dry salt storage feature is not
being utilized, block salt may be used.
Caution: With some models the manufacturer does NOT recommend the use of any resin cleaners, nor placing any resin cleaners into
the brine tank. Furthermore, do not use any salt that indicates it is an iron cleaning salt or that contains any cleaning additives.
This may be harmful to the water softener and for human consumption. Consult dealer for proper cleaning instructions.

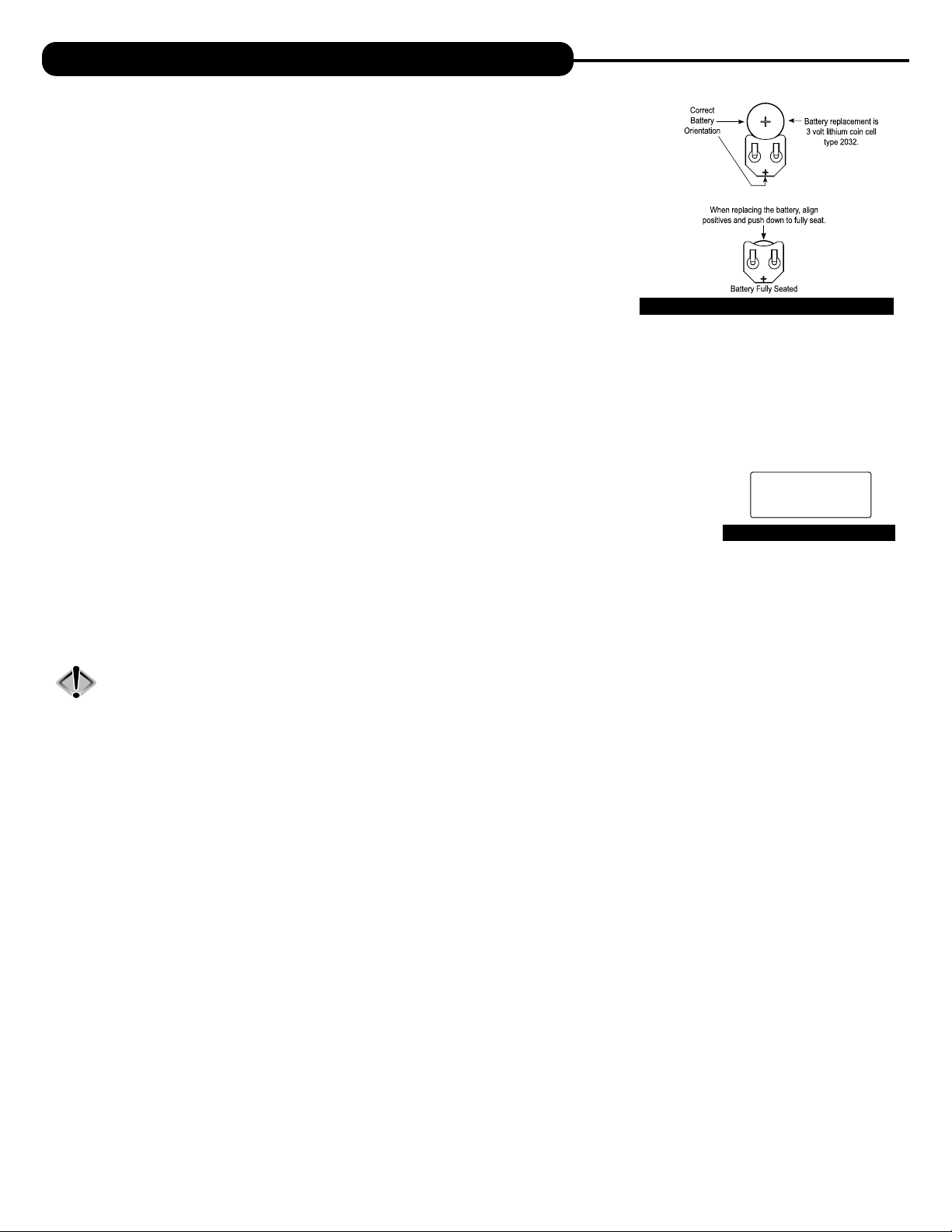

BATTERY REPLACEMENT
ERROR SCREEN
ERROR
106
CALL FOR SERVICE

12
PROBLEM CAUSE CORRECTION
1. No display on
PC board.
A. Depleted battery. A. See Operating Display and Maintenance section.
B. Control valve power adapter not plugged into outlet
or power cord end not connected to PC board
connection.
B. Plug power adapter into outlet or connect
power cord end to PC board connection.
C. Improper power supply. C. Verify proper voltage is being delivered to
PC board.
D. Defective power adapter. D. Replace power adapter.
E. Defective PC board. E. Replace PC board.
F. No power at electric outlet. F. Repair outlet or use working outlet.
2. PC board does not
display correct time
of day.
A. Power adapter plugged into electric outlet controlled
by light switch. A. Use uninterrupted outlet.
B. Tripped breaker switch and/or tripped GFI. B. Reset breaker switch and/or GFI switch.
C. Power outage.
C. Reset time of day. If PC board has battery
back up present the battery may be depleted. See

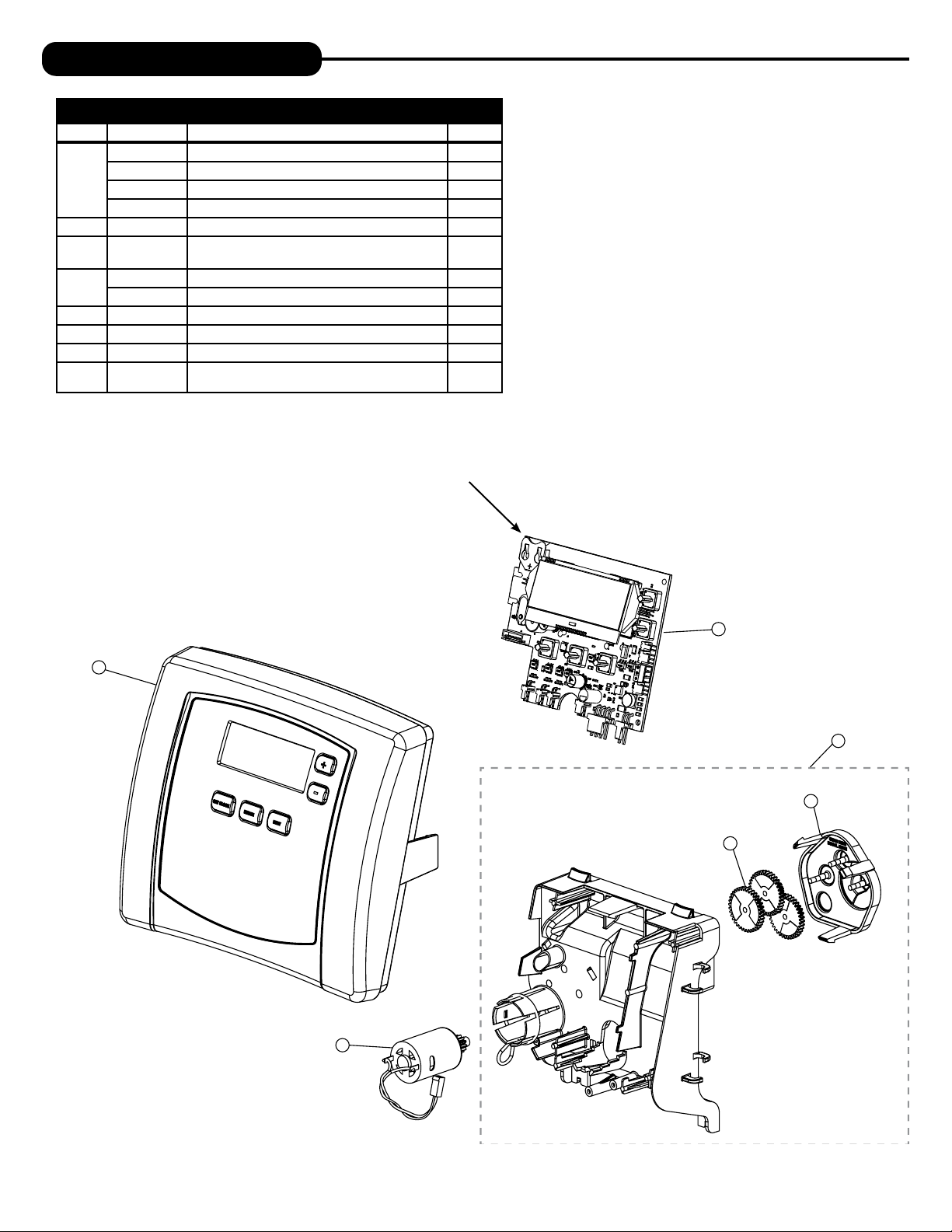

front cover and drive assembly drawing
for instructions.
D. Defective PC board. D. Replace PC board.
3. Display does not
indicate that water is
flowing. Refer to user
instructions for how
the display indicates
water is flowing.
A. Bypass valve in bypass position. A. Turn bypass handles to place bypass in
service position.
B. Meter is not connected to meter connection on PC
board.
B. Connect meter to three pin connection labeled
METER on PC board.
C. Restricted/stalled meter turbine. C. Remove meter and check for rotation or
foreign material.
D. Meter wire not installed securely into three
pin connector.
D. Verify meter cable wires are installed securely into
three pin connector labeled METER.
E. Defective meter. E. Replace meter.
F. Defective PC board. F. Replace PC board.
4. Control valve
regenerates at wrong
time of day.
A. Power outage.
A. Reset time of day. If PC board has battery
back up present the battery may be depleted. See
front cover and drive assembly drawing
for instructions.
B. Time of day not set correctly. B. Reset to correct time of day.
C. Time of regeneration set incorrectly. C. Reset regeneration time.
D. Control valve set at immediate regeneration. D. Check programming setting and reset to DELAYED
(for a delayed regen time).
5. Time of day flashes on
and off. A. Power outage.
A. Reset time of day. If PC board has battery
back up present the battery may be depleted. See
front cover and drive assembly drawing
for instructions.
6. Control valve does
not regenerate
automatically when
the correct button(s) is
pressed and held.
For timeclock valves
the buttons are +or –.
For all other valves the
button is REGEN.
A. Broken drive gear or drive cap assembly. A. Replace drive gear or drive cap assembly.
B. Broken piston rod. B. Replace piston rod.
C. Defective PC board. C. Defective PC board.
D. Cover installed incorrectly. D. Reinstall cover.
TROUBLESHOOTING GUIDE

12 13
7. Control valve does
not regenerate
automatically but
does when the correct
button(s) is depressed
and held. For
timeclock valves the
buttons are +or –.
For all other valves the
button is REGEN.
A. Bypass valve in bypass position. A. Turn bypass handles to place bypass in
service position.
B. Meter is not connected to meter connection on PC
board.
B. Connect meter to three pin connection labeled
METER on PC board.
C. Restricted/stalled meter turbine. C. Remove meter and check for rotation or
foreign material.
D. Incorrect programming. D. Check for programming error.
E. Meter wire not installed securely into three
pin connector.
E. Verify meter cable wires are installed securely into
three pin connector labeled METER.
F. Defective meter. F. Replace meter.
G. Defective PC board. G. Replace PC board.
8. Hard or untreated
water is being
delivered.
A. Bypass valve is open or faulty. A. Fully close bypass valve or replace.
B. Media is exhausted due to high water usage. B. Check program settings or diagnostics for abnormal
water usage.
C. Meter not registering. C. Remove meter and check for rotation or
foreign material.
D. Water quality fluctuation. D. Test water and adjust program
values accordingly.
E. No regenerant or low level of regenerant in
regenerant tank. E. Add proper regenerant to tank.
F. Control fails to draw in regenerant. F. Refer to Troubleshooting Guide number 12.
G. Insufficient regenerant level in regenerant tank.
G. Check refill setting in programming. Check refill
flow control for restrictions or debris and, if
necessary, replace.
H. Damaged seal/stack assembly/piston. H. Replace seal/stack assembly and/or piston.
I. Control valve body type and piston type
mix matched.
I. Verify proper control valve body type and
piston type match.
J. Fouled media bed. J. Replace media bed.
9. Control valve uses
too much regenerant.
A. Improper refill setting. A. Check refill setting.
B. Improper program settings.
B. Check program setting to make sure
they are specific to the water quality and
application needs.
C. Control valve regenerates frequently. C. Check for leaking fixtures that may be exhausting
capacity or system is undersized.
10. Residual regenerant
being delivered to
service.
A. Low water pressure. A. Check incoming water pressure – water pressure
must remain at minimum of 25 psi.
B. Incorrect, damaged, or restricted injector. B. Replace injector with correct size for
the application.
C. Restricted drain line. C. Check drain line for restrictions or debris
and remove any obstructions.
11. Excessive water in
regenerant tank.
A. Improper program settings. A. Check refill setting.
B. Plugged injector. B. Remove injector and replace.
C. Drive cap assembly not tightened in properly. C. Re-tighten the drive cap assembly.
D. Damaged seal/stack assembly/piston. D. Replace seal/stack assembly and/or piston.
E. Restricted or kinked drain line. E. Check drain line for restrictions or debris and or
unkink drain line.
F. Plugged backwash flow controller. F. Remove backwash flow controller and replace, if
necessary.
G. Missing refill flow controller. G. Install refill flow controller.
PROBLEM CAUSE CORRECTION
TROUBLESHOOTING GUIDE

14
TROUBLESHOOTING GUIDE
12. Control valve fails to
draw in regenerant.
A. Injector is plugged. A. Remove injector and replace.
B. Faulty regenerant piston. B. Replace regenerant piston.
C. Regenerant line connection leak. C. Inspect regenerant line for air leak.
D. Drain line restriction or debris cause excess back
pressure.
D. Inspect drain line and remove to
correct restriction.
E. Drain line too long or too high. E. Shorten length and or height.
F. Low water pressure. F. Check incoming water pressure – water
pressure must remain at minimum of 25 psi.
13. Water running to
drain.
A. Power outage during regeneration.
A. Upon power being restored control will finish
the remaining regeneration time. Reset time of
day. If PC board has battery back up present the
battery may be depleted. See front cover and drive
assembly drawing for instructions.
B. Damaged seal/stack assembly. B. Replace seal/stack assembly.
C. Piston assembly failure. C. Replace piston assembly.
D. Drive cap assembly not tightened in properly. D. Re-tighten the drive cap assembly.
14. E1, Err – 1001,
Err – 101 =
Control unable
to sense motor
movement.
A. Motor not inserted full to engage pinion, motor
wires broken or disconnected.
A. Disconnect power, make sure motor is fully engaged,
check for broken wires, make sure
two pin connector on motor is connected to the two
pin connection on the PC board labeled MOTOR.
Press NEXT and REGEN buttons for
3 seconds to resynchronize software with piston
position or disconnect power supply from PC board
for 5 seconds and then reconnect.
B. PC board not properly snapped into drive bracket.
B. Properly snap PC board into drive bracket and
then Press NEXT and REGEN buttons for 3 seconds
to resynchronize software with piston position
or disconnect power supply from PC board for 5
seconds and then reconnect.
C. Missing drive gears. C. Replace missing gears.
D. Motor does not drive/run. D. Replace motor.
E. Viewing eye or encoder is blocked or damaged. E. clear viewing eye on board, on drive bracket, or
replace PC board if no debris is found.
15. E2, Err – 1002,
Err – 102 = Excessive
Motor Draw.
A. Foreign material is lodged in control valve.
A. Open up control valve and pull out piston assembly
and seal/stack assembly for inspection. Press NEXT
and REGEN buttons for
3 seconds to resynchronize software with piston
position or disconnect power supply from PC board
for 5 seconds and then reconnect.
B. Mechanical binding.
B. Check piston and seal/stack assembly, check
reduction gears, check drive bracket and main drive
gear interface. Press NEXT and REGEN buttons for
3 seconds to resynchronize software with piston
position or disconnect power supply from PC board
for 5 seconds and then reconnect.
C. Drive cap too loose. C. Completely tighten drive cap assembly.
D. Drive cap not “clicked” into backplate. D. Verify that backplate is properly “clicked” into
place.
PROBLEM CAUSE CORRECTION

14 15
16. E3, Err – 1003,
Err – 103 = Control
valve motor ran
too long and was
unable to find the
next cycle position.
A. Drive bracket not snapped in properly and out
enough that reduction gears and drive gear do not
interface.
A. Snap drive bracket in properly then Press
NEXT and REGEN buttons for 3 seconds to
resynchronize software with piston position
or disconnect power supply from PC board
for 5 seconds and then reconnect.
17. E4, Err – 1004,
Err – 104 = Control
valve motor ran too
long and timed out
trying to reach home
position.
A. Drive bracket not snapped in properly and out enough
that reduction gears and drive gear do
not interface.
A. Snap drive bracket in properly then Press
NEXT and REGEN buttons for 3 seconds to
resynchronize software with piston position
or disconnect power supply from PC board
for 5 seconds and then reconnect.
B. Piston not connected to drive cap. B. Connect or replace (if damaged) piston/drive cap.
18. Err – 1006, Err – 106,
Err – 116 = MAV/
SEPS/ NHBP/ AUX
MAV valve motor
ran too long and
unable to find
the proper park
position.
●Motorized Alternating Valve = MAV
●Separate Source = SEPS
●No Hard Water Bypass = NHBP
●Auxiliary MAV = AUX MAV
A. Control valve programmed for ALT A or B,
nHbP, SEPS, or AUX MAV with out having
a MAV or NHBP valve attached to operate
that function.
A. Press NEXT and REGEN buttons for 3 seconds
to resynchronize software with piston position
or disconnect power supply from PC board for
5 seconds and then reconnect. Then reprogram valve
to proper setting.
B. MAV/NHBP motor wire not connected to
PC board.
B. Connect MAV/NHBP motor to PC board two pin
connection labeled DRIVE. Press NEXT and REGEN
buttons for 3 seconds to resynchronize software
with piston position or disconnect power supply
from PC board for 5 seconds
and then reconnect.
C. MAV/NHBP motor not fully engaged with reduction
gears.
C. Properly insert motor into casing, do not force into
casing Press NEXT and REGEN buttons for
3 seconds to resynchronize software with piston
position or disconnect power supply from PC board
for 5 seconds and then reconnect.
D. Foreign matter built up on piston and stack
assemblies creating friction and drag enough
to time out motor.
D. Replace piston and stack assemblies. Press NEXT
and REGEN buttons for 3 seconds to resynchronize
software with piston position
or disconnect power supply from PC board
for 5 seconds and then reconnect.
19. Err – 1007, Err –
107, Err – 117 =
MAV/ SEPS/NHBP/
AUX MAV valve
motor ran too short
(stalled) while
looking for proper
park position.
●Motorized Alternating Valve = MAV
●Separate Source = SEPS
●No Hard Water Bypass = NHBP
●Auxiliary MAV = AUX MAV
A. Foreign material is lodged in
MAV/NHBP valve.
A. Open up MAV/NHBP valve and check piston and
seal/ stack assembly for foreign material. Press NEXT
and REGEN buttons for 3 seconds
to resynchronize software with piston position
or disconnect power supply from PC board for
5 seconds and then reconnect.
B. Mechanical binding.
B. Check piston and seal/stack assembly, check
reduction gears, drive gear interface, and check
MAV/NHBP black drive pinion on
motor for being jammed into motor body.
Press NEXT and REGEN buttons for 3 seconds to
resynchronize software with piston position or
disconnect power supply from PC board for 5
seconds and then reconnect.
PROBLEM CAUSE CORRECTION
TROUBLESHOOTING GUIDE

16
PROBLEM CAUSE CORRECTION
21. Err – 201
200 errors are only
viewable in history
screens. These do not
flash when error occurs.
A. Invalid regeneration cycle step detected. A. Replace PC board.
22. Err – 202
200 errors are only
viewable in history
screens. These do not
flash when error occurs.
A. Short power disruption. A. Check transformer voltage and verify power source.
B. Foreign material dislodged. B. Check piston and stack for damage.
23. Err – 204 = Leak
detected
200 errors are only
viewable in history
screens. These do not
flash when error occurs.
A. Occurs when dP input is active for “ALARM” and the
input is closed. The alarm buzzer will activate and the
screen will display the error.
A. Check for low flow leak. Press NEXT and REGEN
buttons for 3 seconds to resynchronize software
with piston position or disconnect power supply
from PC Board for 5 seconds
and then reconnect to clear error.
24. Err – 400*
Memory Errors
*All 400 errors pertain to
memory related errors.
400 and 200 errors are
only viewable in history
screens. These do not
flash when error occurs.
A. Depleted Battery. A. See Operating Display and Maintenance section.
B. Defective PC Board. B. Replace PC board.
TROUBLESHOOTING GUIDE

16 17
REPLACEMENT PARTS
NOTE: Battery Location
FRONT COVER AND DRIVE ASSEMBLY
Item # Part # Description Qty.
1
CV3540-A Black Impression®cover 1
CV3540-W-A Gray Impression®cover 1
CV3540P-A Black Impression Plus®cover 1
CV3540P-W-A Gray Impression Plus®cover 1
2 CV3107-1 Motor Assembly 1
3 CV3002-A Drive assembly (includes #5 and #6) 1
4CV3579WI-03 PC board, Impression®1
CV4229XP-03 PC board, Ozone 1
5 CV3110 Drive gear, 12 x 36 3
6 CV3109 Drive gear cover 1
CV3186 Transformer, 110V-12V, AC (standard) 1
Not
shown CV3543 Optional weather cover 1
2
1
3
5
4
6

18
NOTE: Optional On Some Models
Only. Not Available On 11/4” Valve.
For Air Filter Systems Only
PISTON ASSEMBLY
Item # Part # Description Qty.
1CV3005-02 1” spacer stack assembly 1
CV3430-01 1.25” spacer stack assembly 1
2 CV3004 Drive cap assembly 1
3 CV3135 O-ring 228 (drive cap o-ring) 1
4
CV3011 1” piston assembly downflow 1
CV3011-01 1” piston assembly upflow 1
CV3407 1.25” piston assembly downflow 1
5 CV3174 Regenerant piston 1
6-12 CV3015A WS1 QC2 Tank adapter assembly (includes O-rings) 1
13
CV3001-04 1” body assembly downflow 1
CV3001-04UP 1” body assembly upflow 1
CV3001 1” body assembly downflow 1
CV3001UP 1” body assembly upflow 1
CV3020 1.25” body assembly downflow 1
14 CV3541 Drive backplate 1
Not
Shown
CD1225-05 Top basket softener (optional) 1
CD1249WR Top basket filter 1
Not
Shown OV32 DN32 Internal check valve 1
REPLACEMENT PARTS

18 19

Item No. Part No. Description Qty.
1 CV3006 Bypass assembly 1
2 CV3147 Bypass handles 2
REPLACEMENT PARTS
2
4
13
BRINE ELBOW ASSEMBLY
Item No. Part No. Description Qty.
1CV3195-01 Refill port plug assembly 1
2 CH4615 Elbow locking clip 1
3 CV4144 3/8” Elbow, Parker fitting 1
4 CV3163 O-ring 019 1
Although no tools are necessary to assemble or disassemble the
valve, the Service Wrench, (shown in various positions on the valve)
is available to aid in assembly or disassembly.

Loosens Injector
And
Bypass Caps
Loosens Drive Cap

20
INJECTOR ASSEMBLIES
Item No. Part No. Description Qty.
1 CV3176 Injector cap 1
2 CV3152 O-ring 135 1
3CV3177-01 Injector screen 1
4CV3010-1Z Injector assembly plug 1
5
CV3010-1A Ainjector assembly, 
1
CV3010-1B Binjector assembly, 
CV3010-1C Cinjector assembly, 
CV3010-1D Dinjector assembly, 
CV3010-1E Einjector assembly, 
CV3010-1F Finjector assembly, 
CV3010-1G Ginjector assembly, 
CV3010-1H Hinjector assembly,
CV3010-1I Iinjector assembly, 
CV3010-1J Jinjector assembly, 
CV3010-1K Kinjector assembly, 
not shown CV3170 O-ring 011, lower *
not shown CV3171 O-ring 013, upper *
*The injector plug and the injector each use one lower and one upper o-ring
REPLACEMENT PARTS
3
WATER METER AND METER PLUG
Item No. Part No. Description Qty.
1 CV3151 Nut, 1” QC 1
2 CV3003 Meter assembly 1
3 CV3105 O-ring 215 1
4CV3003-01 Meter plug assembly 1
