Water Right Impression Operating instructions

For Models:

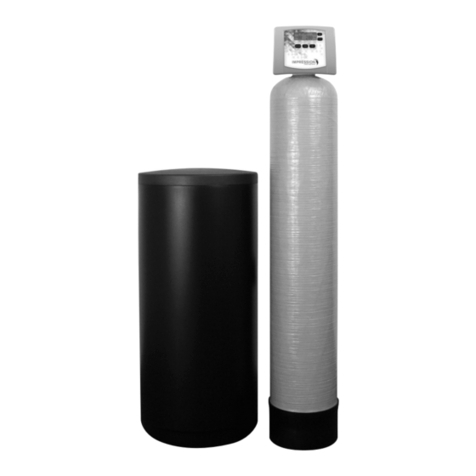

•Impression

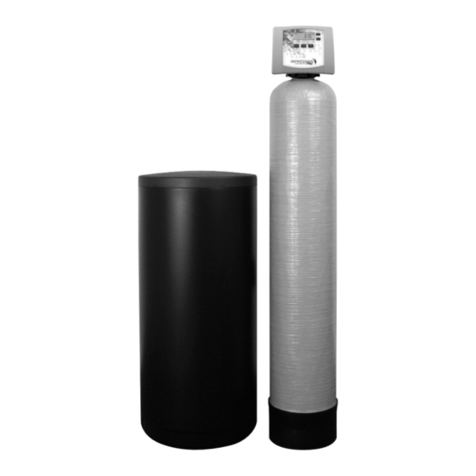

•Impression Plus

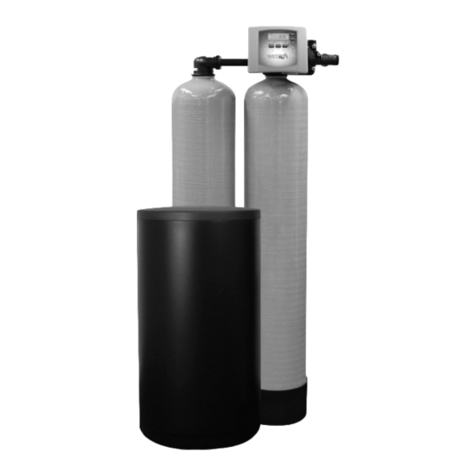

•Impression Twin
Master Programming Guide
October 2019 Edition

2
Button appearance and position may be different than actual valve
Cycle times, sequences, and settings in this guide are only examples of how your system may be programmed.
Actual settings are determined by the manufacturer. Please contact them if more information is needed.
Important button sequences to note:
1. UNLOCK VALVE SETTINGS: Press buttons in the following order: –, NEXT, +, CLOCK. This will allow a user to change
manufacturer’s settings. When nished, lock settings by inputting the same sequence.
2. CLEAR ERROR ON SCREEN: Press and hold NEXT and REGEN for three seconds.
3. CLEAR SERVICE ALARM: If service alarm is triggered, press and hold +and –buttons simultaneously for three
seconds to reset to original set points. This will reset both gallon and year alarms.
4. REGEN BUTTON: From a general operation screen, pressing the REGEN button schedules a regeneration for that
night. Pressing it again will cancel the regeneration for that night. On most screens besides the general operation
screens, the REGEN button works as a “back” button. Pressing it will return to the previous setting screen.
General Operation Screens
Press NEXT button to toggle between one of four displays.
Press REGEN button to schedule a regeneration for that night.
Return to general display
Displays current time
Unit defaults to this screen after a reset.
Displays a unit’s remaining capacity
This screen will not display if the unit’s gallons of
capacity is set to OFF. “REGEN TODAY” will alternate
with the current screen header if a regen is expected
that night.
Displays days remaining until a regen
This screen will not display if the unit’s day override
is set to o.
Set hours with + or — buttons
AM/PM toggles after 12 AM.
Displays time remaining in current regeneration cycle
“2” ashes for a second backwash if two backwashes are
programmed.
Displays time remaining incurrent cycle
If a chlorine generator is connected and set to ON, the
brine concentration will be checked during draw. Text will
alternate between DRAW TIME & GENERATOR ON.
Set minutes with + or — buttons
AM/PM toggles after 12 AM.
Set current day with + or — buttons
The default setting is WED.
Displays scrolling dealer
name and phone number
To change dealer name and
phone number, see page 3.
Displays current flow rate
“Current Flow Rate” is the amount of water currently
owing through, and being treated by, the unit. “GPM”
and the ow rate ash while the turbine is rotating.
555 5555555
DEALER NA
If set, a scrolling
dealer name and
phone number
screen will
alternate with the
selected general
operation screen.
CURRENT DAY
SET
WED
TIME MINUTES
SET
TIME HOUR
SET
2:00
2:35
AM
AM
MIN
BACKWASH REMAINING
2
3:30
GENERATOR ON
53:45
Unlock and Lock Controller
The following screens will flash when the correct button sequence is
inputted to unlock valve settings.
Indicates that the valve controller is unlocked
Unlocks access to advanced programming features
within the controller.
Indicates that the valve controller is locked
It is strongly advised to lock the controller following any
changes. This helps to prevent any accidental access to
advanced programming settings.
PROGRAM
UNLOCK
PROGRAM
LOCK
DAYS TO A REGEN
GPM
3
8
CAPACITY REMAINING
GPM GAL
1600
8
FLOW RATE
GPM
8.0
TIME OF DAY MON
GPM
2:408
PM
Set Time Screens Typical Regeneration Screens
Accessed by pressing the CLOCK button. Only visible when unit is in regeneration
The symbol on the following pages indicates
that the screens below it will not display unless the
controller is unlocked.

3
REGEN TIME MINUTES
SET
2:00
AM
REGEN TIME HOUR
SET
2:00
AM
WATER HARDNESS
SET
20
GR
LIGHT NORMALLY
SET
ON
1
3
DAYS BETWEEN REGEN
SET
6
2
4
5
Softener/Filter Installer/User Screens
Accessed by pressing and holding NEXT and +simultaneously for three seconds.
Returns to general display after five minutes of inactivity.
Softeners
Filters
Set water hardness with + or — buttons
Adjustable from 1-150 grains, within limits determined by capacity settings
as to not override gallons capacity setting. Default setting is 20 grains.
NOTE: This screen will not display if the unit is set to “FILTERING” mode (see OEM FILTERING SECTION).
Set days between a regeneration with + or — buttons
Adjustable from 1-28 days, or OFF.
Default setting is 6.
Set hour of regen time with + or — buttons
If IMMEDIATE REGEN is set (see Service OEM page), regen will be
immediate once total capacity is exhausted and ON ZERO will be displayed.
Default setting is 2:00 AM.
Set minutes of regen time with + or — buttons
If IMMEDIATE REGEN is set (see Service OEM page), regen will be
immediate once total capacity is exhausted and ON ZERO will be displayed.
Default setting is 2:00 AM.
Set backlight operation with + or — buttons
Default setting is ON.
OFF will turn display backlight o after 5 minutes of keypad inactivity.
Return to general display
Only appears on
units that support a
backlit display
Set hour of regen time with + or — buttons
If IMMEDIATE REGEN is set (see Service OEM page), regen will be
immediate once total capacity is exhausted and ON ZERO will be displayed.
Default setting is 12:00 AM.
Set minutes of regen time with + or — buttons
If IMMEDIATE REGEN is set (see Service OEM page), regen will be
immediate once total capacity is exhausted and ON ZERO will be displayed.
Default setting is 12:00 AM.
Set backlight operation with + or — buttons
Default setting is ON.
OFF will turn display backlight o after 5 minutes of keypad inactivity.
Return to general display
Only appears on
units that support a
backlit display
Set days between a regeneration with + or — buttons
Adjustable from 1-28 days, or OFF.
Default setting is 3.
REGEN TIME MINUTES
SET
12:00
AM
REGEN TIME HOUR
SET
12:00
AM
DAYS BETWEEN REGEN
SET
3
LIGHT NORMALLY
SET
ON
1
2
3
4

4
Service Alarm/Dealer Setting Screens
Accessed by pressing and holding NEXT and +buttons simultaneously for three seconds.
Once screen changes, press and hold NEXT and +buttons again for three seconds.
Returns to general display after five minutes of inactivity.
Turn service alarm by gallons ON or OFF with + or — buttons
Default setting is OFF.
Turn service alarm by time in years ON or OFF with + or — buttons
Default setting is OFF.
Set number of gallons with + or — buttons
Sets in 100 gallon increments.
Choose between 100 - 9,999,000 gallons.
Set duration in time of years with + or — buttons
Sets in .25 year increments. Choose between .25 - 9.75 years.
Choose normal or custom alarm type with + or — buttons
NORMAL will display a pre-programmed message that reads “Call dealer for service” when alarm is triggered.
CUSTOM allows a custom message to be programmed and will scroll when alarm is triggered.
Choose normal or custom alarm type with + or — buttons
NORMAL will display a pre-programmed message that reads “Call dealer for service” when alarm is triggered.
CUSTOM allows a custom message to be programmed and will scroll when alarm is triggered.
Choose custom message
If CUSTOM is chosen, press and hold the + and – buttons for three seconds to access
the character programming screen.
Choose custom message
If CUSTOM is chosen, press and hold the + and – buttons for three seconds to access
the character programming screen.
Press the + or — buttons to program characters
Press next to advance to the next character. Pressing next twice moves to the next
screen. 55 characters are allowed.
Press the + or — buttons to program characters
Press next to advance to the next character. Pressing next twice moves to the next
screen. 55 characters are allowed.
Status display
This display will show the gallons remaining before the service alarm is set to trigger.
Press and hold + and – simultaneously for three seconds to reset to the gallon set point.
Status display
This display will show the time remaining before the
service alarm is set to trigger. Press and hold + and –
simultaneously for three seconds to reset to the year
set point.
SERVICE ALARM
SET
OFF
GAL
SERVICE ALARM
SET
OFF
YR
SERVICE ALARM
SET
10000
GAL
10000
GAL
ALARM DISPLAY TYPE
SET
NORMAL
CALL FOR SERVICE
IN
ALARM DISPLAY TYPE
SET
CUSTOM
CALL FOR SERVICE
ABCD
SERVICE ALARM
SET
1.00
YR
1.00
YR
ALARM DISPLAY TYPE
SET
NORMAL
CALL FOR SERVICE
IN
ALARM DISPLAY TYPE
SET
CUSTOM
CALL FOR SERVICE
ABCD
1
2
continue to next page
The service alarm feature is used to warn the owner
that the unit currently needs service. Some application
examples includes reminding the owner when a lter
needs replacement, when an R.O. system needs
servicing, or when routine maintenance needs to be
performed. This can be set by gallons, time, or both.
Default is OFF for both.
NOTE:
•When using custom screens, a dierent message can
be programmed in both gallons and years.
•To reset a service alarm while in status display, press +
and – simultaneously for three seconds. This will reset
both gallon and year alarms.

5
Service Alarm/Dealer Setting Screens
Accessed by pressing and holding NEXT and +buttons simultaneously for three seconds.
Once screen changes, press and hold NEXT and +buttons again for three seconds.
Returns to general display after five minutes of inactivity.
555-555-5555
555-555-5555
DEALER NA
3
4
UP DOWN
UP DOWN
continued from previous page
Access Scrolling Dealer Name and Phone Number Feature
The dealer phone name and phone number feature displays a scrolling phone
number and name of the installing dealer. These screens alternate with the se-
lected general operating display.
Set phone number by using the +or —buttons. Pressing the NEXT button will
advance the cursor one position to the right. Continuing to press the NEXT button
will advance to the contact name display.
Scrolling contact name screen
Set contact name by using the +or —buttons. Pressing the NEXT
button will advance the cursor one position to the right.
(55 Characters Max)
To Turn Off Dealer
Name/Number Screen
1. Clear the current phone number by pressing
the +or — buttons to toggle to the “blank”
character followed by the NEXT button.
2. Input two “blank” characters. The phone
number will clear and advance to the dealer
name setting.
3. Clear the current dealer name by pressing
the +or — buttons to toggle to the “blank”
character. Input blank characters to replace
any existing characters. Press the NEXT
button repeatedly to return to the general
operating screens.
Return to general display

6
FILL
SET
CYCLE 1
DOUBLE REGEN
SET
10 %
>
GALLONS CAPACITY
SET
AUTO
SOFTENING
SET
CYCLE 2
CYCLE 3
SOFTENING TIME
SET
240:00
MIN
LBS
8:00
MIN
BACKWASH
SET
BACKWASH TIME
SET
FILL
SET
15.0
X1K
GRAINS OF CAPACITY
SET
32.0
SOFTENING
SET
TYPE
1
2
3
4
5
6
7
8
9
10
Service/OEM SOFTENING Screens
Accessed by pressing and holding NEXT and –simultaneously for three seconds.
Returns to general display after five minutes of inactivity.
Select SOFTENING or FILTERING with + or — buttons
If you have selected FILTERING, please refer to
“Service/OEM FILTERING screens”, page 7-8.
Set system’s grains of capacity with + or — buttons
X1K = 1,000 grains.
The default setting is 32.0
Set gallon capacity with + or — buttons
•AUTO automatically calculates gallon capacity.
•OFF will regen by days override setting only.
•GALS BETWEEN REGEN will regen by specic gallon setting.
•Default setting is AUTO.
Set double regen point with + or — buttons
If unit’s capacity is overrun by this percentage, the unit will regen
two nights in a row. Default setting is 10%.
Set softening time with + or — buttons
This position is used between brine tank ll and the start of backwash.
The unit will deliver soft water during this position.
Default setting is 240:00 minutes.
Set salt pounds per regen with + or — buttons
The unit will deliver soft water during this position.
Default setting is 15.0 pounds.
Set backwash time with + or — buttons
Default setting is 8:00 minutes.
Set second cycle position with + or — buttons
Set third cycle position with + or — buttons
Set first cycle position with + or — buttons
continue to next page

7
cont’d
CYCLE 4
REGENERANT DRAW DN
SET
90:00
MIN
DRAW TIME
SET
CYCLE 5
RINSE
SET
4:00
MIN
RINSE TIME
SET
CYCLE 6
END
SET
11
12
13
14
15
Service/OEM SOFTENING Screens
Accessed by pressing and holding NEXT and –simultaneously for three seconds.
Returns to general display after five minutes of inactivity.
Set fourth cycle position with + or — buttons
Set draw time with + or — buttons
Default setting is 90:00 minutes.
Set fifth cycle position with + or — buttons
Set final rapid rinse time with + or — buttons
Default setting is 4:00 minutes
Set end cycle with + or — buttons
Up to fourteen cycle positions may be programmed into a regeneration. An END
position triggers the end of a regeneration and a return to service.
continued from previous page
Return to general display

8
DBL REGEN
SET
OFF
CYCLE 1
20
SEC
BACKWASH-AIR
SET
BACKWASH-AIR TIME
SET
GAL
GALLONS CAPACITY
SET
1000
FILTERING
SET
TYPE
CYCLE 2
BACKWASH
SET
CYCLE 3
REGENERANT DRAW DN
SET
10:00
MIN
BACKWASH TIME
SET
1
2
3
4
5
BACKWASH
SET
5
1
MIN
MIN
5
MIN
RINSE
4
MIN
RINSE
SET
BACKWASH
SET
SET
6
7
8
Service/OEM FILTERING Screens
Accessed by pressing and holding NEXT and –simultaneously for three seconds.
Returns to general display after five minutes of inactivity.
NOTE: Numbers and cycles used as examples on this page are typical of AIR FILTER systems.
Select SOFTENING or FILTERING with + or — buttons
If you have selected SOFTENING, please refer to
“Service/OEM SOFTENING screens”, page 5-6.
Set gallons of capacity with + or — buttons
To turn o, set below 0. OFF does not use metered water to
determine a regen and will not be an option of days override is
not set. Default setting is 1000 gallons.
Set double regen point with + or — buttons
If unit’s capacity is overrun by this percentage, the unit will
regen two nights in a row. Default setting is OFF.
Set first cycle position with + or — buttons
Set backwash-air position time with + or — buttons
Default setting is 20 seconds.
Set backwash time with + or — buttons
Default setting is 10:00 minutes.
Set second cycle position with + or — buttons
Set third cycle position with + or — buttons
continue to next page
Cycle Sequence for
Backwashing Filters

9
cont’d
ON
OZONE GENERATOR
30:00
MIN
GENERATE OZONE
SET
SET
OFF
GENERATOR ALARM
SET
CYCLE 4
END
SET
60:00
MIN
DRAW TIME
SET
60:00
MIN
DRAW TIME
SET
9
10
Set draw time with + or — buttons
Default setting is 60:00 minutes.
Select option with + or — buttons
ON: Ozone generator option installed.
OFF: No options installed (default setting).
Set the ozone generator’s operation time with + or — buttons
Default setting is 30:00 minutes.
Select option with + or — buttons
ON: Will display SERVICE OZONE on user screen when failure is
detected.
O: No alarm will display.
Set end cycle with + or — buttons
Up to fourteen cycle positions can be programmed into a regeneration.
An END position triggers the end of a regeneration and a return to service
Press and hold CLOCK and + buttons simultaneously for three
seconds to access OZONE GENERATOR settings
Service/OEM FILTERING Screens
Accessed by pressing and holding NEXT and –simultaneously for three seconds.
Returns to general display after five minutes of inactivity.
NOTE: Numbers and cycles used as examples on this page are typical of AIR FILTER systems.
continued from previous page
Return to general display
To set OZONE GENERATOR
NOTE: Ozone Generator options are only available if an ozone generator is connected to
the board. Ozone generators are not compatible with all boards and programming.
Consult the Ozone Generator Kit Instructions (OZ1-A-WR) for more information.

10
MAV DRIVE 1
SET
IN
DELAYED
SET
REGEN
OFF
VALVE TYPE
SET
1.0
AUXILIARY INPUT
SET
OFF
1
MIN
Pre-Service Rinse
SET
OFF
2
3
4
Configuration Screens
Accessed by pressing and holding NEXT and –simultaneously for three seconds.
Once screen changes, press and hold NEXT and –simultaneously again for three seconds.
Select meter size with + or — buttons
Set to 1”, 1.25”, 1.5”, 2” or 1.0T (for twin units). Upow brining will not be an option if set to anything other than 1” or 1.0T.
With 1.0T set:
•Meter calibration will be xed.
•MAV 1 setting will not be viewed, but forced to be set to Alternator Mode w/ Immediate Regen and Post Fill Brining.
•The Backwash-Air regeneration step will not be available.
•Default setting is 1”
Set auxilliary input with + or — buttons
•IMMED indicates unit will regen immediately.
•DELAY indicates that after a 2 minute signal from external contact, unit will regen at delayed regen time.
•HOLD indicates that unit will not regen while external contacts are closed.
•ALARM indicates that control valve’s internal alarm will sound upon external contact closure.
•Default setting is OFF.
WARNING: External contact is needed to operate any of the above settings properly. If no external contact
is connected, no setting is needed.
Set regen time control with + or — buttons
•DELAYED sets regen to specied regen time.
•DELAY + IMMEDIATE sets regen to occur after 10 minutes of no water usage.
•IMMEDIATE sets an immediate regen upon zero gallons of remaining capacity.
•Default setting is DELAYED.
Set pre-service rinse time with + or — buttons
This option is only available if the valve type is set to 1.0T (twin).
Range is 0-20 minutes. Default setting is OFF.
Set first MAV drive control with + or — buttons
•ALT A and ALT B are only used in twin congurations (see MAV manual for more details).
•SYSTEM CONTROLLER congures board to operate with the Clack System Controller.
•SEPARATE SOURCE changes state at the start and end of regen cycle.
•NO HARD BYPASS congures MAV as a no hard water bypass.
•TIME changes state at a set time referenced to the start of regen, for a preset duration of time independent
of actual regen status. Inactive during alternate regeneration cycle.
•Default setting is OFF.
WARNING: Leaving valve in ALT A, ALT B or ENABLED without proper hardware will result in errors.
continue to next page
Only appears
on units set to
1.0T Mode

11
cont’d
RELAY 1 TRIGGER
SET
OFF
RELAY 1 TRIGGER
SET
TIME
RELAY 1 SETPOINT
SET
15
MIN
RELAY 1 DURATION
SET
90:00
MIN
RELAY 1 TRIGGER
SET
GALLONS
RELAY 1 SETPOINT
SET
25
GAL
RELAY 1 DURATION
SET
0:30
MIN
5
Configuration Screens
Accessed by pressing and holding NEXT and –simultaneously for three seconds.
Once screen changes, press and hold NEXT and –simultaneously again for three seconds.
Set first relay trigger with + button. Press + to reach desired triggering event.
If not using a relay, make sure OFF is selected and press NEXT.
OFF indicates that no external devices are being used.
Default is OFF.
continued from previous page
Return to
General Display
Return to
General Display
Return to
General
Display
Set relay trigger with + or — buttons
TIME indicates that relay will be energized for a specied period
of time during regen only. To set by this, press NEXT.
Set relay setpoint with + or — buttons
This is the delay time period after regen starts that relay
will initially energize. 0 indicates an immediate start.
Set relay setpoint with + or — buttons
This is the gallons that will be expended before relay will
initially energize.
Set relay trigger with + or — buttons
GALLONS indicates that relay will be energized after a specied number of
gallons are expended in service position only. To set by this, press NEXT.
Set relay duration with + or — buttons
This is the duration of time, after relay setpoint, that relay
will remain energized.
NOTE: Can be all or any part of total regen time, but will
turn o at end of regen.
Set relay duration with + or — buttons
This is the duration of time, after relay setpoint, that
relay will remain energized. Adjustable from 1 sec to
500 min.
NOTE: Will shut o if a regen is initiated
continue to next page
If using Relay:
1. Press + to engage
one of the following
Relay Triggers:
• Time
• Gallons
• Regen
• Error
• Flow
• Pulse
2. Press NEXT to
program Setpoints
and Durations

12
cont’d
0:30
MIN
RELAY 1 TRIGGER
SET
REGEN
RELAY 1 TRIGGER
SET
ERROR
RELAY 1 SETPOINT
SET
25
GAL
RELAY 1 DURATION
SET
RELAY 1 SETPOINT
SET
1.00
PPG
RELAY 1 TRIGGER
SET
PULSE
RELAY 1 TRIGGER
SET
FLOW
Configuration Screens
Accessed by pressing and holding NEXT and –simultaneously for three seconds.
Once screen changes, press and hold NEXT and –simultaneously again for three seconds.
continued from previous page
Set relay trigger with + or — buttons
REGEN GALLONS indicates that relay will be energized after a specied number of gal-
lons are expended during service and regen. To set by this, press NEXT.
Set relay trigger with + or — buttons
ERROR indicates that relay will be energized while unit is in an error mode. To set by
this, press NEXT.
Set relay trigger with + or — buttons
FLOW indicates that relay will close whenever ow is detected by the control. To set by
this, press NEXT.
Set relay trigger with + or — buttons
PULSE indicates that relay will generate a dry-contact signal output. To set by this,
press NEXT.
Set relay setpoint with + or — buttons
This is the gallons that will be expended before relay will
initially energize.
Set relay setpoint with + or — buttons
Set meter pulses per gallon (PPG). Adjustable
from 0.10, 0.25, 0.50, 0.75, and 1.00 – 10.00 in 1
PPG increments.
Set relay duration with + or — buttons
This is the duration of time, after relay setpoint, that relay
will remain energized. Adjustable from 1 sec to 500 min.
Return to
General Display
Return to
General Display
Return to
General Display
Return to general display

13
First Level History Screens
Accessed by pressing and holding +and –simultaneously for three seconds.
Returns to general display after five minutes of inactivity.
DAYS SINCE REGEN
5
VOLUME SINCE REGEN
980
RESERVE FOR
MON GAL
GAL
320
GAL
230
USAGE WED R
DAY
15
A→BGAL
0.00
1 3 DAYS 12:35
1
2
3
4
Displays number of days since last regen
Displays number of gallons since last regen
Displays reserve capacity
Use +or – buttons to scroll through each day of the week to
view calculated reserve capacity.
NOTE: Reserve capacity takes 21 days to generate.
Only appears
on units set to
1.0T Mode
Displays tank transfer history
Use + or — buttons to scroll through last 10 tank transfers. Visible in 1.0T Mode only.
•“1” indicates most recent tank transfer.
•“A” indicates service ow transferring away from tank.
•“B” indicates service ow transferring to tank.
•“3” indicates days ago of transfer (99 day max)
•“0.00” indicates gallons used at time of transfer.
Displays gallon usage history
Use +or –buttons to scroll through past 90 days of water usage history.
1.0T Mode: T1 and T2 usage for this day combined in this display
•“R” indicates a regen has occurred that day.
•“S” indicates a step through manual regeneration.
•“M” indicates a manual regeneration.
•“E” indicates a valve error has occurred.
continue to next page

14
cont’d
First Level History Screens
Accessed by pressing and holding +and –simultaneously for three seconds.
Returns to general display after five minutes of inactivity.
continued from previous page
Displays peak flow rate history
Use +or – buttons to scroll through last 7 days to view peak
ow rate for that day.
Displays ozone current history
Use +or – buttons to review ozone generator performance during the past 50 regenerations.
A regen sequence indicator (A) will alternated being viewed with “mA” if the Alternate Regen Feature
was active for this regen. Regens with multiple regenerate draws will only record the
rst one in the sequence. Values displayed are determined immediately after a low output current
is detected, or will be the average values measured during generator period of operation.
AAA = Generator current draw in mA
VV.V = Generator voltage in VDC
Visible only if SERVICE/OEM is set to OZONE ON.
Displays MAV drive time history for an active MAV 1 output
Use +or – buttons to select a MAV output. Pushing both + and –buttons
will reset this display.
First = Average of the rst three drive times measured for that MAV in that direction.
Last = Last drive time measured for that MAV in that direction.
Ave = Current average drive time calculated for that MAV in that direction.
TTT = Relative MAV drive time measured (First/Last/Ave).
CCC = Total number of cycles in/out for that MAV.
VVV = Relative MAV drive voltage measured (First/Last/Ave).
Displays total days unit has been in service
Displays total regens since startup
Displays total gallons used by Meter 1
input since last reset
Push and hold +and –buttons simultaneously for three seconds to reset this
value back to 0 gallons.
Return to general display
Only appears
when OZONE
GENERATOR
is on.
Only appears on
units equipped
with MAV.
TOTAL REGENS
190
TOTAL DAYS
970
MON GPM
12
MAX FLOW HISTORY
TOTAL GALLONS
X1K
0
VVVCYC
TTT
MAV 1 - FIRST
CCC
mA VDC
REGEN 1
OZONE
260 12.0
5
6
7
8

15
SOFTWARE VERSION
XXX
xx
TOTAL GALLONS
0
X1K
TOTAL DAYS
970
TOTAL REGENS
190
1
ERROR LOG
101
1 4
52
3
Second Level History Screens
Accessed by pressing +and –simultaneously for three seconds.
Once screen changes, press +and –simultaneously again for three seconds.
Non-resettable history.
Displays software version
Displays total gallons used by
Meter 1 since startup
Displays total days unit has
been in service
Displays total regens since startup
Displays last ten valve errors that occurred
Scroll through with +or – buttons.
Return to general display
Error Code Error Code Description
101 UNABLE TO START: Valve not sensing valve movement with motor energized.
102 MOTOR STALLED: Valve unable to nd next cycle position (stalled).
103 MOTOR RAN TOO LONG: Valve unable to nd next cycle position.
104 VALVE HOMING: Valve unable to nd Home position.
106 MAV 1 RAN TOO LONG: MAV 1 motor ran too long. Unable to nd proper park position.
107 MAV 1 STALLED: MAV 1 motor ran too short. Unable to nd proper park position (stalled).
109 INVALID MOTOR STATE: Control can no longer operate properly due to detection of an invalid motor state.
116 MAV 2 RAN TOO LONG: MAV 2 motor ran too long. Unable to nd proper park position.
117 MAV 2 STALLED: MAV 2 motor ran too short (stalled). Unable to nd proper park position.
201 INVALID REGEN STEP: Control can no longer operate properly due to detection of an invalid
regeneration cycle step. Internal software issue.
204 LEAK DETECTED
402 POWER DOWN MEMORY: Check sum error for operational data and status section of EEPROM memory
- specic type of memory error.
403 PROGRAM MEMORY: Check sum error for programming section of EEPROM memory
- specic type of memory error.
404 DIAGNOSTIC MEMORY: Check sum error for diagnostic section of EEPROM memory
- specic type of memory error.
405 HISTORY MEMORY: Check sum error for history section of EEPROM memory
- specic type of memory error.
406 CONTACT MEMORY: Check sum error for contact screen section of EEPROM memory
- specic type of memory error.
407 STATUS RAM MEMORY
FAILURE:
Control can no longer operate properly due to corrupted data detected in the Operational Data and Status Section
of RAM memory. Once generated, the Error Mode is not entered nor an error displayed, instead previously stored
data (<6 hours old) is used to maintain control operation.
408 DIAGNOSTIC RAM
MEMORY FAILURE:
Control can no longer operate properly due to corrupted data detected in the Operational Data and Status Section
of RAM memory. Once generated, the Error Mode is not entered nor an error displayed, instead previously stored
data (<6 hours old) is used to maintain control operation.
410 CONFIG DOWNLOAD: Conguration le downloaded to the control was not originally uploaded from
another control with the identical software revision.
Error Codes and Descriptions
REMINDER: Press and hold NEXT and REGEN for three seconds to perform a soft reset and clear an error on screen.

1900 Prospect Court • Appleton, WI 54914
Phone: [phone] • Fax: [phone]
MAN-IMP MASTER Rev A1019
