QUICK GUIDE
BB-4®-D902
This Quick Guide shows the basic operation of the WATERAX BB-4-D902 4-stage high pressure pump.
• The WATERAX BB-4-D902 pairs a WATERAX 4-stage pump end with a Kubota 902 diesel-powered
engine. For instructions regarding the engine, as well as for oil and fuel recommendations, please refer to
the engine manufacturer’s manual.
• For detailed instructions on using and troubleshooting your pump, as well as full service and maintenance
instructions, refer to our website to download the BB-4 Owner’s Manual.
• For full specifications and performance curves, see the BB-4-D902 Data Sheet.
Warnings and Safety Precautions
This warning label appears on all WATERAXpumps to identify safety
hazards as follows:
READ YOUR ENGINE MANUAL!
Before proceeding further, locate and read the engine
manufacturer’s manual. It contains very important safety
information that MUST be read, understood and followed to
safeguard you and your equipment from harm, as well as for
the proper use and care of your engine. Use only fuel and
oil type recommended in the engine manufacturer’s manual.
Always check oil level in crankcase and radiator coolant
level before use.
WEAR EAR AND EYE PROTECTION.
Always wear eye and ear protection when operating the
pump unit. Sound level of the unit: 92 dB(A).
GENERAL WARNINGS:
•Do not operate if mentally or physically fatigued.
•Inspect hoses and piping to avoid burst injuries.
•No modifications and/or alterations may be made to the
pump. Any such modifications void the pump warranty
and can endanger pump operators.
•Do not operate the pump above the maximum rated
pressure. Use only pipe, hose, and fittings rated at or
above the maximum pressure rating of the pump or
system design.
•Slowly close valves. Use slow close valves wherever
possible to safeguard operators and prevent damage
from water hammer.
•Dry weight of the unit: 280 lbs.

QUICK GUIDE
READ THE PUMP OWNER’S MANUAL!
The improper use of this pump could result in serious injuries Diesel is flammable. Refuel in a well-ventilated area,
with the engine stopped.
Always allow enough time, after stopping the unit,
for proper cooling of these parts and surrounding areas.
Exhaust gas contains carbon monoxide which
is poisonous to humans. Avoid inhalation of
exhaust gas.
as well as damage to the unit. Read the BB-4 Owner’s
Manualbefore using your BB-4 pump unit and follow the
safety instructions in this Quick Guide.
REFUEL ENGINE WITH CARE.
NEVER RUN THE ENGINE IN A CLOSED
OR CONFINED AREA.
NEVER TOUCH ANY EXHAUST OR
COOLING SYSTEM PARTS WHILE ENGINE
IS RUNNING.
EQUIPMENT DAMAGE PREVENTION:
•Flush the pump with fresh water if the pump has been used to pump salty, brackish, high mineral content water,
water containing debris, or foam injected water. Check that debris is cleared before using the pump again.
Always draft water using a suction hose strainer.•

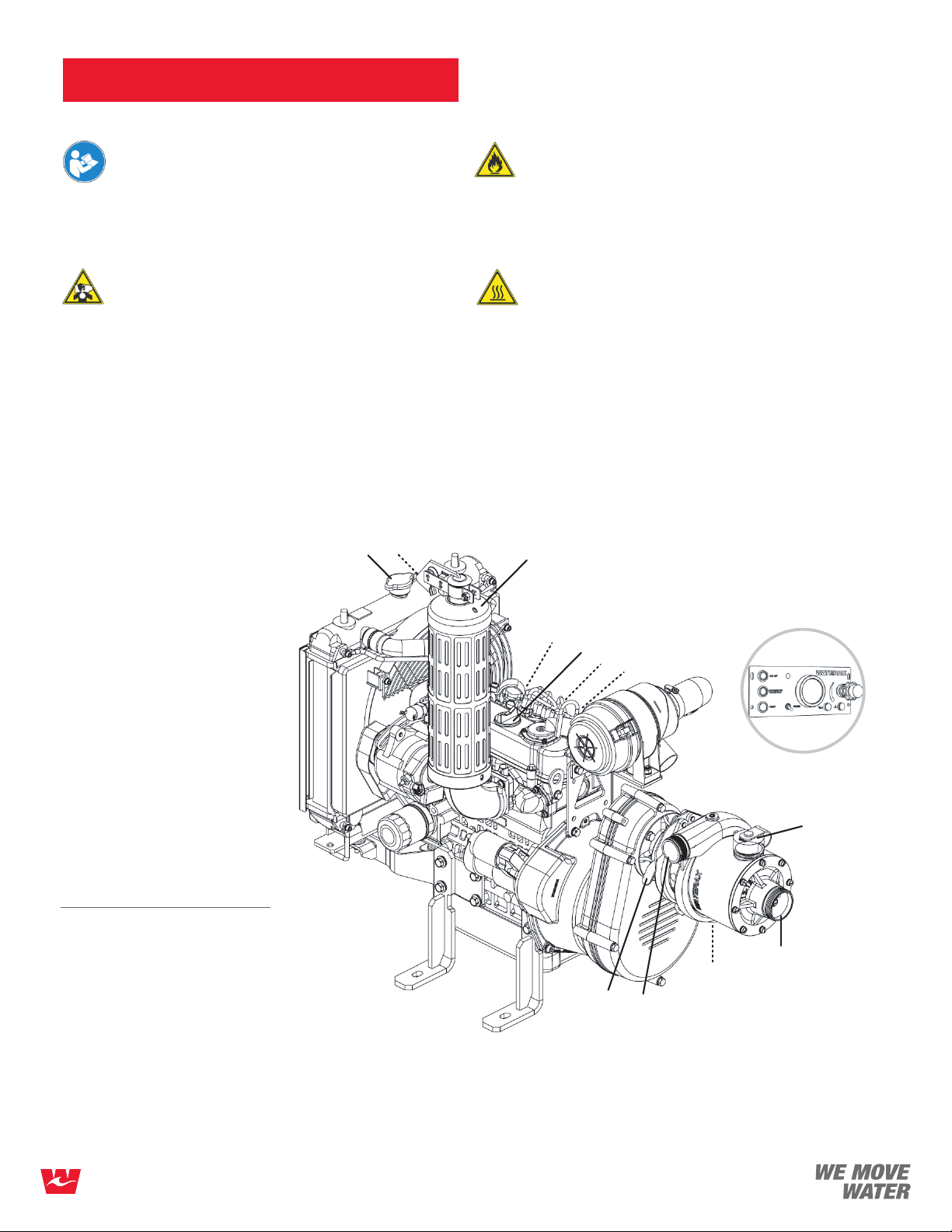

Parts
Identification
A. Priming cap
B. Pump intake (suction)
C. Pump drain port (not
shown)
D. Pump discharge
E. Quick release pump
clamp
F. Radiator coolant cap
G. Coolant overflow (not
shown)
H. Muffler
I. Throttle (not shown)
J. Oil fill plug
K. Oil dipstick (not shown)
L. Fuel valve (not shown)
M. PMSCP-DIESEL control
panel*
* Please refer to your control panel
user instructions for installation
and wiring procedures
A
B
D
E
F
M
C
GH
JKL
I

QUICK GUIDE
To operate the BB-4-D902 unit:
1. Supply recommended diesel fuel grade to engine. Do not
mix gasoline or alcohol with diesel fuel. If using a fuel line,
connect the line according to the engine manufacturer’s
instructions.
Priming
Port
Suction/
Intake
Port
Discharge Port
2. Connect the suction hose, using a universal hose coupling
wrench to tighten coupling firmly:
Drafting Mode: Connect footvalve strainer to male end of
suction hose, then fill suction hose with water and connect to
pump intake.
Flooded Suction Mode: Connect female end of suction hose
to pump intake and connect male end to hydrant or other
supply.
a. Slowly open the pump inlet valves allowing the water into
the pump body.
b. Slowly open the discharge valves and priming valves to
allow for entrapped air in the piping to escape.
c. Once all the air has escaped, slowly close any opened
discharge valves so that the unit may be started.
3. Connect discharge hose, nozzles, etc., to pump, and tighten
firmly with coupling wrench.
!DO NOT allow footvalve strainer to rest on
bottom of lake or riverbed. Check strainer
frequently to make sure that it is not clogged
with moss, leaves, etc.
!DO NOT lift strainer from water while the pump
is operating. Use a rope or other means to
keep strainer at proper height, approximately 1
foot (30 cm) below water surface. If strainer is
too close to the water surface, it will draw air
and pump may lose prime.
4. Activate the control panel. If you are using the Panel Mount Standard
Control Panel (PMSCP-DIESEL), push the control panel’s ON/OFF button.
A green ring on the button will light up indicating that the panel is powered.
5. Prime the pump. Check that all drains, discharge valves, or any auxiliary
valves are closed before priming the pump. Open the priming ball valve
(located between the pump and the primer).
Manual Priming: Open the priming cap and fill pump with water manually.
Firmly tighten priming cap. Pump can also be primed by “jerking” the
suction hose until water flows from the pump’s discharge port.
Guzzler Priming: If equipped with a Guzzler primer, follow the hand pump
manufacturer’s operation instructions. Pump until water is drawn into the
pump.
Electric Priming: If your pump is equipped with a WATERAX electric
primer, move the PRIMER toggle switch on your control panel to the up
position and hold it in place to allow water to enter the pump. The electric
primer is intended to be used only a short duration (about 20 seconds). If
pump fails to prime, see the BB-4 Owner’s Manualfor troubleshooting tips.
Close the priming ball valve after priming. Failure to close the priming
valve could cause the pump to lose prime or water to be pumped through
the priming system.
Manual
priming:
Open priming
cap and fill
pump with
water.
Pump until water flows
into pump-end.

QUICK GUIDE
6. Start the engine.
a. Warm up: The electric starter’s glow plugs require a 10-second warm-
up period which begins as soon as you push the ON/OFF button on
the control panel. During the warm-up period, the START button is
deactivated and the engine cannot be started. As soon as the warm-
up period is over, the low oil pressure ( ) light will turn on,
indicating that the engine is ready to start.
b. Make sure all discharge valves are closed.
c. Push and hold the START button on the control panel until the engine
engages.
d. Turn the Vernier throttle counter-clockwise to increase engine speed
past the idle position. Pressure should build up in the system.

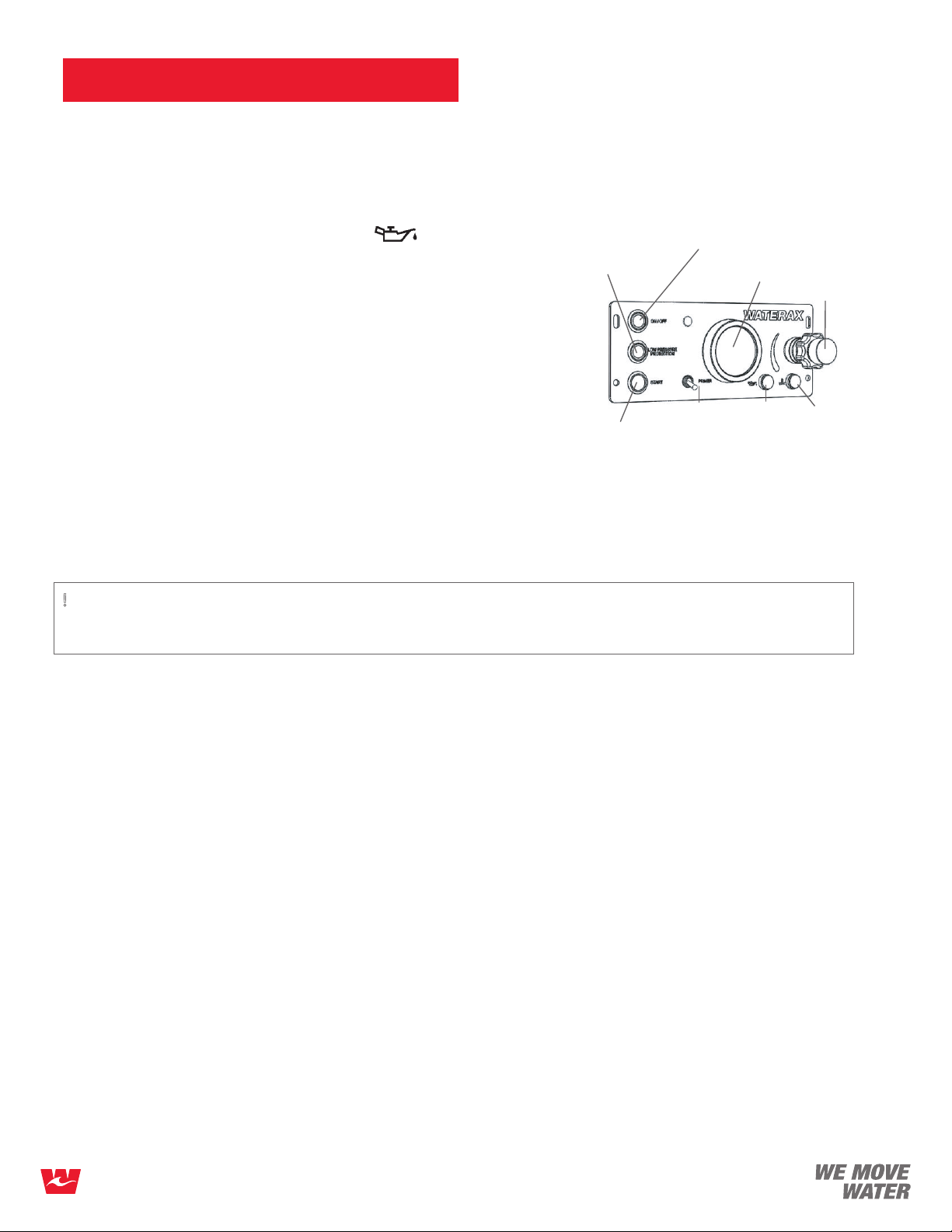

Panel Power
push button
Throttle
Pressure
Gauge
Engine Start
push button
Electric
Primer
toggle switch
(if installed)
Low Oil
Pressure
warning
light
Water
Temp.
warning
light
Low Pressure
Protection
push button
PMSCP-DIESEL Control Panel
7. Discharge water.
Once the pump is primed, and with the engine running, you can begin to
discharge water.
a. Slowly open the discharge valve. If pressure does not build in the
discharge hose, the pump has not been fully primed. The valve should
be closed and the pump primed again.
b. Adjust the pump performance by throttling the engine up or down, or
opening or closing discharge valves at various positions, or any
combination of the two.
c. Press the LOW PRESSURE PROTECTION button to activate the
protection. If pressure drops below 7 psi (loss of prime condition), the
engine will automatically shut down to protect the pump.
!DO NOT leave the pump running with all the discharge valves closed for more than one minute, or else the pump
may overheat and become damaged. To avoid this, a re-circulation line (if provided) should be opened or a discharge
line left slightly open to allow fresh water to continue to enter the pump.

QUICK GUIDE
To shut down and store the BB-4-D902 unit:
1. Shut down the pump.
a. Gradually reduce the engine speed.
b. Whenever the unit has been run at full throttle for most of the operation, allow the valves to remain slightly
open and run the engine at idle for approximately 5 minutes before shutting down the unit.
c. Turn off engine.
d. Close off the hydrant/supply to the pump.
e. Open all valves to relieve any pressure left in the system.
2. Check and store the pump.
a. If the pump was last run with foam or water that is salty, brackish or high in mineral content, flush the pump
with fresh water for a minimum of 2 minutes or until water is clear.
b. After the unit has cooled down, check all fluid levels and add as needed.
c. Completely drain the pump of all water.
d. Break down and store all equipment as outlined by the apparatus or department procedures.
e. Visually inspect the pump end. Clean any dirt or debris from the pump unit. If necessary, a mild soap and
water solution can be used. Note and report any performance irregularities or any abnormal mechanical
sounds.
f. Close all valves and plug all openings.
g. Follow any other product, component, apparatus, and departmental procedures and/or guidelines before
placing the unit in storage. Make sure all necessary tools, spares, and accessories are with the pump.
To operate the BB-4-D902 unit in cold weather:
The pump can be run in below freezing temperatures if certain precautions are taken to avoid the formation of
ice in the pump.
After priming the pump, the unit should be run at low speed for a short period of time to allow all components
to warm up before continuing with the remaining operating procedures.
Unless wrapped in a heater, drain the pump of all water if it is stopped for any length of time. The engine/drive
unit should be turned over a few revolutions to make sure all water has been removed from the pump. Drain
the pump priming line if a primer has been used.
After use, drain the pump, manifolds, and lines of all water. You can also pour some RV antifreeze into the
pump and circulate it through the pump and plumbing system.
Warranty, Service and Support
Product and service documentation such as tech notes, data sheets, manuals and information on the limited warranty
provided on products manufactured by WATERAX can be found on our Web site at: www.waterax.com

All information contained in this document including drawings is proprietary to
WATERAX and may not be copied, reproduced or used in whole or in part
without our prior written permission. The information in this document is
subject to change without notice. Model displayed with multiple options.
Weight and dimensions are approximated and may vary depending on options.
To help you stay #ReadyForWildres, we’ve made a few changes, placing
100% of our focus on manufacturing our core products, portable re pumps.
To do so, we’ve established a network of trusted supply and distribution
partners that can help us provide WATERAX pumps quickly in addition to
water-handling equipment and accessories.
For immediate assistance when it comes to pumps and water-handling
accessories, please contact your local dealer.
For genuine spare parts, visit our online store.
