Watermark Puretec DF15 User manual

For correct operation & installation, it is essential to observe these instructions.
MAR2022
WMTS105:2016
Certicate No. 23291
Australian Certication
Services
User Guide
Freestanding Filtered Water Chiller System
DF15 & DF35
943.70
83.20

2Installation & Operation Manual Copyright © Puretec Pty Ltd 2022
What's Inside
Product Information
Distributor:
Installer:
Phone:
Date Installed:
What's Inside
Puretec Customer Service ................................................................................................. 3
Introduction................................................................................................................................. 3
Cartridge Replacement......................................................................................................... 3
Fig. 1 - Parts Diagram........................................................................................................... 4
Specifications ............................................................................................................................. 5
Fig. 2 - Dimensions................................................................................................................. 6
Fig. 3 - Installation Diagram.............................................................................................. 7
Installation Requirements................................................................................................... 7
Installation................................................................................................................................... 8
Operation & Maitenance...................................................................................................... 9
Cartridge Changout................................................................................................................. 9
Use Guidelines........................................................................................................................ 10
Fig. 4 -Electrical Diagram................................................................................................. 10
Troubleshooting ..................................................................................................................... 11
Warranty.................................................................................................................................... 12

3Copyright © Puretec Pty Ltd 2022 Puretec D15 & D35 User Guide
Puretec Customer Service
Thank you for purchasing a Puretec Freestanding Water Chiller System. Your system is
a proven performer manufactured from only quality materials and components and will
give years of spring-like water, if maintained properly.
The Puretec filter supplied with the Freestanding Water Chiller System needs regular
cartridge replacement to maintain optimum performance. This is a simple procedure
when following instructions. For cartridge replacements contact your nearest Puretec
stockist.
Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand).
Introduction
The Puretec Freestanding Water Chiller System is designed to run economically for many
years, dependent on the initial installation and periodical maintenance.
Flush systems for 10 minutes aer any period of non-use more than 2 days.
The Freestanding Water Chiller System is designed to operate with mains water.
Installation Note: A water filter system/tap, like any product, has a limited life and may
eventually fail. Also sometimes failure happens early due to unforeseen circumstances.
To avoid possible property damage, this product should be regularly examined for
leakage and/or deterioration and replaced when necessary. A drain pan, plumbed to an
appropriate drain or outfitted with a leak detector, should be used in those applications
where any leakage could cause property damage, and/or the water supply should be
turned off if no one is home/present.
ALL INSTALLATION AND SERVICE WORK SHOULD BE COMPLETED BY
QUALIFIED TRADESPEOPLE. FAULTY OPERATION DUE TO UNQUALIFIED
PERSONS WILL RESULT IN VOIDED WARRANTY COVERAGE.
Cartridge Replacement
To maintain the high quality of the purified water the cartridges need changing every
6 - 12 months, dependent on water quality and usage. You can obtain replacement
cartridges from your local Puretec dealer. To maintain performance standards and
warranty, use only genuine Puretec replacements.
Replacement cartridge code for DF15 & DF35 models: Z1-R
Puretec Customer Service

4Installation & Operation Manual Copyright © Puretec Pty Ltd 2022
83.20
308.00
308.00

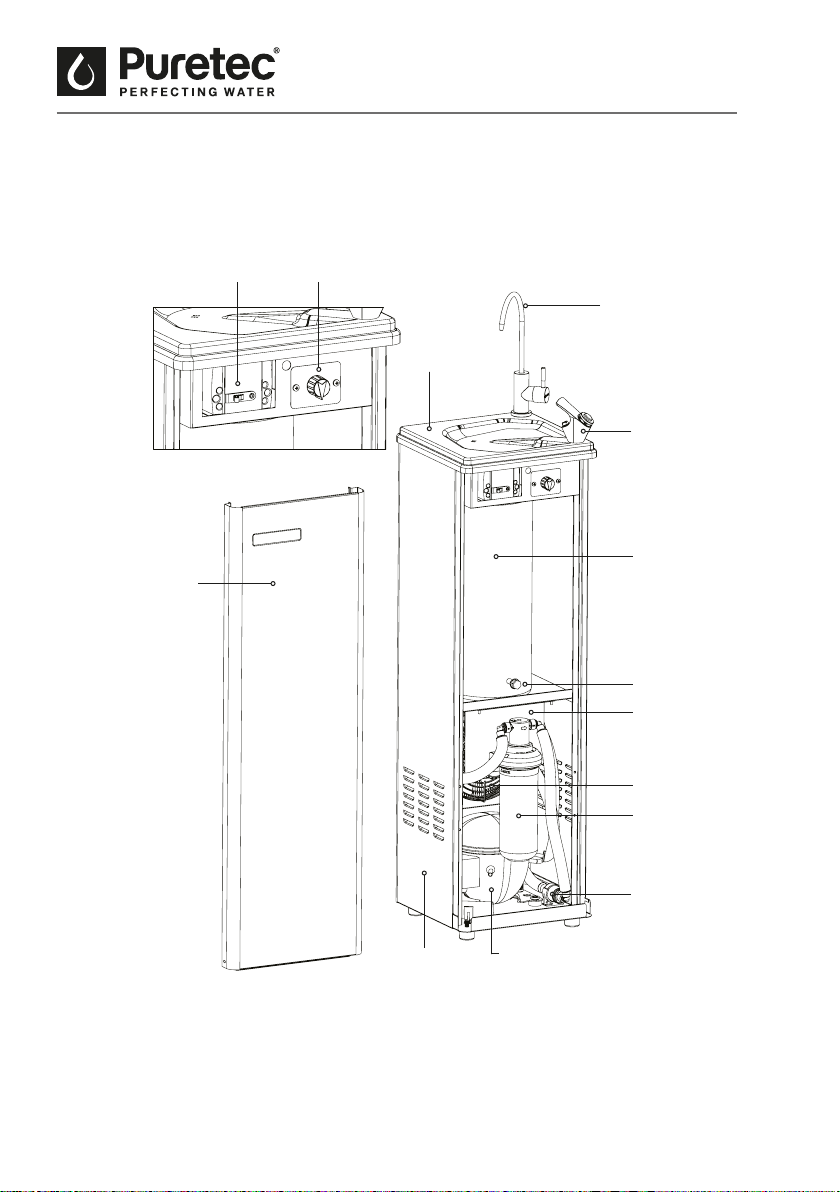

Parts Diagram
Fig. 1 - Parts Diagram
Main Shell
Top Panel
Bubbler Tap
Carafe Filler
Cold Water Tank
with Insulation
Z1 Filter
Cartridge
Front Panel
Fan
Drain Plug
Condenser
Compressor
Cold Water
Thermostat
Fuse
Pressure
Limiting, Dual
Check Valve

5Copyright © Puretec Pty Ltd 2022 Puretec D15 & D35 User Guide
Model: DF15 DF35
Features: Surge Protection, 350 kPa multi valve
Function: Cooling
Voltage: 220 - 240V
Frequency: 50/60 Hz
Standby Power Usage: 0.3W 0.5W
Max Power Usage: 140W 280W
Max Cooling Power: 90W 232W
Cooling Capacity: 12Lph (≤ 10℃) 35Lph (≤ 10℃)
Tank Size: 5 Litres
Filter Replacement Cartridge: Z1-R
Connection: ¼" - ⅜" tube fitting
Shipping Dimentions: 305 (d) x 315 (w) x 1220 (h) mm
Refrigerant Type: R134a
Refrigerant Charge: 50g 160g
Minimum Pressure of Shell 103 kPa (15 psi)
Cylinder Volume: 3 cm³ 8.7 cm³
Cooling Capacity: 63W 233W
Working Current: 0.7A 1.5A
Coefficient of Performance: 0.7 1.16
Specifications
Specifications

6Installation & Operation Manual Copyright © Puretec Pty Ltd 2022
1010.93
1221.72
83.20
308.00
308.00
Fig. 2 - Dimensions
943.70
83.20
308.00
1010.93
1221.72
83.20
308.00
308.00
1010.93
1221.72
83.20
308.00
308.00

7Copyright © Puretec Pty Ltd 2022 Puretec D15 & D35 User Guide
Installation Requirements
Installation Requirements
The following is a guide but the installer is responsible to comply with any local
regulations that may be applicable to this type of installation.
1. Install near a convenient place to connect to a mains pressure water supply of
drinking water quality and 220 - 240V/50Hz electrical supply.
2. Avoid areas exposed to excessive heat, humidity, rain, saltwater or snow or direct
contact with water spray or splashing.
3. Avoid positions of direct sunlight or solar heat.
4. Install only on flat, level and well supported surfaces.
5. Avoid tilting the machine during installation. If the machine has been tilted
excessively for more than a few minutes during or before installation, leave to
stand for approximately one hour before switching on.
6. Allow an air gap of at 100 mm each side and at the front of the machine.
Drain Port: 40mm DWV
Fig. 3 - Installation Diagram
Water Inlet
Power Cord

8Installation & Operation Manual Copyright © Puretec Pty Ltd 2022
Installation
Installation
1. Once positioned and levelled remove the front panel
2. Assemble the carafe filler by inserting the gooseneck outlet into the carafe filler
base that comes installed on the sink. Ensure the gooseneck outlet is pushed in
firmly until properly sealed.
3. An access port for the drain is provided at the rear of the cabinet.
4. Attach 40 mm DWV pipe or fittings to the drain port using the appropriate primer
and solvent weld.
5. Connect the inlet water supply to the ¼” tube fitting at the rear of the cabinet and
ensure there is an easily accessible shutoff valve on the water supply line.
6. Switch on the water and check all tubing and fittings for water leaks.
7. Connect the power cord to a standard 240V powerpoint and switch on the electrical
supply.
8. Open the quarter turn spindle on the carafe filler until water dispenses and then run
the water for 1-3 minutes to clear air pockets and flush the filter.
9. All Puretec D15 & D35 freestanding chillers are fitted with a Puretec filter to ensure
water of the highest quality. When new it may take up to 3 minutes to fill the
system prior to dispensing water.
10. Refit the front panel.
11. Allow 1 hour for the water to cool before the water reaches its operational
temperature.
12. To protect the compressor, allow the unit to stand for at least 1 hour aer moving
before switching it back on.
Drain Port
Drain
40 mm DWV PVC Pipe
(not supplied)

9Copyright © Puretec Pty Ltd 2022 Puretec D15 & D35 User Guide
Operation & Maintenance
Operation & Maintenance
• Frequently clean the fountain using warm soapy water. Avoid all abrasive and corrosive
cleaning materials.
• Do not pour any waste cleaning water down the drain to avoid blocking the drain trap.
• If the chiller is not used (e.g. more than 3 days) the power can be switched off to
conserve energy.
• We recommend that the fountain is cleaned aer any period of disuse.
• It will be necessary to change the filter aer an extended period of disuse (e.g. more
than 2 weeks).
• Keep the area surrounding the fountain clean and dry. In the event of any leakages,
switch off the water and power and call Puretec.
Cartridge Changeout
Replacement cartridge code for DF Series systems: Z1-R
1. Turn off the water supply at an external shut off valve.
2. Remove the front access panel.
3. Remove all packaging from the new cartridge, including any wraps or caps (if
applicable).
4. Rotate the old cartridge counter-clockwise 1/4 turn, pull it out and dispose of it.
5. Insert the new cartridge into the filter head and rotate clockwise 1/4 turn.
6. Turn on the water supply and check for leaks.
7. If leaks occur, repeat step 2 & 3.
8. If leaks persist discontinue use and call Puretec.
9. Open the quarter turn spindle on the carafe filler until water dispenses and then run
the water for 1 minute to clear air pockets and flush the filter.
10. Replace the front access panel.

10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022
Use Guidelines
Use Guidelines
• Use for mains water supply.
• Minimum operating pressure 200 kPa.
• Maximum operating pressure 500 kPa.
• Do not allow exposure to temperatures below 0 °C, protect from freezing.
• Maximum operating temperature 38 °C.
• Nominal flow rate 2 Lpm.
• System must be installed according to local plumbing codes on the cold water line only.
• This system requires regular replacement of the filter cartridge to maintain proper
operation. Varying chlorine, sediment, or organic substance levels may affect
replacement frequency.
• Be sure to change the filter cartridge every 6 - 12 months or whenever you detect a
change in taste, odour, or decrease in flow.
Caution: Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before the chiller.
Cold Thermostat
Compressor
Fan
Fuse
Fig. 4 - Electrical Diagram

11Copyright © Puretec Pty Ltd 2022 Puretec D15 & D35 User Guide
Troubleshooting Guide
Troubleshooting Guide
In the event of any other breakdown, please call Puretec
Fault Possible Cause Suggested Action
Not cooling. The compressor is not running.
Check the external power outlet
is switched on.
Check the fuse is in the "on"
position.
The power is on but not cooling. The internal fuse is switched
off.
Check the fuse is in the "on"
position.
Water leakage. The pipes or connections are
leaking.
Switch off power, turn off water
and call your service engineer.
Slow water flow. The internal water filter is
blocked. Change the filter.
No water dispenses from the
taps.
Water inlet valve(s) closed or
other blockage.
Open and/or reset the water
inlet valve(s) and check water
supply pipe
Drainage waste blocked. Debris has blocked up the
waste system. Clear the obstruction.

12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022
Warranty
Warranty
Notes
Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the
name you can trust for viable and proven water solutions. The complete range of Puretec products
are developed, refined, made to meet and exceed stringent specifications for the worldwide market.
Important: Sales of products are subject to our Terms and Conditions which are available upon
request. All specifications, information and photos are a guide only and are subject to change
without notice. Please ring to confirm details. Warning: For correct operation of this appliance it
is essential to observe manufacturer’s instructions. All installation and service work should be
completed by qualified tradespeople. Faulty operation due to unqualified persons will result in
voided warranty coverage. All plumbing must comply with AS 3500.1. All electrical must comply
with AS/NZS3000.
Warranty
Any claim under this warranty must be made within 3 years of the date of purchase of the product.
This product is warranted to be free of defects of material and workmanship for 3 years from
the date of purchase. 3 year warranty is 1 year parts and labour plus 2 years parts only. Excludes
cartridges.
To make a claim under the warranty, take the product and proof of purchase to place where you
purchased the product, and they will lodge a Warranty Request with Puretec.
Puretec will pay your reasonable, direct expenses of claiming under this warranty. You may submit
details and proof of your expense claim to place of purchase for consideration.
The warranty only applies if the product was used and/or installed in accordance with the user
guide and/or installation instructions. This warranty is given in lieu of all other express or implied
warranties and manufacturer shall in no circumstances be held liable for damages consequential or
otherwise or delays caused or faulty manufacturing except as excluded by law.
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product
was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at
Puretec’s discretion, including chargeable inspection and labour costs incurred.

13Copyright © Puretec Pty Ltd 2022 Puretec D15 & D35 User Guide
Warranty/Australia
This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA
5160, telephone no. 1300 140 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under law: Our goods
come with guarantees which cannot be excluded under the Australian Consumer Law. You are
entitled to replacement or refund for a major failure and to compensation for other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Warranty/New Zealand
This warranty is given by Puretec Ltd, Reg. No 4464398, PO Box 875 Cambridge 3450 NZ,
telephone no. 0800 130 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under law: Our goods
come with guarantees which cannot be excluded under the Consumer Guarantees Act. You are
entitled to replacement or refund for a major failure and to compensation for other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Warranty

14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022

15Copyright © Puretec Pty Ltd 2022 Puretec D15 & D35 User Guide
