Watersnake SLITHER SL User manual

SLITHER SL
TRANSOM MOUNT ELECTRIC MOTOR
OWNERS MANUAL

Watersnake
2
WATERSNAKE ELECTRIC MOTORS
Congratulations and welcome to a world of silent motoring.
Powerful yet silent, the Watersnake electric motors are built to suit all angling
conditions. High quality materials, superior design and precision engineering
make these motors longwearing and reliable.
Please read manual completely before starting installation.
ATTACHING THE MOTOR TO YOUR BOAT
Attach the motor to the stern of the boat and tighten both mounting bolts
securely while taking care not to over-tighten. (A)
To adjust the angle of the motor after attachment, hold the motor head with
one hand and depress the positioning pin at the top of the mounting bracket
with your other hand. Press and hold the positioning pin until the desired
angle has been reached, next release the pin and ensure the mechanism locks
securely. (B)
(A) (B)
TIGHTEN BOTH BOLTS SECURELY
DEPRESS THE POSITIONING PIN
TO AJUST TILT OF THE BRACKET

www.watersnake.com.au 3
SLITHER SL
Multi adjustable
depth collar
Heavy Duty
Alloy Bracket
Control Box
Digital voltage meter
Extendable control handle
featuring 5 forward
and 3 reverse speeds
Quick tilt device
Composite shaft
Weedless
propeller Motor assembly
unit

Watersnake
4

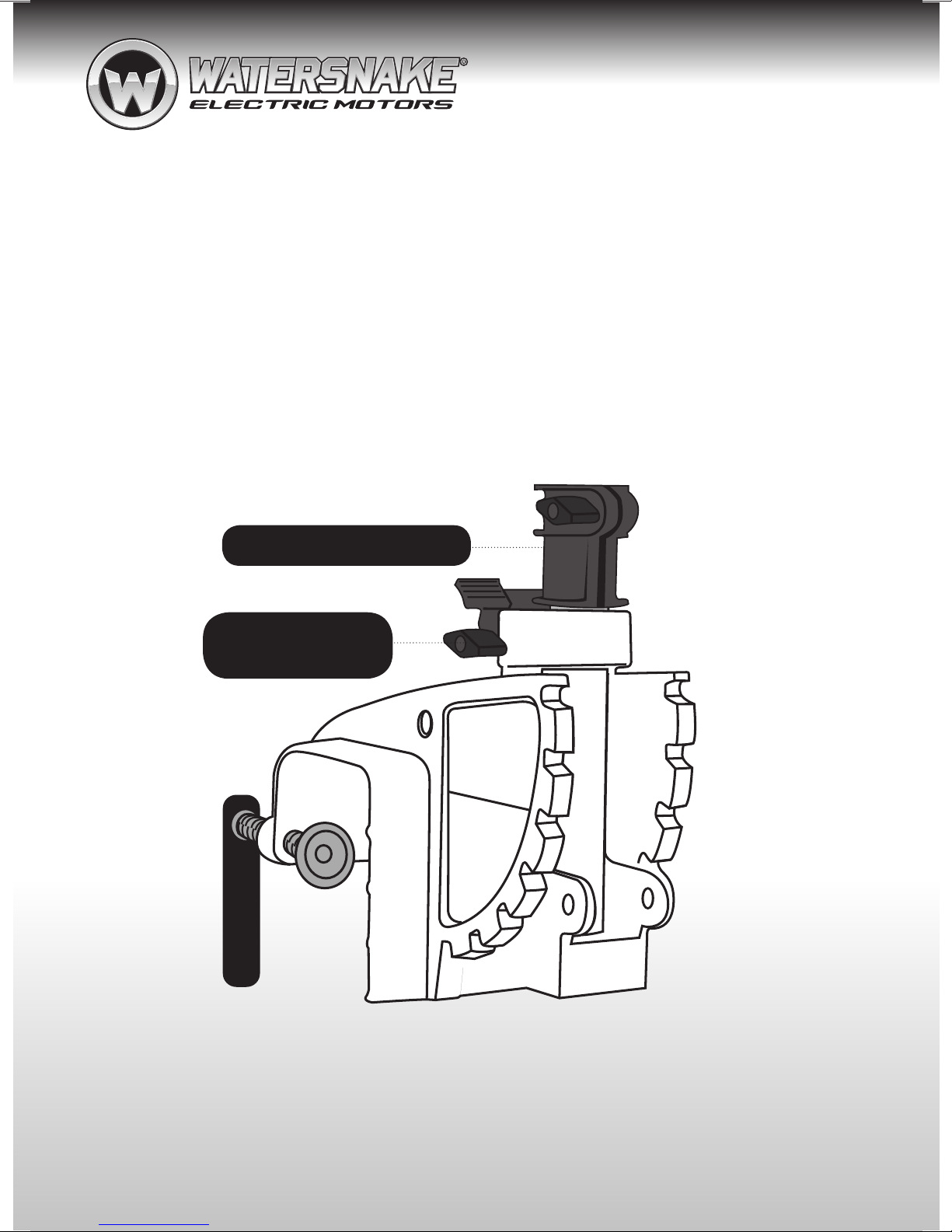

DEPTH ADJUSTMENT
Hold the motor shaft with one hand, loosen the depth collar adjustment screw
and set the motor to the desired depth, then retighten the adjusting screw on
the depth collar securely.
STEERING
To adjust steering counter-force, simply loosen or tighten the counterforce
bolt. The ideal setting is one where the counterforce bolt is just tight enough
so that the boat will steer in the direction you are aiming without need for
continual correction.
Depth collar adjustment
Steering counter
force adjustment

www.watersnake.com.au 5

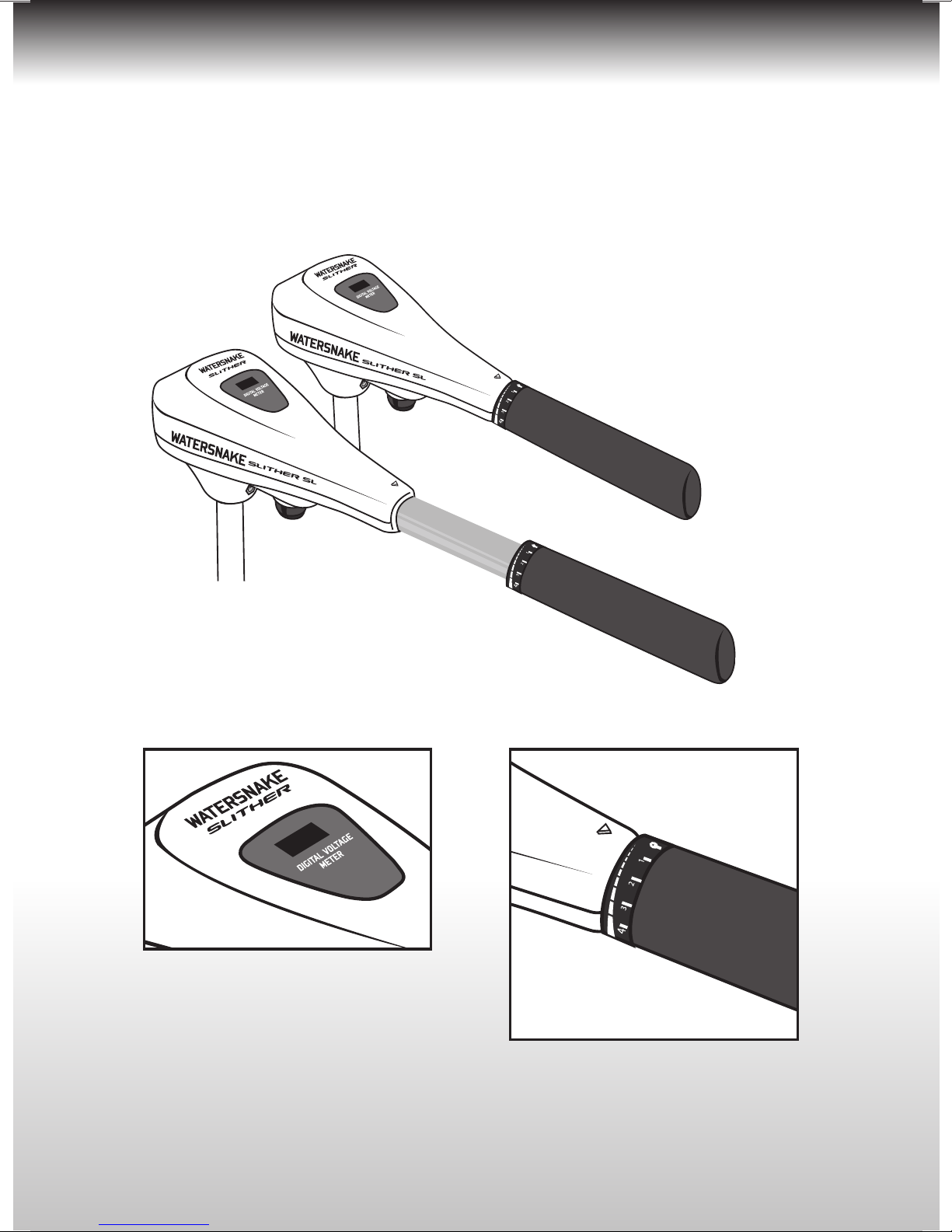

HEAD UNIT & SPEED CONTROL
The tiller control is telescopic and can be extended. Simply pull the grip
out away from the head unit to set your desired length. Rotate the handle
clockwise for forward speed and anti-clockwise for reverse There are five
forward and three reverse speeds.
SPEED CONTROLDIGITAL VOLTAGE METER
EXTENDABLE HANDLE
SLITHER SL
Shows the voltage going
into the motor unit from the
battery. This should always be
around 12 Volts. A much
lower reading of 12 Volts will
inhibit the performance of
your motor.
5 Forward and 3 reverse speed
settings.

Watersnake
6
ATTACHING THE PROPELLER
Before doing anything with the propeller, ensure the cables to
the battery are disconnected.
1: Place shear pin in shaft as shown.
2: Align the propeller against the shear pin on the shaft
(there is a groove on the back of the propeller which the shear
pin needs to slot into) and then tighten the propeller nut securely.
1
2
Shear pin
Propeller shaft
Propeller
Propeller
nut
Please note the Slither SLW34/30 motor comes with a 2 bladed propeller.

www.watersnake.com.au 7
DEEP CYCLE BATTERIES
Deep Cycle batteries are
constructed using thicker battery
plates and a denser active
material to withstand repeated
charge and recharge cycles.
Rather than providing high bursts
of power for short periods of
time they are specially designed
to deliver sustained power with
low current draw over extended
periods of time.
(1)
SLITHER SL

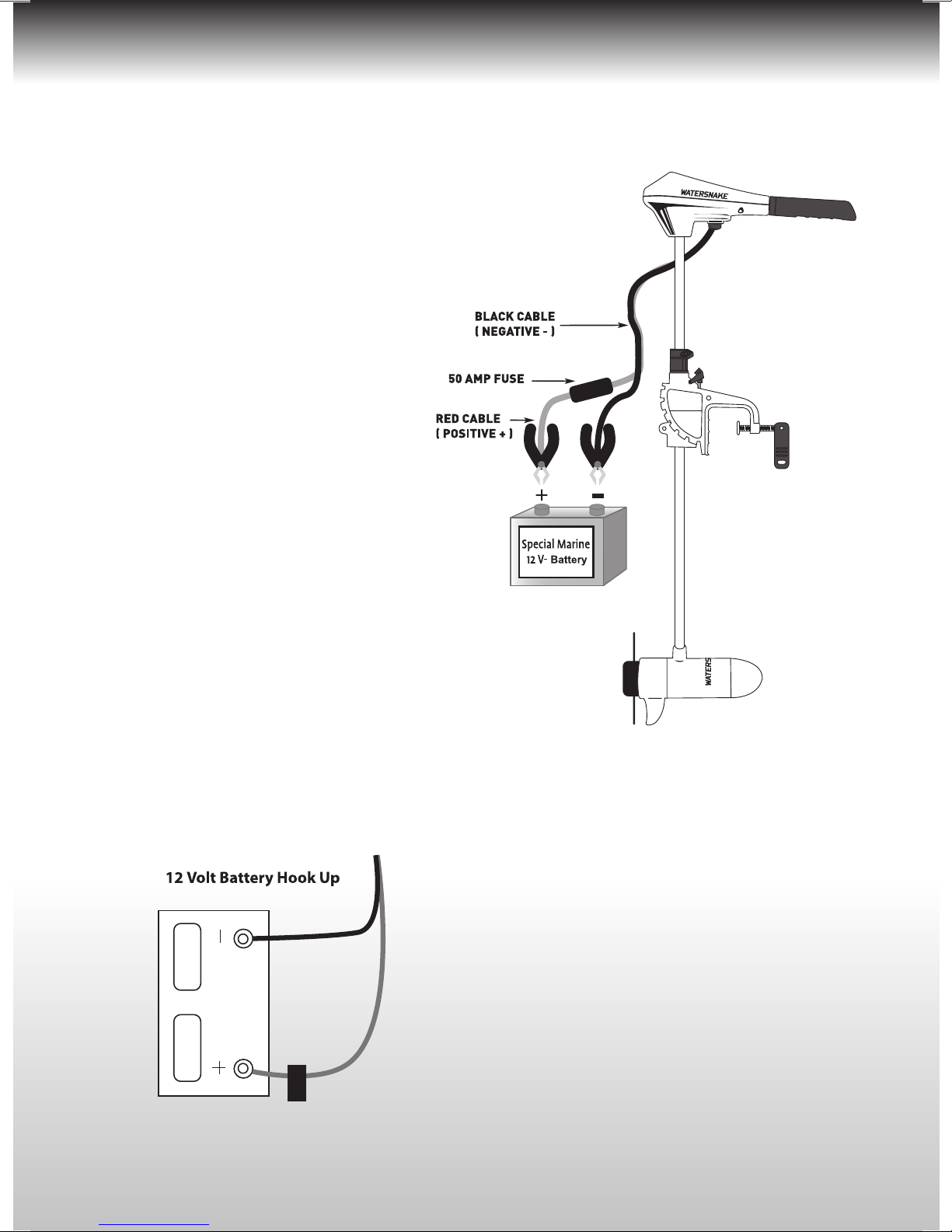

ELECTRICAL CONNECTIONS
Before connecting the motor’s
cables to the battery terminals,
ensure all switches are in the
OFF position and stand clear of
the propeller.
Connect the red cable to the
positive (+) terminal and the black
cable to the negative (-) terminal,
making sure the terminals are
clean before doing so. A clean
connection will minimise power
wastage and give you maximum
power from the battery.
Please Note: for best performance
please keep battery terminals and
connections clean.
It is recommended to use an
inline fuse to protect the circuit
of the motor, this is a connection
that joins the motor battery cable
to the battery and shuts the
motor off if the connection over
heats. As shown on diagram (1)
We recommend using a deep
cycle marine battery for
optimum performance.

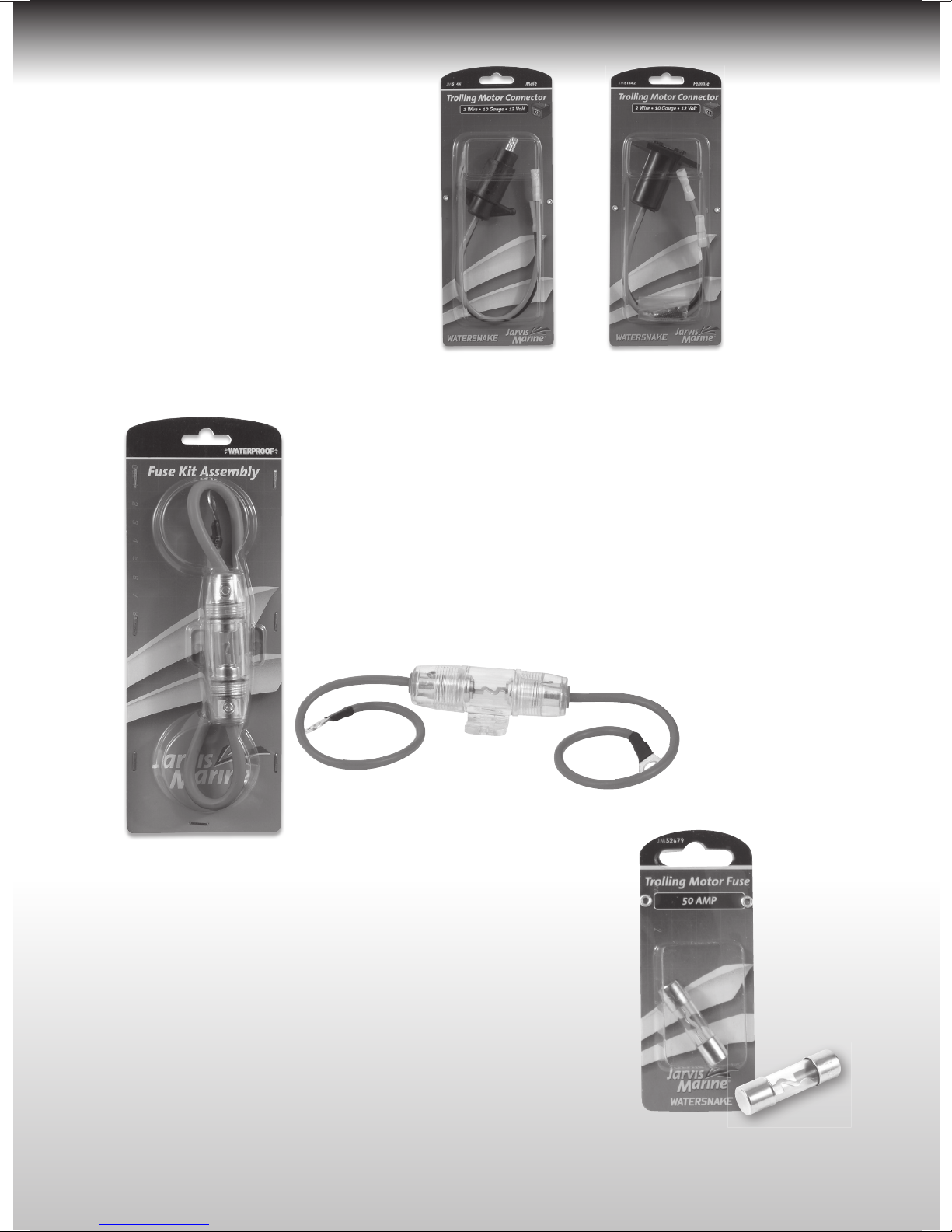

*In line fuse kits available separately
See page 16 for more details.
*
50 amp
circuit
breaker

Watersnake
8
MODEL SPECIFICATIONS
CODE MOTOR DESCRIPTION THRUST VOLT/AMPS WATTS RPM SHAFT COLOUR BRACKET STEERING SPEEDS PROP
55245 Slither SLW 34/30 34lb 12v / 7.5-34 90-410 1300 30" White Alloy Transom Extend Hand Tiller 5 /3 2-Blade
55246 Slither SLW 44/36 44lb 12v / 11-44 132-528 1300 36" White Alloy Transom Extend Hand Tiller 5 /3 3-Blade
55247 Slither SLW 54/42 54lb 12v / 13-54 156-640 1370 42" White Alloy Transom Extend Hand Tiller 5 /3 3-Blade
Model range and specifications are correct at time of printing.
For new models not listed here find specifications at: www.jarvismarine.com.au

www.watersnake.com.au 9
SLITHER SL

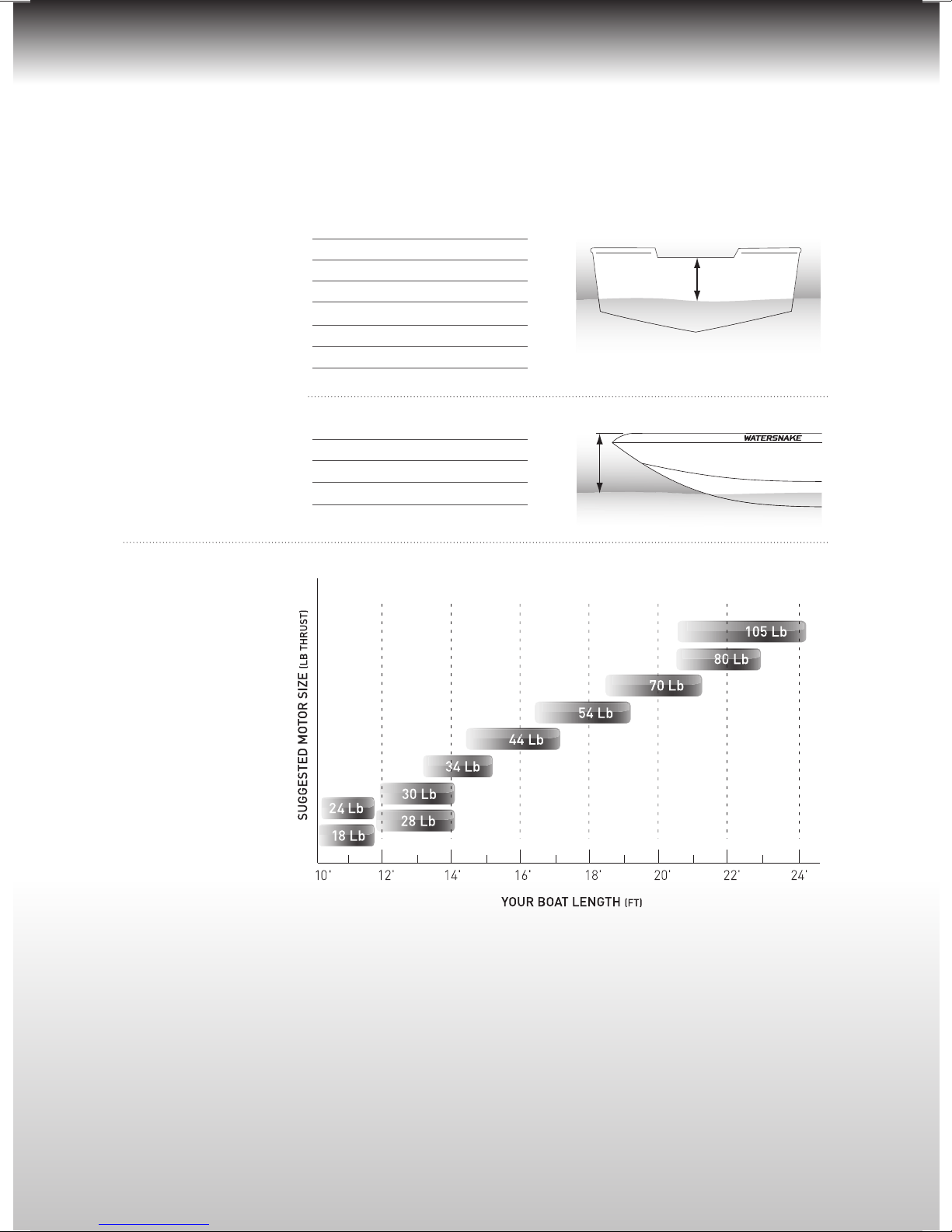

MOTOR SELECTION GUIDE
Suggested
Shaft Length
42”
48”
54”
60”
Bow Mount to
Water Level
14” to 20”
20” to 26”
26” to 32”
32” to 36”
WATERSNAKE
SHAFT LENGTH
GUIDE
WATERSNAKE
MOTOR SIZE
GUIDE
Transom Mount Measurement
Bow Mount Measurement
With your boat in the
water, measure the
distance from the
mounting surface of
the transom or bow
to the water level.
The guide shown on
the right will assist
you in finding the
shaft length that best
suits your boat.
The graph
shown right is
a general guide
only. Always
speak with
your dealer
regarding the
size of motor
that is most
appropriate for
your boat.
Transom Mount
to Water Level
Up to 8”
Up to 10”
Up to 12”
10” to 14”
14” to 20”
20” to 22”
22” to 24”
Suggested
Shaft Length
24”
26”
30”
36”
42”
48”
54”

Watersnake
10
TROUBLESHOOTING QUICK REFERENCE GUIDE
1. REDUCED OR NO POWER
Possible cause(s)/Solution(s):
• Weed or fishing line may be caught behind propeller. Remove propeller and
remove the debris.
• Check battery connections and ensure terminals are clean.
• Check battery voltage to ensure sufficient voltage. Recharge battery and
check for bad cell.
• Incorrect wire gauge used from battery to trolling motor or connection plug.
• Possible faulty connection in boat wiring or trolling motor wiring.
• Speed control armature magnet cracked or dislodged. Grinding noise will
come from motor. (CONTACT REPAIR AGENT)
• Water intrusion in motor housing which will show water or oily residue inside
head cover. (CONTACT REPAIR AGENT)
• Check the propeller pin is in place. (SEE PAGE 6 OF THIS MANUAL)
2. NOISE OR VIBRATION COMING FROM MOTOR
Possible cause(s)/Solution(s):
• Weed or debris may be caught in propeller.
• Check to see if propeller is securely tightened and shear pin is in place.
• Remove prop and look for a wobble on prop shaft to see if bent.
• Speed control brushes may be worn and may need to be cleaned and
or replaced. (CONTACT REPAIR AGENT)

www.watersnake.com.au 11
MAINTENANCE
Your Watersnake Electric Motor should provide many seasons of dependable
service. However, like any tool, electric motors must be cared for.
After each day of fishing, the motor should be cleaned thoroughly. If you have
been fishing in saltwater, it is suggested that you wash the motor with warm
fresh soapy water until all salt deposits are washed away. Be careful not to
use a gush of water to clean the motor, as this will drive salt particles into
the motor’s internal mechanisms. Instead use a light stream of water or very
fine spray merely to dissolve saltwater particles that have accumulated on the
external parts of the motor.
Dry excess moisture from the motor and sparingly lubricate all areas. Many
fisherman use a pressurised spray oil for quick and easy lubrication after
washing their motor. If you choose to do this, make sure you wash the motor
first. Frequently lubricate all frictional points, a reliable heat resistant grease
if you are re-greasing internal parts.
Use only greases designed for electric motors. other greases may contain lead
particles that may cause damage to electric motor gears. Your motor should
always be stored in a cool dry place. Do not store in a plastic bag as this may
cause condensation. However, we do recommend you cover your motor if you
must leave it outside. Periodically inspect your motor and tighten any loose
screws or fittings. Depending on use, your motor should be serviced by an
authorised service agent at least once every season.
Trolling motors are designed in quite the same way as a 2-4 stoke outboard
motor but they are quiet and very effective for fishing. Many people use trolling
motors to enhance their fishing experience, however, and unfortunately many
don’t maintain or store them correctly, lack of maintenance could lead to
power and or turning issues.
SLITHER SL

Watersnake
12
RECOMMENDATIONS WHEN USING YOUR
WATERSNAKE MOTOR IN THE WATER
Upon connecting your battery to your motor, and before setting off in your
boat, make sure that your trolling motor is mounted correctly and stowed
securely in the mounting bracket. Of course once you engage your Watersnake
motor for use make sure that it is in the right place, not too low or too high.
Once you are in deep water, you should make sure that you gradually increase
the speed of your trolling motor, do not flatten it up to full speed right away.
For example, if you have a 5 speed trolling motor, don’t click through all of the
other speeds really fast to get to 5, slowly go up to 1 speed, 2 speed, and so on.
It is recommended not to run your trolling motor out of water for long periods
of time.
RECOMMENDATIONS WHEN YOUR
WATERSNAKE MOTOR IS OUT OF THE WATER
When you have finished with your trolling motor each session you might want
to disconnect the battery from your trolling motor and take out the battery
out and recharge it. Store the battery in a safe place. If you have a small boat
without a cover it is recommended to take the motor off the boat also and
storing that in a safe place too. It is recommended that you do not store the
motor outside uncovered. This may take you an extra few minutes of you time
but it is good for the motor.
SHORT-TERM STORAGE OF YOUR WATERSNAKE MOTOR
If you are going to be gone for a short break or there is rain forecast and the
motor is to remain on the boat, we recommend covering the motor to protect
the electronics. Even better, make sure that you have a safe non-damp area
that your trolling motor can stay in room temperature.
LONG-TERM STORAGE OF YOUR WATERSNAKE MOTOR
If you are not going to use your motor in the off-season, put your motor in a
safe place where no water or extreme cold or hot temperatures can get in. We
suggest making a place under-cover away from moisture, this should protect
the electronics such as the circuit board and speed control unit.

www.watersnake.com.au 13
SLITHER SL
SERVICING YOUR WATERSNAKE ELECTRIC MOTOR
When it’s time for your Watersnake electric motor to be serviced, it is
recommended you choose to use an Authorised Service Agent such as Anglers’
Central Service Centre to perform the service.
Watersnake electric motors are precision instruments that rely on exacting
alignment of numerous components; it is worth considering taking your
electric motor to an Authorised Service Agent for servicing.
IMPORTANT!
If you choose to service the electric motor yourself or through any other third
party not authorised by Jarvis Marine to service Watersnake motors, the
motor will no longer be covered under the normal consumer guarantees.
Items or issues from that time on and thereafter will be the sole responsibility
of the owner. It is important to make sure you use good quality grease, and
remember do not over lubricate. Small amounts of grease in the correct
places are more important.

Watersnake
14
SLITHER SLW MOTOR

www.watersnake.com.au 15
Watersnake Propeller Kits (Sold Separately)
Watersnake Propeller kits contain a propeller, nut and shear pins. It is recommended
you keep a spare propeller on your boat at all times. The Mini 2- Bladed Kit is
suitable for the T-18 and T-24 motors. The 2-Bladed Propeller Kit is suitable for 28lb,
30lb and 34lb motors. The 3-Bladed Medium Propeller Kit is suitable for all 44lb and
54lb motors. The 3-Bladed Large Propeller Kit is suitable for all 70lb, 80lb and 105lb
motors.
55130
3 Blade Prop
(44lb-54lb)
55008
Large 3 Blade
Prop (70lb-105lb) 55131
2 Blade Prop
(28-34lb)
JM56001
2 Blade Mini Prop
(18lb-24lb)
WATERSNAKE MOTOR ACCESSORIES SOLD SEPERATLY
(SEE YOU NEAREST DEALER FOR MORE INFORMATION)
Watersnake Propeller
Accessory Kit
This kit is very handy and we
suggest you keep one at all times.
Consists of a propeller nut wrench,
propeller nut and shear pins.
55132
Watersnake Telescopic
Extendable Motor Handle
The Watersnake Telescopic Handle
can extend to 24” and will fit most
tiller handles.
52654

Watersnake
16
Watersnake 50 Amp Fuse Kit
We strongly recommend the use of an in-line fuse kit to protect
your motor from shorts and electrical problems that can lead
to over heating of circuit boards in your trolling motor. Having
other devices hooked up to your motor battery can cause power
surges. Watersnake Fuse Kits come supplied with a 50 amp fuse
and are completely waterproof. These simple to install kits are an
essential accessory for your motor.
56002
Watersnake Replacement Fuse
Replacement 50 Amp fuse to suit a
Watersnake Fuse Kit. It’s a good idea to
always keep a spare!
JM52679
Watersnake Trolling
Motor Connectors
Watersnake Motor Connector
Plugs makes it very quick and
simple to remove and replace
your motor from the boat as well
as providing a better connection
to your power source. Available
in a 12v plug.
51442
12V Female
2 wire
51441
12V Male
2 wire

www.watersnake.com.au 17
NOTES:

Watersnake
18
NOTES:

www.watersnake.com.au 19

REGION/COUNTRY DISTRIBUTOR PHONE
Asia Pacific
Australia Jarvis Walker [phone]
(Tasmania) Tas Fishing Supplies [phone]
(West Australia) Benbow Outdoors [phone]
China Jarvis Walker International [phone]
New Zealand Thompson Walker [phone]
USA Big Rock Sports [phone]
Africa
South Africa Apex Walker [phone]
Russia Badger Ltd. [phone]
Europe
Austria Aquazona [phone]
Bosnia Aquazona [phone]
Bulgaria Aquazona [phone]
Czech Republic Aquazona [phone]
Denmark Wiggler AB +0303 798 744
Finland Wiggler AB +0303 798 744
Germany SPRO BV [phone]
Ireland Masterline Walker [phone]
Italy Europesca Sport [phone]
Luxembourg SPRO BV [phone]
Montenegro Aquazona [phone]
Netherlands SPRO BV [phone]
Norway Wiggler AB +0303 798 744
Romania Aquazona [phone]
Serbia Aquazona [phone]
Slovakia Aquazona [phone]
Slovenia Aquazona [phone]
Sweden Wiggler AB +0303 798 744
United Kingdom Masterline Walker [phone]
CONTACT INFORMATION
© 2013 Jarvis Marine Investments. All Rights Reserved.
Specifications are subject to change without notice.
Watersnake®and Jarvis Marine®are registered
trademarks of Jarvis Marine International.
www.watersnake.com.au
Jarvis Marine Investments
297-305 South Gippsland Highway
Dandenong South, Victoria 3175 Australia
ACN: 133 252 294
AUSTRALIAN REPAIRS AND SERVICING
Anglers’ Central Service Centre
2/7 Circuit Drive, Hendon
South Australia, 5014 Australia
Ph: 08 8244 8790
Email: [e-mail]
