Watersnake Slider Pro SWRC 54/54 User manual

SLIDER PRO
BOW MOUNT ELECTRIC MOTOR
OWNERS MANUAL

Watersnake
2
SPECIFICATION SUMMARY
MODEL SWRC 54/54 (SLIDER PRO)
VOLTAGE (V) 12
MAX.THURST (LB) 54
SHAFT LENGTH (IN) 54
MIN AMP DRAW (A/H) 13
MAX AMP DRAW (A/H) 54
PROP 3 BLADE
FOOT CONTROL 1
REMOTE HAND CONTROL 2
MOUNTING INTEGRATED QUICK RELEASE *
CIRCUIT BREAKER 1
REQUIRED BATTERY 12v DEEP CYCLE MARINE
MIN. RECOMMENDED BATTERY SIZE 80 - 100 AMP HOUR **
MODEL SWRC 65/54 (SLIDER PRO)
VOLTAGE (V) 12
MAX.THURST (LB) 65
SHAFT LENGTH (IN) 54
MIN AMP DRAW (A/H) 13
MAX AMP DRAW (A/H) 50
PROP 3 BLADE
FOOT CONTROL 1
REMOTE HAND CONTROL 2
MOUNTING INTEGRATED QUICK RELEASE *
CIRCUIT BREAKER 1
REQUIRED BATTERY 12v DEEP CYCLE MARINE
MIN. RECOMMENDED BATTERY SIZE 80 - 120 AMP HOUR **
* NOTE - this model is not compatible with the nylon quick release bracket
sold separately
** NOTE - this is to be used as a guide only. Check with your battery
supplier to confirm required size of 12 volt deep cycle marine battery that
will be appropriate for your situation.

www.watersnake.com.au 3
PRE INSTALLATION CHECKLIST
• Familiarise yourself with the user manual and the various parts of your
Watersnake motor
• Select desired mounting location on boat
• 12 v deep cycle marine battery (your Watersnake motor is not designed for
use with car / truck / motorcycle type batteries) – for more information
about appropriate batteries for your Watersnake motor, refer to page 9
• Check battery cable length in relation to location of your 12v deep cycle
battery. If extension to battery cable is required, refer to table on page 9
NOTE – if extending battery cable ensure that the circuit breaker remains
in place on the positive wire
PRE-USE CHECKLIST – CHECK BEFORE EACH USE
• Ensure that your Watersnake motor is securely attached to your boat
(refer to page 5 of manual)
• Fully charged 12v deep cycle marine battery (your Watersnake motor is
not designed to be used with a car / truck / motorcycle type battery)
• Check battery cable for any signs of damage or exposed wiring
• Check terminals for any signs of corrosion or debris
• Check fuse assembly / circuit breaker – clean if any signs of corrosion or
debris. Replace fuse if necessary.
SLIDER PRO

Watersnake
4
IMPORTANT PLEASE READ BEFORE USE.
DEPLOYING YOUR MOTOR
STOWING YOUR MOTOR
To deploy the motor press
down on the pedal (A) and
simultaneously slide the
shaft (B) through the gear
box and lower carefully
into the water.
To stow the motor press
down on the pedal (A) and
simultaneously slide the shaft
(B) through the gear box until
the lower motor unit sits
back in the locking clamps.
There should be a click sound
locking the unit in position.
In addition, then slide the
Depth Collar (C) down the
shaft to the Gear Box and then
tighten the bolt on the Depth
Collar so it is secure.
Ensure your motor is
Properly stowed and
secured before Driving
and or moving your
boat to avoid damage.
HOW TO STOW AND DEPLOY YOUR WATERSNAKE
BOW MOUNT ELECTRIC MOTOR.
Watersnake Distribution Pty Ltd accepts no
liability for injury or damage caused by the
incorrect deployment or stowing of this motor.
PLEASE NOTE:

www.watersnake.com.au 5
WATERSNAKE ELECTRIC MOTORS
Congratulations and welcome to a world of silent motoring.
Powerful yet silent, the Watersnake electric motors are built to suit all angling
conditions. High quality materials, superior design and precision engineering
make these motors hard wearing and reliable.
Please read manual completely before starting installation.
ATTACHING THE MOTOR TO YOUR BOAT

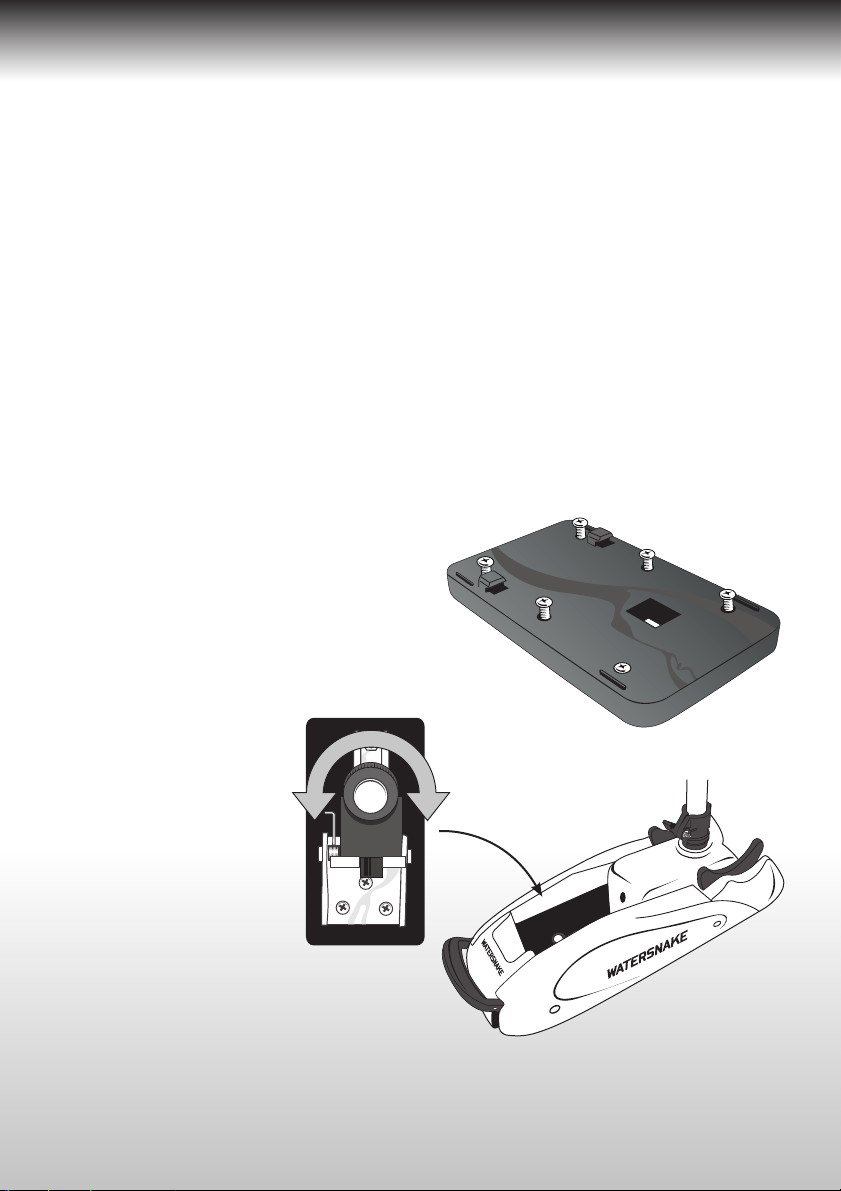

The slider mount integrates a quick release bracket mechanism.
Attach the bracket to the bow of the boat, taking care to ensure it is on the
centreline of the boat and placed forward enough so that when the motor is
attached the shaft of the motor is not making contact with the boats gunwale
rubber. With the bracket in position, mark the holes for drilling, ensuring as
you do that the bow area below the mounting location is clear and accessible.
Mount the plate to the bow using stainless steel bolts, nuts and washers. It is
important when doing this work that the boat is level.
Place the upper mount of the motor in
position on the bracket, tighten the lock
screw and you are ready for the water. To
release the motor simply unscrew the locking
plate lock screw located within the mount.
Watersnake Distribution Pty Ltd accepts no
liability for personal injury or property damage
caused while drilling/mounting this motor.
Please wear appropriate protective clothing and
eyewear/ face shield.)
PLEASE NOTE:
SLIDER PRO

Watersnake
6

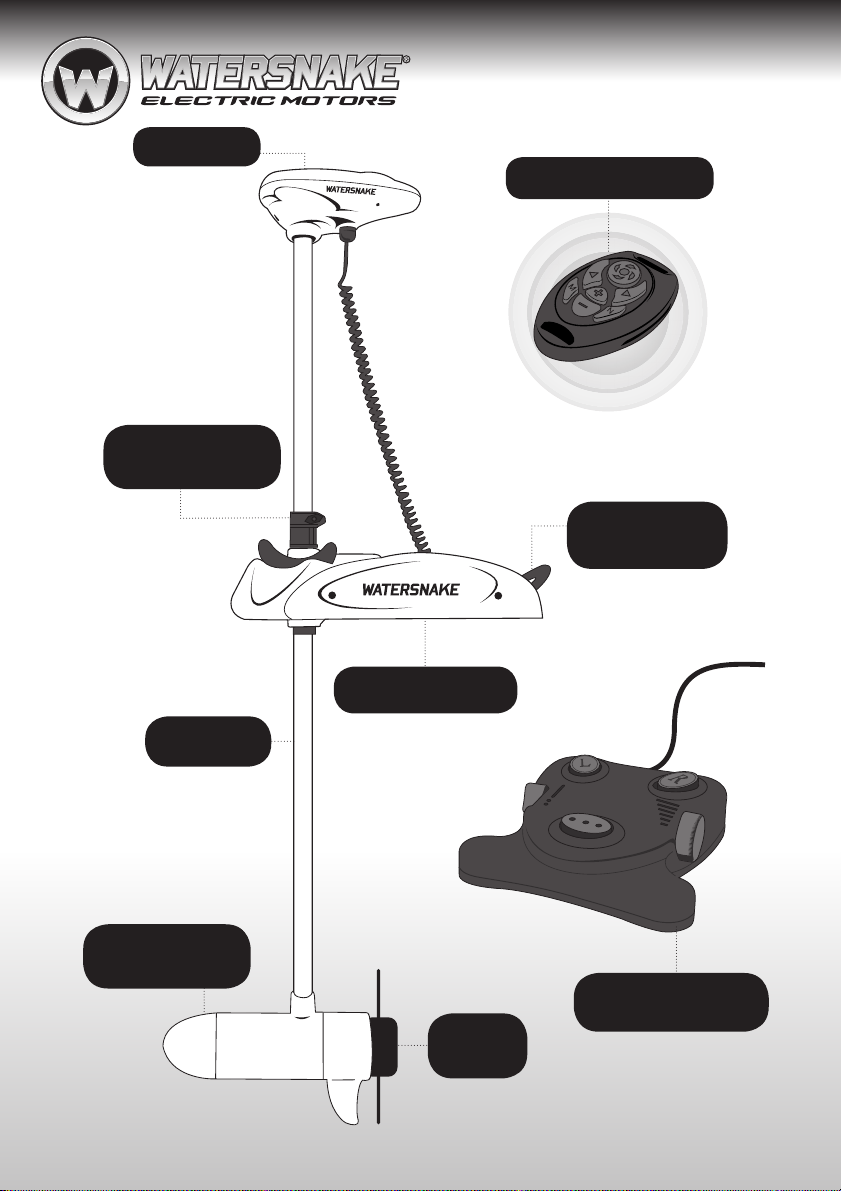

Foot control unit
with 5 meter cable
Quick lock and
release lever
Weedless
propeller
Mounting bracket
Motor Assembly
unit
Composite
shaft
Head unit
Depth collar
height adjustment
Remote control unit.

www.watersnake.com.au 7
SLIDER PRO
ATTACHING THE PROPELLER
Before doing anything with the propeller, ensure the cables to
the battery are disconnected.
1: Place shear pin in shaft as shown.
2: Align the propeller against the shear pin on the shaft
(there is a groove on the back of the propeller which the
shear pin needs to slot into)
and then tighten the propeller nut securely.
1
2
Shear Pin
Propeller Shaft
Propeller
Propeller
Nut

Watersnake
8
ELECTRICAL CONNECTIONS
Before connecting the motor’s cables to the
battery terminals, ensure all switches are in the
OFF position and stand clear of the propeller.
Connect the red cable to the positive (+) terminal
and the black cable to the negative (-) terminal,
making sure the terminals are clean before
doing so. A clean connection will minimise
power wastage and give you maximum power
from the battery.
Please Note: for best performance please keep
battery terminals and connections clean.
There are a number of different methods of
connecting battery leads to your 12 v deep
cycle battery. Your Watersnake motor is
supplied as standard with ring type terminal
connectors although this can be changed to
suit your particular set up. If fitting different
terminal connectors ensure that connections
are soldered and sealed appropriately. It is
recommended to use heat shrink to seal any
exposed joins in wiring or connectors. Any
non-standard terminal connections must be
capable of handling a minimum of 50 amps.
Anderson plugs are a popular choice amongst
many Watersnake motor owners and are readily
available.
A Watersnake circuit breaker is supplied and
attached to the red power cable to protect the
circuit boards of the motor. This is a connection
that joins the motor battery cable to the battery
and shuts the motor off if the connection over
heats. As shown on diagram (1)
We recommend using a deep cycle marine
battery for
optimum performance.
*
50 amp
circuit
breaker
(1)

www.watersnake.com.au 9
DEPLOYMENT
Pressing on the quick locking and release lever (refer to diagram on page 4)
at the same time as pushing the shaft forward will allow the motor to release
from the cradle. NOTE – Your Watersnake motor is not designed to release
from the cradle by pressing on the lever alone. Applying excessive pressure to
the release lever can lead to deployment difficulties.
DEPTH ADJUSTMENT
Hold the motor shaft with one hand, loosen the depth collar adjustment screw
and set the motor to the desired depth. Then retighten the adjusting screw on
the depth collar securely.
STOWING
When your Watersnake motor is not in use always stow and store it properly.
Press the quick locking and release lever and raise the motor, pulling towards
the stern of your boat until it is secure on the locking cradles and locked into
the horizontal (stowed) position. A final pull on the shaft of the motor may be
necessary to ensure it has locked into place on the cradle.
(refer to diagram on page 4)
DEEP CYCLE BATTERIES
A 12 v deep cycle marine battery is required for normal operation and
continued use of your Watersnake motor. 12 v deep cycle marine batteries are
constructed using thicker plates and a denser active material. They are built to
withstand repeated charge and recharge cycles. Deep cycle marine batteries
are specifically designed to deliver sustained power with low current draw over
extended periods of time. Car / Truck / Motorcyle batteries are not designed
in the same way and are more useful for providing high bursts of power for
short periods. Use of car / truck / motorcycle batteries can cause damage to
electronic components within your Watersnake motor.
SLIDER PRO
Note that above table is intended as a guide only. Your local electrical supplier will
be able to advise in greater detail based on your particular set up and requirements.
WIRE EXTENSION LENGTH SUGGESTED WIRE GAUGE
1m 6 AWG / 6GA
3m 4 AWG / 4GA
5m 2 AWG / 2GA

Watersnake
10

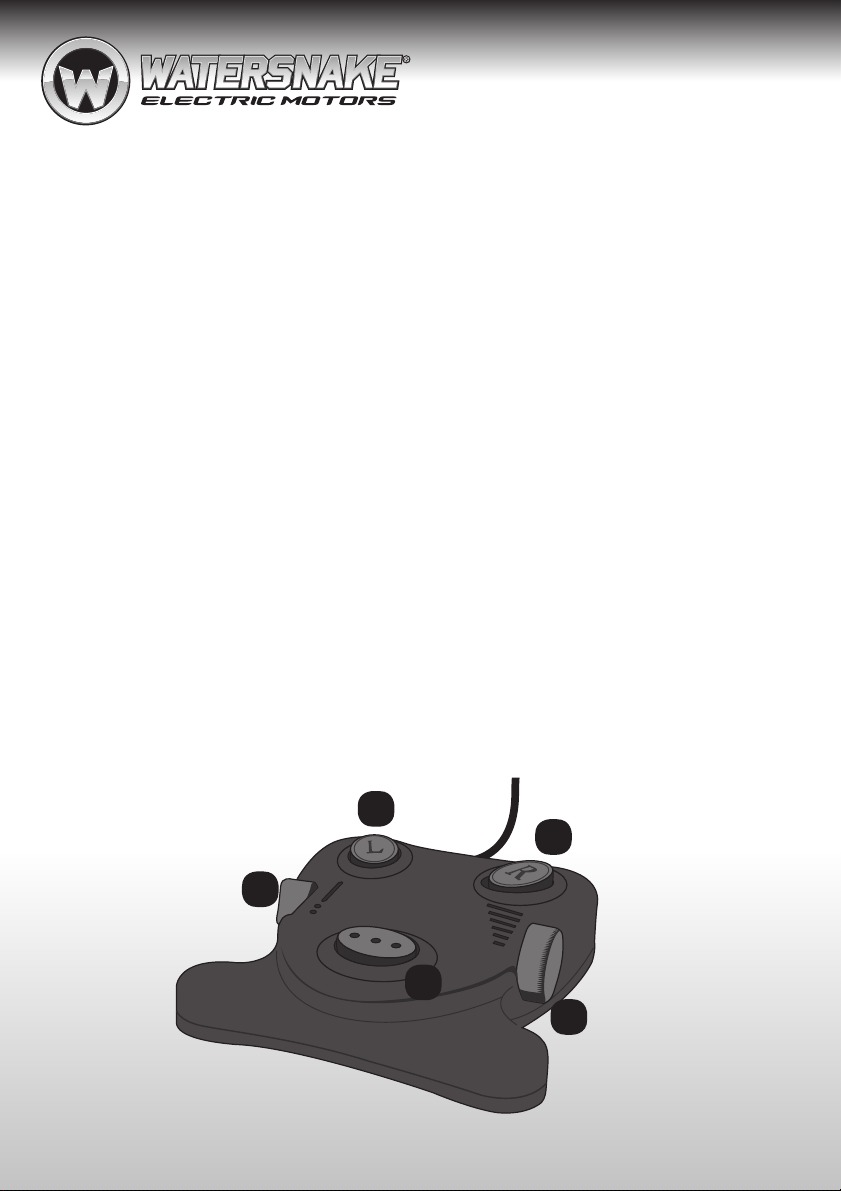

FOOT PEDAL CONTROL SYSTEM
The low profile foot pedal control is used to adjust direction and speed. A
variable speed dial control is located at the right side of the foot control unit.
Directional buttons control steering.
Functions:
1. Left directional button
To steer left, press the button marked “L” at the top left hand corner of
the foot control. Release the button when the desired degree of turn has
been achieved
2. Right directional button
To steer right, press the button marked “R” at the top right hand corner of
the foot control. Release the button when the desired degree of turn has
been achieved
3. Momentary button (propulsion whilst button is held down, propulsion
stops when button released)
To activate the momentary function, the constant on / off switch (4) must
be moved to the back position. NOTE – momentary function is not
operational when the constant on / off switch (4) is in the forward position
4. Constant On / Off switch (constant propulsion on / off)
When set in the forward position (on) the propeller will run constantly.
The speed of propulsion can then be controlled by the variable speed
control dial (5)
5. Variable speed control dial
Controls the speed of the propeller. The propeller can be slowed to a
complete stop by turning the dial back fully
1
2
3
4
5

www.watersnake.com.au 11
www.watersnake.com.au
www.watersnake.com.au
1
2
3
5
4

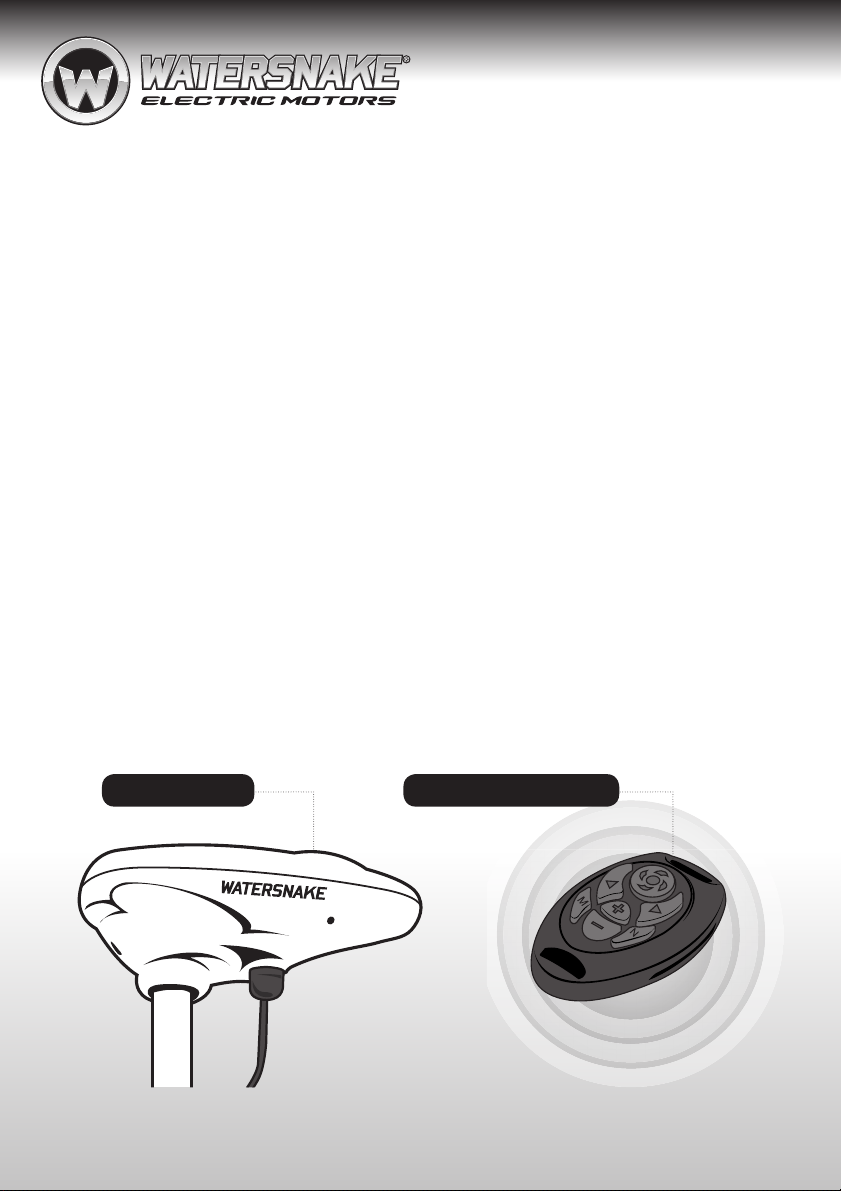

REMOTE CONTROL HAND UNIT
The remote control hand unit offers the ability to control the operation of your
Watersnake motor without the need to use the foot control or it can be used
in conjunction with the foot control. NOTE – the remote control hand unit
must be synced with your motor (refer below). The remote control hand unit
requires “line of sight” communication with the remote receiver in the head
of your Watersnake motor. Normal operation may be impaired if the remote
control hand unit is operated from behind a bulkhead or other structure such
as a centre console that impedes line of sight communication.
The remote control hand unit is battery powered. The battery in the unit may
need to be replaced after 12 months or sooner if used regularly. The battery
used is a commonly available CR2032 and can be changed by removing the 4
phillips head screws from the back of the unit. NOTE – Your remote control
hand unit must be re-synced with your Watersnake motor after changing the
battery.
1. Left directional button
2. Right directional button
3. On / Off
4. High speed bypass
5. Increase / decrease speed
SLIDER PRO

Watersnake
12
SYNCING THE REMOTE CONTROL HAND UNIT TO YOUR
WATERSNAKE MOTOR
NOTE – before proceeding remove the propeller (if fitted) from your
Watersnake motor
• Remove the top cover of the motor head cover (4 x phillips head screws)
• Ensure that your motor is in the deployed (vertical) position and that it is
connected to your 12v deep cycle battery
• Press and hold down the RC chip button (light may flash or stay lit – either is
OK) – refer to diagram on page
• At the same time, press and hold either the left (refer to new diagram
function number) or the right (refer to the new diagram function number)
button on the remote control hand unit
• Slowly count to 10 whilst holding both buttons
• Release both buttons
• Test that the sync process has been completed by pressing one of the
function buttons on the remote control hand unit
• If the remote control hand unit fails to sync with the motor repeat above
steps until the sync process is successful
NOTE – It may take several attempts for the remote control hand unit to
sync successfully with your Watersnake motor. This is not necessarily an
indication of a fault although if repeated attempts fail it may indicate that
the battery in your remote control hand unit needs replacing
Motor head cover Remote Control hand unit

www.watersnake.com.au 13
MAINTENANCE
Your Watersnake Electric Motor should provide many seasons of dependable
service. However, like any tool, electric motors must be cared for.
After each day of fishing, the motor should be cleaned thoroughly. A light
rinse with fresh water (do not direct a high pressure stream of water at the
motor) and wash with warm soapy water to remove any remaining salt / debris
particles should be completed. It is good practice to pay particular attention
to areas that are likely to hold salt / debris particles such as the shaft of the
motor and the area surrounding the turning motor housing where the depth
collar sits when the motor is deployed.
NOTE – The above cleaning routine should also be followed even if the motor
has been used in fresh water. Dust / dirt can still build up in fresh water
environments.
Dry excess moisture from the motor and sparingly lubricate all friction points
– a pressurized spray lubricant is ideal. It is important to keep the shaft of
your motor as smooth as possible to avoid deployment issues. A light coat of
wax or a coating with a spray lubricant should be applied to the shaft a couple
of times a year.
Periodical general maintenance (once or twice a year depending on use)
• Remove side covers from the mounting assembly and clean any build up
of dirt / debris that may be present on the inside of the bow mount assembly
(mounting bracket). Applying harsh chemical cleaners is not recommended
– warm soapy water should be sufficient.
• While side covers from the mounting assembly are removed apply marine
grade grease to the quick lock and release mechanism. Do not use grease
that may contain lead particles.
• Check for any loose screws / bolts / fittings and tighten as required.
• Check wiring / terminals for any sign of corrosion or build up of debris
• Check fuse or circuit breaker for any sign of corrosion or build up of debris
SLIDER PRO

Watersnake
14
RECOMMENDATIONS WHEN USING YOUR
WATERSNAKE MOTOR IN THE WATER
Upon connecting your battery to your motor, and before setting off in your
boat, make sure that your trolling motor is mounted correctly and stowed
securely in the mounting bracket. Of course once you engage your Watersnake
motor for use make sure that it is in the right place, not too low or too high.
Once you are in deep water, you should make sure that you gradually increase
the speed of your trolling motor, do not flatten it up to full speed right away.
For example, if you have a 5 speed trolling motor, don’t click through all of the
other speeds really fast to get to 5, slowly go up to 1 speed, 2 speed, and so on.
It is recommended not to run your trolling motor out of water for long periods
of time.
RECOMMENDATIONS WHEN YOUR
WATERSNAKE MOTOR IS OUT OF THE WATER
After washing down your Watersnake motor at the end of a session, you may
need to charge your 12v deep cycle marine battery. Before charging your
battery, ensure that your Watersnake motor is disconnected from the battery.
DO NOT leave your motor connected whilst charging your battery.
If your boat is not stored under cover, it is recommended to remove your
Watersnake motor and store separately under cover, out of direct sunlight and
away from wet or damp areas. If you are not able to remove your Watersnake
from the boat, we recommend covering your Watersnake with a weatherproof
cover to protect the electronics.
The off-season provides a good opportunity to complete some maintenance as
outlined on page 13
When towing your boat long distances and especially if driving over rough /
unsealed roads, we strongly recommend that you remove your Watersnake
motor from your bow and stow safely in either your vehicle or boat.

www.watersnake.com.au 15
SHORT-TERM STORAGE OF YOUR WATERSNAKE MOTOR
If you are going to be gone for a short break or there is rain forecast and the motor is to remain
on the boat, we recommend covering the motor to protect the electronics. Even better, make sure
that you have a safe non-damp area that your trolling motor can stay in room temperature.
LONG-TERM STORAGE OF YOUR WATERSNAKE MOTOR
If you are not going to use your motor in the off-season, put your motor in a safe place where no
water or extreme cold or hot temperatures can get in. We suggest making a place under-cover
away from moisture, this should protect the electronics such as the circuit board and speed
control unit.
SERVICING YOUR WATERSNAKE ELECTRIC MOTOR
A current list of authorised service agents can be found at Jarvis Walker’s Anglers Central
Service Centre website – www.anglerscentral.com.au
Schematics and parts lists are also available from the Anglers Central Service Centre website
TROUBELSHOOTING QUICK REFERENCE GUIDE
A significant number of issues can be caused by a disruption of power supplied
to your Watersnake motor. Careful inspection of your 12v deep cycle battery,
wiring and fuse / circuit breaker set up should be completed before assuming
that there is a fault with your motor.
No power / Reduced power
NOTE – your Watersnake motor is fitted with a tilt switch that prevents the
motor from running unless it is in the deployed (vertical) position.
• Check that battery connection has not been reversed (reversed polarity)
• Check that your 12v deep cycle battery is fully charged (+ 12v)
• Check terminals / connections are secure and not loose
• Check terminals / connections / fuse or circuit breaker for any signs of
• damage, corrosion or build up of debris
• If battery lead has been extended, ensure correct gauge wire has been used
(refer to table on page 9 of manual)
• Remove propeller and check for any build up of fishing line / weed or any
other debris
• Check that propeller pin (shear pin) is in place
• Armature or magnet cracked or dislodged – grinding noise will come from
motor (CONTACT REPAIR AGENT)
SLIDER PRO

Watersnake
16
Noise or vibration coming from motor
Check that propeller is securely tightened and shear pin is in place
Remove propeller and check for any build up of fishing line / weed or any
other debris
• Check that your 12v deep cycle marine battery is fully charged (+ 12v)
Motor will not run at variable speeds
• Check that your 12v deep cycle marine battery is fully charged (+ 12v)
• Check terminals / connections are secure and not loose
• Check terminals / connections / fuse or circuit breaker for any signs of
damage, corrosion or build up of debris
• Check that foot control plugs are not not loose
• Check that foot control constant on/off switch is in the forward position
(refer page 10)
Difficulty deploying or stowing
• Ensure that you are following the correct deployment / stowing process
(refer diagram on page 4)
• Check for any obstructions within the mounting bracket
• Lubricate shaft with spray lubricant
(concentrate spray on area where shaft runs through turning motor housing)
• Clean any debris from the mounting bracket
• Remove the side plastic covers from the mounting bracket and apply marine
grade grease to the mechanism
Remote control hand unit not operational
• Battery may need to be changed
• Re-sync hand unit to motor (refer page 12)
Foot control unit not operational or one or more functions not operational
• Check that foot control lead plugs are secured
• Refer to foot control operation guide on page 10
A number of service videos are available on the Jarvis Walker Brands
Youtube channel – search “Jarvis Walker Brands” from the Youtube search
function. Please contact Jarvis Walker or your nearest service agent should
issues persist.

www.watersnake.com.au 17
SLIDER PRO
MODEL SPECIFICATIONS
CODE MOTOR DESCRIPTION THRUST VOLT AMPS WATTS RPM SHAFT COLOUR BRACKET STEERING SPEEDS PROP
55242 Slider Pro SWRC54/54 54lb 12v 13-54 156-640 1370 54" White Composite Foot Control/ Remote Fob Variable 3-Blade
55254 Slider Pro SWRC65/54 65lb 12v 13-50 172-760 1160 54" White Composite Foot Control/ Remote Fob Variable 3-Blade
Model range and specifications are correct at time of printing.
For new models not listed here find specifications at: www.jarvismarine.com.au

Watersnake
18
MOTOR SELECTION GUIDE
Suggested
Shaft Length
42”
48”
54”
60”
Bow Mount to
Water Level
14” to 20”
20” to 26”
26” to 32”
32” to 36”
WATERSNAKE
SHAFT LENGTH
GUIDE
WATERSNAKE
MOTOR SIZE
GUIDE
Transom Mount Measurement
Bow Mount Measurement
With your boat in the
water, measure the
distance from the
mounting surface of
the transom or bow
to the water level.
The guide shown on
the right will assist
you in finding the
shaft length that best
suits your boat.
The graph
shown right is
a general guide
only. Always
speak with
your dealer
regarding the
size of motor
that is most
appropriate for
your boat.
Transom Mount
to Water Level
Up to 8”
Up to 10”
Up to 12”
10” to 14”
14” to 20”
20” to 22”
22” to 24”
Suggested
Shaft Length
24”
26”
30”
36”
42”
48”
54”

www.watersnake.com.au 19
SERVICING YOUR WATERSNAKE ELECTRIC MOTOR
When it’s time for your Watersnake electric motor to be serviced, it is
recommended you choose to use an Authorised Service Agent such as Anglers’
Central Service Centre to perform the service.
Watersnake electric motors are precision instruments that rely on exacting
alignment of numerous components; it is worth considering taking your
electric motor to an Authorised Service Agent for servicing.
IMPORTANT!
If you choose to service the electric motor yourself or through any other third
party not authorised by Watersnake Distribution Pty Ltd to service Watersnake
motors, the motor will no longer be covered under the normal consumer
guarantees. Items or issues from that time on and thereafter will be the sole
responsibility of the owner. It is important to make sure you use good quality
grease, and remember do not over lubricate. Small amounts of grease in the
correct places are more important.
SLIDER PRO

Watersnake
20
SLIDER PRO MOTOR
