Watersnake ASP T18-SW User manual

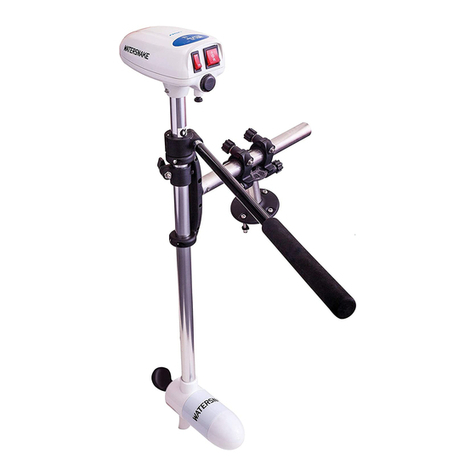

ASP T18SW WITH KAYAK BRACKET (55526)
ASP T24SW WITH KAYAK BRACKET (55527)
Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
ASP MOTOR WITH
KAYAK BRACKET
ELECTRIC MOTOR
OWNERS MANUAL

WELCOME TO WATERSNAKE
Congratulations and welcome to a world of silent motoring.
Powerful yet silent, the Watersnake electric motors are built to suit all angling
conditions. High quality materials, superior design and precision engineering
make these motors long wearing and reliable.
IMPORTANT
Please read this manual completely before starting installation and using the
electric motor.
Disclaimer: The information provided in this Watersnake Motor Manual is correct at time of printing.
For the most up to date information, check for the latest version on our website at
https://www.watersnake.com.au/pages/watersnake-user-manuals
BEFORE YOU BEGIN:
Trolling motors are high-current devices that require an ideal power supply.
Follow these steps to avoid problems:
12V DEEP CYCLE
OR 12V LIFEPO4
BATTERIES ONLY
MORE INFO ON PAGE 6
EXTENDING THE
BATTERY CABLES?
IMPORTANT INFO ON PAGE 8
BATTERY CAN BE
CHARGED WHILE USING THE
MOTOR ONLY IF VOLTAGE
INPUT TO THE MOTOR IS
EQUAL OR LESS THAN 14.5V
MORE INFO ON PAGE 8
USE AN
INLINE FUSE OR
CIRCUIT BREAKER
(NOT INCLUDED)
MORE INFO ON PAGE 7
2
5
1
34
SUGGESTED BATTERY SIZE:
MOTOR SIZE BATTERY SIZE
18LB  24LB 40AH OR LARGER
34LB 60AH OR LARGER
44LB 80AH OR LARGER
54LB  65LB 100AH OR LARGER

www.watersnake.com.au 3
FEATURES OF YOUR MOTOR...............................................................4
INSTALLATION
PRE INSTALLATION CHECKLIST........................................................5
BATTERY AND POWER........................................................................6
Best practices and battery type ........................................................6
Inline fuse or circuit breaker ............................................................7
Extending battery leads ....................................................................8
Battery charging ...............................................................................8
Connecting your motor to the battery ..............................................9
ATTACHING THE PROPELLER.............................................................10
ATTACHING THE MOTOR TO YOUR KAYAK .........................................11
USING THE MOTOR
ADJUSTING THE DEPTH OF THE MOTOR...........................................14
STEERING LOCK..................................................................................14
HEAD UNIT AND SPEED CONTROL ....................................................14
RECOMMENDATIONS WHEN USING YOUR MOTOR...........................15
AFTER EVERY USE..............................................................................15
MOTOR MAINTENANCE AND STORAGE.............................................16
TROUBLESHOOTING............................................................................17
OPTIONAL ACCESSORIES ...................................................................18
MOTOR SPECIFICATIONS ....................................................................19
MOTOR SCHEMATICS AND PARTS LISTS ...........................................20
CONTENTS

4Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
FEATURES OF YOUR MOTOR
PLEASE NOTE: Specifications are subject to change without notice. Diagram
of motor is for reference only and may be different from your actual motor.
Retractable
Tiller handle
Head Unit
Kayak
Bracket
Handle lock /
release pin
Steering Locker
Depth collar
height adjustment
Motor unit
Weedless
two-blade
propeller

www.watersnake.com.au 5
PRE INSTALLATION CHECKLIST
1. Familiarise yourself with the user manual and the various parts of your
Watersnake motor.
2. Select desired mounting location on kayak.
3. 12V deep cycle or 12V LiFePO4 battery (your Watersnake motor IS NOT
designed for use with car / truck /motorcycle type batteries) – for more
information about appropriate batteries for your Watersnake motor, refer to
page 7.
4. Check battery cable length in relation to location of your 12v deep cycle or
12V LiFePO4 battery. If extension to battery cable is required, refer to table
on page 8. NOTE – if extending battery cable, ensure that the circuit breaker
remains in place on the positive wire.
PLEASE NOTE:
TERNARY LITHIUM BATTERIES MUST NOT BE USED WITH
THIS WATERSNAKE MOTOR. Refer to information on page 6.
THE BELOW INFORMATION IS FOR THE USA ONLY.
INSTALLATION

6Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
BATTERY AND POWER
BATTERY TYPE
USE A  VOLT DEEP CYCLE OR A V LIFEPO BATTERY
12V DEEP CYCLE BATTERY
Deep-cycle batteries deliver sustained power with low current draw over
extended periods. They can be drained to low levels without developing a
“memory” and can be fully recharged hundreds of times over their working lives.
Do not use a standard car, truck or marine batteries (called a cranking battery).
They are designed to provide a pulse of “cranking power” over a short period,
can develop a “memory” preventing complete recharge and can produce current
surges that may damage sensitive electronic components on your Watersnake.
LITHIUM BATTERIES
BEST PRACTICES
INSTALLING AND CONNECTING YOUR MOTOR
1. Your Watersnake motor is designed to be powered by a 12v deep cycle or
LifePO4 battery that should output no more than 14.5v. If the voltage input
to your Watersnake motor exceeds 14.5v it may damage the sensitive
electronics and void your warranty. A dedicated battery system is preferable.
Do not connect other items like fish finders or lighting to the trolling motor
battery.If you are unsure about the voltage output of your battery, contact
your battery supplier or consult a marine auto electrician.
2. This Watersnake motor is compatible with a battery system that is being
charged by an alternator or solar system, so long as the voltage input to the
Watersnake motor does not exceed 14.5v whilst the battery is being charged.
3. Route the wiring from the battery to the trolling motor on an alternate route
or path to other wiring on the kayak. If possible, it is preferable the wire is
fitted to the opposite side of the kayak to other wiring.
4. If you have to extend the wiring to connect the motor please review
the extending battery leads section of the manual (page 9) so you fully
understand this process.
5. This trolling motor requires a circuit breaker or inline fuse to protect the
motor. See page 8 for more information.
CAUTION: Please read the following information before you
connect your electric motor to your baery.
TERNARY LITHIUM BATTERY WARNING
Ternary Lithium batteries must not be used with this Watersnake motor
as their voltage output is too high.

www.watersnake.com.au 7
INLINE FUSE OR CIRCUIT
BREAKER
An inline fuse or circuit breaker is required when connecting your Watersnake
Asp motor to the battery. This is a connection that joins the motor battery
cable to the battery and protects the motor by shutting off power in the event
of an overload or short circuit.
BATTERY AND POWER CONTINUED
SUGGESTED FUSE OR CIRCUIT BREAKER SIZE
Asp T18 20A
Asp T24 25A
CIRCUIT BREAKER
EXAMPLE
12V DEEP CYCLE OR LIFEPO4 LITHIUM BATTERY
12V LIFEPO4 LITHIUM BATTERY
Lithium Iron Phosphate (LiFePO4) is the safest lithium battery type. We
recommend doing your research on a LiFePO4 battery before purchasing to
make sure you are purchasing from a reputable company and the battery has a
maximum voltage output under 14.5V. There are many cheap lithium batteries
on the market that can be harmful to your Watersnake motor.

8Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
EXTENDING BATTERY LEADS
The longer your battery cable needs to be, the thicker it needs to be to avoid
damaging voltage drop. The supplied cable has the correct wire gauge
(thickness) for its length. But if you need to extend the length by more than
30%, you will need to replace the existing cable completely with a new longer
thicker cable. This means the entire cable will be the correct wire gauge for
the new length. See below to find the correct wire gauge for your motor thrust
and required cable length. Only use twin-sheathed tinned cable.
Note: The above table is intended as a guide only. Your local electrical supplier will
be able to advise in greater detail based on your particular set up and requirements.
MOTOR MODEL
Asp T18
Asp T24
MAX AMP DRAW
15A
20A
WIRE EXTENSION LENGTH / WIRE GAUGE FOR ENTIRE CABLE
(American Wire Gauge - AWG) Note: Lower AWG# is thicker wire.
1 Metre / 12AWG 1-3 Metres / 10AWG 3-5 Metres / 10AWG
1 Metre / 12AWG 1-3 Metres / 10AWG 3-5 Metres / 8AWG
BATTERY CHARGING
Charging a battery while it is powering the motor will increase the voltage
delivered to the motor. This motor can be powered by a charging battery (e.g.
charging with an alternator or solar panels) as long as the voltage it receives
does not exceed 14.5 volts. Exceeding 14.5 volts will potentially damage
electrical components in the motor and is not covered by warranty.
When you are off the water and are charging your battery at home for long
periods of time via a 240v or 110v AC charger we recommend you disconnect
the motor from the battery.
AVOID USING STOREBOUGHT BATTERY
BOXES WITH BUILTIN CIRCUITRY
Battery Boxes use low quality electrical components that cannot handle the
high current loads that trolling motors draw. We recommend connecting your
Watersnake motor directly to a deep cycle or LiFePO4 battery using the provided
battery leads.
BATTERY BOX WITH
BUILT IN CIRCUITRY.
DO NOT USE!
SIMPLE BATTERY
BOX WITH NO
CONNECTIONS
OK TO USE!

www.watersnake.com.au 9
All Watersnake wiring connections should conform to best marine standards.
Soldered, sealed and heat-shrink protected. If you doubt your ability to
produce quality waterproof connections or lack the equipment, consult a
marine technician or auto electrician.
• Your Watersnake comes factory-fitted with a standard length of twin flex
wiring with alligator clips to attach to the battery.
• Before connecting the motor’s cables to the battery terminals, ensure all
switches are in the OFF position and stand clear of the propeller.
• Connect the red cable to the positive (+) terminal and the black cable to the
negative (-) terminal, making sure the terminals are clean before doing so.
A clean connection will minimise power wastage and give you maximum
power from the battery.
• The voltage input must be 14.5V or lower. Voltage input above 14.5V will
damage the motor and void the warranty.
• If you intend to charge your battery via an alternator or solar panel, it is
important that the battery voltage output does not exceed 14.5v. If you are
unsure of the voltage your battery will output, consult a marine technician
or auto electrician.
CONNECTING YOUR MOTOR
TO THE BATTERY
FUSE
BLACK CABLE
( NEGATIVE - )
RED CABLE
( POSITIVE + )

10 Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)

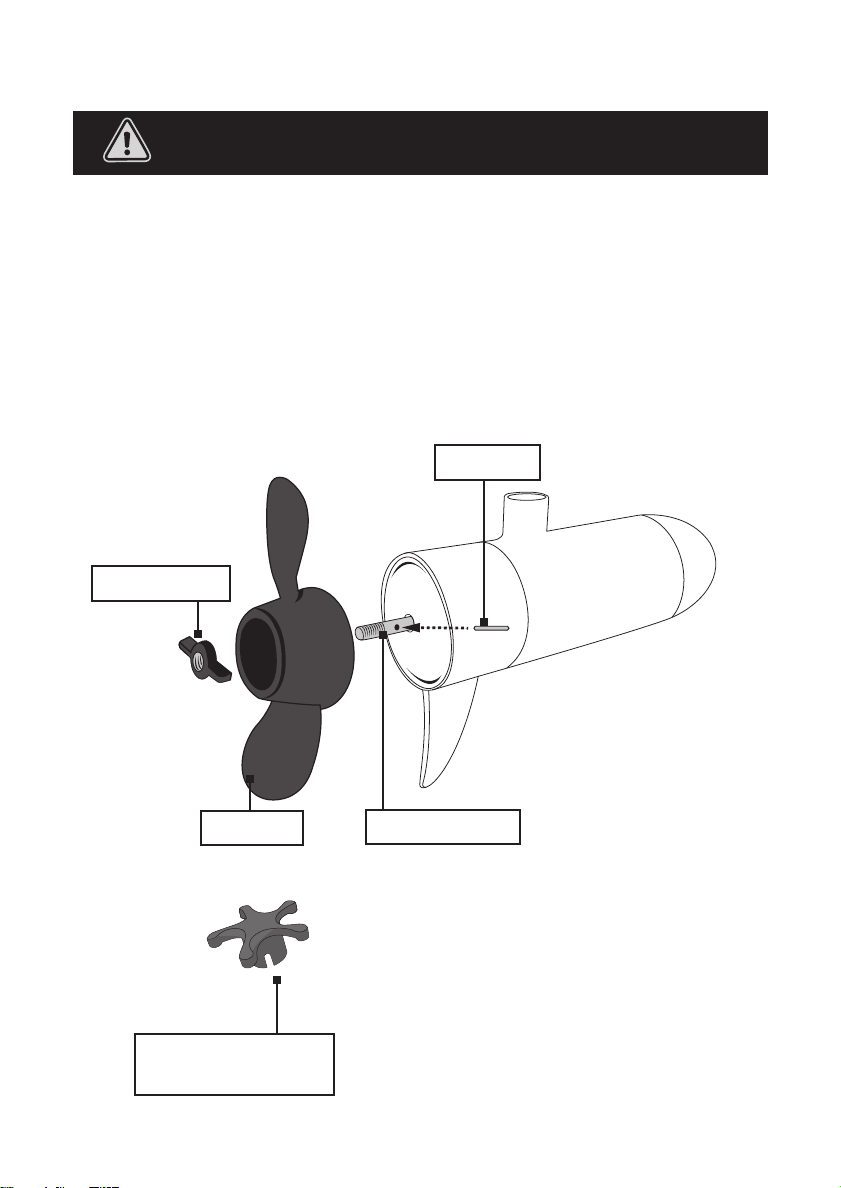

1. Place the Shear Pin in the hole of the Propeller Shaft as shown below.
2. Note on the inside of the Propeller there is a groove for the Shear Pin to
slot into. Place the Propeller over just the end of the Propeller Shaft, then
rotate the propeller to align the groove to the Shear Pin. Push the Prop
fully onto the Shaft, making sure the Pin sits in the groove.
3. While holding the Propeller, tighten the Propeller Nut firmly with the
provided tool.
ATTACHING THE PROPELLER
1
2
3
WARNING: Before doing anything with the propeller, ensure
the cables from the electric motor to the battery are disconnected.
Propeller Nut
Propeller
Tool to tighten the
Propeller Nut.
Propeller Shaft
Shear pin

www.watersnake.com.au 11
INSTALLING YOUR MOTOR
PLEASE NOTE: In order to intall this bracket, you will need access inside your
kayak to be able to tighten the bracket screws that will go through the surface of the
kayak. Consider where you wish to aach the bracket with this in mind, and also for
ease of use when using when using the kayak itself and operating the motor.
PLEASE NOTE:
Watersnake Distribution or affiliated companies accepts no liability for
personal injury or property damage caused while drilling/mounting this
bracket. Please wear appropriate protective clothing and eyewear/ face shield.
STEP 
Ensure the nut is fitted firmly inside of the pocket
underneath the base.
STEP 
Place the base on your Kayak where you wish
to position the bracket and mark pilot holes.
Carefully drill pilot holes. Attach
bracket base to your Kayak using the bolts,
washers and nuts provided. remember to put
the base cushions between the kayak body and
the base of the bracket as shown.
( See parts list schematic for more
details on order of washers and bolts )
m
ore
d
bolts
)
For video instructions on the
installation process, scan this
QR code.

12 Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)

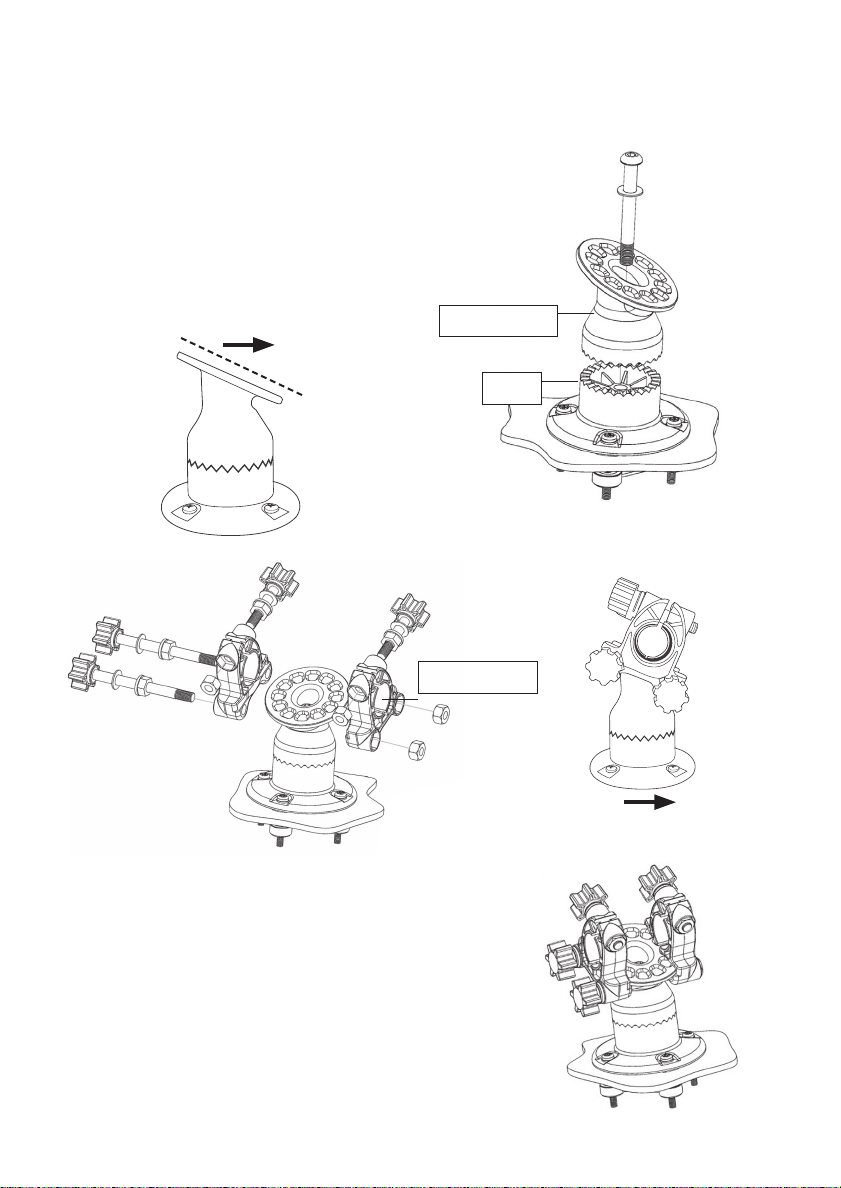

STEP 
Place the Inclined Plate on the Base as shown so the
incline is leaning directly forward, towards the front
of the kayak (A). Screw the provided bolt into place
and tighten (B).
s
o the
ront
a
ce
STEP 
Assemble the two Swivel Clamps onto the
Inclined Plate as shown (C).
Position them on the Plate so the Jack Beam
will come directly out to the side of the kayak,
not angled forward or backward (D). Tighten
the two lower bolts on the Clamps to lock
them onto the Plate. Your unit should look like
diagram (E).
INSTALLING YOUR MOTOR
INCLINE TOWARD FRONT
OF KAYAK
TOWARD FRONT
OF KAYAK
A
B
C
D
E
Inclined Plate
Swivel Clamp
Base

www.watersnake.com.au 13
INSTALLING YOUR MOTOR
STEP 
Once the Jack Beam is horizontal, pivot the
Motor and Jack Beam in the Clamps so the
motor shaft goes straight down into the
water (perpendicular to the water). Tighten
the bolts on top of the Clamps.
STEP 
Assemble the depth adjustment clamp
and the steer handle as shown.
STEP 
Insert the Jack Beam into the Clamps. It should be horizontal or close to it.
If the Jack Beam is not horizontal and angled down towards the water (this
happens if the kayak deck mounting point is not horizontal) you just need to
rotate the Inclined Plate:
a. Slide the Jack Beam out of the Clamps.
b. Loosen the Allen bolt a little so the Inclined Plate can pivot on the base.
c. Rotate the Incline Plate from facing forward to a couple of teeth towards the
middle of the kayak (e.g. counter-clockwise if the mount is on the right side
of kayak. Clockwise if on the left of the kayak). Retighten the Allen bolt on the
Inclined Plate.
d. Loosen the Clamps and pivot them on the Inclined Plate back to the angle
they were previously, so the Jack Beam will come directly out the side of the
kayak again.
e. Insert the Jack Beam and see if it has come horizontal enough. If not,
repeat the procedure to rotate the Inclined Plate a little more.
.com.a
u
1
3
e
e
n
d
Plate a little more
.
F
Jack Beam
Depth Collar
le
the depth adjustment clam
p
th
e steer handle as shown.
T
EP

rt
the Jack Beam into the Cl
am
J
ac
k Beam is not hori
zo
nt
s
if the kayak d
ec
k
m
I
nclined
Pl
at
J
ac
k
Be
e
A
De
pt
Note: When in use, the Jack Beam should
be inserted as far as possible into the
Clamps, so the motor shaft is as close as
possible to the side of the kayak.
This minimises unwanted turning.
STEP 
Attach the jack beam to the motor
as shown using the screws provided (F).

14 Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
HEAD UNIT &
SPEED CONTROL
The Head Unit controls are easy to use.
There is a switch for Forward, Off and
Reverse ( I o R ) and a switch
for Low (-) or High speeds (=).
Pull the button
and the handle
will extend
automatically.
Pull the
button and
push the
handle in.
The Tiller Handle on the motor head is stowable and extends with the pull of a
button. This makes the motor more compact and easier to store away
when not in use.
ADJUSTING THE DEPTH OF THE MOTOR:
Loosen the Steering Locker if it is tight. ( See page 4 for components. )
Hold the motor shaft or head with one hand, loosen the Depth Collar with the
handle, then set the motor to the desired depth. Retighten the Depth Collar
with the handle.
STEERING LOCK
Once you are motoring in the direction you want and don’t
need to change direction, hold the motor in that general
direction by using the Steering Locker. The Steering Locker
should be loose normally and sitting at the bottom of the
black shaft bracket. Raise it to the top of the black shaft
bracket and tighten. This will stop the shaft from turning. To
steer again, just loosen the Steering Locker and let it rest at
the bottom of the black bracket. Do not retighten it here.
RAISE
AND
TIGHTEN
TO LOCK
THE
STEERING.

www.watersnake.com.au 15
RECOMMENDATIONS
WHEN USING YOUR WATERSNAKE MOTOR
IN THE WATER
Upon connecting your battery to your motor, and before setting off in your
kayak, make sure that your trolling motor is mounted correctly and stowed
securely. Of course once you engage your Watersnake motor for use make
sure that it is in the right place, not too low or too high. Once you are in
deep water, you should make sure that you gradually increase the speed
of your trolling motor, do not accelerate it up to full speed right away. It is
recommended not to run your trolling motor out of water for long periods of
time.
AFTER EVERY USE
• Disconnect the motor from the battery.
• Recharge the battery as soon as possible.
• DO NOT PRESSURE WASH, EVEN AFTER FRESHWATER USE.
• Wipe your motor down with a wet rag. Concentrate on areas where salt, dirt
and weed fragments are likely to lodge – propeller, motor housing, alloy
shaft, depth collar and exposed parts of the mount assembly.
• Wipe these areas with a cloth soaked in warm soapy water and allow to dry.
• Apply a light coating of a non-staining silicone, petroleum-based or lanolin
spray to protect and lubricate exposed parts. Wipe over with a soft, dry
cloth.
• Store your Watersnake motor DISCONNECTED from its battery.
• If the kayak is stored outdoors, remove the Watersnake motor and store
securely indoors in a cool, dry place.
• If the Watersnake motor is permanently mounted to the kayak outdoors,
consider protecting it from harsh sunlight and the elements with a tarpaulin
or other cover.
TRANSPORT
WHEN TRANSPORTING YOUR KAYAK IT IS RECOMMENDED
THAT YOU REMOVE THE MOTOR FROM THE KAYAK.
To remove the motor from your kayak simply loosen the bolts holding the jack
beam in place and slide it out. Re tighten the bolts on the bracket
so you do not loose them during transport. When you arrive at you destination
re-attach the motor to your kayak.

16 Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
MAINTENANCE PERIODICALLY DURING THE SEASON
• Disconnect motor from battery. Inspect battery terminals and cables for
signs of corrosion. Remove buildup with a small wire brush and treat with
anti-corrosion spray.
END OF SEASON, LONGTERM STORAGE
• Disconnect motor from battery.
• Inspect battery terminals and cables for signs of corrosion. Remove buildup
with a wire brush and treat with anti-corrosion spray.
• Remove motor from kayak and store in a cool, dry place away from
temperature extremes.
MAINTENANCE

www.watersnake.com.au 17
TROUBLESHOOTING
QUICK REFERENCE GUIDE
A significant number of issues can be caused by a disruption of power supplied
to your Watersnake motor. Careful inspection of your 12v deep cycle battery,
wiring and fuse / circuit breaker set up should be completed before assuming
that there is a fault with your motor.
NO POWER / REDUCED POWER
• Check that battery connection has not been reversed (reversed polarity).
• Check that your 12v deep cycle or LiFePO4 battery is fully charged (+ 12v).
• Check terminals / connections are secure and not loose.
• Check terminals / connections / fuse or circuit breaker for any signs of
damage, corrosion or build up of debris.
• If the battery cable has been extended but not replaced, you may be
experiencing damaging voltage drop. Check the table on page 8 to see if you
have the correct gauge wire for the length of cable extension.
• With the battery disconnected remove propeller and check for any build up
of fishing line / weed or any other debris.
• With the battery disconnected check that propeller pin (shear pin) is in
place.
• Armature or magnet cracked or dislodged – grinding noise will come from
motor (Contact the Watersnake distributor in your region.)
NOISE OR VIBRATION COMING FROM MOTOR
• With the battery disconnected check that propeller is securely tightened and
shear pin is in place. Remove propeller and check for any build-up of fishing
line / weed or any other debris. Rotate the propeller 180º and then recheck
for vibration.
• Check that your 12v deep cycle or LiFePO4 battery is fully charged (+ 12v).
STILL HAVING MOTOR ISSUES?
More information like wiring diagrams,
spare parts and motor repair videos can
be found on our Watersnake motor
support webpage:
https://www.watersnake.com.au/pages/electric-motor-servicing
For more help you can also contact the Watersnake distributor for your region.
( Please see the back cover. )
Scan the QR
code to go to
the Watersnake
support page.

18 Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
Watersnake
Propeller Kits
contain a propeller,
nut and shear pin.
It is recommended
you keep a spare
propeller on your
vessel at all times.
WATERSNAKE MOTOR ACCESSORIES
SOLD SEPARATELY
SEE YOU NEAREST DEALER FOR MORE INFORMATION

Watersnake Two-Blade Mini Propeller
Replacement (18lb, 24lb)
PLEASE NOTE:
Spare parts may not be available in all areas. Please check with your local stockist.
Online ordering available please see back page for details.

Lower Motor Unit
Brush Kit for Asp
(18lb & 24lb)
Contents:
2 Springs.
2 Brushes
2 Holders
2 Screws

www.watersnake.com.au 19
MOTOR SPECIFICATIONS
* NOTE - this is to be used as a guide only. Check with your battery supplier
to confirm required size of 12 volt Deep Cycle or LiFePO4 battery that will be
appropriate for your situation.
MODEL CODE: 55526 NAME: ASP T18-SW-BRACKET ( White Saltwater)
VOLTAGE (V) 12v
MAX.THRUST (LB) 18lb
SHAFT LENGTH (IN) 24"
MIN. / MAX. AMP DRAW (A) MIN.7A MAX.15A
MAX. PROP RPM (NO LOAD) 1400rpm
SPEEDS 2 FORWARD AND 2 REVERSE
PROPELLER 2 BLADE
MOUNTING BRACKET UNIVERSAL KAYAK BRACKET
REQUIRED BATTERY 12v DEEP CYCLE or LiFePO4
RECOMMENDED BATTERY SIZE (AH) 40 AMP HOUR OR LARGER*
BATTERY CABLE GAUGE 14AWG
MOTOR WEIGHT 2.80kg
MODEL CODE: 55527 NAME: ASP T24-SW-BRACKET ( White Saltwater )
VOLTAGE (V) 12v
MAX.THRUST (LB) 24lb
SHAFT LENGTH (IN) 24"
MIN. / MAX. AMP DRAW (A) MIN.9A MAX.20A
MAX. PROP RPM (NO LOAD) 1700rpm
SPEEDS 2 FORWARD AND 2 REVERSE
PROPELLER 2 BLADE
MOUNTING BRACKET UNIVERSAL KAYAK BRACKET
REQUIRED BATTERY 12V DEEP CYCLE or LiFePO4
RECOMMENDED BATTERY SIZE (AH) 40 AMP HOUR OR LARGER*
BATTERY CABLE GAUGE 14AWG
MOTOR WEIGHT 3.80kg

20 Watersnake Asp Motor With Kayak Bracket User Manual (Ver.2)
SCHEMATIC  PARTS LIST  ASP TSWBRACKET
Part No.
