Wavecom W51PC User manual

User Manual
W51PC DCOM Interface
V1.1
By WAVECOM ELEKTRONIK AG

PUBLISHED BY
WAVECOM ELEKTRONIK AG
Hammerstrasse 8
CH-8180 Buelach
Switzerland
Phone [phone]
Fax [phone]
Email: [e-mail]
Internet: http://www.wavecom.ch
© by WAVECOM ELEKTRONIK AG. All rights reserved.
Reproduction in whole or in part in any form is prohibited without written
consent of the copyright owner.
The publication of information in this document does not imply freedom
from patent or other protective rights of WAVECOM ELEKTRONIK AG or
others.
All brand names in this document are trademarks or registered trade-
marks of their owners.
Specifications are subject to change without further notice
Printed: Wednesday, January 30, 2008, 12:51:15

User Manual W51PC DCOM Interface V1.1 Contents •iii
Contents
Welcome 1
Professional Version 1
Options 1
Training 1
Source Code 1
Company Profile 1
Revisions 2
Introduction 2
Remote Control Interface 4
Class W51Server 4
Iw51System 4
Iw51System Methods 5
Iw51DataSink 8
Iw51DataSink Methods 9
RawData format for FAX 10
Class W51Param 10
ICW51Param 10
ICW51Param Methods 10
List of Parameters 11
List of parameters supported by W51System class 11
Programming Examples 18
Visual FoxPro 18
Visual Basic 19
MATLAB 20
Microsoft C 20
Glossary of Terms 21
Index 25

User Manual W51PC DCOM Interface V1.1 Welcome •1
Welcome Congratulations on your purchase of a WAVECOM decoder. The product
that you bought incorporates the latest technology in data decoding to-
gether with the latest software release available at the time of shipment.
Please, check our website http://www.wavecom.ch for software updates.
Always check the latest documentation on the installation CD or on our
website.
We thank you for choosing a WAVECOM decoder and look forward to
work with you in the future.
This chapter introduces WAVECOM, the field of activity of the company,
and how you may benefit from the expertise of WAVECOM.
Professional Version
This documentation is only available in the professional version of the
WAVECOM decoder software.
Professional versions are only available to government bodies.
WAVECOM maintains a mailing list of our professional customers. For
registration details, see Appendix at the end of this manual.
Options Different additional options are available from WAVECOM.
In the manual, options are marked with (Option).
Options are only available to government bodies.
Training Please, note that when required WAVECOM is able to provide training on
the WAVECOM XML interface. Training can be ordered to take place at
the customer location or at our offices in Switzerland.
Source Code Source code is available for professional users. Please, inquire to receive
an offer from WAVECOM if you plan to add your own modes.
Company ProfileWAVECOM ELEKTRONIK GmbH was founded in 1985 in Hohentengen,
Germany, close to the Swiss border. In 1991 the company moved to
Switzerland and established itself as WAVECOM ELEKTRONIK AG.
Now located in Buelach it is within close vicinity of Zuerich airport.

2 •Introduction User Manual W51PC DCOM Interface V1.1
The company has focused on decoding and analysis systems for wire-
less data transmissions. The wide product range spans from profession-
al, high performance systems to devices for private and amateur radio
use.
The very high quality standards combined with high system performance
are appreciated by all customers worldwide. A global network of autho-
rized sales partners ensures that local assistance and basic level support
can be provided in most places. More than 95% of all units sold are ex-
ported. The majority of the customers are government agencies, defense
organizations and the telecommunication industry.
About 40% of the turnover is invested in research and development. The
employees at WAVECOM ELEKTRONIK AG are mainly engineers with
experience in DSP technology, computer and RF hardware development,
software engineering and radio data transmission. Access to external
know-how and human resources enlarges the capabilities for realizing
projects. Manufacturing is outsourced to specialized companies within
Switzerland which can handle today's needs for processing surface
mount components and fine-pitch structures.
WAVECOM ELEKTRONIK AG does not have any juridical or financial
links or connections to other companies or official bodies and is com-
pletely owned by its general manager, Mr. Christian Kesselring.
Revisions
Version Date Changes
1.0 28.Aug 2006 Removed from the W51 Manual and put in a sepa-
rate document.
1.130.Jan 2008 HRESULT GetTextData([out] BSTR *Data) ex-
tended for codes that have more than one channel.
Introduction
DCOM is no longer supported in future WAVECOM products. It still exists
in the W4oPC, W41PC and W51PC. Please convert your existing
W51PC software to the XML interface
The WAVECOM program consists of two parts. The first part is called the
WAVECOM Client and contains the user interface, menus, dialogs and
graphics. The second part, called the WAVECOM Server, contains the in-
terface to the decoder card. The WAVECOM Server communicates with
the decoder card and it always run on the machine containing the DSP
card. Client applications use DCOM to connect to the WAVECOM Server
from anywhere on the network.

User Manual W51PC DCOM Interface V1.1 Introduction •3
Computer Computer
Client Application
Computer
Wavecom Cards
SERVER
Computer
Wavecom Cards
SERVER
The WAVECOM Server provides two interfaces. The first is a compre-
hensive interface providing all the functionality required by the
WAVECOM Client application. The second interface is a simplified inter-
face providing only the functions required for an external application. This
interface is compatible with the OLE automation standard to allow appli-
cations written in various programming languages to interface to the
WAVECOM Server.

4 •Remote Control Interface User Manual W51PC DCOM Interface V1.1
Remote Control Interface
WxxServer
Class
Client Application WxxParam
Class
IWxxSystem
IWxxParam
IWxxDataSink
WxxPC
WxxPC Cards
Interface diagram
Class W51Server
W51Server is implemented as an out-of-process server. It can either be
used as a Local Server (on the same machine) or a Remote Server (on
another machine). The W51Server program supports the Iw51System in-
terface for use by any client application.

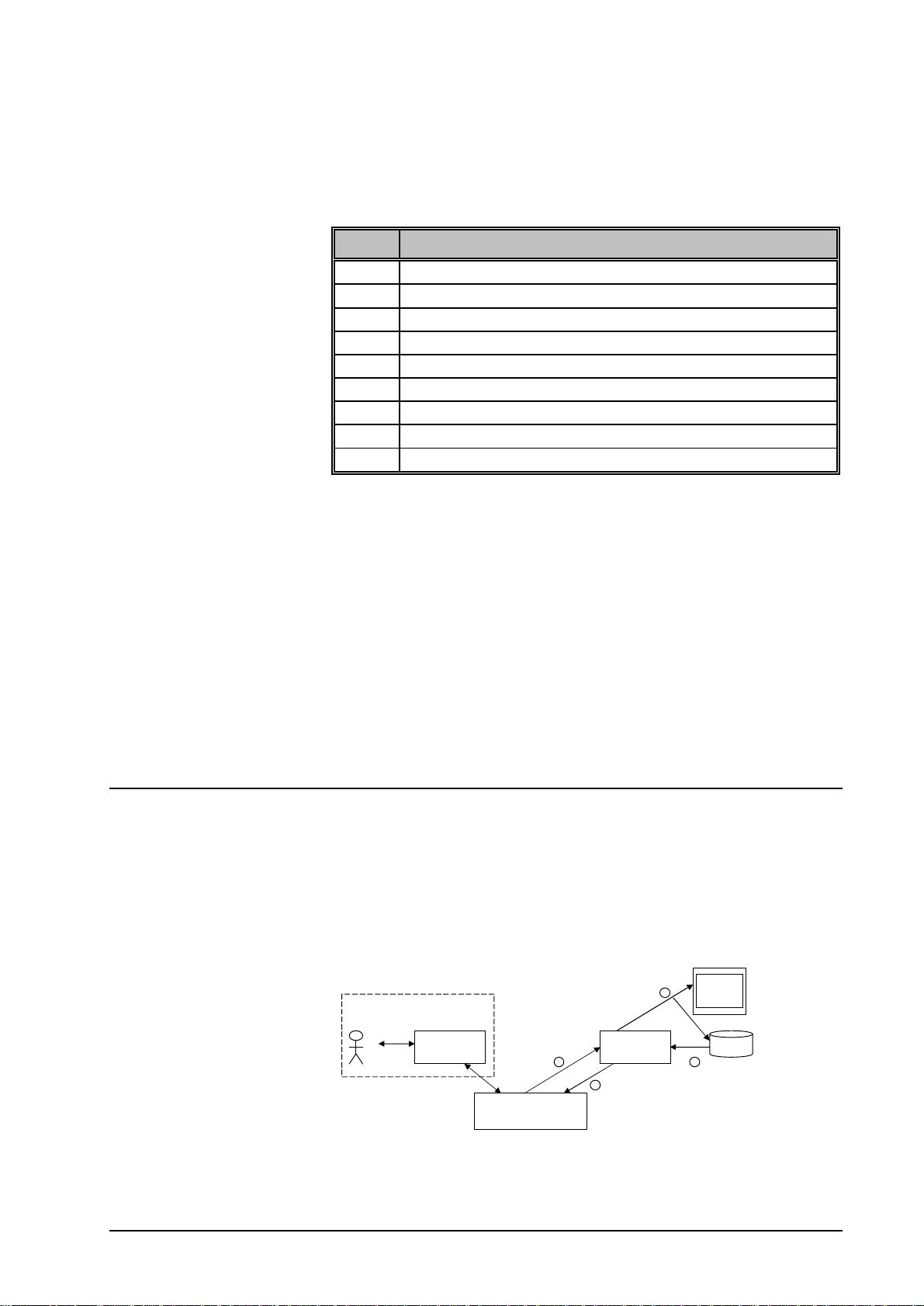

Iw51System
Decoder
User Interface
Wxx PC Server
Client
Application
1
User locate and start
decoding a signal
2
Card communicate
parameters to server
3
Client Application
retrieve parameters
from server using
the Iwxx System
interface
4
Client Application
save parameters in
database
Similarly, the client application can set the state of the decoder card.
Decoder
User Interface
Wxx PC Server
Client
Application
4
User see parameters
changing. Decoded
signal output appear on
the screen.
3
Server communicate
parameters to decoder
Card
2
Client Application
set parameters in
server using the
Iwxx System
interface
1
Client Application
retrieve parameters
from database
The Iw51System interface is used to set or retrieve state and decoded
data from the W51PC card. The state consists of parameters such as de-

User Manual W51PC DCOM Interface V1.1 Class W51Server •5
coder mode, baud rate, frequency shift, etc. The client application can at
any time retrieve the state of the decoder card as it was set up using the
decoder user interface and the decoder user interface can retrieve the
state as it was set up using the client application. This is because the de-
coder user interface and the client application share the same
W51Server.
The list of parameters that make up the state of the decoder varies from
mode to mode and is also changed from time to time as new modes and
functionality are added to the decoder. To isolate the client application
from these changes, the state of the decoder is stored as a “blob” of data.
This is simply a variable length array of bytes. It is the responsibility of
the W51Server to create this blob when sending it to the client application
and to interpret the blob when it is received from the client application. All
that the client application has to do is to ensure that it sends the blob
back to the W51Server exactly the same way it was received. To allow
the client application to interpret the parameters that are inside the “blob”
a W51Param utility class is provided.
Iw51System Methods
Shown below is the IDL definition of the Iw51System interface. Each of
the functions (or methods) will be described.
interface IW51System : IDispatch
{HRESULT Connect([in] BSTR CardName);
HRESULT ConnectByNumber([in] long lCardNumber);
HRESULT ActivateW51PC([in] BSTR ComputerName);
HRESULT SetParam([in] BSTR Blob);
HRESULT GetParam([out] BSTR* Blob);
HRESULT GetSystemStatus([out] BOOL*Idle,
[out]BOOL*Traffic,
[out] BOOL*Error,
[out] BOOL*RQ,
[out] BOOL*Auto,
[out] BOOL*Sync,
[out] BOOL*Phasing)
[out] long*Level);
HRESULT SetUpdateRate([in] long lUpdateRate);
HRESULT GetTextData([out] BSTR *Data);
HRESULT GetRawData( [in] long cMax,
[out] long*pcActual,
[out size_is(cMax),length_is(*pcActual)] BYTE Data);
HRESULT EnableCallBackText([in] BOOL Enable);
HRESULT EnableCallBackRaw([in] BOOL Enable);
HRESULT EnableCallBackStatus([in] BOOL Enable);
HRESULT GetCardStatus([out] long *Status);
HRESULT RawDataAsText([in] BOOL Enable);
HRESULT SystemIsReadyForParamChange([out] BOOL *IsReady);
HRESULT Reset();
HRESULT Resync();
};
Description of methods in Iw51System:
HRESULT Connect([in] BSTR CardName);
The card name is provided as a BSTR. These card names can be
changed using the Server Control application. This function initializes the
card by downloading code to the card. This function has to be called be-
fore the card can be used. Calling connect with another card name will
disconnect the current card and connect to the new card.
HRESULT ConnectByNumber([in] long lCardNumber);

6 •Class W51Server User Manual W51PC DCOM Interface V1.1
This function enables you to connect to a card in the same way as the
Connect() function does. The only difference is that instead of the card
name being supplied, the card number is used. Card numbers 0 through
7 are valid. The function will fail if an invalid card number is specified.
HRESULT SetParam([in] BSTR Blob);
This function allows the client application to change the parameters on
the card. The BSTR that is supplied must be created by using the
W51Param utility interface or it can be a BSTR previously created with a
call to GetParam.
HRESULT GetParam([out] BSTR* Blob);
Retrieves the parameters from the card. The parameters are returned as
a BSTR.
HRESULT ActivateW51PC([in] BSTR ComputerName);
This function will launch the decoder User Interface on the remote com-
puter specified in the ComputerName string. The server must be running
on the remote computer for this function to work. The Server can be
started by running the Server Control application.
To show you all the possible combination up to 3 computers are needed:
Remote
Client WAVECOM SERVER W51PC Card Command
PC#1 PC#1 PC#1 =CREATEOBJECTEX(clsidsystem,PC#1)
ActivateW51PC("local") –or –
ActivateW51PC("127.0.0.1") –or –
ActivateW51PC("PC#1") –or –
ActivateW51PC("IPof PC#1")
PC#1 PC#1 PC#2 =CREATEOBJECTEX(clsidsystem,PC#1)
ActivateW51PC("PC#2") –or –
ActivateW51PC("IPofPC#2")
PC#1 PC#2 PC#1 =CREATEOBJECTEX(clsidsystem,PC#2)
ActivateW51PC("PC#1") –or –
ActivateW51PC ("IPofPC#1")
PC#1 PC#2 PC#2 =CREATEOBJECTEX(clsidsystem,PC#2)
ActivateW51PC("local") –or –
ActivateW51PC("127.0.0.1")
PC#1 PC#2 PC#3 =CREATEOBJECTEX(clsidsystem,PC#2)
ActivateW51PC("PC#3") –or –
ActivateW51PC("IPofPC#3")
in addition to the Computer Name or IP address the port number used
must be added to the computer name (PCABC:6500) or the computer
address (xxxx.xxxx.xxxx.xxxx:2300). The port number must be setup on
the WAVECOM Server Control screen. If a port number is not added,
then the default port 33133 is used.
HRESULT GetSystemStatus([out] BOOL*Idle, [out] BOOL*Traffic,
[out] BOOL*Error, [out] BOOL*RQ, [out] BOOL*Auto, [out]
BOOL*Sync, [out] BOOL*Phasing, [out] long*Level );

User Manual W51PC DCOM Interface V1.1 Class W51Server •7
Retrieves the system status of the card. All the parameters are of type
BOOL and a TRUE or FALSE value is returned for each.
HRESULT SetUpdateRate([in] long lUpdateRate);
The rate at which call-back functions are called can be changed using
this function. The lUpdateRate parameter indicates the delay between
calls in milliseconds. The lUpdateRate parameter must have a value in
the range 100 to 5000 milliseconds.
HRESULT GetTextData([out] BSTR *Data);
Retrieves the text data from the card. A buffer will store the text data re-
ceived from the card and provide it when either the GetTextData function
or the NewTextData call back function occurs.
For codes that have more than one channel, e.g. PICCOLO or ARQ-M2-
242, special characters are inserted into the text data to separate the
channels.
Example: A{text data chn a}B{text data chn b}C{text data chn c}D{text
data chn d}.
Codes with only one channel don’t use these special characters
HRESULT GetRawData([in] long cMax,[out] long *pcActual, [out,
size_is(cMax), length_is(*pcActual)] BYTE *Data);
Retrieves the raw data (as a bit stream) from the card. The cMax para-
meter indicates the maximum length of the buffer used to receive the da-
ta. The pcActual parameter indicates the actual length of the data re-
ceived. Data points to the data.
HRESULT EnableCallBackText([in] BOOL Enable);
If EnableCallBackText is called with the Enable parameter TRUE the call
back function NewTextData will be enabled. To disable the call back
function, call EnableCallBackText with FALSE.
HRESULT EnableCallBackRaw([in] BOOL Enable);
If EnableCallBackRaw is called with the Enable parameter TRUE the call
back function NewRawData will be enabled. To disable the call back
function, call EnableCallBackRaw with FALSE.
HRESULT EnableCallBackStatus([in] BOOL Enable);
If EnableCallBackStatus is called with the Enable parameter TRUE the
call back function NewSystemStatus will be enabled. To disable the call
back function, call EnableCallBackStatus with FALSE.
HRESULT RawDataAsText([in] BOOL Enable);
Developers who prefer to work with Unicode strings instead of binary da-
ta can call this function to convert all the binary data to hex strings. After
calling RawDataAsText(TRUE) every BYTE that would have been made
available on the GetRawData() function will be converted to a two cha-
racter hex string and become available on the GetTextData() function.

8 •Class W51Server User Manual W51PC DCOM Interface V1.1
For example: The three bytes 01h, 1Ah, FFh will be converted to the
string “011AFF” –a string of 6 Unicode characters.
HRESULT GetCardStatus([out] long *Status);
This function returns the card status as defined by the following values:
Value Status
0Card is being initialized
1Card has been initialized and card is running
2Some error occurred initializing the card
3The decoder dsp program could not start
4Card in use
5No card
6Error timeout
7Error device driver
8Error device conflict
HRESULT SystemIsReadyForParamChange([out] BOOL *IsReady);
This function allows the client application to check if a new blob can be
send to the card.
HRESULT Reset();
Clear the data buffers.
HRESULT Resync();
Forces a new synchronization in the current mode.
Iw51DataSink The client application can use the Iw51DataSink interface to receive the
decoded data from the decoder Card. The decoded data can be text,
bitmap or signal data depending on the mode that the decoder card is set
to. System information (i.e. traffic, idle etc.) can also be accessed using
this interface. The W51DataSink interface represents the call-back func-
tions from the Server to the client.
Decoder
User Interface
WxxPC Server
Client
Application
4
Decoded data can be
displayed on the screen
or saved to the
database
3
The server sends the
decoded data to the
Client Application
using the
IWxxDataSink
interface
2
Client Application
set parameters in
server using the
IWxxSystem
interface
1
Client Application
retrieve parameters
from database
Screen
Optional
The client application will use Iw51System interface to establish a con-
nection with the server and to set up the mode of the decoder card. After

User Manual W51PC DCOM Interface V1.1 Class W51Server •9
that the server will call into the client application using the Iw51DataSink
interface to send it the decoded data.
The types of data that can be returned are:
•TEXT (Unicode characters for all text modes)
•IMAGE (grayscale bitmap for fax modes)
•SIGNAL (array of integers for signal analysis mode)
•Parameters (e.g. baud rate)
•FFT (array of integers for FFT mode)
•New types possible in future…
Iw51DataSink Methods
This interface allows the server to communicate results to its clients.
interface IW51DataSink : IDispatch
{HRESULT NewTextData([in] BSTR Data);
HRESULT NewRawData([in] long cMax,
[in, size_is(cMax)] BYTE *nData,
[in] long DataType);
HRESULT NewSystemStatus([in] BOOL Idle,
[in] BOOL Traffic,
[in] BOOL Error,
[in] BOOL RQ,
[in] BOOL Auto,
[in] BOOL Sync,
[in] BOOL Phasing,
[in] long Level);
};
Three distinct types of data can be returned from the Server. These are
text data, raw data (for example fax, bitmap etc.) and system status re-
sults. The rate at which the server calls the client application is called the
update rate, and can be adjusted using the Iw51System interface’s Se-
tUpdateRate function.
Description of methods in Iw51DataSink:
HRESULT NewTextData([in] BSTR Data);
This is the call-back function that will be called when new text data is
available. The text data is returned in a BSTR. This function can be
enabled or disabled using the EnableCallBackText function on the sys-
tem interface.
HRESULT NewRawData([in] long cMax, [in, size_is(cMax)] BYTE
*nData,[in] long DataType);
Called when new raw data as bit stream data becomes available. The
cMax parameter indicates the size of the data buffer, nData points to the
data and DataType indicates the type of data. This function can be
enabled or disabled using the EnableCallBackRaw function on the Sys-
tem interface.

10 •Class W51Param User Manual W51PC DCOM Interface V1.1
HRESULT NewSystemStatus([in] BOOL Idle, [in] BOOL Traffic, [in]
BOOL Error, [in] BOOL RQ, [in] BOOL Auto, [in] BOOL Sync, [in]
BOOL Phasing, [in] long Level);
Call back function used to indicate the system status and level. All the
system status parameters are returned as BOOL values that can be
TRUE or FALSE. The level indicator parameter returns a value between
0 and 12. This function can be enabled or disabled using the EnableCall-
BackStatus function on the system interface.
RawData format for FAX
From W51PC Software Version 6.2 on, fax data is transferred by the Ne-
wRawData routine.
•60 rpm = 1920 pixel/line
•90 rpm = 1280 pixel/line
•120 rpm = 960 pixel/line
•180 rpm = 640 pixel/line
•240 rpm = 480 pixel/line
•HELL = 28 pixel/line
Color Table for FAX modes
In the FAX modes (PRESS-FAX / WEATHER-FAX / METEOSAT /
NOAA-GEOSAT) the values from 0 to 255 represent specific colors
which are used for drawing the fax output. The colors (RGB values) for
each value are listed in the following table. RGB(0, 0, 0) corresponds to
black and RGB(255, 255, 255) corresponds to white
Class W51Param
The client application can use the W51Param class to extract parameters
from the “blob” of state information returned by the server. The
W51Param class is implemented as an in-process server.
ICW51Param The Iw51Param interface takes a “blob” as input and then returns the
value of any requested parameter as a string. The client application can
then display these strings in a user-friendly way. The interface can also
be used to set parameter values and to build “blobs” that can be stored in
a database or sent to the Server.
ICW51Param Methods

User Manual W51PC DCOM Interface V1.1 List of Parameters •11
interface ICW51Param : IDispatch
{HRESULT GetBlob([out] BSTR* Blob);
HRESULT SetBlob([in] BSTR Blob);
HRESULT SetParam([in] BSTR Name, [in] BSTR Value);
HRESULT GetParam([in] BSTR Name, [out] BSTR *Value);
HRESULT Reset();
};
Description of methods in ICW51Param:
HRESULT GetBlob([out] BSTR* Blob);
Retrieves the blob as a BSTR.
HRESULT SetBlob([in] BSTR Blob);
Sets the blob so parameters can be extracted.
HRESULT SetParam([in] BSTR Name, [in] BSTR Value);
Sets a parameter value. Name is the parameter name and Value is a
BSTR containing the value of the parameter. The Name and Value
strings are case sensitive.
HRESULT GetParam([in] BSTR Name,[out] BSTR *Value);
This function retrieves the value of a parameter. Name is the parameter
name and Value is a pointer to the parameter value. The Name and Val-
ue strings are case sensitive.
HRESULT Reset();
Resets all the parameters to empty strings. Call this function to clear the
contents of the blob stored in the object.
List of Parameters
List of parameters supported by W51System class
W51 Parameter Name Legal Values
Afc ON, OFF
Agc ON, OFF, LOW-NOISE
Algorithm VITERBI, FANO
Am-gain 0...100
Am-offset 0...2047
Auto ON, OFF
Auto-speed ON, OFF

12 •List of Parameters User Manual W51PC DCOM Interface V1.1
Bandwidth 50…24000
Baud rate AF-IN, IF-IN-VAR: 30.0...1200.0
IF-IN-10.7, IF-IN-21.4: 30.0..
9600.0 Bit-inversion
0-31 Center
AF-IN, IF-IN-VAR: 500 ..
3500 IF-IN-10.7, IF-IN-21.4: 500...16000
Code-table TABLE-0, TABLE-1
Cw-speed 20...400
Data-mode See list of valid alphabet strings
Demodulation DSP, M, AM, CW, GFSK, FFSK, FFT,
MFSK, TIME, DTMF, BPSK, FTDM, QPSK,
DPSK, ANAL, SUBTONE, 2DPSK, 4DPSK,
8DPSK, 16DPSK, SRC, OQPSK, OFDM, QAM
Display ASCII, HEX, BAUDOT, ASCII/HEX,
ASCII/HEX/BAUDOT, RAW, SIGNALING-
INFO, SELECTED-TIME-SLOT, ALL-TIME-
SLOTS, ALL-BLOCKS, RAW-BITS
Display-mode ALL, VALID-ONLY, NO-ERROR
Drum-speed 60, 90, 120, 180, 240
Ecc ON, OFF
FFT-Average-factor 1…64
FFT-Window RECTANGLE, HAMMING, HANNING,
BLACKMAN
Filter-response SLOW, NORMAL, FAST
Frame-length 3, 4, 5, 6, 7, 8, 9, 22
Frame-format 2400-SHORT, 1200-SHORT, 600-SHORT,
300-SHORT, 150-SHORT, 75-SHORT, 2400-
LONG, 1200-LONG, 600-LONG, 300-LONG,
150-LONG, 75-LONG, 3600-UNCODED ,
2400-UNCODED, 1800-UNCODED, 1200-
UNCODED, 600-UNCODED
Gain 0…100
Ias ON, OFF
Input AF-IN, IF-IN-VAR, IF-IN-10.7, IF-IN-21.4, EXT-
DEM-IN
Ioc-module 288, 352, 576
Letfig-mode NORMAL, LETTER, FIGURE, UOS
Lowpass-filter 1.0...100.0
Message-type POCSAG-MIXED, POCSAG-ASCII, POCSAG-
AUTO, POCSAG-TYPE3, DGPS-NORMAL,
DGPS-RAW, DGPS-CORR, DGPS-ALL,
HFACARS-HEADER-ONLY, HFACARS-DATA-
WITHOUT-DETAIL, HFACARS-ALL-DATA,
MIL-STANAG-ASCII-ASYNC, MIL-STANAG-
ASCII-ASYNC-7DBIT-0STOPBIT, MIL-
STANAG-ASCII-SYNC, MIL-STANAG-HEX,
NMT450-ALLFRAMES, NMT450-MTXTOMS,
NMT450-MSTOMTX, NMT450-BSTOMTX,
NMT450-MTXTOBS, NMT450-MTXTOTMS
Mode See list of valid mode strings
Mpt-format ASCII, BINARY
Mpt-station FIXED, MOBILE

User Manual W51PC DCOM Interface V1.1 List of Parameters •13
Noisegate-mode EABLED, DISABLED
Oscillator 3960000…4040000
Oscilloscope-Time200us, 500us, 1ms, 2ms, 5ms, 10ms, 20ms,
50ms, 100ms
Oscilloscope-Gain 0...1600
Oscilloscope-Trigger-level -99… 99
Oscilloscope-Trigger-mode OFF, POSITIVE, NEGATIVE
Osi-level 0, 1
Parity NO, EVEN, ODD, MARK, SPACE
Period 50…10000
Polarity NORMAL, INVERSE
PSK-Filter 0...20
PSK-Ref-iq 100.0…3600.0
PSK-Sample-rate 2000, 4000, 8000
PSK-Symbol-rate 25.0...2400.0
PSK-Sync-mode SYNC, ASYNC
PSK-Zoom 500, 1000, 4000, 12000, 24000
Repetition-cycle 4, 5, 8
Scan-mode FAST, FULL
Shift AF-IN, IF-IN-VAR: 50.…3500
IF-IN-10.7, IF-IN-21.4: 50…16000
Sreg 72, 128, OFF
Time-slot 1…22
Toggle LOW, HIGH
Tone-duration 20.0...1000.0
Tracking-rate 1…15
Translation AF-IN: -2000...16000
IF-IN-VAR: 14000...1500000
IF-IN-10.7: 10600000...10800000
IF-IN-21.4: 21300000...21500000
Twinplex-f1<->f2 10...800
Twinplex-f2<->f3 10...800
Twinplex-f3<->f4 10...800
Twinplex-v1-mode YYBB, YBYB, BYYB, BYBY, YBBY
Twinplex-v2-mode YBYB, BYYB, BYBY, YBBY
Version contains the version of the blob
List of valid W51 mode strings
ACARS
AIS
ALF-RDS
ALIS
ALIS-2
AMSAT-P3D
ARQ6-90

14 •List of Parameters User Manual W51PC DCOM Interface V1.1
ARQ6-98
ARQ-E
ARQ-E3
ARQ-M2-242
ARQ-M2-342
ARQ-M4-242
ARQ-M4-342
ARQ-N
ASCII
ATIS
AUM-13
AUTOSPEC
BAUDOT
BULGASCII
CCIR-1
CCIR-7
CCITT
CIS-11
CIS-14
CIS-36
CIS-36-50
CIS-50-50
CODAN
COQUELET-13
COQUELET-8
COQUELET-80
CTCSS
CW-MORSE
DCS-SELCAL
DGPS
DSC-HF
DSC-VHF
DTMF
DUP-ARQ
DUP-ARQ-2
DUP-FEC-2
EEA
EFR
EIA
ERMES
EURO
FEC-A
FELDHELL
FLEX
FM-HELL

User Manual W51PC DCOM Interface V1.1 List of Parameters •15
FMS-BOS
GOLAY
G-TOR
GW-PSK
GW-FSK
HC-ARQ
HF-ACARS
HF-AUTOCORRELATION
HF-BIT-CORRELATION
HF-BIT-LENGTH
HF-BIT-STREAM
HF-CLASSIFIER
HF-FFT/SONAGRAM
HF-FSK-ANALYSIS
HF-FSK-CODE-CHECK
HF-MFSK-ANALYSIS
HF-OSCILLOSCOPE
HF-PSK-PHASE-PLANE
HF-PSK-SYMBOL-RATE
HF-REAL-TIME-FFT
HF-SONAGRAM
HF-WATERFALL
HNG-FEC
ICAO-SELCAL
METEOSAT
MFSK-16
MFSK-20
MFSK-8
MIL-188-110-16TONE
MIL-188-110-39TONE
MIL-188-110A
MIL-188-110B
MIL-188-141A
MPT-1327
NATEL
NMT-450
NOAA-GEOSAT
NO-MODE
NO-MODE
PACKET-1200
PACKET-300
PACKET-9600
PACTOR
PACTOR-II
PACTOR-II-FEC

16 •List of Parameters User Manual W51PC DCOM Interface V1.1
PICCOLO-MK12
PICCOLO-MK6
POCSAG
POL-ARQ
PRESS-FAX
PSK-125F
PSK-31
PSK-63F
RUM-FEC
SAT-A-TELEX
SAT-B
SAT-C-TDM
SAT-C-TDMA
SAT-M
SAT-MINI-M
SI-ARQ
SI-AUTO
SI-FEC
SITOR-ARQ
SITOR-AUTO
SITOR-FEC
SP-14
SPREAD-11
SPREAD-21
SPREAD-51
SSTV
STANAG-4285
STANAG-4415
STANAG-4481-PSK
STANAG-4529
SWED-ARQ
TWINPLEX
VDEW
VHF-AUTOCORRELATION-DIR
VHF-AUTOCORRELATION-IND
VHF-BIT-CORRELATION-DIR
VHF-BIT-CORRELATION-IND
VHF-BIT-LENGTH-DIR
VHF-BIT-LENGTH-IND
VHF-BIT-STREAM-DIR
VHF-BIT-STREAM-IND
VHF-FFT/SONAGRAM-DIR
VHF-FFT/SONAGRAM-IND
VHF-FSK-ANALYSIS-DIR
VHF-FSK-ANALYSIS-IND
