Inter-m DASR-288 User manual

Operation Manual
Dante Audio Signal Router
DASR-288
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 1

DANTE AUDIO SIGNAL ROUTER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RI K OF ELECTRIC HOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RI K OF ELECTRIC HOCK.
DO NOT REMOVE COVER (OR BACK).
NO U ER- ERVICEABLE PART IN IDE.
REFER ERVICING TO QUALIFIED ERVICE PER ONNEL.
ATTENTION : RI QUE DE CHOC ELECTRIQUE
NE PA QUVRIR
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEA E READ THE FOLLOWING-WATER AND MOI TURE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases,
should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
* The mains plug of the power supply cord shall remain readily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.
Pour deconnecter completement l’appareil du reseau
d’alimentation. deconnecter le cordon d’alimentation de la
prise murale.
La prise du reseau d’alimentation doit demeurer aisement
accessible.
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 2

DANTE AUDIO SIGNAL ROUTER
1
DASR-288
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features............................................................................................................................................3
Component and Accessory...............................................................................................................3
Consideration for network set-up ......................................................................................................3
Front Panel ......................................................................................................................................4
Rear Panel .......................................................................................................................................5
System Connections .......................................................................................................................7
Applications ....................................................................................................................................8
Block Diagram ..............................................................................................................................10
Specifications ................................................................................................................................11
Service
Procedures....................................................................................................................................13
Schematic.....................................................................................................................................13
Parts List .......................................................................................................................................13
Variations and Options ...............................................................................................................13
Warranty .......................................................................................................................................13
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 3

DANTE AUDIO SIGNAL ROUTER
2DASR-288
Installation
Unpacking
Unpacking
Although your DASR-288 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
3125A
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 4

DANTE AUDIO SIGNAL ROUTER
3
DASR-288
Features
Features
The DASR-288 is a digital audio transport system utilizing Audinate’s DanteTM network audio solution. The
DASR-288 connects to your network with a single Ethernet cable. It offers eight channels (2 mic/line selectable)
of line-level analogue in and out, using precision 24-bit A-D and D-A conversion for superb audio
performance, and 119dB dynamic range at sample rates up to 192kHz. This product is used as the audio
matrix, each having eight inputs, where you can send uncompressed audio with low latency using standard
TCP/IP Ethernet network. It’s remotely controlled via the network and can be placed anywhere in a facility. Data
tunneling offers the transport of 8 contact closures in and 8 contact closures out together with either RS232 or
RS485 serial data.
- 8channel real-time audio signal transmission
8channel audio input (Line Input 1~8)
8channel audio output (Line output 1~8)
- Data transmission via network
RS-232C Serial Data transmission
Contact(Dry Contact) Data transmission
- S-CONNECT : set up for equipment and system operating monitoring program
- Check out status of suitable equipment through webpage(CGI)
※Please refer to a special software manual for methods of webpage operation and system operation program
(S-CONNECT)
Component and Accessory
Component and Accessory
1. DASR-288 main body x 1
2. AC power supply cord x 1
3. 3P terminal block x 16
4. 4P terminal block x 1
5. 16P terminal block x 2
6. RS-232C cable x 1
7. Lack mounting screw x 4
Consideration for network set-up
Consideration for network set-up
- DASR-288 support a set-up of fixed IP and current IP.
- It can change the setting connecting the webpage after attaching DASR-288 and PC with a line when setting a
fixed IP.
- Recommend to use with organizing private network when using LAN.
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 5

DANTE AUDIO SIGNAL ROUTER
4DASR-288
Front Panel
Front Panel
1. AUDIO IN/OUT LED
LED displaying audio signal input and output of each channel.
2. NETWORK STATUS LED (PRIMARY/SECONDARY)
LED displaying network data transmission and network access condition of equipment.
GREEN LED 10 Base-T/100 Base-Tx Network
RED LED 1000 Base-T Network
3. LCD
LCD displaying set-up condition of equipment (equipment name, IP, S/W version).
4. DISPLAY SELECTOR SWITCH
Switch verifying the contents of setting up.
. POWER LED
LED displaying the status of power supply.
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 6

DANTE AUDIO SIGNAL ROUTER
DASR-288
Rear Panel
Rear Panel
1. AC INPUT
AC Input terminal (Power supply is AC 120V - 240V, 50/60Hz)
2. POWER SWITCH
Power switch for on/off.
3. DC INPUT
This is a terminal to connect a preliminary battery(24VDC) for emergency. The device is operated via
connected preliminary battery during a blackout from AC power.
24VDC -- input supplies power to set regardless of power switch on/off.
4. DRY CONTACT INPUT AND OUTPUT TERMINAL
If inputting a dry contact signal into the contact terminal of transmitter, the dry contact signal is outputted in
its contact output terminal of receiver.
Input contact A dry contact signal can be inputted if making short each channel's pin.
Output contact The same signal as input contact of transmitter outputs.
※Note A dry contact signal is transmitted only when the device is normally operating and please input the
signal once you complete to check its operating status.
Input signal is not transmitted when the power is off because data is sent in real time.
Each device can transmit or receive only and is impossible to be duplicated for its use.
PRIMARY SECONDARY
SYNC
ERROR
AC INPUT
POWER
RS-232
OFF ON DC INPUT
24V 1A CH 8
+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G
AUDIO OUTPUTS(0dBu)
87654321
CONTACT OUTPUTS
CONTACT INPUTS
LIVE
87654321
CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1
CH 8
+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G
AUDIO INPUTS(0dBu)
CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1
/
58
9
87654321
CONTACT OUTPUT
CONTACT INPUT
87654321
Output
Input
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 7

DANTE AUDIO SIGNAL ROUTER
6DASR-288

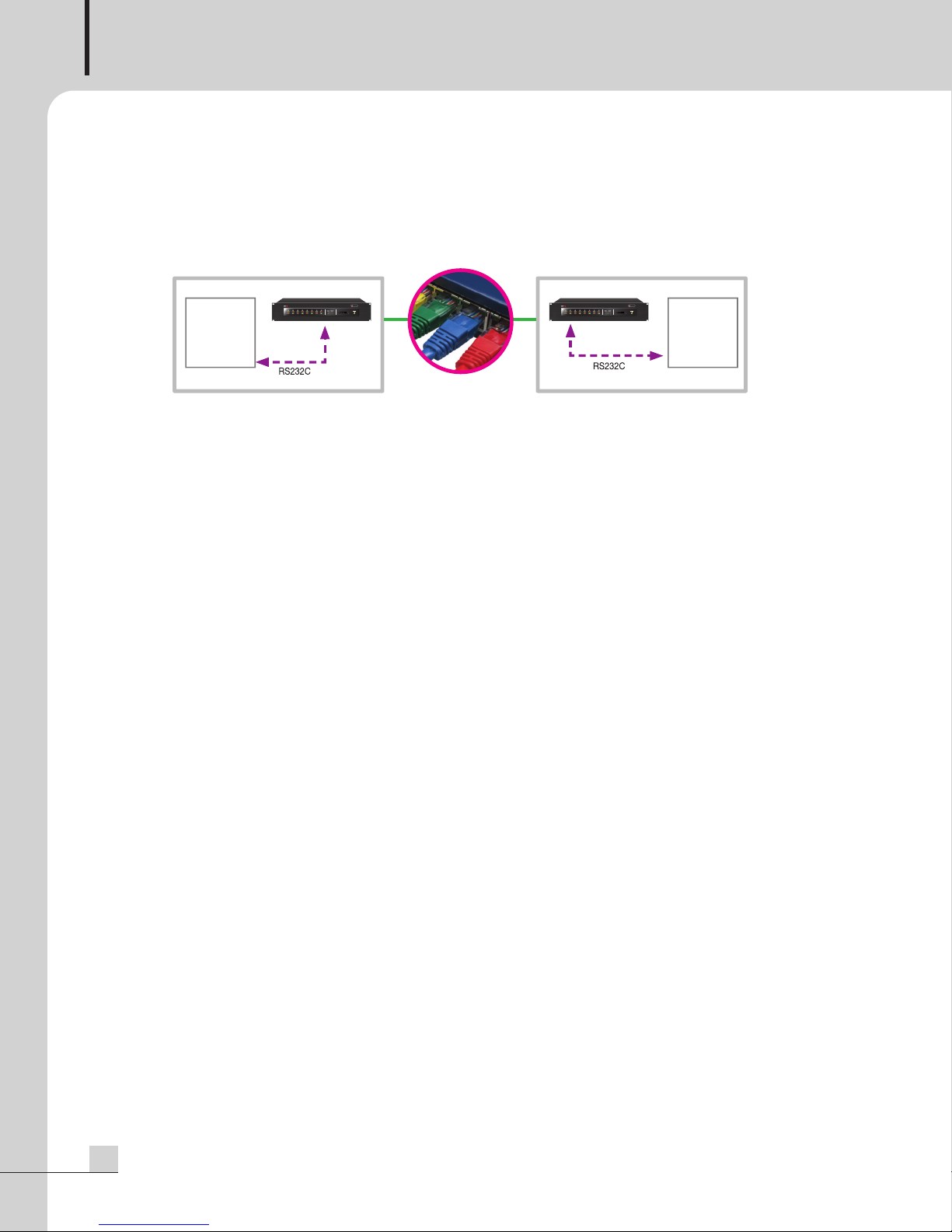

. RS-232C COMMUNICATION TERMINAL
If inputting a signal into RS-232C terminal of transmitter, the signal is outputted via RS-232C of receiver.
For example, the same signal from receiver is outputted when inputting 'A, B, C, D' into transmitter.
6. NETWORK TERMINAL
It supports 10/100/1000 Base-Tx as network connection terminal(RJ-45)
- PRIMARY PORT This is a main network terminal and is possible to change the setting of a device.
- SECONDARY This is auxiliary network terminal and is possible to keep the PRIMARY status.
7. NETWORK STATUS LED
- LIVE When connecting a device to network normally, green led is off.
- SYNC When a device is not connected to network or network line and sink are not matched, red led is off.
8. AUDIO OUTPUT (CH1 ~ CH8)
This is an output terminal of audio and consists of 8 channel including balanced outputs(Hot, Cold, GND).
9. LINE INPUT (CH1 ~CH8)
This is a line input terminal of audio and consists of 6 channel including balanced inputs(Hot, Cold, GND)
L
A
N
MAIN POINT
DATA
INPUT
DATA
OUTPUT
Dante
TM
DASR-288 DANTEAUDIO SIGNAL ROUTER
POWER
DISPLAY
Dante
TM
DASR-288 DANTEAUDIO SIGNAL ROUTER
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
192.168 . 4 8 . 1 5 6
POWER
DISPLAY
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 8

DANTE AUDIO SIGNAL ROUTER
7
DASR-288
System Connections
System Connections
1G▶
Dante
TM
DASR-288 DANTEAUDIO SIGNAL ROUTER
DISPLAY
Dante
TM
DASR-288 DANTEAUDIO SIGNAL ROUTER
DISPLAY
DASR-288
DASR-288
MAIN
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 9

DANTE AUDIO SIGNAL ROUTER
8DASR-288
Applications
Applications
PRIMARY SECONDARY
SYNC
ERROR
AC INPUT
POWER
RS-232
OFF ON DC INPUT
24V 1
ACH 8
+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G
AUDIO OUTPUTS(0dBu)
87654321
CONTACT OUTPUTS
CONTACT INPUTS
LIVE
87654321
CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1
CH 8
+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G+
-
G
AUDIO INPUTS(0dBu)
CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1
/
DECK
SERIAL
COMMUNICATION
DEVICE
DRY CONTACT
IN/OUT DEVICES
CDP
TUNER
AUX
Local
Network
Amp & Speaker
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 10

DANTE AUDIO SIGNAL ROUTER
9
DASR-288
L
A
N
Headquarter
College of
Engineering
College of
Humanities
College of
Arts
Gym
Disaster
Prevention Center
*LAN: Local Area Network
AUDIOOUT
AUDIOIN
Dante
TM
DASR-288 DANTEAUDIOSIGNAL ROUTER
POWER
DISPLAY
AUDIOOUT
AUDIOIN
1CH 2CH 3CH 4CH 5CH 6CH 7CH 8CH
Dante
TM
DASR-288 DANTEAUDIOSIGNAL ROUTER
POWER
DISPLAY
AUDIOOUT
AUDIOIN
1CH 2CH 3CH 4CH 5CH 6CH 7CH 8CH
Dante
TM
DASR-288 DANTEAUDIOSIGNAL ROUTER
POWER
DISPLAY
AUDIOOUT
AUDIOIN
Dante
TM
DASR-288 DANTEAUDIOSIGNAL ROUTER
DISPLAY
AUDIOOUT
AUDIOIN
Dante
TM
DASR-288 DANTEAUDIOSIGNAL ROUTER
POWER
DISPLAY
AUDIOOUT
AUDIOIN
Dante
TM
DASR-288 DANTEAUDIOSIGNAL ROUTER
POWER
DISPLAY
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 11

DANTE AUDIO SIGNAL ROUTER
10 DASR-288
Block Diagram
Block Diagram
DANTEMODULENETWORK(RJ45)접점INPUT(8CH)접점OUTPUT(8CH)DANTE InterfaceRS-232CAD X8DA X8AMPAMPAudio/MICInputAudio/MICOutputAudio OutputLED METERAudio InputLED METER
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 12

DANTE AUDIO SIGNAL ROUTER
11
DASR-288
Specifications
Specifications
DASR-288
AUDIO Max Input Level LINE + 20dBu
Max Output Level + 20dBu
Frequency Response 20Hz ~ 20kHz
T.H.D Less than 0.1%
Sampling Frequency 48kHz
Quantization Bit 24bit
Data Communication Dry Contact, RS-232C
Communication Dry Contact 8 Input, 8 Output
Baudrate 9600 bps ~ 115200 bps
Ethernet(LAN) 10/100/1000 Base - Tx (RJ-45)
General Operating Temperature 0°C ~ +40°C
Power Source AC 120 - 240V, 50/60Hz or DC 24V
Power Consumption 25W
Weight (SET) 4.01kg / 8.84lb
Dimensions (SET) 482(W) x 88(H) x 280(D)mm/19(W)x 3.5(H) x 11(D) in
* Design and specification are subject to be changed for the improvement of product quality without pre notice.
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 13

DANTE AUDIO SIGNAL ROUTER
12 DASR-288
※ DIMENSIONS
280
482
420
88
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 14

DANTE AUDIO SIGNAL ROUTER
13
DASR-288
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 15

MADE IN KOREA
April 2015 137410
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
13875 ARTESIA BLVD. CERRITOS, CA 90703 USA
TEL [phone], FAX [phone]
Home Page http //www.inter-m.net, E-mail [email protected]
Inter-M Corporation
SEOUL OFFICE 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL [phone]~8, FAX [phone]
Home Page http //www.inter-m.com, E-mail [email protected]
DASR-288_MANUAL_137410_FOR_DAC-288_E 15. 3. 30. 오후 1:38 페이지 16
