WebDoor CADET PRO Quick guide

WebDoor
866-262-5661
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
CADET PRO (Non-Handed)
LOW ENERGY SWING DOOR OPENER
Installation and Instruction Manual
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS CAREFULLY! FAILURE TO DO SO MAY RESULT IN
PERSONAL INJURY OR PROPERTY DAMAGE!
2. Install only on a properly operating and balanced door. A door that is operating improperly could cause severe injury.
Have qualified service personnel make repairs to cables, spring assemblies, and other hardware before installing the
opener.
3. Remove all pull ropes and remove, or make inoperative, all locks (unless mechanically and/or electrically interlocked
to the power unit) that are connected to the door before installing the opener.
4. Install the door opener at least 8 feet or more above the floor if the opener has exposed moving parts.
5. Do not connect the door opener to the source of power until instructed to do so. Connection of the high voltage supply
should be done by a qualified professional and within the guidelines of the enforced local electrical codes.
6. Locate the control station: (a) within sight of the door, (b) at a minimum height of 5 feet so small children cannot reach
it, and (c) away from all moving parts of the door.
7. Install the Entrapment Warning Placard next to the control station in a prominent location.
8. For products having a manual release, instruct the end user on the operation of the manual release.
9. Test all safety features before turning over the equipment to the customer.

Page 1 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
CONTENT
1.0 GENERAL INFORMATION..................................................................................................................................................................3
2.0 TECHNICAL SPECIFICATIONS ..........................................................................................................................................................4
3.0 INTENDED USE...................................................................................................................................................................................5
4.0 INSTALLATION CONSIDERATIONS...................................................................................................................................................7
5.0 ELECTRICAL CONSIDERATIONS......................................................................................................................................................7
6.0 INSTALLATION PROCEDURE............................................................................................................................................................8
6.1 Pre-Mounting Header Box Instructions ............................................................................................................................................8
6.1.1 Remove Cover..........................................................................................................................................................................8
6.1.2 Remove gearbox ......................................................................................................................................................................8
6.2 Opener Layout and Handing ..........................................................................................................................................................10
6.2.1 Changing Left Hand To Right Hand Installation .....................................................................................................................10
6.2.2 Changing Left To Right Push/Pull By Turning Opener Upside Down......................................................................................11
7.0 CONTROL BOX INSTALLATION.......................................................................................................................................................12
8.0 ARM ASSEMBLY INSTALLATION.....................................................................................................................................................13
8.1 Push Arm Installation.....................................................................................................................................................................13
8.3 Pull Arm Installation.......................................................................................................................................................................15
9.0 OPENER TUNING (LATCH & BACK CHECK ADJUSTMENT)..........................................................................................................16
10.0 HOW DOORS OPERATE ................................................................................................................................................................17
11.0 MODIFYING SPRING TENSION ....................................................................................................................................................18
12.0 TESTING WITH OBSTRUCTION.....................................................................................................................................................18
13.0 CONTROL SETTINGS.....................................................................................................................................................................18
14.0 DOOR CONTROL WITH DIGITAL PROGRAMMING ......................................................................................................................20
15.0 PROGRAMMING..............................................................................................................................................................................22
16.0 TROUBLESHOOTING .....................................................................................................................................................................27
17.0 ADA ADJUSTMENTS.......................................................................................................................................................................28
17.1 ADA Speed/Latch Check........................................................................................................................................................28
17.2 Adjustments of Controller for ADA Doors................................................................................................................................28
18.0 INSTALLATION WRAP UP..............................................................................................................................................................29
18.1 Add-Ons Compatibility .................................................................................................................................................................29
18.1.1 Activating Devices ................................................................................................................................................................29
18.1.2 Electric strike........................................................................................................................................................................29
18.2 Header Cover Installation ............................................................................................................................................................29
18.3 Safety Decals ...............................................................................................................................................................................29
18.4 Sticker Placement Example ..........................................................................................................................................................30
18.5 Release for Service ......................................................................................................................................................................30

Page 2 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
Replacements Parts
Item No
Category
Part Number
Description
1
Opener
WD-WL-PA03
Opener (Non-Handed)
2
Control Board
WD-W7-150
Analog Control Board
WD-W7-160
Digital Control Board
3
Fuse
WD-W5-421
Fuse 3AMP Analog Board
WD-W5-422
Fuse 3AMP Digital Board
4
Push Arm
WD-W7-200
Complete Push Arm-Clear
WD-W7-205
Complete Push Arm-Bronze
5
Pull Arm
WD-W5-506C
Pull Arm RH Clear
WD-W5-505C
Pull Arm LH Clear
WD-W5-506B
Pull Arm RH Bronze
WD-W5-505B
Pull Arm LH Bronze
6a
Pull Track (Short)
WD-W5-515C
Pull Track Clear
WD-W5-515B
Pull Track Bronze
WD-W5-517
Pull Track Roller
6b
Pull Track (Long)
WD-W5-551
Pull Track Asm. Long-Clear

Page 3 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
1.0 GENERAL INFORMATION
General
1. All wiring must conform to standard wiring practice in accordance with national and local wiring codes.
2. Door must swing freely through the entire opening and closing cycle before beginning the installation. Typically, doors are hung on
hinges [5” (127mm) max. width] or 3/4” (19mm) offset pivots.
3. An incorrectly installed or improperly adjusted door opener can cause property damage or personal injury. These instructions should
be followed to avoid the possibility of misapplication or maladjustment.
Note: Unless otherwise noted, all dimensions are given in inches (millimeters).
General Templating Information
Before beginning the installation, verify that the door frame is properly reinforced and is well anchored in the wall.
Concealed electrical conduit and concealed switch or sensor wires should be pulled to the frame before proceeding.
Suggested Fasteners for Frame
#14 x 2-3/4” (70mm) long sheet metal screws for wood.
Suggested Fasteners for Door
#12, #14, Wood screws, Sheet Metal screws, Self-tapping screws of varying lengths depending on applications.
Note: The fastener components listed above are merely suggestions. A technician should use their best discretion to determine what
components they’ll need to complete the job.
Safety Sensors
The control board can accommodate overhead and door mounted safety sensors. To permit safe passage through, the closing door will
reverse (if equipped with door mounted safety sensor) to the fully open position if an obstruction is encountered during the closing phase.
If equipped with door monitor sensor, the opener will then resume its standard closing cycle and repeat if the obstruction remains.
If equipped, the safety sensor on the closing side of the door will activate while the door is closing, the door will reverse to open.
If equipped, the safety sensor on the opening side of the door is activated by another pedestrian while the door is opening, the door
will stall until that pedestrian has left the opening area.
If the door is equipped with an overhead safety sensor, the door will not open if there is an obstruction or pedestrian in the swing
path.
If the door is equipped with an overhead presence sensor and in the closed position, the door will not open if there is an obstruction
or pedestrian in the swing path.
Activation Devices
The CADET PRO Opener is compatible with all devices using a dry contact switch, usually hardwired or radio controlled. All activation
signals should be wired to Activation 1 and Common. When a door is used in a vestibule the built-in sequence can be used to allow both
doors to operate in sequence. This is achieved by wiring Activation 2 on both boards together. The delay at which the second door
opens after the first door opens is set using function #5 on the programming schedule, up to 5 sec delay is achievable.
Push Plate or Knowing Act Device
Test the Knowing Act Device. The door should swing smoothly to the open position and stop without impact. After a time delay
(normally 1s to 5s) the door should close smoothly.
Repeat on the other side of the opening if the door has two-way operation.
Electric Strike
This opener control board is capable of supplying power (24VDC, 6W or 250mA) to the electric strike. When the door is triggered a
contact closure occurs across Ground and N.O. or N.C. to energize the strike. The strike has a delay function from 0.125 seconds - 2
seconds.
NOTE: If there is more than one push plate or Knowing Act Device on each side of the door, each should be tested.
WARNING: Make sure 120VAC (60Hz) input power is turned off at facility’s main circuit breaker before proceeding with installation.

Page 4 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
Codes and Standards
The opener complies with the following codes and standards:
UL STD.325 & ANSI/BHMA STD. A156.19; Fire rated UL STD. 10 (b); UL STD. 10(c); NFPA STD. 252
CAN/CSA STD. C22.2 NO. 247 & CAN/ULC STD. S104
It is the responsibility of the final installer and/or installation company, to certify that the final completed opener is
installed in accordance with local building codes and applicable laws.
Shipping Inspection
Verify that the order was shipped complete and correct, including model number, door swing, color, and header width.
NOTE: The gearbox housing has the swing hand (L or R) labelled on the exterior housings.
NOTE: If any of the above items are not correct, do not attempt to install the Swing Door Package! Report any incorrect items to the
general contractor immediately. Do not proceed until all conditions are correct.
NOTE: NO CLAIMS FOR SHORTAGE WILL BE ALLOWED UNLESS REPORTED WITHIN 24 HOURS OF RECEIPT OF SHIPMENT
Recommended Tools
Item No.
Description
Item No.
Description
1
Allen Wrench Set
6
Flat Screwdriver, Philip Screwdriver, 5/16” Hex. Nut Driver
2
Power Drill and Drill Bits
7
Additional Fasteners Depending on Surface
3
Level
8
Shims
4
Tape Measure
9
Hand Saw/Power Saw
5
Wire Stripper
Model
CADET PRO (Non-Handed) Low Energy Swing Door Opener
Dimensions
4.125” (W) x 5.125” (H) x L (variable)
Weight
Approx 45lbs
Power supply
115±5VAC, 60Hz, 3A
Consumption
DC16V / 3 AMP
Motor
1/8 hp, 16VDC 3A (Standard), 1/4 hp, 16VDC, 3A (Optional)
Rated operation
Continuous opening and closing cycles
Manual opening/closing force during power failure
15 lbs.
Door opening/closing speed & force
Adjustable, see section 17
Operation During power failure
Low manual resistance when opened by hand. Door closing by spring.
Hold Open
Pulsed Energy to Motor. No overheating. Continuous Hold Open
Operating environment
Ambient temperature -20 deg. ~ +50 deg (No condensation or icing)
Ambient humidity 30% to 85%RH
(No hazardous materials must be present in the atmosphere)
2.0 TECHNICAL SPECIFICATIONS

Page 5 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
3.0 INTENDED USE
The CADET PRO (non-handed) Opener is a complete swinging door solution for push or pull surface applied installations. The header
contains the driving system (motor), torque production (gearbox), and a control system to interlink the two.
The CADET PRO Opener ensures all-around safety. It can be combined with the full range of safety units, such as presence and motion
sensors. It is easy to install for both new construction and retrofit application and can be adapted to a wide range of overhead concealed
or surface applied installations.
Safety Precautions
Do not climb or put weight on any door or header parts
Do not let children play with the opener or the electrical board
Keep remote controls away from children
Keep all power off to the unit, when performing any work or maintenance
To avoid bodily injury, material damage and malfunction of the product, the instructions contained in this manual must be strictly observed
during installation, adjustment, repairs, and service, etc. Training is needed to carry out these tasks safely. Only trained technicians
should be allowed to carry out these operations.
Handing Information
The handing and types of each opener are shown in the figure below.

Page 6 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
The CADET PRO Opener can be used for pull side and push side installation, on the top door jamb and in header applications. It is
designed to meet the standards described in Section 1.

Page 7 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28

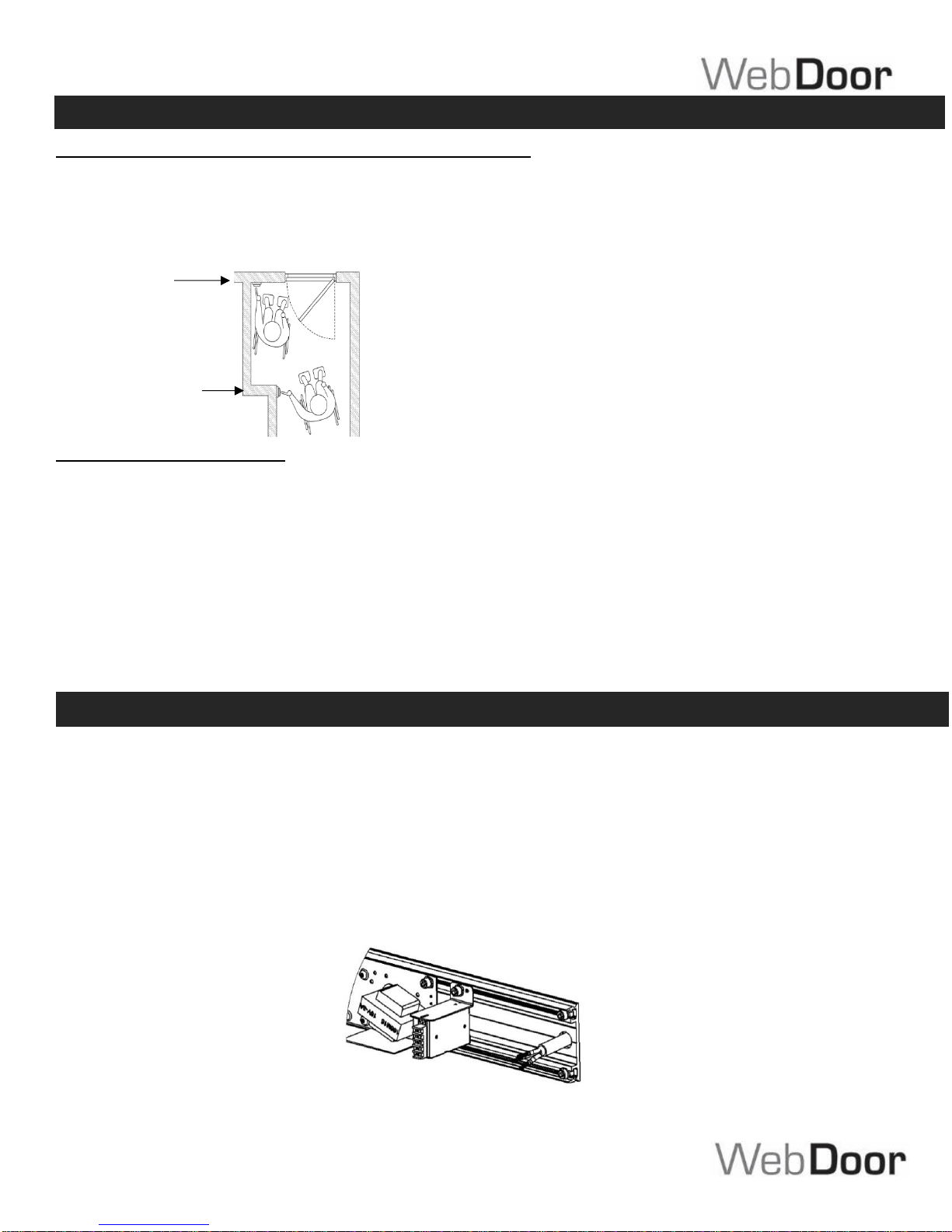

ADA Floor Space Requirements for Wheel Chair Manoeuvring
The owner may request the activation device location; however, the press switch must be in view of the door and not directly on the
door or frame. Please refer to ANSI 117.1 Safety Code for further guidelines on switch requirements.
Position #1: should be a minimum of Two feet (2’) from the door latch.
Position #2: should be a minimum of Five feet (5’) from the door face.
NOTE: Activation switches shall have a minimum height of 36” and a maximum height of 48” from finished floors.
External and Internal Factors
Door Condition
Door must move easily open and close (latch) without excessive force; weather stripping and threshold must not interfere with
door movement.
Reveal
For out swing (push) doors, the reveal must be within the range of 0” to 14” and within 0” to 4” for in swing (pull) doors.
Consult factory for special reveals.
Wind
When installing on a door in a strong wind condition area, special adjustments should be made to the arm and doorstop position,
to increase the spring tension.
Power/Control Wires
Check that the electrical feed, all conduits, and electrical junction boxes (for push plates or other activation devices, if required)
are correctly located in accordance with final approved shop drawings and within the guidelines of the enforced local electrical
codes.
The 115±5VAC supply lines are connected to the black primary wires coming from the transformer and the ground wire is attached to
the opener header box.
The controller board settings have been pre-set prior to shipment. It will be necessary for the door opener to be functional while

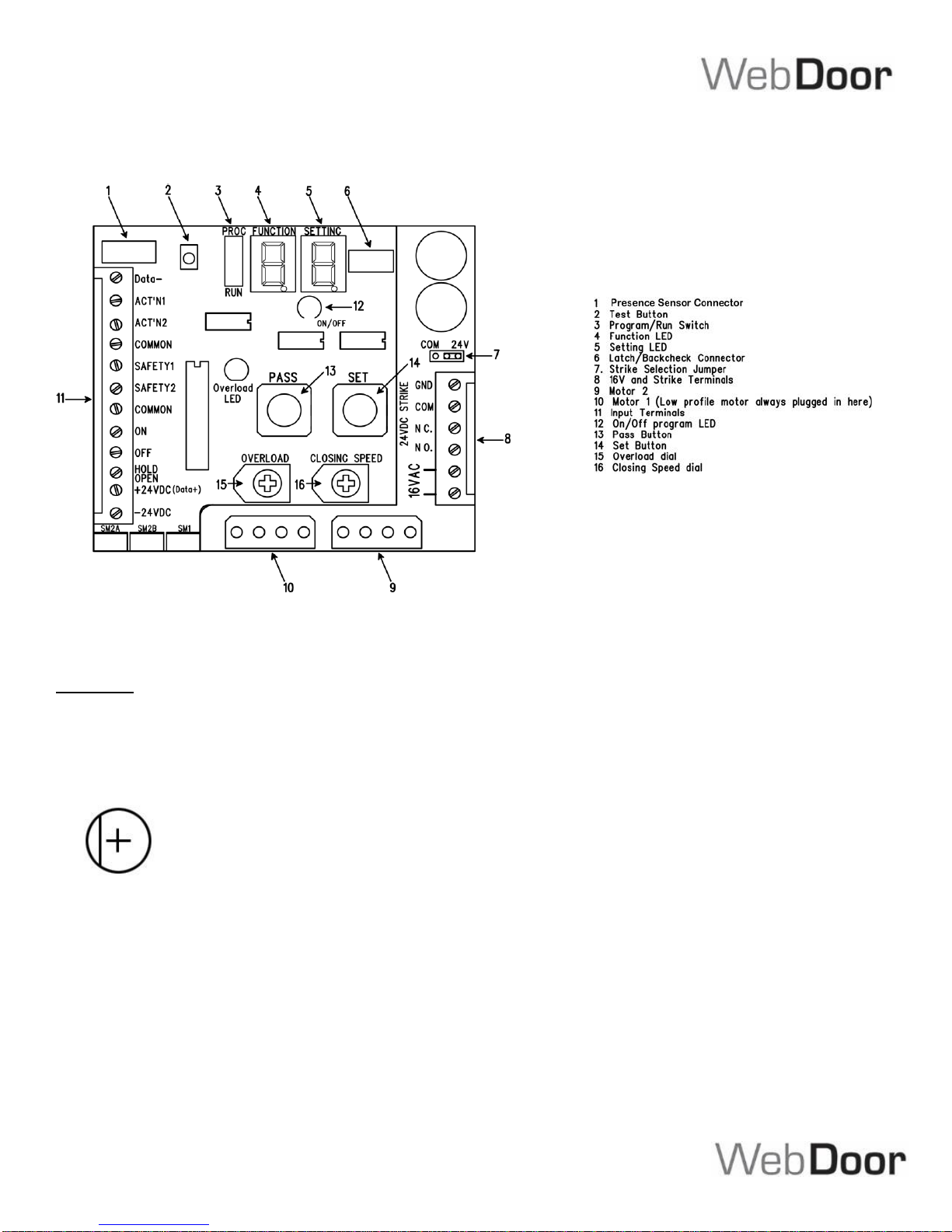

adjustments and settings are made. A black push actuator is mounted on the upper left corner of the circuit board to ease in the
adjustment process. Power up the unit and push an activating device and check to make sure that the splined pinion drive rotates in
the correct direction. Keep all wires away from moving parts and sharp edges that may cut into the outer casing of the wires.
NOTE: THE GROUND WIRE FOR THE INCOMING 115±5VAC POWER AND THE SYSTEM GROUND WIRE CANNOT SHARE THE SAME
GROUNDING STUD. GROUND THE INCOMING 115±5VAC ACCORDINGLY.
NOTE:Installation of any extra wiring for controls or accessories into the header unit shall be secured away from any moving parts.
WARNING: If the motor is not plugged into the circuit board, there is no resistance against the spring when manually opening the
door. The door or arm will close very quickly if opened.
4.0 INSTALLATION CONSIDERATIONS
Position #2
Position #1
5.0 ELECTRICAL CONSIDERATIONS

Page 8 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28
6.1 Pre-Mounting Header Box Instructions
Removing the Cover (A) Removing the Cover (B)
6.1.1 Remove Cover
Remove the cover from the assembly by gently prying with a screwdriver, once the snaps are clear pull the cover straight off.
6.1.2 Remove gearbox
Remove the motor/gearbox and control board from the back plate.
Back Plate
Steps
1. Verify that the opener is the correct orientation. (Left Push), (Right Push), (Left Pull), (Right Pull)
2. Holes are provided for the high voltage wires. Hold the back plate in position and mark the wall. If the hole is not at a convenient
location, you can drill the back plate to suit.
3. Anchor the back plate to the wall with a minimum of six (6) - #14 x 1” Pan Quad Type A screws (provided). Depending on the
application, you may need to provide other screws if your installation requires it.
4. Use two (2) screws to fasten the back plate directly to the doors vertical jambs on the hinge side.
NOTE:Please reference the installation dimension an inch and a half from the hinge side of the door.
6.0 INSTALLATION PROCEDURE

Page 9 of 31
WebDoor
[e-mail]
www.webdoor.com
Issued Date: 2017-03-28

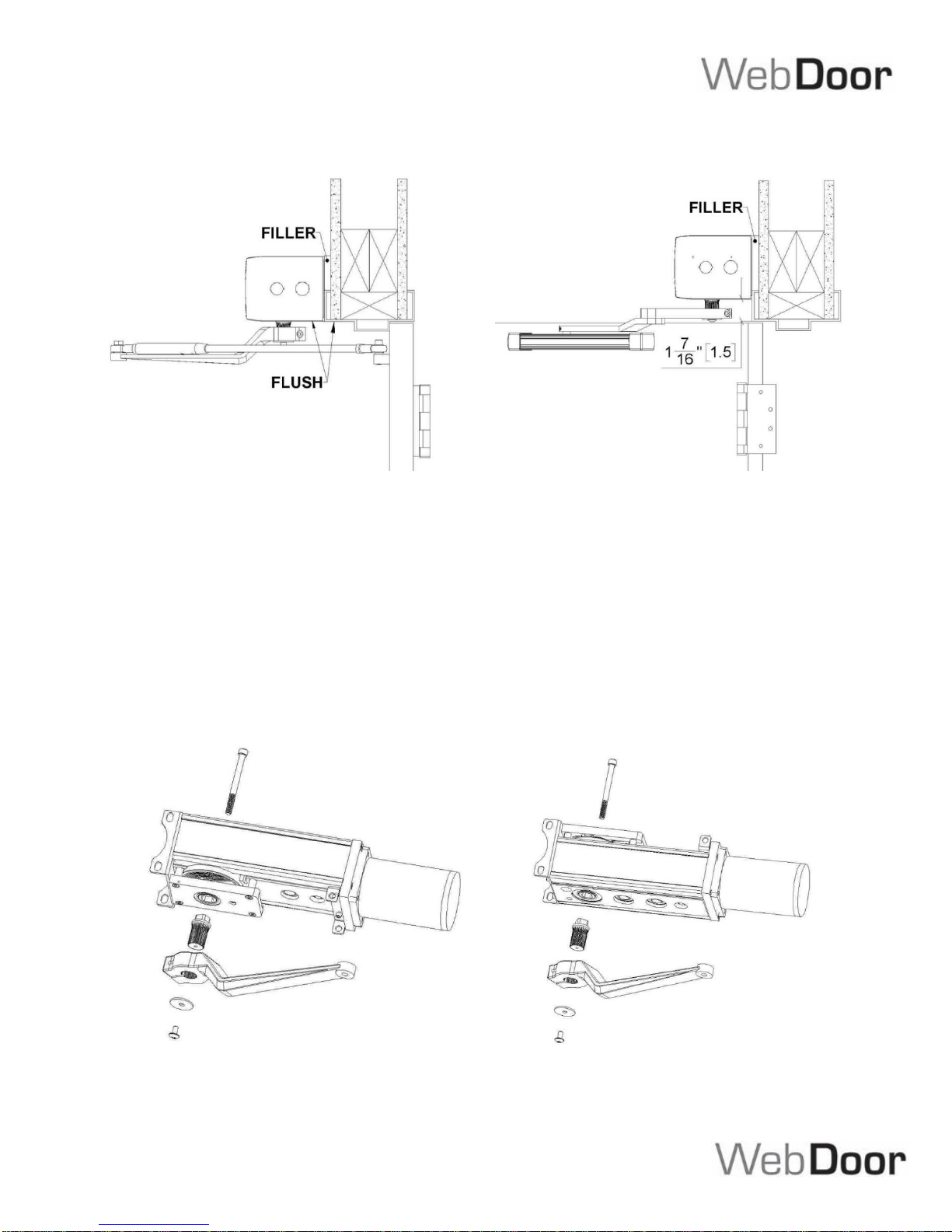

5. Add additional screws to fasten the header back plate to the door frame approximately 12” to 16” apart.
Note: The header needs to be strong enough to support 200 lbs.
6. When installing a support plate for the full width of the door frame, fasten an additional two (2) screws to the vertical jambs on
the strike side of the door.

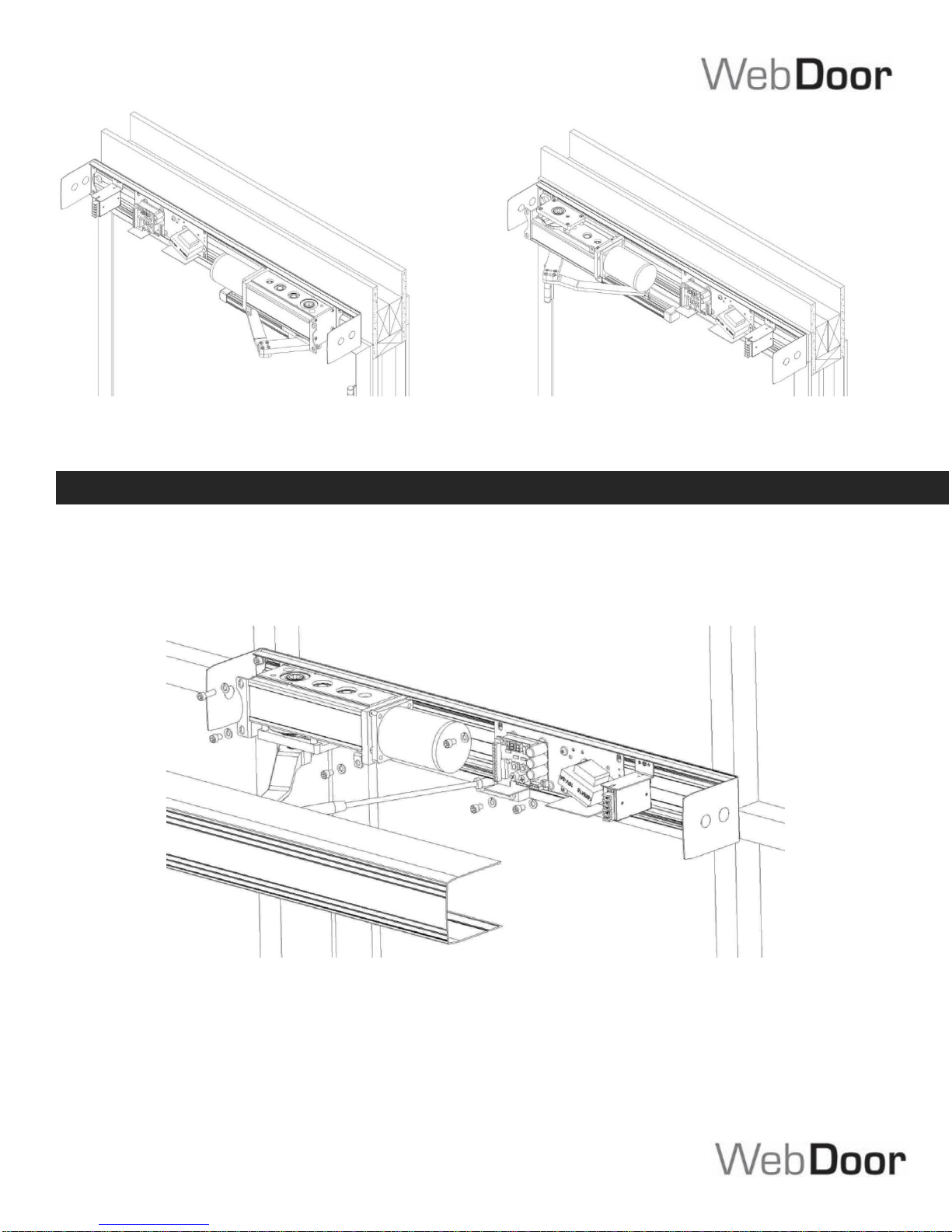

7. Install the spindle into the motor/gearbox.

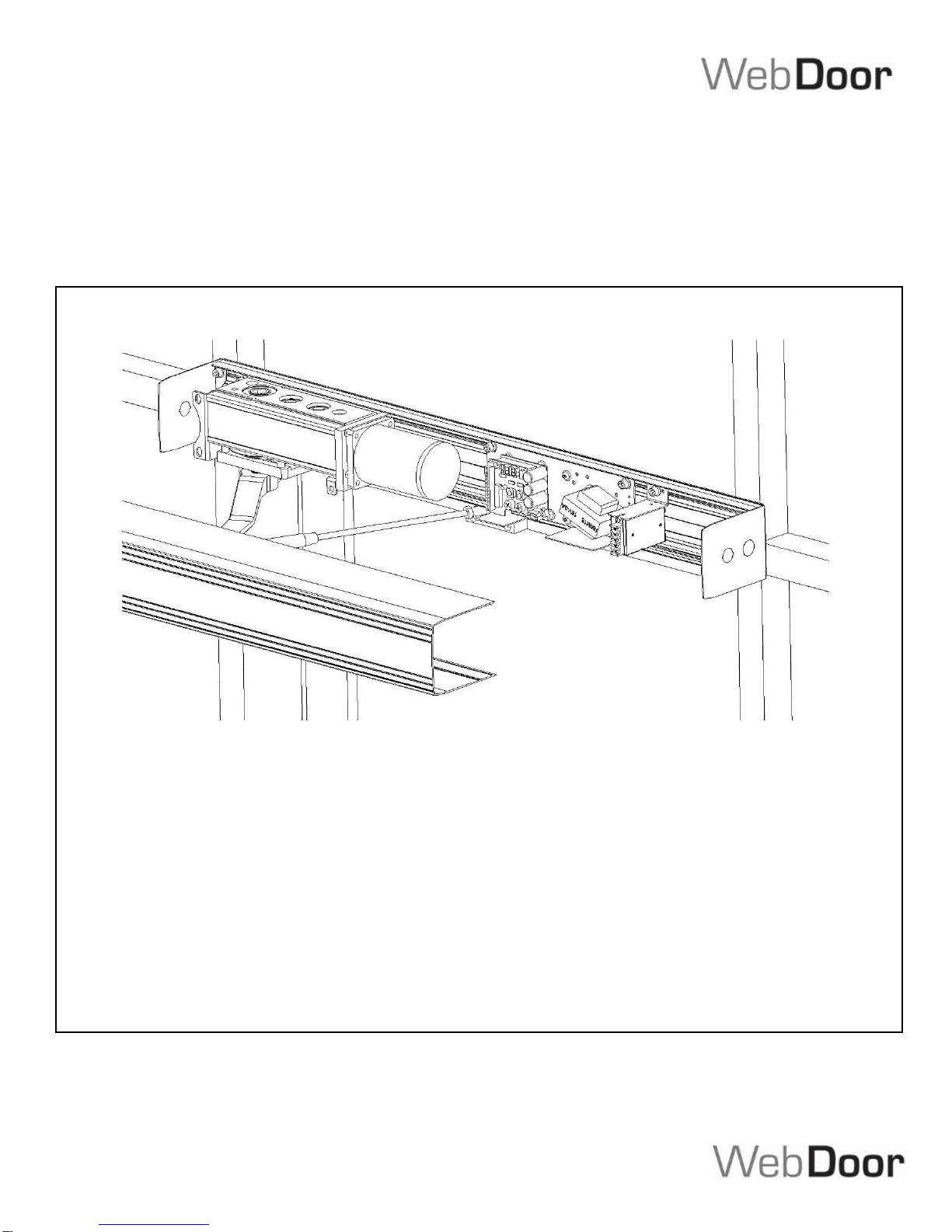

8. Once the header back plate is installed, then install the motor/gearbox and control board to the header back plate (see Section
10 for more details). Slide the nuts (supplied with the opener) to hold the motor/gear box and control board along the 2 parallel
tracks on the back plate. Fasten the bolts to hold the motor/gear box and control board as shown in the diagram shown in step 7.
The motor/gearbox needs to be installed so that the center of the spindle is 5” (12.70 mm) from the end plate.
