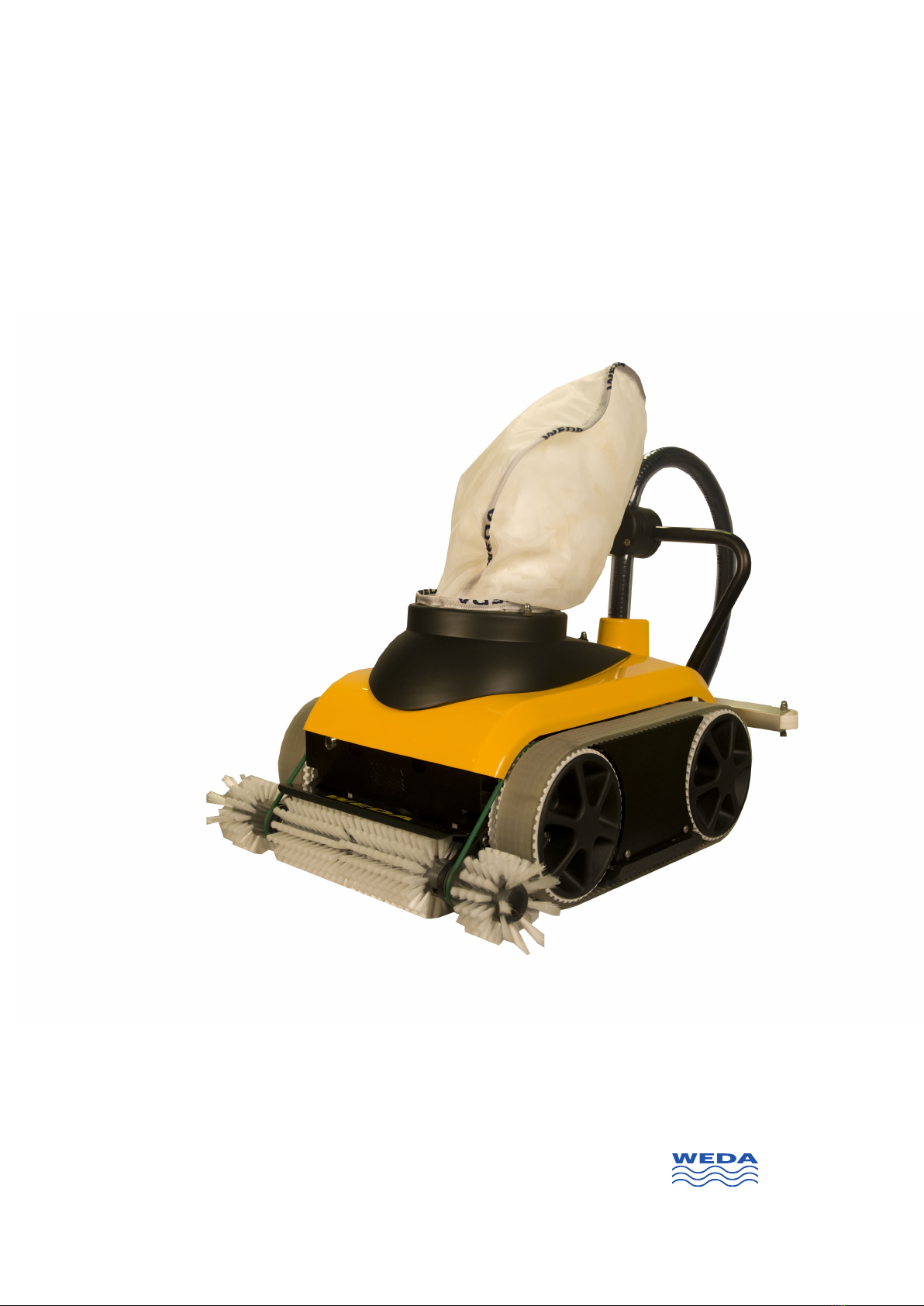

Weda W50 User manual

WEDA W50
OPERATING MANUAL
EDITION 1

WEDA W50
Table of Content
1 Weda Poolclener AB and Pool Vacuums
2 Delivery specification
3 Technical specification
4 Installation
5 Operating Instructions
6 Service and Maintenance

WEDA W50
1 Weda Poolcleaner AB and Pool Vacuums
Weda Poolcleaner AB has produced pool vacuums for public pools since the mid-1970´s. Today the
products are distributed world wide through own subsidiaries and a distributor network.
The product program consists of fully-automatic or semi-automatic pool vacuums (pool cleaners) for all
kinds of public pools.
Today’s market puts a great demand on the pool vacuums since pools are nowadays designed and built
in various shapes and forms and in a wide variety of sizes and depths. Pool types vary from regular
swimming pools to wave pools, lazy rivers etc.
Since there is a strong connection between chlorination levels in the pool water and the efficiency of the
pool vacuuming it is very important to optimise the pool vacuum for each individual pool. This is not only
based on the pool size but factors like the number of users and environmental issues in and around the
pool play an important role.
Since there is a common demand to decrease the usage of chlorine in pools Weda strives to design
better and more flexible pool vacuums so that we can optimize the vacuum for each pool and meet the
customers’ high demands.
The latest product in the Weda range is the W50. W50 is the smallest fully-automatic and semi-auto-
matic pool vacuum in the Weda range. It is still designed to meet the needs of large public pools with
a large amount of users. And it includes the Weda reliability and more then 30 years experience from
pool-vacuum-design, usage and servicing.
The automatic function is reached by using the latest laser detection system and the most up-to-date
PLC technology available. The W50 uses no moving parts for wall detection.
The fully-automatic function is combined with a remote control option that allows for fast and reliable
movement control all over the pool bottoms.
The W50 is offered in two various basic models: The standard version and the “Super Auto” version with
the possibility to select a number of various cleaning programs. The two models are described in detail
below.
We wish you many good years of reliable pool cleaning with your new W50.
Klas Lange, Managing Director
Weda Poollcleaner AB

WEDA W50
Description
The W50 Standard is designed to clean bottoms in rectangular shaped pools.
The user has the option to choose between manual drive with a remote radio control or fully
automatic “one-way” cleaning. “One way” cleaning makes the cleaner clean the bottom in parallel
runs making a U-type turn as it hits the wall. This is a most efficient way to clean most regular pools.
A built-in timer allows for setting of the start time from 0-9 hours and the running time also
up to 9 hours.
2. Delivery specification
Pool Vacuum with 25 or 40 meter floating cable (umbilical) (75 or 120 Ft)
Filter, 50 or 125 micrometer
Control Box for wall mounting with power cable
Four (4) Channel Radio remote control
Tool kit
Manuals and other documentation
Optional equipment 1: Trolley for cleaner, control box and floating cable
Optional equipment 2: Hose discharge connection
3 Technical specifications
3.1 Vacuum Cleaner
Length x width x height 650x500x300 mm 26 x 20 x 12 inches
Weight in air 25 kg 62 lbs
Weight in water 12 kg 26 lbs
Cleaning width 500 mm 20 inches
Maximum suction capacity 600 liters/min 150 Gallons/min
Speed 0.2 meters/second 0.6 Feet/Second
Maximum Water temperature 40 Degrees Celsius 110F
Motor Single-phase 50 Hz 230 VAC
Single-phase 60 Hz 110 VAC
Power Consumption 1300 W
Max Noise level 70 dB
Water Protection IP 68
Filter bag PE 50-125 micron mesh
Sensor system 24 VDC 2 Ea.

WEDA W50
3.2 Control Box
Length x Width x Height 270x380x120 mm 11 x 15 x 5 inches
Water protection IP 67
Primary Voltage 110/230 VAC
Amperage primary side 10/4.9 A
Motor protection setting 11/5.9A
Fuses 16A/10A
3.3 Floating Cable (Umbilical)
Dimension and Length 25 mm x 25 or 40 meters 1 inch x 75 or 120 ft
3.4 Trolley
Width x Depth x Height 700 x 500 x 110 mm 28 x 20 x 43 inches
4 Installation
The vacuum cleaner must be connected via a Ground Fault Circuit Interruptor (GFCI) or an
Earth Leakage Circuit Breaker (ELCB) or a Recidual Carrent Device (RCD) having a rated residual
operating current not exceeding 30 mA in accordance with Standard EN 60335-2-41 or for the market
valid laws and regulations
Before connecting to power make sure that the wall outlet has:
The correct voltage
The correct fuses
The correct frequency (50 or 60 Hz) and
A GFCI, ELCB or RCD with correct setting (see above)
The power cable (the cable between the control box and the wall outlet) shall be connected so that the
control box cannot be pulled closer to the water than 2 meters (7 ft). This is normally achieved by
cutting the power cable to the desired length before connecting the power plug (see also any local
restrictions since this may vary from location to location).
Read the manual and note the warning signs on the cleaner and the control box.

WEDA W50
5. Operating Instructions
5.1 The Control Box
The control panel is located on the top of the control box and has the following
controls and options:
ON/OFF
Button with light
Program selector
Button With two (2) Positions,
Man/Auto
Timer 1 Time before start 0-9 Hrs
Timer 2 Operating time 0-9 Hrs
On the bottom of the control box you will find:
The power cable connection
Reset for the over current protection
The 16 pole plug for the floating cable (umbilical) is located on the right hand side of the control box
Inside the control box you find the shunt for setting of:
Turning cycle time for turn to the left 0-12 seconds
Turning cycle time for turn to the right 0-12 seconds

WEDA W50
5.2 The radio remote control
The remote control is normally placed on top of the
Control BoxSelect MAN control on the control box.
The remote control is a four (4) channel radio transmitter
with the following functions:
1. Forwards movement. Press once on forward button.
To stop press forward again or once on the backward button
2. Backwards movement.
Press once on backward button.
To stop press backward or once on the forward button
3. Left Turn
4. Right Turn
5.3 Running the vacuum in the pool
First make sure that nobody is in the pool.
If a trolley with the control box is used leave the trolley at a minimum of 2 meters (7 ft)
from the edge of the pool (Check any local regulations that may apply).
Roll out the floating cable (umbilical) and straighten it out as much as possible.
Check the outlet to make sure that the voltage that will be used corresponds to that of the pool vacuum.
Make sure that the outlet is equipped with a GFCI,ELCB or RCD (See above). Contact a local electri-
cian if you have any hesitations about this prior to connecting the power cable!
Fit the filter on the vacuum.
Connect the power cable
Turn the power on and drive the cleaner carefully into the pool. It is important to place the floating cable
into the pool since it is cooled by the pool water.
To avoid over heating do not drive the pool vacuum out of the pool for more than 5 minutes per hour.
5.4 Manual Cleaning
Start by driving the pool vacuum around the walls in the pool and clean thereafter the entire pool bot-
tom at any pattern you may prefer.

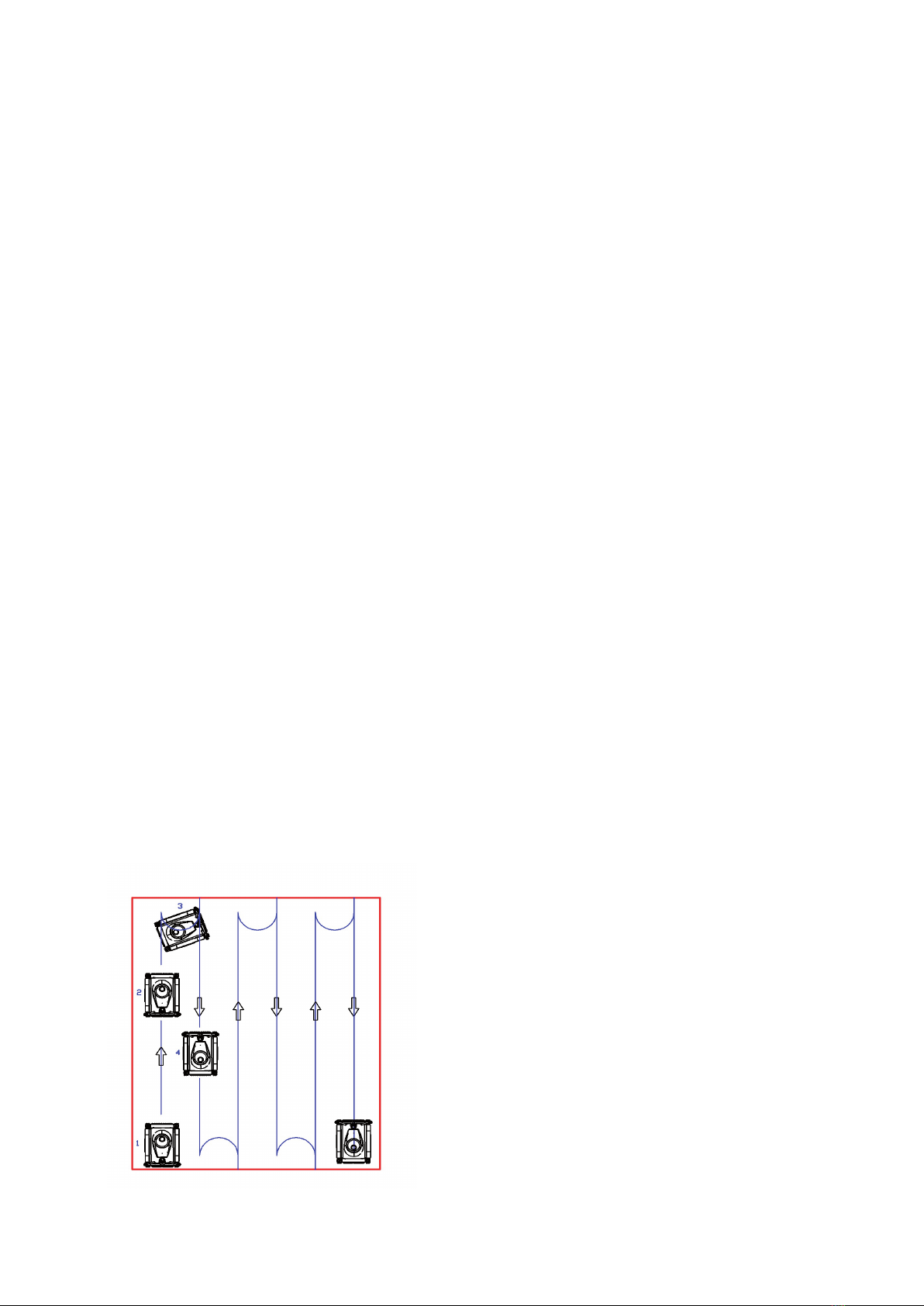

One-way
WEDA W50
5.5 Automatic Cleaning
Use the radio remote control to drive the pool vacuum to the selected starting position in the pool along
the right hand shorter wall side. The pool vacuum is set from the factory to work from the right to the left
side of the pool bottom. The turning time is set at the factory and does not normally need to be chan-
ged. If however this is necessary there are two (2) potentiometers inside the controlbox for this purpose.
Please contact Weda or an authorized service centre for assistance set the desired delay time and run-
ning time using the buttons on the control box.Set the program selector in position AUTO.
The W50 is equipped with multiple laser sensors to detect the oncoming wall and initiate a turn and to
detect the side wall at the far end of the pool.
5.6 Recovering the W50 from the pool
Set the program selector in position MANUAL.
Drive the vacuum towards the wall where it will be taken out of the pool.
Put down the radio remote control.
Pull the pool vacuum in the floating cable slowly upwards towards you until you can reach and grab it in
the handle bar. Pull the W50 onto the pool side.
Drive the cleaner to its storage or onto the trolley.
Turn off the power and disconnect the power cable from the outlet.
Remove the filter bag and flush it with clean water. Allow it to dry off before next cleaning if possible.
Flush the cleaner with fresh water (also under the cover)
Look into the suction intake to make sure that no larger particles are caught in the pump

WEDA W50
6. Service and Maintenance
6.1. Routine maintenance after use
Check that the drive tracks are free from obstacles like hair, chewing gum, rubber bands
or whatever else that may have got stuck there during cleaning.
Flush the cleaner with fresh water. Make sure to reach also under the cover.
Check the lenses in front of the sensors to make sure that they are clean.
Roll up the floating cable.
Clean the filter bag by turning it inside out. Flush with fresh water.
Allow the filter to dry off completely.
If the cleaning has been performed deeper than 5 meters (15 ft) add grease in the shaft seal
after approximately every 10th hour of cleaning.
6.2 Monthly service and maintenance (after approximately 200 hours)
Greasing of the shaft seal.
For vacuums working no deeper than 5 meters (15 ft) depths the shaft seal should be greased after
every 200 hours of cleaning. Use only food approved white grease Weda Part No WP 740388. Use the
grease gun supplied with the cleaner. Remove the side plate an the left side to reach the nozzle on the
vacuum. Remove the grease nozzle cap, fix the gun to the nozzle and give approx 5 pushes with the
gun to add the correct amount of grease. Avoid overfilling.
Dry off eventual grease that has leaked out and put the nozzle cap back on.
Check:
Drive track tension (see figure)
Brush drive belts (see figure)
General appearance of tracks and belts.
Make sure that there is no damage to the floating cable (umbilical)
6.3 Annual service and maintenance
Must be performed by Weda authorized service personnel only.
For details please refer to the Service Manual for Authorized Weda Service personnel.

WEDA W50
6.4 Straight moving path settings
To set a straight moving path the drive track tensions is adjusted on both sides of the cleaner
(please see figure below).
Release the 2 screws (1) and (2) and take off the side plate. Thereafter the slide rails can be adjusted
by turning the screws number (3).
6.5 Replacing the drive tracks, brush arms and brush drivbelts
Loosen the domed nuts (12) and lift off the covers (11).
Loosen the wheel bolts (4), the track tension bolts (9) and (10) and the front shaft (8).
Pull off the wheels and the tracks. Now the belts and the arms may be replaced.
Reassemble in reversed order.

WEDA W50
6.6 NOTE
Do not drive the pool vacuum outside the pool water for more than 5 minutes per hour.
The vacuum and the floating cable are cooled by the pool water.
Use only WEDA Original parts for service at all times. One incorrectly used O-ring may
cause costly damage to the pool vacuum.
Do not pull in the power cable at any time.
Do not pull the cables along the ground. This may cause unnecessary wear on the cable covers.
Straighten out the floating cable regularly. The easiest way to do this is to run the vacuum in
circles in the pool.
Always disconnect the vacuum from the outlet before making any service and maintenance.
The control box, being 110/230 V may only be serviced by authorized electricians. It is your
responsibility to know the local laws and regulations.
The pool vacuum can only be used in water filled pools.
Do not use the pool vacuum in explosive atmospheres.
Flush the cleaner with fresh water after usage. Also under the cover.
6.7 Wear Parts
500 019 Filter 125 micron
500 009 Brush, right side
500 003 Brush, left side
741 297 Drive belt for brush
740 388 Grease, Non-toxic
740 209 Oil for gear
Batteries for radio remote, 3 ea. 1,5 V AAA

?!WEDA W50
6.8 Problem handling
Problem Reason / Remedy
The vacuum does not pump or move 1. Fuse broken/Replace
2. GFCI or EFCB has shut off the power.
3. Over current relay has released and is
not reset
4. Impeller blocked. Remove obstacle
(Disconnect the power first)
5. Contactor burnt. Replace contactor
6. Stator burnt. Replace stator
The over current relay shuts off 1. Impeller blocked / remove obstacle
(Disconnect the power first).
2. Incorrect power feed/ Check
incoming voltage.
3. Over current relay set too low./ Increase
the set value.
4. Stator burnt/Replace
5. Water in the pump motor.
/Empty and dry off.
6. Motor overloaded./Check
for possible reasons.
The pump motor runs but the vacuum will not move. 1. Make sure that the radio remote control
is not broken.
2. The DC converter is broken/ Replace
3. The clutches are sliding./Clean
them and check the sealing.
The vacuum turns poorly 1. Drive track tension needs to
be adjusted
2. Oil or water on the magnetic clutches.
Clean them off and check the sealing.
The vacuum only moves in one direction
and/or it stops when it reaches a wall or
another obstacle. 1. Defect or incorrectly adjusted laser
2. Cables to sensors broken/Replace
sensors. Check and make corrections

underwater
cleaning
technology
about Weda
Weda, founded in Sweden, in 1919 is one of the oldest
companies in the world in the pool cleaning industry.
The range today consists of cleaners to fit everything
from the smallest public pool up to large outdoor
reservoirs for collection of water for whatever reasons
and automatic and semi automatic cleaners for drinking
water towers and tanks in industrial tanks of various
kinds. Weda is active on most major markets world wide
through its own subsidiaries, distributors and partners.
www.weda.se
OPERATING MANUAL
www.oscardesign.se
WEDA POOLCLEANER AB
Wedavägen 4A
address Box 621
S-151 27 Södertälje
Sweden
phone [phone]
mobile [phone]
website www.weda.se
visiting
address
