WEEEMAKE WeeeBot Jeep User manual

ＷｅｅｅＢｏｔ Ｊｅｅｐ

There is endless whimsy in your mind every day.
Make a fan, a car, or even a robot�
Nothing can limit our imagination!
From now on, roll up your sleeve and create anything you want in your dream.
We put the right material in your hand and then you turn your idea into reality!
To my classmates

为美 致新
.
1X Left Side Panel
1X Right Side Panel
4X Beam 1030-100-B
6X 56T-plastic Gear
6X 56T-plastic Gear with Lug Boss
4X Tire 64*16
2X TT Motor
1X ELF Base Board
1X LED Panel Protective Shield
1X Plastic Caster
1X 18650 Battery Holder
1X ELF Mainboard
1X 328P Chip Module
1X LED Panel Module
1X RGB Ultrasonic Sensor
1X Line-following Sensor
1X Light Sensor
1X Infrared Receiver Sensor
1X Sound Sensor
3X 4P4C RJ11 Cable-20cm
1X 5.5-2.1 DC Power Cord-15cm
1X USB Cable B
1X Infrared Remote Control
4X Nut M3
4X Nut M4
30X Screw M4*6
2X Screw M2*4
2X Screw M2*6
4X Screw M3*25
2x ScrewM4*30
2x Nylon Locknut M4
2x Aluminum Stud 4*6*10
4x Flange Bearing 4*8*3
1X PH0 Screwdriver
1X H2.5 Screwdriver
1X M1.6-M4 Multifunction Wrench
1X WeeeBot Line-following Map
1X Lithium Battery Charger
WeeeBot Jeep Part List

There are two options for WeeeBot power supply: 4 x 1.5V AA batteries (Not included in package), or 2 x 3.7V 18650 Lithium battery
(Not included in package).
1. Do not crush, or throw batteries.
2. Do not use batteries near to a heat source.
3. Always insert the batteries correctly with regard to polarity (-/+); do
not short-circuit lithium battery.
4. Always keep batteries dry.
5. Do not puncture battery with sharp object.
6. Use only the correct type and size of battery indicated.
7. Place the battery in a cool, dry spot if not required.
8. Remove and safely dispose of exhausted batteries immediately.
9. If robot sit idle, remove battery out of battery holder when.
10. Replace all batteries in battery-operated products at the same time
with the batteries of the same type and manufacture.
Battery information:
Your robot would run slowly, or restart frequently on low battery status.
Please turn off power in this situation, and then change or charge your
battery in time.
Low battery notification:
Battery Instruction
65

Tool Instruction
Screw M2
Screw M2
Screw M3
PH0 Screwdriver M1.6-M4 Multifunction WrenchH2.5 Screwdriver
Screw M4
Screw M4*6
Screw M2*6
Screw M2*4
Screw M3*25
Nylon Rivets 4060
Nut M4
Nut M3
10 2 3 4 5

Assembly Tips
4X Nut M4
4X Screw M4*6
1X LED Panel Module
Left side panel installation diagram
(Right side panel is the same)
Tip：Please follow the installation
guide in the left side.
Install LED Panel Module
Steps:
1. Install 4 x Screw M4*6 and 4 x Nut M4. Do not lock them.
2. Match the 4 screws with the gap on LED Panel Module.
3. Lock 4 x Screw M4*6 with nut.
Assembly Steps
Parts Name and Type
The colored part is
the installed part
Parts Required
Explain
Number of Parts
ConsiderationsAssembly Path

Assemble WeeeBot
Steps:
1. Install left side panel (The strip surface faces toward the outside),
and two beam 1030-100-B (The convex surface faces toward the outside).
2. Install right side panel (The strip surface faces toward the outside).
Steps:
1. Install 2 x TT Motors.
2. Install the backside beam (The convex surface faces toward the outside).
Assemble WeeeBot Body Structure
‒ Install the front beam and side panel
Assemble WeeeBot Body Structure
‒ Install motor and backside beam
2X Beam 1030-100-B
8X Screw M4*6
1X Left Side Panel
1X Right Side Panel
2X TT Motor
4X Screw M3*25
4X Nut M3
1X Beam 1030-100-B
4X Screw M4*6
Left side panel installation diagram
(Right side panel is the same)
Left side panel installation diagram
(Right side panel is the same)

Assemble WeeeBot
Install Wheels
Install Caster
2X Wheel
2X Screw M2*6
1X Plastic Caster
1X Line-following Sensor
2X Screw M4*6

Assemble WeeeBot
1X RGB Ultrasonic Sensor
2X Screw M4*6
4X Nut M4
4X Screw M4*6
1X LED Panel Module
Tip：Please follow the installation
guide in the left side.
Install RGB Ultrasonic Sensor
Install LED Panel Module
Steps:
1. Install 4 x Screw M4*6 and 4 x Nut M4. Do not lock them.
2. Match the 4 screws with the gap on LED Panel Module.
3. Lock 4 x Screw M4*6 with nut.
Left side panel installation diagram
(Right side panel is the same)

Install Battery (Two power supply options available)
Assemble WeeeBot
Steps:
1. Slide open the cover of 18650 Battery Holder.
2. Follow the installation diagram below, fix AA Battery Holder on 18650
Battery Holder with Nylon Rivet 4060. (the side with wire face up)
3. Insert AA Batteries correctly with regard to polarity (-/+) on battery
holder, and then slide close the cover of 18650 Battery Holder.
Steps:
1. Slide open the cover of 18650 Battery Holder.
2. Insert 18650 Lithium Battery correctly with regard to polarity (-/+) on
battery holder.
3. Slide close the cover of 18650 Battery Holder.
1X *4 AA Battery Holder
1X 18650 Battery Holder
2X *Nylon Rivets 4060
4X AA Battery
(Not included in package)
Option 1: 4 x AA Battery
Tip: “*”stands for WeeeBot standard part. Battery installation diagram Battery installation diagram
Tip: WeeeBot Jeep version only support 18650
Lithium Battery option, do not support AA
battery option.
1X 18650 Battery Holder
2X 18650 Lithium Battery (Not included in package)
Option 2: 18650 Lithium Battery

6X Screw M4*6
1X Beam 1030-100-B
1X AA Battery Holder 6X Screw M4*6
1X 18650 Battery Holder
1X 5.5-2.1 DC Power Cord-15cm
1X Beam 1030-100-B
Left side panel installation diagram
(Right side panel is the same)
Left side panel installation diagram
(Right side panel is the same)
Assemble WeeeBot
Install Battery Holder (Two power supply options available)
Option 1: 4 x AA Battery Option 2: 18650 Lithium Battery
Steps:
1. Install AA battery holder as installation diagram.
2. Install Beam 1030-100-B(The convex surface faces toward the outside).
Steps:
1. Install 18650 Lithium battery holder as installation diagram
2. Install Beam 1030-100-B(The convex surface faces toward the outside).

Assemble WeeeBot
Wiring
3X 4P4C RJ11 Cable-20cm
AA Battery Holder
18650 Battery Holder
LED Panel Module
RGB Ultrasonic Sensor
Line-following Sensor
Tips
1. Motor M1 wire to port M1, motor M2 wire to port
M2. (Motor cable: black wire on the left, white wire
on the right)
2. Sensor wiring port as follow:
Port A ⸺ Line-following Sensor
Port B ⸺ RGB Ultrasonic Sensor
Port C ⸺ LED Panel Module
Note: You can plug RJ11 sensor or electronic
module to any one of four RJ11 port, that plugged
sensor or electronic module will be automatically
identified by mainboard ELF.
Tip:“***”stands for extended accessories that not included in package,
such as Bluetooth module, 2.4G module.
Steps:
1. Wiring RJ11 cable on all sensors and electronic modules, take the other
open end of RJ11 cable out of WeeeBot body structure.
2. After Step 9, connect the open end of RJ11 cable with ELF mainboard.

Steps:
1. Place ELF Mainboard in position (see diagram)
2. Lock 4 x Screw M4*6 in turn.
3. Follow Step 8, wiring. First step wire TT Motor, second step wire other
sensors.
4. Check wires and make it tidy. Switch on your WeeeBot and test all
functions.
Assemble WeeeBot
Install ELF Mainboard
Tips
1. If your WeeeBot do not follow the direction on
your program or remote control, please follow Step
8, check wiring on port M1 and M2.
2. If your WeeeBot do not follow the Line-following
commend or avoid obstacle commend, please
follow Step 8, check wiring of sensors.
4X Screw M4*6
1X ELF Mainboard Tip:
The left of the diagram is
M1 motor, the right of the
diagram is M2 motor.
Tip: Port ABCD should face
toward car front.
Left side panel installation diagram
(Right side panel is the same)
Congratulations, WeeeBot is fully assembled!

Quick Start
1. Take out IR Remote Control, insert CR2025 Button Cell (not included in package);
2. Switch on ELF mainboard, turn on the robot, use IR remote controller to control WeeeBot；
3. IR remote control guide:
Tip:
The battery of IR remote
control is CR2025 button cell
CR2025 Button Cell (not
included in package)
8 circle mode
1-9 set speed
Backward
Switch light
Turn left
Wheelie mode
Manual mode
Turn right
Sprint mode
Line-following mode
Forward
Avoid obstacle mode

Software
WeeeCode is a graphical programming software that developed by WEEEMAKE on the
basis of Scratch 3.0. It supports graphical programming as well as Arduino IDE code.
In Weeecode, you only need to drag and drop the code modules to create lots of
programs and showcases. WeeeCode supports WeeeBot perfectly.
Operation system： Windows/Mac
More information： www.weeemake.com
WeeeCode Graphical Programming Software
Arduino is an open-source electronics platform based on easy-to-use hardware
(Arduino boards) and software (IDE). The Arduino Software (IDE) allows you to write
programs and upload them to your board. Arduino senses the environment by receiving
inputs from many sensors, and affects its surroundings by controlling lights, motors,
and other actuators.
The ELF mainboard designed by WEEEMAKE is fully compatible with Arduino platform.
With ELF and Arduino IDE, you can develop your own smart application project or
education project.
For more information, please visit http://www.arduino.cc
Operation system: Windows/Mac
Tutorial: www.weeemake.com
Arduino IDE

Additional Assembly Guide
Assemble and Disassemble the Wheels
Assemble and Disassemble LED Panel Module
1X 56T-plastic Gear
1X 56T-plastic Gear with Lug Boss
1X Tire 64*16
1X LED Panel Protective Shield
1X LED Panel Module
2X Screw M2*4
Tip:
Wheels are assembled in package. You can disassemble wheels per
necessity.
Tip:
LED Panel Module is assembled in package. You can disassemble it per
necessity.

Additional Assembly Guide
Installation and Disassemble of ELF Mainboard Module
1X ELF Base Board
1X ELF Mainboard
1X 328P Chip Module
1X Sound Sensor
1X Light Sensor
1X Infrared Receiver Sensor
1X ***Bluetooth 2.4G Module
Tip: “***”stands for optional accessory Bluetooth
module or 2.4G module (not included in package)
Instruction：
1. Sensors and modules are fully installed in package as follows:
Port1 ⸺ Light Sensor
Port2 ⸺ Infrared Receiver Sensor
Port3 ⸺ Sound Sensor
MCU Port ⸺ 328P Microchip
2. ***Port is for wireless communication modules such as Bluetooth, 2.4G wireless module.

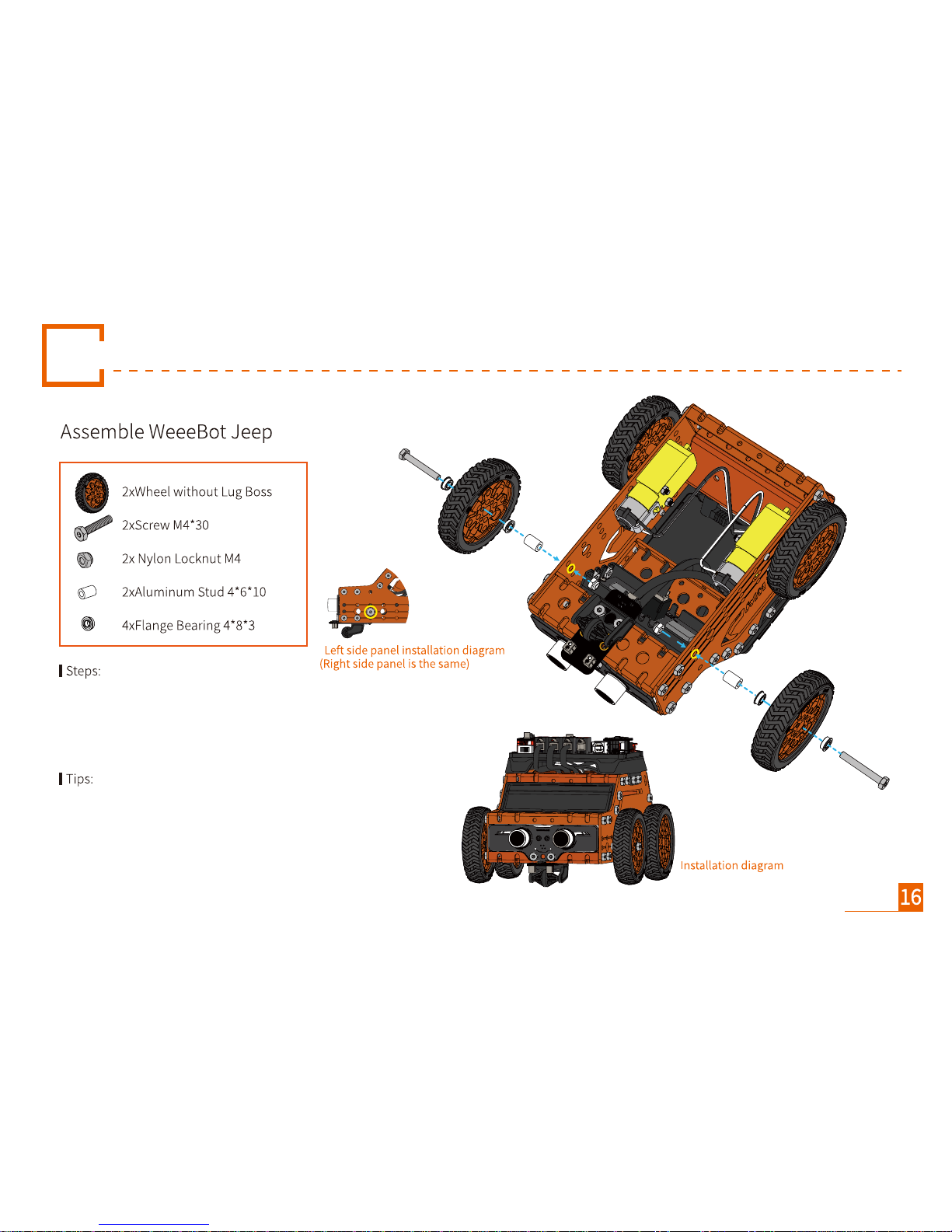

1. Put screw M4*30 through Flange Bearing 4*8*3, Wheel without Lug
Boss, another Flange Bearing 4*8*3, Aluminum stud 4*6*10 in order.
2. Lock Screw M4*30 with Nylon Locknut M4, make sure the wheel will
run smoothly.
1. stands for parts included in WeeeBot Jeep, not included in
WeeeBot.
2. WeeeBot Jeep only support 18650 Lithium Battery power
supply option, package include 2 x 18650 Lithium Battery and
charger.
Assemble WeeeBot Jeep

Additional Assembly Guide
WEEEMAKE ELF mainboard is designed on the basis of modular design style whose microchip is replaceable. This high-performance mainboard is designed for education.
1. Replaceable microchip: Support ATMEGA-328P, ATMEGA2560 chip, etc.
2. Support 10 x DC motor, or 4 x Encoder motor, or 4 x Stepper motor working.
3. Support 4 x RJ11 port and 4 Pin port, support 10 sensors (input or output) working at
the same time.
4. Support 5V power port to provide stronger power for more servos.
5. Support Bluetooth, 2.4G wireless communication.
6. Onboard button, buzzer, RGB LED.
7. Same port for motor driver and sensor pin port, easy to use.
8. Anti-reverse design port; mainboard has protection for overcurrent or reversed power.
9. Free 2x8P port, space for more accessory.
10. Support WeeeCode graphical programming and Arduino IDE coding.
11. Input voltage: DC6-12V.
LED Panel Module; RGB Ultrasonic Sensor; Ultrasonic Sensor; Line-following SensorRJ11 Port A, B, C, D
1, 2
3, 4, 5, 6
3, 4, 5, 6
Sensor Port
Sensor or Motor Driver Port
Motor Port
MCU Port
Wireless Communication Port
Onboard IR Receiver; Onboard Light Sensor; Onboard Sound Sensor; Onboard RGB LED; Onboard Temperature Sensor;
Onboard Button
Onboard IR Receiver; Onboard Light Sensor; Onboard Sound Sensor; Onboard RGB LED; Onboard Temperature Sensor;
Onboard Button; DC /Encoder DC motor driver; Stepper Motor Driver; RGB LED Board
DC Motor; Encoder Motor; Stepper Motor
ATmega 328P; ATmega 2560
Bluetooth Module; 2.4G Wireless Module; WiFi Module
Port Name Port Label Support Module
RJ11 Port
Power Port
Sensor Port
Power
Indicator Led
Power Switch USB-B Port
Button
Wireless
Communication Port
Sensor or Motor
Driver Port
Power
Module Port
Special
Module Port
RGB LED
Motor PortMCU PortBuzzer
