WEIBANG iON 81 RC E-RIDER User manual

Owner’s manual
Original Instructions
iON 81 RC E-RIDER
Rechargeable Ride on Lawnmower
WB81EC-B

2WG/WB81EC-B/FEB20/V1.1
Dear Owner:
ank you for purchasing this battery powered ride-on
Lawnmower.
is environmentally friendly mower allows you to
mow quietly and eciently. e powerful 72v lithium
battery and 32 inch cutting deck will make cutting your
lawn a breeze.
Dierential steering makes turning easy, while
controllable motors allow precise mowing control. e
wide turf tyres give excellent traction, and the cutting
height can be adjusted.
Please carefully read this Owner’s Manual which will
explain how to operate and maintain your machine
properly.
Be sure that you and any other user carefully follow the
recommended safety practices at all times. Failure to do
so could result in personal injury or property damage.
If you have any questions regarding the operation or
maintenance of this machine, or desire information
not found in this Owner’s Manual, please contact your
local Weibang Dealer. If you need help locating a dealer,
please contact Weibang Customer Service, or visit www.
weibang.co.uk.

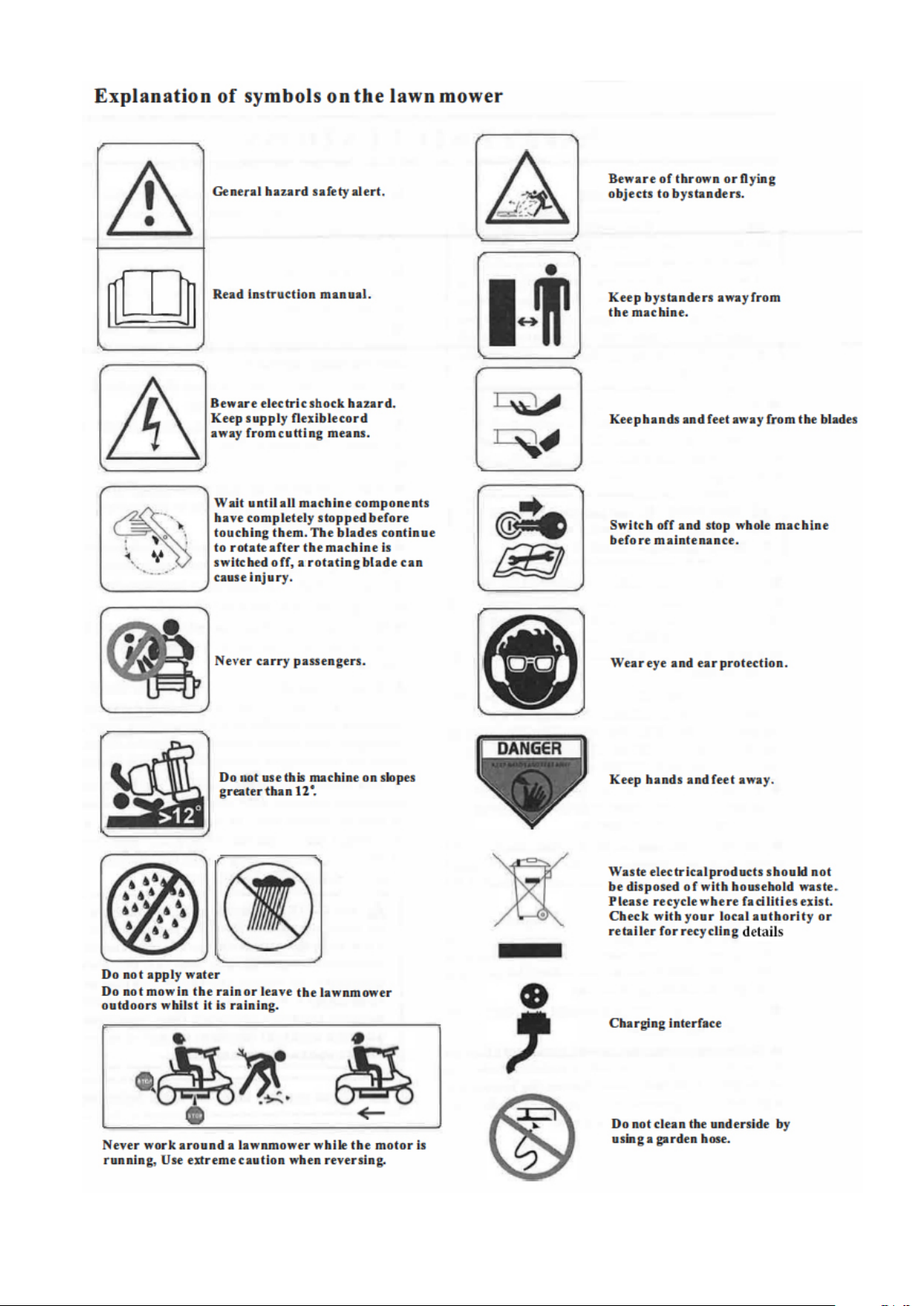

Safety Alert Symbol
is is a safety alert symbol. It is used in this
Owner’s Manual to alert you to potential hazards.
Whenever you see this symbol, read and obey the
safety message that follows it. Failure to obey the safety
message could result in personal injury or property
damage.
WARNING! is machine is a 72V electric
working unit which produces an electromagnetic
eld during operation. is eld may under some
circumstances interfere with active or passive medical
implants. To reduce the risk of serious or fatal injury, we
recommend persons with medical implants to consult
their doctor and the medical implant manufacturer
before operating this machine.
Owner’s Record
Please write the Model Number and Serial Number of
your machine in the spaces provided. ese numbers
are printed on a name plate that is attached to the side of
the mower deck.
MODEL NUMBER: ____________________________
SERIAL NUMBER: _____________________________
DEALER NAME: ______________________________
DEALER ADDRESS: ___________________________
DEALER PHONE: _____________________________
DATE PURCHASED:___________________________
Table of Contents
SECTION 1: SAFETY
REGULATIONS
4
General Operation 7
Slope Operation 8
Children 8
General instructions for working 9
Customer responsibilities 10

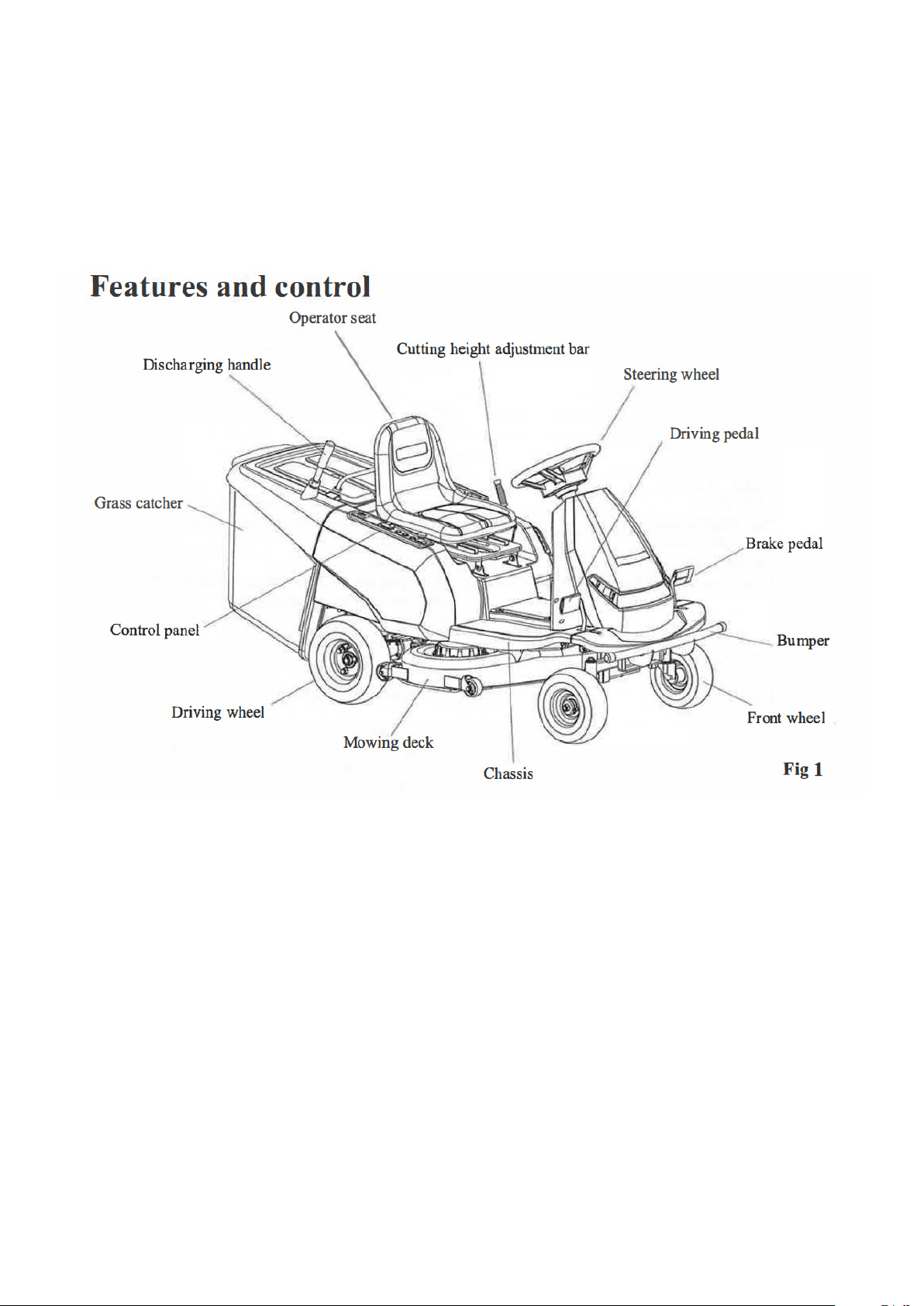

SECTION 2: FEATURES AND
CONTROLS
12
SECTION 3: SET UP 13
Recharging new machine 13
SECTION 4: OPERATING
CONTROLS
13
Switches and Buttons 13

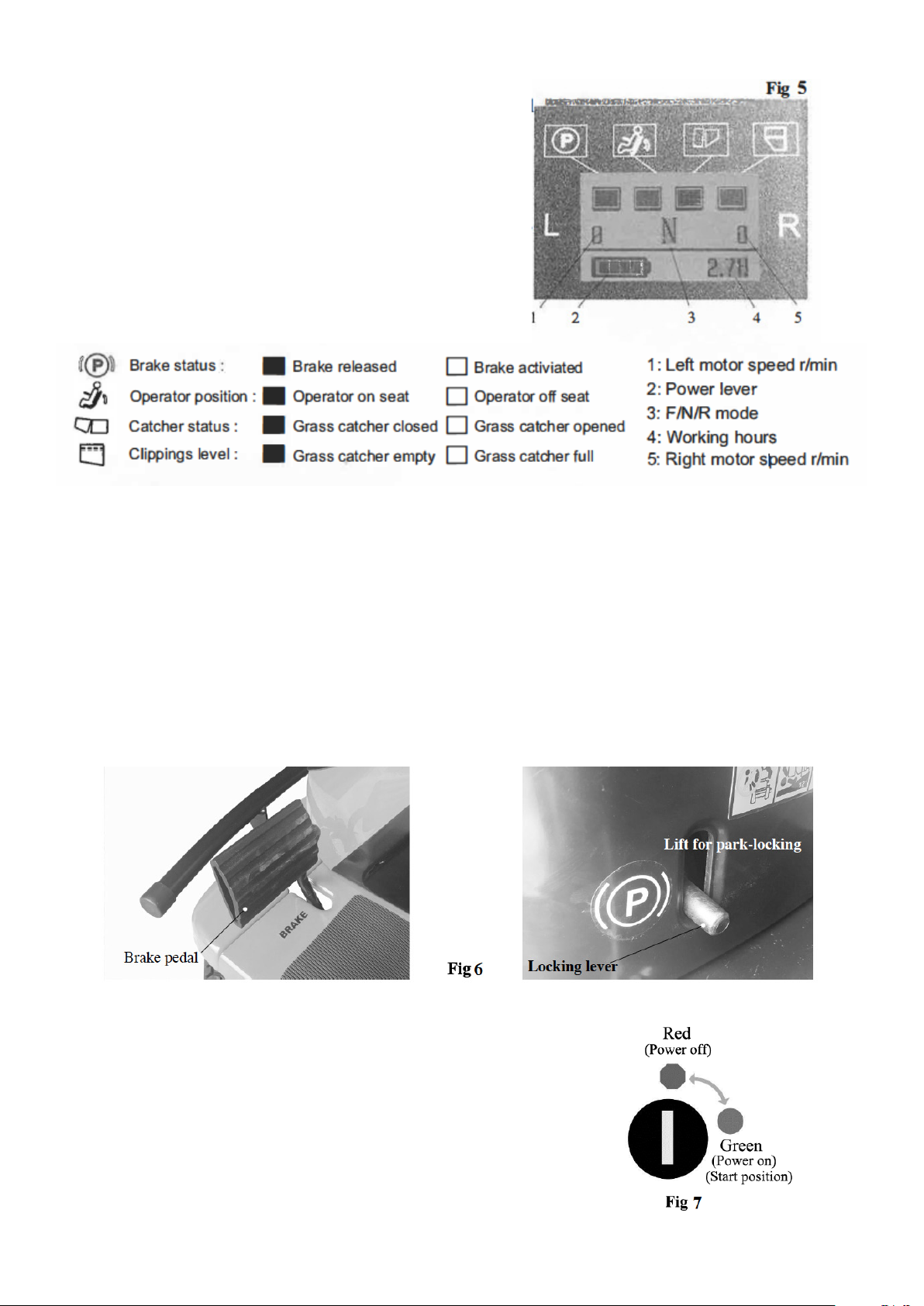

Central information screen 14
Using Parking Brake 14
Using Key Switch 14
Using CCS 15
Mowing in reverse 15

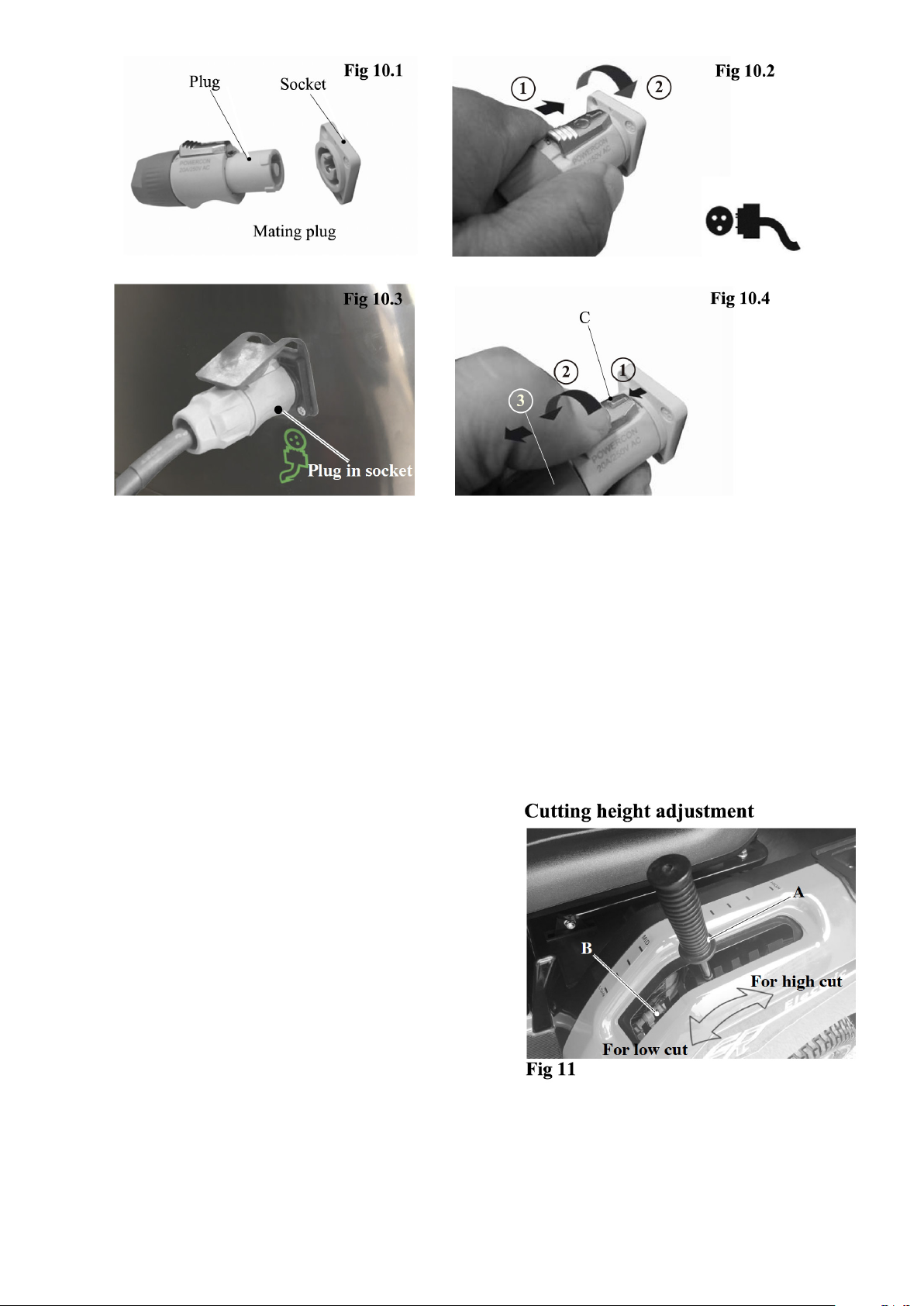

Recharging the mower 15
Adjusting cutting height 16

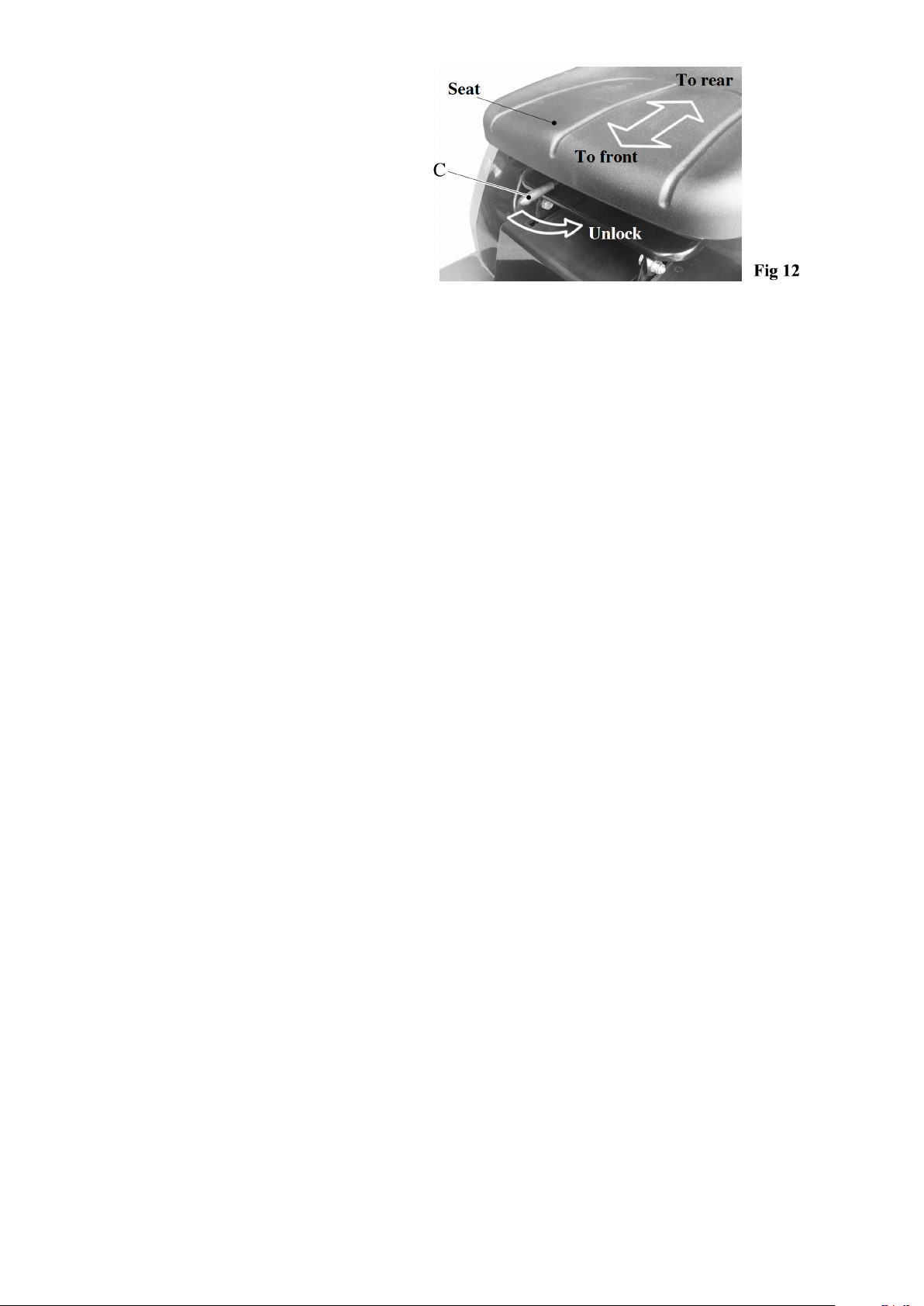

Adjusting seat 17
SECTION 5: OPERATING
RIDE-ON MOWER
17
Operating 17
Mowing Tips 18
Discharging grass clippings 19
Mulching 19
SECTION 6: MAINTENANCE AND
SERVICING
20
Tyres 20
Blade and Deck 20
Cleaning 21
Blade care 22
Battery Care 22
SECTION 7: STORAGE 23
Ride on Mower 23
Other 23
SECTION 8: TROUBLESHOOTING 24
SECTION 9: WARRANTY 25

3WG/WB81EC-B/FEB20/V1.1
DO NOT operate this equipment until you have read and understood all
the enclosed Operator’s Manual.
READ ALL the sections in this manual PRlOR to attempting to service,
maintain or operate this equipment!
Important:
Read and observe all safety
instructions and warnings!
It is very important to review the Owner’s Manual prior to initial operation of this machine.
Make sure to use extreme caution and always adhere to the saey instructions. If used incor-
rectly, all products can be a source of potential danger to the user, onlookers, animals, or nearby
objects. Non-compliance could result in death or serious injury.
Always use original spare parts with the logo “WEIBANG” to ensure maximum performance,
reliability and service life from your Weibang machine.
For spare parts - please contact:
www.weibang.co.uk
Owner’s Responsibilities
To preserve your rights under this Limited Warranty, you must demonstrate reasonable
care and use of the product, including following the preventative maintenance and storage as
prescribed in this Owner’s Manual. For example, the following items are the owner’s responsibil-
ity and are not covered by this Limited Warranty:
a. Set-up and pre-delivery service and any adjustments.
b. Adjustments aer the rst thirty (30) days of purchase.
c. Preventative maintenance as outlined in the Owner’s Manual. In addition, you must
cease using the product immediately upon any failure or damage. e product should be taken
to an authorised Weibang® service provider prior to any further use.

4WG/WB81EC-B/FEB20/V1.1
General battery mower safety warnings
WARNING Read all safety warnings, instructions, illustrations and specications provided with this
battery mower. Failure to follow all instructions listed below may result in electric shock, re and/or serious
injury.
Save all warnings and instructions for future reference.
e term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce
the risk of electric shock.
b) Do not expose charger to rain or wet conditions. Water entering a charger will increase the risk of
electric shock.
c) It is recommended to operate a charger using a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the o-position before connecting to a
power source and/or battery pack. Energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key le attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. is enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of collection facilities, ensure these are connected and
properly used.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not overload the power tool. Use the correct power tool for your application. e correct
power tool will do the job better and safer at the rate for which it was designed.

5WG/WB81EC-B/FEB20/V1.1
b) Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and remove the key from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool accessories in accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of the power tool for operations dierent from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b) Use power tools only with specically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c) When the battery pack is not in use, keep it away from other metal objects, like paperclips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, seek additional medical help. Liquid ejected
from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may
exhibit unpredictable behaviour resulting in re, explosion or risk of injury.
f) Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specied in the instructions. Charging improperly or at temperatures outside the
specied range may damage the battery and increase the risk o re.
6) Service
a) Have your power tool serviced by a qualied repair person using only identical replacement
parts. is will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed
by the manufacturer or authorised service providers.

6WG/WB81EC-B/FEB20/V1.1

7WG/WB81EC-B/FEB20/V1.1
I. General Operation
WARNING: is appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Before starting to use this machine, read, understand and follow all instructions that are provided in
this manual. Be thoroughly familiar with the controls and the proper use of the machine before starting
operations.
WARNING: Do not put your hands or feet near or under rotating parts. Keep clear of the
discharge opening at all times.
• is machine may only be operated by responsible persons, who are familiar with the operating
instructions. Never allow children or people unfamiliar with these instructions to use the lawnmower. Local
regulations can restrict the age of the operator.
• To prevent injury, be sure that there are no persons in the immediate area where you are mowing. If any
person enters this area, stop the machine by releasing the Accelerator Pedal. Never mow while people,
especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents or hazards occuring to other people or
their property.
• Switch o and remove the key from the Control Panel before adjusting, cleaning or if the cable is entangled,
and before leaving the lawnmower unattended for any period.
• oroughly inspect the area where the equipment is to be used and remove all objects such as rocks, toys,
wire, bones, sticks and any other items, which can be thrown by the machine through the discharge opening.
• Always look down and behind you before and while driving backwards.
• Before operating the mower, make sure that all protective screens, and other protective devices are properly
installed. Never operate the lawnmower with defective guards, or without safety devices, for example
deectors in place.
• Observe the instructions of the manufacturer, for proper operation and installation of accessories. Only
those accessories that have been approved by the manufacturer may be used.
• Make sure that the blades of the mower are not rotating before crossing gravel drives, walkways or roads.
• Switch o the motor and wait until the blades come to a complete stop before removing the mulch plug,
grass box or optional rear deector.
• Mowing should only be done during daylight or under good articial lighting.
• Do not operate the machine while under the inuence of alcohol or drugs.
• Be careful when operating the mower on wet grass.
• Before switching on the motor, disengage all blade and self-propelling mechanisms or drive clutch.
• If the mower should start to vibrate abnormally, stop the motor and check immediately for the cause.
Vibration is generally a warning of trouble.
• Keep hands and feet away from the mower deck.
• Worn parts should be referred to a Weibang dealer to be replaced. If necessary, contact the specied service
address.
• Before using the machine, inspect the machine visually to determine whether the cutting blades, fastening
bolts and the entire mower deck are worn or damaged. To avoid an imbalance, replace worn out or damaged
cutting blades.

8WG/WB81EC-B/FEB20/V1.1
WARNING! is machine produces an electromagnetic eld during operation. is eld may
under some circumstances interfere with active or passive medical implants. To reduce the risk
of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the
medical implant manufacturer before operating this machine.
Do not use this machine in lightning.
Children should be supervised to ensure that they do not play with the appliance.
CAUTION- do not touch rotating blades.
II. SLOPE OPERATION
Mowing on banks can be dangerous:
• Slopes are a major factor related to slip and fall accidents, which can result in severe injury. All slopes
require extra caution. If you feel uneasy on a slope, do not mow it.
DO:
• Drive up and down slopes, not across. Exercise extreme caution when changing direction on slopes.
• If the unit stops going uphill, stop the blades and back down slowly.
• Use extra care with attachments. ey can change the stability of the machine.
• Keep all movement on the slopes slow and gradual.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Tall grass can hide obstacles.
• Keep safety devices (guards, shields, and switches) in place and working.
DO NOT:
• Do not trim near drop-os, ditches or embankments. e operator could lose footing or balance.
• Do not trim excessively steep slopes over 12 degrees (of approximately 1.6 feet for every 10 feet).
• Do not mow on wet slopes.
• Do not try to stabilize the machine by putting a foot on the ground.
• Do not make sudden changes in speed or direction.
• Avoid sudden turns.
• Avoid starting or stopping on a slope.
WARNING! Switch o the whole machine and remove the key before adjusting, cleaning or
maintenance. e blades will continue to rotate for a few seconds aer the machine is switched o.
III. CHILDREN
• Tragic accidents can occur if the operator is not alert to the presence of children. Children are oen
attracted to the machine and the mowing activity. Never assume that children will remain where you last saw
them.
• Young children must not be allowed to play in or be adjacent to areas where lawn mowers are being used.
Children younger than 6 years should be kept indoors during mowing.
• Keep children out of the trimming area and under the watchful care of another responsible adult. Be alert
and turn the machine o if children enter the area.
• Before and while moving backwards, look behind and down for small children.
• Children must not be allowed to ride as passengers on mowers or to be towed behind mowers in carts or
trailers. ey should not be permitted to play on or around the mower when it is in use or in storage.
• Never allow children to operate lawn mowers until they have displayed the necessary levels of judgment,
strength, coordination, and maturity. ey should also be educated in mower operation and safety and be
supervised by an adult before they are allowed to operate a mower by themselves.
Most children will not be ready to operate a ride on mower until at least 12 years of age.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

9WG/WB81EC-B/FEB20/V1.1
IV. GENERAL INSTRUCTIONS FOR WORKING WITH YOUR LAWNMOWER
• Do not switch on the motor when standing in front of the discharge chute.
• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
• Never make adjustments or repairs with the motor running. Switch o, remove key from Control Panel
before any adjusting or maintenance.
• Check regularly that nut and bolts, especially blade attachment bolts, are fastened tightly and keep the
equipment in a good condition.
• Never tamper with safety devices. Check their proper operation regularly.
• Make sure that grass, leaves or other debris does not collect in the mower; check regularly and remove
such residues to prevent blocking.
• Stop and inspect your lawnmower if you strike any object. Repair, if necessary, before restarting.
• Never attempt to make height adjustments while the motor is running.
• Mower blades are sharp and can cause injuries. Wrap the blade(s) or wear gloves when handling them,
and use extra caution during blade maintenance.
• Be especially careful in case you select reverse when forward is desired.
• Stop the blade(s) if the lawn mower has to be tilted for transportation, when crossing surfaces other than
grass, and when transporting the mower to and from the area to be mown.
• Switch on the motor carefully according to the instructions and with your feet well away from the blades.
• Rotating blades can cut o legs and arms and are capable of throwing objects. Failure to observe safety
instructions could result in serious injury or death.
• Do not put hands or feet under or into the mower when the motors are running.
• is machine will disengage from cutting when in reverse.
• Shut o blades when not mowing. Park machine safely before leaving the operating station.
• Never pick up or carry a lawn mower while the motor is running.
• Switch o all motors and remove the key from the Control Panel:
- Whenever you leave the machine.
- Before clearing blockages or unclogging the chute.
- Before checking, cleaning or working on the lawnmower.
- Aer striking a foreign object. Inspect the lawnmower for damage and make repairs before
restarting and operating the lawnmower.
- If the lawnmower starts to vibrate abnormally (check immediately).
• When not using the mower turn o the ignition key and REMOVE THE KEY for added safety.
As a precaution, when the batteries are fully charged remove the battery charger.
• Loose tting clothes and jewellery can becaught in movable parts. Never operate this machine in bare feet
or sandals. Wear rough-soled work shoes and close tting trousers and shirts.
• is machine is not intended for use on any public roadway. Watch for trac when operating near or
crossing roadways.
• Mow only in daylight and never carry passengers. Slow down before turning. Operate the machine
smoothly. Avoid erratic operation.
• Never leave a running machine unattended. Always turn o blades. Stop machine and remove key before
dismounting.
• is unit should not be driven up or down ramps as the unit could tip, causing serious personal injury. e
unit must be pushed manually on ramps to load or unload properly.
• Do not attempt to mow through unusually tall, dry or wet grass. is machine is designed to cut normal
residential grass of a height no more than 6”.
• If situations occur which are not covered in this manual, use care and good judgement. Contact your local
dealer or local authorised service department for assistance.
PROPER USE
e electric riding mower may only be used for lawn maintenance. Any application that is not listed in this
guide is prohibited.

10 WG/WB81EC-B/FEB20/V1.1
V. CUSTOMER RESPONSIBILITIES
• Read and observe the safety regulations contained in this Owner’s Manual. is manual gives instructions
on the correct assembly and safe use of your machine. It is important that you read these instructions
carefully.
• Follow a regular schedule for maintaining, caring for and using your lawnmower.
• Follow the instructions in the Storage sections of this Owner’s Manual.
• Remember that the operator is responsible for accidents with other persons or their property.
• When fully assembled the machine weighs approximately 382lbs. If necessary, obtain assistance to remove
from packaging.
• is riding mower is a HEAVY machine. e net weight is 173kgs/382Lbs.
DO NOT ATTEMPT TO MANUALLY LIFT IT WITH ONLY ONE OR TWO PEOPLE!
CAUTION: e above use and safety instructions must be strictly adhered to. e manufacturer
assumes no liability for any damage caused by improper operation, improper use, misuse,
unauthorised repairs or alterations performed.
Residual risks
Even when the unit is used as prescribed it is not possible to eliminate all residual risk factors.
e following hazard may arise in connection with the unit’s construction and design:
a. Damage to hearing if eective hearing protection is not worn.
b. Damage to health resulting from vibration emssion if the unit is being used over longer periods of time or
not adequately managed and properly maintained.
PRODUCT NAME Rechargeable Ride-on Lawnmower
COMMERCIAL NAME iON BATTERY RIDER
TYPE BATTERY POWERED
MODEL 81RC ERIDER
Warranty 5 year domestic use, subject to annual service
Battery Warranty 2 year limited non commercial
Drive Motor Forward-Neutral--Reverse
Drive system Electric
Battery Capacity- Volts & Amp hour Rating 72V/31 Ah battery
Ground Speed (approx.) Forward Max. 3.7 mph / 6 kmh
Reverse Max. 3.1 mph / 5 kmh
DECK
Deck Material Steel
Deck Construction Steel
Number of Spindles 2
Blade Tip Speed 2800 min-1
Spindle Material Steel motor sha
Deck Drive Cutting motors: DC72V/800W Qty: 2
Deck Engagement Electric-Blade mounted directly to motor sha
Deck Li Svstem Spring Assisted - Hand operated
Cutting width 32” (81 cm)
SPECIFICATIONS:

11WG/WB81EC-B/FEB20/V1.1
Cutting position and heights (1/2/3/4/5/6/7/8/9/10) 1 (1in/25mm). 2 (1.23in/31mm). 3 (1.55in/39mm).
4 (1.94in/49mm). 5 (2.38 in/61mm).
6 (2.87in/73mm). 7 (3.40in/86mm).
8 (3.93in/100mm). 9 (4.47in/113mm).
10 (5.0in/130mm).
Grass catcher volume 150 L
WHEELS
Front / Rear 11” x 4.00-5NHS / 13” x 5.00-6NHS
Tyre Pressure (Front / Rear) 15psi / 20psi
Safety Certication 2006/42/EC, 2014/30/EU, 2000/14/EC, EN 62841
-1:2015, EN ISO 5395-1:2013+A1, EN ISO 5395-3:
2013+A2, UL60730, UL2753+ANSI B71.1,
UL2595, EN ISO 12100:2010
Headlights LED
Seat High Back
Hour meter Included
MACHINE DIMENSION
Weight Net weight: 382 lbs / 173 kg
Length 78. 7in (2000mm)
Width 33.4in (848mm)
Height 40.9in (1040mm)
ATTACHMENTS
Charger 72V/2.5A Certied Smart Charger
Grass catcher Included
Mulch kit Included
Grass deector Optional
Sound pressure level Lpa 76.2dB(A), Kpa=3dB(A)
Measured sound power level Lwa 89.69dB(A), Kwa=3dB(A)
Guaranteed sound power level 92dB(A)
Hand-arm vibration (le/right) le : 1.80m/s2 right : 1.49m/s2, (K=1.5m/s2)
Whole body vibration: 1.01m/s2 (K=1.5m/s2)
Hardware Version V 1.0
Soware Version V 1.0
Blade type WG81EF13020/32(Front)
WG81EF13021/32(Rear)

12 WG/WB81EC-B/FEB20/V1.1
Delivered Items
Carefully remove the machine from its packaging and check that you have all the following items:
-Ride on Lawnmower and grass catcher
-Mulching plug with handle
-Owner’s Manual
-Guarantee card(s)
When parts are missing or damaged, please contact your dealer or Weibang Customer Service.
Not all of the accessories illustrated or described are included as standard delivery.
Cutting height adjustment bar- used to adjust cutting height.
Steering wheel- used for turning the mower to the right or le.
Control panel- integrated driving and cutting control buttons.
Brake pedal- used to brake the mower.
Driving pedal- used to start the driving motor and drive the unit.
Discharging handle- used to open the grass catcher to discharge grass clippings.

13WG/WB81EC-B/FEB20/V1.1
SET UP - Overview
Charging your new machine
e charging socket is located under the steering wheel.
Fig. 3
NOTE: Your new machine may have insucient power
aer delivery. You need to plug in your machine to
help ensure it is fully charged before starting.
Charge the 72V lithium polymer battery for 12-15
hours to ensure a full charge. Carefully read the relevant
sections in the Owner’s Manual or ask your local
Weibang dealer for details. Charging should be carried
out in the ideal surrounding temperature of Fig 3
32 to 104°F (0 to 40°C).
WARNING
Do not short circuit the battery wires. Remove any jewellery before working on or near the battery or electric
start system. Failure to follow these instructions could result in personal injury or property damage. Keep the
charger out of reach of children.
OPERATING CONTROLS
Switches and Buttons
NOTE: e drive mode switch must be in the F (Forward) or N (Neutral) Position before starting the
blade motors.

14 WG/WB81EC-B/FEB20/V1.1
Central Information Screen
Messages and unit status will be displayed on special LCD
screen, which informs the operator of some basic parameters
of the unit, such as driving speed, F/N/R, power level and
operating hours.
Note: If the ignition key is turned to the “ON” position
for a few seconds before starting the motor, the battery
voltage will display in the area where the hours are normally
displayed.
Note: e LCD indicators appear when each control meets
the “safe to start” mode (e.g. the indicator turns on when
the operator is in the seat).
Using the Parking Brake
• Press down the le pedal as far as it will go.
• Keep holding the pedal and li the locking lever under the steering wheel. en remove your foot from the
pedal, so the parking brake is locked on.
• To unlock the parking brake, press down the le pedal with your foot to release the parking brake and the
brake pedal.
Result: e parking brake prevents the machine from moving. If the machine moves, the parking brake
needs to be adjusted. Contact your local Weibang dealer for details.
Using the Key Switch
• Sit on the seat.
• Make sure the Drive Mode switch is in neutral.
• Make sure the Blade Control button is in the disengaged position.
• Check the starting conditions.
• Turn the key to the start position.
NOTE: When operating the unit, any operator MUST sit properly on
the seat. e key switch must be turned to the start position before
engaging any other controls.

15WG/WB81EC-B/FEB20/V1.1
Using CCS (Cruise Control System)
• Press the CCS button to shi to cruise mode.
• Press down the right pedal to accelerate the unit and
hold the speed for about 3 seconds to activate the CCS,
and then you can move your foot away from the pedal.
Now the unit will keep to this cruising speed.
• Press down the right pedal or brake pedal to disengage
cruise mode.
Mowing in reverse
“RMO” means the unit can also work in reverse
mowing mode. You can select the mode before
mowing or when mowing forwards.
• Selecting RMO before mowing:
1 Press the RMO button
2 Pull up the Blade Control button to turn
the blades on
3 Change the Drive Mode switch to R
or
1 Pull up the Blade Control button to turn the
blades on
2 Press the RMO button
3 Change the Drive Mode switch to R
• Selecting RMO during forward mowing:
For safe reversing operation, the unit provides two shiing modes:
1 Press the RMO button (blades keep turning)
2 Change the Drive Mode switch to “R”
or
1 Change the Drive Mode switch to “R”
2 Blades stop automatically
3 Press RMO button
4 Turn the blades on again
• Press down the right pedal to begin reverse-mowing.
• To stop reverse-mowing, press the RMO button again.
RECHARGING THE MOWER
• When the battery power is poor, the power lever indicator will ash which means the unit needs charging.
• Charging should be carried out in temperatures from 32 to 104°F (0 to 40°C).
• Make sure the ignition key is in the o position.
• Plug the round charger plug into the socket on the machine as shown. (Fig 10.1-10.3)
NOTE: It will only t ONE way.
• Plug the charger into a standard wall outlet. e RED light on the Battery Charger will light up indicating a
connection between the Battery and Charger.
NOTE: A full charge takes approximately twelve (12) hours. When the battery is fully charged the RED light
on the Charger will switch to GREEN.
Fully charge the Battery aer draining it fully. is is important in order to maintain maximum mower
performance and extend the useful life of the Battery. Each charge cycle is counted when the Battery is
charged. To achieve optimal life, the Battery should be fully discharged before recharging.

16 WG/WB81EC-B/FEB20/V1.1
Disconnecting the Charger (Fig 10.4)
Remember to disconnect the Charger from the machine using this sequence:
1. Pull the plug of the Charger out of the wall outlet.
2. Slide back the button C and turn the plug anti-clockwise and then pull the plug from the socket to
disconnect the Charger from the machine.
3. Keep the Charger out of reach of children.
Warning! ALWAYS DISCONNECT THE CHARGER FROM THE ELECTRICAL (WALL) OUTLET
FIRST, AND THEN DISCONNECT THE ROUND CHARGER PLUG FROM THE MACHINE. IF YOU
REMOVE THE ROUND CHARGER PLUG FIRST, THE EXPOSED CONNECTOR COULD BE
ACCIDENTALLY SHORT-CIRCUITED BY FOREIGN MATERIAL, WHICH MIGHT CAUSE A FIRE.
Adjusting the cutting height
• Make sure you are properly positioned on the seat
attached to the unit.
• Take hold of the Height Adjustment Lever A and
pull it to the right, away from the Graduator B.
NOTE: Keep a tight grip on the Height Adjustment
Lever when adjusting.
• From here you may adjust the Lever to your desired
cutting height, then locate securely into one of the teeth
of the Graduator.

17WG/WB81EC-B/FEB20/V1.1
Adjusting the seat
• To ensure comfort, you can use the seat
lever to adjust the position of the seat.
• Push the lever C to the le, so the seat
can be moved to the desired positon.
• Release the lever C to re-lock the seat.
OPERATING THE RIDE ON MOWER
Operating
REVIEW THIS CAREFULLY TO ENSURE SAFE AND LONG LASTING OPERATION
Please ensure that the mower has been fully charged before beginning. is involves connecting the
Charger plug to the mating socket, if the battery is running low (Fig 10.3).
en plug the other end of the Charger into a standard wall outlet. A full charge is usually
achieved overnight. e Charger will automatically shut o and the indicator will turn GREEN when the
unit is fully charged.
1. Always follow the safety rules.
2. Ensure that the parking brake is ON before operation. (Fig 6).
3. Install the grass catcher.
4. e mower is meant for its INTENDED USE ONLY! DO NOT USE IT FOR ANY OTHER PURPOSE.
5. Position yourself comfortably in the seat.
6. You MUST remain seated for the mower to operate. e unit includes an Operator Presence Switch that
requires the operator to be seated properly. If you are not seated properly, the unit will not operate.
7. Shi the Drive Mode switch to “N,” and then turn the key to the right - you will see the indicating light
change to GREEN.
8. To begin you MUST release the parking brake rst.
9. To start the blades, pull up the Blade Control button to engage the blades (Fig 4.2).
NOTE: Make sure the Drive Mode switch is set to the FORWARD position before engaging the blades. To
properly disengage the blades, push down the Blade Control button (Fig 4.2).
10. e blades will automatically disengage when the following occurs:
e Blade Control button is pushed down (Fig 4.2).
e Drive Mode switch is positioned to neutral OR reverse (Fig 4.1).
e key is turned to the OFF position (Fig 5).
e Operator lis o or leaves the seat.
11. To proceed forward, press the Drive Mode switch to the forward position.
12. When you press your right foot on the accelerator pedal, the unit will then begin to move in the direction
set by shiing the Drive Mode switch (Fig 4.1).
13. Release the accelerator pedal and the unit will come to a complete stop.

18 WG/WB81EC-B/FEB20/V1.1
14. Before beginning to move, ALWAYS be aware of your surroundings. Always take precautions to ensure
that the area you are mowing is clear of debris, obstructions, obstacles or any power wires.
15. If this is the FIRST TIME you are riding the unit we suggest you drive the unit around the area for a few
minutes to allow you to become accustomed to the movement and speed of the unit.
16. When you are in position to begin cutting
a) Adjust the height of the mower.
b) Ensure that the area you are mowing is clear of debris, obstructions, obstacles or power wires.
c) Make sure that no people/animals are within 50 of the mower.
d) Set the Drive Mode switch to FORWARD.
e) Engage and start the cutting motor.
f) en engage the drive motor and begin cutting.
17. To stop, remove your foot from the Accelerator Pedal. NOTE: e mower will automatically brake once
the pressure is released from the Accelerator Pedal.
18. If you reach an area that requires you to reverse, release the accelerator and come to a complete stop. en
push down the Blade Control button. (Fig 4.2).
19. You would then need to press the Drive Mode switch to the reverse position (rear facing arrow)(Fig 4.1).
When the unit is switched into reverse, an audible alert is immediately activated.
20. BEFORE REVERSING - always check behind you to ensure safe movement and also ensure no persons,
pets, or obstacles are present.
21. Engage the Accelerator Pedal - the unit will immediately begin to reverse.
22. NOTE: As a safety feature the unit is designed to disengage the cutting blades when switched into reverse
directly. ALSO the speed of the unit in reverse is only half that of the forward speed. Safety in operating your
lawnmower is a priority. All these features have been included to support the safe operation of the unit and
the operator.
23. Release the Accelerator Pedal to come to a complete stop. en move the Drive Mode switch to the
forward arrow position ( Fig 4.1).
24. To re-engage the blades follow step 9. Use the accelerator pedal to begin the forward motion once again.
25. Disengage the blades and come to a complete stop when you are done. Safely park the unit.
Engage the parking brake (Fig 6). When you leave the unit, turn the key to the o position and remove.
Mowing tips
• Under certain conditions, such as very tall grass, it may be necessary to raise the height of cut to reduce the
cutting eort and to keep from over loading the motor and leaving clumps of grass clippings. It may also be
necessary to reduce ground speed and /or run the lawn mower over the area a second time.
• For extremely heavy cutting, reduce the width of cut by overlapping the previously cut path and mow
slowly.

19WG/WB81EC-B/FEB20/V1.1
• Pores in cloth grass catchers can become lled with dirt and dust with use reducing eciency.
To prevent this, regularly hose the catcher o with water and let it dry before using.
IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER HOUSING FREE OF BUILT-UP
GRASS AND TRASH. SEE ”CLEANING” IN THE MAINTENANCE AND SERVICING SECTION OF THIS
MANUAL.
Discharging grass clippings
• When the grass catcher is full of grass clippings, a
special sensor will detect and alert the operator. A
seated operator can open the grass catcher to discharge
the grass clippings.
• Pull out the Discharging Handle A on the right
side of catcher B, and then push Handle A to the front
to open the catcher. e grass clippings will fall
down automatically from catcher B.
• Keep the catcher B open and move the unit
forward for about 1 metre to empty all the
clippings.
• Move the Handle A backwards to close the catcher and re-insert the handle.
Mulching
Mulching plug installation Fig. 14
• e unit can be changed to a mulching mower by installing a special mulching plug A.
• Open and remove the catcher using the two handles on the grass catcher.
• Insert the mulching plug A into the discharging opening until it stops on the bottom of
discharging chute B.
• Stretch the free ends of the 2 springs C attached on the handle, until they catch the
hooks D on the rear panel.
• Align the grass catcher to the rear panel and reinstall it to the unit.
Mulching tips
• e special mulching blade will re-cut the grass clippings many times and reduce them
in size so that as they fall onto the lawn they will disperse into the grass and not be noticed.

20 WG/WB81EC-B/FEB20/V1.1
Also, the mulched grass will biodegrade quickly to provide nutrients for the lawn.
• Avoid cutting your lawn when it is wet. Wet grass tends to form clumps and interferes with the mulching
action. e best time to mow your lawn is the early aernoon. At this time the grass has dried and the newly
cut area will not be exposed to the direct sun.
• For best results, adjust the lawnmower cutting height so that the
lawn mower cuts o only the top one-third of the grass blades. If
the lawn is overgrown it will be necessary to raise the height of
cut to reduce the cutting eort and to keep from overloading
the motor and leaving clumps of mulched grass. For extremely
heavy mulching reduce your width of cut by over-lapping the
previously cut path and mow slowly.
• Certain types of grass and grass conditions may require that an area be mulched a second
time to completely hide the clippings. When doing a second cut, mow across or perpendicular
to the rst cut path.
• Change your cutting pattern from week to week. Mow north to south
one week then change to east to west the next week. is will help
prevent matting and graining of the lawn.
MAINTENANCE AND SERVICING
Tyres
Tyre Sizes: Front (2) - 11x4.00-5 Rear (2) - 13x5.00-6
WARNING: Never exceed the maximum ination pressure shown on the sidewall of
of the tyre!
• Keep tyres free of gasoline, oil, or insect control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tyre damage.
1. Always check tyres for damage.
2. Check tyre pressure with a proper tool.
e recommended operating tyre pressure is:
Front 15psi / Rear 20psi.
Blade and Deck
e mower is designed to be self-standing on its rear bumper cover.
Important: Before attempting to stand the unit, you MUST be on a solid horizontal surface!
e Parking Brake Must be ON.
• You MUST apply the parking brake to stop the rear wheels!
• Two adults should stand on both sides of the unit and hold the front bumper by hand, and then li and tilt
the unit backwards until the unit stands on the horizontal surface.
Note: Two people are required to tilt the unit upwards. Always have two people for any maintenance.
• IMPORTANT: ALWAYS check stability before starting any maintenance service.
