Welbilt CREM ONE Series User manual

ONE
User Manual
UM_EN
Part No.: 1964195_06

ONE
2Original instructions.
CONTENTS
CONTENTS 2
MANUAL REVISIONS 5
NOTIFICATIONS 6
· Explanation of descriptions 6
GENERAL 7
· Introduction 7
· General instructions 7
· Warnings & Precautions 8
· Warnings & Precautions (continued) 9
· Warnings & Precautions (continued) 10
· Precautions 10
· Intended use 11
· Packaging 11
· Delivery inspection 12
· Long-term storage requirements 12
· Machine disposal requirements 13
· Caution 13
TECHNICAL SPECIFICATIONS 14
· Machine data 14
· Accessories 14
· Machine description 15
· External dimensions 15
BUTTONS AND CONTROLS 16
· 1B Version 16
· 2B versions 16
INSTALLATION AND START UP 17
· Machine positioning 17
· Hydraulic supply types 17
· Filling the water tank 18
· Mains water connection 18
· Water lter requirements 19
· Boiler pressure and temperature information 19
· Drain connection checklist 20
· Electrical connection checklist 20

ONE
3
Original instructions.
CONTENTS
· Electrical connection checklist (continued) 21
· Initial starting procedure 21
· Machine handling tips 21
OPERATION 22
· Inserting the portalter in the group 22
· Espresso brewing 22
· Steaming and frothing milk 23
· Dispensing hot water 23
CLEANING AND CARE 24
· Cleaning reminders 24
· Daily cleaning – At the end of each working day be sure to: 24
· Daily ushing 24
· Weekly cleaning or Periodical cleaning and care – Once per week be sure to: 25
· Weekly cleaning with espresso machine detergent 25
USER PROGRAMMING 1B 26
· User interface 1B 26
· Adjusting boiler temperature 26
USER PROGRAMMING 2B 27
· User Interface 2B 27
· Barista menu - Access & browsing 27
· Gradual soft preinfusion (GSP) menu (Rotary pump versions only) 27
· Temperature adjustment 28
· ECO mode 28
· Heating element On/O 28
· Clock menu 29
· Auto On/O menu 29
· Shot screen adjustment 29
· Counters menu 30
· Temperature units 30
· Date format 30
· USB communication (LFPP version only) 31
· Barista knob resolution (LFPP version only) 31
PRESSURE PROFILING MENU 32
· Manual mode: Access 32
· Manual mode: Initial PP pressure 32

ONE
4Original instructions.
· Manual mode: Run the shot 32
· Manual mode: Save recipe 32
· Recipe mode: Choose recipe 33
· Recipe mode: Recipe graph information 33
· Recipe mode: Run the shot 33
MACHINE ALERTS 34
· Alarms & Warnings 34
TROUBLESHOOTING 35
· Machine faults 35
· Brewing faults 35
· Limescale faults 35
Thank you for choosing the ONE espresso machine. We hope you enjoy it!
CONTENTS

ONE
5
Original instructions.
MANUAL REVISIONS
Rev. # Date TSB# Description
01 July 25, 2019 none Release rst draft for technical review.
02 Oct. 28, 2019 none Add programming information.
03 Nov. 12, 2019 none Add compliance and certication notes.
04 Nov. 14, 2019 none Combine EU and US version information into single user
manual.
05 Apr. 03, 2020 #257 Software update. 1B (1.05) / 2B (1.09)
06 Apr. 27, 2020 none Filter installation instructions added
07

ONE
6Original instructions.
NOTIFICATIONS
i
There are ve dierent levels of notication intensity within this manual, as identied by the signal
words DANGER, WARNING, IMPORTANT, NOTE and PRO TIP. The level of risk and importance of the
notication is determined by the following denitions. Always observe the warnings to ensure safety
and prevent potential injury and product damage.
Important:
Alerts against unsafe practices. Observe Important notications to ensure food safety,
prevent possible minor personal injury, or damage to the machine.
WARNING:
Indicates a potentially hazardous situation which, if the WARNING is ignored, could result
in serious injury or even death.
DANGER:
INDICATES AN IMMINENTLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED,
WILL LIKELY RESULT IN SERIOUS INJURY AND EVEN DEATH.
Note:
Gives additional information which may be helpful during the operation, routine
maintenance, and cleaning of the machine.
Pro Tip:
Gives helpful hints and suggestions from the manufacturer that take the guesswork out of
choosing settings and care intervals.
· Explanation of descriptions

ONE
7
Original instructions.
GENERAL
Please read this user manual
carefully before using the
machine.
This manual contains
important instructions
regarding safe intended use of
the machine.
Do not discard this manual,
it will be useful for future
reference. If damaged or lost,
request a new copy from the
manufacturer/distributor.
Machine installation and
certain maintenance
operations should only be
performed by qualied service
personnel.
All safety instructions and
warnings contained in this
manual should be observed
at all times to ensure
safe installation, use, and
maintenance.
Do not attempt to remove
covers or safety shields to
access the interior of this
machine or make repairs.
Repairs should be made by
an authorised technician or
service centre.
Owners are liable for ensuring
that users have been properly
trained to operate the machine
and understand the potential
risks involved.
The owner or installer will be
liable for all non-authorised
modication of the machine.
Non-authorised alteration or
modication of the machine
will immediately void the
manufacturer’s warranty.
This manual references the
machine at the time of sale.
The commercial availability of
subsequent versions including
modications, upgrades or
adaptations does not oblige
the manufacturer to apply
any changes to this machine,
nor is it obliged to update the
documentation supplied.
The manufacturer reserves
the right to withdraw currently
available manuals whenever
deemed appropriate and
reasonable.
Periodically, some updates
and changes may be required
for this machine. In this
event, a technician will be
responsible for ensuring the
change is made in accord with
manufacturer’s specications.
· Introduction
· General instructions

ONE
8Original instructions.
Install the machine in a
horizontal position and
away from heat sources and
ammable objects.
Appliance is only to be installed
in locations where its use and
maintenance is restricted to
trained personnel. Access to
the service area is restricted
to persons having knowledge
and practical experience of
the appliance, in particular as
far as safety and hygiene are
concerned.
This machine should only be
installed on a water-resistant
work surface that is capable
of adequately supporting the
machine’s weight.
The appliance is not suitable
for installation in an area where
a water jet could be used. This
appliance must not be cleaned
with a water jet or a pressure
washer.
The appliance is not suitable
for outdoor use, where it would
be exposed to severe weather
or extreme temperatures.
The instructions for appliances
connected to the water mains
by detachable hose-sets shall
state that the new hose-sets
supplied with the appliance are
to be used and that old hose-
sets should not be reused.
Use the inlet hose included
with the machine to connect
it to the water mains in
accordance with the national
rules applicable in the country
where machine is installed.
Plug the machine into a
properly installed, earth
grounded electrical outlet with
line voltage that matches the
specications for the machine.
For appliances not tted with a
supply cord and a plug, means
for disconnection must be
incorporated in the xed wiring
in accordance with the wiring
rules.
Ensure that the power supply
voltage does not uctuate by
more than 6%.
Position the power cable so that
users cannot trip over it. Keep
the power cable away from
sharp edges and heat sources.
Do not remove or disable any
of the mechanical, electrical,
or thermal protection safety
equipment.
If supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualied persons in
order to avoid a hazard.
GENERAL
· Warnings & Precautions
Note: The manufacturer is not liable for damage to persons or
property resulting from failure to follow the instructions and
warnings listed below when installing and using this machine.

ONE
9
Original instructions.
GENERAL
· Warnings & Precautions (continued)
In case of emergency, (e.g.,
the machine catches re or
becomes unusually hot or
noisy), disconnect the power
immediately and turn o the
water supply.
If the machine is not going to
be used for an extended period
of time, disconnect the power.
When disconnecting the power,
pull the plug rather than the
cable.
Keep all hazardous packaging
materials, such as plastic bags,
styrofoam, and staples, out of
reach of children.
Before performing maintenance
and/or moving the machine,
disconnect the machine from
the power supply and wait for it
to cool down.
To ensure fault-free
machine operation, only
use manufacturer-approved
replacement parts and
accessories.
When packed for storage, store
the machine in a dry place with
an ambient temperature above
5ºC. Boxes may be stacked up
to three units high of the same
model. Do not place other
heavy items on top of the box.
If the machine is likely to be
exposed to temperatures
below 0ºC during handling
and transport, make sure
that service personnel empty
the boiler and water system.
(The machine’s boiler and
water system are empty when
delivered from the factory.).
Never immerse the machine,
plug or power cable in water, as
there is a risk of electric shock.
Place the machine out of reach
of children.
This appliance is not intended
for use by persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
Note: safety regulation not
valid for Europe.
Specic safety regulation
for Europe: This appliance
can be used by children aged
from 8 years and above and
persons with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved. Children shall
not play with the appliance.
Cleaning and user maintenance
shall not be made by children
without supervision.

ONE
10 Original instructions.
GENERAL
· Warnings & Precautions (continued)
Do not use the machine if
the power cable or plug is
damaged, or the machine
has been dropped. Contact a
service technician for repairs or
to ensure that it is safe for use.
Do not place any liquids on the
machine.
Do not touch the machine’s hot
surfaces or dispensing equipment.
Do not touch the machine if
your hands or feet are wet.
Do not operate the machine if
any part except the dispensing
equipment is wet.
Do not block the vents with
rags or other objects.
Do not insert foreign objects
into the vents.
Check the drain regularly to
make sure that waste water is
emptying properly.
· Precautions
Before performing maintenance
and/or moving the machine,
disconnect the machine from
the power supply and wait for it
to cool down.
Do not place any liquids on the
machine.
This appliance must not be
cleaned with a pressure washer.
Never immerse the machine,
plug or power cable in water, as
there is a risk of electric shock.
Do not touch the machine’s
hot surfaces or dispensing
equipment.
Do not touch the machine if
your hands or feet are wet.
Do not operate the machine if
any part except the dispensing
equipment is wet.
Place the machine out of reach
of children.
This appliance can be used
by children from age 8 and
above and persons with
reduced physical, sensory, or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved.
Children shall not play with the
appliance.
Cleaning and user maintenance
shall not be made by children
without supervision.
Do not use the machine if
the power cable or plug is
damaged, or the machine
has been dropped. Contact a
service technician for repairs or
to ensure that it is safe for use.
Do not block the vents with
rags or other objects.
Do not insert foreign objects
into the vents.
Check the drain regularly to
make sure that waste water is
emptying properly.
Children should be supervised
to ensure that they do not play
with the appliance.

ONE
11
Original instructions.
GENERAL
To ensure optimal
performance, install the
machine in a location where
these parameters will not be
exceeded:
• Maximum permissible inlet
water pressure: 600 KPa (6
Bar) / 87 psi.
• Minimum permissible inlet
water pressure:
200 KPa (2 Bar) / 29 psi
• Maximum inlet water
temperature: 40ºC / 104ºF
• Ambient temperature is
between +10ºC / 50ºF (min.)
and +40ºC / 104ºF (max.).
The machine is intended to be
used by trained personnel for
preparing foodstus.
The coee machine has been
designed and manufactured
to make espresso coee and
other hot drinks (e.g., steaming
and frothing milk). Do not use
it for any other purpose.
The A-weighted sound
pressure level is below 70 dB.
This machine is not intended
for use in industrial kitchens,
domestic kitchens, or similar
locations.
The manufacturer will not
be held liable for damage
to persons or property
due to incorrect, improper
or negligent use by
nonprofessional personnel.
· Intended use
The machine is shipped in a custom-designed carton which
utilizes model-specic polystyrene cushions to protect it from
damage.
The machine’s carton features standardized handling symbols to
explain proper shipping and storage methods.
The machine must remain in a horizontal position during the
transport. Do not store or handle the machine except on its feet.
During transport protect the carton and machine from impact
drops, crushing, shocks, moisture and exposure to extreme
temperature.
· Packaging

ONE
12 Original instructions.
GENERAL
Upon receipt and delivery ensure that the machine is in the exact
condition described in the enclosed documentation, and that all
accessories are included. Missing items should be reported to the
manufacturer or dealer immediately.
Damage caused during transport should be reported to the
shipping agent and the machine’s distributor immediately.
Packaging materials are potentially dangerous and should be kept
away from children.
The carton and all packing materials are recyclable and should be
returned to a recycling center for disposal.
· Delivery inspection
Before storage or a month or more be sure to:
• Perform all weekly and periodic cleaning procedures
described in this manual.
• Disconnect and roll up the power cord (this should be
performed by a qualied person).
• Disconnect the machine’s water inlet hose from the
domestic water supply and drain the boilers (this should be
performed by a qualied person).
• Clean the drip tray and exterior of the machine to remove
any coee or other residue.
• Cover / re-pack the machine in its original carton and store
it in a dry place where it will not be exposed to extreme
temperatures or humidity.
• When returning the machine to service after long-
term storage, perform all weekly and periodic cleaning
procedures and reconnect the water and power supplies
(this should be performed by a qualied person) before use.
· Long-term storage requirements

ONE
13
Original instructions.
GENERAL
If the machine ever needs to be scrapped and disposed of
be sure to:
• Disconnect and roll up the power cord (this should be
performed by a qualied person).
• Disconnect the machine’s water inlet hose from the
domestic water supply and drain the boilers (this should
be performed by a qualied person).
• Pack up and ship/deliver the machine to a certied
recycling center.
· Machine disposal requirements
· Caution
- Risk of re and electric shock.
- Replace only with manufacturer’s original cord set.
- Disconnect from power supply before servicing.

ONE
14 Original instructions.
TECHNICAL SPECIFICATIONS
ONE 1B
VP
ONE 2B
VP
ONE 2B
RP-GSP
ONE 2B
RP-LFPP
EU Compliance codes: EAEB-I91F-13AP EEEB-I91F-13AP EEEB-I91G-13AP EEEB-I94G-13AP
US Compliance codes: EAJB-K91F-13BP EEJB-K91F-13BP EEJB-K91G-13BP EEJB-K94G-13BP
Temperature control: PID control PID control PID control PID control
Dispensing
control system: Manual Group lever Manual Group lever Manual Group lever + GSP
Manual Group lever
+ GSP + LFPP
Steam wand: 1 unit 1 unit 1 unit 1 unit
Hot water outlet: 1 unit 1 unit 1 unit 1 unit
Boiler system: 1 steam boiler
Dual boiler:
1 steam boiler
+ 1 group boiler
Dual boiler:
1 steam boiler
+ 1 group boiler
Dual boiler:
1 steam boiler
+ 1 group boiler
Boiler operating pres-
sure:
0.8 to 1.2 bar /
12-17 psi
0.8 to 1.2 bar /
12-17 psi
0.8 to 1.2 bar /
12-17 psi
0.8 to 1.2 bar /
12-17 psi
Steam boiler volume: 1.7L / 0.45 gal. 1.7L / 0.45 gal. 1.7L / 0.45 gal. 1.7L / 0.45 gal.
Group boiler volume: N/A 1.5L / 0.40 gal. 1.5L / 0.40 gal. 1.5L / 0.40 gal.
220-240V Power rating: 220-240V~ 50-
60Hz 1800W
220-240V~ 50-
60Hz 1800W
220-240V~ 50-
60Hz 1800W
220-240V~ 50-
60Hz 1800W
110-127V Power rating: 110-127V~ 50-
60Hz 1300W
110-127V~ 50-
60Hz 1300W
110-127V~ 50-
60Hz 1300W
110-127V~ 50-
60Hz 1300W
Water connection: 3/8” Internal thread 3/8” Internal thread 3/8” Internal thread 3/8” Internal thread
Height, width, depth: 420, 300, 458mm /
17, 12, 18in.
420, 300, 458mm /
17, 12, 18in.
420, 300, 458mm /
17, 12, 18in.
420, 311, 458mm /
17, 12, 18in.
Machine weight: 30kg / 66 lb 35kg / 77 lb 35kg / 77 lb 35kg / 77 lb
Ambient noise: < 70 db < 70 db < 70 db < 70 db
For 1B
versions
2-spouts
porta lter Filter basket Filter blind Brush Cleaning tablets
Water tank
lter
Units 1 unit 1 of each 1 unit 1 unit 1 unit 1 unit
14 gr.
7 gr.
For 2B
versions
2-spouts
porta
lter
Filter
basket Filter blind Tamper Extra
steam
nozzle Brush Milk Jar Cleaning
tablets Water tank lter
Units 1 unit 1 of each 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
14 gr.
18 gr.
7 gr.
· Machine data
· Accessories

ONE
15
Original instructions.
TECHNICAL SPECIFICATIONS
B1 C
A
D1 / D2*
Dimensions A B1 / B2 C D1 / D2
Length 420mm / 17in. 300mm / 311mm
12in. / 12in.
458mm /
18in.
88mm / 102mm
3in. / 4in,
B2
C
2B PID R-LFPP
1B/2B PID
2B PID R-GSP All models
1. Water tank lid
2. Steam knob
3. Power switch
4. Steam wand
5. Brewing group
6. Double pressure gauge
7. Drip tray
8. Drain connection
9. Brewing lever
10. Hot water tap
11. Hot water knob
12. Digital display
(1B version)
13. OLED display
(2B versions)
14. Water connection selector
15. Pressure proling knob
(2B PID R-LFPP)
1 1
11 11
14
13
15
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
12
1B version 2B version
* Measurement without the middle grid.
· Machine description
· External dimensions

ONE
16 Original instructions.
BUTTONS AND CONTROLS
ONE 1B Dual is controlled by a combination of manual control knobs, buttons and a brewing lever
for dispensing.
All ONE 2B verions is controlled by a combination of manual control knobs, buttons and a brewing
lever for dispensing. 2B LFPP is also equiped with a pressure proling knob.
2 buttons
4 buttons
Digital display
OLED display
Shot timer
Temperature
Shot timer
Temperature
Volume (2B LFPP)
Heating
Tank empty/rell

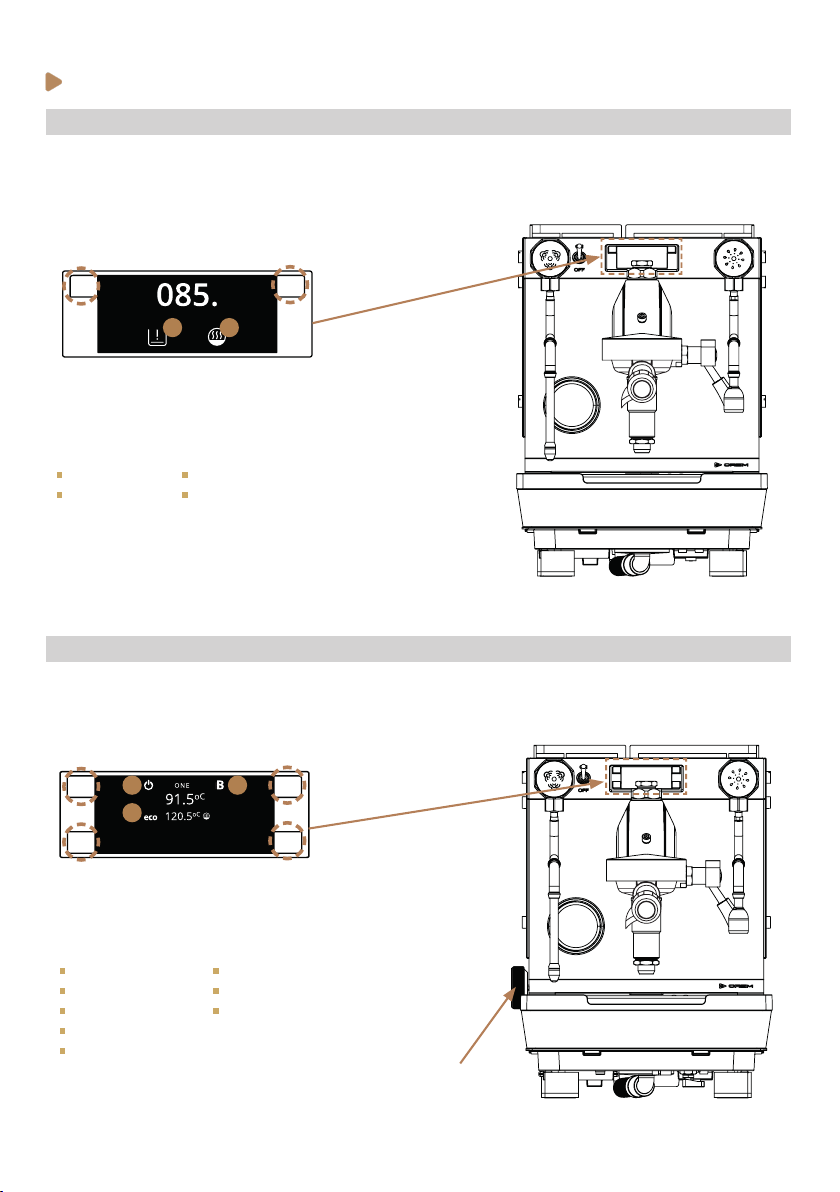

This machine features a group display for
monitoring o:
This machine features a OLED display for
monitoring o:
Pressure proling knob
(Only 2B LFPP)
1. Tank empty/rell signal
2. Heating signal
21
Several alarms
1. Eco / 2. Standby mode
3. Barista menu
(Advanced settings)
1
2 3
· 1B Version
· 2B versions

ONE
17
Original instructions.
TANK
TAP
Water Supply Selector
INSTALLATION AND START UP
MIN. 10 cm /4 in.
MIN. 30 cm / 12 in.
Install within 0-3º horizontal.
1. Installing the machine in the service area must be performed by a qualied person. As the
machine may be quite heavy, at least two strong, capable individuals are recommend to work
together to lift and position the machine. Consult the Technical Specications page for the
specic machine model being installed for machine weight and dimensions details. Contact a
service technician to do this task if you are not condent about performing the steps below.
2. Position the machine on a level, sturdy, and water-resistant surface approximately 110cm /
43in. above oor level for ease of access and usage.
3. Adjust the feet to ensure that it dispenses coee evenly to all cups.
Important:
Leave an air gap of at least 30cm / 12in. above the machine
and 10cm / 4in. behind it to ensure easy cleaning and
maintenance and adequate ventilation. The machine must
be installed within 3º of horizontally level front-to-back
and side-to-side to ensure proper hydraulic function and
drainage. Conrm with a spirit level or digital angle gauge.
Do not install the machine if the machine or installation
surface it is wet. Allow it to dry completely and ask a service
technician to ensure that none of the electrical components
have been aected.
This machine is oered with two options for hydraulic connection。Check the machine ratings plate
to conrm which arrangement the specic machine is equipped as.
Dual option (WTN):
The machine is equipped with a water tank
and a water mains connection.
The water tank can be lled manually or, if
the machine is plumbed to the mains, the
water tank will be relled automatically when
needed without any extra requirements.
Tank + Mains option (WToN):
The machine is equipped with a water tank
and a water mains connection.
This version has a manual selector located
at the bottom of the machine which allows
the machine to be relled automatically from
the water mains, or by manually relling of
the water tank, depending on which mode is
selected via the valve positon as shown in the
diagram below.
· Machine positioning
· Hydraulic supply types

ONE
18 Original instructions.
INSTALLATION AND START UP
DANGER:
Avoid spills inside the machine, always turn the machine off when
relling the tank. If spills occur, turn the machine off and unplug
the power supply until the machine is completely dry to avoid
RISK OF SHOCKS.
Note:
For water quality specs,
please refer to ’Water
ltration requirements’
Note:
The machine has a
position switch that blocks
all functions if the tank is
out of position.
Note:
The machine has a capacitive sensor that detects when
the tank is empty. Therefore, the water tank should only be
removed and relled when espresso is not being brewed.
i
i
i
1. Connecting the machine to the domestic water supply must be performed by a qualied
person. Contact a service technician to do this task you are not condent about performing the
steps below.
2. Attach the included 3/8’ water inlet hose to the back of the machine (elbow end to machine,
straight end to mains) and torque both ttings with a wrench.
3. Purge at least 20 liters of water from the domestic water supply before connecting the
machine to it to ush out any debris that may be in the plumbing system that would otherwise
accumulate inside the boilers.
4. The domestic plumbing system should be tted with a brass 3/8” BSPP male pipe tting and
an in-line shut-o valve. Connect the 180cm water inlet hose included with the machine to the
domestic water supply and tighten the line ttings with a wrench to 15 ft. lbs. / 20N-m.
Important:
To prevent limescale build up in the
boiler and other components, a water-
softening system must be installed
in-line ahead of the machine. Read more
on section for water lter requirements.
Important:
Use the inlet hose included with the
machine to connect it to the water mains
in accordance with the national rules
applicable in the country where machine is
installed. Never reuse damaged hoses
Option 1:
• Remove the top panel/cup warming tray.
• Remove the water tank.
• Fill the tank with clean, fresh drinking water
(max. volume = 1.8L / 0.48 gal.).
• Replace the water tank in the machine.
• Replace the top panel/cup warming tray.
• When the boiler is lled and heated, the
machine is ready for use.
Option 2:
• Remove the top panel/cup warming tray.
• Using a pitcher, carefully ll the tank with
clean, fresh drinking water (max. volume
= 1.8L / 0.48 gal.). Avoid spills inside the
machine.
• Replace the top panel/cup warming tray.
• When the boiler is lled and heated, the
machine is ready for use.
For machines with water tank + water mains connection options, please follow the instructions below
to connect the machine to the water mains.
On machines with Tank + Mains option, select
’TAP’ on the supply selection tap placed at the
bottom of the machine.
On machines with Dual option, the tank will be
relled automatically.
· Filling the water tank
· Mains water connection

ONE
19
Original instructions.
Filter.
Part no:
6163022
INSTALLATION AND START UP
A ltration device is provided with the accesories of the machine to be installed inside the tank.
For 1st use:
- Take the reservoir out of the machine. Fill it with cold water and immerse the lter for 2 min. to
ensure that no air is trapped inside.
- Empty the tank and t the lter inside the reservoir bottom valve. Push down to lock into place.
- Fill the reservoir again with cold water before placing it in position inside the machine.
- Set the reminder on top of the lter for replacement. Recommended each 2 months.
Important:
Always maintain the water ltration device or system in accordance with the manufacture’s
specications. Failure to routinely maintain the ltration device or system will result in
limescale build-up inside the machine’s hydraulic system which will eventually result in
machine failure. Please read more under the cleaning and care section.
Internal ltration device (Water tank supply)
External ltration device (Water mains supply)
1. Ensure that a water ltration device or system is installed in-line in the domestic water supply
ahead the machine to prevent contamination inside the machine’s hydraulic system. Contact a
service technician to do this task if you are not condent about performing the steps below.
2. Open the water tap and allow the lter to ll (if new/previously unused). Then the machine’s
steam boiler will begin to ll. Check carefully around the service area for leaks or drips. If leaks/
drips are detected turn o the tap immediately and check/tighten any leaking ttings.
Only use safe drinking water with a hardness rating between 5ºfH and 8ºfH (French hardness
degrees). If the hardness value is below this limit, corrosion of hydraulic components is likely. If the
value is higher, lime-scaling inside the boiler will occur. In both cases, the proper function of the
machine and quality and taste of the coee will be negatively aected.
If drinking water is not within the ratings shown above, a water lter must be installed inline ahead
of the espresso machine. Failure to install a water lter will result in voiding of the warranty and any
damage resulting from limescale buildup will be the responsibility of the owner.
Pro Tip:
Signicantly exceeding this operating range will result in excessive steam, high energy usage,
unexpected emergency machine shutdown due to safety valve activation and possibly
premature machine failure. Setting the temperature too low will resulting poor coee
extraction, slow group boiler heating, and low/no steam.

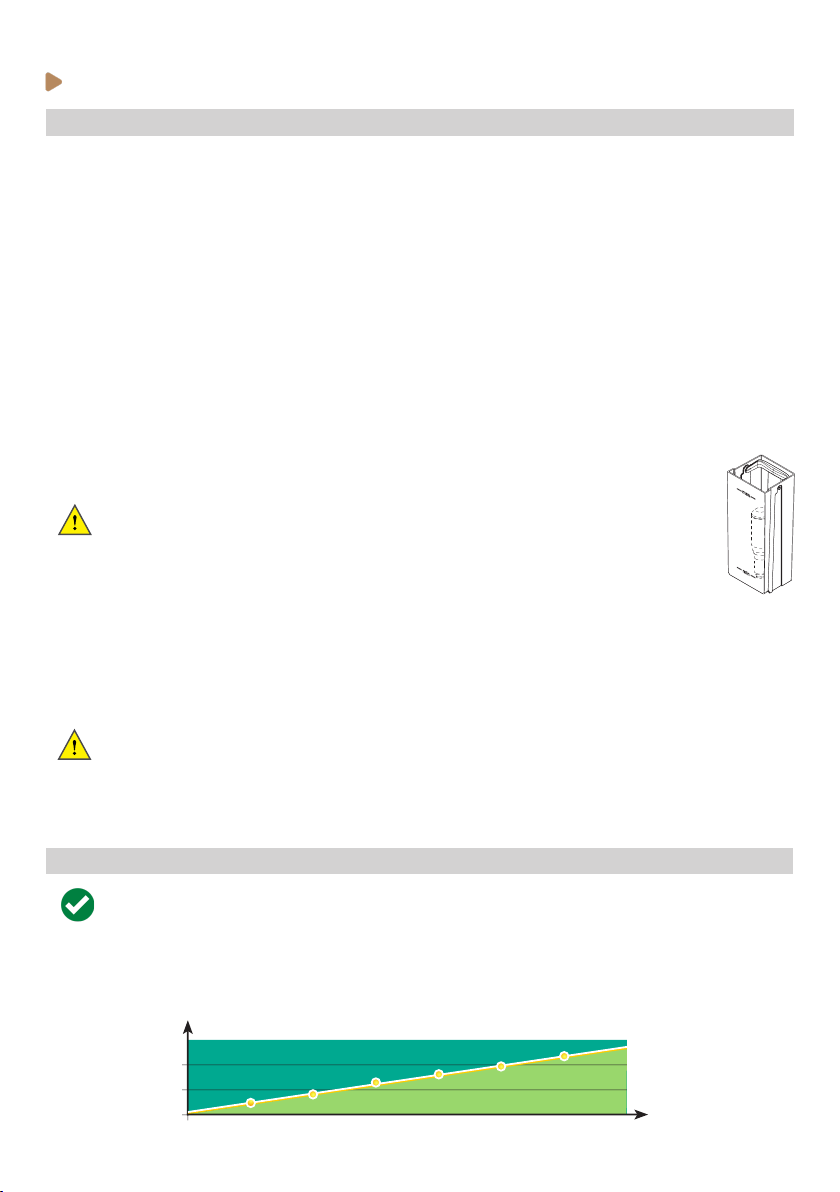

Relationship between boiler pressure and temperature
0.7
110
115
120
125
0.8 0.9 1 1.1 1.2
oC
BAR
· Water lter requirements
· Boiler pressure and temperature information
Important:
Reservoir with lter must be fed only with unsoftened cold potable water.
Water of unsafe or unknown microbiological quality may not be used.

ONE
20 Original instructions.
INSTALLATION AND START UP
1. Connect one end of the exible drain tube to
the drain cup outlet. (It is located under the
machine. Contact a service technician to do
this task you are unsure how to access this
area of the machine.)
2. Connect the other end of the drain tube to
the domestic plumbing drainage system in the
service area.
3. Remove the screw of the drain hole at the
bottom of the drip tray and replace/reinstall it
with the grill.
Flexible drain tube Drain cup
Pro Tip:
Ensure that the drainage tube is not twisted and that it is below the level of the drain cup to
prevent trapping water and other residue in the tube which could mold or produce bad smells.
Adjust the height of the machine with the feet if needed.
DANGER!
If supply cord is damaged, it must be replaced
by the manufacturer, its service agent or
similarly qualied persons in order to avoid a
hazard and SERIOUS INJURY OR DEATH!
Important:
The manufacturer will not be held
liable for damage to persons, animals
or property resulting from incorrect
installation of the coee machine.
1. The machine should only be connected to the power supply by qualied personnel. The
following safety instructions should be obeyed at all times.
2. Ensure that the electrical requirements stated on the TECHNICAL SPECIFICATIONS and on the ratings
plate located under the drip tray inside the machine match the specications of the power supply.
3. Ensure that the domestic electrical supply where the machine is being installed is rated for
and able to provide the power required by the machine. Insucient power supply, wiring,
grounding, or insulation can result in overheating and possibility of re.
4. The coee machine must be connected to an earth grounded electrical outlet that complies
with the regulations in force in the country of installation.
WARNING!
Some models are equipped with boiler drainage.
Emptying the boiler must be performed by qualied
personnel.
· Drain connection checklist
· Electrical connection checklist
