Merrychef eikon®e2s Installation and User Manual
1
_______________________________________________________________________________________________________________________________
eikon e2s
Installation and User manual
®
Approvals:
Language: ENGLISH
Part number: 32Z3933 (USA/CA)
Read instructions before use
Microwave Combination Oven

Merrychef eikon®e2s Installation and User Manual
2
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
IMPORTANT SAFETY INSTRUCTIONS
All appliances
When using electrical appliances, basic safety precautions should be followed including
the following.
WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
1) Read all instructions before using the appliance.
2) Read and follow the specific ‘PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY’ on page 3.
3) The appliance must be grounded. Connect only to a dedicated branch and properly
grounded outlet.
4) Install or locate this appliance only in accordance with the provided installation instructions.
5) Some products such as whole eggs and sealed containers –for example, closed glass jars –
can explode and should not be heated in this oven.
6) Use this appliance only for its intended use as described in the manual. Do not use corrosive
chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook
or toast food. It is not designed for industrial or laboratory use.
7) The appliance should not be used by children.
This appliance can be used by persons with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, if they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to
stifle any flames.
8) Do not operate this appliance if it has a damaged door, cord or plug, if it is not working
properly, or it has been damaged or dropped.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
9) This appliance should be serviced only by qualified service personnel. Contact nearest
authorised service facility for examination, repair, or adjustment.
10) Do not block or cover any openings on the appliance.
11) Do not store this appliance outdoors. Do not use this product near water, for example, near a
kitchen sink, in a wet basement, near a swimming pool, or similar locations.
12) Do not immerse cord or plug in water.
13) Keep cord away from heated surfaces.
14) Do not let cord hang over edge of table or counter.
15) The oven should be cleaned daily, follow the cleaning procedures in section 9 of this manual.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface
that could adversely affect the life of the appliance and possibly result in a hazardous
situation.

Merrychef eikon®e2s Installation and User Manual
3
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
The appliance must not be cleaned with a steam cleaner.
16) To reduce the risk of fire in the oven cavity:
i. do not overcook food. Carefully attend appliance when paper, plastic, or other
combustible materials are placed inside the oven to facilitate cooking.
ii. remove wire twist-ties from paper or plastic bags before placing a bag in the oven.
iii. if materials inside the oven ignite, keep the oven door closed. Turn the oven off, and
disconnect the supply cord, or shut off power at the fuse or circuit breaker panel.
iv. do not use the cavity for storage purposes. Do no leave paper products, cooking utensils
or food in the cavity when not in use.
v. when heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
17) Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is removed
from the microwave combination oven is not always present. THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL
IS INSERTED INTO THE LIQUID.
Combination microwave ovens
1) Oversized foods or oversized metal utensils should not be inserted in a microwave oven as
they may create a fire or risk of electric shock.
2) Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts
involving a risk of electric shock.
3) Do not store any materials, other than the manufacturer’s recommended accessories in this
oven when not in use.
4) Do not cover racks or any other part of the oven with metal foil. This will cause overheating of
the oven.
SAVE THESE INSTRUCTIONS
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property
damage, injury and death. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
Do not place any object between the oven front face and the appliance door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the oven door
closes properly and that there is no damage to the (1) door (bent), (2) hinges and
latches (broken or loosened), (3) door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
WARNING

Merrychef eikon®e2s Installation and User Manual
4
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
Disconnect power at the main external power switch before servicing or repairing a
microwave combination oven.
WARNING
To reduce the risk of electric shock, do not remove or open cover.
No user serviceable parts inside. Refer servicing to qualified personnel. Disconnect power
supply before servicing.
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Mandatory warning signs
The following warning signs / notices must be attached to the microwave combination oven and optional accessories in the
area indicated so as to be easily visible at all times.
Warning sign
Description
Microwaves warning
There is a risk of external and internal burns of body parts following exposure to
microwave energy.
Hot surface warning
There is a risk of burns from high temperatures inside the cavity and on the inside
of the appliance door.
Safety symbols
The following safety symbols be attached to the microwave combination oven in the area indicated so as to be easily visible
at all times.
Safety symbol
Description
Protective Earth (Ground)
Equipotential bonding
Customer documentation
▪The customer documentation is part of the microwave combination oven.
▪Keep the customer documentation manuals handy at all times so that you can look up any required information.
▪Keep the customer documentation manuals for the entire life of the appliance.
▪Carefully read the Installation and User Manual before using, handling, and working on this appliance.
▪If you transfer the microwave combination oven to a new owner, make sure to give the new owner the customer
documentation manuals as well.

Merrychef eikon®e2s Installation and User Manual
5
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
CONSIGNES DE SÉCURITÉ IMPORTANTES
Tous les appareils
Lorsque vous utilisez des appareils électriques, vous devez toujours suivre des précautions de
base, dont les suivantes.
AVERTISSEMENT –Afin de réduire les risques de brûlures, de décharge électrique, d’incendie, de
blessure ou d’exposition à un excès d’énergie dégagée par les micro-ondes :
1) Lisez toutes les consignes avant d’utiliser l’appareil.
2) Lisez et respectez plus précisément les « PRÉCAUTIONS À PRENDRE POUR ÉVITER TOUTE
EXPOSITION POTENTIELLE À UN EXCÈS D’ÉNERGIE DÉGAGÉE PAR LES MICRO-ONDES » à la
page 3.
3) L’appareil doit être mis à la terre. Branchez l’appareil uniquement dans une prise
de courant dédiée et correctement mise à la terre.
4) Installez ou placez cet appareil seulement conformément aux instructions d’installation
fournies.
5) Certains produits, comme les œufs entiers et les contenants scellés comme les bocaux de
verre fermés, peuvent exploser et ne doivent pas être chauffés dans
ce four à micro-ondes.
6) Utilisez cet appareil uniquement pour son usage prévu, tel qu’il est décrit dans le manuel.
N’utilisez pas de produits chimiques corrosifs ou de produits dégageant des vapeurs
corrosives dans cet appareil. Ce type de four est conçu spécialement pour chauffer, cuire ou
griller des aliments. Il n’est pas conçu pour un usage industriel ou de laboratoire.
7) L’appareil ne doit pas être utilisé par des enfants.
Cet appareil peut être utilisé par des personnes avec des capacités physiques, sensorielles ou
mentales réduites, ou qui manquent d’expérience ou de connaissances, à condition que
quelqu’un les surveille ou qu’elles aient reçu des instructions concernant l’utilisation de cet
appareil par une personne responsable de leur sécurité.
En cas d’apparition de fumée, éteignez ou débranchez l’appareil et gardez la porte fermée
pour étouffer les flammes éventuelles.
8) N’utilisez pas cet appareil si la porte, le cordon ou la fiche est endommagé, s’il ne fonctionne
pas correctement, s’il a été endommagé ou a subi une chute.
Si le cordon d’alimentation est endommagé, il doit être remplacé par le fabricant,
un représentant du service ou une personne similairement qualifiée afin de prévenir tout
danger.
9) Cet appareil doit être réparé uniquement par un technicien qualifié. Communiquez
avec le centre de réparation autorisé le plus près pour un examen, une réparation
ou un réglage.
10) Ne couvrez pas et ne bloquez pas toute ouverture de l’appareil.
11) N’entreposez pas cet appareil à l’extérieur. N’utilisez pas cet appareil près de l’eau,
par exemple, près d’un évier de cuisine, dans un sous-sol humide, près d’une piscine
ou dans un endroit semblable.
12) Ne plongez pas le cordon ou la fiche dans l’eau.

Merrychef eikon®e2s Installation and User Manual
6
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
13) Conservez le cordon à l’écart des surfaces chaudes
14) Ne laissez pas le cordon pendre sur le bord d’une table ou d’un comptoir.
15) Nettoyez le four quotidiennement en suivant les procédures de nettoyage décrites à la
section 9 du présent manuel.
Tout manquement à maintenir le four propre peut conduire à détériorer la surface, ce qui en
retour peut influer sur la durée de vie de l’appareil et éventuellement déboucher sur une
situation dangereuse.
L’appareil ne doit pas être nettoyé avec un nettoyeur à vapeur.
16) Pour réduire les risques d’incendie dans l’espace intérieur du four :
i. Ne faites pas trop cuire les aliments. Surveillez attentivement l’appareil lorsque du papier,
du plastique ou d’autres matériaux combustibles sont placés à l’intérieur du four pour
faciliter la cuisson.
ii. Retirez les attaches torsadées avec fil métallique de tout sac en papier ou en plastique
avant de placer le sac dans le four à micro-ondes.
iii. Si les matières à l’intérieur du four s’enflamment, gardez la porte fermée. Arrêtez le four et
débranchez le cordon d’alimentation ou coupez l’alimentation au fusible ou
au panneau du disjoncteur de protection.
iv N’utilisez pas l’espace intérieur à des fins d’entreposage. Ne laissez pas d’articles en papier,
d’ustensiles de cuisson ou de nourriture à l’intérieur de l’appareil lorsqu’il
n’est pas utilisé.
v. En réchauffant des aliments dans des conteneurs en plastique ou en carton, surveillez le
four en raison des risques que ces matières prennent feu.
17) Les liquides comme l’eau, le café ou le thé peuvent chauffer au-delà du point d’ébullition sans
sembler bouillir. Des bulles ou des bouillons ne sont pas toujours visibles ou présents quand
le contenant est sorti du four combiné à micro-ondes. CELA PEUT ENTRAÎNER UN
DÉBORDEMENT DE LIQUIDE BOUILLANT ET TRÈS CHAUD LORSQUE
LE CONTENANT EST DÉPLACÉ OU QU’UN USTENSILE Y EST INSÉRÉ.
Fours combinés à micro-ondes
1) Des aliments trop grands ou des ustensiles métalliques de grande dimension ne doivent pas
être insérés dans un four à micro-ondes, car ils risquent de provoquer un incendie ou une
décharge électrique.
2) Ne nettoyez pas l’appareil à l’aide de tampons à récurer en métal. Des morceaux pourraient
se détacher du tampon et toucher des pièces électriques, ce qui présenterait un risque de
décharge électrique.
3) N’entreposez pas de matières autres que les accessoires recommandés par le fabricant dans
ce four quand il n’est pas en cours d’utilisation.
4) Ne recouvrez pas les grilles ni toute autre partie du four de feuille métallique. Ceci ferait
surchauffer le four.

Merrychef eikon®e2s Installation and User Manual
7
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
CONSERVEZ CES INSTRUCTIONS
AVERTISSEMENT
Toute opération incorrecte dans l’installation, le réglage, la modification, l’entretien ou la
réparation peut causer des dommages matériels, des blessures voire la mort. Lisez
attentivement les instructions d’installation, d’utilisation et d’entretien avant d’installer ou
d’intervenir sur ce matériel.
AVERTISSEMENT
PRÉCAUTIONS POUR ÉVITER UNE POSSIBLE EXPOSITION
EXCESSIVE À L’ÉNERGIE MICRO-ONDE
Ne tentez pas de faire fonctionner ce four avec la porte ouverte, car cela peut entraîner
une exposition nocive à l’énergie dégagée par les micro-ondes. Il est important de ne
pas abîmer ou altérer les blocages de sécurité.
Ne placez aucun objet entre la face avant du four et la porte, et ne laissez jamais des
résidus de nourriture ou de produits d’entretien s’accumuler sur les surfaces
d’étanchéité.
N’utilisez pas le four s’il est endommagé. Il est particulièrement important que
la porte du four ferme correctement et que les éléments suivants ne soient pas
endommagés : (1) porte (pliée), (2) charnières et loquets (brisés ou desserrés),
(3) joints de porte et surfaces d’étanchéité.
Le four ne doit pas être modifié ou réparé par quiconque, sauf un technicien qualifié.
AVERTISSEMENT
Débranchez l’alimentation par l’interrupteur externe principal avant toute intervention ou
réparation sur un four combiné à micro-ondes.
AVERTISSEMENT
Pour réduire les risques de décharge électrique, ne retirez pas et n’ouvrez pas le couvercle.
Il n’y a aucune pièce pouvant être réparée par l’utilisateur à l’intérieur. Confiez toute
intervention à du personnel qualifié. Débranchez l’alimentation avant toute intervention.
AVERTISSEMENT
Produit de classe A. Dans un environnement domestique, ce produit peut occasionner des
interférences radio imposant à l’utilisateur de prendre des mesures adéquates.
Panneaux avertisseurs obligatoires
Les panneaux et étiquettes d’avertissement doivent être fixés au four combiné à micro-ondes et aux accessoires
en option dans la zone indiquée, de sorte à être facilement visibles en permanence.
Panneau
avertisseur
Description
Alerte micro-ondes
Risque de brûlures externes et internes de parties du corps suite à l’exposition
à l’énergie du micro-ondes.
Avertissement de surface chaude
Risque de brûlures par les hautes températures présentes dans l’espace intérieur
et à l’intérieur de la porte de l’appareil.

Merrychef eikon®e2s Installation and User Manual
8
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
Symboles de sécurité
Les symboles de sécurité suivants doivent être fixés au four combiné à micro-ondes dans la zone indiquée,
de sorte à être facilement visibles en permanence.
Symbole de
sécurité
Description
Terre de protection (mise à la terre)
Liaison équipotentielle
Documentation client
▪La documentation client fait partie du four combiné à micro-ondes.
▪Tenir à tout instant les manuels de la documentation client à portée de main, de sorte à pouvoir consulter toute
information nécessaire.
▪Conserver les manuels de la documentation client durant toute la durée de vie de l’appareil.
▪Lire soigneusement le manuel d’installation et d’utilisation avant d’utiliser, de manipuler et de travailler sur cet
appareil.
▪Si le four combiné à micro-ondes est transféré à un nouveau propriétaire, s’assurer de donner également à ce
dernier les manuels de la documentation.

Merrychef eikon®e2s Installation and User Manual
9
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
Contents
1General information 7
1.1 CE and UKCA declarations of conformity 7
1.1.1 CE declaration of conformity 7
1.1.2 UKCA declaration of conformity 7
1.2 Environmental protection 7
1.3 Important Information 8
1.4 Identifying your microwave combination oven 8
1.5 Structure of customer documentation 9
1.6 About this Installation and User Manual 9
2Design and function 11
2.1 Design and function of the microwave combination oven 11
2.2 Layout and function of the operating panel 12
3For your safety 13
3.1 Basic safety code 13
3.2Intended use of your microwave combination oven 13
3.3Warning signs on your microwave combination oven 14
3.4Summary of hazards 15
3.5Safety devices 16
3.6Requirements to be met by personnel and working positions 17
3.7Personal protective equipment 18
4Moving the appliance 20
4.1 Working safely with the appliance 20
4.2 Moving the appliance to the installation location 21
5Setting up the appliance 22
5.1 Safe working when setting up the appliance 22
5.2 Requirements for the installation location 23
5.3 Unpacking the appliance 25
5.4 Taking the appliance off the pallet 27
5.5Mounting an appliance on a work surface 28
6 Installation 29
6.1 Safe working during electrical installation 29
6.2 Planning the electrical installation 29
6.3 Electrical installation requirements 31
7 Preparing the appliance for use 33
7.1 Safe working when preparing the appliance for use 33
7.2 Procedure for preparing the appliance for use 34
7.3 Main menu screen 36
7.4 The keyboard screen 37

Merrychef eikon®e2s Installation and User Manual
10
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
8 Cooking procedures 38
8.1 Operating principles and instructions for cooking 38
8.1.1 Working safely with the appliance 38
8.1.2 Turning the oven on and off 39
8.1.3 How to cook 40
8.2 Operation instructions: Full serve mode 42
8.2.1 The Press&Go Menu 42
8.2.2 Using a cooking profile 43
8.2.3 Creating a cooking profile 45
8.2.4 Using a cooking profile 48
8.2.5 Managing cooking profile groups 52
8.2.6 Basic settings of your microwave combination oven 56
8.2.7 Using a USB stick 65
9Cleaning procedures 67
9.1 Daily cleaning tasks 67
9.2 Cleaning chemicals 67
9.3 Items required for cleaning 68
9.4 Safe working when cleaning 68
9.5 Cleaning procedures 70
9.5.1 Cool down procedure before cleaning 70
9.5.2 Cleaning instructions 73
10 Taking the appliance out of operation and disposal 78
10.1 Safe working when taking the appliance out of operation 78
10.2 Taking the appliance out of operation and disposal 79
11 Technical data 80
11.1 Technical data 80
11.2 Dimensional drawings 82
12 Servicing information 83
12.1 Warranty information and contacting customer service 83
12.2 Rectifying faults: problems in operation 84

Merrychef eikon®e2s Installation and User Manual
11
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
1General Information
Purpose of this chapter
This chapter shows you how to identify your microwave combination oven and provides guidance on using this manual.
1.1 CE and UKCA declarations of conformity
1.1.1 CE declaration of conformity
1.1.2 UKCA declaration of conformity
1.2 Environmental protection
Statement of principles
Our customers' expectations, the legal regulations and standards and our company's own reputation set the quality and
service for all our products.
We have an environmental management policy that not only ensures compliance with all environmental regulations and
laws, but also commits us to continuous improvement of our green credentials.
We have developed a quality and environmental management system in order to guarantee the continued manufacture of
high-quality products and to be sure of meeting our environmental targets.
This system satisfies the requirements of ISO 9001:2008 and ISO 14001:2004.
Environmental protection procedures
▪We observe the following procedures:
▪Use of RoHS2-compliant products
▪REACH chemical law
▪Recycling of electronic waste
▪Environmentally friendly disposal of old appliances via the manufacturer
Join us in our commitment to protect the environment.
The manufacturer declares that the Microwave Combination Oven complies with the
following European Directives:
•2006/42/EC (Machinery Directive)
•2014/30 (EMC Directive)
•2011/65/EU (RoHS Directive)
•2014/53/EU (Radio Equipment Directive)
A full Declaration of Compliance is available on request.
The manufacturer declares that the Microwave Combination Oven specified above
complies with the following UK Statutory Instruments:
•UKSI 2008 No. 1597 - Supply of Machinery (Safety) Regulations 2008
•UKSI 2016 No. 1091 –Electromagnetic Compatibilty Regulations 2008
•UK SI 2012 No. 3032 - RoHs Regulations 2012
•Radio Equipment Regulations 2017
A full Declaration of Compliance is available on request.

Merrychef eikon®e2s Installation and User Manual
12
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
1.3 Important information
Users are cautioned that maintenance and repairs should be performed by a Merrychef®authorised service agent using
genuine Merrychef®replacement parts. Merrychef®will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which
has been modified or repaired using unauthorised parts or by unauthorised service agents. For a list of authorised service
agents please refer to your distributor.
1.3 Renseignements importants
Les utilisateurs sont avisés que l’entretien et les réparations doivent être effectués exclusivement par un réparateur
Merrychef®agréé et avec des pièces de rechange Merrychef®d’origine. Merrychef®n’aura aucune obligation
vis-à-vis de tout produit installé, réglé ou utilisé de façon non conforme ou bien qui n’aurait pas été entretenu
conformément aux directives nationales et locales ou aux instructions d’installation fournies avec le produit, ou bien vis-à-vis
de tout produit dont le numéro de série serait abîmé, effacé ou retiré, ou qui aurait été modifié ou réparé avec des pièces
non autorisées ou par des réparateurs non autorisés. Pour obtenir une liste des réparateurs autorisés, veuillez consulter
votre distributeur.
1.4 Identifying your microwave combination oven

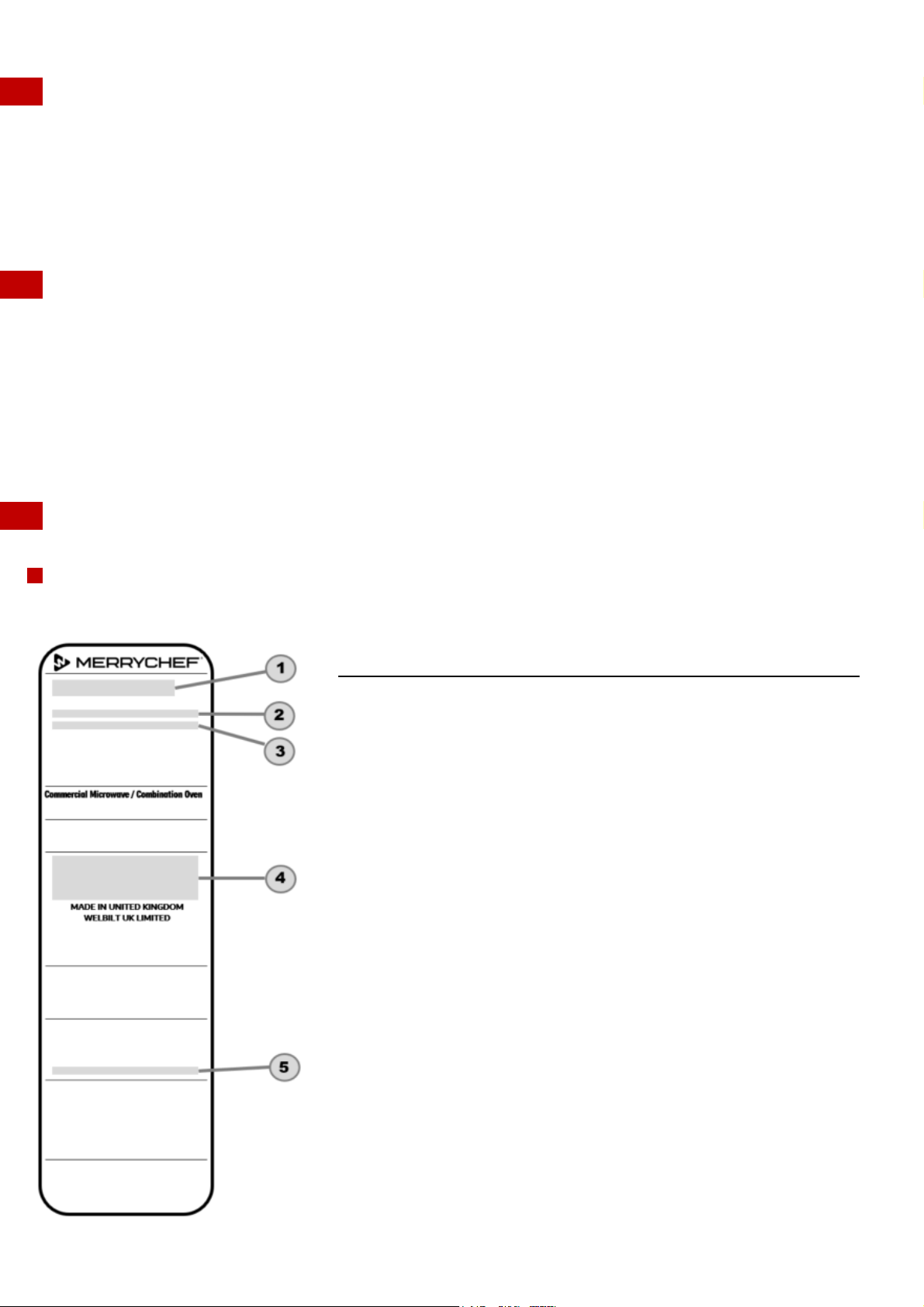

Position of nameplate
The nameplate is located on the rear of your microwave combination oven.
1
Model number
eikon e2s
2
Item Number
Elements of the item
number
Label
Meaning
Model
e2s
Power output convection
D
2200W
F
2200W / 1300W
G
2200W / 900W
Power output microwave
B
2000W (High Power version)
X
1000W (Standard Power version)
Voltage
30
230V
MV5
220-230V / 50Hz
MV6
208-240V / 60Hz
00
200V
20
220V
Frequency
5
50Hz
6
60Hz
Lead
A - Z
Example: H = L+N+E (4mm EU)
Plug
A - Z
Example: E = 32A 1ph plug
Communication
L
USB + LAN
U
USB
Version
A, B
A, B (pre-production)
1, 2, ...
1, 2, ... (serial production)
Accessory / Customer
CF
"Trend" exterior
CL
"Classic" exterior
WW
Specific customer
Region / Country
EU
Europe
US
United States of America

Merrychef eikon®e2s Installation and User Manual
13
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
3
Serial Number
Elements of the serial
number
Label
Meaning
Year of manufacture
15
2015
16, ...
2016, ...
Month of manufacture
01
January
02, ...
February, ...
Place of manufacture
2130
Sheffield (UK)
Production number
12345
4
Technical data
5
Date of manufacture
1.5 Structure of customer documentation
Contents of customer documentation
The customer documentation for the microwave combination oven includes the following documents:
▪Installation and User Manual (this document)
1.6 About this Installation and User Manual
Purpose
This Installation and User Manual is intended for all people who work with the microwave combination oven and provides
them with the necessary information for carrying out installation, operating tasks, cleaning jobs and minor servicing work
properly and safely.
Who should read the Installation and User Manual?
Name of target group
Tasks
Equipment mover
Conveying within the establishment.
Service technician
▪Setting up the appliance.
▪Preparing the appliance for first-time use and taking the appliance out of service.
▪Instructing the user.
Owner of the microwave
combination oven
or
Owner's member of staff
who is responsible for the
appliance
▪Made aware of all safety-related functions and devices of the microwave combination
oven by the service technician.
▪Instructed by the service technician on how to operate the appliance.
▪Provides assistance as instructed with conveying the appliance within the
establishment and setting up the appliance.
User
Essentially performs specific operating tasks such as
▪Loading the microwave combination oven.
▪Starting cooking profiles.
▪Removing food.
▪Cleaning the microwave combination oven.
▪Fitting accessories in the microwave combination oven.
▪Minor servicing tasks.

Merrychef eikon®e2s Installation and User Manual
14
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
Parts of this documentation that must be read without fail
If you do not follow the information in this document, you risk potentially fatal injury and property damage.
To guarantee safety, all people who work with the microwave combination oven must have read and understood the
following parts of this document before starting any work:
▪The chapter 'For your safety' on page 12
▪The sections that describe the activity to be carried out
Parties du présent document à lire impérativement
En ne suivant pas les informations données dans le présent document, vous vous exposez à des blessures
potentiellement mortelles ainsi qu’à des dommages matériels.
Afin de garantir la sécurité, toute personne travaillant sur le four combiné à micro-ondes doit avoir lu et compris les parties
suivantes du présent document avant de commencer tout travail :
▪Le chapitre « Pour votre sécurité » à la page 12
▪Les sections décrivant l’activité à effectuer

Merrychef eikon®e2s Installation and User Manual
15
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
1 General information
Back to contents >
Chapters in the Installation and User Manual
Chapter/section
Purpose
General information
▪Shows you how to identify your appliance.
▪Provides guidance on using this Installation and User Manual.
Design and function
▪Specifies the intended use of the appliance.
▪Explains the functions of the appliance and shows the position of its components.
For your safety
▪Describes the hazards posed by the appliance and suitable preventive measures.
▪It is important that you read this chapter carefully.
Moving the appliance
▪Specifies the basic appliance dimensions.
▪Specifies the requirements for the installation position.
▪Explains how to convey the appliance to the installation position.
Setting up the appliance
▪Explains how to unpack the appliance and specifies the parts supplied with the
appliance.
▪Explains how to set up the appliance.
Installation
Provides information on installing the electrical supply.
Preparing the appliance for use
Explains the procedure for preparing the appliance for first-time use.
Cooking procedures
▪Explains how to switch on the microwave combination oven.
▪Contains the instructions for working procedures during cooking.
▪Contains the instructions for handling operations on the microwave combination
oven regularly performed during cooking.
Cleaning procedures
▪Contains the cleaning instructions.
▪Describes the cleaning chemicals.
▪Contains and refers to the instructions for handling operations on the microwave
combination oven regularly performed during cleaning.
Taking the appliance out of
operation and disposal
▪Explains the procedure for taking the appliance out of service.
▪Contains information on disposal.
Technical data
Contains the technical data and dimensional drawings.
Servicing information
Contains Warranty information and a key to rectifying problems in operation.

_______________________________________________________________________________________________________________________________
2 Design and function
Back to contents >
16
Merrychef eikon®e2s Installation and User Manual
16
_______________________________________________________________________________________________________________________________
2Design and function
Purpose of this chapter
This chapter describes the design and construction of the microwave combination oven and explains its functions.
2.1 Design and function of the microwave combination oven
Parts and their function
Item
Name
Function
1
ON/OFF appliance switch
Used to turn the microwave combination oven on and off.
Turning this switch off does not isolate the appliance from the electricity supply.
2
easyToUCH® screen
control panel
When the appliance is switched on the easyToUCH® screen illuminates the user
interface.
See 'Cooking procedures' on page 38 for details.
3
Nameplate
(no picture)
Located on the rear panel of the appliance, the nameplate states the serial number,
model type and electrical specifications.
4
USB port
A USB socket located under the cover allows updates to programs stored on the
appliance.
See USB MenuConnect® Operating Instructions.
See 'Cooking procedures' on page 38 of this manual, for details of updating cooking
profiles.
5
Air outlets
(no picture)
Air used to cool internal components and steam from the cavity escape through the
air outlet vents located on the rear of the appliance. The air outlets must be kept free
from obstruction and they will not allow microwave energy to escape into the
environment.
6
Appliance door
The door is a precision-made energy barrier with three microwave safety interlocks.
Always keep it clean and do not use it to support heavy objects.
See 'Cleaning procedures' on page 67.

Merrychef eikon®e2s Installation and User Manual
17
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
2 Design and function
Back to contents >
Item
Name
Function
7
Air filter
The air filter situated at the lower front of the appliance is part of the ventilation
system. Keep it free of obstruction and clean it daily as described under ‘Cleaning
procedures’on page 67. The appliance should not be operated without the air filter
fitted.
8
Door handle
The door handle is a rigid bar which is pulled downwards and away from the
appliance to open it.
9
Door seals
The door seals ensure a tight seal around the door. Always keep them clean and
check regularly for signs of damage. At the first sign of wear have them replaced by a
Merrychef®approved service agent.
See 'Cleaning procedures' on page 67.
10
Air diffuser
(not fitted to all
appliances)
Keep the air diffuser clean and free of debris. Take great care when cleaning this area
of the appliance noting the different requirements shown under ‘Cleaning procedures’
on page 67 in this manual.
11
Cavity
The cavity (cooking chamber) is constructed from stainless steel and used for cooking
products. Keep it clean by following the cleaning instructions in the ‘Cleaning
procedures’on page 67 section of this manual.
12
Cook plate
The cook plate is flat and square with all four sides having circular dips for easily
fitting onto the cavity support stubs (Two on each side). Both sides of the cook plate
can be used for cooking and all sides are designed to fit onto the cavity support
stubs.
Material
The interior and exterior structure of the appliance is made of stainless steel in either a brushed finish or colour coded.

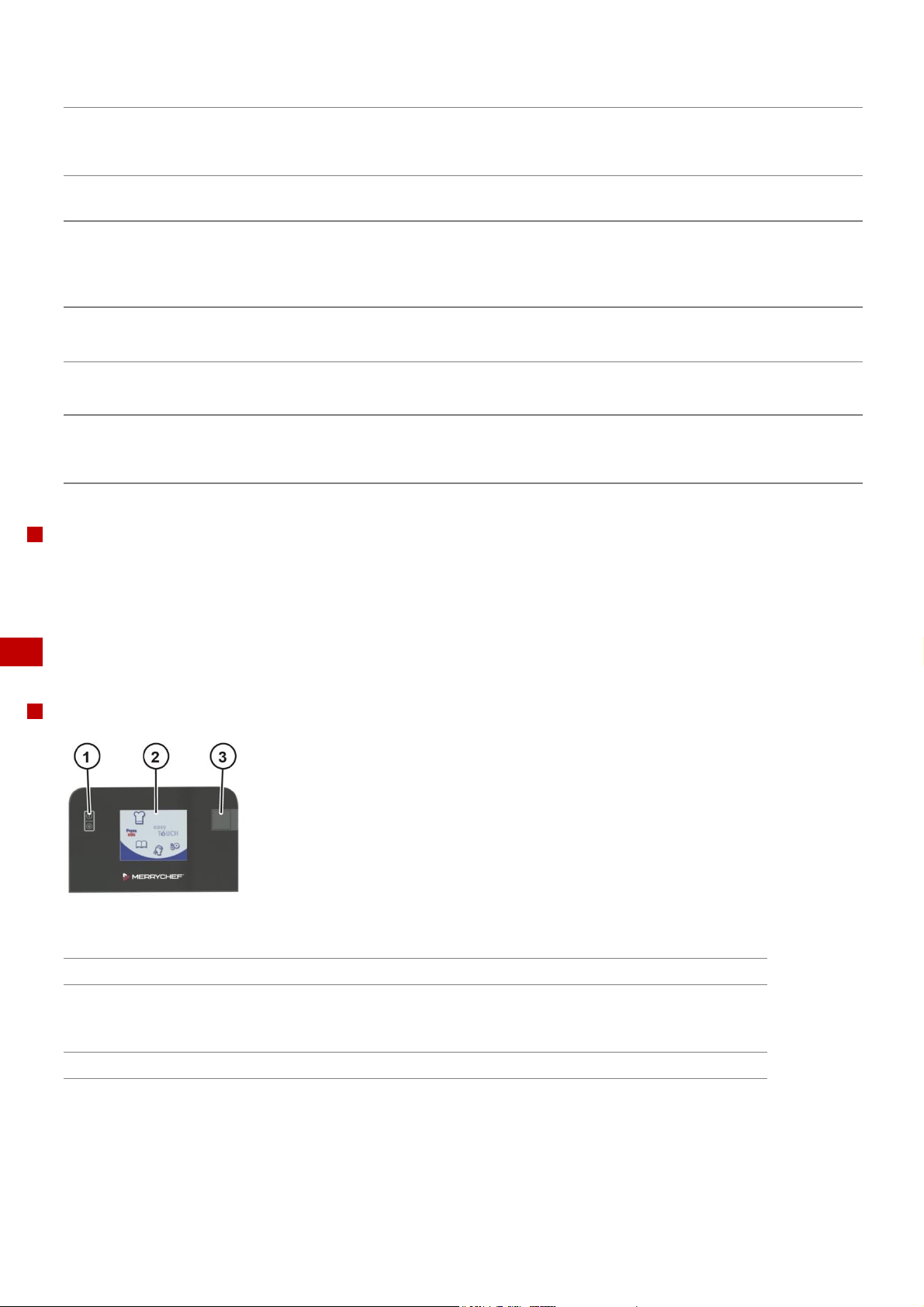

2.2 Layout and function of the operating panel
Elements and their function
Item
Name
Function
1
ON/OFF appliance switch
Switches the microwave combination oven on and off.
2
Touchscreen
Central controls of the appliance
▪Appliance operated by touching icons on touchscreen pages.
▪Status displays.
3
USB port
For connecting a USB memory stick.

_______________________________________________________________________________________________________________________________
3 For your safety
Back to contents >
Merrychef eikon®e2s Installation and User Manual
18
_______________________________________________________________________________________________________________________________
3For your safety
Purpose of this chapter
Together with Important Safety Instructions on pages 2-3, this chapter provides you with all the information you need in
order to use the microwave combination oven safely without putting yourself or others at risk.
This is a particularly important chapter that you must read through carefully.
3.1 Basic safety code
Object of this safety code
This safety code aims to ensure that all persons who use the microwave combination oven have a thorough knowledge of
the hazards and safety precautions, and that they follow the warning notices given in this Installation and User Manual and
on the appliance. If you do not follow this safety code, you risk potentially fatal injury and property damage.
3.2 Intended use of your microwave combination oven
The microwave combination oven must only be used for the purposes specified below:
▪The microwave combination oven is designed and built solely for cooking different foodstuffs in containers approved by
the manufacturer. Microwave, convection and impingement are used for this purpose.
▪The microwave combination oven is intended solely for professional, commercial use.
Restrictions on use
Some materials are not allowed to be heated in the microwave combination oven:
▪No dry powder or granulated material.
▪No highly flammable objects with a flash point below 275°C / 518°F, such as highly flammable oils, fats or cloths (kitchen
cloths).
▪No food in sealed tins or jars.
Requirements to be met by personnel
▪The microwave combination oven must only be operated and installed by personnel who satisfy specific requirements.
Please refer to 'Requirements to be met by personnel, working positions' on page 17 for the training and qualifications
requirements.
▪Personnel must be aware of the risks and regulations associated with handling heavy loads.
Requirements relating to the operating condition of the microwave combination oven
▪Do not operate the microwave combination oven unless it has been properly transported, set up, installed and placed
into operation as indicated in this manual and the person responsible for placing it into operation has confirmed this.
▪The microwave combination oven must only be operated when all safety devices and protective equipment are fitted, in
working order and fixed properly in place.
▪The manufacturer's regulations for operation and servicing of the microwave combination oven must be observed.
Requirements relating to the operating environment of the microwave combination oven
Specified operating environment for the microwave combination oven:
▪The ambient temperature lies between +4°C / 40°F and +35°C / 95°F.
▪Not a toxic or potentially explosive atmosphere.
▪Dry kitchen floor to reduce the risk of accidents.
Specified properties of the installation location:
▪No fire alarm, no sprinkler system directly above the appliance.
▪No flammable materials, gases or liquids above, on, under or in the vicinity of the appliance.
▪It must be possible to set up the microwave combination oven in the installation position so that it cannot tip over or
slide about. The supporting surface must comply with these requirements.
Mandatory restrictions on use:
▪The appliance must not be operated outdoors and not be shifted or moved during use.

_______________________________________________________________________________________________________________________________
3 For your safety
Back to contents >
Merrychef eikon®e2s Installation and User Manual
19
_______________________________________________________________________________________________________________________________
Cleaning requirements
▪Use only cleaning chemicals that have been approved by the manufacturer.
▪High-pressure cleaners or water jets must not be used for cleaning.
▪The appliance must not be treated with alkali or acid solutions or exposed to acid fumes.
3.3 Warning signs on your microwave combination oven
Warning and safety signs

_______________________________________________________________________________________________________________________________
3 For your safety
Back to contents >
Merrychef eikon®e2s Installation and User Manual
20
_______________________________________________________________________________________________________________________________
3.4 Summary of hazards
General rules for dealing with hazards and safety precautions
The microwave combination oven is designed to protect the user from all hazards that can reasonably be
avoided by design measures.
The actual purpose of the microwave combination oven, however, means that there are still residual risks; you must
therefore take precautions to avoid them. A safety device can provide you with a certain degree of protection against some
of these hazards. You must ensure, however, that these safety devices are in place and in working order.
The nature of these residual risks and what effect they have are described on the following pages.
Hazard points
The following illustration shows a Merrychef eikon®e2s microwave combination oven:
Excessive microwave energy
The microwave combination oven generates microwave energy. An operation with an open or damaged door or cavity can
result in external and internal burns of body parts following exposure to microwave energy.
Heat generation (1)
The microwave combination oven becomes hot inside the cavity and on the inside of the appliance door. This poses a risk of
burns on hot surfaces inside the microwave combination oven, and also on hot appliance parts, food containers and other
accessories used for cooking.
Hot steam / vapour (2)
When cooking food, the microwave combination oven may generate hot steam and vapour which escapes when the
appliance door is opened, and which is removed through the air vents on the rear of the microwave combination oven when
the appliance door is closed. This poses a risk of scalding from hot steam when the appliance door is opened. Take particular
care when opening the appliance door if the top door edge is below your field of vision.
Hot liquids
Foodstuffs are cooked in the microwave combination oven. These foodstuffs may also be liquid or liquefy during cooking.
This poses a risk of scalding from hot liquids, which may be spilled if not handled properly.
Live components (3)
The microwave combination oven contains live parts. This means a risk from live parts if the cover is not in place.
