Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

eikon e2s

Installation and User manual

Approvals:

Language: ENGLISH

Part number: 32Z3923 (GB)

Read instructions before use

Microwave Combination Oven

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

IMPORTANT SAFETY INSTRUCTIONS

All appliances

When using electrical appliances, basic safety precautions should be followed including

the following.

WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to

excessive microwave energy:

1) Read all instructions before using the appliance.

2) Read and follow the specific ‘PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY’ on page 3.

3) The appliance must be grounded. Connect only to a dedicated branch and properly

grounded outlet.

4) Install or locate this appliance only in accordance with the provided installation instructions.

5) Some products such as whole eggs and sealed containers –for example, closed glass jars –

can explode and should not be heated in this oven.

6) Use this appliance only for its intended use as described in the manual. Do not use corrosive

chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook

or toast food. It is not designed for industrial or laboratory use.

7) The appliance should not be used by children.

This appliance can be used by persons with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, if they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

If smoke is observed, switch off or unplug the appliance and keep the door closed in order to

stifle any flames.

8) Do not operate this appliance if it has a damaged door, cord or plug, if it is not working

properly, or it has been damaged or dropped.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

9) This appliance should be serviced only by qualified service personnel. Contact nearest

authorised service facility for examination, repair, or adjustment.

10) Do not block or cover any openings on the appliance.

11) Do not store this appliance outdoors. Do not use this product near water, for example, near a

kitchen sink, in a wet basement, near a swimming pool, or similar locations.

12) Do not immerse cord or plug in water.

13) Keep cord away from heated surfaces.

14) Do not let cord hang over edge of table or counter.

15) The oven should be cleaned daily, follow the cleaning procedures in section 9 of this manual.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface

that could adversely affect the life of the appliance and possibly result in a hazardous

situation.

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

The appliance must not be cleaned with a steam cleaner.

16) To reduce the risk of fire in the oven cavity:

i. do not overcook food. Carefully attend appliance when paper, plastic, or other

combustible materials are placed inside the oven to facilitate cooking.

ii. remove wire twist-ties from paper or plastic bags before placing a bag in the oven.

iii. if materials inside the oven ignite, keep the oven door closed. Turn the oven off, and

disconnect the supply cord, or shut off power at the fuse or circuit breaker panel.

iv. do not use the cavity for storage purposes. Do no leave paper products, cooking utensils

or food in the cavity when not in use.

v. when heating food in plastic or paper containers, keep an eye on the oven due to the

possibility of ignition

17) Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point

without appearing to be boiling. Visible bubbling or boiling when the container is removed

from the microwave combination oven is not always present. THIS COULD RESULT IN VERY

HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL

IS INSERTED INTO THE LIQUID.

Combination microwave ovens

1) Oversized foods or oversized metal utensils should not be inserted in a microwave oven as

they may create a fire or risk of electric shock.

2) Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts

involving a risk of electric shock.

3) Do not store any materials, other than the manufacturer’s recommended accessories in this

oven when not in use.

4) Do not cover racks or any other part of the oven with metal foil. This will cause overheating of

the oven.

SAVE THESE INSTRUCTIONS

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause property

damage, injury and death. Read the installation, operating and maintenance instructions

thoroughly before installing or servicing this equipment.

WARNING

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

Do not attempt to operate this oven with the door open since open-door operation can

result in harmful exposure to microwave energy. It is important not to defeat or

tamper with the safety interlocks.

Do not place any object between the oven front face and the appliance door or allow

soil or cleaner residue to accumulate on sealing surfaces.

Do not operate the oven if it is damaged. It is particularly important that the oven door

closes properly and that there is no damage to the (1) door (bent), (2) hinges and

latches (broken or loosened), (3) door seals and sealing surfaces.

The oven should not be adjusted or repaired by anyone except properly qualified

service personnel.

WARNING

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

Disconnect power at the main external power switch before servicing or repairing a

microwave combination oven.

WARNING

To reduce the risk of electric shock, do not remove or open cover.

No user serviceable parts inside. Refer servicing to qualified personnel. Disconnect power

supply before servicing.

WARNING

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Mandatory warning signs

The following warning signs / notices must be attached to the microwave combination oven and optional accessories in the

area indicated so as to be easily visible at all times.

Warning sign

Description

Hot surface warning

There is a risk of burns from high temperatures inside the cavity and on the inside

of the appliance door.

Safety symbols

The following safety symbols be attached to the microwave combination oven in the area indicated so as to be easily visible

at all times.

Safety symbol

Description

Protective Earth (Ground)

Equipotential bonding

Customer documentation

▪The customer documentation is part of the microwave combination oven.

▪Keep the customer documentation manuals handy at all times so that you can look up any required information.

▪Keep the customer documentation manuals for the entire life of the appliance.

▪Carefully read the Installation and User Manual before using, handling, and working on this appliance.

▪If you transfer the microwave combination oven to a new owner, make sure to give the new owner the customer

documentation manuals as well.

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

Contents

1General information 7

1.1 CE and UKCA declarations of conformity 7

1.1.1 CE declaration of conformity 7

1.1.2 UKCA declaration of conformity 7

1.2 Environmental protection 7

1.3 Important Information 8

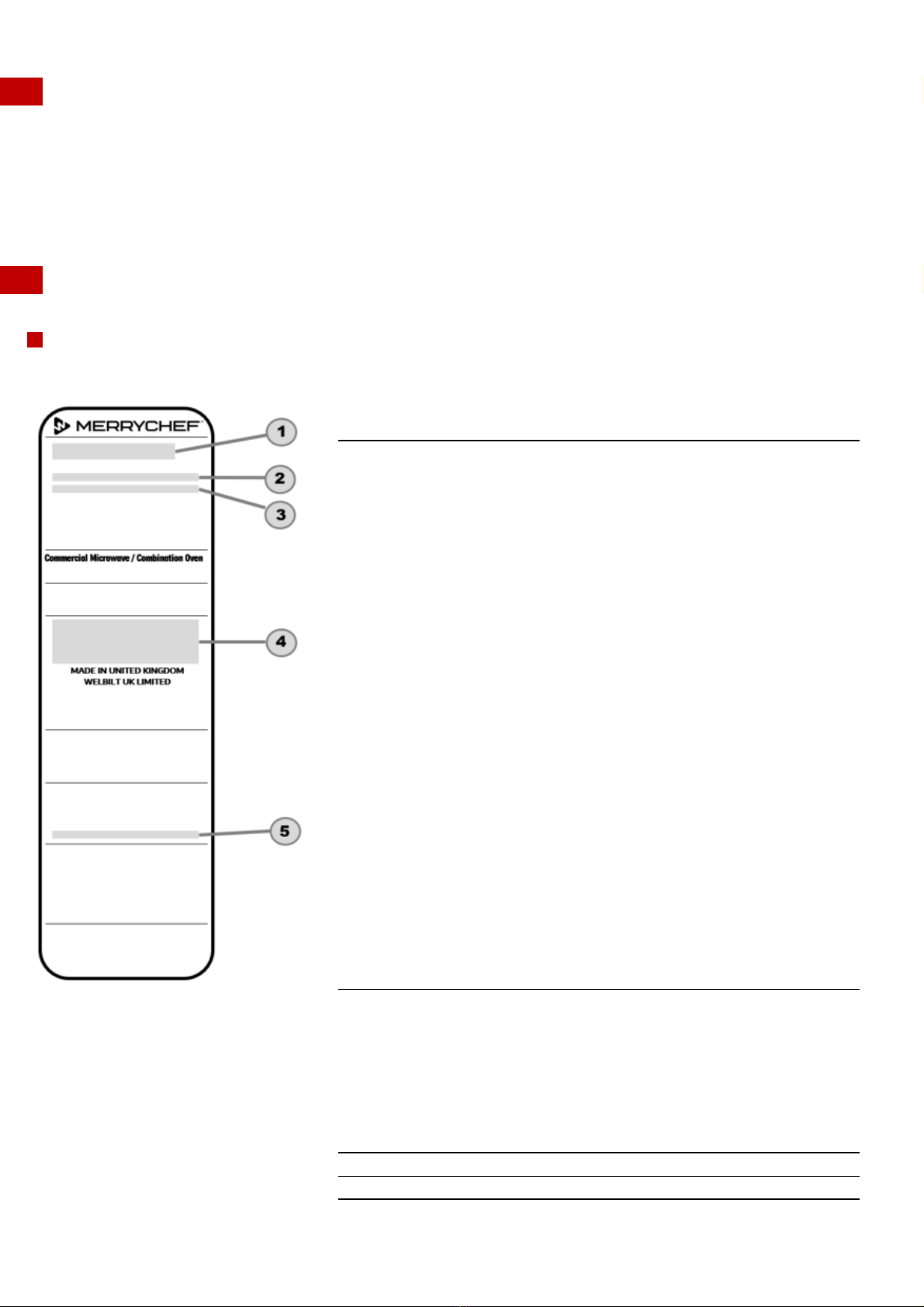

1.4 Identifying your microwave combination oven 8

1.5 Structure of customer documentation 9

1.6 About this Installation and User Manual 9

2Design and function 11

2.1 Design and function of the microwave combination oven 11

2.2 Layout and function of the operating panel 12

3For your safety 13

3.1 Basic safety code 13

3.2Intended use of your microwave combination oven 13

3.3Warning signs on your microwave combination oven 14

3.4Summary of hazards 15

3.5Safety devices 16

3.6Requirements to be met by personnel and working positions 17

3.7Personal protective equipment 18

4Moving the appliance 20

4.1 Working safely with the appliance 20

4.2 Moving the appliance to the installation location 21

5Setting up the appliance 22

5.1 Safe working when setting up the appliance 22

5.2 Requirements for the installation location 23

5.3 Unpacking the appliance 25

5.4 Taking the appliance off the pallet 27

5.5Mounting an appliance on a work surface 28

6 Installation 29

6.1 Safe working during electrical installation 29

6.2 Planning the electrical installation 29

6.3 Electrical installation requirements 31

7 Preparing the appliance for use 33

7.1 Safe working when preparing the appliance for use 33

7.2 Procedure for preparing the appliance for use 34

7.3 Main menu screen 36

7.4 The keyboard screen 37

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

8 Cooking procedures 38

8.1 Operating principles and instructions for cooking 38

8.1.1 Working safely with the appliance 38

8.1.2 Turning the oven on and off 39

8.1.3 How to cook 40

8.2 Operation instructions: Full serve mode 42

8.2.1 The Press&Go Menu 42

8.2.2 Using a cooking profile 43

8.2.3 Creating a cooking profile 45

8.2.4 Using a cooking profile 48

8.2.5 Managing cooking profile groups 52

8.2.6 Basic settings of your microwave combination oven 56

8.2.7 Using a USB stick 65

9Cleaning procedures 67

9.1 Daily cleaning tasks 67

9.2 Cleaning chemicals 67

9.3 Items required for cleaning 68

9.4 Safe working when cleaning 68

9.5 Cleaning procedures 70

9.5.1 Cool down procedure before cleaning 70

9.5.2 Cleaning instructions 73

10 Taking the appliance out of operation and disposal 78

10.1 Safe working when taking the appliance out of operation 78

10.2 Taking the appliance out of operation and disposal 79

11 Technical data 80

11.1 Technical data 80

11.2 Dimensional drawings 82

12 Servicing information 83

12.1 Warranty information and contacting customer service 83

12.2 Rectifying faults: problems in operation 84

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

1General Information

Purpose of this chapter

This chapter shows you how to identify your microwave combination oven and provides guidance on using this manual.

1.1 CE and UKCA declarations of conformity

1.1.1 CE declaration of conformity

1.1.2 UKCA declaration of conformity

1.2 Environmental protection

Statement of principles

Our customers' expectations, the legal regulations and standards and our company's own reputation set the quality and

service for all our products.

We have an environmental management policy that not only ensures compliance with all environmental regulations and

laws, but also commits us to continuous improvement of our green credentials.

We have developed a quality and environmental management system in order to guarantee the continued manufacture of

high-quality products and to be sure of meeting our environmental targets.

This system satisfies the requirements of ISO 9001:2008 and ISO 14001:2004.

Environmental protection procedures

▪We observe the following procedures:

▪Use of RoHS2-compliant products

▪REACH chemical law

▪Recycling of electronic waste

▪Environmentally friendly disposal of old appliances via the manufacturer

Join us in our commitment to protect the environment.

The manufacturer declares that the Microwave Combination Oven complies with the

following European Directives:

•2006/42/EC (Machinery Directive)

•2014/30 (EMC Directive)

•2011/65/EU (RoHS Directive)

•2014/53/EU (Radio Equipment Directive)

A full Declaration of Compliance is available on request.

The manufacturer declares that the Microwave Combination Oven specified above

complies with the following UK Statutory Instruments:

•UKSI 2008 No. 1597 - Supply of Machinery (Safety) Regulations 2008

•UKSI 2016 No. 1091 –Electromagnetic Compatibilty Regulations 2008

•UK SI 2012 No. 3032 - RoHs Regulations 2012

•Radio Equipment Regulations 2017

A full Declaration of Compliance is available on request.

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

1.3 Important information

Users are cautioned that maintenance and repairs should be performed by a Merrychef®authorised service agent using

genuine Merrychef®replacement parts. Merrychef®will have no obligation with respect to any product that has been

improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation

instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which

has been modified or repaired using unauthorised parts or by unauthorised service agents. For a list of authorised service

agents please refer to your distributor.

1.4 Identifying your microwave combination oven

Position of nameplate

The nameplate is located on the rear of your microwave combination oven.

Model number

eikon e2s

Item Number

Elements of the item

number

Label

Meaning

Model

e2s

Power output convection

2200W

2200W / 1300W

2200W / 900W

Power output microwave

2000W (High Power version)

1000W (Standard Power version)

Voltage

230V

MV5

220-230V / 50Hz

MV6

208-240V / 60Hz

200V

220V

Frequency

50Hz

60Hz

Lead

A - Z

Example: H = L+N+E (4mm EU)

Plug

A - Z

Example: E = 32A 1ph plug

Communication

USB + LAN

USB

Version

A, B

A, B (pre-production)

1, 2, ...

1, 2, ... (serial production)

Accessory / Customer

"Trend" exterior

"Classic" exterior

Specific customer

Region / Country

Europe

United States of America

Serial Number

Elements of the serial

number

Label

Meaning

Year of manufacture

2015

16, ...

2016, ...

Month of manufacture

January

02, ...

February, ...

Place of manufacture

2130

Sheffield (UK)

Production number

12345

Technical data

Date of manufacture

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

1 General information

Back to contents >

1.5 Structure of customer documentation

Contents of customer documentation

The customer documentation for the microwave combination oven includes the following documents:

▪Installation and User Manual (this document)

1.6 About this Installation and User Manual

Purpose

This Installation and User Manual is intended for all people who work with the microwave combination oven and provides

them with the necessary information for carrying out installation, operating tasks, cleaning jobs and minor servicing work

properly and safely.

Who should read the Installation and User Manual?

Name of target group

Tasks

Equipment mover

Conveying within the establishment.

Service technician

▪Setting up the appliance.

▪Preparing the appliance for first-time use and taking the appliance out of service.

▪Instructing the user.

Owner of the microwave

combination oven

Owner's member of staff

who is responsible for the

appliance

▪Made aware of all safety-related functions and devices of the microwave combination

oven by the service technician.

▪Instructed by the service technician on how to operate the appliance.

▪Provides assistance as instructed with conveying the appliance within the

establishment and setting up the appliance.

User

Essentially performs specific operating tasks such as

▪Loading the microwave combination oven.

▪Starting cooking profiles.

▪Removing food.

▪Cleaning the microwave combination oven.

▪Fitting accessories in the microwave combination oven.

▪Minor servicing tasks.

Parts of this documentation that must be read without fail

If you do not follow the information in this document, you risk potentially fatal injury and property damage.

To guarantee safety, all people who work with the microwave combination oven must have read and understood the

following parts of this document before starting any work:

▪The chapter 'For your safety' on page 12

▪The sections that describe the activity to be carried out

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

1 General information

Back to contents >

Chapters in the Installation and User Manual

Chapter/section

Purpose

General information

▪Shows you how to identify your appliance.

▪Provides guidance on using this Installation and User Manual.

Design and function

▪Specifies the intended use of the appliance.

▪Explains the functions of the appliance and shows the position of its components.

For your safety

▪Describes the hazards posed by the appliance and suitable preventive measures.

▪It is important that you read this chapter carefully.

Moving the appliance

▪Specifies the basic appliance dimensions.

▪Specifies the requirements for the installation position.

▪Explains how to convey the appliance to the installation position.

Setting up the appliance

▪Explains how to unpack the appliance and specifies the parts supplied with the

appliance.

▪Explains how to set up the appliance.

Installation

Provides information on installing the electrical supply.

Preparing the appliance for use

Explains the procedure for preparing the appliance for first-time use.

Cooking procedures

▪Explains how to switch on the microwave combination oven.

▪Contains the instructions for working procedures during cooking.

▪Contains the instructions for handling operations on the microwave combination

oven regularly performed during cooking.

Cleaning procedures

▪Contains the cleaning instructions.

▪Describes the cleaning chemicals.

▪Contains and refers to the instructions for handling operations on the microwave

combination oven regularly performed during cleaning.

Taking the appliance out of

operation and disposal

▪Explains the procedure for taking the appliance out of service.

▪Contains information on disposal.

Technical data

Contains the technical data and dimensional drawings.

Servicing information

Contains Warranty information and a key to rectifying problems in operation.

_____________________________________________________________________________________________________________________________ __

2 Design and function

Back to contents >

Merrychef eikon®e2s Installation and User Manual

_______________________________________________________________________________________________________________________________

2Design and function

Purpose of this chapter

This chapter describes the design and construction of the microwave combination oven and explains its functions.

2.1 Design and function of the microwave combination oven

Parts and their function

Item

Name

Function

ON/OFF appliance switch

Used to turn the microwave combination oven on and off.

Turning this switch off does not isolate the appliance from the electricity supply.

easyToUCH® screen

control panel

When the appliance is switched on the easyToUCH® screen illuminates the user

interface.

See 'Cooking procedures' on page 38 for details.

Nameplate

(no picture)

Located on the rear panel of the appliance, the nameplate states the serial number,

model type and electrical specifications.

USB port

A USB socket located under the cover allows updates to programs stored on the

appliance.

See USB MenuConnect® Operating Instructions.

See 'Cooking procedures' on page 38 of this manual, for details of updating cooking

profiles.

Air outlets

(no picture)

Air used to cool internal components and steam from the cavity escape through the

air outlet vents located on the rear of the appliance. The air outlets must be kept free

from obstruction and they will not allow microwave energy to escape into the

environment.

Appliance door

The door is a precision-made energy barrier with three microwave safety interlocks.

Always keep it clean and do not use it to support heavy objects.

See 'Cleaning procedures' on page 67.

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

2 Design and function

Back to contents >

Item

Name

Function

Air filter

The air filter situated at the lower front of the appliance is part of the ventilation

system. Keep it free of obstruction and clean it daily as described under ‘Cleaning

procedures’on page 67. The appliance should not be operated without the air filter

fitted.

Door handle

The door handle is a rigid bar which is pulled downwards and away from the

appliance to open it.

Door seals

The door seals ensure a tight seal around the door. Always keep them clean and

check regularly for signs of damage. At the first sign of wear have them replaced by a

Merrychef®approved service agent.

See 'Cleaning procedures' on page 67.

Air diffuser

(not fitted to all

appliances)

Keep the air diffuser clean and free of debris. Take great care when cleaning this area

of the appliance noting the different requirements shown under ‘Cleaning procedures’

on page 67 in this manual.

Cavity

The cavity (cooking chamber) is constructed from stainless steel and used for cooking

products. Keep it clean by following the cleaning instructions in the ‘Cleaning

procedures’on page 67 section of this manual.

Cook plate

The cook plate is flat and square with all four sides having circular dips for easily

fitting onto the cavity support stubs (Two on each side). Both sides of the cook plate

can be used for cooking and all sides are designed to fit onto the cavity support

stubs.

Material

The interior and exterior structure of the appliance is made of stainless steel in either a brushed finish or colour coded.

2.2 Layout and function of the operating panel

Elements and their function

Item

Name

Function

ON/OFF appliance switch

Switches the microwave combination oven on and off.

Touchscreen

Central controls of the appliance

▪Appliance operated by touching icons on touchscreen pages.

▪Status displays.

USB port

For connecting a USB memory stick.



_____________________________________________________________________________________________________________________________ __
3 For your safety
Back to contents >
Merrychef eikon®e2s Installation and User Manual
13
_____________________________________________________________________________________________________________________________ __
3For your safety

Purpose of this chapter
Together with Important Safety Instructions on pages 2-3, this chapter provides you with all the information you need in
order to use the microwave combination oven safely without putting yourself or others at risk.
This is a particularly important chapter that you must read through carefully.

3.1 Basic safety code

Object of this safety code
This safety code aims to ensure that all persons who use the microwave combination oven have a thorough knowledge of
the hazards and safety precautions, and that they follow the warning notices given in this Installation and User Manual and
on the appliance. If you do not follow this safety code, you risk potentially fatal injury and property damage.

3.2 Intended use of your microwave combination oven

The microwave combination oven must only be used for the purposes specified below:
▪The microwave combination oven is designed and built solely for cooking different foodstuffs in containers approved by
the manufacturer. Microwave, convection and impingement are used for this purpose.
▪The microwave combination oven is intended solely for professional, commercial use.

Restrictions on use
Some materials are not allowed to be heated in the microwave combination oven:
▪No dry powder or granulated material.
▪No highly flammable objects with a flash point below 275°C / 518°F, such as highly flammable oils, fats or cloths (kitchen
cloths).
▪No food in sealed tins or jars.

Requirements to be met by personnel
▪The microwave combination oven must only be operated and installed by personnel who satisfy specific requirements.
Please refer to 'Requirements to be met by personnel, working positions' on page 17 for the training and qualifications
requirements.
▪Personnel must be aware of the risks and regulations associated with handling heavy loads.

Requirements relating to the operating condition of the microwave combination oven
▪Do not operate the microwave combination oven unless it has been properly transported, set up, installed and placed
into operation as indicated in this manual and the person responsible for placing it into operation has confirmed this.
▪The microwave combination oven must only be operated when all safety devices and protective equipment are fitted, in
working order and fixed properly in place.
▪The manufacturer's regulations for operation and servicing of the microwave combination oven must be observed.

Requirements relating to the operating environment of the microwave combination oven
Specified operating environment for the microwave combination oven:
▪The ambient temperature lies between +4°C / 40°F and +35°C / 95°F.
▪Not a toxic or potentially explosive atmosphere.
▪Dry kitchen floor to reduce the risk of accidents.

Specified properties of the installation location:
▪No fire alarm, no sprinkler system directly above the appliance.
▪No flammable materials, gases or liquids above, on, under or in the vicinity of the appliance.
▪It must be possible to set up the microwave combination oven in the installation position so that it cannot tip over or
slide about. The supporting surface must comply with these requirements.

Mandatory restrictions on use:
▪The appliance must not be operated outdoors and not be shifted or moved during use.




_____________________________________________________________________________________________________________________________ __

3 For your safety

Back to contents >

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

Cleaning requirements

▪Use only cleaning chemicals that have been approved by the manufacturer.

▪High-pressure cleaners or water jets must not be used for cleaning.

▪The appliance must not be treated with alkali or acid solutions or exposed to acid fumes.

3.3 Warning signs on your microwave combination oven

Warning and safety signs

_____________________________________________________________________________________________________________________________ __

3 For your safety

Back to contents >

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

3.4 Summary of hazards

General rules for dealing with hazards and safety precautions

The microwave combination oven is designed to protect the user from all hazards that can reasonably be

avoided by design measures.

The actual purpose of the microwave combination oven, however, means that there are still residual risks; you must

therefore take precautions to avoid them. A safety device can provide you with a certain degree of protection against some

of these hazards. You must ensure, however, that these safety devices are in place and in working order.

The nature of these residual risks and what effect they have are described on the following pages.

Hazard points

The following illustration shows a Merrychef eikon®e2s microwave combination oven:

Excessive microwave energy

The microwave combination oven generates microwave energy. An operation with an open or damaged door or cavity can

result in external and internal burns of body parts following exposure to microwave energy.

Heat generation (1)

The microwave combination oven becomes hot inside the cavity and on the inside of the appliance door. This poses a risk of

burns on hot surfaces inside the microwave combination oven, and also on hot appliance parts, food containers and other

accessories used for cooking.

Hot steam / vapour (2)

When cooking food, the microwave combination oven may generate hot steam and vapour which escapes when the

appliance door is opened, and which is removed through the air vents on the rear of the microwave combination oven when

the appliance door is closed. This poses a risk of scalding from hot steam when the appliance door is opened. Take particular

care when opening the appliance door if the top door edge is below your field of vision.

Hot liquids

Foodstuffs are cooked in the microwave combination oven. These foodstuffs may also be liquid or liquefy during cooking.

This poses a risk of scalding from hot liquids, which may be spilled if not handled properly.

Live components (3)

The microwave combination oven contains live parts. This means a risk from live parts if the cover is not in place.

_____________________________________________________________________________________________________________________________ __

3 For your safety

Back to contents >

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

Contact with cleaning chemicals

The microwave combination oven must be cleaned using special cleaning chemicals. This poses a risk from cleaning

chemicals, some of which can cause skin burns.

Parts moving against each other (4)

For various actions, such as opening/shutting the appliance door or cleaning the appliance door, there is the risk that you

will crush or cut your hand.

Undercooking of food products

Ensure all food is hot before serving to protect your guests from microbiological contamination of foodstuffs.

3.5 Safety devices

Meaning

The microwave combination oven has a number of safety devices to protect the user from hazards. It is absolutely essential

that all safety devices are fitted and in working order when operating the appliance.

Position and function

Item

Safety device

Function

Check

Covers can only be

removed using a tool

▪Prevents live parts from being

touched accidentally

▪Prevents access to the moving fan

from the wiring compartment

Check that the covers are in place.

Operating panel can

only be removed

using a tool

Prevents live parts from being

touched accidentally

Ensure that the operating panel is in place.

Door seal

Protects the user and outside

environment from microwave

energy leaking from the cavity

Check the door seal regularly for signs of

damage and replace it if required.

_____________________________________________________________________________________________________________________________ __

3 For your safety

Back to contents >

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

Item

Safety device

Function

Check

Appliance door

Protects the user and outside

environment from hot steam and

microwave energy

Check the door regularly for damage and

replace it if required.

(no picture)

Door interlocks:

three switch circuit for

the appliance door

Ensures that the microwave

generation system cannot be

powered when the door is open.

Check door switches:

Action:

Open the appliance door fully during pre-

heat or when the oven is at temperature

Result:

Door open warning message displayed

(no picture,

installed by

customer)

Disconnection device

▪Installed by the customer close to

the appliance; easily visible and

accessible, 1- or 3-pole action,

minimum contact separation

3 mm.

▪Used to disconnect the appliance

from the power supply during

cleaning, repair and servicing work

and in case of danger

Action:

▪Trip the disconnection device

(no picture)

Internal fuses

Prevent faulty components from

drawing too much current and

causing potential fire hazard.

Ensure that the internal fuses are correctly

rated, actioned by an authorised service

company technician only

(no picture)

Internal high

temperature

thermostats

Prevent faulty components from

generating too much heat and

causing potential fire hazard

Ensure correct operation, actioned by an

authorised service company technician only

3.6 Requirements to be met by personnel and working positions

Requirements to be met by operating personnel

Personnel

Qualifications

Tasks

Chef

▪Has relevant professional training

▪Knows relevant national food legislation and

regulations, plus hygiene legislation and

regulations

▪Must keep records in accordance with HACCP

▪Trained in how to operate the microwave

combination oven

Essentially performs organizational tasks

such as

▪Entering the cooking profile data

▪Editing existing cooking profiles in the

cookbook

▪Developing new cooking profiles

▪Adjusting appliance settings

May also perform all user tasks if applicable.

User

▪Semi-skilled

▪Trained in how to operate the microwave

combination oven

▪Works under supervision

▪Knows the regulations associated with handling

heavy loads

Essentially performs specific operating tasks

such as

▪Loading the microwave combination oven

▪Starting a cooking profile

▪Removing food

▪Cleaning the microwave combination oven

▪Fitting accessories in the microwave

combination oven

▪Minor servicing tasks

_____________________________________________________________________________________________________________________________ __

3 For your safety

Back to contents >

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

Personnel

Qualifications

Tasks

Equipment mover

▪Trained in the use of a pallet truck and forklift

truck

▪Knows the regulations associated with handling

heavy loads

Conveying within the establishment.

Service technician

▪Is an authorised service agent

▪Has relevant technical training

▪Is trained in the particular appliance

▪Knows the regulations associated with handling

heavy loads

▪Setting up the appliance

▪Preparing the appliance for first-time use

and taking the appliance out of service.

▪Instructing the user

Working positions

▪The working position for personnel installing and preparing the appliance for first-time use is the

entire appliance area.

▪The working position for personnel when operating the appliance is in front of the appliance door.

▪The working position for staff during cleaning and servicing is the entire appliance area.

3.7 Personal protective equipment

Moving and setting up the appliance

Activity

Materials used

Personal protective equipment

▪Conveying within the establishment

▪Setting up the appliance on a work surface,

stand or in a stacking kit

▪Setting up the appliance in the installation

location

▪Suitable lifting gear

▪Forklift truck or pallet truck

▪Protective gloves

▪Safety boots

▪Hard hat (e.g., when heavy loads are

being lifted, working overhead, ...)

Installation, preparing for the first-time use and taking out of service

Activity

Materials used

Personal protective equipment

Installing and removing (taking out of

operation) the electrical connection

Tools and equipment

depending on the task

Work wear and personal protective

equipment depending on the job that

needs doing as specified in national

regulations.

▪Preparing the appliance for first-time use

▪Instructing the user

Tools and equipment

depending on the task

Workwear as specified in

country-specific standards and directives

for kitchen work, in particular:

▪Protective clothing

▪Heat protective gloves (compliant with EN

407 in European Union)

▪Safety boots

Dismantling the appliance (taking out of

operation)

▪Suitable lifting gear

▪Forklift truck or pallet truck

▪Protective gloves

▪Safety boots

▪Hard hat (e.g., when heavy loads are

being lifted, working overhead).

Operation

_____________________________________________________________________________________________________________________________ __

3 For your safety

Back to contents >

Merrychef eikon®e2s Installation and User Manual

_____________________________________________________________________________________________________________________________ __

Activity

Materials used

Personal protective equipment

Loading / removing food

None

Workwear as specified in country-specific

standards and directives for kitchen work,

in particular:

▪Protective clothing

▪Heat protective gloves (compliant with EN

407 in European Union)

▪Safety boots

Removing and fitting parts

Tools and equipment depend

on the task

Workwear as specified in country-specific

standards and directives for kitchen work,

in particular:

▪Protective clothing

▪Heat protective gloves (compliant with EN

407 in European Union)

▪Safety boots

Cleaning

Activity

Materials used

Personal protective equipment

▪Cleaning the cavity by hand

▪Handling spray bottles

▪Cleaning chemicals approved by

the manufacturer

▪Protective chemicals approved by

the manufacturer

Items of protection equipment, depending

on cleaning chemical being used:

▪Breathing mask

▪Safety goggles

▪Protective gloves

▪Protective clothing/apron

The material safety datasheet for the

relevant cleaning chemical contains a more

precise specification of these items. An up-

to-date copy can be obtained from the

manufacturer.

Refer to the label on the cleaning chemical

concerned.

Cleaning components and accessories

according to relevant instructions

Common household detergent: mild

on skin, alkali-free, pH-neutral and

odourless

Follow the instructions given by the

manufacturer of the cleaning chemical you

are using.

Cleaning the outside of the appliance

case

Common household stainless steel

cleaner or hard surface cleaner

Follow the instructions given by the

manufacturer of the cleaning chemical you

are using.



_____________________________________________________________________________________________________________________________ __
4 Moving the appliance
Back to contents >
Merrychef eikon®e2s Installation and User Manual
20
_____________________________________________________________________________________________________________________________ __
4Moving the appliance

Purpose of this chapter
Provides information on how to move the appliance.
This chapter is intended for the owner's member of staff responsible for the appliance and for a qualified member of staff
from an authorized service company.


4.1 Working safely with the appliance

Eligibility of personal for moving the appliance
Personnel eligible for moving the appliance:
▪Only personnel who are trained in the use of a pallet truck and fork-lift truck for handling purposes are permitted to
move the appliance.
▪Personnel must be aware of the regulations relating to handling heavy loads.

Personal protective equipment
Wear the following personal protective equipment specified in the section 'Personal protective equipment' on page 18 of the
'For your safety‘ chapter for the relevant tasks.

Moving heavy loads
 WARNING
Risk of injury from lifting incorrectly
When lifting the appliance, the weight of the appliance may lead to injuries, especially in the area of the torso.
Use a fork-lift truck/pallet truck to move the appliance.
When lifting the appliance, use enough people for the weight of the appliance (value depending on age and gender).
Observe the local occupational safety regulations.
Wear personal protective equipment.

Unsuitable supporting surface
 WARNING
Risk of crushing if the appliance tips over or falls off
Body parts can be crushed if the appliance tips over or falls off.
Make sure that the appliance is never placed on an unsuitable supporting surface.
