Welbilt Merrychef microMD UK User manual

Model:
microMD UK
microMD Euro
Read these instructions carefully
before using your microwave oven
and keep it in a safe place.
By following these instructions, your oven will
provide you with many years of good service.
Instruction manual
Expanding your opportunities
www.merrychef.com

2
Microwave instruction manual – Model: microMD UK / microMD Euro
Precautions to avoid possible exposure
to excessive microwave energy
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b)Do not place any object between the oven front face and the door or
allow food deposits, dirt or cleaner residue to accumulate on sealing
surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a qualied technician.
If the oven is not maintained in a good state of cleanliness, its surface
could be degraded and aect the lifespan of the oven. This can be
very dangerous.
Model: microMD UK microMD Euro
Rated voltage: 240V~50Hz 230V~50Hz
Rated input power(microwave): 3000W 3000W
Rated output power(microwave): 1800W 1800W
Oven capacity: 17L 17L
External dimensions: 420 x 563 x 340mm 420 x 563 x 340mm
Net weight: Approx. 31.6kg Approx. 31.6kg
Plug type: UK 13A EU 16A Schuko
Specications
Contents
Cleaning instructions_________ 08
Operation ____________________ 08
How to set the U disk ________ 14
Filter cleaning ________________ 15
Splash shield cleaning________ 15
Installation supplement ______ 15
Troubleshooting _____________ 16
Precautions __________________ 02
Safety instructions ___________ 03
Grounding installation _______ 04
Cleaning______________________ 04
Utensils caution ______________ 05
Setting up your oven _________ 06
Installation ___________________ 07

3
Microwave instruction manual – Model: microMD UK / microMD Euro
Read carefully and keep for future reference
Important safety instructions warning
To reduce the risk of re, electric shock, injury to persons or exposure to excessive microwave
oven energy when using your appliance, follow basic precautions, including the following:
1. This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.
2. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualied
persons in order to avoid a hazard.
3.WARNING: Ensure that the appliance
is switched o before replacing the
lamp to avoid the possibility of electric
shock.
4.WARNING: It is hazardous for anyone
other than a qualied technician
to carry out any service or repair
operation that involves the removal of
a cover which gives protection against
exposure to microwave energy.
5.WARNING: Liquids and other
foods must not be heated in sealed
containers since they are liable to
explode.
6.WARNING: Microwave heating of
beverages can result in delayed
eruptive boiling, therefore care must
be taken when handling the container.
7.WARNING: The contents of feeding
bottles and baby food jars should be
stirred or shaken and the temperature
checked before consumption in order
to avoid burns.
8. Only use utensils that are suitable for
use in microwave ovens.
9. When heating food in plastic or paper
containers, remain watchful in case of
possible ignition.
10. If smoke is observed, switch o or
unplug the appliance and keep the
door closed in order to stie any
ames.
11. Eggs in their shell and whole hard-
boiled eggs should not be heated
in microwave ovens since they may
explode, even after microwave heating
has ended.
12. The oven should be cleaned regularly
and any food deposits should be
removed.
13. The appliance must not be cleaned
with a water jet.
14. Failure to maintain the oven in a clean
condition could lead to deterioration of
the surface that could adversely aect
the life of the appliance and possibly
result in a hazardous situation.
15. Read and follow the instructions on
page 2: ”PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY”.
16. Metallic containers for food and
beverages are not allowed during
microwave cooking.

4
Microwave instruction manual – Model: microMD UK / microMD Euro
Earthing installation to reduce the risk of injury
Danger
Electric shock hazard: Touching some of the internal components can cause serious
personal injury or death. Do not disassemble this appliance.
Warning
Electric shock hazard: Improper use of the earthing installation can result in
electric shock. Do not plug into an outlet until appliance is properly installed and
earthed.
This appliance must be earthed. In the event of an electrical short circuit, earthing
reduces the risk of electric shock by providing an escape wire for the electric
current. This appliance is equipped with a cord having an earthing wire with an
earthing plug. The plug must be plugged into an outlet that is properly installed and
earthed. Consult a qualied electrician or technician if the earthing instructions
are not completely understood or if doubt exists as to whether the appliance is
properly earthed.
If it is necessary to use an extension cord, use only a 3-wire extension cord.
1. A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
(a) The marked electrical rating of the cord set or extension cord should be at least
as great as the electrical rating of the appliance.
(b) The extension cord must be an earthing-type 3-wire cord.
(c) The long cord should be arranged so that it will not drape over the counter top
or tabletop where it can be pulled on by children or tripped over unintentionally.
Cleaning
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven, after using, with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth
when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they can scratch the surface, which may result in shattering of the glass.
5.Cleaning tip – for easier cleaning of the cavity walls that the cooked food may touch:
Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power
for 10 minutes. Wipe the oven clean using a soft, dry cloth.

5
Microwave instruction manual – Model: microMD UK / microMD Euro
Utensils caution
Personal injury hazard
It is hazardous for anyone other than a qualied technician to carry out any service or repair
operation that involves the removal of a cover which gives protection against exposure to
microwave energy.
See the instructions in the tables below for: Materials you can use in the microwave oven and the
materials to be avoided. There may be certain non-metallic utensils that are not safe to use for
microwaving. If in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil
in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Utensils Remarks
Browning dish Follow manufacturer’s instructions. The bottom of the browning dish must be at least 3/16 inch
(5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant
and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or
chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with a metal tie. Make slits to allow steam to
escape.
Paper plates
and cups
Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat.
Use with supervision for short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled “Microwave Safe”.
Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic
bags should be slit, pierced or vented as directed by the packaging.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture.
Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Materials you can use in the microwave oven

6
Microwave instruction manual – Model: microMD UK / microMD Euro
Utensils Remarks
Aluminium tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a re in the oven.
Paper bags May cause a re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.
Materials to be avoided in the microwave oven

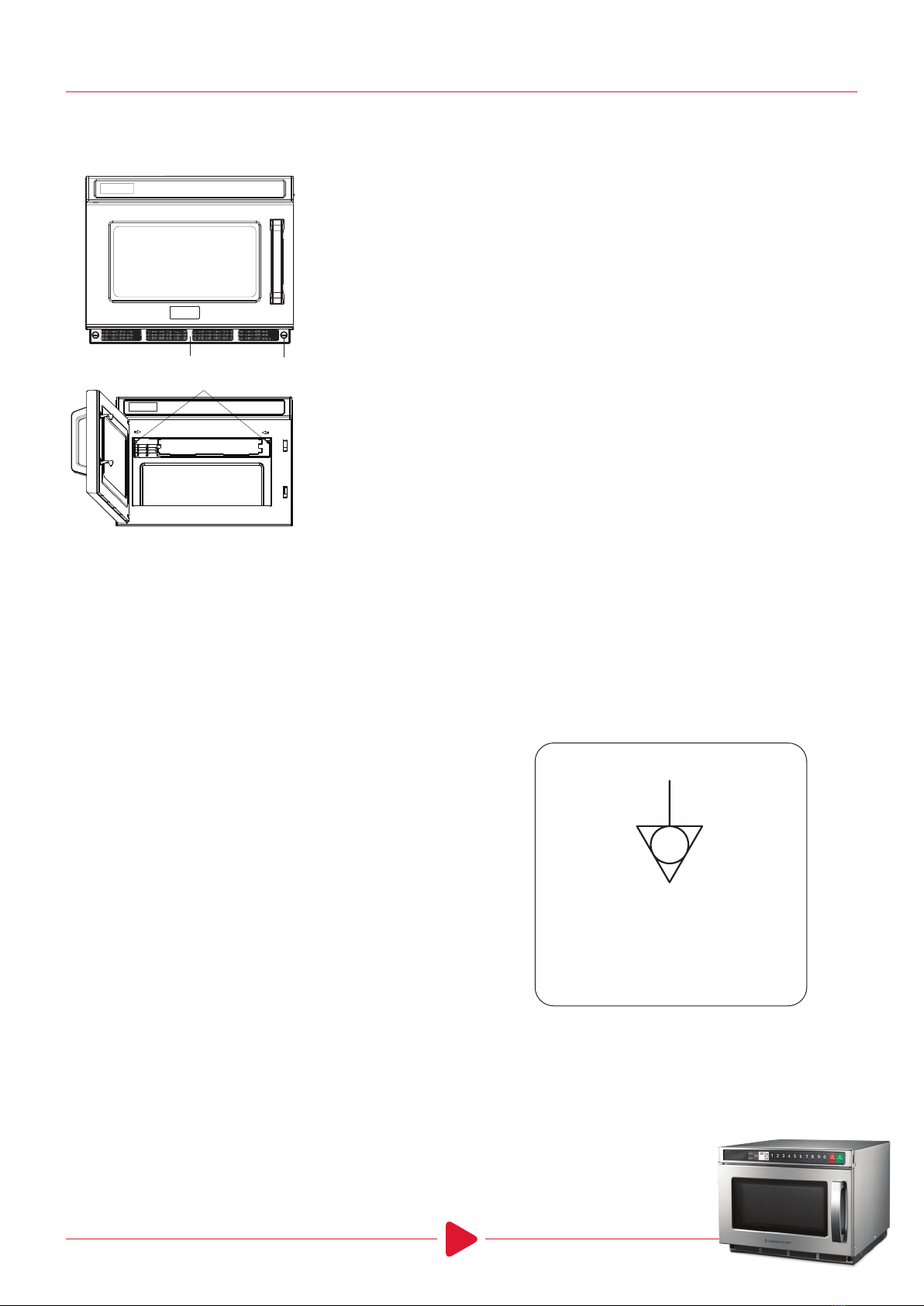

Setting up your oven
Names of oven parts and accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Instruction Manual x 1
AControl panel
BObservation window
CSafety interlock system
DCeramic board
EFilter
FPlug
GVentilation
Note:
1) Don’t press the ceramic board forcibly.
2) Gently place and remove utensils during the operation in order to avoid
damage to the ceramic board.
3) After use, avoid touching the ceramic board as it may cause scalding if hot.
E
B
F
C
G
D
A

7
Microwave instruction manual – Model: microMD UK / microMD Euro

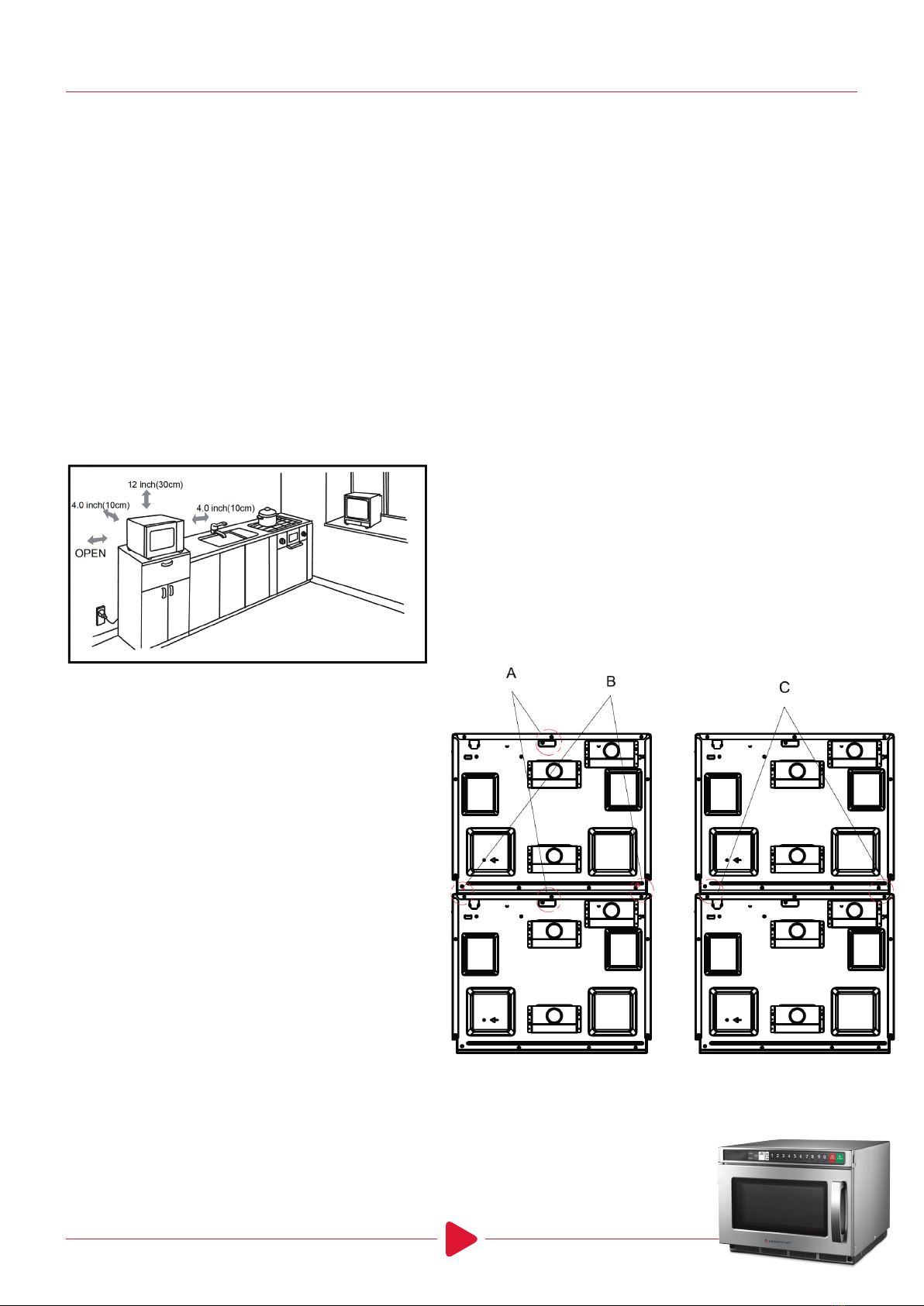

Countertop installation
Remove all packing material and accessories. Examine the oven for any damage such as
dents or broken door. Do not install if the oven is damaged.
Case work: Remove any protective lm found on the microwave oven case work surface.
Installation
1. Select a level surface that provides
enough open space for the intake and/or
outlet vents (gure1).
2.Stacking and installation of the
microwave oven. The height of
stacking should be a maximum of
two layers. Specic stacking
installation is as follows:
a) Unscrew and remove the mounting plate,
and then tighten the screws.
b) Remove the four screws as shown in the
diagram below.
c) Mount the mounting plate to the lower
position and x the screws that are just
loosened.
Figure 1
A 10cm spacing should be kept between
the appliance and right and back walls,
and a 30cm spacing kept on the top. Never
dismantle the appliance’s feet, nor block the
air intake and exhaust opening. The left side
must be open.
Additional notes
a) Blocking the intake and/or outlet
openings can damage the oven.
b) Place the oven as far away from radios
and TV as possible. Operation of the
microwave oven may cause interference
to your radio or TV reception.
c) Plug your oven into a standard
household outlet. Be sure the voltage
and the frequency is the same as the
voltage and the frequency on the rating
label.
d) Warning: Any plugs, sockets or other
appliances that could be aected by heat
or moisture, should be kept away from
oven vents.

8
Microwave instruction manual – Model: microMD UK / microMD Euro
Operation
Cleaning Instructions
Always keep the oven clean
1.Cleaning the glass viewing window, the inner door panel and oven front
face For best performance and to maintain the high degree of safety, the inner
door panel and oven front face should be free of food or grease build-up.
Wipe these parts with a mild detergent, rinse and wipe dry. Never use abrasive
powders or pads.
2. Cleaning the control panel and plastic parts
Do not apply a detergent or an alkaline liquid spray to the control panel and
plastic parts, as this may cause damage to these parts.
Use a dry cloth (not a soaked cloth) to clean these parts.
3.Cleaning the oven interior
After use be sure to clean up spilled liquids, splattered oil and food debris as
quickly as possible. Using the oven when dirty may cause bad odours from the
food particles stuck on the oven surface. Clean the interior with a warm wet cloth
using a mild detergent, then rinse the soap o with a damp cloth.
4. Clean the lter regularly, keep it clear
The appliance will over-heat when the lter is blocked.
5.When the appliance is operated, oil blockage and lter location must be
correct, avoiding damage to other parts
(See the installation instructions on page 7).
Caution: Do not wipe plastic and painted sections of the oven with bleach, thinners
or other cleaning agents, as this may cause these parts to dissolve or change shape.

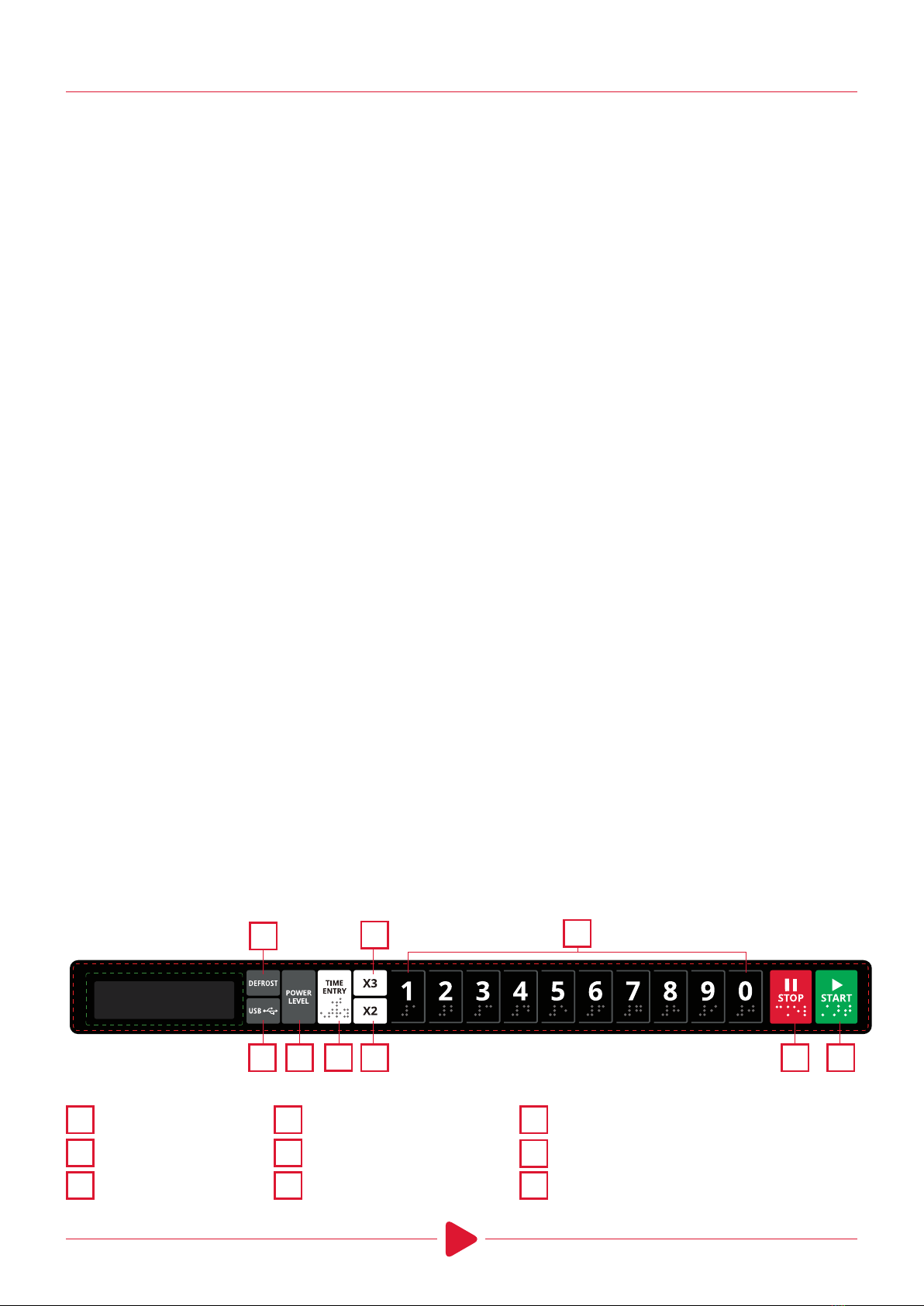

Defrost button Time entry button Number buttons
USB buttons Double quantity button Stop / reset button
Power level button Triple quantity button Start button
3 6 9
2 5 8
1 4 7
Control panel (with braille) and features
1
3
6
9
2 5
4
7
8

9
Microwave instruction manual – Model: microMD UK / microMD Euro
1.Power up
When the oven is turned on for the rst time,
“------- ” will display. If “ “ button pressed, the
oven will change to idle mode.
Note: Under idle mode, the buttons will not
respond to being pressed.
2. Idle mode
(a) The oven will change from ready mode to idle
mode after a few seconds if the keyboard is not
pressed or the door is not opened or closed.
The number of seconds this takes is set by the
keyboard time-out window (see User Option 4,
Appendix A p13).
(b) During idle mode, the screen is blank and the
oven is not in action.
(c) Exit the idle mode and into ready mode by
opening and closing the oven door.
Note: Under idle mode, the buttons will not respond.
If you press the “ “ button, the buzzer will ring once
but there will be no oven activity.
3. Ready mode
(a) In this mode, the oven is ready to either begin a
manual or pre-set cook cycle.
(b) Opening and closing the door while the oven is
in idle mode will put the oven into ready mode.
(c) During ready mode, “READY” displays.
(d) From the ready mode, the oven can go to
almost all of the other modes.
4. Door open mode
(a) While the door of the oven is open, the oven
will be in door open mode.
(b) During this mode, the screen is blank. If the
door is open during cooking state, “DOOR” and
“OPEN” will display in order once only. Then the
screen will display the remaining cooking time.
The fan and oven lamp will work.
(c) When the door is closed, the oven will enter
ready mode.
Note: When the door is open, if user option OP:60
(see User Options Appendix A, p13) is selected and
the oven is running a manual or pre-set cook cycle,
the oven will enter pause mode. In all other cases,
the oven will return to door open mode with user
option OP:61 set (see User Options Appendix A, p13).
Opening and closing the door will clear override any
manual or pre-set program that was running.
5.Pause mode
(a) This mode allows the users to temporarily stop
the cooking cycle to inspect or stir the food.
(b) While in manual cook mode or pre-set program
cook mode, if the door is opened and then
closed, or if the “ “ keypad is pressed, the oven
will enter pause mode.
(c) While paused, the screen will display the
remaining cooking time.
(d) Pause mode will go to idle mode if no action
is taken. The number of seconds this takes is
set by the keyboard time-out window (see User
Option 4, Appendix A p13). Additionally, if the “
“ button is pressed, the oven will immediately
enter ready mode OR if press “ “ button, the
oven will go into working mode.
6.Manual cook entry mode
(a) The user may manually enter a cook time and
power level while in this mode.
(b) While the oven is in the ready mode, pressing
the “Time Entry” keypad on the keyboard will
put the oven into manual cook entry mode.
(c) During this mode, “00:00” displays. Input the
time you need.
(d) Press the “Power Level” button, “%POWER”
displays. Press the number buttons to select the
power level you want, and the corresponding
power will light. If you want to choose full
power level, press “1” and “0” successively, then
the screen will display ”%POWER”. If no power is
chosen, 100% power is the default.
(e) During the setting process, press “ “ to enter
manual cook mode. Press “ “ to enter ready
mode.
7.Manual cook mode
(a) This mode allows cooking of the food items.
While in manual cook entry mode, pressing the
“ “ keypad will cause the oven to begin manual
cook mode.
(b) During this mode, the remaining cooking time
displays. The fan and oven lamp will work.
(c) When the cooking program nishes, the oven
will enter end-of-cook-cycle mode. If you press
“ “ button under this mode, the oven will enter
pause mode.

10
Microwave instruction manual – Model: microMD UK / microMD Euro
8. End-of-cook-cycle mode
(a) When the manual cook mode or a pre-set
program cook mode nishes, the oven will go
into the end-of-cook-cycle mode.
(b) During this mode, “DONE” displays.
(c) If either user option “OP:11” or “OP:12”
(see User Options, Appendix A p13) is selected,
the oven will continue to sound until the user
acknowledges this by either opening and
closing the door or pressing
the “ “ keypad. If the User Option OP:10 is
selected, after the 3 second beep, the oven
will display “DONE”. After the beep, “READY”
will display and the oven will enter idle mode
without any operation for a period of time.
9. Pre-set program cook mode
(a) This mode allows cooking of food items through
a one keypad touch operation. While in ready
mode, pressing number buttons will cause the
oven to run the pre-set program associated
with that number button.
(b) During this mode, the screen displays the
remaining cooking time. If it is multi-stage
cooking, the total remaining cooking time
displays no particular stage cooking time.
(c) When the cooking program nishes, the oven
will enter end of cook-cycle mode. If you press
“ “ button under this mode, the oven will enter
pause mode.
10. Ad-hoc cooking
(a) While the oven is cooking, if user option “OP:51”
(see User Options, Appendix A p13) is selected,
press number buttons, the pre-set cooking
program will start automatically.
(b) The screen displays the remaining cooking time.
(c) When the cooking program nishes, the oven
will enter end-of-cook-cycle mode.
11.Time defrost function
(a) In ready mode, press “DEFROST “ button,
the screen will display “ 00.00 ”.
(b) Press the number buttons to input defrosting
time. The maximum time is 99 minutes and
99 seconds.
(c) Press “ “ to start defrosting. The default power
is power level 20%.
(d) The remaining cooking time will be displayed.
When the cooking program nishes, the oven
will enter end-of-cook-cycle mode. If you press
“ “ button under this mode, the oven will enter
pause mode.
12.Programming mode
This mode allows the user to assign cook times and
power levels to the once touch button
(a) Open the door and press “1” keypad for
5 seconds, the buzzer will sound once and
enter into programming mode.
(b) “PROGRAM” displays.
(c) Setting program: Press the number button to
set the program. 2 seconds later, the screen will
display the time associated with that number
button.
(d) Input the time: Press the number buttons to
input time.
(e) Press the “POWER LEVEL” button, “%POWER”
displays. Press the number buttons to select the
power level you want, and the corresponding
power will light. If you want to choose full
power level, press “1” and “0” successively. The
screen will then display “%POWER”. If no power
is chosen, 100% power is the default.
Note: Set the time rst, then choose the power.
(f) After setting the time and power, press “ “,
the cooking program will be saved. When the
program is saved, “PROGRAM” displays.
(g) If the cooking time you have input exceeds the
max. time in user option 7 (see User Option 7,
Appendix A p13), when you press “ “ to save
the program, the buzzer will sound three times
briey to tell you there is an error. The screen
will then display “PROGRAM”. The time set
before will not change.
