Welldon BS07-B User manual

The product has been approved according to the strictest European
safety standards (ECE R 44/04) and is suitable for Group I+II+III(9-36KG).
Notice
www.nbwelldon.com
Group I+II+III (9-36kg)
9-36 KG Y
04444115
1. This is a Universal child restraint. It is approved to Regulation No.44,04 series of
amendments, for general use in vehicles and it will fit most, but not all, car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a Universal child restraint for this
age group.
3. This child restraint has been classified as Universal under more stringent conditions
than those which applied to earlier designs which do not carry this notice.
4. If in doubt, consult either the child restraint manufacturer or the retailer.
5. Only suitable if the approved vehicles are fitted with 3 point static or retractor
safety belts, approved to UN/ECE Regulation No.16 or other equivalent standards.
6. Do not use rearward facing in seating positions where there is an airbag installed.
This instruction for use will be translated in
French\German\Spaish\Russian\Polish\Hebrew\Korean\Japanees\Turkish\Portuguese\Italian
SUITABLE FOR
BS07-B
BS07-BE

01 02
Contents Introduction
Contents ...................................................................................1
Introduction ..............................................................................2
Important ..............................................................................3-4
Know your car seat ..................................................................5-6
1. Suitability ..............................................................................7
2. Use in the vehicle ....................................................................8
3. Securing your baby ................................................................10
4.Installation in the vehicle .......................................................14
5.Care instructions ...................................................................19
2.1 With the vehicle’s 3-point seatbelt..........................................9
Securing your baby using the baby insert ..............................10
3.2 How to adjust the belts, headrest and seat positions .............11
3.3 Securing your baby using the harness ...................................12
3.4 Tightening the harness ........................................................13
3.5
4.1
5.1 Removing the 5-point harness system and cover ....................19
5.2
5.3 Cleaning .............................................................................21
5.4 Checklist .............................................................................21
3.1
Checklist to ensure that your baby is buckle up correctly ........13
Installation of Group I and it is for the children weight between
9-18kg ...........................................................................15-16
4.2 Installation of Group II and it is for the children weight between
15-25kg ..............................................................................17
4.3 Installation of Group III and it is for the children weight between
22-36kg ..............................................................................18
Refitting the 5-point harness system and cover ......................20
5.5 Warranty ............................................................................22
6.Additional Instruction............................................................22
Dear parents
Thank you very much for purchasing our product.
The nice function and credible design with accord to somatology would
affordthemostsafetyandcomfortwhenyourchildwasinthischild
restraint.
In order to exert the excellent function, please adjust the child restraint
till that is suitable for your child’s stature and avoirdupois before using
our product and then equip it carefully and steadily.
Researchshowsthatahighnumberofcarsafetyseatsareincorrectly
installed. Therefore, please take the time to read through the instruction
manual carefully. Our product offers maximum safety only when it is used
in accordance with the instructions.
Continuous research by our development team, user tests and consumer
reactions ensure that we are kept fully up to date in the field of child
safety.Therefore,ifyouhaveanyquestionsconcerningtheuseoftheour
product, please do not hesitate to contact us.
Youcanseeourcontactinformationintheservicecard.

03 04
Important Important
Thebabycarseatmustnotbeusedwithoutthecover.Pleaseusean
original cover, as the cover contributes to the safety of the seat.
Theseatmustbesecuredwithaseatbelt,evenwhenitnotonuse.An
unsecured seat may injure other passengers in the car in an urgent stop.
Ensure that the seat is not damaged by the webbing between or
underneath heavy luggage, adjustable seats or slamming the car door etc.
No alterations may be made to the product as this could affect part or the
overallsafetyoftheseat.
In hot weather the plastic and metal parts of the product will be hot.
You should cover the seat when the car parked under the sun.
In order to prevent damage to the cover, do not remove the product’s logo.
Use the seat even in a short journey, as this is when most accidents occur.
Before the purchase, please check that the seat is properly in your car.
Take a short break in long journey. So that your child has some time for the
relaxation.
Set a good example yourself and always wear your seat belt.
Tell your child that he/she should be never play with the belt buckle.
Questions
Contact your supplier or importer if you wish to make a warranty claim or
have any other questions.
The seat belt
The product should be used with an automatic 3-point safety belt provided
that this has been approved according to ECE R16 or an equivalent
standard. Under no circumstances should an automatic 2-point safety belt
be used.
yourcarseatcanbefixedsafetyonalmostseatsofthecars.However,on
someseatsthebeltsarefixedsothatproperinstallationisnotpossible.
If this is the case, try another seat.
WARNING: Read this instruction manual carefully.
WARNING: The correct fitting of the seat belt, along the red marking between
theshellandthebaseoftheseat,isofvitalimportanceforthesafetyofyour
child. See figure 4-D and 4-G or the sticker on the side of the product.
WARNING:Forthefutureuseoftheseat,itisimportantthatyoukeepthe
instruction manual carefully.
WARNING: Never leave your child unattended in the car.
WARNING: Do not use a child safety seat if the vehicle seat is equipped with a
front airbag. This can be dangerous. This does not apply to so-called side
airbags.
Before use our product, please read the instruction manual carefully, the
product is a safety product and is only safe when used in accordance with the
instruction manual.
The product must only be used on a forward facing seat that is fitted with an
automatic3-pointsafetybeltwhichisapprovedaccordingtoECER16oran
equivalent standard.
The product may be used on either the front or the back seat.
However,werecommendthatitisfittedonthebackseat.
The product has been approved according to the strictest European safety
standards (ECE R44/04) and is suitable for Group I (9-18kg) and Group II (15-
25kg) and Group III (22-36kg).
Afteranaccidenttheseatmaybecomeunsafeduetodamagethatisnotbe
noticeable immediately. It should therefore be replaced.
Thesafetyoftheseatcanonlybeguaranteedbythemanufacturerifitissued
by the original owner.
We advise you strongly that not to use a second-hand product, because you
are not sure what has happened to it.
The belt pads are important for the safety of your child, therefore use them at
all the time.
Ensurethatallluggageandobjectslikelytocauseinjuryintheeventofan
accident are properly secured.
It is recommended that the car seat should not be used more than 5 years
from the date of production. The properties of the products may deteriorate
due to, for example, ageing of the plastic and this may not be visible.
The moving parts of the car seat should not be lubricated in any way.

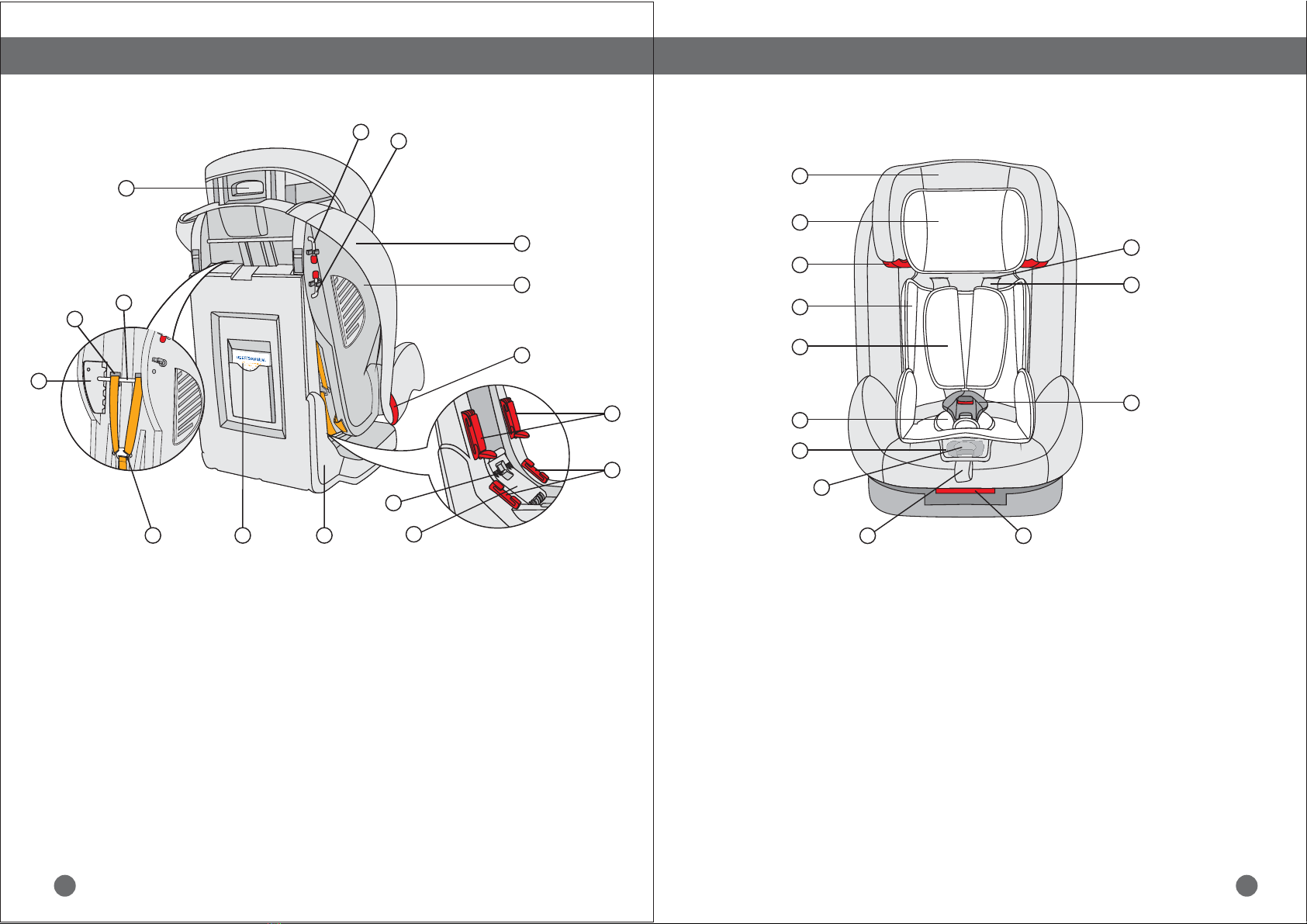

2.
4.
6.
8. Hooks for lap belt
10. Tension axis
12.
Shoulder strap iron
16. Shoulder belts Axle
Upper shaft
Cover
Belt guide band
Instruction manual
14.
1. Headrest handle
3.
5.
7. Lock-off device
9. Belt tension part
11.
13.
Lower shaft
Shell
Base
Belt Yoke
15. Belt slots
17. Headrest
19. Belt guide
21.
23.
25.
27.
29.
Belt pads
Adjusting cover
Adjuster belt
Buckle
Belt slots
18.
20. Cushion
22.
24.
26.
28.
Head pillow
Buckle pad
Adjusting device
Positioning handle
Shoulder belt
05 06
Know your ar seatc Know your ar seatc
4
5
6
7
8
10
11
1
12
13
14
15
16
23
9
17
18
19
20
21
27
22
23
24
2625
28
29

Useinthevehicle
07 08
2. Use in the vehicle
Danger! An airbag hitting the infant carrier can cause serious injuries to
your child, possibly resulting in death.
Please observe the instructions in your vehicle manual for the use of
child seats.
DONOTuseonapassengerseat
with a front airbag!
DO NOT use with 2-point belt.
With the vehicle's 3-point seatbelt
Please observe the regulations applicable to your particular country.
Do not use with 2-point belt.
ThesafetybeltmustbeapprovedtoECER16oracomparablestandard
.
Do not use on passenger seats with a front airbag!
Canbeusedifthevehicleseatisequippedwitha3-pointbelt.
Suitability
1. Certification
*ECE = European Standard for Safety Equipment
WELLDON BS07/
Child Safety Seat
Tested and certified
according to ECE* R 44/04
Body WeightGroup
BS07
1+2+3 9- 36kg
... as a child safety seat installed in a
vehicle
The child safety seat has been designed, tested and certified
according to the requirements of the European Standard for Child
Safety Equipment (ECE R 44/04).
ThesealofapprovalE(inacircle)andtheapprovalnumberare
locatedontheapprovallabel(stickeronthechildsafetyseat).
This approval will be invalidated if you make any modifications to the
childsafetyseat.Onlythemanufacturerispermittedtomake
modifications to the child safety seat.

Useinthevehicle
!
!
!
You can use your child car seat as follows:
no
yes
no 1)
yes 2)
yes 3)
yes
yes 4)
2.1 With the vehicle's 3-point seatbelt
(Please observe the regulations applicable to your particular country).
in the direction of travel
againstthedirectionoftravel
with 2-point belt
with 3-point belt
on front passenger seat
on outer rear seat
on centre rear seat
1) The use of a 2-point belt substantially increases the risk
of injury to your child in the event of an accident.
2)ThesafetybeltmustbeapprovedtoECER16oracomparable
standard (see test label on belt with an "E" or "e" in a circle).
3)Donotuseonpassengerseatswithafrontairbag!
4)Canbeusedifthevehicleseatisequippedwitha3-pointbelt.
09 10
Securing your baby
3.1 Securing your baby using the baby insert
The baby insert gives your baby the necessary support
while he or she is still small.
The baby insert is used to provide extra comfort for
very small babies.
Caution! Please use the baby insert attached to this
carseatwhenyourbaby'sweightislessthan9kg.
3. Securing your baby
For the protection of your baby
Alwayssecureyourbabyinthecarseatusingtheharness.
Never leave your baby unattended in the car seat when placing it on
elevatedsurfaces(e.g.atable,nappychangingunit,etc.).
Never allow the strap end to become caught in moving parts (e.g.
automatic doors, escalators, etc.).
Theplasticpartsofthecarseatheatupinthesun,sothatyour
baby may get burnt. Protect your baby and the car seat against intensive
solarradiation(e.g.byputtingalightclothovertheseat).
The car seat requires only one seating position in the car. This advantage
means, however, that your baby must be in a semi-reclined position.
Take your baby out of the car seat as often as possible to relieve its spine.
We recommend frequent breaks during long journeys. Even outside of
thecar,pleaseavoidleavingyourbabyinthecarseatfortoolong.
Caution!
!
!

11 12
Securing your baby
3.2 How to adjust the belts, headrest and seat positions
The correct belt height of the shoulder belts is attained when the belt
d sappears into the shell slightly above the shoulder of the child.
Make sure that the shoulder belts fit properly over the shoulders of
the child.
i
The shoulder harnesses can be set to five heights with the adjustment of
the height of the headrest.
Securing your baby
3.2-2 Nine heights of the headrest
The car seat can be used in five positions:
Liftthehandleunderthefrontoftheseatupandpullorpushtheshell
forwards or backwards. Release the handle in the required position and
push until you hear a distinct click (3-C).
3.2-3 Five Positions of the Car Seat
Loosen the shoulder belts by pressing the release button and pulling the
shoulder belts as far as you can. pull the belt pads (3-A).Note! Do not
3.2-1 Adjusting the belts
Theheadrestcanbesettonineheights,whichgroupIhavefiveheights,
group II+III have four heights .
PressthebuttonontheHeadresthandleonthetopoftheseat.(3-B).
3-B3-A 3-C

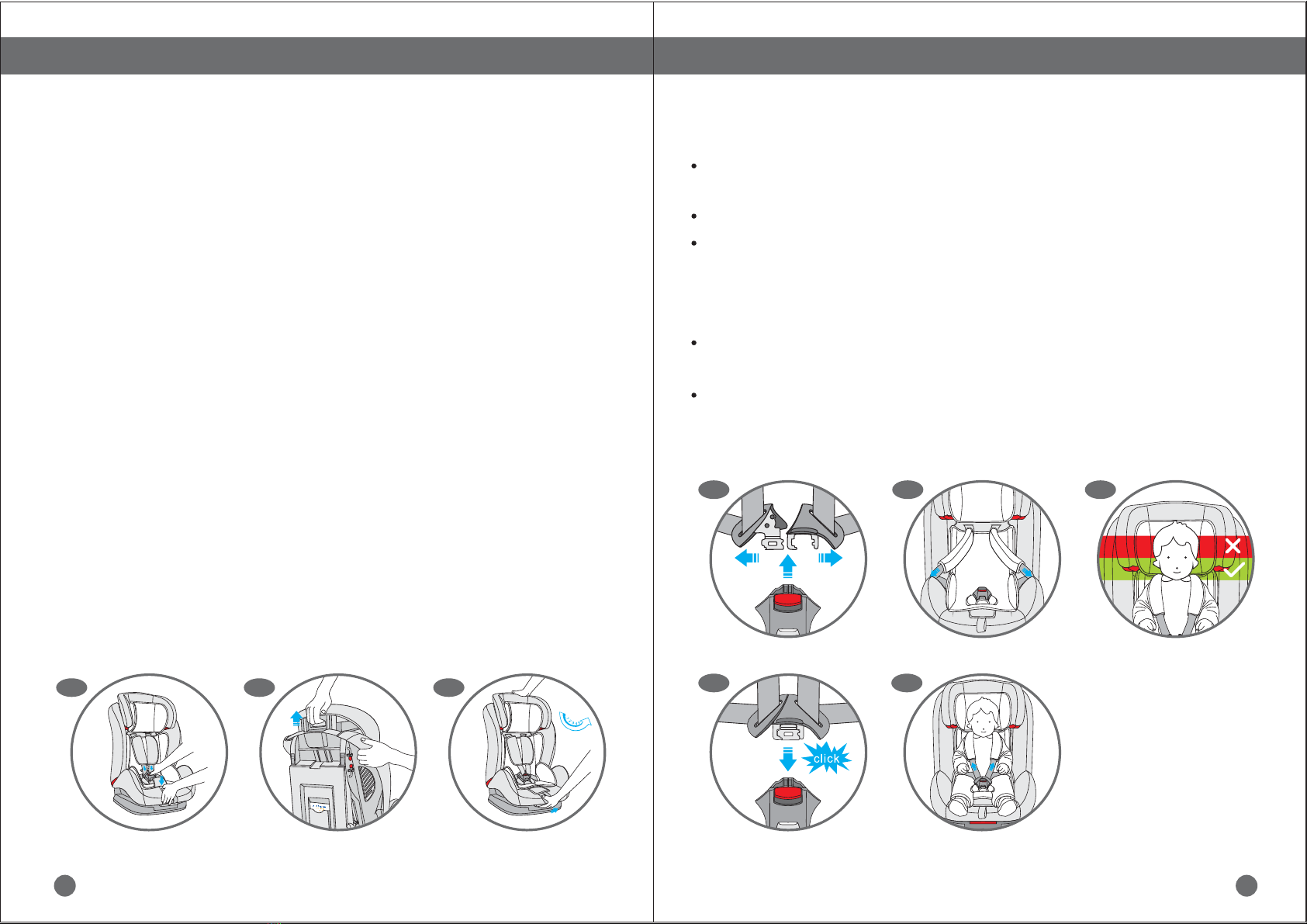

3.3 Securing your baby using the harness
3-E3-D 3-F
3-H3-G
Loosen the shoulder belts by pressing the release button and pulling the
shoulder belts as far as you can. pull the belt pads (3-A).
Open the belt buckle (3-D), then fixed the belt to strap on both side (3-E).
The correct belt height of the shoulder belts is attained when the belt
disappears into the shell slightly above the shoulder of the child.
Make sure that the shoulder belts fit properly over the shoulders of the
child. (3-F).
Slide buckle tongue sections together and insert them in the buckle with
an audible “ click” (3-G).
Pull the shoulder belts tight, pull the remaining slack out of the belt
system&pull the belts tight by the adjuster belt (3-H).
Note! Do not
Caution! Do not twist or interchange the shoulder straps.

Securing your baby
13 14
3.5 Checklist to ensure that your baby is buckle up
correctly.
3.4 Tightening the harness
Pull the strap end
Pull the strap end straight towards
you, not upwards or downwards.
Please pay attention to the strap end.
Whilst travelling (especially outside the car)
it should always be attached to the cover.
Caution!
For the safety of your baby , please check that...
The shoulder straps of the car seat are
comfortable but firm fit around your child.
The shoulder straps are adjusted correctly.
The shoulder straps are not twisted.
Thebuckletonguesareengagedinthe
harness buckle.
Installation in the vehicle
4. Installation in the vehicle
Please do not leave your child unattended in the child
safety seat in the vehicle.
For the protection of all vehicle occupants
Some vehicle seat covers of sensitive materials(e.g. velour, leather, etc.)
may develop wear marks when child seats are used. This can be avoided
by placing a blanket or towel under the child seat.
To protect your vehicle
In the case of an emergency stop or an accident unsecured persons or
objects may cause injury to other vehicle occupants. Please always
check that...
The backrests of the vehicle seats are locked (i.e.that a foldable rear
seat bench latch is engaged).
All heavy or sharp-edged objects in the vehicle(e.g. on the parcel
shelf) are secured.
All persons in the vehicle have their seat belts fastened.
Thechildsafetyseatisalwayssecuredwhenitisinthevehicle,even
if no child is being transported.

4-H 4-I
Installation in the vehicle
15
Installation in the vehicle
16
4-1 Installation of Group I and it is for the children whose
weight between 9-18kg.
4-1 Installation of Group I and it is for the children whose
weight between 9-18kg.
4-A 4-B 4-C
4-F4-D 4-E
4-G
Adjust the baby car seat into the sleeping position (3-C).
Take the Lower Shaft out of the seat, then pull the seat back (4-A).
Install the safety belt through the seat back from the middle of top and
fixed it into the buckle on the car seat (4-B).
Open the Lock-off device and Belt tension part (4-C).
Put the belt through the Lock-off device\Hooks and Belt tension part,
closed the Lock-off device and Belt tension part. Tighten up the belt,
fixed it into the buckle on the car seat (4-D).
The seat will be fixed by two belt in two directions. One belt from the
Lock-offdeviceoftheseatandtheotherfromtheHooksforlapbelt,
tightencarbelt,useLock-offdevicetoclipit.Soitcannotmove(4-E).
Make sure the axis exactly fit into the groove and you can heard click
sound (4-F).
PuttheseatbodybacktoitsLowershaftandlocktheshaftsafety(4-G).
Pull out a small portion of the Upper metal shaft, let the shoulder belt go
throughinsideoftheUppermetalshaft(4-H),andsecuretheUpper
metal shaft (4-I).
Pleasemakesurethatanylapstrapiswornlowdown,so
that the pelvis is firmly engaged.

Installation in the vehicle Installation in the vehicle
17 18
4-3 Installation of Group III and it is for the children
whose weight between 22-36kg.
Adjuster the height of the headrest to suit your child (4-P).
Reference the Group II installation instructions.
Makesurethelapbeltisstretchedlowandsnugacrossthechild’ships,
within the belt guides ,and fastened into the buckle . the shoulder belt
must cross midway between child's shoulder and neck (4-Q).
4-P 4-Q
Pleasemakesurethatanylapstrapiswornlowdown,so
that the pelvis is firmly engaged.
4-2 Installation of Group II and it is for the children
whose weight between 15-25kg.
Before the installation, please take away the belt system of baby car seat
(including belt pads, shoulder belt, buckle & crotch strap jacket) (4-J).
Put your kid into the baby car seat, car belt pass the Belt guide and then
through the Belt guide in the bottom (4-M) , insert it into the buckle (4-N).
Pull the belt guide out (4-K)and put the belt through the guide, lock the
belt guide (4-L).
The shoulder belt must cross midway between child's shoulder and neck
(4-O).
4-J 4-K 4-L
Pleasemakesurethatanylapstrapiswornlowdown,so
that the pelvis is firmly engaged.
4-M 4-N 4-O

19 20
Care instructions Care instructions

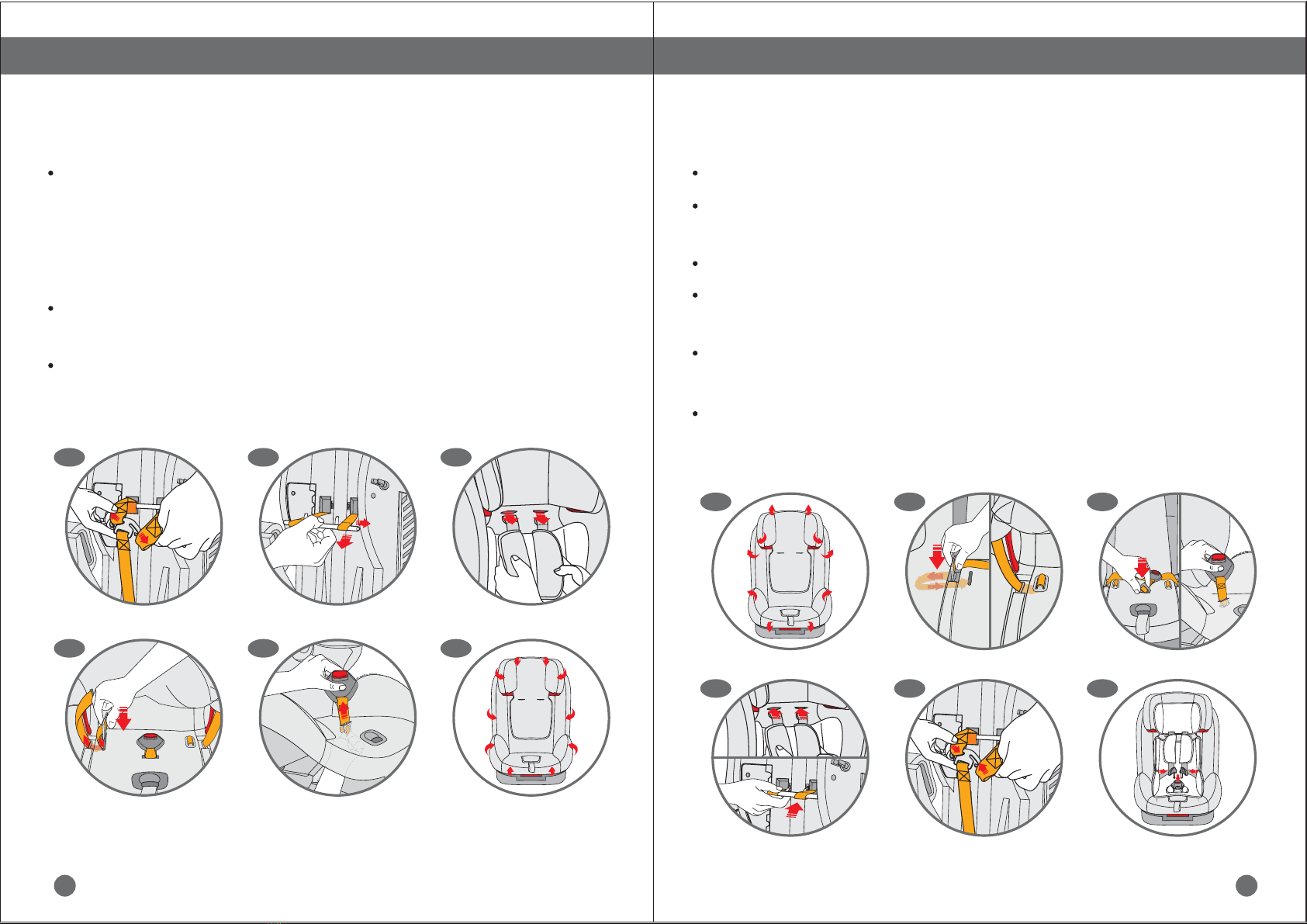

5.1 Removing the 5-point harness system and cover 5.2 Refitting the 5-point harness system and cover
Adjust the shell to the inclined position (3-A/3-C), pull the
(4-A), push down the adjusting device and
pull out the Belt yoke from other side to unlock it (5-A), pull the
(5-B), pull the shoulder belt out
from the hole (5-C).
Loosen the bottom part of the cover and pull the belt clip through the elt
clip slot (5-D). Then pull the buckle clip through the clip slot (5-E).
Remove 5-point harness system then remove the headrest cover and the
shell cover (5-F).
Lower shaft out
andpulltheseatshelltowards
Shoulder
belts Axle out, untie the Shoulder belt
b
buckle
5-A 5-B 5-C
5-G 5-H 5-I
5-J 5-K 5-L
After washing, place the cover on the shell (5-G).
Loosen the bottom part of the cover and pull the belt clip through the elt
clip slot (5-H).
Then pull the buckle clip through the clip slot (5-I).
Put the end of the Shoulder belt through the shell, fix into
(5-J).
Also put the end of the Shoulder belt through the shell, fix
into the Belt yoke 5-K), make sure the seat belt can not rotate.
Close the buckle (5-L), then fasten the cover all around, behind the pins,
checkthatitworks!.
（
b
buckle
Belt slots and
Shoulder belts Axle, and lock the Shoulder belts Axle to the seat shell
Belt slots and
5-D 5-E 5-F

21 22
5.5 Warranty
Thewarrantyperiodstartsfromthedateofpurchaseandisvalidfora
period of 12 months. The warranty is only applicable to the original owner
and is not transferable. The warranty is only applicable to products that
havenotbeenadaptedbytheuser.
In the case of any defects, the owner is required to return the product to
the retailer. If the retailer can not solve the problem, he must return the
product, complete with a clear description of the complaint and a
validated purchase receipt to the manufacturer. Exchanger or return can
not be demanded.
Repairs do not constitute an extension to the warranty term.
Themanufacturerisnotliableforanydamagesotherthanthoseon
products supplied.
No warranty is given if:
The product is not supplied complete with the validated purchase receipt
to the manufacturer.
Defectsarecausedbymisuseormaintenancewhichdifferfromthat
indicated in the instruction manual.
Repairs are carried out by third parties.
Defects are caused by neglect.
Damage or removal of any serial number is found.
If there is normal wear and tear which may be expected from everyday use.
The stated warranty terms and conditions have not been satisfied.
Care instructions Care instructions
5.3 Cleaning
The can be removed and washed with a mild detergent using the
washing machine's cycle for delicate items (30°C). Please observe the
instructions on the washing label of the cover. The colours of the cover
mayfadeifwashedatmorethan 30 .Donotspin,andnevertumble
dryinanelectricclothesdryer(thefabricmayseparatefromthe
padding).
The can be cleaned using soapy water. use harsh
cleaning agents (such as solvents).
Theharnesscanberemovedandwashedinlukewarmsoapywater.
Neverremovethebuckletonguesfromthestraps.
cover
plastic parts Do not
Caution!
°C
PleasebesuretouseonlyoriginalDiademreplacementseatcovers,as
the seat cover is important to the proper functioning of the system.
Replacement seat covers are available from your retailer and or at
branches.
The child seat must not be used without the seat cover.
5.4 Checklist
Forsafety’ssakereadthroughthischecklistbeforeyousetoff.
Checkthattheharnessbeltsystemfitsproperlyandtightlyaroundyour
child and that the shoulder belts are at the correct height.
Checkregularlythatthebeltinthebabycarseatisnotdamaged.Ifitis
damaged do not use your product in any circumstances and contact your
supplier or importer (see address list in the service card).
Checkthatyouhavesecuredyourbabycarseatwiththeseatbelt.
If you have any questions, please contact your supplier.
Make sure that you have the following details to hand:
Serial number underneath on the service card.
Mark and type of vehicle and seat on which the baby car seat used.
Age and weight of your child.
6. Additional Instruction
BS07-BE
Side Armor give you more
protection against side impact.
When you wash the cover, please
firstly take off the Side Armor cover
