Wellex DPF1040 User manual

Digital Photo Frame
DPF1040
USER MANUAL
September, 2005
785-UM104V01 Rev. 1
Copyrights ©Wellex Corporation
All rights reserved
Wellex Corporation
551 Brown Rd.
Fremont, CA94539
USA
Tel: [phone]
Product support: [phone]
www.wellex.com
estore.wellex.com

Table of Contents
1. INTRODUCTION................................................................................................3
2. PACKAGING.......................................................................................................4
3. PRODUCT OVERVIEW ....................................................................................5
3.1 PRODUCT FIGURES.............................................................................................5
3.2 CONTROL PANEL OVERVIEW .............................................................................8
4. OPERATION .......................................................................................................9
4.1 GETTING START.................................................................................................9
4.2 POWER ON/OFF................................................................................................9
4.3 LOADING MEDIA CONTENTS............................................................................10
4.4 PLAY PHOTO....................................................................................................11
4.5 PLAY AUDIO ....................................................................................................15
4.6 SETUP ..............................................................................................................19
4.7 CONNECT TO YOUR COMPUTER .......................................................................22
5. SAFETY..............................................................................................................24
6. LIMITED WARRANTY...................................................................................25
7. TROUBLE SHOOTING ...................................................................................26
8. PRODUCT SPECIFICATION .........................................................................27
2

1. Introduction
Congratulations on your purchase of the world class 10.4 inch multimedia digital photo display!
This unique device provides you with an unforgettable experience that will allow you to enjoy
viewing a series of your favorite photos, as well as to listen to mp3 music at the same time.
Wellex’s Digital Photo Frame 1040 is a special 10.4” display with an audio output function. The
DPF1040 offers the following features: guaranteed display quality, enormous photos and music
storage capacity, single photo scrolling, automatic slideshow and photo rotation, and elegantly
designed to support all the connections, plus the ability to play MP3s. While listening your
favorite tunes you can enjoy viewing your most memorable digital photo albums. You can easily
relive your memories from the family trip to San Diego, the sweet honeymoon in Maui, that fun
high school reunion in a four star rated French restaurant.
The DPF1040’s elegant design is suited for offices, living rooms, bedrooms, or elsewhere you
would like to display your favorite photos! You can either put it on the desktop or hang it up on
the wall. You can either enjoy viewing the photos yourself, or share them with your guests. You
will be definitely impressed with the brand new lively animated digital photo collections!
3

2. Packaging
The complete product package includes:
•One Photo frame display: assembled product with LCD panel and enclosure.
•One Power adapter
-Six feet long, AC to DC power adapter.
-Input: 100-240VAC, 50/60Hz, 0.5A.
-Output: 12VDC, 1.25A Max.
•One USB cable: 5 feet long cord.
•One User’s Manual
•Warranty and registration card
Note:
•A set of speakers built into the DPF1040.
•This product DOES come with an Audio Out, either for use with headphones or external
speakers. There are NO headphones or external speakers provided with this package.
4

3. Product Overview
3.1 Product Figures
Figure 1: Control Panel (Top side)
Figure 2: Right side Panel
Figure 3: Left side panel
5

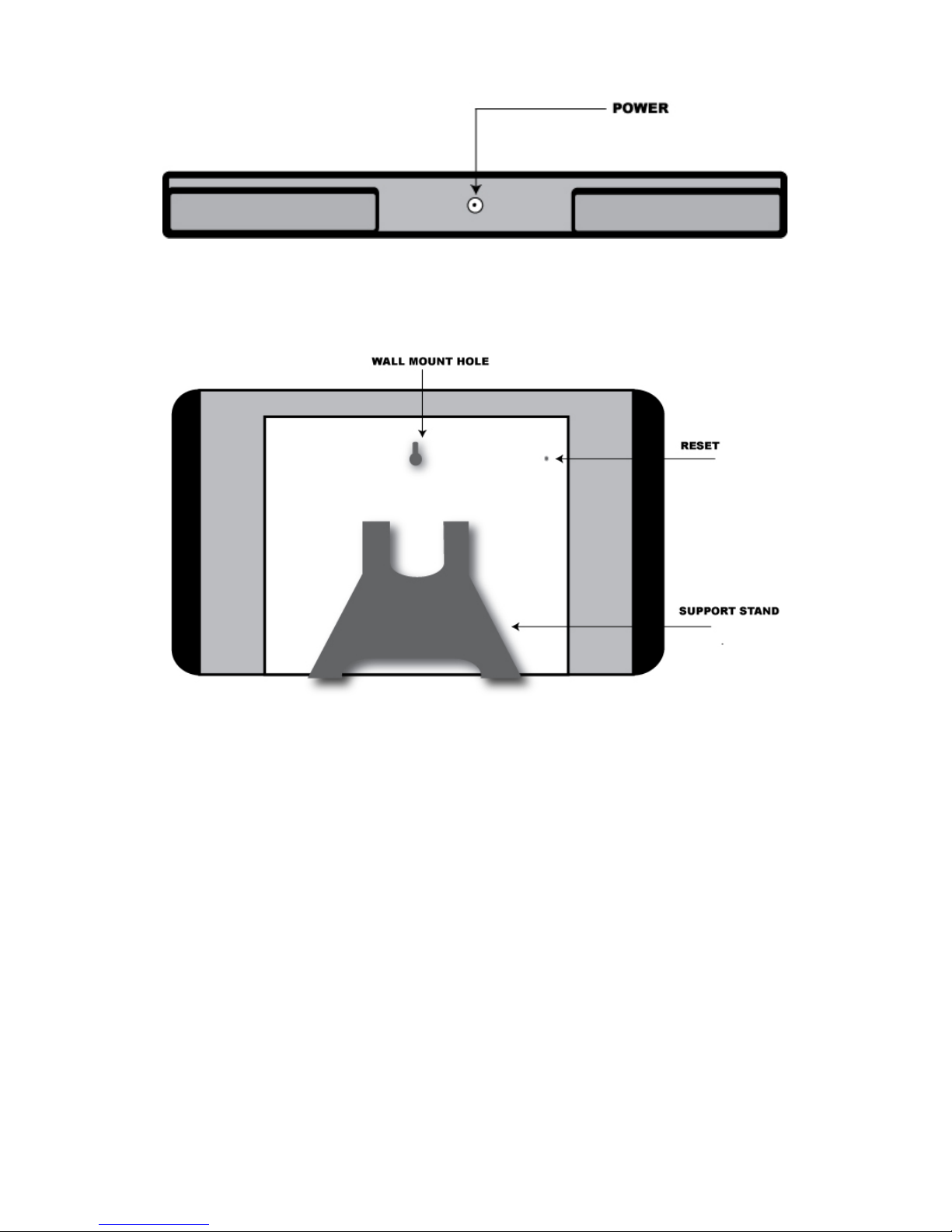

Figure 4: Bottom side panel
Figure 5: Back side panel
6

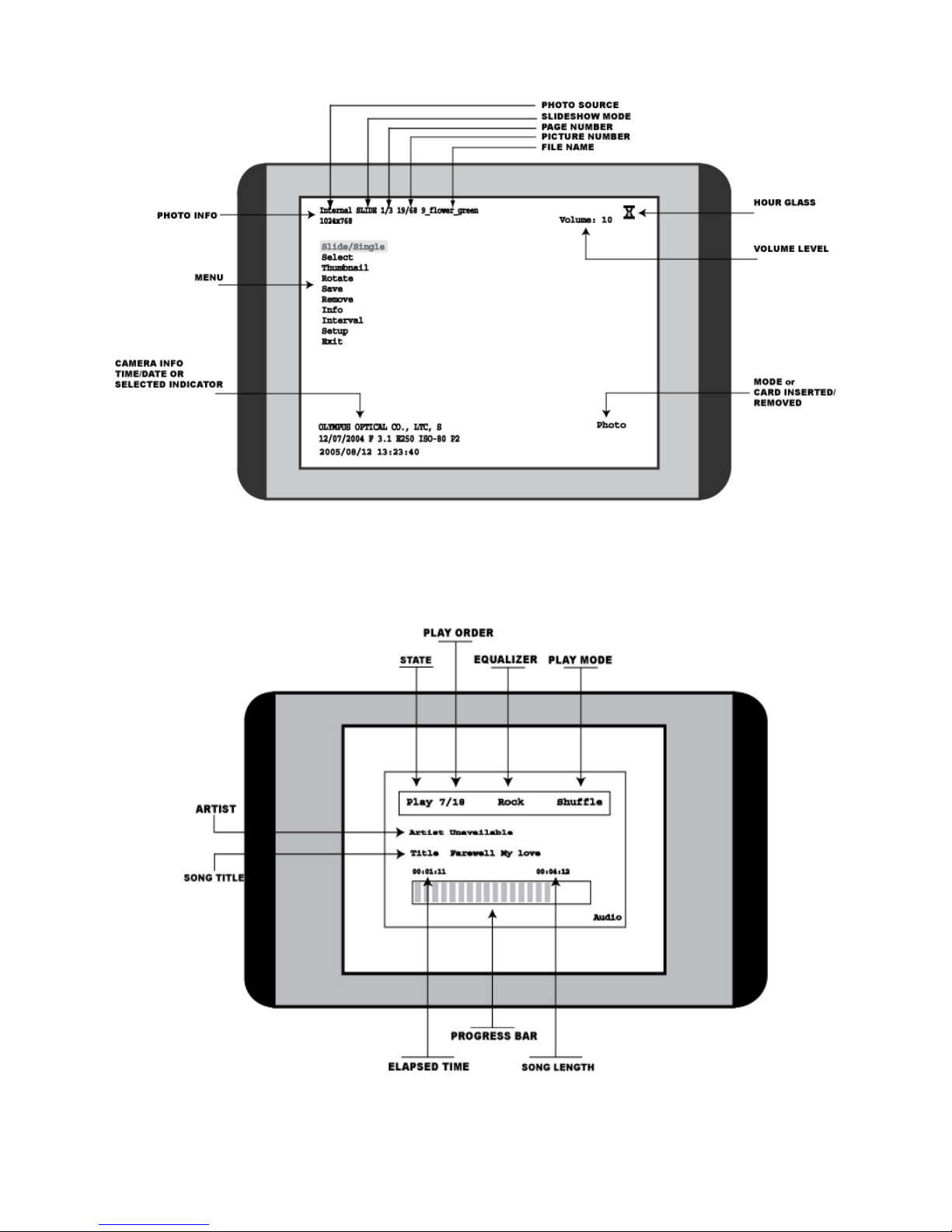

Figure 6: All function displayed on the device (Photo mode)
Figure 7: All function displayed on the device (Audio mode)
7

3.2 Control Panel Overview
Power: press the button for a few seconds to turn on and press the button for two seconds.
To turn off the power.
Power LED:the LED light turns green when the power turns on. The LED light is off
when the power is off.
Volume Up: Press to increase the volume (Volume level increases from 0 to 20).
Volume Down: Press to decrease the volume.
Left: Press to scroll left.
Right: Press to scroll right.
Up: Press to scroll up.
Down: Press to scroll down.
Menu/Enter: Press to display the menu in the Photo or Audio mode, or to confirm the
selection.
Mode: Press to switch the device between the photo-display mode and the audio-play
mode.
Compact Flash Card Slot: Insert your Compact Flash (CF) type I or II memory card here.
SD/MMC/MS 3-in-1 Card Slot: Insert your Secure Digital (SD), Multimedia Card (MMC), or
Memory Stick (MS)/ Memory Stick PRO memory card here.
Audio Out: Plug your headphones or external speakers into this standard audio output port.
USB Device: Plug the USB cable (included) with mini type-B connector end to this port for
connecting to your PC if the DPF1040 is used as a memory card reader/writer.
USB Host: Plug in your USB device. USD devices could be USB flash drives, digital cameras,
memory card reader/writers, and mp3 players such as iPod, etc …
Note: 1. Some types and brands of USB devices, USB flash drives, digital cameras, memory card
readers/writers, and MP3 players may not be compatible with the DPF1040.
2. The DPF1040 is not compatible with any USB hard drives since the supplied power is
not sufficient for the USB hard drive use.
8

4. Operation
4.1 Getting Start
1
1
1.
..
Please read through all the safety tips in the Safety chapter before you start.
2
2
2.
..
Connect the DPF1040 to the power adapter (the power port is located on the bottom side
of the panel, figure 4), then connect the power adapter to a power outlet.
4.2 Power ON/OFF
Power ON
1
1
1.
..
Press Power button for more than one second during the device is off. The device’s main
power is being turned on and LED indicator lights on in green color.
2
2
2.
..
Please wait a few seconds for the system to be brought up.
Power OFF
1
1
1.
..
Press Power button for more than one second during the device is on. The device’s main
power is being turned off and LED indicator lights off.
2
2
2.
..
Please wait for a short time for the device to be completely powered off.
9

4.3 Loading Media Contents
You can load media contents (JPEG, PNG, bitmap files and MP3 files) through the following
three slots (Figure 2 and Figure 3):
•Compact Flash Card Slot --- supports Compact Flash (CF) Card type I and II
•SD/MMC/MS 3-in-1 Card Slot --- supports Secure Digital (SD) card, Multimedia card
(MMC), Memory Stick (MS) / Memory Stick Pro card.
•USB Host Port --- supports USB Flash (Jump) Drive, Digital Camera through a USB
cable, or regular memory card reader/writer through a USB cable.
Note: CF, SD, MMC, MS/MS PRO, Smartmedia, Microdrive, and XD memory cards can
be supported through the right memory card reader/writer.
Using Compact Flash Card Slot
1
1
1.
..
Insert your CF card into the Compact Flash Card Slot when you want to play or save
your photos or music from the CF card. You will see a message “CF inserted” shown on
the bottom-right corner of the LCD screen.
2
2
2.
..
Remove your CF card from the Compact Flash Card Slot when you finish using the CF
card. You will see a message “CF removed” shown on the bottom-right corner of the
LCD screen.
Using SD/MMC/MS 3-in-1 Card Slot
1
1
1.
..
Insert your SD, MMC, MS, or MS PRO card into the SD/MMC/MS 3-in-1 Card Slot
when you want to play or save your photos or music from the SD, MMC, MS, or MS
PRO card. You will see a message “SD (MMC, or MS) inserted” shown on the bottom-
right corner of the LCD screen.
2
2
2.
..
Remove your SD, MMC, MS, or MS PRO card from the SD/MMC/MS 3-in-1 Card Slot
when you finish. You will see a message “SD (MMC, or MS) removed” shown on the
bottom-right corner of the LCD screen.
Using USB Host Port
Connecting USB Flash (Jump) Drive
1
1
1.
..
Insert your USB Flash (Jump) Drive into the USB Host Port (Figure 3) when you want
to play or save your photos or music from the USB Flash (Jump) Drive. You will see a
message “USB0 inserted” shown on the bottom-right corner of the LCD screen.
2
2
2.
..
Remove your USB Flash (Jump) Drive from the USB Host Port when you finish. You
will see a message “USB0 removed” shown on the bottom-right corner of the LCD
screen.
Or
Connecting to Digital Camera
1
1
1.
..
Follow the user’s instruction of your digital camera, which guides you to connect (and
disconnect) your camera to the computer (the DPF1040 here acts as a computer) through
the USB cable.
2
2
2.
..
Connect this USB cable to your digital camera when you want to play or save your
photos from your digital camera.
10

3
3
3.
..
Connect the type A connector of the USB cable to the USB Host Port of the DPF1040.
4
4
4.
..
Power on your digital camera and choose the right setting. (Note: Please follow the
guidance of your digital camera). You will see a message “USB0 inserted” shown on the
bottom-right corner of the LCD screen.
5
5
5.
..
Disconnect the type A connector of USB cable from the USB Host Port of your
DPF1040 if you wish to remove the connection from the digital camera. You will see a
message “USB0 removed” shown on the bottom-right corner of the LCD screen.
Or
Connecting to Memory Card Reader/Writer
1
1
1.
..
Connect the USB cable to your card reader/writer when you want to play or save your
photos or music from your card reader/writer.
2
2
2.
..
Plug the type A connector of the USB cable to the USB Host Port of the DPF1040. You
will see a message “USB* inserted” shown on the bottom-right corner of the LCD screen
if you have inserted the memory card into your card reader/writer already. (Note: “*” can
be 0, 1, 2, or 3 which represents the 1st, 2nd, 3rd, or 4th memory in your card reader/writer.)
3
3
3.
..
You can add any of the memory cards in your card reader/writer if empty slots available.
4
4
4.
..
You can remove any of the memory cards from your card reader/writer when you don’t
need it any more. You will see a message “USB* removed” shown on the bottom-right
corner of the LCD screen.
5
5
5.
..
Disconnect the type A connector of the USB cable from the USB Host Port of the
DPF1040 if you wish to remove the connection from card reader/writer. You will see a
message “USB* removed” shown on the bottom-right corner of the LCD screen.
Or
Connecting to Apple iPod
1
1
1.
..
Connect USB cable to your Apple iPod when you want to play or save your photos or
music from your iPod.
2
2
2.
..
Plug in the type A connectior of the USB cable to the USB Host Port of the DPF1040.
3
3
3.
..
Power on your iPod and choose the right setting. ) You will see a message “USB0
inserted” shown on the bottom-right corner of the LCD screen.
4
4
4.
..
Disconnect the type A connector of the USB cable from the USB Host Port of the
DPF1040 if you wish to remove the connection from your iPod. You will see a message
“USB0 removed” shown on the bottom-right corner of the LCD screen.
4.4 Play Photo
Loading Photos
1
1
1.
..
Provide the source of your photos from your memory cards, digital camera, or USB flash
drive. Please refer to the section Loading Media Contents in this chapter.
Note: Only photos in JPEG, PNG, and Bitmap file formats can be read and displayed.
Select Photo Mode
1
1
1.
..
Press Mode button once to switch the current mode from the Audio mode to the Photo
mode if you are in the audio mode. You will see a message “Photo” shown on the
bottom-right corner of the LCD screen.
11

Display Main Photo Menu
1
1
1.
..
Press Menu/Enter button. The Main Photo Menu is shown on the left side of the screen.
(figure 3) This menu includes:
•Slide/Single
•Select
•Thumbnail
•Rotate
•Save
•Remove
•Info
•Interval
•Effect
•Setup
•Exit
2
2
2.
..
The default shows the Slide/Single is highlighted.
3
3
3.
..
Press Up or Down button to scroll up or down.
Play Slideshow
1
1
1.
..
Scroll highlight to Slide/Single in the Main Photo Menu. Press Menu/Enter button, the
device will play slideshow every time interval of your setting or of default setting.
Note: All the photos in the internal flash memory and in any of the memory cards or USB
device inserted will be displayed when the device is in the slideshow mode.
Stop Slideshow (Play Single Photo)
1
1
1.
..
Scroll highlight to Slide/Single in the Main Photo Menu. Press Menu/Enter button, the
device will stop playing slideshow and display the current photo at all time.
Select Photo by File Name
1
1
1.
..
Scroll highlight to Select in the Main Photo Menu. You will see the sub-menu of Select,
which shows a list of media sources including Internal which represents the internal flash
memory , and CF, SD (MMC, or MS), USB0, USB1, USB2, or USB3 if you have inserted
your memory cards or USB devices (USB Flash Drive, Digital Camera, and Memory
Card Reader/Writer). (Refer to Loading Media Contents section)
2
2
2.
..
Insert the desired memory card or USB device if the input slot available. You will see the
device is added on the list on the screen when the insertion is completed.
3
3
3.
..
Press Right button to move to the sub-menu.
4
4
4.
..
Press Up or Down button to scroll up and down until the media source on which the
intended photo resides is highlighted. You will see another list shows the first tier of files
and folders in your media source.
5
5
5.
..
Continuously press Right button and Up or Down buttons until the desired photo file is
highlighted.
6
6
6.
..
Press Menu/Enter button to choose this photo file.
12

Note:
1. The photo will become clear in a few seconds after the file being decoded.
2. If the device is set to the slideshow mode, it will continue to change photos to the next
one at the interval that has been set.
Select Photo by Thumbnail
1
1
1.
..
Scroll highlight to Thumbnail in the Main Photo Menu.
2
2
2.
..
Press Menu/Enter button. 25 thumbnail images will be shown in 5 by 5 format. A Blue-
frame highlight represents the last photo displayed before you enter the thumbnail state.
3
3
3.
..
You can press Up or Down button to change the page of thumbnail.
4
4
4.
..
Until you see the desired photo on the current displayed page, you continuously press
Right or Left button to shift the highlight frame to the desired photo.
5
5
5.
..
Press Menu/Enter button to choose this photo.
Note:
1. Please wait for a few seconds for the device to decode the file, the photo will become
clear.
2. The device will be set back to the single mode if you enter the thumbnail state and
choose a highlighted photo during the slideshow.
Rotate the displayed photo
1
1
1.
..
Scroll to Rotate in the Main Photo Menu.
2
2
2.
..
Press Menu/Enter button. The current displayed photo rotates 90º clockwise.
3
3
3.
..
You can continuously press Menu/Enter button until the photo set to your desired
orientation.
Save Photo into Internal Flash Memory
1
1
1.
..
Scroll to Save in the Main Photo Menu.
2
2
2.
..
Press Menu/Enter button. The current displayed photo will be copied into internal flash
memory. You will see a block showing the status of copying (in percentage). When the
process is done, another block will show “File Copied Completed”. If you try to save a
photo already existed in the internal flash memory, a message of “The file already
exists” will display.
3
3
3.
..
You can continue to save other photos by repeating the steps above until that the internal
memory is full.
Note: There are about 50 Mbytes free in the internal memory for you to store photos or
mp3 music. The number of photos and songs to be stored in the internal memory depends
on the file size of each photo or the length of the mp3 music.
Remove Photo from Internal Flash Memory
1
1
1.
..
Scroll to Remove in the Main Photo Menu. You can see a sub-menu showing Current and
All.
2
2
2.
..
Press Right button to move to the sub-menu.
13

3
3
3.
..
Press Up or Down button to move a highlight Current in the sub-menu if you would like
to remove the current displayed photo.
4
4
4.
..
Press Menu/Enter button. A “Delete from Internal” dialog block appears to verify if you
are sure to delete this photo file.
5
5
5.
..
Press Right or Left button to highlight “Yes” and press Menu/Enter button to remove the
photo file, or “No” and press Menu/Enter button to keep the file.
Or 3
3
3.
..
Press Up or Down button to move the highlight to All in the sub-menu if you wish to
remove all the photos from the internal flash memory.
4
4
4.
..
Press Menu/Enter button. A “Delete from Internal” dialog block appears to verify if you
are sure to delete photo file.
5
5
5.
..
Press Right or Left button to highlight “Yes” and press Menu/Enter button to remove all
the photo files, or “No” and press Menu/Enter button to keep the files.
Note: 1.Please be cautious. If you remove the photo files from internal memory, file(s)
will be permanently deleted from the device.
2. No file (s) can be deleted from the memory card or any of the USB device.
Display the Information of Photo or Firmware Version
1
1
1.
..
Scroll highlight to Info in the Main Photo Menu. You can see a sub-menu with Photo Info
and Version options.
2
2
2.
..
Press Right button to move highlight to the sub-menu.
3
3
3.
..
Press Up or Down button to move highlight to Version if you would like see the firmware
version. Press Menu/Enter button, you will see information block showing “Wellex
DPF-1040 Vx.xx” which x.xx represents the version number.
Or 3
3
3.
..
Press Up or Down button to move highlight to the sub-menu of Photo Info if you wish to
see the information of the currently displayed photo.
4
4
4.
..
Press Right button to move highlight to another tier of sub-menu which shows Basic,
Camera Info, All, and Off.
Note: Refer to Figure 6,
•Basic information shown on the upper-left part of the screen includes the
information of photo source (e.g. Internal, SD, USB0, etc …), slideshow mode,
page number, picture number, file name, and original resolution.
•Camera Info information shown on the bottom-left part of the screen includes the
photo information recorded by your digital camera.
•All information includes both Basic and Camera Info information.
•Choose Off option to disable the text information of the displayed photo on the
screen.
5
5
5.
..
Press Up or Down button to move and select Basic, Camera Info, All, or Off.
6
6
6.
..
Press Menu/Enter button.
Set Slideshow Interval
14

1
1
1.
..
Scroll to highlight Interval in the Main Photo Menu. You can see a sub-menu with 5 sec,
10 sec,15 sec,20 sec, 25 sec,30 sec, and 60 sec, which are the options for time interval
that each photo displays in the slideshow mode.
2
2
2.
..
Press Right button to move to the sub-menu.
3
3
3.
..
Press Up or Down button to scroll up and down until the time interval you would like to
set.
4
4
4.
..
Press Menu/Enter button to set the slideshow interval.
Set Transition Effect of Slideshow
1
1
1.
..
Scroll to Effect in the Main Photo Menu. You can see a sub-menu with Random,None,
Left to Right,Right to Left, Top to Bottom,Bottom to Top, and Checkered, which presents
slides transition effects, as described below, that photos appeared in slideshow mode.
•Random: New photo appears in a random effect pattern, including all other effects
except none.
•None: New photo appears without any special effect.
•Left to Right:New photo appears from left to right.
•Right to Left:New photo appears from right to left.
•Top to Bottom: New photo appears from top to bottom.
•Bottom to Top: New photo appears from bottom to top.
•Checkered:New photo appears like a checker board square.
2
2
2.
..
Press Right button to move to the sub-menu.
3
3
3.
..
Press Up or Down button to scroll up and down until to the desired effect of slideshow.
4
4
4.
..
Press Menu/Enter button to set the transition effect of the slideshow.
Setup
Refer to the section Setup in this chapter.
Exit from Main Photo Menu
1
1
1.
..
Scroll to highlight exit in the Main Photo Menu.
2
2
2.
..
Press Menu/Enter button to exit from the Main Photo Menu.
4.5 Play Audio
Loading the Audio Contents
1
1
1.
..
Loading your mp3 format music from your memory cards, or your USB flash drive.
Please refer to the section Loading Media Contents in this chapter.
Note: Only the music in MP3 file format can be read and played.
Select Audio Output
1
1
1.
..
If you would like to select the built-in speaker as your audio output, please be sure that
there is no external connection on the Audio out with any external audio device (figure 5),
such as external speakers or headphone sets.
15

2
2
2.
..
If you would like to use external speakers or headphones, you have to plug the audio
cable of those devices into the Audio Out of the DPF1040.
Select Audio Mode
1
1
1.
..
Press Mode button to switch current mode from Photo mode to Audio mode if you are in
the Photo mode. You will see a message “Audio” shown on the bottom-right corner of
the LCD screen. An Audio Information block, as shown in Figure 7, will appear if any
MP3 file is available; otherwise a message “No Audio files available” appears to indicate
that no available MP3 files were found in the inserted memory cards, USB device, or the
internal flash memory.
Note: You can still continue to play photo even though you switch to the Audio Mode.
Display Main Audio Menu
1
1
1.
..
Press Menu/Enter button. The Main Audio Menu is shown on the left side of the screen.
This menu includes:
•Play/Pause
•Stop
•Select
•Play Mode
•Equalizer
•Save
•Setup
•Exit
2
2
2.
..
The default shows the Play/Pause is highlighted.
3
3
3.
..
Press Up or Down button to scroll up or down.
Play MP3 Music
1
1
1.
..
Scroll to Play/Pause in the Main Audio Menu. Press Menu/Enter button, the DPF1040
will play the music with information shown in the Audio Information block, as shown in
Figure 7, according to your or default setting (please refer to the sections of Set Play
Mode and Set Equalizer).
2
2
2.
..
You can select the next or the previous music (song) in the playlist you would like to play
by pressing Up or Down button. You will see the Play Order is changed in the audio
information block.
Note: The default playlist includes all music available in the inserted memory cards, USB
device, and the internal flash memory. You can also create a playlist of the selected
music to place and play your favorite songs (please refer to the section Select MP3
Music by Song Title to create a playlist of the selected music (songs).
Adjust Volume
16

1
1
1.
..
You can adjust volume any time when you are playing MP3 music. Press Volume Up
button when you would like to increase the volume of music, or press Volume Down
button when you would like to decrease the volume of music. You can see a message
shown “Volume: *” on the top of the screen, which indicates the volume level.
Note: In the message “Volume: *”, * is from 0 to 20. The larger the number you set, the
louder the audio output is. Volume: 0 is no sound output.
Pause MP3 Music
1
1
1.
..
Scroll highlight to Play/Pause in the Main Audio Menu. Press Menu/Enter button, the
mp3 music currently played will be paused.
Stop MP3 Music
1
1
1.
..
Scroll highlight to Stop in the Main Audio Menu. Press Menu/Enter button, the mp3
music currently played will be stopped.
Select MP3 Music by File Name
1
1
1.
..
Scroll to highlight Select in the Main Audio Menu. You will see the submenu with Card
Select and MP3 List options.
2
2
2.
..
Press Right button to move to the sub-menu.
3
3
3.
..
Press Up or Down button to scroll down and highlight Card Select. It shows a list of
available media sources, such as Internal, CF, MS, MMC, or USBx. (Refer to Provide
Media Contents section).
4
4
4.
..
Press Right button to move to another tier of the submenu.
5
5
5.
..
Press Up or Down button to until the desired media source is highlighted.
6
6
6.
..
Continuously press Right button and Up or Down buttons until the desired MP3 file is
highlighted.
7
7
7.
..
Press Menu/Enter button to select and to play the music.
Select MP3 Music by Song Title to create a playlist of the selected songs
1
1
1.
..
Scroll and highlight Select in the Main Audio Menu. You will see the submenu with
Card Select and MP3 options.
2
2
2.
..
Press Right button to move highlight to the sub-menu.
3
3
3.
..
Press Up or Down button to highlight MP3 List. MP3 List displays all MP3 music files
by their song titles. If the song title is not available, a file name will be displayed.
4
4
4.
..
Press Right button to move to the song title list.
5
5
5.
..
Press Up or Down button to highlight to the desired song title, and then press
Menu/Enter button to select and play this song. This song will be placed in the playlist of
selected songs.
6
6
6.
..
You can continuously repeat Step 1 to 5 to add more favorite songs into the playlist of
selected songs.
Note: 1. After you create a playlist of selected songs, Only the music in this playlist will
be played while in the Audio Mode. If you wish to change back to play the default
playlist of all songs, please follow the section of Select MP3 Music by File Name.
17

2. The playlist of the selected songs will be deleted when you power off.
Set Play Mode
1
1
1.
..
Scroll to the Play Mode in the Main Audio Menu. You can see a sub-menu with Repeat
All,Repeat One,Shuffle,and Play Once options.
a. Repeat All: play all MP3 music available repeatedly.
b. Repeat One: play the selected MP3 music repeatedly.
c. Shuffle: play all MP3 music available randomly.
d. Play Once: play the selected MP3 music once.
2
2
2.
..
Press Right Arrow button to move to the sub-menu.
3
3
3.
..
Press Up or Down button to move to the desired play mode you would like to set.
4
4
4.
..
Press Menu/Enter button.
Set Equalizer
1
1
1.
..
Scroll to Equalizer in the Main Audio Menu. You can see a sub-menu with Normal,Rock,
Jazz, Xbass and Classical options.
2
2
2.
..
Press Right button to move to the sub-menu.
3
3
3.
..
Press Up or Down button to move and highlight Normal, Rock, Jazz, Xbass, or Classical
of the sub-menu if you would like to set equalizer to Normal, Rock, Jazz, Xbass, or
Classical mode.
4
4
4.
..
Press Menu/Enter button.
Save MP3 file into Internal Flash Memory
1
1
1.
..
Scroll to Save in the Main Audio Menu.
2
2
2.
..
Press Menu/Enter button. The currently played MP3 music will be copied into internal
flash memory. You will see a block showing the status of copying (in percentage). When
the process is done, another block will show “File Copied Completed”. If you are saving
a MP3 already existed in the internal flash memory, a block with the text of “The file
already exists” will appear.
3
3
3.
..
You can continue to save other music by repeating the steps described until the internal
memory is full.
Note:
1There are about 50 Mbytes free in the internal memory for you to store photos or MP3
music. The number of photos and songs to be stored in the internal memory depends on
the file size of each photo or the length of the MP3 music.
2.It might take a few minutes to copy a mp3 file to the internal flash memory. Do not
remove the source cards/USBs drives until the copying process is completely done.
Remove MP3 from Internal Flash Memory
1
1
1.
..
Scroll to Remove in the Main Audio Menu. You can see a sub-menu showing Current
and All.
•Current: remove the current playing MP3 music from internal flash memory.
•All: remove all the MP3 files from the internal flash memory.
2
2
2.
..
Press Right Arrow button to move to the submenu.
18

3
3
3.
..
Press Up or Down button to move to Current or All depending on current playing song or
all songs you would like to remove.
4
4
4.
..
Press Menu/Enter button. A “Delete from Internal” dialog block appears to verify if you
are sure you want to delete a MP3 music file.
5
5
5.
..
Press Right or Left button to highlight “Yes” and press Menu/Enter button to remove the
MP3 music file, or “No” and press Menu/Enter button to keep the file.
Note:
1. Please be cautious. If you removed the MP3 music files from internal memory, the file
will be permanently deleted.
2. No MP3 file(s) could be removed from the external memory card or devices.
Exit from Main Audio Menu
1
1
1.
..
Scroll the highlight to Exit in the Main Audio Menu.
2
2
2.
..
Press Menu/Enter button to exit from Main Audio Menu.
4.6 Setup
Access the Setup
1
1
1.
..
Press Mode button to choose the current mode in the Photo mode.
2
2
2.
..
Press Menu/Enter button. The Main Photo Menu is shown on the left side of the screen.
3
3
3.
..
Scroll to highlight Setup in the Main Photo Menu. You can see a sub-menu with Date,
Time,Clock,Sleep, Wake Up,LCD Saver, Display, Default, and Firmware. Press Right
button to move to the sub-menu.
Note: Setup can only be accessed in the Photo mode.
Set the Current Date
1
1
1.
..
Press Up or Down button to scroll and highlight Date in the Setup sub-menu. You can
see month/day/year appear.
2
2
2.
..
Press Right button to move and highlight month. Press Up or Down button to set to the
desired month.
3
3
3.
..
Continuously press Right button to move and highlight day. Press Up or Down button to
set to the desired day.
4
4
4.
..
Continuously press Right button to move and highlight year. Press Up or Down button to
set to desired year.
5
5
5.
..
You can leave setup mode by press Menu/Enter button. To perform other setup, press
Left button several times until Setup sub-menu is highlighted.
Set the Current Time
1
1
1.
..
Press Up or Down button to scroll and highlight Time in the Setup sub-menu. You can
see hour:minute:second appeared.
2
2
2.
..
Press Right button to move and highlight hour. Press Up or Down button to set to desired
hour.
3
3
3.
..
Continuously press Right button to move and highlight minute. Press Up or Down
button to set to desired minute.
19

4
4
4.
..
Continuously press Right button to move and highlight second. Press Up or Down button
to set to the desired second.
5
5
5.
..
You can leave the setup mode by press Menu/Enter button. To perform other setup, press
Left button several times until the setup sub-menu is highlighted.
Display Date and Time on the screen
1
1
1.
..
Press Up or Down button to scroll and highlight Clock in the Setup sub-menu. You can
see lower tier of sub-menu showing Off and On.
2
2
2.
..
Press Right button to move to the lower tier of sub-menu. Press Up or Down button to
move and highlight On if you would like to display the current date and time on the
screen, or to the Off if you would like to turn it off.
3
3
3.
..
You can leave this setting by press Menu/Enter button. Or if you would like to perform
other setup procedures, press Left button to go back to the setup sub-menu.
Set Sleep and Wake Up Time
1
1
1.
..
Press Up or Down button to scroll and highlight Sleep in the Setup sub-menu. You can
see hour:minute:second appeared.
2
2
2.
..
Press Right button to move to the hour setting. Press Up or Down button to set to desired
hour.
3
3
3.
..
Continuously press Right button to move to the minute setting. Press Up or Down button
to set to desired minute.
4
4
4.
..
Continuously press Right button to move to the second setting. Press Up or Down button
to set to desired second.
5
5
5.
..
Press Left button several times until at the setup sub-menu.
6
6
6.
..
Press Up or Down button to scroll and highlight Wake Up in the Setup sub-menu. You
can see hour:minute:second appeared.
7
7
7.
..
Press Right button to move and highlight the hour setting. Press Up or Down button to
set to desired hour.
8
8
8.
..
Continuously press Right button to move to the minute setting. Press Up or Down button
to set to desired minute.
9
9
9.
..
Continuously press Right button to move to the second setting. Press Up or Down button
to set to desired second.
1
1
10
0
0.
..
Once you are done, you can leave setup mode by press Menu/Enter button. Or if you
would like to perform other setup, press Left button several times until the highlight is on
the setup sub-menu.
Enable or Disable Sleep and Wake Up Time
1
1
1.
..
Press Up or Down button to scroll to and highlight LCD Saver in the Setup sub-menu.
You can see another tier of sub-menu showing Off and On.
2
2
2.
..
Press Right button. Press Up or Down button to move to the On if you would like to
enable the sleep time and wake up time function, or on the Off if you would like to
disable the sleep time and wake up time function.
3
3
3.
..
You can leave this setting by press Menu/Enter button. Or if you would like to perform
other setup procedures, press Left button to go back to the setup sub-menu.
Note: Press any button on the control panel to wake up this device from the sleep mode.
20
