EN Coyote outdoor appliance cabinet
INSTRUCTION GUIDE

Welcome
Thank you for purchasing your Coyote appliance cabinet appliance!
We appreciate your business and we recommend that you read this entire
User’s Manual before operating your new appliance for the rst time.
This manual contains instructions on how to properly install and set up your
new range, as well as insights into the unique features that our product offers.
Please keep this manual for future reference, as it contains answers to ques-
tions that you might have as you begin to cook.
Thank you
Coyote outdoor appliance cabinet
INSTRUCTION GUIDE

EN
This manual applies to the following models’ series:
Model #WB00371 (Coyote appliance cabinet)
Model #WB00372 (Coyote 2-drawer fridge)
Model Coyote Outdoor Wine Cooler
Parts Explosive Pictures

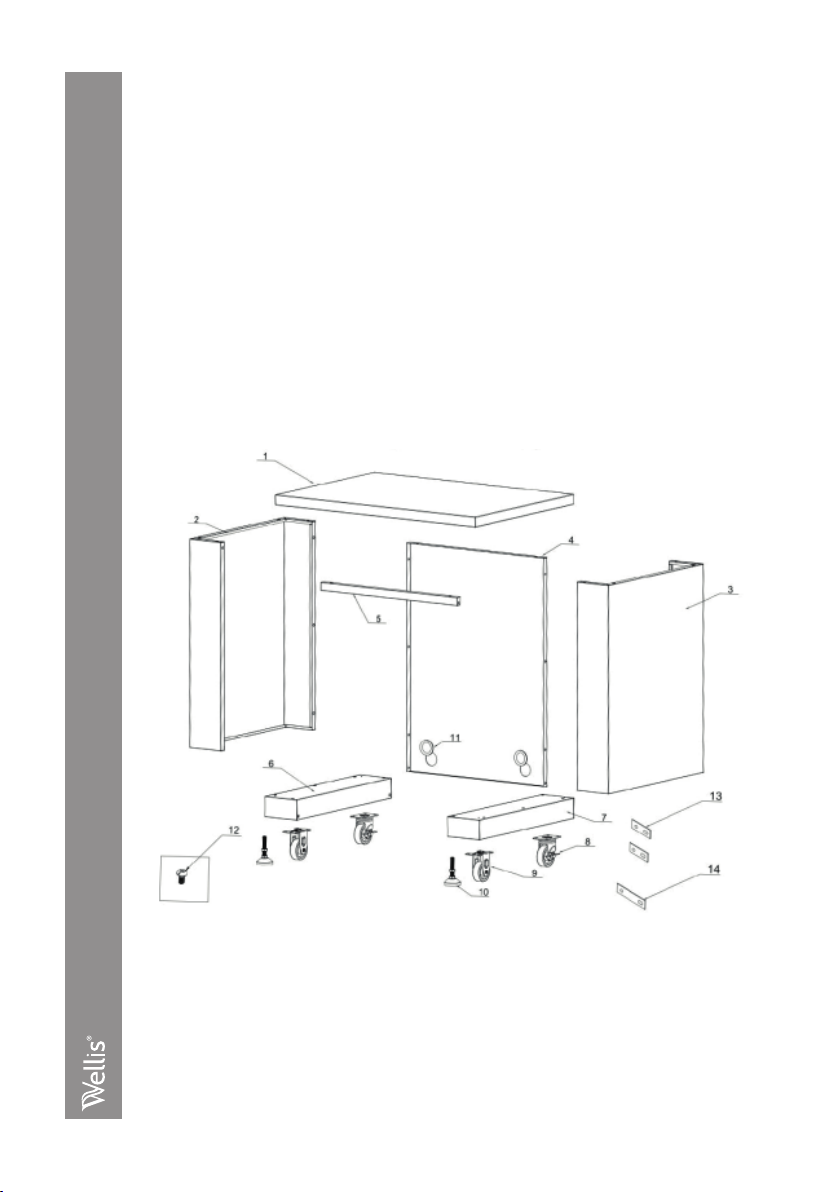

Parts List
Explosive Part Name Quantity
1 Countertop welding assembly 1
2 Left side panel welding assembly 1
3 Right side panel welding assembly 1
4 Back panel welding assembly 1
5 Beam welding assembly 1
6 Right bottom panel welding assembly 1
7 Left bottom panel welding assembly 1
8 Universal caster with brake 2
9 Fixed caster 2
10 Supporting leg 2
11 Rubber gasket 2
12 Philips thumb head screw with anti-slip design 56
13 cabinet back connecting plate 2
14 cabinet front connecting plate 1

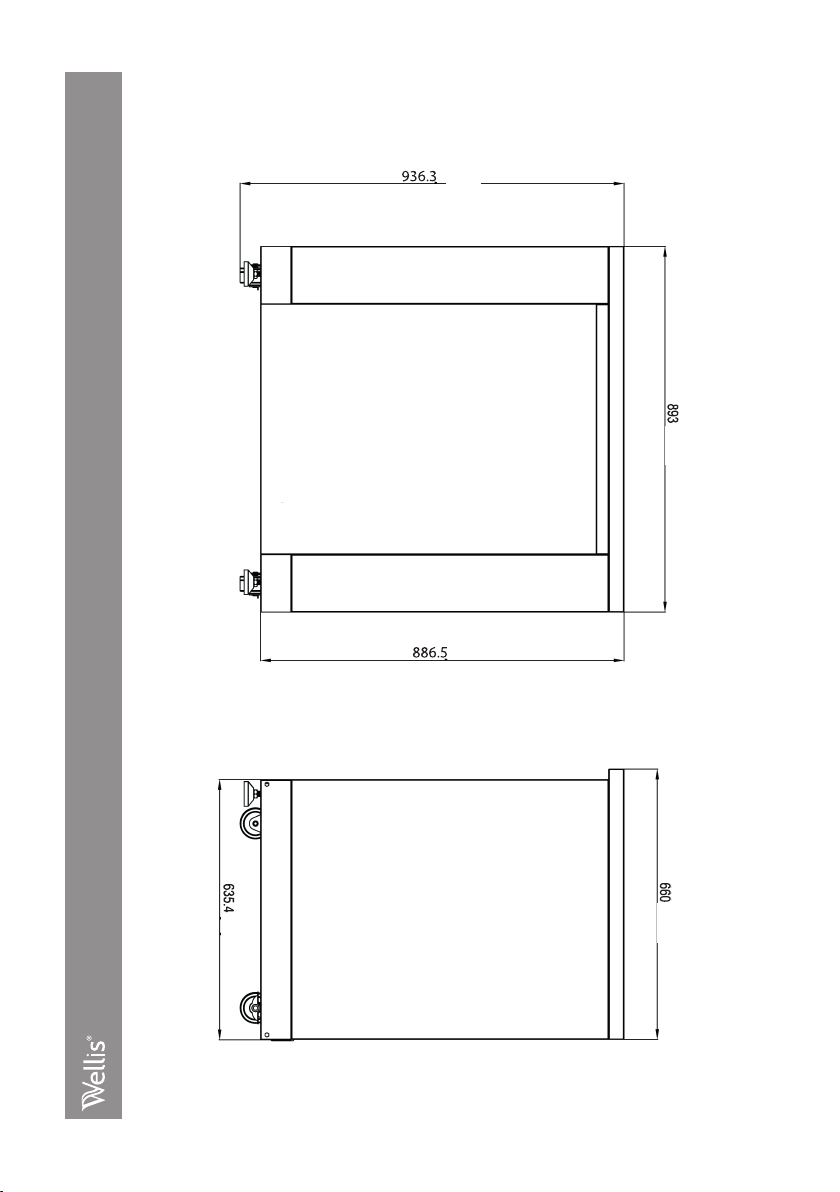

EN Product Dimension

Cabinet Installation
Step 1
1. Install 2 pcs Supporting Leg (Part # 10) to bottom right welding assembly
(Part # 6) and bottom left welding assembly (Part # 7). Use hand to adjust
the supporting leg to the uitable position.
2. Use 16 pcs ¼” at Philip’s head screw (Part # 12) to connect 2 pcs xed
caster (Part # 9) and 2 pcs universal casters (Part # 8) to Part #6 and #7.

EN Step 2
1. Use 5 pcs ¼” at Philip’s head screws (part # 12) to connect left
side panel (Part # 2) to Part #6;
2. Use 5 pcs ¼” at Philip’s head screws (part # 12) to connect right
side panel (Part # 3) to Part #7;
3. Do not over-tighten all the screws until parts are lined up.

Step 3

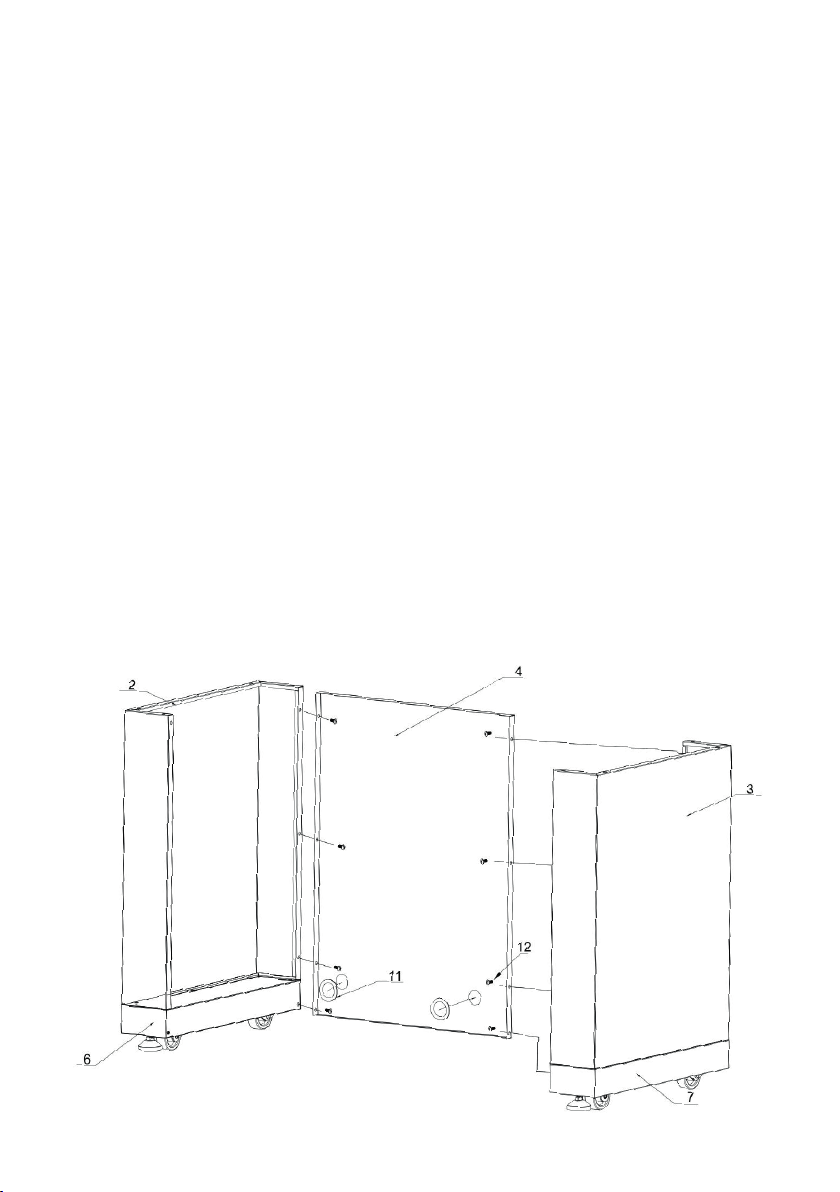

1. Install 2 pcs rubber gaskets (Part # 11) to Back Panel (Part # 4);
2. Use 4 pcs ¼” at Philip’s head screws (Part # 12) to connect Part #4 to
Part #2 and #6;
3. Use 4 pcs ¼” at Philip’s head screws (Part # 12) to connect Part #4 to
Part #3 and #7;
4. Do not over-tighten all the screws until parts are lined up.

EN Step 4
1. Use 2 pcs ¼” at Philip’s screw head (Part # 12) to connect beam
welding assembly (Part # 5) to Part #2 and #3;
2. Make sure the connection is smooth. Do not over-tighten all the
screws until parts are lined up.

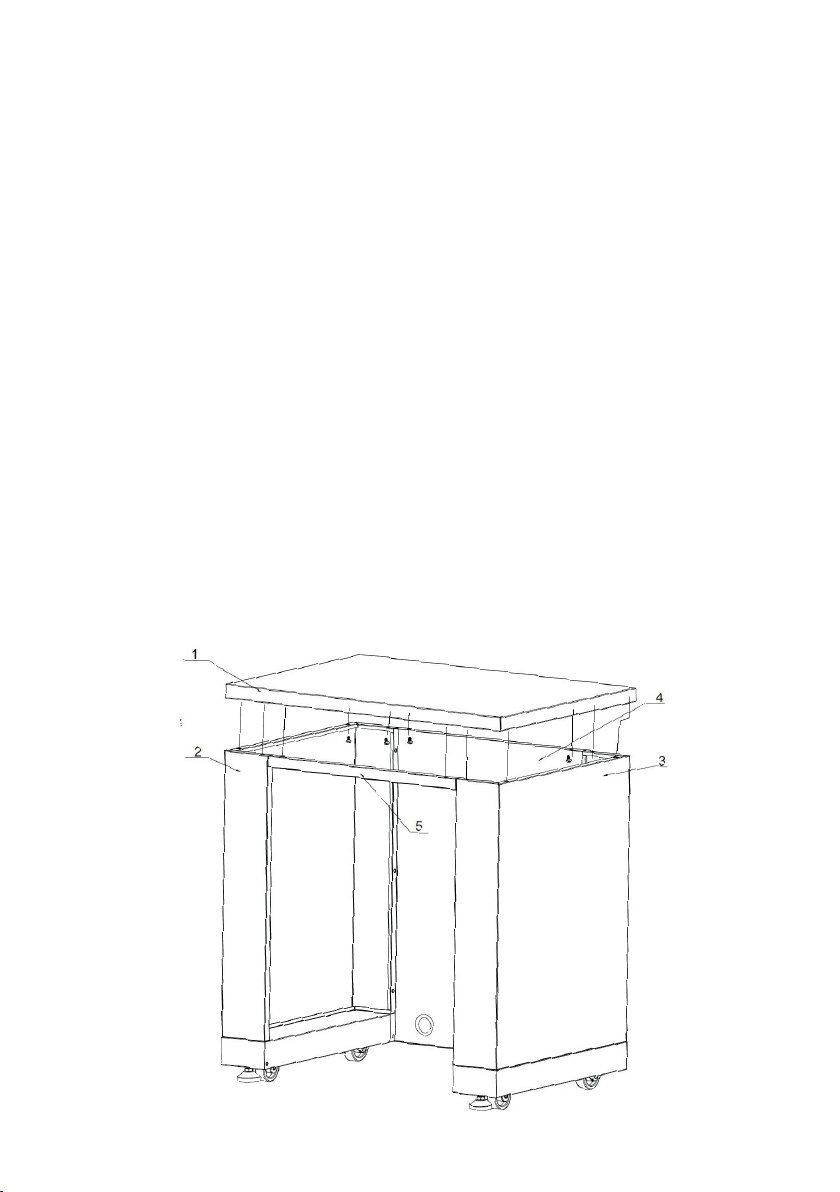

Step 5
1. Use 12 pcs ¼” at Philip’s screw head (Part # 12) to connect top cover
board (Part # 1) with Part #2, #3, #4 and #5
2. Make sure the connection is smooth. Do not over-tighten all the screws
until parts are lined up.

EN

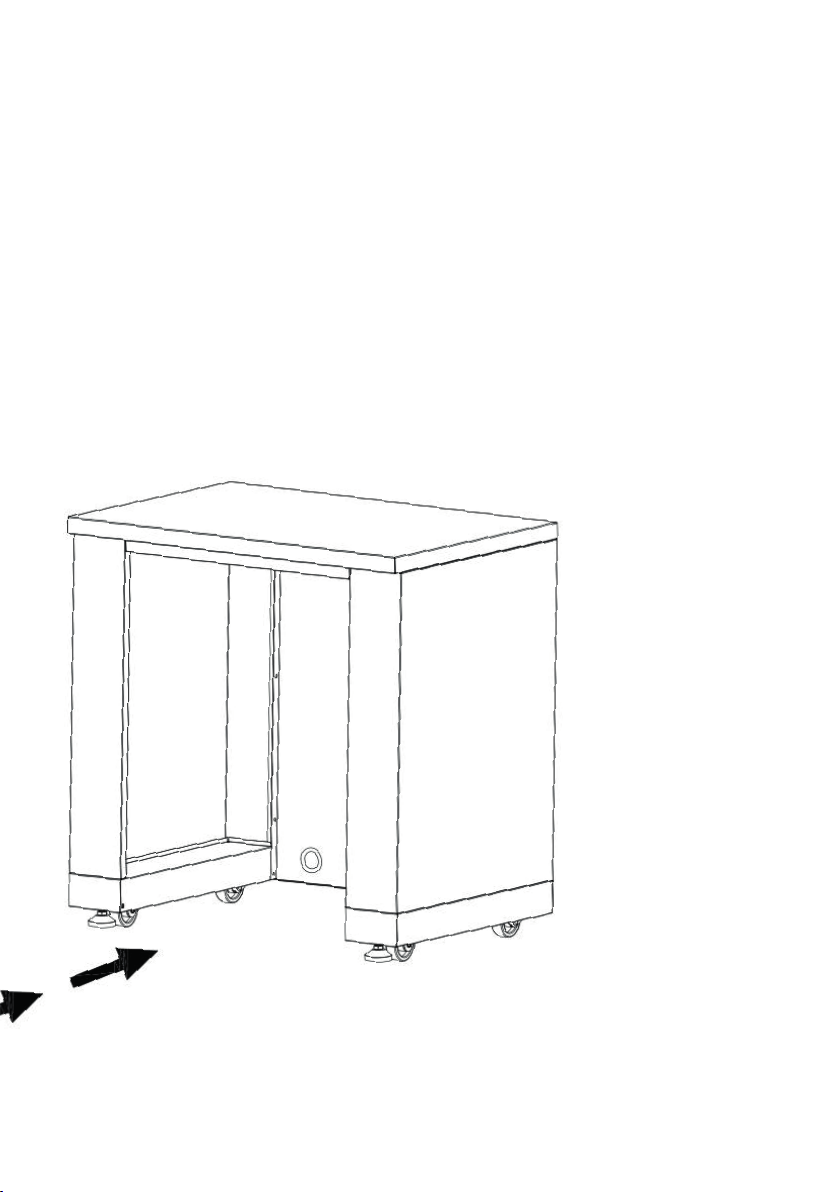

You Coyote appliance cabinet Outdoor Cabinet could be connected with any other Coyote Outdoor Cabinet models. If you are having a Corner Cabinet and you would like to connect it to another cabinet, use corner cabinet connecting plate with 2 pcs 1/4” screws to connect both cabinets; If you are having a Sink Cabinet, Appliance Cabinet or Pizza oven Cabinet, use cabinet connecting plate with 2 pcs 1/4” screws to connect both cabinets.
Cabinet front connecting Plate Corner Cabinet Front connecting plate

You Coyote appliance cabinet Outdoor Cabinet could be connected with any other Coyote Outdoor Cabinet models. For Back Panel Connections, use Back Cabinet connecting plate with 2 pcs 1/4” screws to connect both Cabinets.
Back Cabinet Connecting Plate

EN

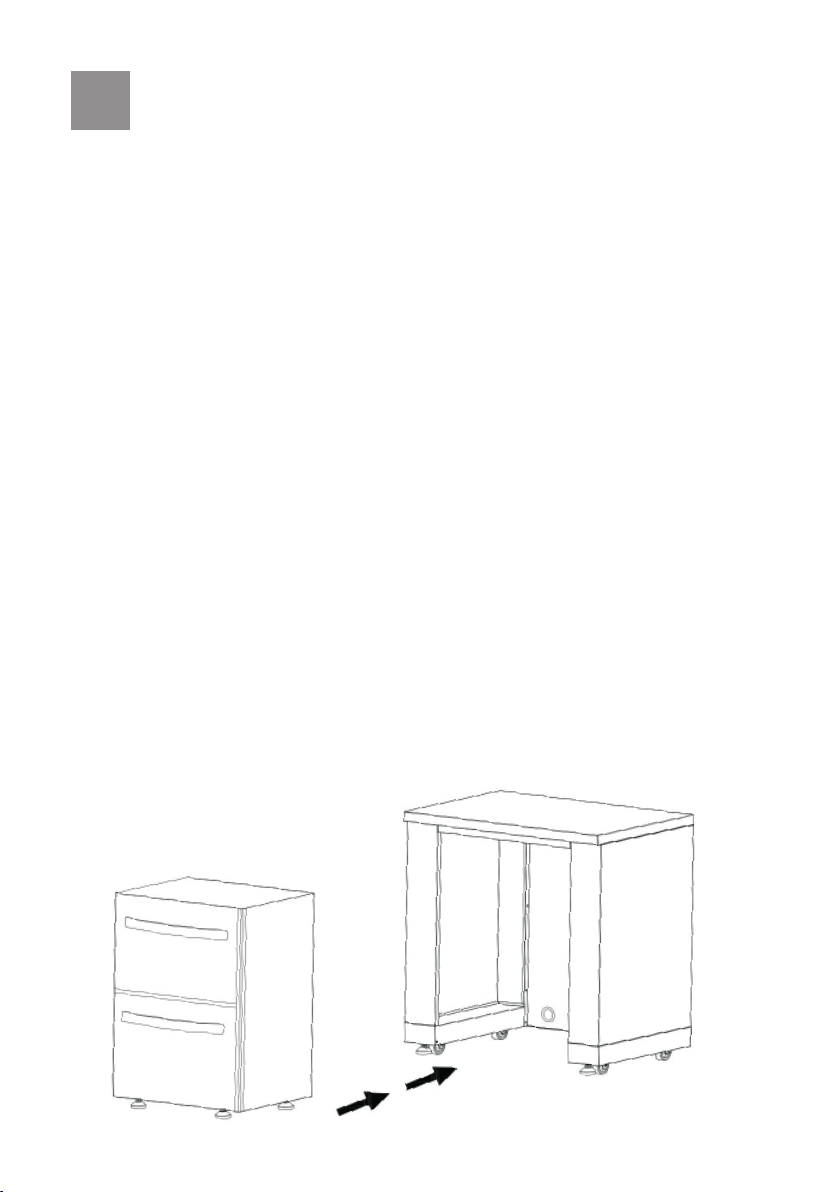

Your Coyote 2-drawer fridge is compatible with below Outdoor Appli-
ances. Please contact your dealer for product inquiries.
Model WB00372 (Coyote 2-drawer fridge)
Features
• Convection cooling system provides a quick cool down and con-
sistent temperature
• Digital touch pad control with blue LED display
• Stainless steel cabinet
• Bright white LED light for both drawers
• Two full-extension stainless steel drawer
• built-in or freestanding
• Four adjustable leveling legs
• Available for both Indoor/Outdoor
• Nois level: 14db
• Anti-ngerprint surface
Temp range 1-7 °C
Outdoor or Indoor Indoor and Outdoor
Led light White LED light
Shipping dimension 64,3 cm (W)x 64,3 cm (D)x90,2 cm(H)

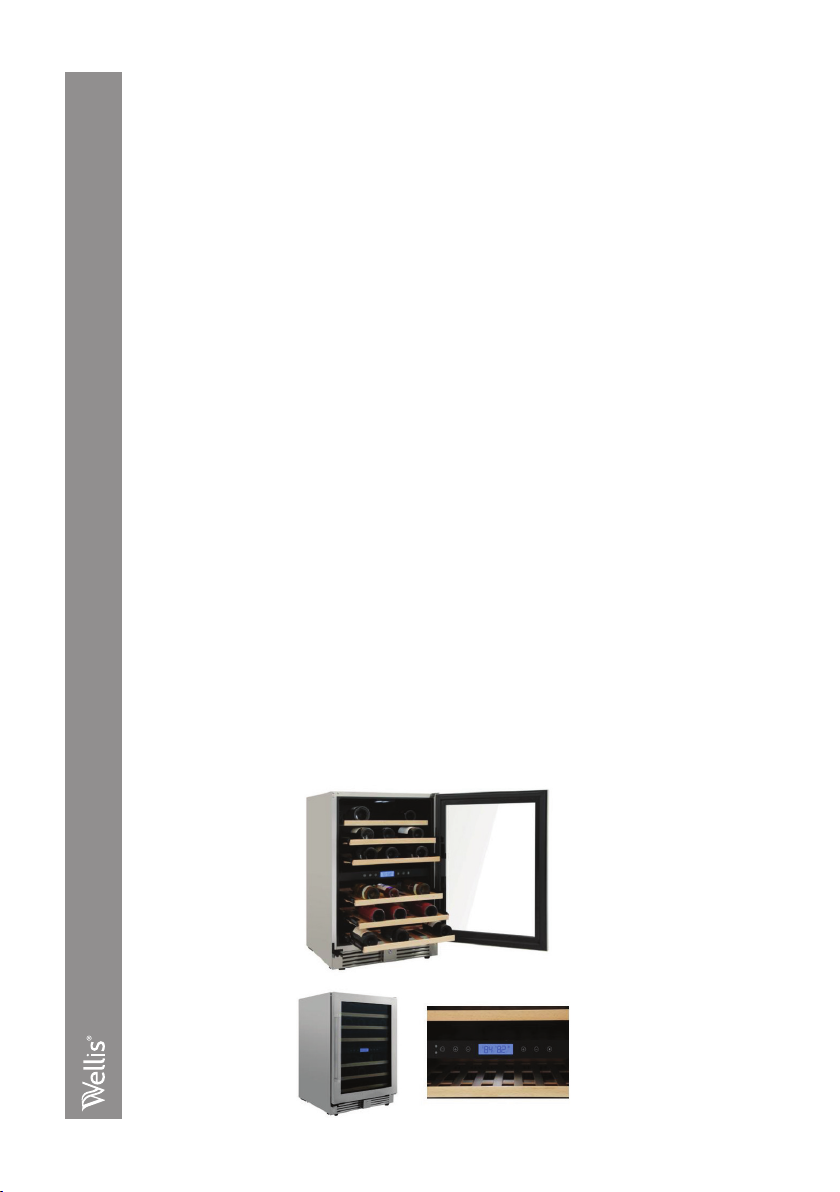

Model Coyote Outdoor Wine Cooler
Product description: 24-inch
Outdoor Dual Zone wine Cooler
wine Cooler size 61 cm
Product Width 59,5 cm
Product Depth 60,5 cm
Product Height 87,0 cm
Depth Excluding Handles 60,5 cm
Depth Including Handles 64,5 cm
Depth with door 56,0 cm
Depth with Door Open 90 degrees 117,0 cm
Height to top of Door Hinge 87,0 cm
Wine Cooler Type Bulit-in or freestanding, indoor or outdoor use
Adjustable Racks No (with rolling slideways)
Bottle Capacity 46
Defrost type Automatic
Number os shelves 5+1
Wine Cooler Shelf Material Beech wood
Number of Door 1
Temperature Range 5-18 °C
Color/Finish S.S housing and S.S. door trims
Type of Cooling Unit No Frost
Voltage(volts) 230 V / 50 Hz
Gross Weight 68,9 kg
Net weight 59 kg
Cerivations Residential ETL/CEC
UPC# 6926697022221
Shipping Dimension H100xW75,5xD76,6 cm
FEatures See next page

EN Features:
• 46 bottles capacity (0.15 m3)
• Indoor or outdoor use wine cooler
• Thunder proof and waterproof
• Independent dual zone (each zone reach 5-18°C)
• Fan assisted cooling
• Seamless S.S door frame (60mm) with S.S. handle(304SS)
• SS Compressor Rear Cover (304SS)
• Dual pane of Low-E glass to lter UV rays
• Reversible door (1800 ip-over)
• S.S. exterior housing and rear plate (304SS)
• S.S. vent kickplate
• 5+1 beech wood rolling shelves with rolling slideways (Full Exten-
sion)
• LCD display with 2pcs blue lightings on top
• Adjustable electronic touch control co or FO
• Door opening alarm
• Temperature alarm
• Activated charcoal lters (2pcs)
• Heating elements for winter function
• 4pcs adjustable feet
• 4pcs casters available for an additional cost
• No frost
• 2pcs evaporators for accurate temperature control
• Self contained condenser
• Refrigerant: R600a
