Wellsys W9 User manual

Quench USA Inc.
630 Allendale Road, Ste 200
King of Prussia, PA 19406
[phone] www.wellsyswater.com
W9
MANUAL

W9 Manual Page 2 - Revision: 10-06-2023
W9 MANUAL
Congratulations on your choice of the Wellsys W9 Water Dispenser. The W9 model dispenses
highly filtered hot and cold water. The Wellsys W9 Water Dispenser provides exceptional
quality and great tasting water with every use.
INTRODUCTION
Carefully read and follow all instructions to ensure proper and efficient operation of your
Wellsys Water Dispenser. Contact your Authorized Wellsys Dealer if you have any questions.
Wellsys and Authorized Wellsys Dealers employ trained service personnel who are experienced
in the installation, function, and repair of this equipment. This publication is written for use by
these qualified individuals. Wellsys encourages users to learn about products, however, we
believe that product knowledge and service is best obtained by consulting your Authorized
Wellsys Dealer.
Wellsys Water Dispensers should be combined with selected water treatment components to
create a system specifically tailored for each application by trained and qualified personnel.
Products manufactured and marketed by Wellsys and its affiliates are protected by patents
issued or pending in the United States and other countries.
Wellsys reserves the right to change the specifications referred to in this literature at any time,
without prior notice. Changes or modifications not expressly approved by Wellsys could void
the warranty and user’s authority to operate the equipment.

W9 Manual Page 3 - Revision: 10-06-2023
TABLE OF CONTENTS
USER GUIDE
•Safety Alert Symbols ................................................................4
•Safety Precautions ...................................................................4
•Features and Benefits ..............................................................6
•Certifications............................................................................7
•Model Designations, Consumables, & General Specs .............8
•Shipping Specifications ............................................................9
•Receiving Your Equipment.....................................................10
•Control Panel & Operating Instructions.................................11
•Warranty ...............................................................................13
SERVICE GUIDE
•Service Requirements ............................................................14

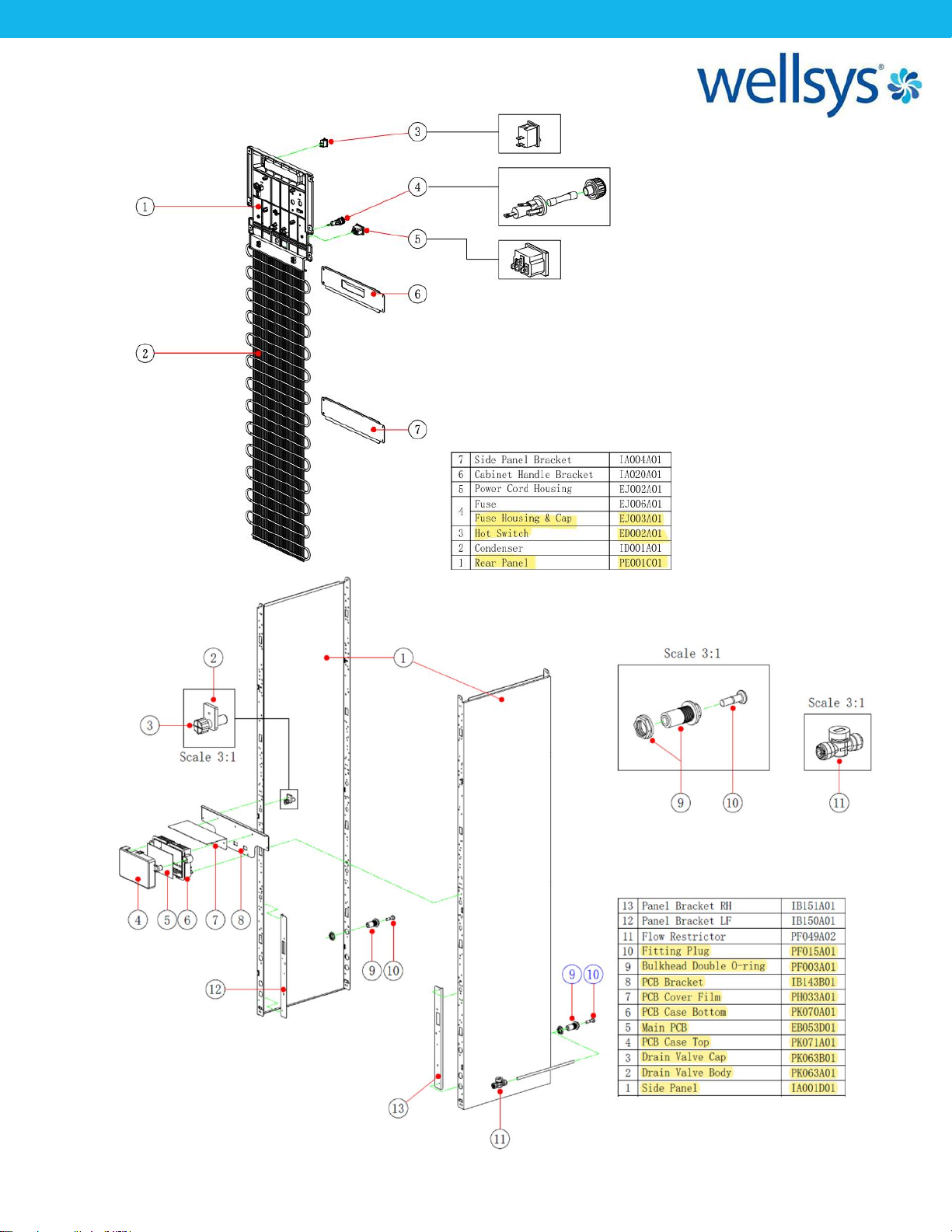

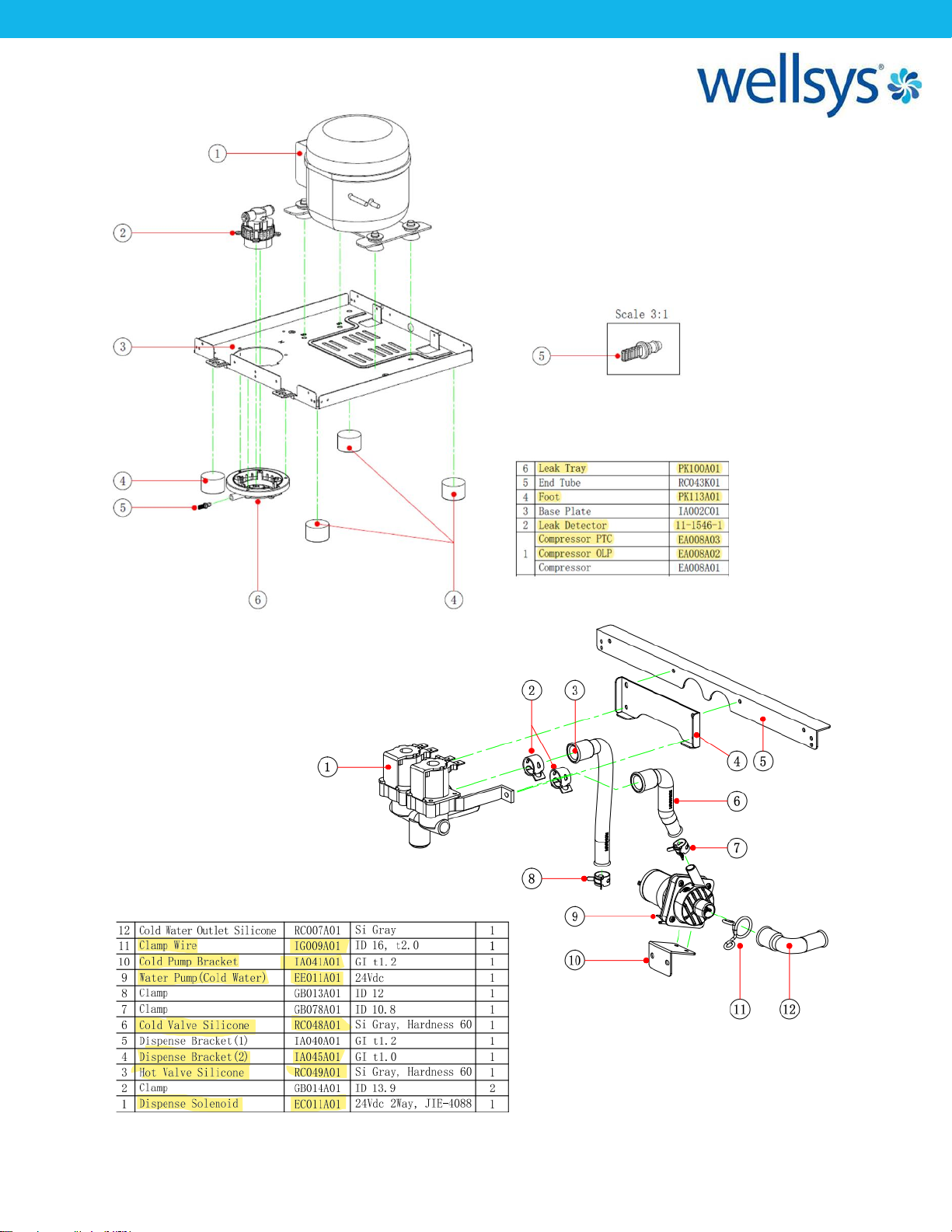

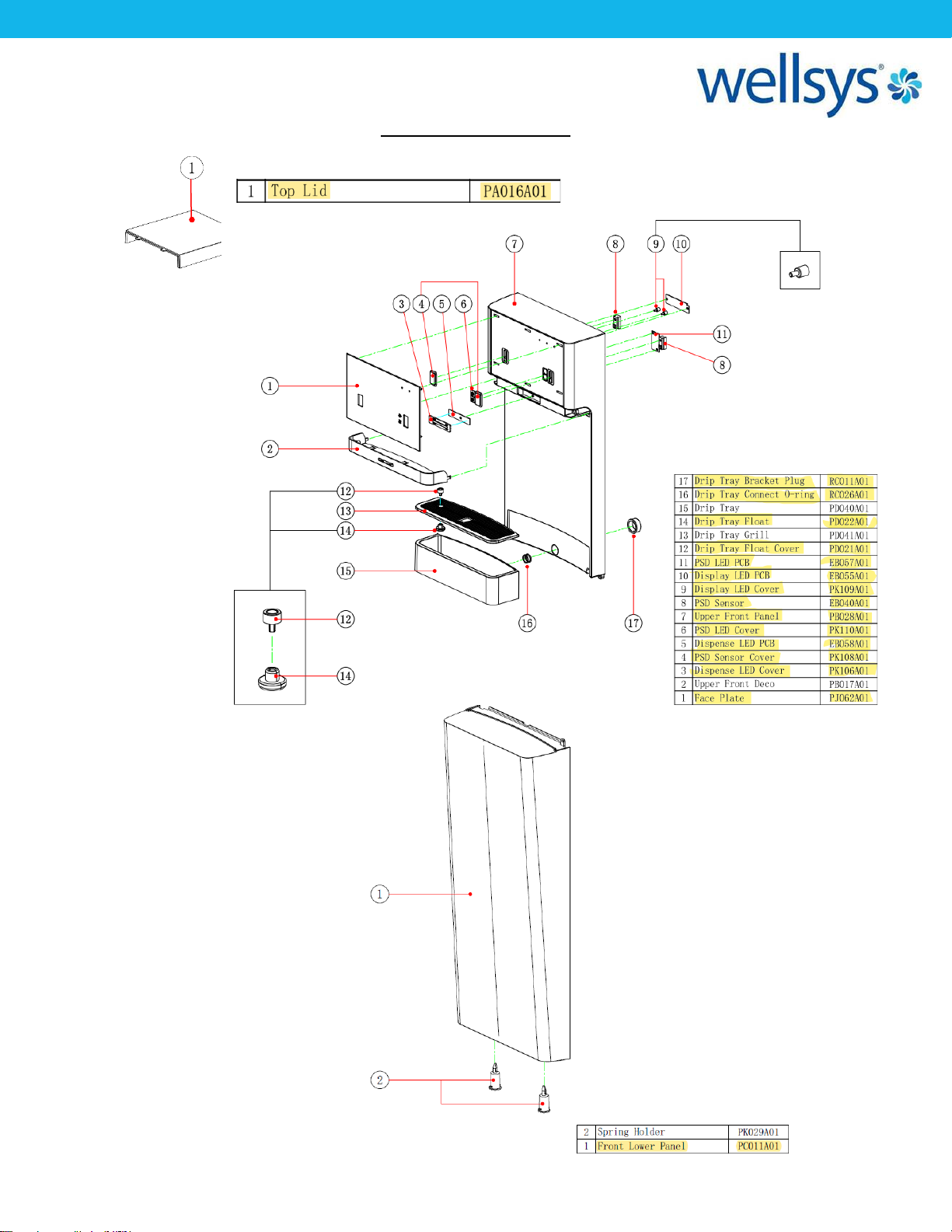

•W9 Parts Diagram……………………............................................15

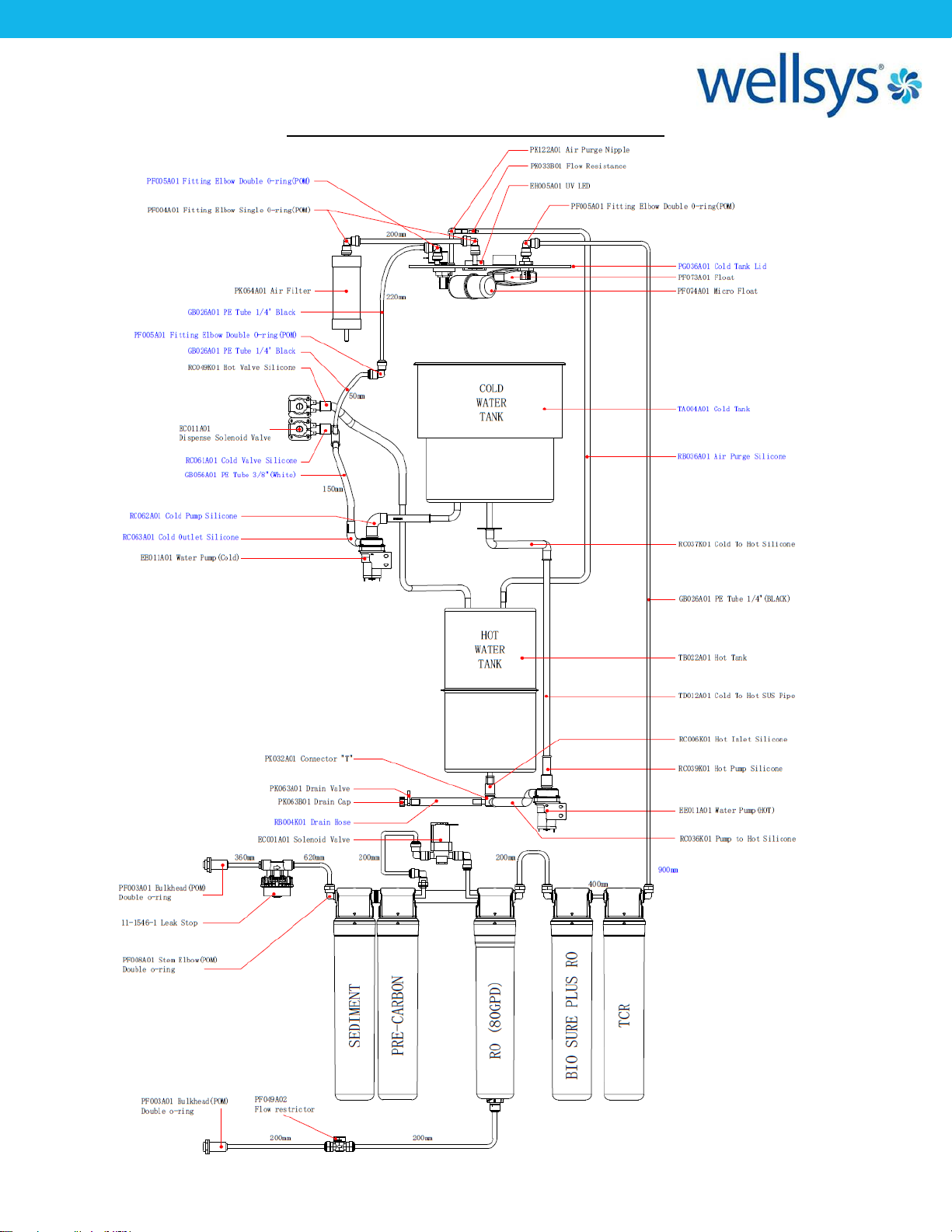

•Flow Diagram .........................................................................20
•Electrical Diagram ..................................................................22
•Dipswitch Settings..................................................................23
INSTALLATION GUIDE
•Pre-Installation Procedures ...................................................24
•Notes on Installation..............................................................25
•Filter Flushing Procedure.......................................................26
•Installation .............................................................................30
•PM Guide ...............................................................................33
•Resetting the Hot Tank Overload Thermostat.......................35
•Final Inspection......................................................................36
MAINTENANCE
•Preventative Maintenance ....................................................37
•System Inspection..................................................................38
•Warranty Procedure ..............................................................38
TROUBLESHOOTING
•Troubleshooting Guide ..........................................................39

W9 Manual Page 4 - Revision: 10-06-2023
SAFETY ALERT SYMBOLS
Read and follow all safety information carefully. The signal words used in this manual are
selected as shown below and based on an assessment of the degree of potential injury or
damage (severe or minor) and the occurrence of injury (occurs or has the potential to occur)
when the warning is ignored:
DANGER!
Indicates a situation which, when not avoided, results in death or severe injury.
WARNING!
Indicates a situation which, when not avoided, has the potential to result in death or
severe injury; and/or severe property damage.
CAUTION!
Indicates a situation which, when not avoided, results in or has the potential to result
in minor injury; and/or minor property damage.
SAFETY PRECAUTIONS
Basic safety precautions should be followed, including the following:
Ensure all Local, State, and Federal Laws and Codes including health and safety guidelines are
met when installing Wellsys Equipment. Only qualified service technicians should attempt
installation and service of Wellsys Equipment. Always read the entire operating instructions
before using the appliance and save these instructions for future use.
DANGER! This product can cause death or severe injury if incorrectly operated, installed or
maintained. The installation, maintenance, sanitizing and any repair must be performed by
qualified persons trained by Wellsys International or their approved distributors only. Do not
remove any panel or cover to protect against electrical shock and exposure to UV radiation.
DANGER! ELECTRICAL SHOCK HAZARD. Always use a dedicated and properly grounded
outlet. Unit should be protected by ground-fault circuit interrupter (GFCI) or residual current
device (RCD) having a rated residual operating current not exceeding 30mA. Use only Wellsys
supplied power cord. Never use extension cords or power strips to connect unit. Do not use if
the power supply cord is damaged. Always unplug from power supply prior to servicing.
WARNING! AUTHORIZED USE ONLY. This appliance is to be used for its intended purpose as
described in this manual. Untrained individuals who use this manual assume the risk of any
resulting property damage or personal injury. This appliance can’t be used by children and
persons with reduced physical, sensory, or mental capabilities or lack of experience.
WARNING! DO NOT OPERATE IF DAMAGED. Unplug and isolate water supply if abnormal
conditions exist. Contact Wellsys or authorized dealer for repair, service, and installation to
avoid hazards.
WARNING! HOT WATER. Unit produces Hot Water in excess of 80oC (175oF). Water above
52oC (125oF) can cause severe burns or scalding. Keep unauthorized people and children
away from the unit to avoid accidental dispensing of hot water.
WARNING! CONNECT TO POTABLE WATER SUPPLY. This system is to be used for water only
and is NOT intended for use where water is microbiologically unsafe or with water of
unknown quality without adequate disinfection before or after the system.

W9 Manual Page 5 - Revision: 10-06-2023
WARNING! TIP HAZARD. Dispenser could tip or fall causing serious injury if installed with a
base. Always install unit on a firm, flat, and level surface and secure unit to cabinet, wall, or
floor if needed and secure to the base, if applicable. Never place heavy items on top of unit
and never climb, stand, or hang on unit or storage cabinet to prevent injury and damage.
WARNING! UNIT IS HEAVY. TWO PERSON LIFT REQUIRED. Transport unit empty and always
use material handling equipment or two people with proper lifting technique to reduce injury
risk.
WARNING! STORE AND TRANSPORT UNIT EMPTY. ALWAYS SANITIZE BEFORE USE.
The unit must be completely drained before storing to avoid stagnation and reduce
microbiological contamination (potential bacterial growth). Always sanitize before use to
eliminate any potential microbiological contaminates.
CAUTION! INDOOR USE ONLY. Intended for Household Use. Never expose to direct
sunlight, heat sources, or ambient air temperature above 37°C (100°F) or below 2°C (35°F).
Install indoors and keep unit away from excessive humidity or rain. Never expose to freezing
temperatures. Ensure there is adequate clearance around the unit to allow refrigeration
system condenser to dissipate heat. Warmer environments require more clearance around
the unit. Minimum clearance around all surfaces of the machine is 2-inches. Installs where
the ambient temperature exceeds 27°C (80°F), require a minimum of 4-inches clearance for
proper heat dissipation and efficient operation.
CAUTION! USE A WATER PRESSURE REGULATOR. Wellsys will not be responsible for injury
or damage caused by excessive water pressure. Input or feed pressure must be 40 psi to 80
psi. Be aware of any potential pressure surges caused by building/municipal pumping
stations. Failure to comply will void all warranties. The manufacturer accepts no liability for
damage caused by excessive water pressure.
CAUTION! USE UV STABILIZED SUPPLY LINES. Feed the unit with a potable ambient or
cold-water supply only. Feed water over 37°C (100°F) can damage the treatment
components. Water block devices and external leak detectors are strongly recommended.
Locate the unit as close to the water supply and the electrical connections as possible.
Immediately isolate or close water supply valve and contact service representative if leak is
noticed.
WARNING! REFRIGERANT SYSTEM. This system is manufactured with 134A refrigerant.
Repairs to the refrigeration system must be performed by a certified refrigeration technician
only.
CAUTION! DO NOT PLACE HEAVY ITEM OR WATER CONTAINER ON TOP OF UNIT. Water
may leak into the electrical system causing a fire hazard. Heavy items may fall off causing
injury.
Contact Wellsys for assistance or help finding an Authorized Service Representative.

W9 Manual Page 6 - Revision: 10-06-2023
W9 FEATURES AND BENEFITS
Hot and Cold Water
The W9 Water Dispenser produces Hot and Cold water to meet customer demands.
Water Capacity and Production
The W9 Water Dispenser holds 1.3 gallons (4.9L) of Hot Water and 2.1 gallons (7.9L) of Cold
Water.
Large Dispense Area with Recessed Faucet
12.25-inch dispense height with recessed faucet to protect from cross-contamination.
Leak Prevention
W9 Water Dispensers are supplied with a leak stop device to cut off the water supply in the
case of a water leak or overfill.
Touch-Free Sensor Dispense
Touch-Free Sensors are used to activate dispense and select functions. Simply hold your hand in
close proximity to the sensor to activate.
Drip Tray with “Tray Full” Indicator
Unit comes with a high-capacity Drip Tray with an indicator for when the tray needs to be
emptied.
RO Water Filtration
The Wellsys W9 uses a multi-stage RO filtration configuration for great tasting water.

W9 Manual Page 7 - Revision: 10-06-2023
CERTIFICATIONS
W9 Water Dispensers have been tested and certified to rigorous NSF and UL Standards. We
believe that performance testing and certifications validate Wellsys as a world-leader in Water
Dispensers.
Wellsys W9 Component Certifications Include:
NSF/ANSI/CAN 61: Q≤1, NSF/ANSI 372, and CSA B483-1
The Wellsys W9 is certified by IAPMO R&T against NSF/ANSI/CAN 61: Q≤1,
NSF/ANSI 372, and CSA B483-1 for the specific performance claims as verified
and substantiated by test data.
UL399 –Certified Drinking Water Cooler
Intertek Labs (ETL) Certified the Wellsys W9 to ANSI/UL 399 Standard for
Drinking Water Coolers.
CSA C22.2 No. 120 CSA Standard for Refrigeration Equipment
U.S. Pat. No. 11,814,279
Water Dispensing Line Recirculation

W9 Manual Page 8 - Revision: 10-06-2023
MODEL/PART DESIGNATIONS
BRAND NAME
DESCRIPTION
MODEL -
PART NUMBER
W9
W9 –Hot & Cold Tower
W9-(RO or UF)
Serial#: WS09KFRB0B######

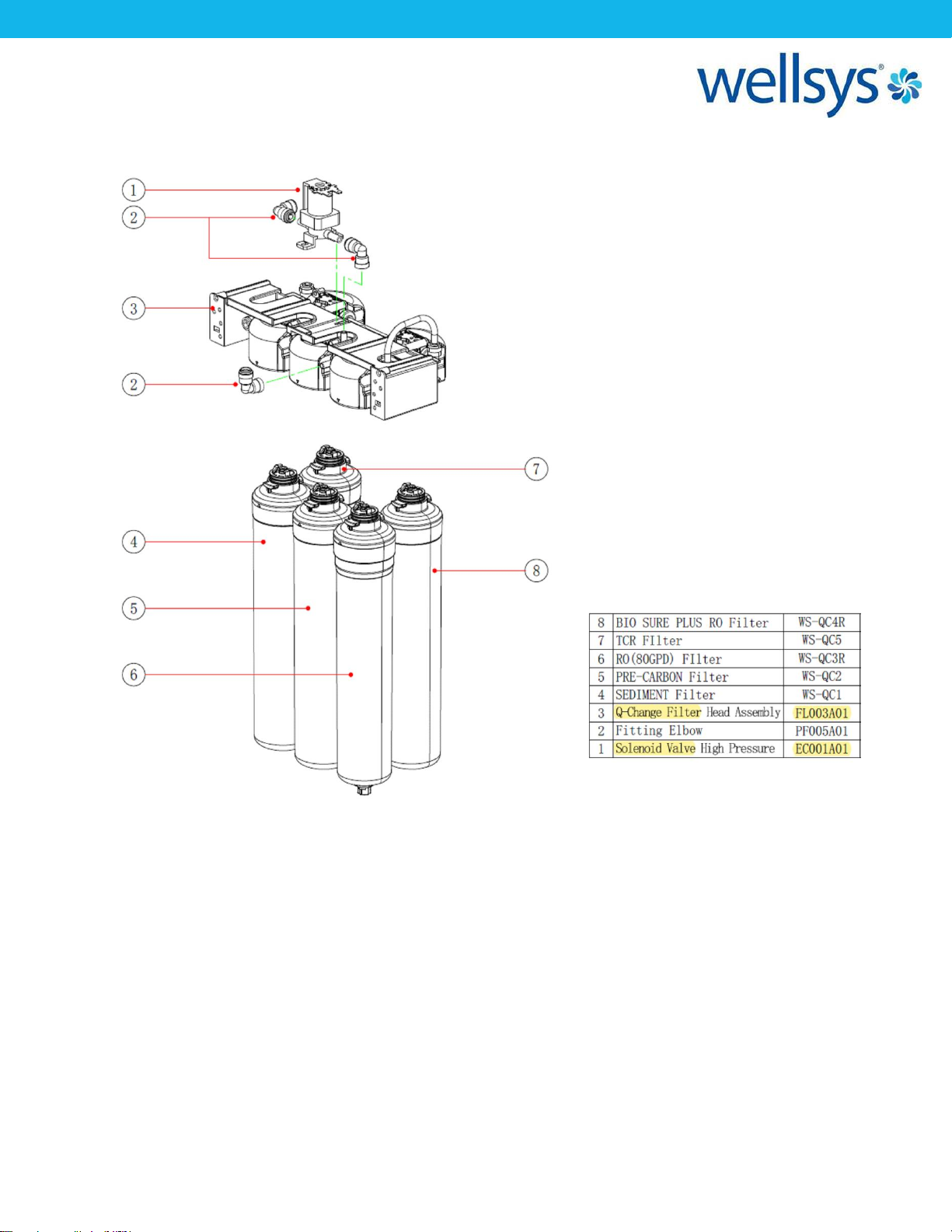

CONSUMABLES
FILTER
REPLACEMENT FREQUENCY
PART NUMBER
SEDIMENT FILTER
6-12 MONTHS
QC-WS-SEDIMENT
POST-CARBON FILTER (TCR)
6-12 MONTHS
QC-WS-TCR
RO MEMBRANE
TEST TDS REDUCTION AT 12 MONTHS
QC-WS-RO
UF FILTER
6-12 MONTHS
QC-WS-UF
PRE-CARBON FILTER
6-12 MONTHS
QC-WS-PRE CARBON
BIO-SURE PLUS FILTER (RO)
6-12 MONTHS
QC-WS-BSP RO
BIO-SURE PLUS FILTER (UF)
6-12 MONTHS
QC-WS-BSP UF
AIR FILTER
3 YEARS
AF
SPECIFICATIONS
ITEM
W9
Water Connection
¼” Quick Connect
Recommended Service
Water Pressure
60-70psi (4.2-4.9kgf/cm2)
Rate Voltage
AC 110V/60Hz @ 4.9Amps
Power Consumption
1.60kWh/24hrs
Power Cord
1.9m (6.3ft)
IP Class
IPX1
Climate Class
N Class (32°C +/- 1°C) (89.6°F +/- 33.8°F)
Safety Device
Overheating protector. Leak Stop Device. Fuse.
Hot Tank Capacity
1.3gal (4.9L)
Cold Tank Capacity
2.1gal (7.9L)
Environmental Temperature
Max: 90°F (32°C) Min: 35°F (2°C)
Source Water Temperature
Max: 90°F (32.2°C) Min: 40°F(4.5°C)
Relative Humidity
55% at 78°F(25.5°C)
Refrigerant Gas
R134a (1.34oz +/-0.03oz)
R134a Pressures
280psi (19.3bar) High Side, 88psi (6.1bar) Low Side

W9 Manual Page 9 - Revision: 10-06-2023

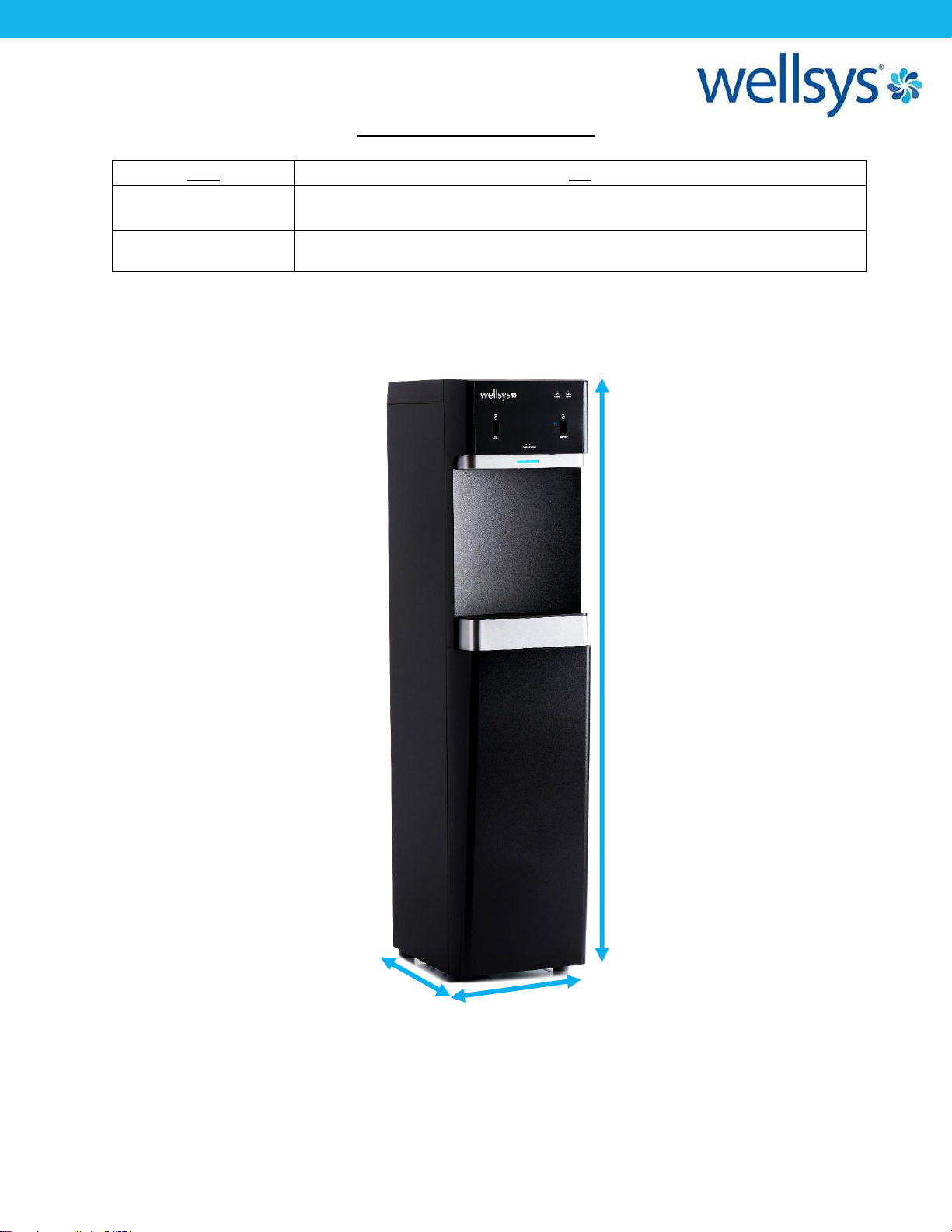

SHIPPING SPECIFICATIONS
ITEM
W9
Width/Depth/Height
300mm W x 452mm D x 1278mm H
11.8”W x 17.8”D x 50.3”H
Weight (dry)
73lbs (33 kg)
50.3”
17.8”
11.8”

W9 Manual Page 10 - Revision: 10-06-2023
RECEIVING YOUR EQUIPMENT
Upon receipt of your equipment, you should check the following:
1. Are the systems still on the pallet?
2. Confirm the number of boxes you are signing for.
3. Is there any obvious damage to the product or the boxes?
If there are any discrepancies or any obvious damage to the equipment or boxes, please note it
on the “Bill of Lading” and/or refuse the shipment.
After receiving the equipment from the carrier, remove packaging and inspect for any hidden
freight damage. If freight damage has occurred, call the freight company and customer service
[phone] to report the damage. Photograph all damages to be submitted with the claim.
THIS MUST BE DONE WITHIN FIVE BUSINESS DAYS OF DELIVERY. If not reported within 3
business days, Wellsys and/or carrier will not be responsible for replacement or repair.

W9 Manual Page 11 - Revision: 10-06-2023
CONTROL PANEL & OPERATING INSTRUCTIONS
•Hot Select Sensor: The left touch-free sensor is
used to select hot or cold water, activating it will
swap between the two options.
•Water Dispense Sensor
: The right touch-free sensor
can be activated to dispense water at the selected
temperature. (Default selection is cold water).
•Temp Selection Indicator: This LED indicator will
show the current selection of water temperature;
Hot or Cold.
•UV Enabled: This light indicates the units UV lights
are active and working properly.
•Call for Service: This light indicates the filters have
been exhausted and need replacement, or a
possible water supply issue.
•Drip Tray “Full” Indicator: This small float protrudes
from the drip tray grill if the water level rises too
high. An indication that the tray needs to be
emptied.

W9 Manual Page 12 - Revision: 10-06-2023
•Resetting Filter Life: Hold hand over HOT SELECT for 5 seconds until the service
indicator flashes. Pull hand away, then hold hands over BOTH the HOT SELECT and
DISPENSE sensors for 5 seconds until a multi-tone chime is heard.
•Changing the Dispense Rate: The flow rate on the W9CT is set to 3L/min, which is
twice as fast as traditional cooler and ideal for larger bottles. If it is deemed
appropriate to lower this flow rate, following these steps will reduce it to 2L/min.
Hold BOTH hands over HOT SELECT and DISPENSE sensors simultaneously for 5
seconds until a multi-tone chime is heard. Remove hands, then again place hands
in front of HOT SELECT and DISPENSE sensors and hold for 5 seconds until the
multi-tone chime is heard. Repeat the same sequence to switch back to 3L/min
flow rate.
•Silencing the Beep and Chime: The unit makes a Beep sound when a sensor is
activated. This sound can be turned off if desired by following the provided steps.
Hold hand over HOT SELECT for 1 second, then hold hand in front of DISPENSE
sensor 5 times in quick succession. The Beep sound should now be silenced. To
switch it back on, repeat this process.

W9 Manual Page 13 - Revision: 10-06-2023
WELLSYS MANUFACTURED WATER DISPENSER LIMITED WARRANTY
The Wellsys W9 is covered by the Wellsys Warranty for a period of 5 years from the date of
purchase against manufacturer defects given the filtration is changed with Wellsys branded filters
on the recommended schedule.
General Provision and Exclusions:
This warranty only applies in the fifty (50) United States and Canada. This warranty does not apply,
and no agreement, whether written or implied, shall be applicable if the affixed serial number is
removed, defaced, or obliterated. This warranty does not apply to the filters after exposure to
water. Refer to service manual for filter requirements and expected performance. This warranty
does not apply if parts used as original or replacement equipment, including filters, are not
obtained, or authorized through WELLSYS, and such unauthorized usage shall void this warranty.
This warranty does not apply to any wetted parts that become inoperative due to lime, scale, or
other water quality conditions. This warranty does not apply to any machine or components that
have become inoperable due to a failure by Dealer/Distributor or the end-user to satisfy standards
or regulations adopted by any governmental agency. This warranty does not cover performance,
failure or damages of any part resulting from external causes such as alterations, abuse, misuse,
misapplication, neglect, accident, installation, operation contrary to printed material, corrosion or
acts of God.
This warranty only applies to the operative components of the machine and does not apply to the
exterior shell or frame to which the shell is attached and the appearance of the machine.
This warranty and any applicable industry certifications for this machine are automatically voided if
the machine is altered, modified, or combined with any other machine, equipment, or device.
Alteration or modification of the machine may cause serious flooding and/or hazardous electrical
shock or fire Except as set forth herein, WELLSYS makes no other warranty, guarantee or agreement
expressed, implied or statutory, including any implied of merchantability or fitness for a particular
purpose.
The foregoing is in lieu of all other agreements expired or statutory and all other obligations or
liabilities of WELLSYS. WELLSYS does not assume or authorize any person to assume any obligations
of liability in connection with this product. In no event will WELLSYS be liable for special, incidental,
consequential, or punitive damages, or for any delay in the performance of this warranty
agreement due to causes beyond its control.
Export Warranty:
The WELLSYS export warranty shall apply to all area outside of the Continental limits of the United
States and Canada. The export warranty shall mirror the domestic warranty set forth above in all
respects except that a) the export warranty shall be limited to the Initial Term and there is no
coverage for the additional warranty through the first year and b) the Dealer/Distributor shall be
responsible for all transportation charges to implement the repairs.
ALL WARRANTY REPAIRS SUBJECT TO PRIOR APPROVAL BY THE WELLSYS SERVICE DEPARTMENT IN
ORDER TO VALIDATE THAT THE DEFECTIVE COMPONENT IS STILL UNDER WARRANTY.

W9 Manual Page 14 - Revision: 10-06-2023
SERVICE REQUIREMENTS
WARNING! Read and understand the contents of this manual before attempting to
service the W9 Water Dispenser. Failure to follow the instructions in this manual could
result in death, serious personal injury, or severe property damage. Only trained and
qualified technicians should attempt to install, maintain, or service Wellsys
Equipment.
1. Visually inspect all electrical and water connections for signs of wear or damage.
DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. Unplug before inspection and service.
WARNING! ULTRAVIOLET RADIATION. Protect your skin and eyes against ultraviolet
rays. Never look directly at an operating UV light. Disconnect before removing UV Lamp.
CAUTION! UV LIGHTS ARE HAZARDOUS. Lamps are considered Hazardous Waste and
must be disposed of accordingly. Refer to Product MSDS sheet for details.
2. Ensure there is adequate (minimum of 5”) clearance around the W9 Water Dispenser and
clean the condenser grill to provide efficient cooling system operation.
3. Sanitize the unit per instructions in the sanitization procedures.
WARNING! SANITIZER MAY CONTAIN HAZARDOUS CHEMICALS. Use of proper personal
protective equipment such as rubber gloves and eye protection are required.
4. Clean and sanitize external surfaces of the W9 Water Dispenser. Use soap and water or
chemicals that are compatible with ABS plastic and will not damage or degrade the product
surfaces.
5. Remove and clean the Faucet. Replace as needed.
6. Flush in filters per instructions, and change filters on predetermined schedule, commonly
every 12 months for standard filters.

W9 Manual Page 15 - Revision: 10-06-2023
W9 PARTS DIAGRAM

W9 Manual Page 16 - Revision: 10-06-2023

W9 Manual Page 17 - Revision: 10-06-2023

W9 Manual Page 18 - Revision: 10-06-2023

W9 Manual Page 19 - Revision: 10-06-2023

W9 Manual Page 20 - Revision: 10-06-2023
W9 WATER FLOW DIAGRAM (RO CONFIG)
