Wen 20630 User manual
20V BRUSHLESS
RECIPROCATING SAW
Instruction Manual
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
MODEL 20630
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications................................................................................................... 3
SAFETY 4
General Safety Rules........................................................................................ 4
Reciprocating Saw Safety Warnings ................................................................ 6
Electrical Information....................................................................................... 7
Battery & Charger Safety Warnings ................................................................. 8
BEFORE OPERATING 10
Unpacking & Packing List...............................................................................10
Know Your Reciprocating Saw....................................................................... 11
Assembly & Adjustments............................................................................... 11
OPERATION & MAINTENANCE 12
Operation ....................................................................................................... 12
Maintenance....................................................................................................13
Exploded View & Parts List.............................................................................14
Warranty Statement ........................................................................................16
2
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
20V 4.0Ah Max Battery (Model 20204)
20V Charger (Model 20200C)
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Reciprocating Saw. We know you are excited to put your tool to work, but first,
please take a moment to read through the manual. Safe operation of this tool requires that you read and understand
this operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential
safety concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
3
Model Number 20630
Included Battery 4.0Ah Battery (Model 20204)
Included Charger 20V, 2A DC (Model 20200C)
No Load Speed 0 - 2,800 RPM (Strokes Per Minute)
Stroke Length 1 Inch (25.4mm)
Cutting Capacity Wood: 4-1/2 Inches (115mm)
Metal: 3/8 Inch (10mm)
Product Weight 5.1 Pounds (No Battery, No Blade)
Product Dimensions 16 in. x 3-1/2 in. x 5-3/4 in. (No Battery, No Blade)
Battery Models All WEN 20V MAX Batteries*
Charger Models All WEN 20V MAX Chargers
*NOTE: Some tools may not be compatible with WEN 20V MAX 1.5Ah Batteries, model
49120B. Contact WEN customer service at 1-800-232-1195, M-F with questions.
WEN plans to continue to add more items to our 20V line. For an up-to-date list of the 20V cordless tools com-
patible with the included battery and charger, visit wenproducts.com and search model number 20202 (2Ah) or
20204 (4Ah). In the battery’s description, there will be a list of current products that this battery can be used with.
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
4
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
6
RECIPROCATING SAW SAFETY WARNINGS
WARNING! Do not operate the power tool until you have read and understood the following instructions and
the warning labels.
RECIPROCATING SAW SAFETY
1. Wait for the blade to stop before setting the tool down.
An exposed blade may engage the surface, leading to
possible loss of control and serious injury.
2. Hold the power tool by insulated gripping surfaces.
Cutting a “live” wire may make exposed metal parts of
the tool “live” and could give the operator an electric
shock.
3. Secure the workpiece to a stable platform using
clamps or another practical method. Holding the work-
piece by hand or against the body leaves it unstable and
may lead to a loss of control.
4. Secure the material being cut. Never hold it in your
hand or across your legs. Small workpieces must be ad-
equately secured. Unstable support causes the blades to
bind, resulting in a loss of control and possible injury.
5. Always start the saw before the blade is in contact
with the workpiece. Let the blade reach full speed before
using the tool. The saw can vibrate or chatter and pos-
sibly kick back if the cutting speed is too slow.
6. Check the workpiece for nails. If there are nails, either
remove them or set them well below intended finished
surface. If the saw blades strike objects like nails it may
cause serious personal injury from kickback. Saw blades
that can handle nails are available on the market; just
make sure to check the specifications of the blade.
7. Make sure the tool is OFF and the battery is removed
before changing accessories. Accidental start-ups may
occur during an accessory change. Before reinstalling
the battery, check that the ON /OFF switch is OFF.
8. Keep handles and hands dry, clean and free from oil
and grease. Slippery surfaces can prevent you from
safely maintaining control of the power tool. Always hold
the tool firmly with both hands for maximum control.
9. Never cut pressurized tanks or any containers con-
taining hazardous or flammable materials.
10. Never pull the saw backwards over the workpiece.
11. When sawing, the adjustable footplate must always
stay flush against the workpiece.
12. Make sure that the tool is OFF and the battery is un-
installed before removing chips. The blades are hidden
from view and you may be cut if the blade is contacted.
13. GFCI and personal protection devices such as elec-
trician’s rubber gloves and footwear will increase per-
sonal safety.
14. Loose or misaligned blades have the potential to
strike tool housing and damage the tool as well as cause
possible injury. Make sure blades are properly installed
before operation.
15. Develop a periodic maintenance schedule for your
tool. When cleaning a tool be careful not to disassemble
any portion of the tool. Internal wires may be misplaced
or pinched and safety guard return springs may be im-
properly mounted.
16. Certain cleaning agents such as gasoline, carbon tet-
rachloride, ammonia, etc. may damage plastic parts.
17. Only use undamaged saw blades. If too much wear
and tear is shown on the blade, get a new blade before
trying to cut anything.
18. Never stop the saw blade by pinching the blade on
either side. Applying pressure to either side of the blade
could result in injury. Do not touch the saw blade af-
ter operation, as it may be hot, especially when cutting
metal.
7
ELECTRICAL INFORMATION (CHARGER)
AMPERAGE REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
2A 18 gauge 16 gauge 16 gauge 14 gauge
IMPORTANT: Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel using identical replacement parts. Always use original factory
replacement parts when servicing.
1. Polarized Plugs. To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than
the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the machine plug
or the extension cord in any way.
2. Ground fault circuit interrupter protection (GFCI) should be provided on the circuit or outlet used for this power
tool to reduce the risk of electric shock.
3. Service and repair. To avoid danger, electrical appliances must only be repaired by a qualified service technician
using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
DOUBLE-INSULATED CHARGER
The charger’s electrical system is double-insulated where two systems of insulation are provided. This
eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need
to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are
isolated from the internal metal components with protecting insulation.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
• Avoid dangerous environments – Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence
of explosive atmospheres (gaseous fumes, dust or flam-
mable materials) because sparks may be generated when
inserting or removing the battery pack, which could lead
to a fire.
• Charge in a well-ventilated area – Do not block the
charger vents. Keep them clear to allow for proper ven-
tilation. Do not allow smoking or open flames near a
charging battery pack. Vented gases may explode.
NOTE: The safe temperature range for the battery charg-
ing is 41°F to 104°F. Do not charge the battery outside in
freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the char-
ger, pull the plug, not the cord, from the receptacle to
reduce the risk of damage to the electrical plug and cord.
Never carry the charger by its cord or yank it by the cord
to disconnect it from the receptacle. Keep the cord away
from heat, oil and sharp edges. Make sure the cord will
not be stepped on, tripped over or subjected to dam-
age or stress when the charger is in use. Do not use the
charger with a damaged cord or plug. Replace a dam-
aged charger immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly
wired extension cord poses a risk of fire and electric
shock. If an extension cord must be used, plug the char-
ger into a properly wired 16 gauge or larger extension
cord with the female plug matching the male plug on the
charger. Make sure that the extension cord is in good
electrical condition.
• Charger is rated for 120 volt AC only – The charger
must be plugged into an appropriate receptacle.
• Use only recommended attachments – Use of an at-
tachment not recommended or sold by WEN Products
may result in risk of fire, electric shock or personal in-
jury.
• Unplug charger when not in use – Make sure to re-
move battery packs from unplugged chargers.
• Do not burn or incinerate battery packs – Battery
packs may explode, causing personal injury or dam-
age. Toxic fumes and materials are created when battery
packs are burned.
• Do not crush, drop or damage battery packs – Do not
use the battery pack or charger if they have sustained a
sharp blow, been dropped, run over or have been dam-
aged in any way (i.e. pierced with a nail, hit with a ham-
mer, stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, fire or exposure to toxic
battery chemicals. If the battery or charger are damaged,
call WEN customer service at 1-800-232-1195 for as-
sistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals, use
rubber or neoprene gloves to safely dispose of it. If skin
is exposed to battery fluids, wash the affected area with
soap and water and rinse with vinegar. If eyes are ex-
posed to battery chemicals, immediately flush with wa-
ter for 20 minutes and seek medical attention. Remove
and dispose of contaminated clothing.
• Store your battery pack and charger in a cool, dry
place – Do not store the battery pack or charger where
temperatures may exceed 104 °F, such as in direct sun-
light or inside a vehicle or metal building during the
summer.
• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive
and negative contacts on the battery pack. Do not place
a battery pack near anything that may cause a short cir-
cuit, such as paper clips, coins, keys, screws, nails and
other metallic objects. A short-circuited battery pack
poses a risk of fire and severe personal injury.
BATTERY & CHARGER SAFETY WARNINGS
Despite all of the safety precautions, caution must always be taken when handling batteries. The following
points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are
used. Incorrect handling of the battery pack can cause cell damage.
WARNING! To reduce the risk of electric shock,
always unplug the charger before performing any
cleaning or maintenance. Do not allow water to
flow into the charger. Use a Ground Fault Circuit
Interrupter (GFCI) to reduce shock hazards.
8
BATTERY & CHARGER SAFETY WARNINGS
ABOUT THE BATTERY
1. The battery pack has to be charged completely before you use the tool for the first time.
2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently.
3. Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the latest when
its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable
of meeting the high power requirements needed for the proper operation of your tool, and therefore pose a safety
risk.
4. Do not throw battery packs into an open fire as this poses a risk of explosion. Do not ignite the battery pack or
expose it to fire.
5. Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common
cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon
as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack
in storage only after it has been fully charged.
6. Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside
the battery housing even if this overheating is not apparent externally.
7. Avoid damage and shocks. Immediately replace batteries that have been dropped from a height of more than
one meter or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be
undamaged. The battery cells inside the battery may have suffered serious damage. In such instances, please read
the waste disposal information for proper battery disposal.
8. If the battery pack suffers overloading and overheating, the integrated protective cutoff will switch off the equip-
ment for safety reasons.
9. Use only original battery packs. The use of other batteries poses a fire risk and may result in injuries or an explo-
sion.
ABOUT THE CHARGER
Protect battery charger and cord from damage. Keep the charger and its cord away from heat, oil and sharp edges.
Electrical plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with ground-
ed appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.
Keep the battery charger, battery pack(s), and the cordless tool out of the reach of children.
Do not use the supplied battery charger to charge other cordless tools.
During periods of heavy use, the battery pack will become warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.
Do not overcharge batteries. Do not exceed the maximum charging times. These charging times only apply to dis-
charged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and
cell damage. Do not leave battery in the charger for days on end.
Never use or charge a battery if you suspect that it has been more than 12 months since last time they were charged.
There is a high probability that battery pack has already suffered dangerous damage (exhaustive discharge).
Do not use battery that have been exposed to heat during the charging process, as the battery cells may have suf-
fered dangerous damage.
Do not use battery that have suffered curvature or deformation during the charging process or those that exhibit
other atypical symptoms (gassing, hissing, cracking, etc.)
9
10
Accessories
Components
UNPACKING & PACKING LIST
UNPACKING
Carefully remove the reciprocating saw from the packaging and place it on a sturdy, flat surface. Make sure to take
out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list
below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact cus-
Reciprocating Saw
20V Charger (1) 4mm Hex Wrench (1)20V Battery (1)
Wood Blade (1)
Metal Blade (1)
11
KNOW YOUR RECIPROCATING SAW
Saw Blade
TOOL PURPOSE
Cut through almost anything with your WEN Reciprocating Saw. Refer to the following diagrams to become familiar-
ized with all the parts and controls of your reciprocating saw. The components will be referred to later in the manual
for assembly and operation instructions.
Power Trigger
ASSEMBLY & ADJUSTMENTS
REPLACING / INSTALLING SAW BLADES
1. Select a saw blade with a 1/2-inch universal shank. If narrow kerf cuts are
required, a thinner blade would be preferable. Saw blades should never be
longer than is required for the intended cut.
2. Twist the quick release blade chuck (Fig. 1 - 1) counterclockwise to open
up the jaws and allow room for sliding in a blade.
3. Place the shank of the blade into the jaws as far as it can go. Release the
blade holder, allowing it to snap back in position.
4. Check the blade’s security by tugging lightly to confirm that it has locked
into position.
Footplate
Quick-Release
Blade Chuck
Front Grip
Lock Off Switch
Rear Handle
4.0Ah Battery Pack
WARNING! Never make any adjustments or blade installations while the battery is installed. Make sure
that saw blades are free of fine material, such as small slivers of metal or wood. Use protective gloves during
operation and assembly.
5. If you are changing a saw blade, always make sure that it has cooled down completely before attempting to re-
move it. Friction from various workpiece materials can cause the blades to get very hot directly after operation. To
remove, twist the blade chuck and carefully slide the blade out of position.
NOTE: If the blade is hot, just twist the quick release and hold it upside down so the blade falls out without any
physical contact.
Fig. 1
1
Footplate Adjustment
Screw (Underside)
12
OPERATION

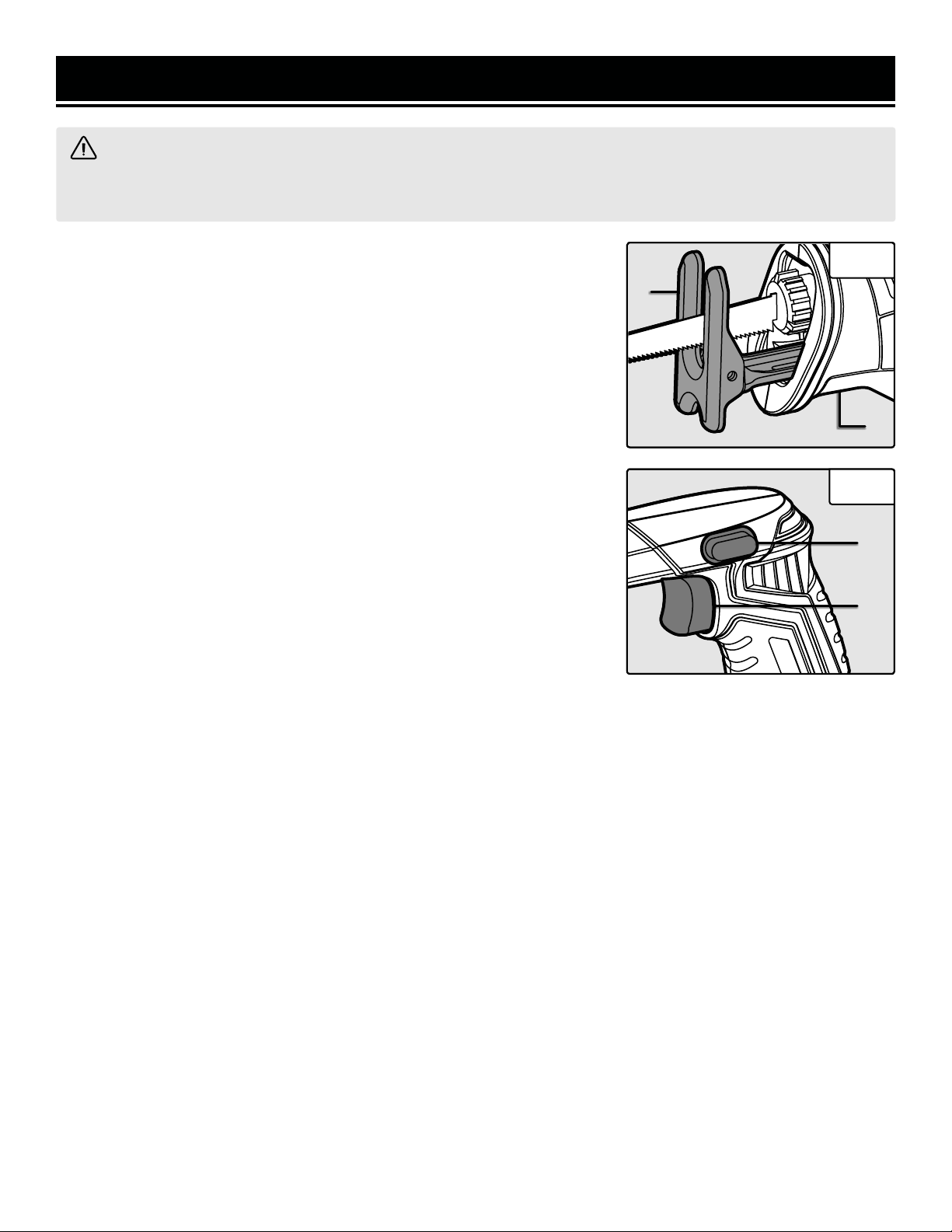

ADJUSTING THE FOOTPLATE
1. Loosen the footplate adjustment screw (Fig. 2 - 1) found on the under-
belly of the saw using the included hex wrench.
2. Once the screw is loose, position the footplate (Fig. 2 - 2) to meet the
needs of your workpiece.
3. Retighten the footplate adjustment screw, making sure that the footplate
is no longer free to move.
STARTING THE MACHINE
To start the machine, first make sure the blade has been properly installed.
After checking the blade, install the 4.0 Ah battery.
Push in the lock off switch (Fig. 3 - 1) and pull the power trigger (Fig. 3 - 2)
to turn the machine on. The saw will not start without pushing in the lock
off switch. Always keep one hand on the back handle and one hand on the
front grip during operation.
VARIABLE PRESSURE TRIGGER
Control the saw’s speed (strokes per minute) by varying the amount of
pressure applied to the trigger. Holding the trigger all the way down will
result in 2800 SPM. Lighter pressure on the ON/OFF trigger will result in a
lower SPM.
WARNING! Dusts from certain materials can be harmful to your respiratory health. Always use this tool in
an area with good ventilation. Wear a dust mask during operation to prevent inhalation of unwanted particulates.
Prevent dust accumulation, as piles of dust and debris can easily ignite and cause a fire.
Fig. 2
1
2
WORK ADVICE
NOTE: When sawing lighter materials, make sure to keep in mind the recommendations of the material suppliers.
Check all workpieces for foreign objects such as nails or screws before sawing. Adjust the footplate to meet the
particular needs of the workpiece at hand.
Once all set-up has been completed, power on the machine and guide it towards the workpiece. Place the faceplate
against the surface and saw through the material by applying uniform pressure. Do not force the saw to do a job for
which it wasn’t intended. Make sure to let the saw work at its own pace.
If the saw blade jams up, turn the machine off immediately and let the blade come to a complete stop. Remove the
battery pack from the machine. Widen the gap with a suitable tool and release the blade of the saw from its jam.
When sawing metal, always make sure to use a coolant or lubricant to prevent material from heating up too much.
FLUSH CUTS: Using elastic bimetal saw blades, you can cut off items still attached flush at the wall. Place the saw
blade directly against the wall and apply lateral pressure until the footplate faces the wall. Turn the machine on and
saw through the workpiece.
PLUNGE CUTS: Always use short saw blades for plunge cutting to prevent injury and to maximize efficiency. Put the
machine with the edge of the footplate onto the workpiece. Power the machine on to the maximum SPM. Press the
blade firmly against the workpiece, allowing the blade to cut at its own pace, plunging itself into the workpiece. As
soon as the footplate is able to lay flush against the workpiece, saw along the desired line.
Fig. 3
1
2
13
MAINTENANCE
ROUTINE INSPECTION
Before each use, inspect the general condition of the tool. If any of these following conditions exist, do not use until
parts are replaced.
Check for:
• Loose hardware,
• Damaged battery pack,
• Cracked or broken parts, and
• Any other condition that may affect its safe operation
CLEANING & STORAGE
1. Keep the ventilation openings free from dust and debris to prevent the motor from overheating.
2. Wipe the tool surfaces clean with a damp cloth and mild soap. Make sure water does not get into the tool.
WARNING! To avoid accidents, turn OFF and remove the battery pack from the charger and the charger from
the outlet before cleaning, adjusting, or performing any maintenance work.
WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the
tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts.
Use of other parts may be hazardous or induce product failure.
CAUTION:Most plastics are susceptible to damage from various types of commercial solvents. Do not use any
solvents or cleaning products that could damage the plastic parts. Some of these include but are not limited to:
gasoline, carbon tetrachloride, chlorinated cleaning solvents, and household detergents that contain ammonia.
4. Allow the tool to cool before storing it. Store the tool in a clean and dry place away from the reach of children.
PRODUCT DISPOSAL
Used power tools should not be disposed of together with household waste. This product contains electronic com-
ponents that should be recycled. Please take this product to your local recycling facility for responsible disposal and
to minimize its environmental impact.
14
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of
normal use are not covered under the warranty.
15
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1Self-Tapping Screw,
M4x16 16
2 Label, Right Housing 1
3 Label 1
4 20204 Battery, 4.0Ah 1
5 Battery Terminal 1
6 Switch 1
7PCB & Stator Assem-
bly 1
8 Safety Switch 1
9 Safety Switch Spring 1
10 Bearing, 607ZZ 1
11 Rotor 1
12 Bearing, 629RS 1
13 Screw, M4x20 2
14 Bearing Pressure Plate 1
15 Motor Mounting
Bracket 1
16 Snap Ring, 15mm 1
17 Bearing, 6002-2RS 1
18 Spline Gear 1
19 Pinion 1
20 Screw, M4x12 4
21 Gearbox Gasket 1
22 Pin, 5mm 1
23 Gear 1
24 Bearing, 6201-2RS 1
25 Axle 1
No. Part No. Description Qty.
26 Gearbox 1
27 Bearing, 6002-2RS 1
28 Flat Washer, 6mm 1
29 Screw, M5x15 1
30 Shoe 1
31 Flat Washer, 5mm 1
32 Spring Washer, 5mm 4
33 Socket Head Cap
Screw, M5x20 2
34 Self-Tapping Screw,
M4x14 10
35 Spring Washer, 4mm 6
36 Gearbox Cover 1
37 Slip Block 1
38 Reciprocating Arm
and Chuck Assembly 1
39 Cord Clamp 2
40 Bushing, 6mm 1
41 Screw, M4x14 10
42 Pin, 6mm 1
43 Counterweight 1
44 Counterweight Washer 1
45 Counterweight Bracket 1
46 Left Housing 1
47 Label, Left Housing 1
N.P. 3630-045 Metal-Cutting Blade 1
N.P. 3630-046 Wood-Cutting Blade 1
NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of
normal use are not covered under the warranty.
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GRE
AT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN
consumer
power tools will be free from defects in material or workmanship during personal use for a period of two (2) years
used
for professional or commercial use. Purchaser has 30 days from the date of purchase to report missing or
damaged parts.
SELLER’S
SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which a
re
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepai
r, abuse, neglect, normal wear and tear,
improper maintenance, or other conditions adversely affecting the
Product
or the component of the Product, whether by accident or intentionally, by persons other than Seller. To
make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that
clearly
-
dor
of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage
sales,
pawn shops, resale shops, or any other secondhand merchant, voids the warranty included with this
product.
your
shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged
or
defective parts and products may need to be sent to WEN before the replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product
must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN
DUR
ATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN
PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMI-
TAT
ION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITAT
ION
OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANA-
DA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER
COUNTRIES,
CONT
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER
W
ARRANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL
SHIPPING
CHARGES MAY APPLY.
16 V. 2021.04.13
Table of contents
Other Wen Saw manuals
