Wessol Blueplanet germsafe24 User manual

By:

OPERATION

GUIDE

2.5-Gallon Battery Powered

Electrostatic Backpack Sprayer

TABLE

OF CONTENTS

4WARNINGS

.........................................................................................................

5SAFETY

.........................................................................................................

8REGISTER YOUR SPRAYER

.........................................................................................................

10 WHAT’S IN THE BOX

.........................................................................................................

9SPRAYER CAPABILITIES

.........................................................................................................

12 ASSEMBLY & SPRAYING

.........................................................................................................

18 BATTERY CHARGING

.........................................................................................................

24 WARRANTY POLICY

.........................................................................................................

20 PARTS & ACCESSORIES

.........................................................................................................

22 TROUBLESHOOTING

.........................................................................................................

CLEAN WITH

CONFIDENCE™

ATTENTION

WARNING

• Never use this sprayer with liquids such as gasoline, ethanol, methanol, acid, caustic, or any other ammable, pressure, heat, or gas producing chemicals.

• Always read and follow chemical manufacturer’s instructions before use with this sprayer as some chemicals may be hazardous when used with this sprayer.

• Never leave chemicals or solutions sitting in your sprayer after using.

• After using sprayer with chemicals, it is important to rinse the tank and ush the sprayer with fresh water for 3-5 minutes to ensure residual chemicals in the gun, tank, pump,

and hose are cleaned out

• Read and follow all instructions and cautions on label of products used in this sprayer.

• Do not store your sprayer in extremely high temperatures. Heat can lead to the build-up of pressure within the sprayer, resulting in a possible explosion.

• Do not try to make modications to the sprayer. Always use the branded replacement parts from the manufacturer.

• Do not use batteries that are wet or have been damaged.

• Inspect sprayer hose, power knob, and gun for damage or loose connections before each use.

• Do not lift or carry the sprayer by the hose or gun. Only carry by the ComfortStraps™ handle.

• Only spray outdoors when the air is calm (no wind or air movement) to prevent chemical spray from drifting into unintended areas.

• Keep sprayer and all chemicals out of the reach of children.

• Remove chemicals and thoroughly clean the sprayer after each use. Failure to clean the sprayer may cause contamination of subsequent applications, will cause

premature spray wear, and void the sprayer warranty.

NOTES

• The sprayer may have residual water in it when rst opened. This is due to quality testing every sprayer undergoes before leaving our factory.

• Some parts may be located under the tank lid when rst assembling the sprayer.

• THIS SPRAYER IS DESIGNED TO OPERATE WITH ONLY THE BRANDED BATTERIES INCLUDE. ANY OTHER BATTERIES COULD CAUSE SERIOUS HARM OR INJURY TO

THE OPERATOR AND SERIOUS DAMAGE TO THE SPRAYER.

WARNING

This product contains chemicals, including lead, known to the state of California to cause birth defects and other reproductive harm. This product is designed to apply chemicals that may

be harmful and could cause serious personal injury if inhaled or brought into contact with the user.

Please read the following information carefully. User must read and understand entire manual before operating this sprayer. Improper use or failure to follow instructions could lead to

sprayer failure and possible serious injuries.

SAFETY

& PRECAUTION

SAFETY

• Use the sprayer and accessories in accordance with these instructions, taking into consideration the working conditions and the work to be performed. Use of this sprayer for

applications that it was not intended for could result in a hazardous situation.

• Keep handles and lift points dry, clean and free from oil and grease. Slippery handles and lift points do not allow for safe handling and control of the sprayer.

• Risk of re or explosion: Never use this sprayer with liquids such as gasoline, ethanol, methanol, or any other ammable or gas producing chemicals. Do not use sprayer around

sparks, ame, or smoke.

• Failure to adhere to these instructions may cause the chemicals to ignite, resulting in potential injury and damage to property.

• To reduce the risk of re, personal injury, and product damage from a short circuit, never immerse the sprayer, battery, or charger in uids. Do not place or store sprayer where it

could fall or be pulled into a tub or sink. Corrosive or conductive uids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause a

short circuit.

• Electric shock hazard: Never spray toward electrical outlets.

• Spray area must be well ventilated to avoid hazardous fume build-up. Always refer to the product label of the chemical being used for safety instructions and proper use practices.

• Avoid spraying on windy days. Spraying in windy conditions could cause chemicals to be blown onto persons, plants, or objects that are not intended to be sprayed.

• Do not store chemicals in the tank. Chemicals can degrade seals and hoses. Drain and clean sprayer after each use. Failure to do so may void the sprayer warranty.

• Remove gloves before handling the battery pack. Chemicals may be damaging to plastics.

• Thoroughly inspect the interior, exterior, and all components of the sprayer before each use. Check for cracked and deteriorated hoses, leaks, clogged nozzles and missing or

damaged parts. If damaged, ensure the sprayer is repaired before use. Many accidents are caused by poor maintenance.

• Always remove the battery pack from the sprayer before performing any maintenance, storing or draining of the sprayer.

• Do not eat or smoke while handling or operating the sprayer. Refer to the product label of the chemical being used for user safety practices.

• Do not use the battery compartment to store the battery.

• Always use common sense and be cautious when using the sprayer. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this

sprayer if you do not understand these operating instructions or if you feel the work is beyond your capability.

Please read the following information carefully. User must read and understand entire manual before operating this sprayer. Improper use or failure to follow instructions could lead to

sprayer failure and possible serious injuries.

SAFETY

& PRECAUTION

Please read the following information carefully. User must read and understand entire manual before operating this sprayer. Improper use or failure to follow instructions could lead to

sprayer failure and possible serious injuries.

DO NOT RETURN SPRAYER TO STORE, if you experience problems or have questions contact our Customer

Support Center, M-F 9am-5pm. Email: [email protected] or Call:800.581.5088

OPERATING

• Do not allow familiarity with products to make you careless. Remember that a single moment of carelessness is sufcient to cause serious injury.

• Always wear eye protection with side shields when handling or operating this sprayer. Failure to do so could result in serious injury from chemical contact or ying dirt or debris.

• The Lithium-ion battery pack can be used in temperatures down to 32ºF. When operating in cold temperatures, put the battery pack in the battery compartment and use the sprayer

in a light duty application. After about a minute the battery pack will warm up and begin operating normally.

• Always use the correct power setting for your application. Using the correct PSI and ow-rate will result in a safer and more thorough treatment. For calibration resources please

contact technical support. (Note: Always refer to local, state, and federal laws and regulations regarding your application.)

• Do not use the sprayer if the power switch is not functioning correctly. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Remove battery before making any adjustments, changing accessories, or storing the sprayer. Disconnect the sprayer from the power source by removing the battery pack. These

preventative safety measures reduce the risk of starting the sprayer accidentally.

STORING

• Store sprayer out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the sprayer. Power tools are dangerous in the hands

of untrained users.

• Maintain sprayers and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect sprayer operation.

When using chemicals, always wear protective clothing,

including respiratory masks, gloves, eye protection, etc.

Do not dispose of Lithium-ion batteries with household waste;

recycle where proper facilities exist.

SAFETY

& PRECAUTION

WORK AREA

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate sprayer in explosive environments, such as in the presence of ammable liquids, gases or dust. Power tools can create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating the sprayer. Distractions can cause you to lose control.

ELECTRICAL

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or

grounded.

• Do not expose sprayer to rain or wet conditions. Water entering the electrical compartment of the sprayer will increase the risk of electric shock.

• Do not expose to rain; store indoors.

PERSONAL

• Stay alert, watch what you are doing and use common sense when operating the sprayer. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a respiratory mask, non-skid safety shoes, hard hat or hearing protection used for

appropriate conditions will reduce the chance of personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting the power source (battery pack), picking up, or carrying the sprayer.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the sprayer in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• Do not let familiarity gained from frequent use of the sprayer allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a

fraction of a second.

PLEASE NOTE

• To reduce static electricity buildup, consider wearing our Electrostatic Discharge (ESD) Grounded Foot Strap - XCAAKJ. See page 23.

Please read the following information carefully. User must read and understand entire manual before operating this sprayer. Improper use or failure to follow instructions could lead to

sprayer failure and possible serious injuries.

LET’S

GET

SPRAYING!

To take advantage of the 1-year Limited Warranty.

https://germsafe24.com/pages/register

Please read and follow this manual carefully to ensure that you get the

most out of your new sprayer. If you need assistance with the assembly

or operation of your sprayer, please don’t hesitate to contact us via the

support methods below:

germsafe24.com

[email protected]

800.581.5088

WHAT

YOUR SPRAYER IS CAPABLE OF

The Blue Planet GermSafe24 2.5-Gallon electrostatic backpack sprayer is a highly efcient battery powered backpack

sprayer for the toughest cleaning, sanitation, and decontamination jobs.

Designed to make sanitation & decontamination projects faster and easier,this backpack sprayer can spray for up to 6 hours with a lightweight spray gun. Simply ll up

your sanitizing solution in the backpack and strap on the ComfortStraps™to start spraying!

2.5-GALLON ELECTROSTATIC SPECIFICATIONS

Model Number XCEAHX Polarity Positive Ions

Gun 12V Grounded Electrostatic Pump Type Diaphragm

Battery 18V / 5.2Ah Lithium-Ion Pressure 85 psi with included nozzles

Battery Charger 21V/2.5A Spray Distance Up to 8 feet

Coverage per Tank Up to 42,300 ft2Tank Capacity 2.5 gallons

Battery Cycle Life 1000 cycles Seals Viton™

Spray Time Up to 6 hours

* (Up to 4 hours on Turbo Boost™ Mode) Pump Life 1000 hours

10.

10. 11. 12.

13.

WHAT’S

IN THE BOX

11.

TANK LID

PART NUMBER: XCRAGV

2.5G/10L VOLT™TANK

PART NUMBER: XCRAJL

TANK STRAINER

PART NUMBER: FZRABW

COMFORTSTRAPS™

PART NUMBER: XCAAKK

ELECTROSTATIC CHARGE LINE & HOSE ASSEMBLY

PART NUMBER: XCRAJH

NOZZLE WRENCH

PART NUMBER: XCAAJG

ELECTROSTATIC SPRAY GUN

PART NUMBER: XCAAHT

18V/5.2AH LITHIUM-ION BATTERY

PART NUMBER: FZAAEM

21V/2.5A BATTERY CHARGER

PART NUMBER: FZAAEL

40-MICRON STAINLESS-STEEL MISTING NOZZLE

PART NUMBER: XCAAKF

80-MICRON STAINLESS-STEEL MISTING NOZZLE

PART NUMBER: XCAAKG

120-MICRON STAINLESS-STEEL MISTING NOZZLE

PART NUMBER: XCAAKH

GUN HOLSTER KIT

PART NUMBER: XCRALP

10.

11.

12.

13.

12.

A).

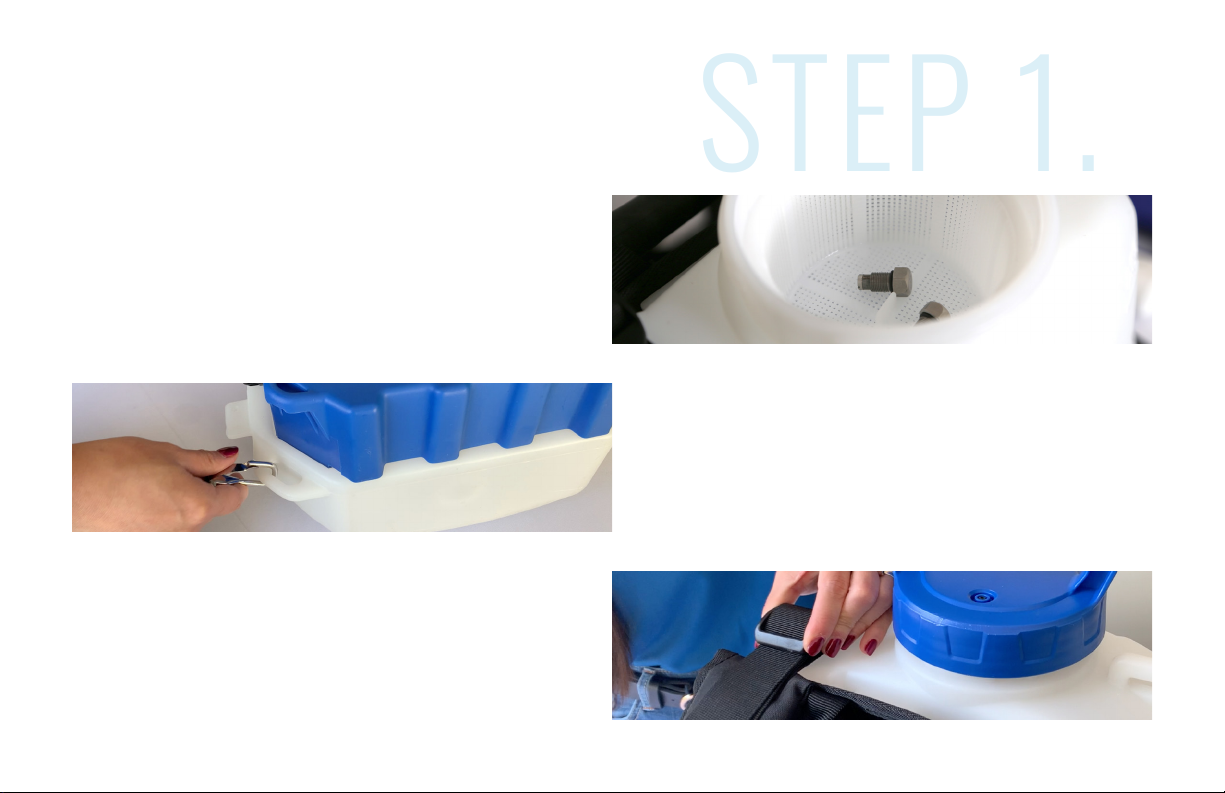

Before you begin, open the tank lid (2) and remove the 40-micron misting nozzle (10),

120-micron misting nozzle (12) and nozzle wrench (9) from the tank strainer.

*The 80-micron misting nozzle is pre-installed in the gun

C).

Next, slide the adjustable strap through the top tank loop. Continue by sliding the strap

over and under the buckle tting. Lightly tug at the strap to make sure it’s secure. Repeat

on other side.

B).

Bring the ComfortStraps™ (5) to the bottom of the tank (3). Secure lower strap clips to the

tank loops near the bottom of the tank. Repeat on other side.

STEP 1.

ASSEMBLING YOUR SPRAYER

13.

D).

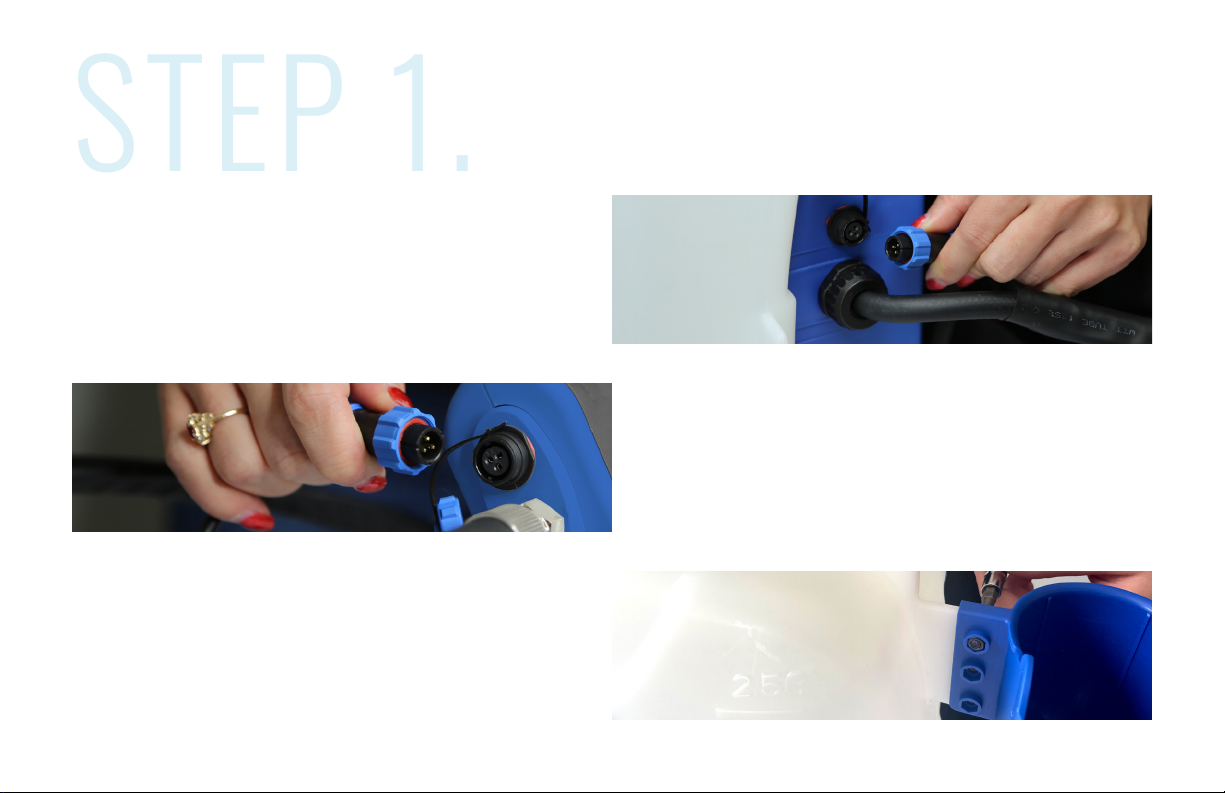

Connect the electrostatic hose (6) to tank by lining up the male to female connection on

the tank. Insert, then secure tting by tightening the blue external cap. Repeat connection

process for electrostatic hose to gun.

F).

Place the gun holster (13) on the molded holster bracket on the tank. While holding the

holster, place nut on one side of the hexagonal slots and screw the bolt through the other

side until it fastens into the nut.

E).

Take the electrostatic gun (1) and attach it to the threaded tting on the end of the hose (6).

Tighten the tting to ensure the gasket properly seals the connection.

STEP 1.

ASSEMBLING YOUR SPRAYER

14.

STEP 2.

PREPARING TO SPRAY

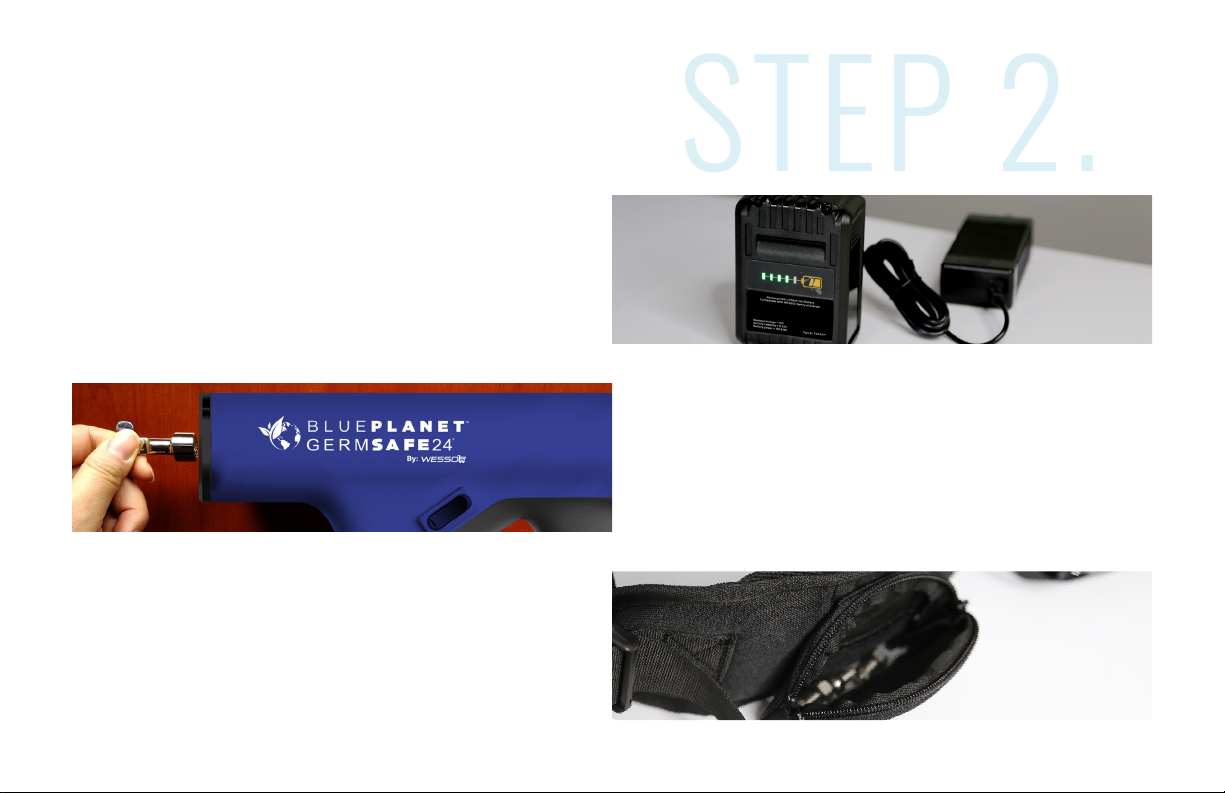

A).

Fully charge the battery (7) before the rst operation. Indicator lights will ash as the battery

is charging. In a separate container, prepare the solution you want to spray according to

the manufacturer’s instructions. Open the tank and carefully pour the solution through the

tank strainer. Securely tighten the tank lid.

B).

Determine the nozzle you want to use (see below). To remove the current nozzle, use the

nozzle wrench (9) by tting the 12mm hex socket over the nozzle and rotate until removed.

11) 40-Micron nozzle ~ 4min Dwell Time

12) 80-Micron nozzle ~ 5min Dwell Time

13) 120-Micron nozzle ~ 8min Dwell Time

C).

Place any unused nozzles and nozzle washer into the small accessory pouch until ready

to spray.

15.

D).

Turn pump on by ipping switch on side of unit.

I | Indicates Pump is On

O | Indicates Pump is Off

*Turn the sprayer off when not in use to extend the life of your battery.

E).

To activate electrostatic, press red button. Once illuminated, red light indicates the electrostatic

feature is on. To toggle on/off press once.

To turn on Turbo-Boost™ Fan, ip the switch on the side of the gun. Wait until you hear fan.

There are 3 spray distance capabilities.

Begin spraying by squeezing the black spray trigger on the handle of the spray gun.

STEP 2.

PREPARING TO SPRAY

O | Close Spray - Turbo-Boost™ Mode Off

| | Medium Spray - Low Turbo-Boost™ Mode

|| | Far Spray - High Turbo-Boost™ Mode

16.

STEP 3.

AFTER YOU FINISH SPRAYING

A).

Dispose of extra liquid/chemical based on manufacturer’s instructions. Rinse out any

residual solution in the spray tank with warm, soapy water. Then spray fresh water through

the sprayer for 3 to 5 minutes to completely clear the tank, pump, gun, wand, and any used

nozzles of chemicals.

C).

Dry the sprayer tank and clear the nozzle of any buildup.

B).

Disconnect the hose from the spray gun and let the hose hang down towards the ground

in order to drain the hose of any liquid.

17.

Proper sprayer maintenance is crucial to ensure the extended life and performance of your sprayer. Many spray materials can harden if left

in the sprayer, causing clogs in the nozzle or hose. Gasoline should never be used to clean out your sprayer.

STEP 3.

AFTER YOU FINISH SPRAYING

D).

Store the sprayer in a clean, dry, and shaded location to protect it from extreme heat or

frost.

For long-term storage, regular charging of the battery is required to maximize battery life.

Check the battery level using the indicator lights every 4 weeks. Recharge the battery if it

falls below 3 bars. Do not allow the battery to fully discharge.

18.

CHARGING

BATTERY

These batteries have been designed to provide maximum trouble-free life. However, like all batteries, they will eventually wear out. Do not disassemble battery pack and attempt to replace

the batteries. Handling of these batteries especially when wearing rings or jewelry could result in serious burns.

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another batter pack.

• Only use the battery pack specically designated for the particular sprayer being used. Use of any other battery packs may create a risk of injury and re.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one

terminal to another. Shorting the battery terminals together may cause burns or res.

• If the battery is damaged, liquid can be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, immediately seek

medical help.

• Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or sprayer that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or sprayer to re or excessive temperature. Exposure to re or temperature above 265ºF (130ºC) may cause explosion.

• Follow all charging instructions and do not charge the battery pack outside the temperature range specied in the instructions. Charging improperly or in a temperature outside the

specied range may damage the battery and increase the risk of re.

STORING BATTERY PACK LONGER THAN 30 DAYS

• Store the battery pack where the temperature is below 80ºF and away from moisture.

• Store the battery pack in a 30%-50% charged condition.

• For long-term storage, regular charging of the battery is required to maximize battery life. Check the battery level using the indicator lights every 4 weeks. Recharge the battery if it

falls below 3 bars. Do not allow the battery to fully discharge.

Please read the following information carefully. User must read and understand entire manual before operating this sprayer. Improper use or failure to follow instructions could lead to

sprayer failure and possible serious injuries.

19.

CHARGING

THE BATTERY

BATTERY RECYCLING PREPARATION

• To preserve natural resources, please recycle or dispose of the batteries properly.

• This product contains Lithium-ion batteries. Local, state or federal laws may prohibit disposal of lithium-ion batteries in ordinary trash. Consult your local waste authority for information

regarding available recycling and/or disposal options.

LITHIUM-ION BATTERY PACKS

• Lithium-ion batteries deliver fade free power for their entire run time. Lithium-ion batteries will not gradually lose power due to decreasing battery charge. Instead, power form the

battery pack will drop from full to zero once the full charge has been drained form the battery. Once this happens, recharging of the battery is required. It is not necessary to drain the

battery pack completely before recharging.

BATTERY PACK PROTECTION FEATURES

• Lithium-ion battery packs are designed with features that protect the lithium-ion cells and maximize battery life. If the sprayer stops during use, release the trigger to reset and resume

operation. If the sprayer still doesn’t work, the battery needs to be recharged.

Please read the following information carefully. User must read and understand entire manual before operating this sprayer. Improper use or failure to follow instructions could lead to

sprayer failure and possible serious injuries.
