Wessol SprayMate Shower MAX User manual

SHOWER MAX
4-Gallon 7.2V Battery Powered
Sprayer with Rolling Trolley
Model #: SMSAAF
OPERATION GUIDE
1

ATTENTION
Please read the following information carefully. Failure to follow instructions or improper
use could lead to explosive failure causing serious injuries.
After using sprayer with chemicals, it is important to spray with fresh water for 3-5 minutes to ensure residual
chemicals in the gun, wand, tank, pump, and hose are cleaned out. This will extend the life of your sprayer. Never leave
chemicals or solutions sitting in your sprayer after using.
Do not store your sprayer in extremely high temperatures. Heat can lead to the build-up of pressure within the sprayer,
resulting in a possible explosion. If there is pressure in the pump, do not try to remove it with tools. Do not try to make
modications to the sprayer. Always use SprayMate™ branded replacement parts from the manufacturer.
Never spray ammable, caustic, acidic, chlorine, or other corrosive solutions or heat, pressure, or gas producing
chemicals. Always read and follow chemical manufacturer’s instructions before use with this sprayer as some
chemicals may be hazardous when used with this sprayer.
WARNING
This product contains chemicals, including lead, known to the
state of California to cause birth defects and other reproductive
harm.
This product is designed to apply chemicals that may be
harmful and could cause serious personal injury if inhaled or
brought into contact with the user
NOTES:
1. The sprayer may have residual water in it due to quality
testing performed on it.
2. Some parts may be found inside the tank when rst
assembling the sprayer. Please make sure to remove the
parts before attempting to assemble or use the sprayer for
the rst time.
Copyright © WESSOL, LLC
2

Copyright © WESSOL, LLC 3
After long periods of time without use, the battery may have a low voltage and
will require extended charging.
Always wear protective clothing, respirator, gloves, eye protection, etc. when
using chemicals.
Never spray chemicals against the wind, towards humans, animals,
or food.
Do not operate sprayer in temperatures lower than 32ºF.
Never operate with strong acids, strong bases, or ammable liquids.
Never ll the sprayer with hot liquids (max temp. = 176ºF) or gasoline.
Do not dispose of lithium-ion battery with household waste; recycle where
facilities exist.
The sprayer is susceptible to water damage if left in wet conditions.
Always store it in a cool, dry place.
Always use SprayMate™ original replacement parts.
Do not leave the sprayer in reach of children or persons not qualied to handle it
in a proper fashion.

LET’S
GET
SPRAYING!
REGISTER YOUR SPRAYER!
To take advantage of the 1-year Limited Warranty from WESSOL,
LLC. Register your sprayer at the website below:
www.buyspraymate.com/register
Please read and follow this manual carefully to ensure that you get the most out
of your new sprayer. If you need assistance with the assembly or operation of
your sprayer, please don’t hesitate to contact WESSOL via the support
methods below:
www.buyspraymate.com
[email protected]
+1 803.339.2500
Copyright © WESSOL, LLC
4

TABLE OF CONTENTS
ABOUT
1.1 specications...............................................................................................page 6
1.2 what’s in the box..........................................................................................page 7
page 6-7
SET UP
2.1 rolling sprayer assembly...............................................................................page 8
2.2 backpack sprayer assembly..........................................................................page 9
2.3 spraying......................................................................................................page 10
2.4 aftercare.....................................................................................................page 11
page 8-11
TROUBLESHOOT page 12-15
3.1 common solutions......................................................................................page 12
3.2 replacement parts.......................................................................................page 13
3.3 warranty.....................................................................................................page 14
Copyright © WESSOL, LLC 5

WHAT IS YOUR SPRAYER
CAPABLE OF?
A SprayMate™ is a highly ecient sprayer that is
suitable for spraying many kinds of
water-soluble chemicals.
This includes fertilizers, pesticides, cleaning products, etc. Powered by a 7.2V
lithium-ion battery, this sprayer results in 2-3x more eciency than a manual
sprayer. This sprayer can be operated continuously for up to 2 hours and
spray more than 7 gallons per battery charge at a distance of 15 feet.
SprayMate™ Shower MAX Specifications
Model Number SMSAAF Pump Type Gear
Battery Type Lithium-ion Spray Time up to 2 hours
Battery Voltage 7.2V Pressure 45 psi
Battery Capacity 2.6Ah Spray Distance 15 feet
Battery Charging Time 2 hours Tank Capacity 4 gallons
Battery Cycle Life 500 cycles Flow Rate 0.17 gal/min
Battery Charger 7.2V/1Ah Pump Life 500 hours
Copyright © WESSOL, LLC
6

WHAT’S IN
THE BOX?
1. 7.2V Spray Gun & Short Nozzle 2. Trolley Holster 3. Backpack Holster
4. 4-Gallon Tank 5. Trolley Handle 6. Battery Charger
7. Coiled Hose 8. Screw, Nuts, and Bolts 9. Tank Cap and Hose
10. Backpack Straps 11. Intake Filter 12. 18-Inch Extension Wand
13. Trolley Handle Bar 14. Trolley Base
1
Copyright © WESSOL, LLC 7

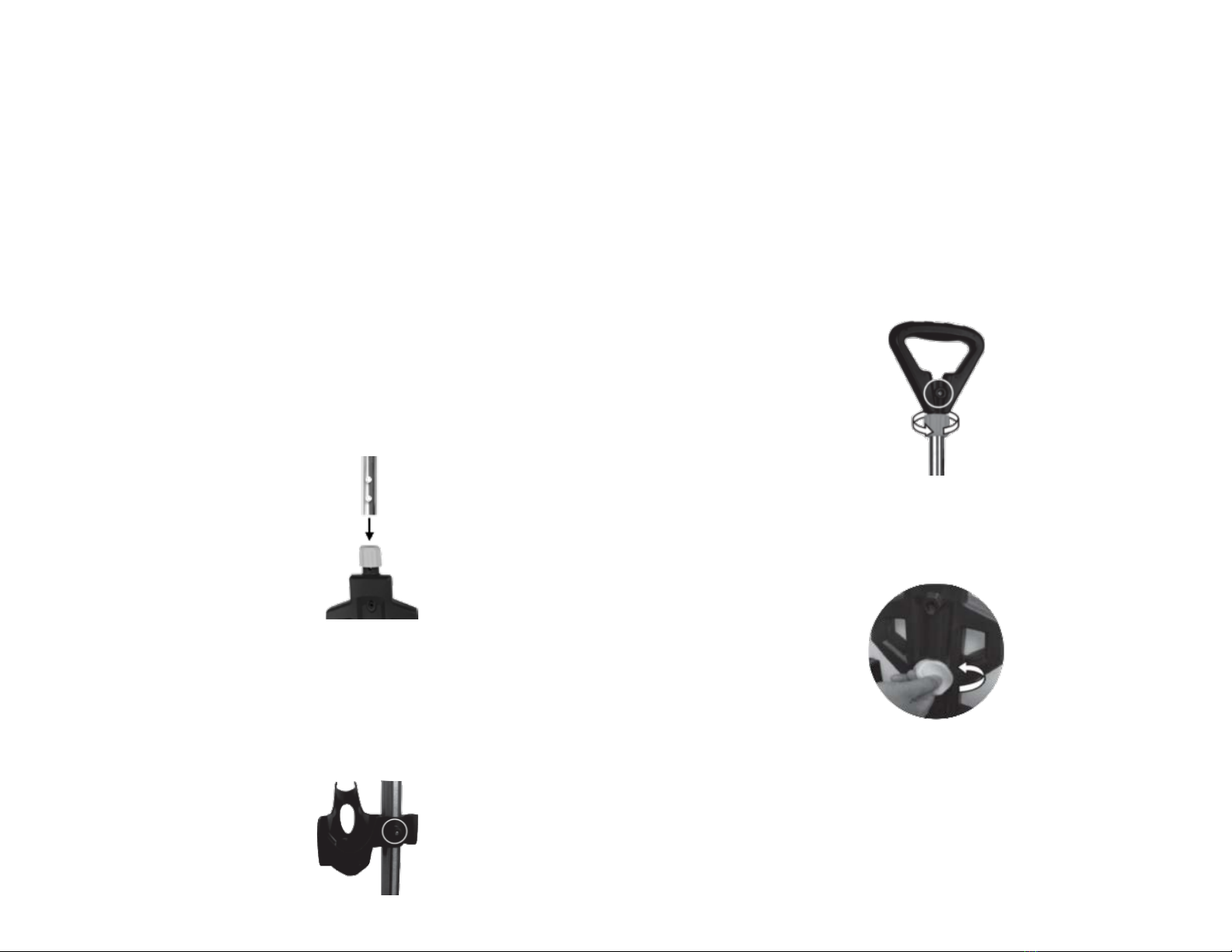

Before you begin, open the tank lid and remove
any nuts and bolts (8) or screws that may be placed
inside the intake lter (11). Set aside.
Insert the trolley handle bar (13) into the trolley base
(14), making sure the end with two holes is going in
rst. Determine the height you would like for the
handle baf and secure the handle bar to the trolley
base with a nut and bolt.
Slide the trolley holster down the handle bar until
about half way. Tighten the screw into the holster
until it is snug against the handle bar. Make sure
the screw is tight to prevent the holster from
slipping. The screw is not designed to go through
the handle bar.
Attach the trolley handle (5) on top of the handle
bar by threading the remaining nut and bolt (8)
through the hole. Tighten the handle to the trolley
handle bar by rotating the lower knob attachment.
Place the sprayer tank (4) on top of the trolley base
(14). Secure it to the base by screwing the knob on
the back of the trolley into the sprayer tank.Tighten.
STEP 1a.
ASSEMBLING AS A
ROLLING SPRAYER
A)
B)
C)
D)
E)
Copyright © WESSOL, LLC
8

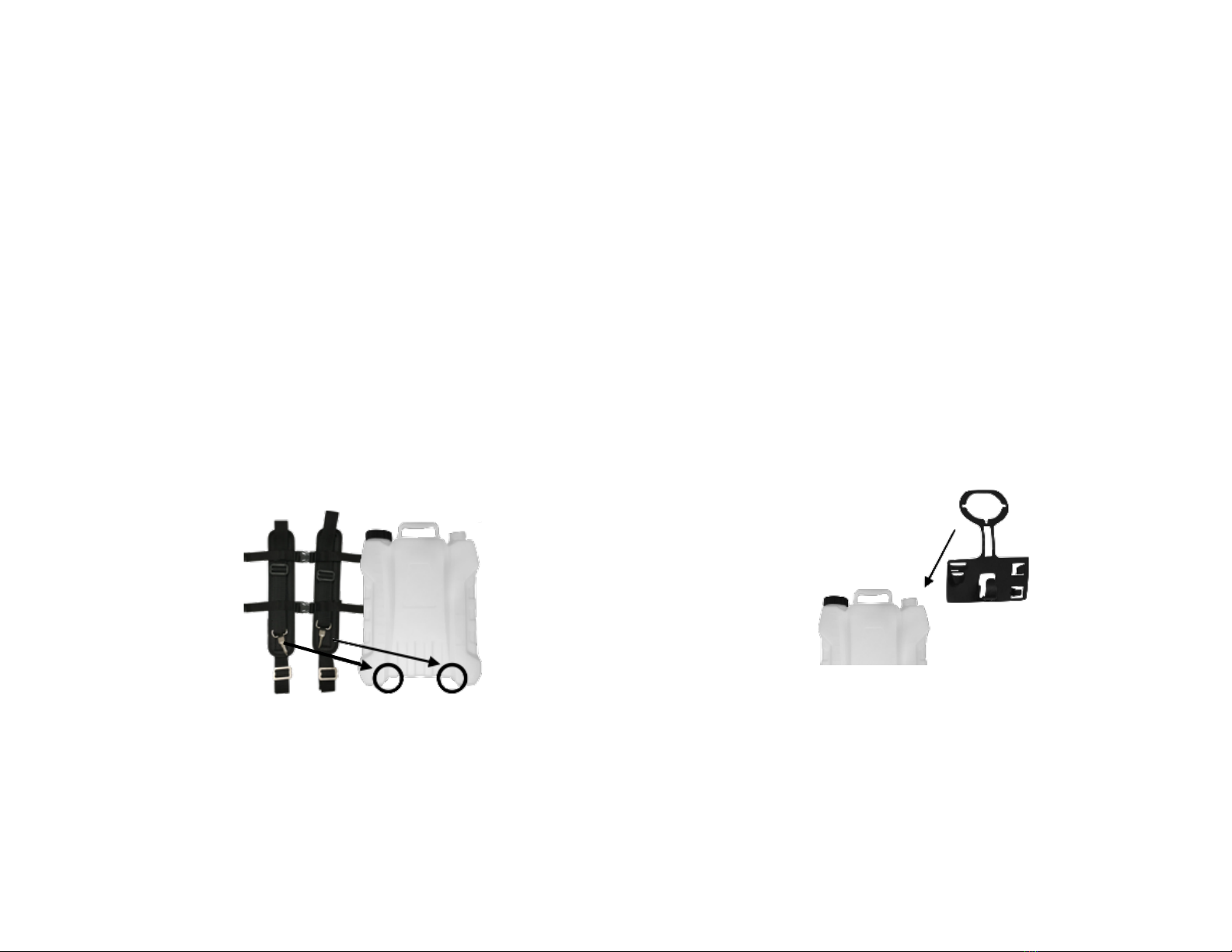

Before you begin, open the tank lid and remove
any nuts and bolts or screws (8) that may be placed
inside the intake lter. Keep in a safe place in case
you wish to convert to a rolling sprayer.
Taking the backpack strap (10), attach the metal
clip to the bottom loop on the sprayer tank. Repeat
for the other side.
Slide the top of the strap through the top look of the
sprayer tank. Thread the fabric through the buckle.
Repeat for the other side. Gently tug on the straps
to ensure they’re secure.
Place the backpack holster (3) over the tank outlet
hole and screw the cap back on.
STEP 1b.
ASSEMBLING AS A
BACKPACK SPRAYER
A)
B)
C)
D)
Copyright © WESSOL, LLC 9

Fully charge the battery prior to first operation.
In a separate container, prepare the solution you
want to spray according to the manufacturer’s
instructions. Open the tank cap and carefully pour
the solution through the intake lter. Securely
tighten the tank cap.
Taking the coiled hose (7), attach the end with the
ON/OFF switch to the spray gun (1). Clip the other
end on to the tank cap (9). It’s important to ensure
the hose is fastened tightly to the spray gun and
tank cap as a loose connection will prevent the the
pump from drawing water through the hose.
Determine which nozzle or attachment is
appropriate for your project. Pull back on the brass
collar of the quick-connect tting on the spray gun.
Insert the nozzle or attachment and then push the
tting back into its original position.
a) Short nozzle = adjustable conical nozzle ranging
from jet stream to mist
b) 18-Inch Extension wand = adjustable, ranging
from jet stream to mist
Making sure the ON/OFF switch is in the ON
position, disengage the handle lock (if necessary)
and squeeze the trigger on the spray gun to begin
spraying. When rst beginning to spray, it is normal
for the pump to take a few seconds to build up
pressure and draw liquid up from the tank and
through the hose.
STEP 2.
PREPARING TO SPRAY
A)
B)
C)
D)
Copyright © WESSOL, LLC
10

Dispose of extra product based on manufacturer’s
instructions. Rinse out any residual solution in the
spray tank with warm, soapy water. Then spray
fresh water through the sprayer for 3 to 5 minutes
to completely clear the tank of chemicals.
Disconnect the coiled hose from the tank cap and
squeeze the trigger on the spray gun to completely
empty the hose and spray gun of liquid. Allow the
hose to hang down towards the ground to drain
residual water.
Dry the sprayer tank and clear the nozzle or wand
attachment of any buildup.
Store the sprayer in a clean, cool, shaded location
to protect it from extreme heat or frost.
For long-term storage, regular discharging and
charging of the battery is required to maximize
battery life. We recommend charging the battery
every 4 weeks. Never allow the battery to
fully discharge.
STEP 3.
AFTER YOU FINISH
SPRAYING
A)
Proper sprayer maintenance is crucial to ensure the life and
performance of your sprayer. Many spray materials can harden
if left in the sprayer causing clogs in the nozzle or hose. Gasoline
should never be used to clean out your sprayer.
B)
C)
D)
*
NOTE:
Copyright © WESSOL, LLC 11 6

TROUBLESHOOTING YOUR SPRAYER
PROBLEM POSSIBLE REASON(S) SOLUTION
Sprayer is not turning on
and there is no sound. Dead battery Charge the battery. If the battery will not charge, test the charger or contact Support for replacement part and warranty coverage,
Sprayer will not spray even
when fully charged.
Loose hose connection Make sure the connection to the spray gun and tank cap is sealed. Detach and reattach
both ends of the hose.
Defective pump Contact Support or go to buyspraymate.com to purchase a replacement spray gun.
Sprayer needs to prime
Detach the hose from the tank cap. Run the end of the hose under water until the water
reaches the spray gun. Activate the trigger on the spray gun until water comes out.
Re-attach hose to the tank cap.
Dead battery.
Defective charger Test the charger with a multimeter. If the reading is less than 7.2V, a new charger is
needed. Visit buyspraymate.com to purchase a replacement.
Damaged lithium cells Purchase a replacement spray gun at buyspraymate.com.
Leaking from sprayer Loose hose connection Detach and re-attach the hose to the spray gun and tank cap.
To contact Technical Support, message [email protected] or call 1 [phone]
Copyright © WESSOL, LLC
12

REPLACEMENT PARTS
& ACCESSORIES
Visit buyspraymate.com to view and purchase parts.
1. FZRACB
Backpack straps
2. FZRABE
6-Foot Coiled Hose
5. FZRABU
Tank Cap & Hose
4. FZRABJ
7.2V/1A Charger
6. FZRABS
18-Inch Stainless Steel
Extension Wand
7. SMRACZ
7.2V/2.6A Spray Gun
3. FZRADS
Intake Filter
Copyright © WESSOL, LLC 13

Copyright © WESSOL, LLC
14
11
WESSOL,LLC
LIMITED WARRANTY
WARRANTY COVERAGE
WESSOL, LLC warrants to the original purchaser that the SprayMate™product will function as intended under
normal use and consistent maintenance, subject to certain limitations and exclusions. At the discretion of WESSOL,
LLC, we will repair or replace any parts found to be defective in material or workmanship without charge, apart from
shipping and handling costs, during the covered warranty period.
WARRANTY PERIOD
The warranty period will begin from the date of retail purchase and exist for one (1) year, regardless of when the unit
is placed in service. The warranty period is not extended if we opt to repair or replace the product in question.
WARRANTY CLAIMS
WESSOL, LLC reserves the right to require the return of the defective product, proof of purchase, and established
product registration to le a claim under this warranty.
If the product fails to function as intended DO NOT RETURN ITTO THE STORE, call our Technical Support hotline
at [phone], email [email protected] or submit a contact form at buyspraymate.com.
PRODUCT REGISTRATION
All sprayers purchased from FlowZone or an authorized distributor must be registered online to validate the
warranty and allow for warranty claim processing. Sprayers can be registered at buyspraymate.com/register.
To le a warranty claim, visit:
www.buyspraymate.com/warranty

Copyright © WESSOL, LLC 15
EXCLUSIONS AND LIMITATIONS
WESSOL, LLC only warrants products purchased from authorized
distributors. Products purchased from unauthorized resellers or
distributors are not subject to warranty services.
The limited warranty does not cover damages, loss, or injury
resulting from transportation, storage, accident, improper
use, neglect, modications, normal wear, or operation not in
accordance with the instruction manual. WESSOL, LLC reserves the
right to change the design or specications of any product without
obligation to modify previously produced units.
ANY IMPLIED WARRANTIES, INCLUDINGTHE IMPLIED
WARRANTY OF MERCHANTABILITY AND FITNESS FOR
CONSUMER USE, ARE LIMITED TO THE DURATION SPECIFIED
ABOVE. WESSOL, LLC’S LIABILITY IS LIMITED SOLELY TO
THE REPAIR OR REPLACEMENT OF THE NON-FUNCTIONING
PRODUCT OR PART. WESSOL, LLC EXCLUDES LIABILITY
UNDER THIS WARRANTY FOR ANY AND ALL INCIDENTAL AND
CONSEQUENTIAL LOSS OR DAMAGE.
In no event shall WESSOL, LLC be liable for any incidental, special,
consequential or punitive damages, or for any costs, attorney fees,
expenses, losses or delays alleged to be as a consequence of any
damage to, failure of, or defect in any product including, but not
limited to, any claims for loss of prots.
Some states do not allow limitations on how long an implied
warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so these limitations or exclusions may not
apply to you. This warranty gives you specic legal rights and you
may have other rights which vary from state to state.

buyspraymate.com
[phone]
[email protected]
