Kremlin-Rexson ATG series User manual

INSTRUCTION MANUAL
AUTOMATIC EXTRUSION GUN
MODEL ATG
(WITH PNEUMATIC OPENING AND CLOSING)
# 101 975 0101 - 101 975 0102 - 101 975 0103
- 101 975 0201
Manual : 574.107.112 - 1202
Date : 02/02/12 - Supersede : 01/09/08
Modif. : Update
TRANSLATION OF THE ORIGINAL MANUAL
IMPORTANT : Before assembly and start-up, please read and clearly understand all the documents
relating to this equipment (professional use only).
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
KREMLIN - REXSON
l
150, avenue de Stalingrad
93 245 - STAINS CEDEX – France
 : 33 (0)1 49 40 25 25 Fax : [phone]
www.kremlin-rexson.com

KREMLIN REXSON Page 1 Manual : 574.107.112
INSTRUCTION MANUAL
EXTRUSION AUTOMATIC GUN
TABLE OF CONTENTS
1. WARRANTY...................................................................................................................................................... 2
2. SAFETY INSTRUCTIONS ................................................................................................................................. 2
3. DIMENSIONS.................................................................................................................................................... 5
4. FEATURES ....................................................................................................................................................... 5
5. EXPLODED VIEWS........................................................................................................................................... 6
6. SPARE PARTS' LIST........................................................................................................................................ 7
7. MAINTENANCE ................................................................................................................................................ 9
8. REPLACEMENT OF THE NOZZLE................................................................................................................... 9
9. DISASSEMBLY OF THE GUN FLUID PART..................................................................................................... 9
10. DISASSEMBLY OF THE PNEUMATIC PART ............................................................................................... 10
11. CUP ASSEMBLY .......................................................................................................................................... 10
12. GUN ASSEMBLY.......................................................................................................................................... 11
Dear Customer,
You are the owner of our new equipment and we would like to take this opportunity to thank you.
To make sure your investment will provide full satisfaction, special care has been taken by KREMLIN
REXSON during all designing and manufacturing processes.
To obtain the best result, safe and efficient operation of your equipment, we advice you to read and
make yourself familiar with this instruction and service manual. Indeed, the non-compliance with
instructions and precautions stated in this manual could reduce the equipment working life, result in
operating trouble and create unsafe conditions.

KREMLIN REXSON Page 2 Manual : 574.107.112
1. WARRANTY
We reserve the right to make changes; these changes may be carried out after the receipt of the order. No
claim will be accepted as a consequence of any change carried out in the instruction manuals or in the
selection guides.
Our equipment is checked and tested prior to shipment. In the case of a problem arising with the equipment,
this must be in writing, within ten days from the delivery date.
KREMLIN REXSON warrants all equipment manufactured bearing its name, to be free from defect in material
or workmanship for a period of 12 months (one shift per day or 1800 hours - 1 term reached) from the date of
delivery. Work life is based on single shift working - 8 hours per day. Warranty claims for defective items will
only be accepted in writing and will be verified and confirmed by us.
The warranty does not cover fair wear and tear, damage or wear caused by misuse, improper maintenance or
non-observance of our recommendations.
KREMLIN REXSON will repair or replace parts (carriage paid to our plant and accepted as defective by us).
We shall not be liable for any losses, resulting from a production breakdown. Upon request, we can carry out
service work at your premises; all expenses (travelling and accommodation) for KREMLIN REXSON
technicians will be chargeable.
In the event that it is found that equipment has been tampered with, this will invalidate the warranty.
Equipment that it is bought in will be subject to the suppliers' warranty.
2. SAFETY INSTRUCTIONS
GENERAL SAFETY INSTRUCTIONS
CAUTION : The equipment can be dangerous if you do not follow our
instructions concerning installation and servicing described in this manual
and in accordance with applicable European standards and local national safety
regulations.
Please carefully read all the instruction literature before operating your
equipment.
Only trained operators can use the equipment (To acquire an essential training, please contact the
"KREMLIN REXSON University" training center - Stains).
The foreman must ensure that the operator has understood the safety instructions for this equipment as well
as the instructions in the manuals for the different parts and accessories.
Read carefully all instruction manuals, label markings before operating the equipment.
Incorrect use may result in injury. This equipment is for professional use only. It must be used only for what it
has been designed for. Never modify the equipment. The parts and accessories supplied must be regularly
inspected. Defective or worn parts must be replaced.
Guards (air motor cover, coupling shields, housings,…) have been designed for a safe
use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
Never exceed the equipment components' maximum working pressure.
Comply with regulations concerning safety, fire risks, electrical regulations in force in the country of final
destination of the material. Use only products or solvent compatible with the parts in contact with the material
(refer to data sheet of the material manufacturer).

KREMLIN REXSON Page 3 Manual : 574.107.112
PICTOGRAMS
ADFECG
Nip hazard Warning moving
elevator Warning moving parts Warning moving shovel Do not exceed this pressure High pressure hazard
HJLKMQ
Relief or drain
valve Warning hose under pressure Wear of glasses is obligatory Wear of gloves is obligatory Product vapor hazard Warning hot parts or areas
NPR
Electrical hazard Warning fire
hazards Explosion hazards Grounding Warning (User) Warning serious
injuries
FIRE - EXPLOSION - SPARKS - STATIC ELECTRICITY HAZARDS
A poor earth connection, inadequate ventilation, sparks or static electricity can cause an
explosion or fire. to avoid these risks when using or servicing KREMLIN REXSON equipment,
the following safety procedures must be followed :
ensure a good earth connection and ground the parts to be handled i.e. solvents,
materials, components and equipment,
ensure adequate ventilation,
keep working area clean and free from waste solvents, chemicals, or solid waste i.e.
rags, paper and empty chemicals drums,
never use electrical switches / power if in an atmosphere of volatile solvent vapour,
stop working immediately in case of electrical arcs,
never store chemicals and solvents in the working area.
use paint whose flash point is the highest possible to prevent from any formation of gas
and inflammable vapours (refer to materials' safety instructions),
install a cover on the drums to reduce the diffusion of gas and vapours in the
spraybooth.
TOXIC PRODUCT HAZARDS
Toxic products or vapours can cause severe injury not only though contact with the body, but
also if the products are ingested or inhaled. It is imperative :
to know the material products and their risks,
notified or hazardous materials must be stored in accordance with the regulations,
the material must be stored in an appropriate container, never place materials in a
container where there is a risk of spillage or leakage,
a procedure must be applied for the safe disposal of waste material. It must comply with
all prevailing regulations and legislations of the country where the equipment is to be
used,
protective clothing should always be worn in compliance with the material
manufacturers' recommendations,
depending on the application and chemical safety instructions, safety glasses, hearing
protective earplug, gloves, foot wear, protective masks and possible breathing
equipment should be worn to comply with the regulations (Refer to chapter "Safety
equipment of KREMLIN selection guide).

KREMLIN REXSON Page 4 Manual : 574.107.112
CAUTION!
It is forbidden to use material containing high concentrations of halogenated hydrocarbon
solvents with aluminium or zinc fillers .Non-compliance with the instructions may cause
explosion risk causing serious or fatal injury.
EQUIPMENT REQUIREMENTS
Guards (air motor cover, coupling shields, housings,…) have been designed for a
safe use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
PUMP
Before carrying out any work, it is imperative to read and clearly understand the disassembly
and reassembly instructions before servicing. The operator must understand the equipment
and the safety instructions. These instructions are available in the equipment manuals.
F
A
The air motor is designed to be mounted with a pump. Never modify any components or
couplings. When operating, please keep hands away from moving parts. Before starting up the
equipment, please read the PRESSURE RELIEF instructions. Please ensure that any relief or
drain valves fitted are in good working order.
HOSES
Keep hoses out of circulation areas, moving parts or hot surfaces,
Never expose product hoses to temperature higher than + 60°C / 140° F or lower than
0°C / 32° F,
Never pull or use the hoses to move the equipment,
Tighten all fittings as well as the hoses before operating the equipment,
Check the hoses regularly; change them if they are damaged,
Never exceed the maximum working pressure (MWP) indicated on the hose.
USED PRODUCTS
Considering the wide variety of products that are available and can be used in our equipment
it is impossible to check and make recommendations for all chemical data,regarding the risks
of possible chemical attack and their long term chemical reaction
KREMLIN REXSON can not be held liable for :
Compatibility of wetted parts,
Risks to staff and the surroundings,
for worn or defective parts, for faulty equipment or units, or the qualitiy of final product.
It is the responsibility of the user to know and prevent any possible risks such as toxic
vapours, fires or explosions. He shall determine the risks of immediate reactions or pursuant
to repeated exposures of the staff,
KREMLIN REXSON shall not be liable for physical injuries, direct or indirect material damages
caused by the use of chemicals.

KREMLIN REXSON Page 5 Manual : 574.107.112
3. DIMENSIONS
AUTOMATIC GUNS : # 101 975 0101, 101 975 0102, 101 975 0103
AUTOMATIC GUN (with opening/closing indicator) : # 101 975 0201
4. FEATURES
GUNS
Features # 101 975 0101 # 101 975 0102 # 101 975 0103 # 101 975 0201
Kind of seals PUR PTFE PEEK PUR
Max fluid pressure 400 bar / 5801 psi
Control air pressure From 4 to 6 bar / from 58 to 87 psi
Fluid inlet Female 3/8" G
Fluid outlet Female M 10x100
Air fitting 2 elbows fitting, model 2,7x4
Maximum fluid temperature 60°C / 140° F
Seat Steel + carbide
Weight 750 g / 1.6 lb
Nozzle Option (1.5 to 4 mm)
2 holes
Fitting for t
ube 4/6
or tube 2,7/4
Layout M10x1
2 screws H
M6
2 holes M6
Fitting for tube 4/6
or tube 2,7/4
Layout M10x1
2 screws H
M6x20

KREMLIN REXSON Page 6 Manual : 574.107.112

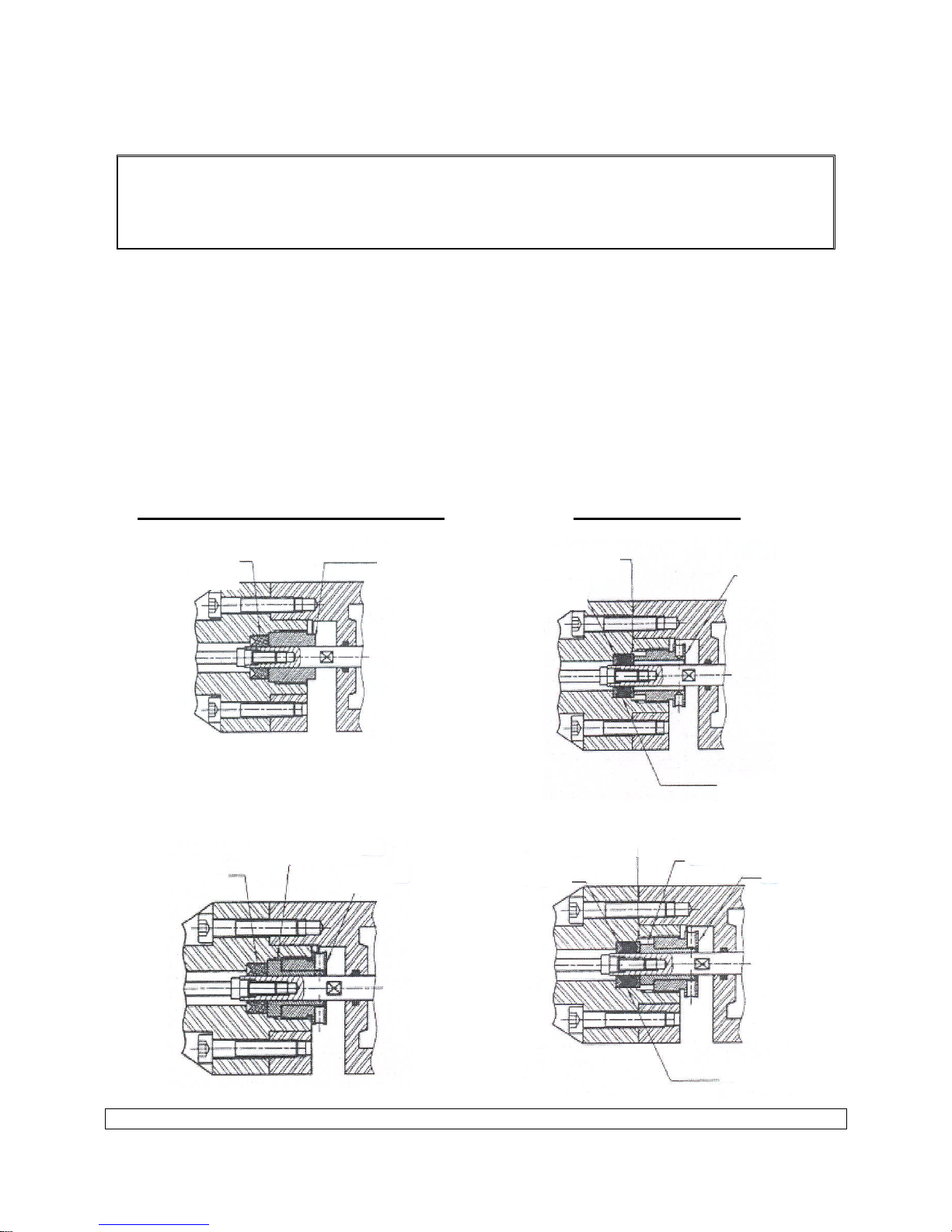

5. EXPLODED VIEWS
GUNS : # 101 975 0101, 101 975 0201
GUNS : # 101 975 0102, 101 975 0103

KREMLIN REXSON Page 7 Manual : 574.107.112
6. SPARE PARTS' LIST
COMMON PARTS
Ind # Désignation Description Bezeichnung Denominación Qté
1 204 133 Chapeau Cover Haube Tapa 1
2 204 192 Tête Head Kopf Cabezal 1
3 933 151 385 Vis, CHc 5x30 Screw, CHc 5x30 Schraube, CHc 5x30 Tornillo,CHc 5x30 2
5 210 805 Presse-étoupe Cup Zugentlastung Prensa-estopa 1
* 7 NCS / NSS Joint FKM FKM seal FKM Dichtung Junta FKM 1
8 933 011 277 Vis, H 6x20 Screw, H 6x20 Schraube, H 6x20 Tornillo, H 6x20 2
9 203 576 Corps Body Körper Cuerpo 1
10 203 016 Piston Piston Kolben Pistón 1
* 11 NCS / NSS Joint Seal Dichtung Junta 1
* 16 NCS / NSS Joint FKM FKM seal FKM Dichtung Junta FKM 1
* 17 203 575 Ressort Spring Feder Muelle 1
18 552 261 Coude, Ø4 1/8"Elbow, Ø4 1/8"Winkelnippel, Ø4 1/8"Codo, Ø4 1/8"2
19 203 570 Tige Rod Stange Eje 1
* 20 204 132 Siège Seat Sitz Asiento 1
* 21 203 571 Aiguille Needle Nadel Aguja 1
22 203 569 Porte-buse Nozzle holder Düsehalter Porta-boquilla 1
SPECIFIC PARTS (# 101 975 0101)
Ind # Désignation Description Bezeichnung Denominación Qté
*4 NCS / NSS Joint Seal Dichtung Junta 1
6 210 803 Guide tige de piston Piston rod guide Kolbenstangenführung Guía eje de pistón 1
12 203 574 Couvercle Cover Deckel Tapa 1
13 933 151 221 Vis, CHc 5x16 Screw, CHc 5x16 Schraube, CHc 5x16 Tornillo, CHc 5x16 4
14 953 010 014 Ecrou, HM5 Nut, HM5 Mutter, HM5 Tuerca, HM5 1
15 88 372 Rondelle, M5 Washer, M5 Scheibe, M5 Arandela, M5 1
*103 894 Pochette de joints
(ind. 4, 7, 11, 16) Seal kit (ind. 4, 7, 11, 16) Dichtungssatz (Pos. 4, 7, 11, 16) Bolsa de juntas (Índ. 4, 7, 11, 16) 1
* Pièces de maintenance préconisées tenues en stock
* Preceding the index number denotes a suggested spare part.
* Bezeichnete Teile sind empfohlene Ersatzteile.
* Piezas de mantenimiento preventivas a tener en stock.
N C S : Non commercialisé seul.
N S S : Denotes parts are not serviceable separately.
N S S : Bezeichnete Teile gibt es nicht einzeln, sondern nur
komplett.
N S S : no suministrado por separado.

KREMLIN REXSON Page 8 Manual : 574.107.112
SPECIFIC PARTS (# 101 975 0102)
Ind # Désignation Description Bezeichnung Denominación Qté
12 203 574 Couvercle Cover Deckel Tapa 1
13 933 151 221 Vis, CHc 5x16 Screw, CHc 5x16 Schraube, CHc 5x16 Tornillo, CHc 5x16 4
14 953 010 014 Ecrou, HM5 Nut, HM5 Mutter, HM5 Tuerca, HM5 1
15 88 372 Rondelle, M5 Washer, M5 Scheibe, M5 Arandela, M5 1
6 210 804 Guide tige de piston Piston rod guide Kolbenstangesführung Guía de eje de pistón 1
*23 NCS / NSS Rondelle “F” 'F' washer Stützring konkav Arandela “H” 1
*24 NCS / NSS Joint chevron PTFE PTFE chevron seal PTFE Packungsring Junta chevrón PTFE 6
*25 NCS / NSS Rondelle "M" 'M' washer Stützring konvex Arandela “M” 1
* 101 635 Pochette de joints
(ind. 7, 11, 16, 23,
24x6, 25)
Seal kit
(ind. 7, 11, 16, 23,
24x6, 25)
Dichtungssatz
(Pos. 7, 11, 16, 23,
24x6, 25)
Bolsa de juntas
(índ. 7, 11, 16, 23,
24x6, 25)
1
SPECIFIC PARTS (# 101 975 0103)
Ind # Désignation Description Bezeichnung Denominación Qté
12 203 574 Couvercle Cover Deckel Tapa 1
13 933 151 221 Vis, CHc 5x16 Screw, CHc 5x16 Schraube, CHc 5x16 Tornillo, CHc 5x16 4
14 953 010 014 Ecrou, HM5 Nut, HM5 Mutter, HM5 Tuerca, HM5 1
15 88 372 Rondelle, M5 Washer, M5 Scheibe, M5 Arandela, M5 1
6 210 804 Guide tige de piston Piston rod guide Kolbenstangesführung Guía de eje de pistón 1
*23 NCS / NSS Rondelle “F” 'F' washer Stützring konkav Arandela 'H' 1
*24 NCS / NSS Joint chevron PEEK PEEK chevron seal PEEK-Packungsring Junta chevrón PEEK 6
*25 NCS / NSS Rondelle "M" 'M' washer Stützring konvex Arandela “M” 1
* 107 346 Pochette de joints
(ind. 7, 11, 16, 23,
24x6, 25)
Seal kit
(ind. 7, 11, 16, 23,
24x6, 25)
Dichtungssatz
(Pos. 7, 11, 16, 23,
24x6, 25)
Bolsa de juntas
(índ. 7, 11, 16, 23,
24x6, 25)
1
SPECIFIC PARTS (# 101 975 0201)
Ind # Désignation Description Bezeichnung Denominación Qté
*4 NCS / NSS Joint Seal Dichtung Junta 1
6 210 803 Guide tige de piston Piston rod guide Kolbenstangesführung Guía de eje de pistón 1
12 207 215 Couvercle Cover Deckel Tapa 1
13 88 129 Vis, CHc M5x18 Screw, CHc M5x18 Schraube, CHc M5x18 Tornillo, CHc M5x18 4
- 207 214 Témoin d'ouverture Opening / closing
indicator Öffnungsanzeiger Peón testigo 1
* 103 894 Pochette de joints
(ind. 4, 7, 11, 16) Seal kit (ind. 4, 7, 11, 16) Dichtungssatz (Pos. 4, 7, 11, 16) Bolsa de juntas (Índ. 4, 7, 11, 16) 1

KREMLIN REXSON Page 9 Manual : 574.107.112
7. MAINTENANCE
Guards (air motor cover, coupling shields, housings …) have been designed for safe use of
the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or damage to
property due to removal or partial removal of the guards
Before any removal or intervention on the gun, you must isolate it by means of a safety valve (compulsory
upstream of the gun) and ensure that the working pressure has been drained to avoid risks of serious injuries :
spatters especially in eyes or injections under the skin can cause a blood poisoning when using such material.
The maintenance consists in checking seals as well as the parts of the gun following fluid leaks or only for a
preventive maintenance.
We advice you to change the parts with an unfair wear and tear.
DON’T SOAK THE GUN INTO SOLVENT TO PREVENT FROM DAMAGING THE SEALS.
8. REPLACEMENT OF THE NOZZLE
Unscrew the nozzle from the nozzle holder (22) and remove the nozzle,
Clean the cover, the threading of the gun head (2) and the threading of the nozzle holder with a dry rag,
Change the nozzle,
Screw the nozzle on the nozzle holder.
9. DISASSEMBLY OF THE GUN FLUID PART
Guards (air motor cover, coupling shields, housings …) have been designed for safe use of
the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or damage to
property due to removal or partial removal of the guards
Unscrew the nozzle from the nozzle holder (22) and remove the nozzle,
Unscrew the needle (21),
Loosen the cup nut (2 turns),
Unscrew the screws (3) and take off the gun head (2) from the body (9),
For the guns, # 101 975 0101 and 101 975 0201, unscrew completely the cup nut, take off the piston
rod guide (6) and the seal (4). For the gun, # 101 975 0102, unscrew completely the cup nut (5), take off
the guide (6), the 'F' washer (23), the 6 seals (24) and the 'M' washer (25).
Clean the parts with a solvent compatible with the material to be sprayed,
Check the parts and change them if necessary.

KREMLIN REXSON Page 10 Manual : 574.107.112
10. DISASSEMBLY OF THE PNEUMATIC PART
Guards (air motor cover, coupling shields, housings …) have been designed for safe use of
the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or damage to
property due to removal or partial removal of the guards
Unscrew the screws (13),
Take off the cover (12) and remove the seal (11),
Unscrew the nut (14) and remove the washer (15). For the gun, # 101 975 0201, unscrew the opening /
closing indicator.
Take off the piston (10), use compressed air with a blower to inject air on the fitting (18). Orientate the
outlet of the piston downwards and prevent the rod (19) from moving back to avoid damaging the seals.
Remove the spring (17) and take off the seal (16),
Take off the rod (19) frontward and the seal (7) from the body (9),
Clean the parts with a dry rag,
Check the parts and change them if necessary.
11. CUP ASSEMBLY
Versions 101 975 0101 & 101 975 0201 Version101 975 0102
Old assembly Old assembly
New assembly New assembly
Seal
Seal stop
Seals
Cup
'F' washer
'M' washer
Seal
Rod guide
Cup
Seals
Cup
Rod guide
'F' washer
'M' washer

KREMLIN REXSON Page 11 Manual : 574.107.112
12. GUN ASSEMBLY
Guards (air motor cover, coupling shields, housings …) have been designed for safe use of
the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or damage to
property due to removal or partial removal of the guards
Carry out the assembly on the reverse order of the disassembly. Lubricate the movable parts of the fluid part
with grease and the parts of the pneumatic part with light oil.
IMPORTANT :
-For the guns, # 101 975 0101 and 101 975 0201, the seal (4) assembly is carried out by means of the
tool,
- The rod (19) assembly is carried out frontward of the body to prevent from damaging the seal (7),
-For the gun, # 101 975 0201, assemble the needle (21) and the opening/closing indicator with "Low
strength - Aneorobic adhesive - Loctite".
