West Bay Sonship 54-07 Manual

54-07
RAISED PILOTHOUSE MOTOR YACHT
Model year: ......................................................................................................................... 2009
Engines: ........................................................................ Volvo D12D-B 715 Hp diesel inboards
Top speed (full load approx.) at 2300 RPM: ................................................................. 28.0 kts
Cruise speed (full load approx.): .................................................................................. 24.0 kts
Price: ...................................................................... ….. US $1,225,000 (plus factory upgrades)
Location: .................................................................................................Delta, British Columbia
Completion Date:...........................................................................................................Feb 2008
WEST BAY SONSHIP YACHT BUILDERS LTD.
8295 RIVER ROAD, DELTA, B.C. CANADA V4G 1B4
PHONE [phone] FAX [phone]
[e-mail] www.west-bay.com

OCT/07 2 of 11
54 RAISED PILOTHOUSE MOTOR YACHT SPECIFICATIONS
Length overall..............................................54' 0" (16.5 m)
Centerline hull length ..................................50' 0" (15.2 m)
Waterline length ..........................................42’ 8” (13.0 m)
Beam.............................................................16' 2" (4.9 m)
Freeboard........................................................8' 1" (2.5 m)
Freeboard aft...................................................6' 4" (1.9 m)
Draft (with tunnels)........................................3' 10" (1.2 m)
Deadrise midship..............................................................20º
Deadrise transom..............................................................17º
Fuel capacity.............................................800 USG (3028 L)
Water capacity............................................200 USG (757 L)
Holding tank..................................................95 USG (360 L)
Weight (approximate average displacement)........54,000 Lb
............................................................................ (24,494 kg)

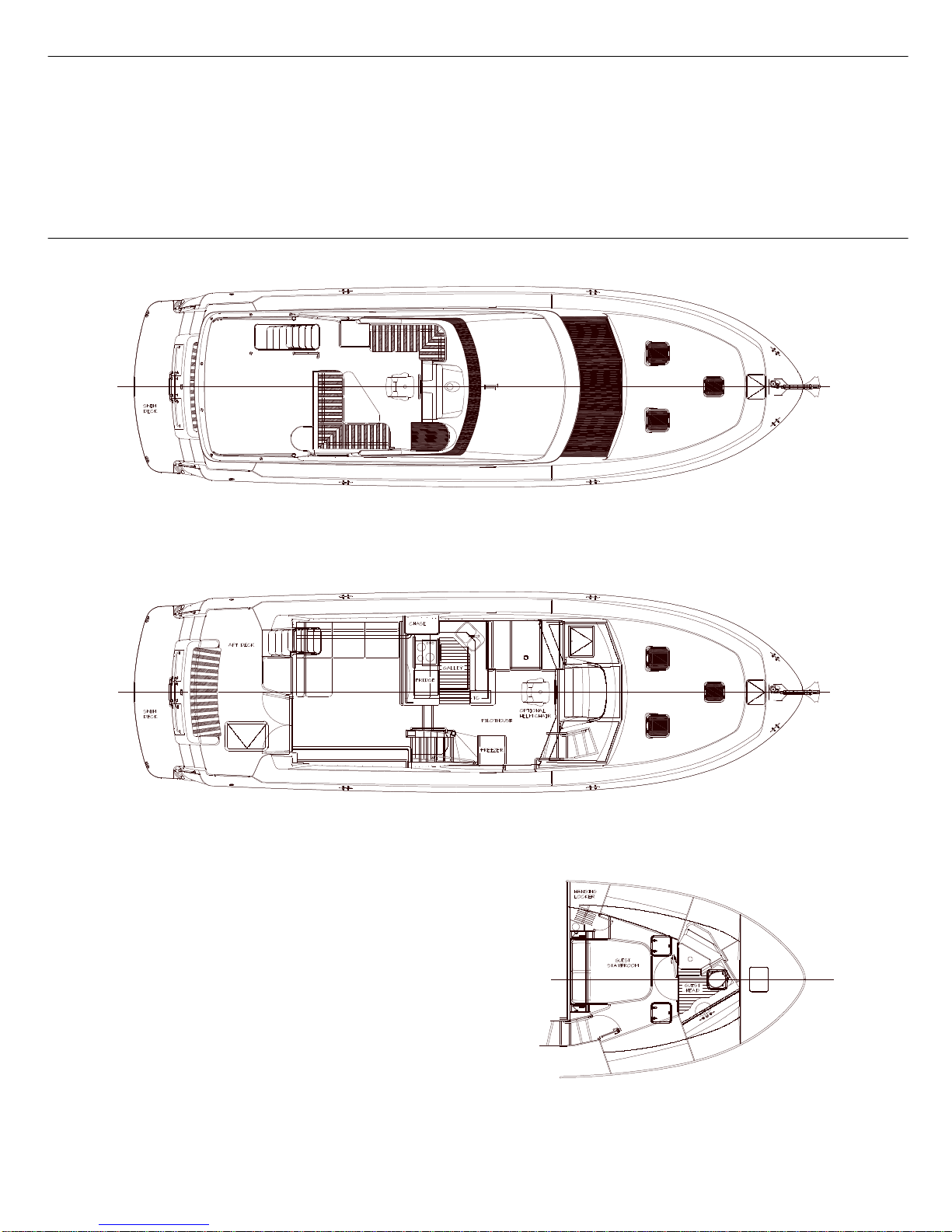

COMMAND BRIDGE PLAN
MAIN DECK PLAN
LOWER FORWARD PLAN
STANDARD GUEST STATEROOM LAYOUT

OCT/07 3 of 11
LOWER DECK PLAN

OCT/07 4 of 11
54 RAISED PILOTHOUSE MOTOR YACHT STANDARD EQUIPMENT
Construction
• Decks and bulkheads cored.
• Three sealed bulkheads.
• Hull: Vectorply hand laid-up fiberglass with 1”
Divinycell on bottom and 1” on hull sides,
vacuum- bonded
• Osmosis protection below the waterline – AOC
vinyl ester resin.
• Stringers: fiberglass.
Propulsion
• Twin Volvo D9-500 500 hp diesel inboard
engines (FWC) with marine gears, adjustable
engine mounts, Quiet Run underwater exhaust
system and low RPM back pressure
compensation system.
• Volvo controls for throttle and clutch functions.
• Two 4-blade high-speed computer designed
manganese bronze propellers.
• 2 ¼” propeller shafts (Aquamet 22HS).
• Hydrodynamic stainless steel V-struts with
replaceable Cutlass bearings.
• Hydrodynamic manganese bronze rudders and
hydraulic steering assembly.
Engine Room, Lazarette and Bilges
• Two 24 volt engine room blowers on thermostat.
• Four 24 volt Rule 2000 bilge pumps, one in
each major compartment.
• Fire extinguishing system: Kidde Fyre Watch
TM.
• Fuel level indication: sight gauge on tank.
• Fuel tank: aluminum, marine grade.
• Fuel filters for engines and generator.
• Generator: 12 kW with sound shield, muffler,
remote panel and Silent Run exhaust system.
• Bronze and / or Marelon ball valves on all intake
and exit thru-hulls below the waterline.
• 24 volt xenon overhead lighting. Incandescent
lighting in Lazarette & Forward bilges and 120
volt fluorescent lighting in Engine Room.
• Sewage holding tank with 24 volt macerator
pump switched at Pilothouse electrical panel,
thru-hull with valve for discharge overboard and
deck connection for discharge to a pumping
station.
• Sound insulation: barium filled foam composite
laminate in Engine Room bulkheads and
overhead.
• Sea strainers for main engines and generator:
large capacity, easily accessible for servicing.
• Shower sump with automatic pump system and
strainer.
• Fresh water system: (1) 24 volt pump with
pressure sensing and accumulator tank.
• Hot water tank: 30 USG (AC 240 volt) with heat
exchanger.
• Potable water tank: polyethylene.
• Tides Marine Strong main engine and rudder
shaft seals.
• Flooring with blue Teprorib matting in Engine
Room.
• Trim tabs with controls at Pilothouse and
Command Bridge.
• Bow thruster (24 volt electric): 10" dual prop.
Electrical Systems and Components
• Audio, temperature and oil pressure alarm
systems (Volvo ).
• Ship’s battery / inverter set: 24 volt, 525AH
Optima sealed deep cycle AGM, and Outback
3000-watt inverter.
• Starting battery set: 1400CCA 24 volt for main
engines (2 - 8D sealed type).
• Engine control battery set: dedicated 24 volt set
for Volvo engine controls (2 - H31-DCM sealed
type).
• Thruster – Windlass booster battery set located
forward, 24 volt, connected to ship’s battery set
(sealed deep cycle).
• 100 amp 24 volt alternator to charge ship’s
battery set, starboard engine.
• 60 amp 24 volt alternator to charge engine start
and control battery sets, port engine.
• Custom Yacht-O-Matic to provide hands on
control for generator, shore power and inverter.
• 60 amp charger, 24 volt to ship’s battery set
(part of the 3000 watt Outback Inverter).
• AC circuit breaker panels for inverter loads and
non-inverter loads. AC digital meters for
voltage, amperage.
• 24 volt DC panel with digital multi-meter for
voltage and house system load amperes.
• 12 volt DC panel with digital multi-meter for 12
volt accessories.
• 24 volt DC to 12 volt DC converter for 12 volt
equipment supply.
• 24 volt DC xenon and 24 volt DC stair lights.
• GFCI receptacles in all Heads, Engine Room,
Aft Deck, Command Bridge, Galley, Lazarette
and Transom storage.
• 24 volt navigation lights and anchor light.
• Dockside telephone/television receptacle at
Transom with outlets in Salon, Master and
Forward Guest Stateroom.
• 50 amp, 120/240 volt shore power inlet with 50’
extension cord with isolation transformer at
Transom.
• Bonding system, including sacrificial anodes
and shaft brushes.
• Separate 24 volt electronics circuit breaker
panel in Pilothouse.
• Commercial grade ANL fuses on all heavy DC
battery systems.
• Automatic 120-208-240 volt AC shore power
selector to allow use of various available dock
powers, digital voltmeter to show dockside
voltage.
Decks, Command Bridge and Miscellaneous
Exterior Items
• 1 ¼" 316 stainless steel handrails and rail
fittings.
• Electric anchor windlass with hand held control
at bow and with controls at bridge and
Pilothouse, Atlantic VCR 2200 24 volt DC.
• Anchor: Davis Talon XT-60 (60 lb.) galvanized.
• 50’ 5/16” galvanized chain with 250’ 5/8”
braided anchor line.
• Stainless steel bow anchor roller.
• Teak flagstaff (aft) and stainless steel burgee
staff (forward).
• Mooring cleats: (10) including (2) bow, (2) stern,
(4) springline and (2) flip-up on Swim Grid.
• Mooring lines: (4) including 2-35’ and 2-25’ x
5/8", black.
• Fenders: (4) 10" x 26", black with 15’ x 3/8"
lines.
• Boot line stripe 2" tapered to 5” at bow black
Imron,
• Bottom paint system: Interlux 2000/2001 epoxy
barrier with Micron CSC Extra anti-fouling paint
(2 coats, black).
• Stainless steel gunwale guards.
• Stainless steel and chromed brass hardware.
• Dual air horns.
• Dockside fresh water connection with pressure
regulator at Transom.
• Fresh water washdown taps at anchor locker,
starboard Aft Deck cabinet and Command
Bridge.
• Port and starboard fuel deck fills, midship.
Aft Deck/Swim Grid
• Lounge seating aft, molded, with Sunbrella
cushions and Stamoid weather cover.
• Storage lockers with vents.
• Engine Room access hatch.
• Lazarette access hatch.
• Molded stairs to aft bridge deck, port, with
double sliding hatch.
• Courtesy lighting (24 volt).
• Hand-held shower at port Transom.
 Transom gates port and starboard, hinged,with
stairs from Aft Deck to Swim Grid
• Swim Grid with ladder.
• Speakers (2) and waterproof volume control,
connected to Salon stereo.
• Transom storage locker with (2) doors.
Command Bridge
• West Bay style helm chair with weather cover.
• L- shaped molded bench seating, port and
starboard with Sunbrella cushions and Stamoid
weather covers (2).
• Solid surface table with (2) aluminum pedestals.
• Arch: fiberglass, with (2) courtesy lights.
• Hatch from bridge to Pilothouse.
• Electronics console with Stamoid weather
cover.
• Dash, molded, with hydraulic steering, stainless
steel Destroyer type helm wheel, start/stop
controls for main engines, Volvo engine controls
and display panels, controls for bow thruster,
trim tabs and windlass, switches for navigation
lights, horn, and flush-mounted 3" magnetic
compass (navigation electronics supplied by
purchaser with installation quoted per yacht).
• Tinted plexiglass venturi.
• Volume control with (2) waterproof speakers
connected to the salon stereo.
• Lifeline with stainless steel stanchions
surrounding bridge deck, aft.
General Interior
• Select flat cut American Cherry woodwork.
• Laminate vinyl flooring, Galley and Heads.
• Carpet with underlay.
• Lighting: flush-mounted xenon in ceiling with
Vimar switching.
• Headliner: fitted vinyl.
• Decorative wallcoverings.
 Aromatic cedar lined closets and hanging
lockers.
• Solid surface countertops: Galley, Pilothouse
settee table and heads.
• Windows: gray tinted, heat-treated laminated
glass with SonShip frameless design.
Salon
• Built-in sofa.
• Entertainment center, including storage space
for entertainment equipment, 26” LCD flat
screen TV, and DVD-CD stereo w/ virtual
surround sound.
• Storage cabinet (1) above entertainment center.
• Blinds: port, starboard and aft.
• Xenon lighting with Vimar switching.
• Salon doors with painted aluminum frame and
lock, at aft bulkhead.
• Cabinet for electrical breaker panel and power
status indicators, with light and door at forward
stairs, inboard.
• Stairs, starboard to Master Stateroom with
wallcovering on walls.
• Stairs, starboard from Salon to Galley with
stainless steel grabrail, outboard.
Galley
• Refrigerator: U-line undercounter.
• Freezer: U-line in starboard cabinet.
• Wood veneer fronts on fridge and freezer.
• Cooktop: 3 burner deluxe with pop-up ventilator
fan.
• Microwave/convection oven.
• Trash compactor: Broan.
• Stainless steel double basin sink,
undermounted, with faucet (Grohe).
• Built-in spice rack, aft port.
• Solid surface countertops with splash rail aft.
• Cabinets over cooktop and forward counter.
• Storage cabinets and drawers.
• Blinds: port and starboard.

OCT/07 5 of 11
54 RAISED PILOTHOUSE MOTOR YACHT STANDARD EQUIPMENT
Pilothouse
• Stairs, starboard to Forward Guest Stateroom
with wallcovering on walls.
• Helm with stainless steel Destroyer type helm
wheel with wood accents, start/stop controls for
main engines, Volvo engine controls and display
panels, controls for bow thruster, trim tabs and
windlass, generator control panel, switches for
navigation lights, instrument lights, anchor light,
horn, bilge pumps, wipers, defogger, display
panel for fire extinguishing system, and digital
compass (navigation electronics supplied by
purchaser with installation quoted per yacht).
• Three marine grade windshield wipers with two
speeds, wash and park.
• Windshield ambient air defogger fan, 24 volt.
• Dinette and settee with Solid surface tabletop
on raised platform with storage in platform.
 Chart storage, port of dash.
• Starboard flush-fit aircraft type sliding door with
pop-open window and lock.
• Stairs to Command Bridge, wood with non-skid
on treads.
• Stainless steel grab rail on starboard side of
stairs to Command Bridge.
• Hatch to Command Bridge.
• Holding tank monitoring system display panel
(Tankwatch).
Master Stateroom
• Dresser, forward port.
• Large storage under lift up bed top.
• Valance above portlights w/ blinds.
• Hanging locker with light, starboard.
• Storage cabinet forward of hanging locker,
starboard.
• Bin storage, port hull side.
• reading lights with switch at fixture.
• Built-in night tables.
• Stainless steel oval portlights with screens.
• Queen-size bed with keeper, 7” reversible foam
mattress, bedspread and pillow shams (2).
• Upholstered headboard panels.
• Hatch to bilge.
• Two Storage cabinets forward.
Master Head
• Solid surface countertop with oval sink,
undermounted, with faucet (Grohe).
• Mirrored medicine cabinet doors over sink.
• Storage cupboard and drawers in sink cabinet.
• Vacu-Flush vacuum toilet.
• Shower stall with frameless glass door and
cross handle polished brass showerhead
(Grohe).
• Polished brass paper holder, towel ring and
robe hook.
• Privacy door.
• Ventilating fan on switch.
• Fitted headliner.
• Linen locker, forward port of shower.
Forward Guest Stateroom
• Hanging locker with light and storage shelf, port
aft.
• Escape hatches: (2) with screens and
nightshades.
• Xenon lights with Vimar switching, xenon
reading lights with switch at fixture.
• Built-in dressers, port and starboard (hull sides).
• Queen-size bed with wood keeper, 5" foam
mattress, bedspread and pillow shams (2).
• Upholstered headboard panels.
Forward Guest Head
• Solid surface countertop with oval sink,
undermounted, with faucet (Grohe).
• Mirror above sink.
• Storage cabinet beneath sink.
• Vacu-Flush vacuum toilet.
• Shower stall with frameless glass door and
cross handle polished brass showerhead
(Grohe).
• Frosted skylight.
• Polished brass paper holder, towel ring and
robe hook.
• Privacy door.
• Ventilating fan on switch.
• Fitted headliner.
• Linen locker, forward port of shower.
Safety and Miscellaneous
• Owner’s manual with schematic drawings for all
systems, manufacturer’s warranties.
• (3) USCG approved fire extinguishers: (1) 5 lb.
fire extinguisher (engine room) and (2) 2.5 lb.
hand-held fire extinguishers (Galley and Master
Stateroom).
•
Specifications and Standard Equipment are
subject to change without written notice.

OCT/07 6 of 11
WEST BAY SONSHIP YACHT BUILDERS LTD. ONE-TWO-FIVE YEAR LIMITED WARRANTY
1) COMPREHENSIVE – ONE YEAR
West Bay SonShip Yacht Builders Ltd. (hereinafter called "West Bay")
warrants to the original retail purchaser of a West Bay SonShip Yacht
(hereinafter called the "Yacht") that it will repair or replace, at the sole
discretion of West Bay, any part or component manufactured by West Bay
which is proven to the sole satisfaction of West Bay to be defective within one
(1) year of delivery of the Yacht to the original retail purchaser, provided the
Yacht has been subjected to normal use and service as a non-commercial
Yacht, and has been used, serviced and maintained in accordance with West
Bay’s recommendations as specified in the owner’s manual supplied with the
Yacht. This warranty is limited as set out below.
2) HOUSE AND SUPERSTRUCTURE - 2 YEARS
West Bay warrants to the original purchaser, or to a registered subsequent
purchaser as provided herein, that it will repair or replace, at the sole
discretion of West Bay, any part or component of the house or superstructure
which has been proven to the sole satisfaction of West Bay to have been
defective within two (2) years of delivery of the Yacht to the original retail
purchaser, provided the Yacht has been subjected to normal use and service
as a non-commercial Yacht, and has been used, serviced and maintained in
accordance with West Bay’s recommendations as specified in the owner’s
manual supplied with the Yacht. This warranty is limited to the structural
components of the house and superstructure only and does not apply to
discoloring, caulking, paint blistering, or fiberglass blistering attributable in the
sole opinion of West Bay to osmosis.
3) HULL - 5 YEARS
West Bay warrants to the original purchaser, or to a registered subsequent
purchaser as provided herein, that it will repair or replace, at the sole
discretion of West Bay, any part or component of the Hull, Pan/Grids or
Stringers which has been proven to the sole satisfaction of West Bay to have
been defective within five (5) years of delivery of the Yacht to the original retail
purchaser, provided the Yacht has been subjected to normal use and service
as a non-commercial Yacht, and has been used, serviced and maintained in
accordance with West Bay’s recommendations as specified in the owner’s
manual supplied with the Yacht. This warranty is limited to the structural
components of the Hull, Pan/Grids and Stringers only and does not apply to
discoloring, caulking, paint blistering, or fiberglass blistering attributable in the
sole opinion of West Bay to osmosis. This warranty does not apply to the Hull,
Pan/Grids or Stringer systems that have been altered, or in the event the
Yacht is re-fitted after delivery to the original retail purchaser with engines of a
type and size not recommended by West Bay.
4) West Bay will register and honor a transfer of this warranty to subsequent
purchasers of the balance remaining under paragraphs 2 and 3 of this
warranty provided that such subsequent purchaser registers with West Bay by
notifying West Bay and paying, within 30 days of the transfer of the ownership
of the Yacht, and paying a warranty registration fee of $500 USD payable at
the time of West Bay being notified of the change in the Yacht’s ownership.
THIS WARRANTY DOES NOT COVER:
a) any part or component not manufactured by West Bay;
b) any Yacht, equipment, or component that has been subjected to or
affected by any unauthorized alteration or modification (any alteration to
a Yacht or component requires the written consent of West Bay);
c) any equipment, or component including but not limited to televisions,
computers, entertainment equipment, navigation and communication
equipment that has been subjected to or affected by any alteration or
modification made by West Bay on purchaser’s instructions, which
alteration or modification causes the original manufacturer’s warranty to
be void;
d) engines, transmissions, controls, batteries, appliances, rudder posts and
bearings, trim tab hydraulic rams, propellers, shafts, or other equipment,
accessories, or components which are not manufactured by West Bay,
whether or not warranted by other manufacturers;
e) gel coats, paints, varnishes, or other finishes, including, cracking,
crazing, discoloration of fabrics, canvas, mirrors, glass, natural stone
products, stainless steel, or any other plated finishes;
f) osmosis blistering, if the original gel coat surface has been altered in
any way including repair, application of any coat other than marine anti-
fouling bottom paint, improper surface preparation for such paint or
excessive sanding or sandblasting or other surface abrasion;
g) any Yacht which has been misused, used in a negligent manner, used
for racing, used for rental, charter, military or other commercial
h) purposes, used without normal maintenance, operated contrary to
instructions furnished by West Bay, or any manufacturer of any of the
components of the Yacht, or operated in violation of any federal, state,
province, coast guard or other governmental agency laws, rules or
regulations;
i) labour, shipping, handling, duty and brokerage charges to refit any
materials, equipment, or component replaced or repaired under any other
manufacturer’s warranty;
j) any loss, cost or expense arising as a result of contamination of any part
or component of the Yacht by biological agents including bacteria,
mildew, mold, fungi, mycotoxins, spores, viruses, or any colony or group
of the foregoing, or any other microorganisms or biological agents;
k) except to the extent limited by applicable state law, any incidental,
consequential or indirect damages caused as a result of any defect in
workmanship, repair or replacement; and
l) loss of time, inconvenience, rental charges, travel expenses, loss of use,
dockage fees, towing and/or service charges, loss of or damage to
personal property, including other non-defective parts or components of
the Yacht, or other loss howsoever caused is not covered by this
Warranty.
3) Estimates of Draft, fuel consumption capacities, or any estimates of
performance characteristics or measurements are estimates only and are not
covered by this Warranty. No warranty is made, either express or implied, as to
performance or any characteristic of performance.
4) This written Warranty is meant to be a complete and exclusive statement of the
terms of all West Bay warranties and supersedes any and all representations
and warranties, written or oral, made with respect to the Yacht.
5) Except to the extent required by applicable state law, there are no other
warranties, express or implied that extend beyond the face of this instrument.
This Warranty is restricted, solely and expressly, only to the repair or
replacement of any defect as defined herein and is in lieu of all other warranties
express or implied.This Warranty gives the purchaser specific legal rights, and
the purchaser may also have other rights under applicable state law.
6) a) West Bay invites any purchaser to inspect the Yacht before purchase, with
any experts (mechanical or otherwise) to determine to the purchaser's
satisfaction, the condition of the Yacht prior to purchase.
b) This Warranty shall commence upon purchaser taking delivery of the Yacht
and upon executing a Final Acceptance document.
7) Only dealers and other repair facilities expressly authorized by West Bay may
carry out repairs as contemplated herein. After an authorized dealer or an
authorized repair facility has been assigned by West Bay for warranty work,
reimbursement for labour costs provided by the such dealer or repair facility
under this Warranty will be based upon a rate and schedule established by
West Bay. This reimbursement may be directly to the authorized dealer or
authorized repair facility.
8) West Bay reserves the right to improve its products through change of design
and/or material without obligation to incorporate such change in Yachts of prior
manufacture. West Bay does not have a model year as such, and changes are
incorporated in Yachts by the manufacturer as the same are constructed from
time to time. West Bay does not warrant or represent that a particular Yacht is
of a particular model year.
9) Any alleged defect must be reported to West Bay in writing within Thirty (30)
days of the discovery of same and in any event within the applicable warranty
period following delivery and acceptance whichever first occurs with the
following information:
a) Owner's name and address
b) Yacht serial number (hull number)
c) Information as to the nature of the alleged defect
d) Date actually placed in service
e) Accumulated hours and days of service.
10) All warranty claims and other necessary communication in connection with this
Warranty must be sent to West Bay at the following address:
Warranty Services Coordinator
West Bay SonShip Yacht Builders Ltd.
8295 River Road
Delta,BritishColumbia,Canada,V4G1B4

OCT/07 7 of 11
West Bay SonShip Yacht Builders Ltd.
8295 River Rd. Delta, B.C., V4G 1B4
54 Pilothouse Motor Yacht Hull #07
Item Custom Upgrades
1101
Propulsion Systems and Propulsion System Controls
1102
Upgrade standard Volvo D9-500 500 HP engines to Volvo D12D-B 715 HP
engines with ZF controls at Pilothouse and Command Bridge.
1200
Additional Equipment - Engine Room and Lazarette
1205
Supply and install Teprorib matting package in Lazarette and Transom storage
locker.
1208
Upgrade standard 50amp receptacle and shore cord to 50amp Glendinning system
with 75 ft. power cord at transom.
1800
Aft Deck
1802
Supply and install one (1) Miele 240 volt AC barbecue to port forward cabinet.
2002
Fore Deck, House
2002
Supply raw water washdown tap at anchor locker.
2100
Command Bridge
2101
Supply and install WD 1000 lb davit with 8ft reach, winch, luff and manual
rotation features.
2303
Interior General
2303
Select interior décor (Black / Tan).
2305
Supply and install Cruisair 1 – zone air conditioning system to Galley and
Pilothouse area.
2306
Supply and install Phantom roll screen to Salon doors and Pilothouse door.
2307
Supply and install Espar model D5-L forced air heating system, (2) vari-speed
furnaces with outlets throughout vessel.
2308
Upgrade standard Solid Surface countertops to granite in Galley and Pilothouse.
2500
Salon
2501
Supply (1) custom salon chair.
2504
Upgrade sofa to hide-a-bed.

OCT/07 8 of 11
Item
Custom Upgrades
3400
Forward Stateroom
3402
Supply and install stainless steel elliptical port lights (2) with screens and privacy
covers, (1) port and (1) starboard.
3800
Master Stateroom
3801
Supply and install 15" LCD TV/DVD combo on forward wall, port.
3803
Supply and install washer/dryer combo unit (ventless) located in cabinet above
forward port dresser.
5400
Delivery Charges & Miscellaneous
5402
Supply Safety Package: 24" life ring, 50' buoyant heaving line, (6) approved
personal floatation devices (adult size), Orion flare gun kit, 8" chrome plated brass
bell, oil discharge and pollution placards, air horn and floating cushion.
5403
Navigational Package
Pilothouse:
1 - Furuno 1934C 4kW Radar - 3.5 ft array 48NM 10.4 colour
plotter/sounder/radar display
1 - Furuno GP1720CNT 7" display
1 - Furuno 20 meter cable for radar
1 - Furuno DFF1 black box sounder
1 - Furuno GP-37 DGPS - H field antenna with WAAS
1 - Furuno RD-30 remote repeater - depth/speed
1 - ICOM M504 VHF radio with DSC, black
1 - ICOM MB75 flush kit
1 - C-map cartridge - charts (tbd)
1 - Simrad AP25 autopilot head
1 - Simrad AC-20 junction box
Command Bridge:
1 - Furuno GP-1920C 10.4" display - radar/plotter/sounder
1 - Simrad AP-16 autopilot head
1 - ICOM M304S VHF radio with DSC, black
1 - ICOM MB-69 flush mount kit for M402S VHF
2 - Shakespeare arch mount 8', antenna and mounts

OCT/07 9 of 11
Navigational Package, continued…
Arch:
2 - Shakespeare SH-4365 antenna mounts for Glomex
1 - Glomex V-9112 local TV Antenna
Lazarette:
1 - Simrad RF-300 rudder feedback unit
1 - Simrad RPU-300 24 volt pumpset
Bilge:
1 - Airmar B744VL tri-ducer 50-200HKZ long bronze
1 - Airmar high speed fairing block for x-ducer
1 - Simrad RC-25 rate compass
Misc:
1 - 4 port hub
1 - Simrad 10 meter Simnet cable
1 - Simrad 30 meter Simnet cable
Delivery FOB the Factory, Delta, B.C. Canada
Estimated top speed 28 Knots, cruise 24 Knots with Volvo 715HP.

OCT/07 10 of 11

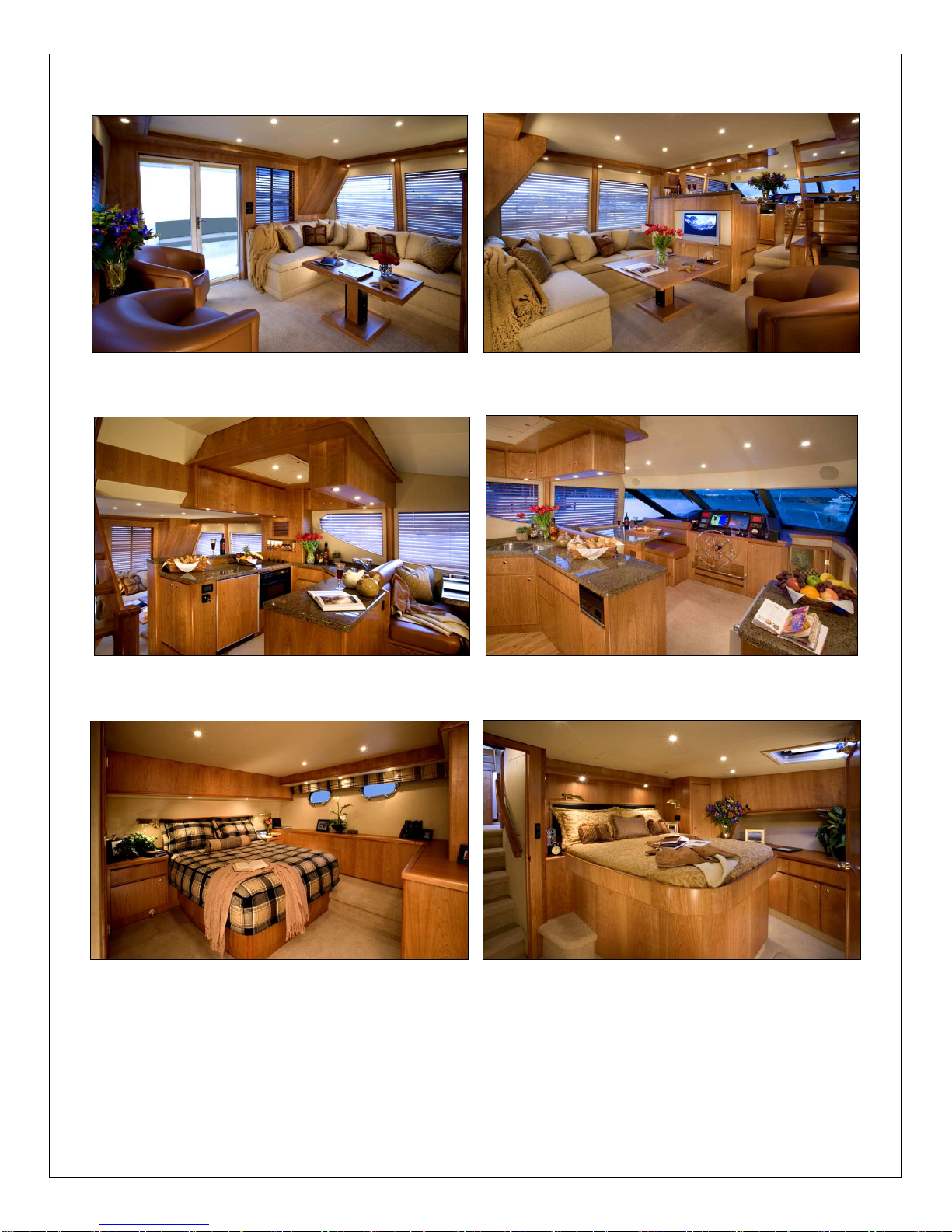

Salon Salon
Galley Galley
Master Stateroom Forward Stateroom

OCT/07 11 of 11
Command Bridge Dash Command Bridge
Engine Room
