Western Digital ActiveScale X100 Installation instructions

22 4
Storing the World’s Data™ | www.wdc.com
ActiveScale™ X100 Support Guide
January 2020
Publication 1ET0372 5.5.2-D-3.3

ActiveScale™ X100 Support Guide Copyright
2
Copyright
Publication Information
One MB is equal to one million bytes, one GB is equal to one billion bytes, one TB equals
1,000GB (one trillion bytes) and one PB equals 1,000TB when referring to storage capacity.
Usable capacity will vary from the raw capacity due to object storage methodologies and other
factors.
The following paragraph does not apply to any jurisdiction where such provisions are
inconsistent with local law: THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
This publication could include technical inaccuracies or typographical errors. Changes are
periodically made to the information herein; these changes will be incorporated in new editions
of the publication. There may be improvements or changes in any products or programs
described in this publication at any time. It is possible that this publication may contain
reference to, or information about, Western Digital products (machines and programs),
programming, or services that are not announced in your country. Such references or
information must not be construed to mean that Western Digital Corporation intends to
announce such Western Digital products, programming, or services in your country. Technical
information about this product is available by contacting your local Western Digital product
representative or on the Internet at https://portal.wdc.com/Support/s/login/.
Western Digital Corporation may have patents or pending patent applications covering subject
matter in this document. The furnishing of this document does not give you any license to these
patents.
© 2016-2019 Western Digital Corporation or its affiliates.
Long Live Data, EasiScale, ActiveScale OS, and the Western Digital logo are registered
trademarks or trademarks of Western Digital Corporation or its affiliates in the U.S. and/or
other countries. Amazon S3, Amazon Simple Storage Services, and Amazon AWS S3 are
trademarks of Amazon.com, Inc. or its affiliates in the United States and/or other countries.
Other trademarks are the property of their respective owners. References in this publication to
Western Digital-branded products, programs, or services do not imply that they will be made
available in all countries. Product specifications provided are sample specifications and do not
constitute a warranty. Actual specifications for unique part numbers may vary. Please visit the
Support section of our website https://portal.wdc.com/Support/s/login/ for additional
information on product specifications. Photographs may show design models. References in this
publication to Western Digital-branded products, programs or services do not imply that they
are to be available in all countries in which Western Digital operates.

ActiveScale™ X100 Support Guide
3
Contents
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1 ActiveScale X100 product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1 About the ActiveScale X100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2 System specification summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3 Airflow requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.4 Servicing space requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.5 Available kits and upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.5.1 Scale up kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.5.2 Scale out kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.5.3 Rack seal kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.5.4 System Expansion Node kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2 Component overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.1 Management Interconnect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.1.1 Management Interconnect component identification . . . . . . . . . . . . . . . . . . . . 18
2.1.1.1 Management Intercocolorado springs . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.1.1.2 Management Interconnect system LEDs . . . . . . . . . . . . . . . . . . . . . . . . 19
2.1.1.3 Management Interconnect 1G port LEDs . . . . . . . . . . . . . . . . . . . . . . . . 19
2.1.1.4 Management Interconnect SFP+ Port LEDs . . . . . . . . . . . . . . . . . . . . . . 20
2.1.2 Replaceable parts for Management Interconnects . . . . . . . . . . . . . . . . . . . . . . 20
2.1.3 Management Interconnect specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.2 System Interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.2.1 System Interconnect component identification . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.2.1.1 System Interconnect front and rear view . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.2.1.2 QSFP+ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.2.1.3 System Interconnect LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.2.2 Replaceable parts for System Interconnects . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.2.3 System Interconnect specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.3 System Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.3.1 System Node component identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.3.1.1 System Node front and rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.3.1.2 Physical port to Ethernet device mapping . . . . . . . . . . . . . . . . . . . . . . . . 26
2.3.1.3 System Node LEDs and buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.3.2 Replaceable parts for System Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.3.3 System Node specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.4 Storage Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.4.1 Storage Node component identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.4.1.1 Storage Node front and rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

ActiveScale™ X100 Support Guide
4
2.4.1.2 Physical port to Ethernet device mapping . . . . . . . . . . . . . . . . . . . . . . . . 29
2.4.1.3 SFP+ ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.4.1.4 Storage Node LED and button identification . . . . . . . . . . . . . . . . . . . . . 29
2.4.2 Replaceable parts for Storage Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.4.3 Storage Node specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.5 Pull-out tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.6 Storage Enclosure Basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.6.1 Storage Enclosure Basic component identification . . . . . . . . . . . . . . . . . . . . . 32
2.6.1.1 Storage Enclosure Basic front and rear view . . . . . . . . . . . . . . . . . . . . . . 33
2.6.1.2 Storage Enclosure Basic LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.6.2 Replaceable parts for Storage Enclosure Basics . . . . . . . . . . . . . . . . . . . . . . . . 35
2.6.3 Storage Enclosure Basic specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.7 Power Distribution Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.7.1 PDU component identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.7.1.1 PDU numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.7.1.2 Power distribution unit LED identification . . . . . . . . . . . . . . . . . . . . . . . 38
2.7.2 Replaceable parts for PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2.7.3 PDU specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2.7.4 Power cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3 Parts replacement steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3.1 PDU part replacement instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.1.1 Replacing PDUs (single and three-phase) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.1.1.1 Removing a PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.1.1.2 Installing a PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.1.2 Programming PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.1.2.1 Connecting to the PDU with a serial port . . . . . . . . . . . . . . . . . . . . . . . . 45
3.1.2.2 Connecting to the PDU with an Ethernet port . . . . . . . . . . . . . . . . . . . . . 45
3.1.2.3 Logging into the PDU Firmware CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.1.2.4 Three-phase PDU programming with three PDUs . . . . . . . . . . . . . . . . . 46
3.2 Management Interconnect part replacement instructions . . . . . . . . . . . . . . . . . . . . . 50
3.2.1 Replacing Management Interconnects (rackless system) . . . . . . . . . . . . . . . . . 50
3.2.1.1 Removing the Management Interconnect from a rackless system . . . . . 50
3.2.1.2 Installing the Management Interconnect into a rackless system . . . . . . . 51
3.2.2 Replacing Management Interconnects (racked system) . . . . . . . . . . . . . . . . . . 51
3.2.2.1 Removing the Management Interconnect from a racked system . . . . . . . 51
3.2.2.2 Installing the Management Interconnect into a racked system . . . . . . . . 53
3.3 System Interconnect part replacement instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.3.1 Replacing System Interconnect fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.3.1.1 Removing a System Interconnect fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.3.1.2 Installing a System Interconnect fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

ActiveScale™ X100 Support Guide
5
3.3.2 Replacing System Interconnect PSUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.3.2.1 Removing a System Interconnect PSU . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.3.2.2 Installing a System Interconnect PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.3.3 Replacing QSFP+ 40G transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.3.3.1 Removing a System Interconnect QSFP+ 40G transceiver . . . . . . . . . . . 56
3.3.3.2 Installing a System Interconnect QSFP+ 40G transceiver . . . . . . . . . . . . 57
3.3.4 Replacing System Interconnects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.3.4.1 Removing a System Interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.3.4.2 Installing a System Interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.3.4.3 Programming a System Interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.4 System Node part replacement instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.4.1 Replacing System Node drives (SSD and HDD) . . . . . . . . . . . . . . . . . . . . . . . 61
3.4.1.1 Removing a System Node drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.4.1.2 Installing a System Node drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.4.2 Replacing System Node PSUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.4.2.1 Removing a System Node PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.4.2.2 Installing a System Node PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3.4.3 Replacing SFP+ transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3.4.3.1 Removing a SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3.4.3.2 Installing a SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
3.4.4 Replacing System Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
3.4.4.1 Removing a System Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
3.4.4.2 Installing a System Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.5 Storage Node part replacement instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.5.1 Replacing 2.5 inch drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.5.1.1 Removing a 2.5 inch drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.5.1.2 Installing a 2.5 inch drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.5.2 Replacing Storage Node PSUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.5.2.1 Removing a Storage Node PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.5.2.2 Installing a Storage Node PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.5.3 Replacing SFP+ 10G transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
3.5.3.1 Removing an SFP+ 10G transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
3.5.3.2 Installing an SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
3.5.4 Replacing Storage Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
3.5.4.1 Removing a Storage Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
3.5.4.2 Installing a Storage Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
3.6 Storage Enclosure Basic part replacement instructions . . . . . . . . . . . . . . . . . . . . . . . 77
3.6.1 Replacing Storage Enclosure Basic I/O modules . . . . . . . . . . . . . . . . . . . . . . . 77
3.6.1.1 Removing a Storage Enclosure Basic I/O module . . . . . . . . . . . . . . . . . . 77
3.6.1.2 Installing a Storage Enclosure Basic I/O module . . . . . . . . . . . . . . . . . . 80

ActiveScale™ X100 Support Guide
6
3.6.2 Replacing Storage Enclosure Basic sleds or sled blanks . . . . . . . . . . . . . . . . . 82
3.6.2.1 Sled replacement constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
3.6.2.2 Removing a Storage Enclosure Basic sled or sled blank . . . . . . . . . . . . . 82
3.6.2.3 Installing a sled or sled blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
3.6.3 Replacing Storage Enclosure Basic fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
3.6.3.1 Removing a Storage Enclosure Basic fan . . . . . . . . . . . . . . . . . . . . . . . . 86
3.6.3.2 Installing a Storage Enclosure Basic fan . . . . . . . . . . . . . . . . . . . . . . . . . 86
3.6.4 Replacing Storage Enclosure Basic PSUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
3.6.4.1 Removing a Storage Enclosure Basic PSUs . . . . . . . . . . . . . . . . . . . . . . 87
3.6.4.2 Installing a Storage Enclosure Basic PSU . . . . . . . . . . . . . . . . . . . . . . . . 88
3.6.5 Replacing Storage Enclosure Basic hard disk drives . . . . . . . . . . . . . . . . . . . . 89
3.6.5.1 Removing a Storage Enclosure Basic hard disk drive . . . . . . . . . . . . . . . 89
3.6.5.2 Installing a Storage Enclosure Basic hard disk drive . . . . . . . . . . . . . . . 92
3.6.6 Replacing a Storage Enclosure Basic chassis . . . . . . . . . . . . . . . . . . . . . . . . . . 93
3.6.6.1 Removing a Storage Enclosure Basic chassis . . . . . . . . . . . . . . . . . . . . . 93
3.6.6.2 Installing a Storage Enclosure Basic chassis . . . . . . . . . . . . . . . . . . . . . . 96
3.7 Rack part replacement instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
3.7.1 Replacing the Management Interconnect mounting kit (racked systems) . . . . 99
3.7.1.1 Removing a Management Interconnect mounting kit . . . . . . . . . . . . . . . 99
3.7.1.2 Installing a Management Interconnect mounting kit . . . . . . . . . . . . . . . 100
3.7.2 Replacing the 1U mounting kit for System and Storage Nodes . . . . . . . . . . . 100
3.7.2.1 Removing a 1U mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
3.7.2.2 Installing a 1U mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
3.7.3 Replacing the System Interconnect 1U mounting kit (racked systems) . . . . . 103
3.7.3.1 Removing a System Interconnect 1U mounting kit . . . . . . . . . . . . . . . . 103
3.7.3.2 Installing a System Interconnect 1U mounting kit . . . . . . . . . . . . . . . . 103
3.7.4 Replacing System Interconnect 3U mounting kit (rackless systems) . . . . . . . 104
3.7.4.1 Removing a 3U mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
3.7.4.2 Installing a 3U mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
3.7.5 Replacing the Storage Enclosure Basic rail kit . . . . . . . . . . . . . . . . . . . . . . . . 108
3.7.5.1 Removing a Storage Enclosure Basic rail kit . . . . . . . . . . . . . . . . . . . . 108
3.7.5.2 Installing a Storage Enclosure Basic rail kit . . . . . . . . . . . . . . . . . . . . . 108
3.7.6 Front and rear rack doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
3.7.6.1 Removing a front or rear rack door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
3.7.6.2 Installing a front or rear rack door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
3.7.7 Rack tip plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
3.7.7.1 Removing the rack tip plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
3.7.7.2 Installing rack tip plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
4 System cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
4.1 Reading cable labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

ActiveScale™ X100 Support Guide
7
4.2 Cabling map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
4.3 Cabling for single-phase PDU configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
4.4 Cabling for three-phase PDU configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
4.4.0.1 Three-phase across two PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
4.4.0.2 Three-phase across three PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
4.4.0.3 Management Interconnect cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
4.5 Single-phase PDU power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
4.6 Three-phase PDU power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
5 Installing scale up kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
5.1 Installing sled columns as part of scale up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
5.2 Provisioning the newly added sleds on a single site system . . . . . . . . . . . . . . . . . . 141
5.3 Provisioning the newly added sleds on a multi-site system- . . . . . . . . . . . . . . . . . . . . 145
6 Installing scale out kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
6.1 Hardware steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
6.2 Parts Required for Scale Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
6.2.1 Additional Parts Required for Multi-Site Configuration . . . . . . . . . . . . . . . . 152
6.3 Connecting the Cables Between the Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
6.3.1 Cabling Two Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
6.4 Cabling Three Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
6.5 Opening Interconnect Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
6.6 Additional steps for multi-site configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
6.6.1 Software steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
6.6.2 Post-requisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
7 Installing rack seal kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
7.1 Installing the rack seal plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
8 Installing System Expansion Node kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
8.1 System Expansion Node kit requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
8.1.1 Public Network IP address requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
8.1.2 Multi-site deployment requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
8.1.3 Rack requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
8.1.4 PDU requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
8.1.4.1 PDU requirements for Racked systems . . . . . . . . . . . . . . . . . . . . . . . . . 169
8.2 Unpacking System Expansion Node kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
8.3 Installing System Expansion Node kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
8.3.1 Installing the 1U rail kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
8.3.2 Installing a System Expansion Node into the rack . . . . . . . . . . . . . . . . . . . . . 174
8.4 Connecting the System Expansion Node kit networking cables . . . . . . . . . . . . . . . 174
8.5 Installing System Expansion Node kits in multi-site systems . . . . . . . . . . . . . . . . . 174

ActiveScale™ X100 Support Guide
8
8.6 Installing the System Expansion Node PDU kit . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
8.6.1 Re-balancing the PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
8.6.1.1 Three-phase across two PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
8.6.1.2 Three-phase across three PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
8.6.2 Programming the PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
8.6.2.1 Connecting to the PDU with a serial port . . . . . . . . . . . . . . . . . . . . . . . 179
8.6.2.2 Connecting to the PDU with an Ethernet port . . . . . . . . . . . . . . . . . . . . 180
8.6.2.3 Logging into the PDU Firmware CLI . . . . . . . . . . . . . . . . . . . . . . . . . . 180
8.6.2.4 Three-phase PDU programming with three PDUs . . . . . . . . . . . . . . . . 181
8.7 Programming the System Interconnects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
8.8 Powering on the System Expansion Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
8.9 Software steps for adding a System Expansion Node kit . . . . . . . . . . . . . . . . . . . . 188
9 Re-racking a system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
9.1 Warnings and cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
9.2 Rack Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
9.2.1 PDU requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
9.3 Re-racking instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
9.3.1 Re-racking order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
9.3.2 Transferring the system hardware to the new rack . . . . . . . . . . . . . . . . . . . . . 197
9.3.3 Completing re-racking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
10 Split-racking a system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
10.1 Warnings and cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
10.2 Rack Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
10.3 PDU requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
10.3.1 Load balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
10.4 Split-racking instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
10.4.1 Split racking order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
10.4.2 Moving the system hardware to the second rack . . . . . . . . . . . . . . . . . . . . . 204
10.4.3 Completing split-racking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
10.4.4 Cabling for split-rack single-phase PDU configurations . . . . . . . . . . . . . . . 205
11 Troubleshooting the ActiveScale™ X100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
11.1 Troubleshooting Storage Enclosure Basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
11.1.1 Troubleshooting a fan fault LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
11.1.2 Troubleshooting an HD MiniSAS cable LED fault . . . . . . . . . . . . . . . . . . . 208
11.1.3 Troubleshooting a power supply unit fault LED . . . . . . . . . . . . . . . . . . . . . . 208
11.1.4 Troubleshooting an I/O module fault LED . . . . . . . . . . . . . . . . . . . . . . . . . . 208
11.1.5 Troubleshooting a sled fault LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
11.1.6 Troubleshooting a drive fault LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
11.2 Troubleshooting power distribution units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

ActiveScale™ X100 Support Guide
9
11.2.1 Troubleshooting tripped breakers on a PDU . . . . . . . . . . . . . . . . . . . . . . . . . 225
A Replaceable parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
A.1 Replaceable cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
A.2 Replaceable parts for PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
A.3 Replaceable parts for Management Interconnects . . . . . . . . . . . . . . . . . . . . . . . . . 227
A.4 Replaceable parts for mounting kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
A.5 Replaceable parts for Storage Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
A.6 Replaceable parts for System Interconnects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
A.7 Replaceable parts for System Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
A.8 Replaceable parts for Storage Enclosure Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
A.9 Replaceable parts for racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
A.10 Upgrade kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
B System specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
B.1 System specification summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
B.2 Hard disk drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
B.3 Management Interconnect specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
B.4 PDU specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
B.4.1 Power cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
B.5 Rack specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
B.6 Solid state drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
B.7 Storage Enclosure Basic specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
B.8 Storage Node specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
B.9 System Interconnect specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
B.10 System Node specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
C Recommended torque of machined fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
D ActiveScale X100 regulatory and safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
D.1 Regulatory compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
D.1.1 FCC verification statement (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
D.1.2 ICES-003 (Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
D.1.3 Europe (CE declaration of conformity) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
D.1.4 VCCI (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
D.1.5 BSMI (Taiwan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
D.2 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
D.2.1 Restricted access location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
D.2.2 Safety compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
D.2.3 Electromagnetic compatibility agency requirements . . . . . . . . . . . . . . . . . . . 247
D.3 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
D.3.1 Optimizing location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

ActiveScale™ X100 Support Guide
10
D.3.2 Safety warnings and cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
D.3.3 Electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
D.3.4 Power connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
D.3.5 Power cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
D.3.6 Rack-mountable systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
D.3.7 Safety and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Points of contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

ActiveScale™ X100 Support Guide
11
1 ActiveScale X100 product overview

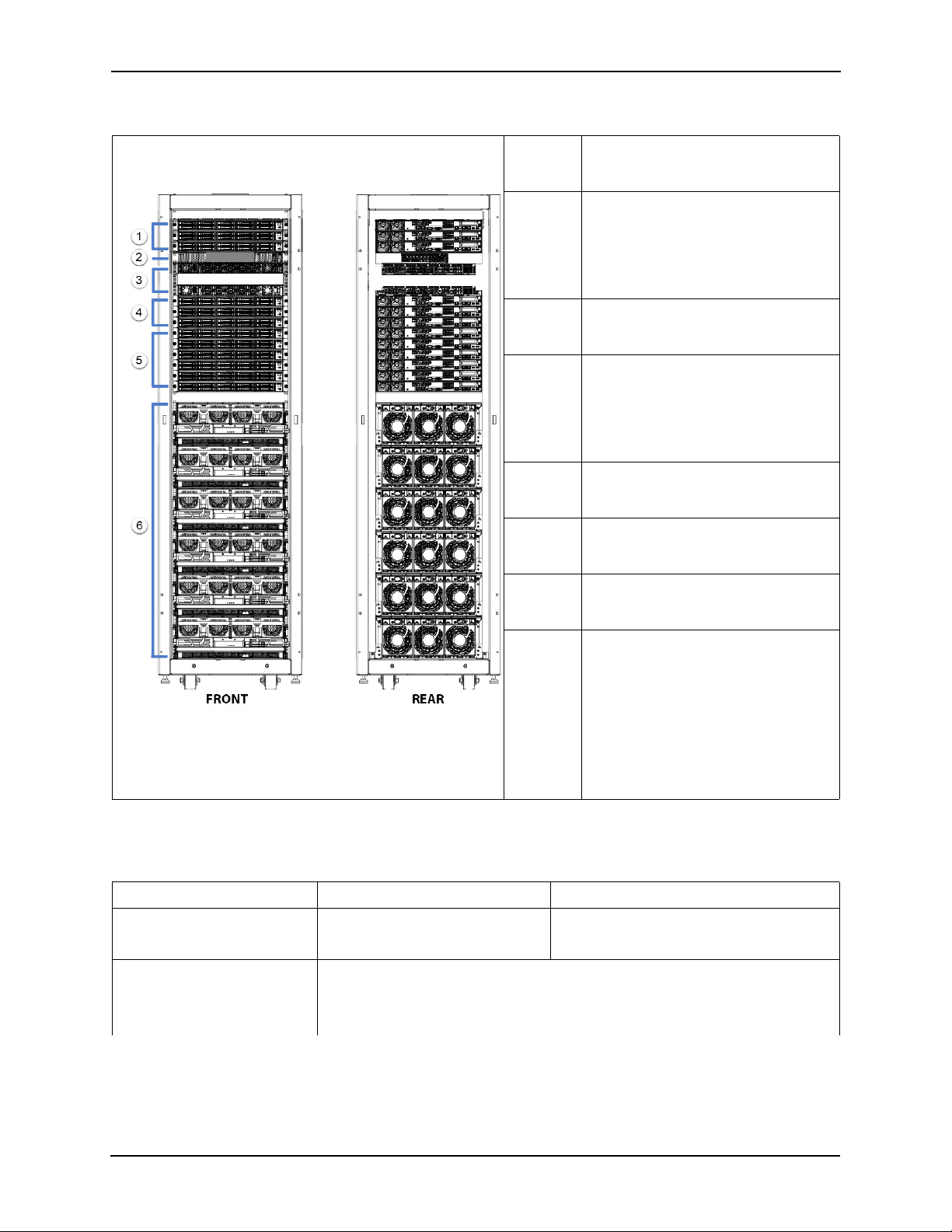

This guide applies to both rackless and racked ActiveScale X100 systems.
This section provides an overview of the ActiveScale X100 system.
Topics:
•About the ActiveScale X100 on page 12
•System specification summary on page 13
•Airflow requirements on page 15
•Servicing space requirements on page 15
•Available kits and upgrades on page 16

ActiveScale™ X100 Support Guide
12
1.1 About the ActiveScale X100
The ActiveScale X100 is a 42U, scalable, object-based data storage system that allows you to easily keep
up with data growth and deliver on your business objectives.
The minimum configuration is equipped with one sled column in all six Storage Enclosure Basics and
provides either:
• 0.84 PB of data storage capacity using 10 TB HDDs.
• 1.008 PB of data storage capacity using 12 TB HDDs.
• 1.176 PB of data storage capacity using 14 TB HDDs.
Multi-site systems can achieve a maximum storage capacity of either:
• 52.92 PB (raw) using 10 TB HDDs.
• 63.504 PB (raw) using 12 TB HDDs.
• 74.088 PB of data storage capacity using 14 TB HDDs.
Note: 12 TB HDDs require ActiveScale OS 5.3 or later. 14 TB HDDs require
ActiveScale OS 5.5 or later.
The Storage Enclosures are connected using two 48 port System Interconnects.
ActiveScale X100 systems are equipped with ActiveScale OS software.

ActiveScale™ X100 Support Guide
13
Table 1-1. ActiveScale X100 identification
1.2 System specification summary
The following table is a summary of specifications relevant to the ActiveScale X100.
On rackless or re-racked systems, component location may vary.
Number Component
1 (Optional) System Expansion Nodes.
System Expansion Nodes are available
as part of the System Expansion Node
kit. Each kit contains one System
Expansion Node.
2 Management Interconnect
3 System Interconnects (blanking panels
not shown)
Note: There is no requirement to leave
space between System Interconnects in
a racked system.
4 System Nodes
5 Storage Nodes
6 Storage Enclosure Basics
N/A PDUs
On a standard system, either two or
three 3-phase, or four single-phase
PDUs are attached at the back of the
rack on either side of the cabinet.
On a rackless system, PDUs are
supplied by the customer and their
installation location may vary.
Condition (fully configured) Non-operating Operating
Altitude -984 ft to 39,3711 ft
(-300 m to 12,000 m)
-984 ft to 10,000 ft
(-300 m to 3048 m)
Packed system dimensions • Width—41.4 in (1052 mm)
•Depth—61.41 in (1560 mm)
•Height—88.3 in (2243 mm)

ActiveScale™ X100 Support Guide
14
Power requirements N/A Base configuration typical/max:
•2.5/3.3kW
Base +1 configuration typical/max:
•3.15/3.98 kW
Base +2 configuration typical/max:
•3.8/4.66 kW
Base +3 configuration typical/max:
•4.45/5.34 kW
Base +4 configuration typical/max:
•5.1/6.02 kW
Base +5 configuration typical/max:
•5.75/6.7 kW
Full (Base +6) configuration typical/max:
•6.4/7.4 kW
System Expansion Node kit:1
• .195 to 0.23 kW
Rack units (U) 42U2
Relative humidity 10% to 95% non-condensing 8% to 90% non-condensing
System dimensions • Width—23.6 in (600 mm)
•Depth—52.6 in (1338 mm)
•Height—81.1 in (2060 mm)
System dimensions (without
doors)
•Width—23.6 in (600 mm)
•Depth—47.2 in (1200 mm)
•Height—81.1 in (2060 mm)
Temperature 40°F to 158°F
(-40°C to 70°C)
50°F to 95°F
(10°C to 35°C)
Temperature de-rating 33.8°F per 984.2 ft above 9842.5 ft
(1°C per 300 m above 3000 m)
33.8°F per 984.2 ft above 3116.8 ft
(1°C per 300 m above 950 m)
Temperature gradient 86°F (30°C)/hour 68°F (20°C)/hour
Thermal output N/A Partial configuration (one column of
populated sleds):
• 8.53/11.26 KBTU/h
Full configuration (seven columns of
populated sleds):
• 21.83/ 25.25 KBTU/h
System Expansion Node kit:1
• 0.665 to 0.785 KBTU/hour
Condition (fully configured) Non-operating Operating

ActiveScale™ X100 Support Guide
15
1.3 Airflow requirements
Ensure that both the front and rear of the ActiveScale X100 stay clear of any materials that may block or
disrupt the airflow in any way. Disrupting the airflow can cause the system to overheat, which may affect
performance or cause damage to the system.
The following rack airflow principles should be considered for best results:
• Controlled air conditioners that are functional and can sufficiently maintain specified system
operating temperatures should be located in the facility where the system will be installed.
• The airflow in and out of the equipment must not be restricted.
1.4 Servicing space requirements
Space at the front and the rear of the system is required to service system components. The front space
requirement is based on the length of the longest system component, plus the space necessary to fit a
Weight • Minimum system weight3—1572 lbs (713 kg)
•Full system weight—2227 lbs (1010 kg)
•Delivery weight (system and packaging)—2457 lbs (1114 kg)
1.Values are for one additional node. System Expansion Node kits can contain up to three additional nodes.
2.Rackless system height can vary based on the installation. A rackless configuration uses 36U of equipment.
3.The minimum system weight does not include the rack and PDUs
Table 1-2. Airflow requirements
Condition (fully configured) Non-operating Operating
Altitude -984 ft to 39,3711 ft
(-300 m to 12,000 m)
-984 ft to 10,000 ft
(-300 m to 3048 m)
Relative humidity 10% to 95% non-condensing 8% to 90% non-condensing
Temperature 40°F to 158°F
(-40°C to 70°C)
50°F to 95°F
(10°C to 35°C)
Temperature de-rating 33.8°F per 984.2 ft above 9842.5 ft
(1°C per 300 m above 3000 m)
33.8°F per 984.2 ft above 3116.8 ft
(1°C per 300 m above 950 m)
Temperature gradient 86°F (30°C)/hour 68°F (20°C)/hour
Thermal output N/A Partial configuration (one column
populated sleds):
• 8.53/11.26 KBTU/h
Full configuration (seven columns of
populated sleds):
• 21.83/ 25.25 KBTU/h
System Expansion Node kit:
• 0.665 at 0.785 KBTU/hour
Condition (fully configured) Non-operating Operating

ActiveScale™ X100 Support Guide
16
person servicing the system. The rear space requirements is based on space a technician would need to
service all of the parts at the rear of the unit.
Figure 1-1. Minimum servicing space required
1.5 Available kits and upgrades
This section describes the upgrades and supplemental kits that are available for the ActiveScale X100.
1.5.1 Scale up kits
Each scale up kit contains additional sleds that increases data storage capacity by either:
• 0.84 PB using 10 TB HDDs.
• 1 PB using 12 TB HDDs.
• 1.18 PB using 14 TB HDD’s.
For more information, refer to Installing scale up kits on page 139.
1.5.2 Scale out kits
Storage capacity can be even further increased by connecting a new ActiveScale X100 to an existing
system.
For more information, refer to Installing scale out kits on page 152.
1.5.3 Rack seal kits
You can use the rack seal kit to seal racks with third-party, liquid-cooled doors.
For more information, refer to Installing rack seal kits on page 165.
1.5.4 System Expansion Node kits
System Expansion Node kits contain one additional System Node for your ActiveScale system. Additional
System Nodes allow you to increase system performance with your existing storage capacity. Up to three
system expansion kits (three additional System Nodes) can be added to a base ActiveScale system.
For more information, refer to Installing System Expansion Node kits on page 168.
Table 1-3. Space requirement specifications
Specification Value
Minimum front of rack space 48 in (1220 mm)
Minimum rear of rack space 22 in (560 mm)
FRONT
REAR
1220mm /
48in.
560mm /
22in.
Top of Rack

ActiveScale™ X100 Support Guide
17
2 Component overview
This section provides an overview of each ActiveScale X100 component.
Topics:
•Management Interconnect on page 18
•System Interconnect on page 21
•System Node on page 24
•Storage Node on page 28
•Pull-out tabs on page 31
•Storage Enclosure Basic on page 31
•Power Distribution Unit on page 36

ActiveScale™ X100 Support Guide
18
2.1 Management Interconnect
The Management Interconnect is used for IPMI control and monitoring of the System Nodes, Storage
Nodes, and PDU components. It is connected to System Interconnect 1 and the SFP connector.
Note: The Management Interconnect is non-redundant as it is not a critical
component.
Figure 2-2. Management Interconnect
2.1.1 Management Interconnect component identification
The information in this section will help you identify the components in a ActiveScale X100. Management
Interconnects.
2.1.1.1 Management Intercocolorado springs
nnect front and rear view

ActiveScale™ X100 Support Guide
19
2.1.1.2 Management Interconnect system LEDs
2.1.1.3 Management Interconnect 1G port LEDs
Table 2-4. Management Interconnect 1G Port LED descriptions
LED name Description LED action
Management Identifies management mode
status
•Solid green—System in management mode
•Off—System is in unmanaged mode
System locater Locater LED • Blinking blue—Locater is enabled
•Off—Locater not enabled
Status Identifies switch status • Solid green—Normal operation
•Blinking green—Booting
•Blinking amber—System error has occurred
LED name Description LED action
Act Identifies 1G port activity. • Blinking Green—Activity
•Off—No Activity
Management
System Locator
Status

ActiveScale™ X100 Support Guide
20
2.1.1.4 Management Interconnect SFP+ Port LEDs
Table 2-5. Management Interconnect SFP+ Port LED descriptions
2.1.2 Replaceable parts for Management Interconnects
The following table lists all of the replaceable components for a Management Interconnect.
Table 2-6. Management Interconnect Replaceable Parts
2.1.3 Management Interconnect specifications
The following table lists the system specifications for an individual Management Interconnect.
Link Identifies 1G port link status. • Solid Green—Link at 1000Mbps
•Solid Amber—Link at 10/100Mbps
•Off—No link
LED name Description LED action
Act Identifies SFP+ port activity • Blinking Green—Activity
•Off—No Activity
Link Identifies SFP+ port link status. • Solid Green—Link at 10Gbps
•Solid Amber—Link at 1Gbps
•Off—No link
Replaceable part Hot
swappable? Part number
Complete Management Interconnect No 1EX0252
Management Interconnect rack1adapter.
1. Only applies to rackless ActiveScale X100 configurations. Racked configu-
rations use the switch tray.
No N/A2
2. If the rack adapter requires replacement, contact Western Digital Corporation
support.
Switch tray No 1EX0087
LED name Description LED action
