Single and Dual-drive Remote Access Storage Systems
My Book
World Edition
User Manual
™
™

TABLE OF CONTENTS – i
Table of Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
My Book World Edition in Your Network—The Basics . . . . . . . . . . . . 1
2 About Your WD Product . . . . . . . . . . . . . . . . . . . . . . .2
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Updating Your Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Recording Your WD Product Information . . . . . . . . . . . . . . . . . . . . . . . 3
Registering Your Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Free Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Handling Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Format and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
My Book World Edition Front and Rear View . . . . . . . . . . . . . . . . . . . . 4
Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power/Activity LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Capacity Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rear View Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 WD Anywhere Access Setup . . . . . . . . . . . . . . . . . . . .7
6 Using WD Anywhere Access . . . . . . . . . . . . . . . . . . .12
Signing In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Inviting Others to Share . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TABLE OF CONTENTS – ii
7 Replacing a Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
9 Appendix A - Shared Storage Manager. . . . . . . . . .24
Accessing Shared Storage Manager. . . . . . . . . . . . . . . . . . . . . . . . . . 24
Shared Storage Manager Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
General Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
File Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Drive Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10 Appendix B - Regulatory and Warranty . . . . . . . . . .43
Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
GNU General Public License (“GPL”). . . . . . . . . . . . . . . . . . . . . . . . . 45
WD Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

MY BOOK WORLD EDITION
USER MANUAL
INTRODUCTION – 1
Introduction
My Book World Edition in Your Network—The Basics
Congratulations on purchasing a My Book World Edition remote access storage
system. Designed for home users, creative professionals, workgroups, small offices,
and anyone looking for shared storage, WD’s My Book World Edition offers a
surprisingly simple and secure way to access and share data, photos, and music at
home, in the office, and anywhere in the world—even when your local computer is
turned off.*
Follow the steps in this manual to set up centralized storage and make it available to
local and remote computers.
Note: The dual-drive My Book World Edition II is preformatted for maximum capacity
as a large, spanned single volume. To change the format to RAID 1 for additional
protection, see “Drive Management” on page 41. If WD Anywhere Access is not
currently installed, you must first run the Initial Setup wizard (see “Appendix A -
Shared Storage Manager” on page 24) before you can access Drive Management.
Once configuration is complete, you can start saving files to the device, or return to
the beginning of this manual for instructions on setting up the device with
WD Anywhere Access for remote file sharing and management.
* Some file formats may be copy protected and cannot be shared by WD Anywhere Access. For a list of these file types, search
for knowledge base article 1495 at support.wdc.com.

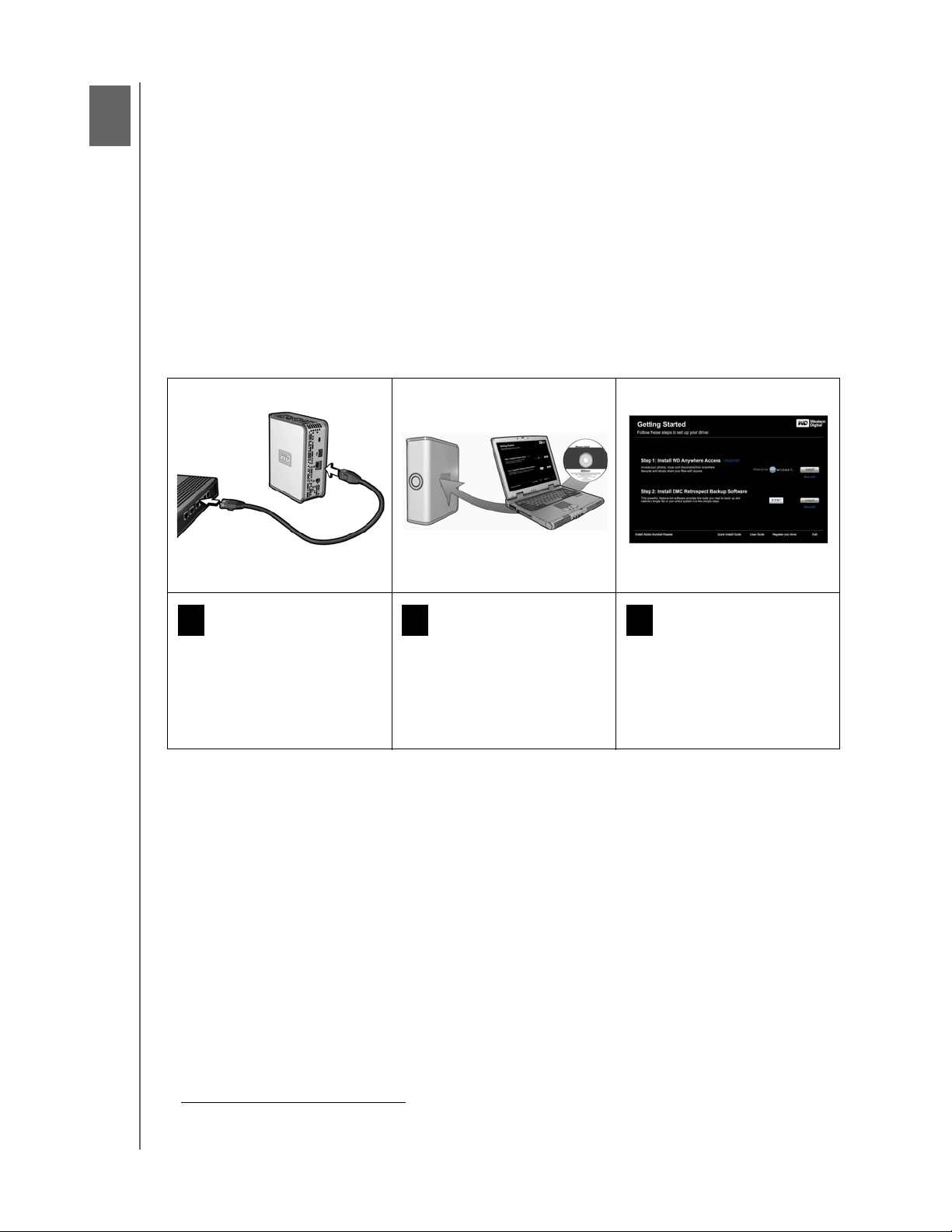

Connect My Book
World Edition to your
hub or router.
Locate My Book World
Edition on your
computer using
WD Anywhere Access™
powered by MioNet.
Act as administrator to
assign security
settings and set up,
create, and manage
shared folders
accessible from
anywhere in the world.
1
1 2 3

MY BOOK WORLD EDITION
USER MANUAL
ABOUT YOUR WD PRODUCT – 2
About Your WD Product
This user manual provides step-by-step installation instructions and other important
information regarding your WD product. For the latest WD product information and
news, visit our website at www.westerndigital.com.
Kit Contents
Optional Accessories
For more information on optional accessories for this product, visit store.wdc.com
(U.S. only). Outside the U.S., visit support.wdc.com.
System Requirements
• Available 10/100/1000Base-T Ethernet connection (network adapter, router,
switch, or hub port)
• 500 MB of available local hard drive space
• CD-ROM or DVD-ROM drive
• 512 MB of RAM
• Pentium®III class, 500 MHz or newer
• Windows 2000 or Windows XP Home/Pro
• Web browser (Mozilla™Firefox™1.0.3, Internet Explorer 6.0 or later)
• Broadband internet connection
Note: Compatibility may vary depending on user’s hardware configuration and
operating system.
Important: For highest performance and reliability, it is recommended that you
install the latest updates and service pack (SP). Go to the Start menu and select
Windows Update.
2
Remote Access Storage System
AC Adapter
Software CD Ethernet Cable
Quick Install Guide

MY BOOK WORLD EDITION
USER MANUAL
ABOUT YOUR WD PRODUCT – 3
Updating Your Operating System
Go to the Start menu and click Windows Update. For more information regarding
updating your system, visit windowsupdate.microsoft.com.
Recording Your WD Product Information
In the following table, write the serial number and model number of your new WD
product found on the large label on the back panel of the device. This information is
necessary for setup and technical support. Also, record the account information you
used when setting up WD Anywhere Access.
Registering Your Product
Registering your My Book device enables access to WD services such as news
about your product, tips, and updates. Registration is quick and easy. Go to
register.wdc.com and follow the instructions as prompted.
Free Technical Support
Your WD product includes 30 days of free technical support during the applicable
warranty period for your product. The 30-day period commences on the date of your
first telephone contact with WD technical support.
Handling Precautions
WD products are precision instruments and must be handled with care during
unpacking and installation. Drives may be damaged by rough handling, shock, or
vibration. Be aware of the following precautions when unpacking and installing your
external storage product:
• Do not drop or jolt the device.
• Do not move the device during activity.
• Do not use My Book as a portable device.
• Do not block air slots on the underside, top, or rear of the enclosure.
• Do not stack any objects on top of the device.
Serial Number:
Model Number:
Purchase Date:
System and Software Notes:
WD Anywhere Access account info:
User name:
Password:
E-mail:
Storage device name:

MY BOOK WORLD EDITION
USER MANUAL
GETTING STARTED – 4
Getting Started
Format and Configuration
My Book World Edition is preformatted as a Linux file system. The dual-drive model
My Book World Edition II is pre-configured for maximum capacity as a large single
spanned volume. For more information, see “Drive Management” on page 41.
My Book World Edition Front and Rear View
Power Button
The power button turns the device on or off. To turn on the device, press the power
button and hold down until the LED flashes once, then release. The LEDs will remain
off (up to 30 seconds) as the device powers up. Holding the button down for four
seconds powers off the device.
LED Indicators
The Power/Activity and Capacity Gauge LEDs are two concentric rings on the front
panel of the drive. The outer ring is the Power/Activity LED and the inner ring is the
Capacity Gauge LED.
Important: The device powers on automatically upon initial connection to power,
which may take up to three minutes.
3
Capacity Gauge LED (inner ring)
A
Power Button
B
Power/Activity LED (outer ring)
C
A
B
B
C
USB Port (for drive expansion only)
D
Ethernet Port
E
F
Recovery Button
G
D
E
F
G
Power Port
Kensington Security Slot
H
H

MY BOOK WORLD EDITION
USER MANUAL
GETTING STARTED – 5
Power/Activity LED
Capacity Gauge
The Capacity Gauge (inner LED) consists of six sections which illuminate in a
clockwise direction to indicate space used on the drive. Each section represents
approximately 1/6 (one sixth) of disk space. Because this drive is preformatted and
contains software and utilities, the first section is illuminated upon installation.
Rear View Ports
•Ethernet port—Connects to an open router, hub, or network switch port using an
Ethernet cable.
•USB 2.0 port—Connects an external USB hard drive.
•Power port—Connects to the supplied power adapter and cable.
Recovery Button
Pressing the recover button while powering up the device resets the admin user
name and password to default without erasing shared folders or volumes. The
recovery button also resets network configuration to DHCP.
Note: The default user name is admin and the default password is 123456.
Kensington®Security Slot
For drive security, this My Book device is equipped with a Kensington Security Slot,
which supports a standard Kensington security cable (sold separately). For more
information on the Kensington Security Slot and available products, visit
www.kensington.com.
Appearance Description
Steady Power-on state or power-
save mode
Outer LED ring rotating clockwise Device in use
Alternate flashing between inner and outer LED rings RAID degraded mode.
See section 7 for drive
replacement instructions.
Rotating inner LED ring which increments as the
rebuild percentage increases
RAID rebuild mode
Simultaneous flashing of both inner and outer LED
rings
Device is overheating.
Shut down the My Book
device.

MY BOOK WORLD EDITION
USER MANUAL
HARDWARE SETUP – 6

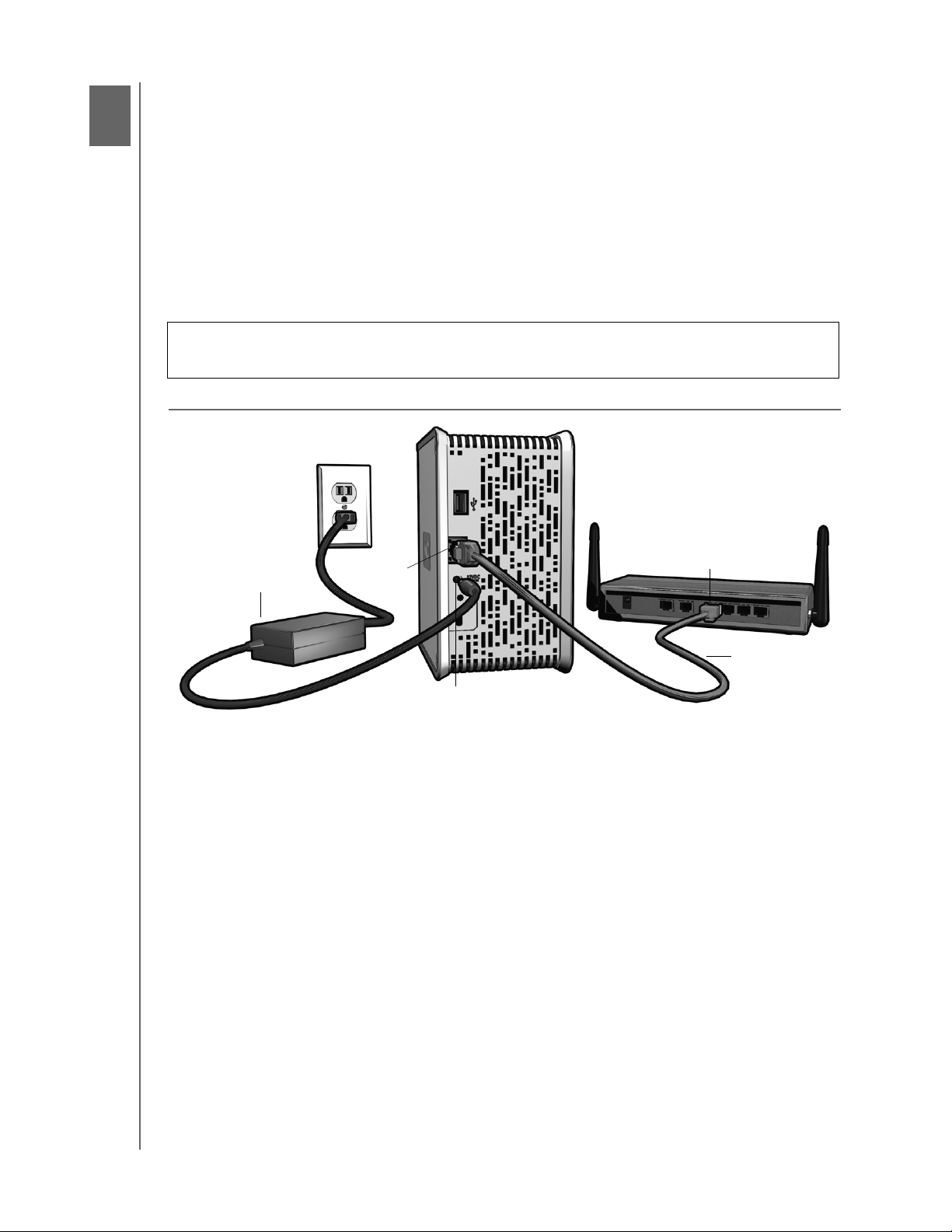

Hardware Setup
1. Connect one end of the Ethernet cable into the Ethernet port located on the back
of the unit.
2. Connect the other end of the Ethernet cable directly into a router or network
switch port.
3. Plug the AC adapter into an electrical outlet.
4. Connect the other end of the adapter into the DC power supply socket located on
the back of the unit. The unit powers up automatically after approximately 30
seconds indicated by an LED illuminated on the outer ring.
Important: Wait for the drive to finish powering up (approximately three minutes)
before installing WD Anywhere Access.
4
Ethernet port
AC adapter
Router Port
Power Port
Ethernet Cable

MY BOOK WORLD EDITION
USER MANUAL
WD ANYWHERE ACCESS SETUP – 7

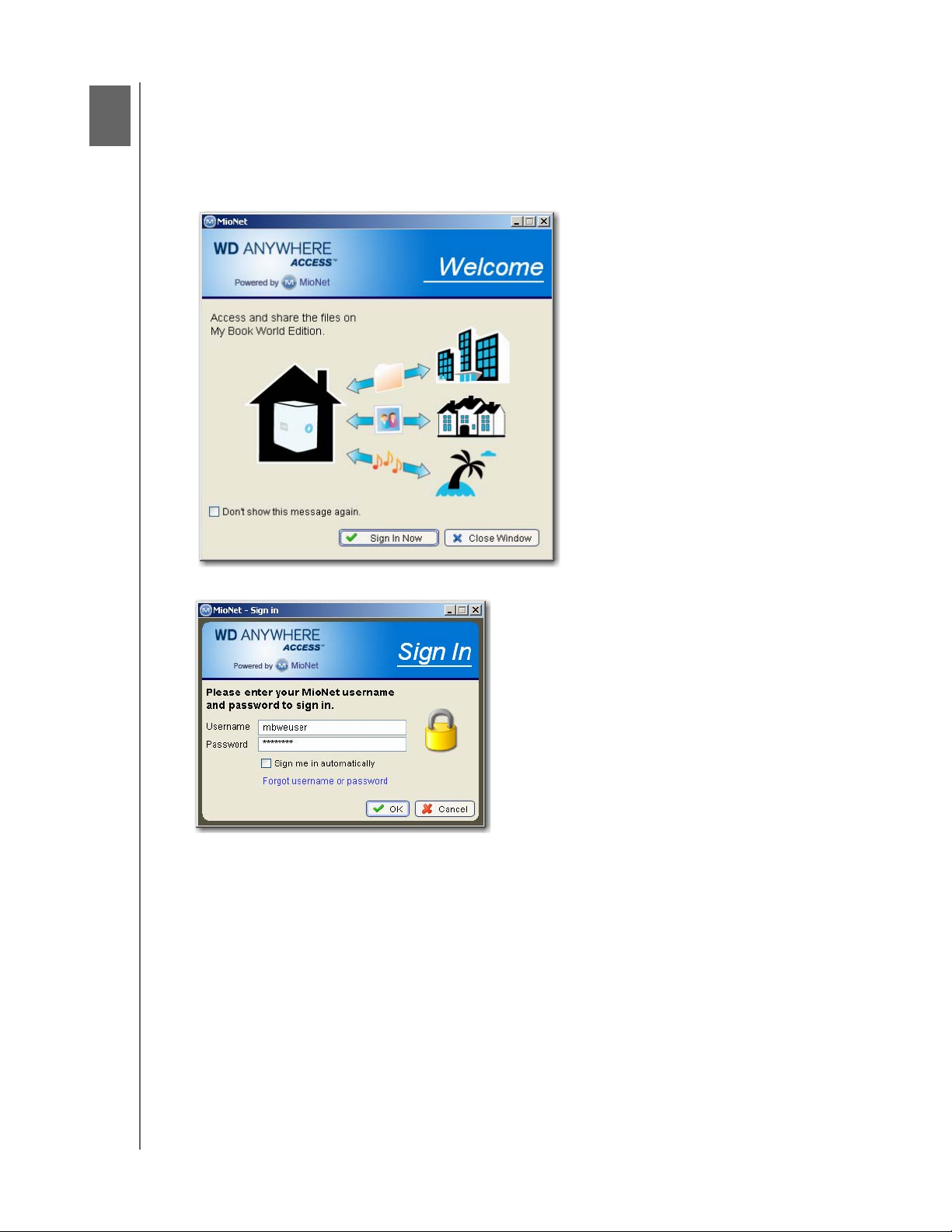

WD Anywhere Access Setup
This section contains instructions to get your My Book World Edition quickly set up
and running. To use My Book World Edition, installing WD Anywhere Access is
required.
Note: WD Anywhere Access is a custom version of MioNet. If the regular version of
MioNet is already installed in your system, you must uninstall it before installing
WD Anywhere Access.

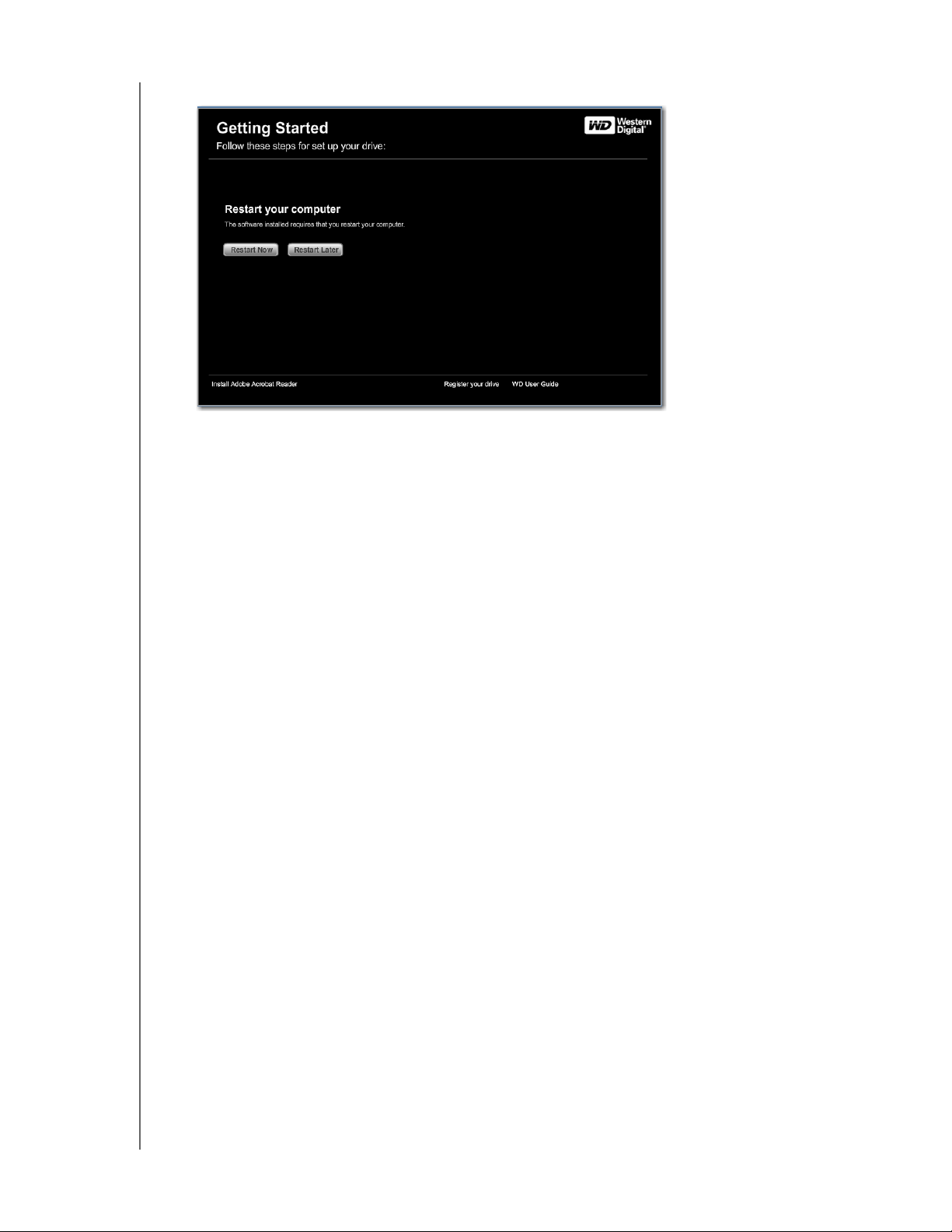

1. Insert the software CD into your CD-ROM drive. The program autoruns and

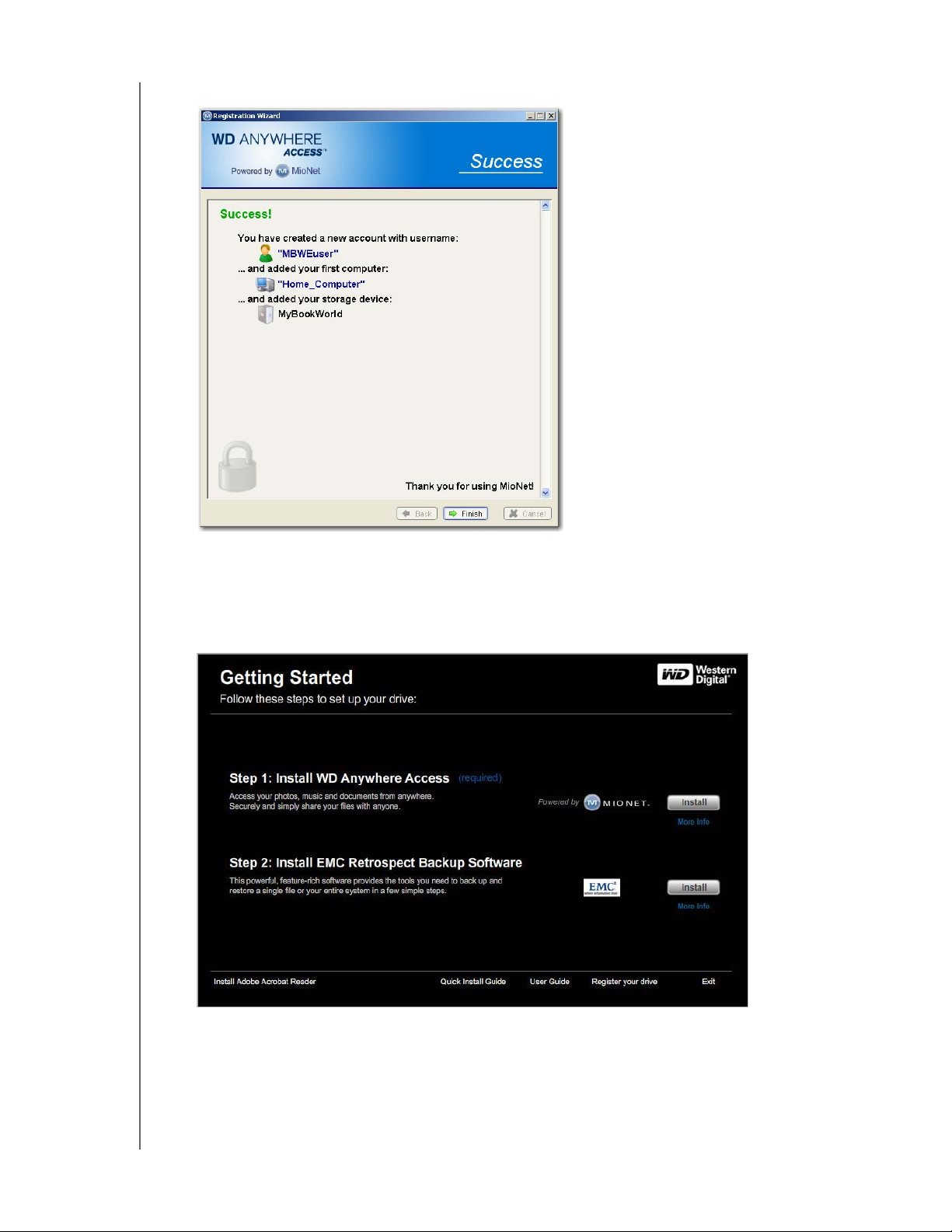

displays the My Book World Edition main menu. In Step 1, click Install.
If AutoPlay is disabled on your computer, you must install utilities manually. Click
the Start button and point to My Computer. Double-click the WD Installer icon,
the WDAnywhereAccess folder, and Setup.exe.

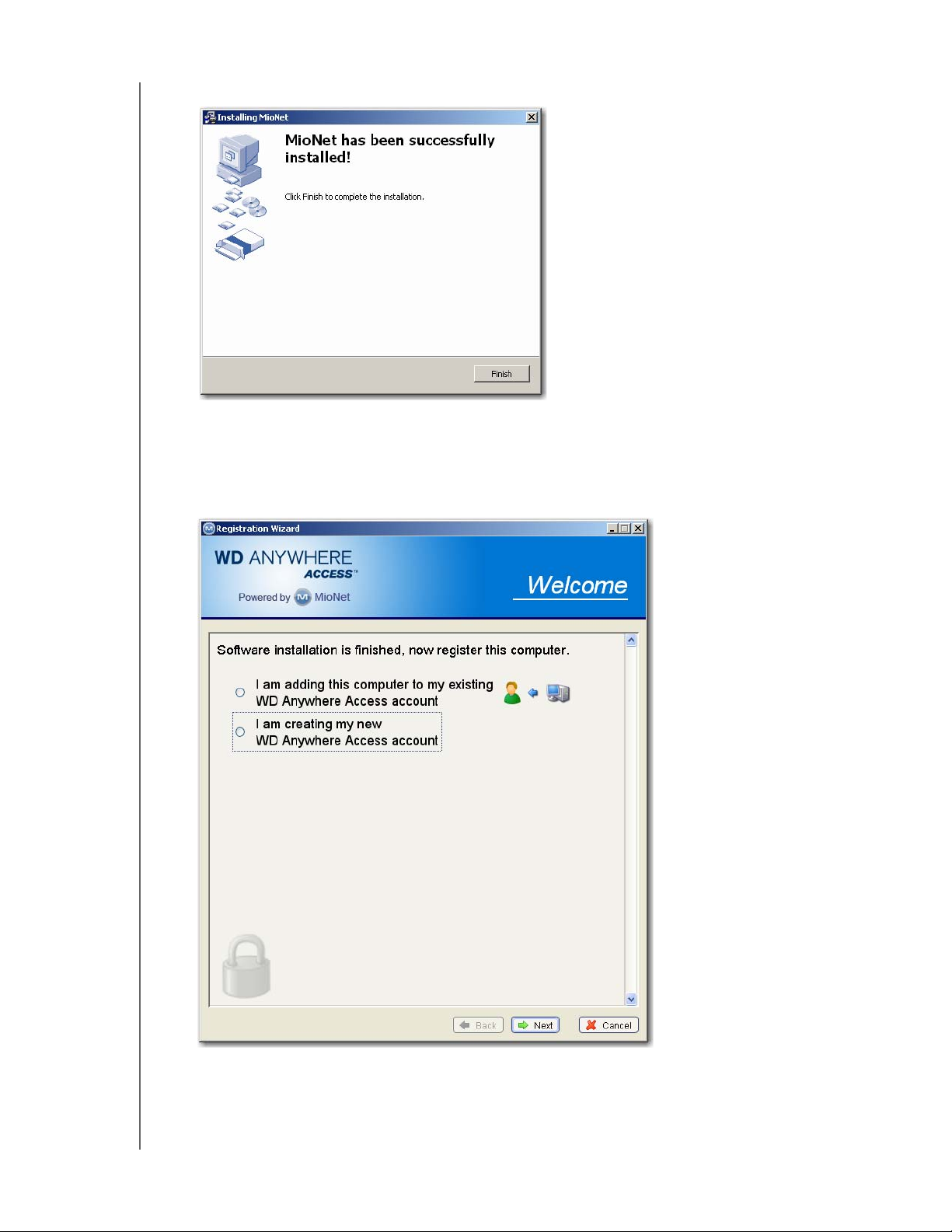

2. Read the license agreement. Click the I agree with the above terms and
conditions check box, then click Next.
5
