WESTERN SHELTER GK-OA2000 User manual

GS03F084CA
830 Wilson St., Eugene, OR 97402 USA 541.344.7267 1.800.971.7201 [e-mail] www.WesternShelter.com Western Shelter is ISO 9001 Certified
HEPA AIR FILTRATION SYSTEM
GK-OA2000 AIR FILTRATION
The GK-OA2000 HEPA Filtration System purifies airborn contaminants which could be biological, chemical or
particulates. Creates small negative pressure in shelters, providing isolation between operating room and the
outside environment. All the air pulled from the shelter is purified through 99.99% HEPA and by high intensity
UVGI light before it is exhausted into the general area. Carbon filters can also be added to a machine to remove
chemical odors.

GS03F084CA
830 Wilson St., Eugene, OR 97402 USA 541.344.7267 1.800.971.7201 [e-mail] www.WesternShelter.com Western Shelter is ISO 9001 Certified
HEPA AIR FILTRATION SYSTEM
GK-OA2000 AIR FILTRATION

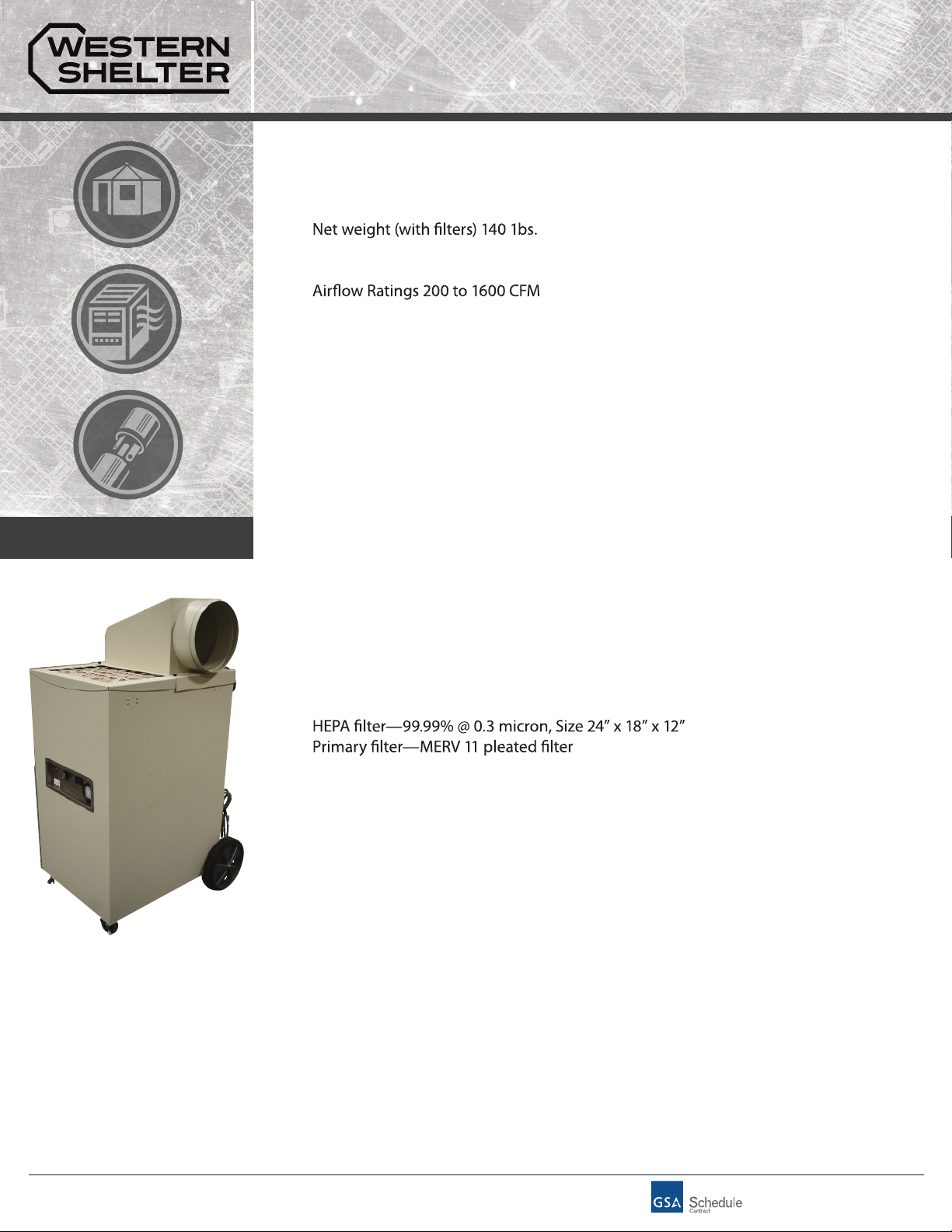

PRODUCT SPECIFICATIONS:
Dimensions (LxWxH) 26”x20”x46”
Operating Speeds Variable Speed Controller
Filtration Stages 3-4
99.99% HEPA Filter, Medical Grade Standard
Cabinetry Aluminum, Closed End Rivet
Silicon Sealed Seams before Riveting Yes
Push Handle One
Casters 3” Swivel
Motor Horse Power 1 hp
Circuit Requirements (Volts/Hz) 115 VAC/60 Hz
Maximum Operating Amps 12.5 Amps
Thermal Overload Protection Yes
Pressure Gage 0-3” W.C.
Included Accessories:
Duct Boot 10”
Air duct 10”
PARTS:
Shelter HEPA Filtration System
Flexible Duct Boot 10” diameter
OdorGuard 600—Carbon lter pad, Size 24” x 16” x 2” (Mesh or Pleated)
OdorGuard 750 Plus—Carbon/Alumina/Potassium permanganate
lter pad, size 24” x 16” x 2”
OPTIONAL ACCESSORIES:

GS03F084CA
830 Wilson St., Eugene, OR 97402 USA 541.344.7267 1.800.971.7201 [e-mail] www.WesternShelter.com Western Shelter is ISO 9001 Certified
HEPA AIR FILTRATION SYSTEM

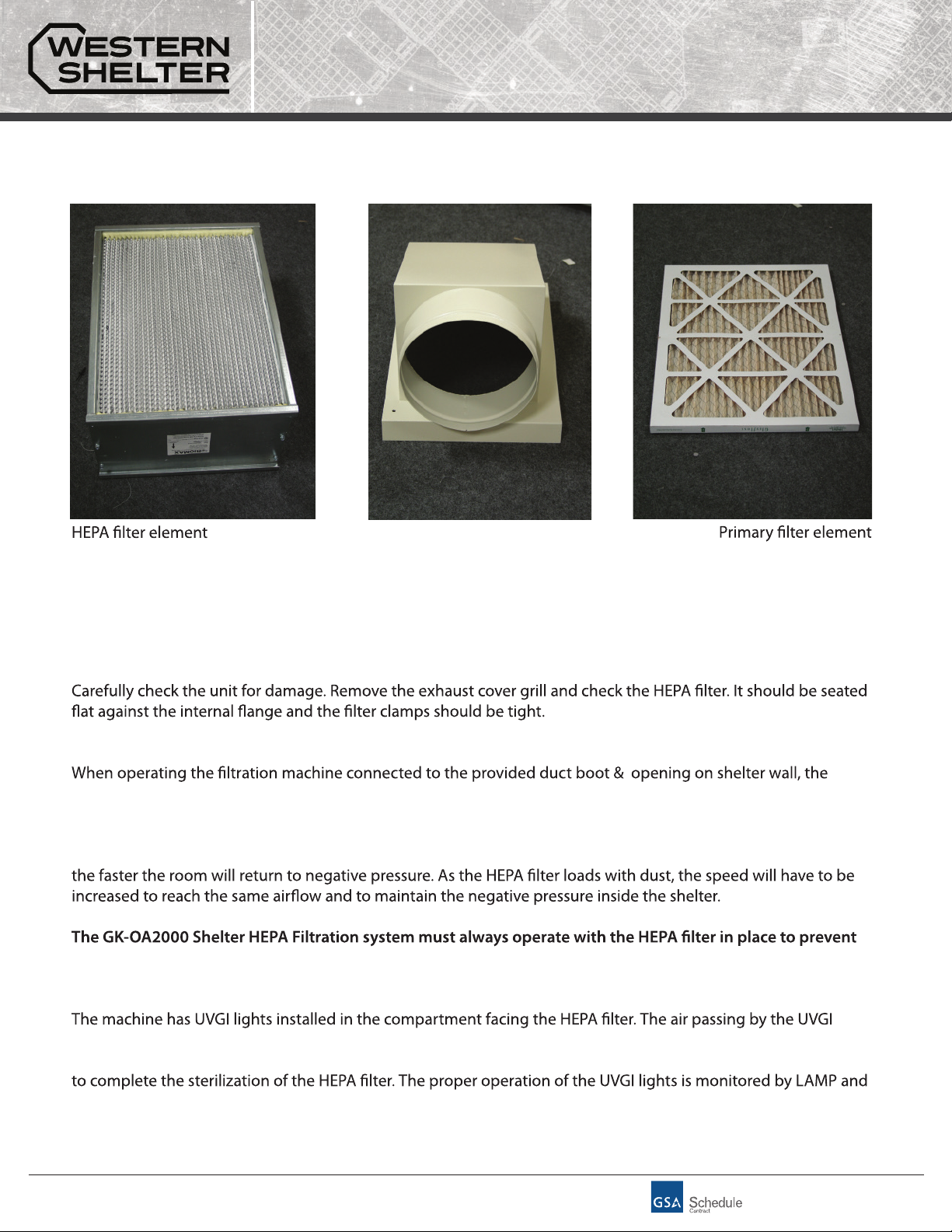

GK-OA2000 Parts and Included Accessories
INSTRUCTIONS
Unpacking:
Operation:
objective is to maintain negative pressure inside the shelter in reference to ambient pressure in hallways. By
increasing fan speed, the pressure inside the shelter becomes less than the pressure in the hallway. The vinyl walls
of the shelter will be bowed in, indicating negative pressure. As the doors to the hallway or the operating room
open, the pressure will temporarily change and return to negative when the doors close. The higher the speed,
contamination of the area and electrical overload of the motor.
Operating UV Germicidal Lights (UVGI)
lights is sterilized and the bio-contaminants captured on the HEPA are killed or deactivated.
The UVGI lights should be turned on before the fan starts to run and can stay on after the air blower is stopped
BALLAST indicating LEDs which turn on when the UVGI lights are on.
Discharge air duct

GS03F084CA
830 Wilson St., Eugene, OR 97402 USA 541.344.7267 1.800.971.7201 [e-mail] www.WesternShelter.com Western Shelter is ISO 9001 Certified
HEPA AIR FILTRATION SYSTEM

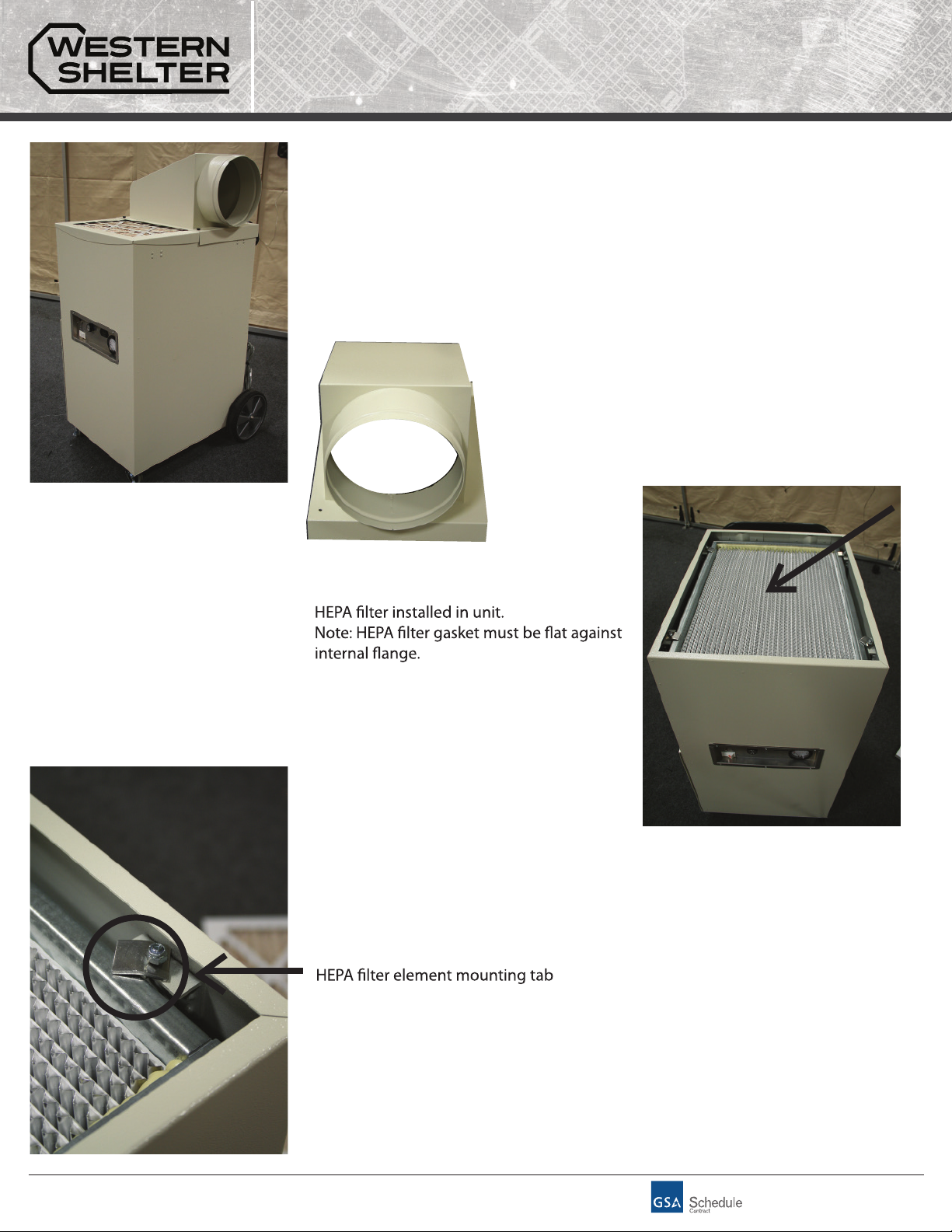

Exhaust air duct
Place on top of unit w/exhaust opening facing shelter wall.
Attach duct with provided set screws.

GS03F084CA
830 Wilson St., Eugene, OR 97402 USA 541.344.7267 1.800.971.7201 [e-mail] www.WesternShelter.com Western Shelter is ISO 9001 Certified
HEPA AIR FILTRATION SYSTEM
Operating HEPA Filtration System:
negative
The start and speed of the machine is controlled by the toggle switch HIGH / SPEED CONTROL and the variable
SPEED CONTROLLER knob.
To start the machine in the highest speed, place the toggle switch in HIGH position. To start the machine at
reduced speed, place the toggle switch in SPEED CONTROL position and turn the knob clockwise from OFF to
start the blower. The machine starts at HIGH SPEED and the speed is reduced by turning the knob clockwise to
The machine can be switched between the desired controlled speed setting and the highest speed at any time
by toggle switch being moved between SPEED CONTROL and HIGH. The toggle switch overrides the SPEED
CONTROLLER knob setting and runs the blower at its highest speed. This is also used as a quick check of HEPA

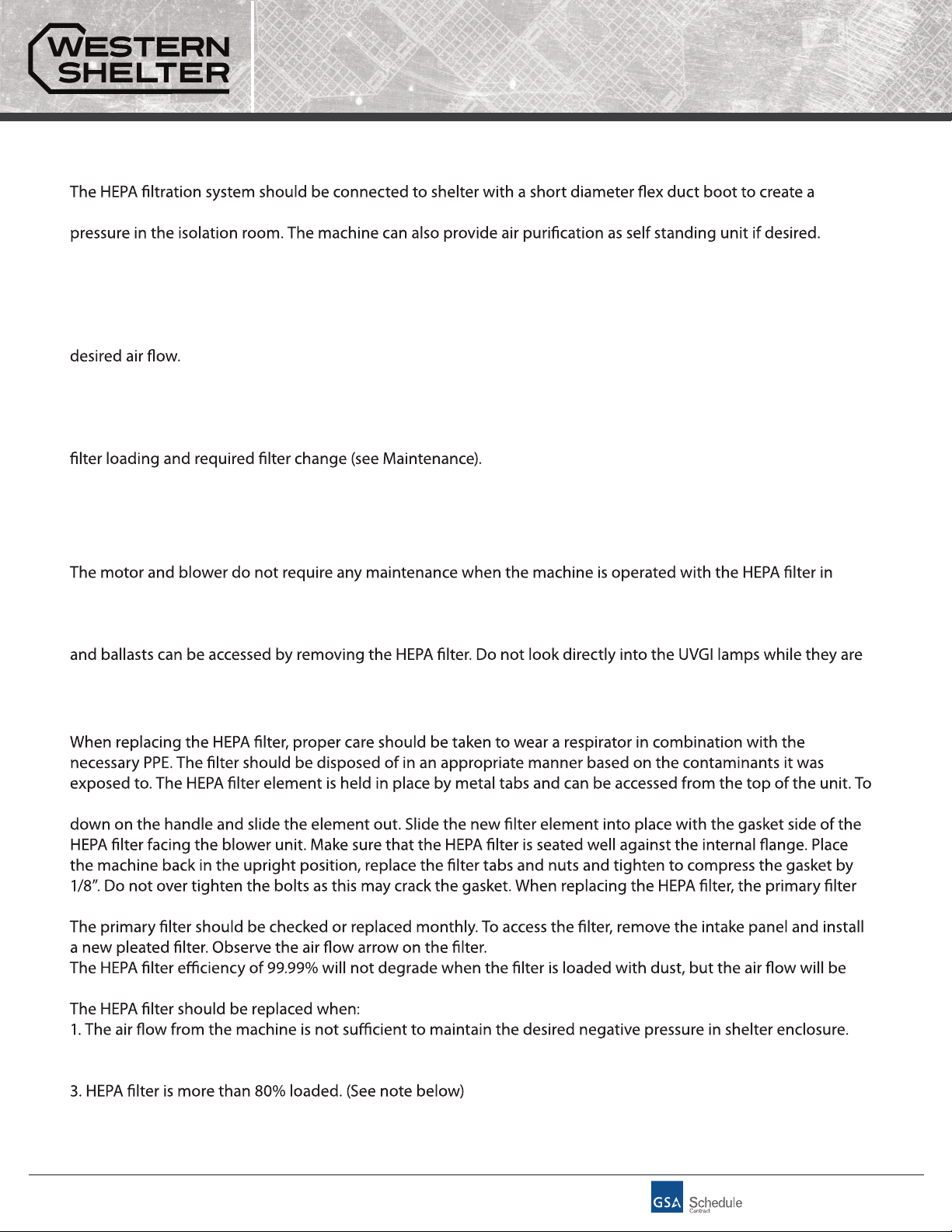

Maintenance:
Mechanical and Electrical -
place.
The UVGI lights should last over 15,000 hours of operation. There are two high intensity lights UVGI lights and
two ballasts. The LED indicating lamps turning OFF will indicate a light tube or ballast failure. The UVGI tubes
operating, this could damage your eyesight.
Filter Replacement -
remove the element, remove the metal grate, unscrew the nuts on the tabs and remove the tabs. Lay the machine
should also be replaced.
reduced.
2. The machine must run in high speed all the time to maintain the shelter negative pressure, which causes
excessive noise.
NOTE: The loading of the lter can be checked by switching the machine to HIGH speed after replacing the
primary lter and reading the pressure gauge “WC”.

GS03F084CA
830 Wilson St., Eugene, OR 97402 USA 541.344.7267 1.800.971.7201 [e-mail] www.WesternShelter.com Western Shelter is ISO 9001 Certified
HEPA AIR FILTRATION SYSTEM
Limited Product Warranty
Western Shelter Systems warrants to the original purchaser that all products, component parts and accessories,
original purchase. This warranty applies only for normal and expected uses, as determined by the manufacturer
and explained and demonstrated in the accompanying instruction manual
Remedy Limitation
Western Shelter Systems’ obligation and liability under this warranty is limited to the repair or replacement (at
its option) of the product or its parts, after its own review and examination. This will be purchaser’s exclusive
remedy under this limited product warranty. Mintie Technologies will not be liable for incidental or consequential
damages even if its attempts to repair the defects fail, but in such case (or if Western Shelter Systems elects not to
repair or replace) the purchaser will be entitled only to a refund of monies paid to Western Shelter Systems for the
shelter.
does not apply to damages caused by any force of nature, to accidental or deliberate damage of the product, or
to use of the product that does not conform with the product instructions.
Exclusion Of All Other Warranties
THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE LIMITED PRODUCT WARRANTY SET FORTH ABOVE.
WESTERN SHELTER SYSTEMS. DISCLAIMS ANY WARRANTY OF ANY OTHER KIND, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY THAT THE GOODS ARE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE.
Product Suitability
Many states and localities have codes and regulations governing sales, construction, installation, and/or use of
products for certain purposes, which may vary from those in neighboring areas. While Western Shelter Systems
attempts to assure that its products comply with such codes, it cannot guarantee compliance, and cannot be
responsible for how the products are installed or used.
Airborne Contaminants and Infectious Disease Isolation
