Westinghouse VR-6025Z User manual

VR-6025Z

10
11
11
10
9
9
12
Power Cord Connection
AV Connection
YPbPr(component) Connection
VGA(PC) Connection
Antenna Connection
HDMI Connection
Service Port Function
2
4
5
1
5
26
27
Remote control instructions in TV mode
Remote control setup 14
13
17
18
24
22
20
19
19
TABLE OF CONTENTS
English
4
1
6
7
8
5
9
11
10
IMPORTANT
INFORMATION
SPECIFICATIONS
2HOW TO INSTALL
THE STAND
3PREFACE
TROUBLESHOOTING
SAFETY
PRECAUTIONS
FRONT/BACK
CONNECTIONS
OF LCD TV
REMOTE CONTROL
TV INSTALLATION
CONTENTS
MENU OPERATION
7
8
Operating the Menu
PICTURE Menu
AUDIO Menu
TIME Menu
SETUP Menu
LOCK Menu
CHANNEL Menu
SETUP WIZARD 15

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of un-insulated dangerous voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is interded to aler the user to the
presence of important operating and maintenance (servicing) instruction the literature
accompanying the appliance.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
Important Safety Instructions
Note:
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
2
IMPORTANT INFORMATION
English

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11.Only use attachments / accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15.Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, suchas vases, shall be
placed on the apparatus.
16.WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
17.Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.
3
IMPORTANT INFORMATION
English
18.The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.

HOW TO INSTALL THE STAND
English
4
( )MPW4X12
(MPW4X20)
( )MPW4X12

5
3. PREFACE
Thank you for buying this Please read this manual thoroughly before operating the TV.
Make sure the TV was not damaged in transit. Should the TV be damaged, do not install it and
contact your dealer. Check that you have all the accessories according to the model.
TV!

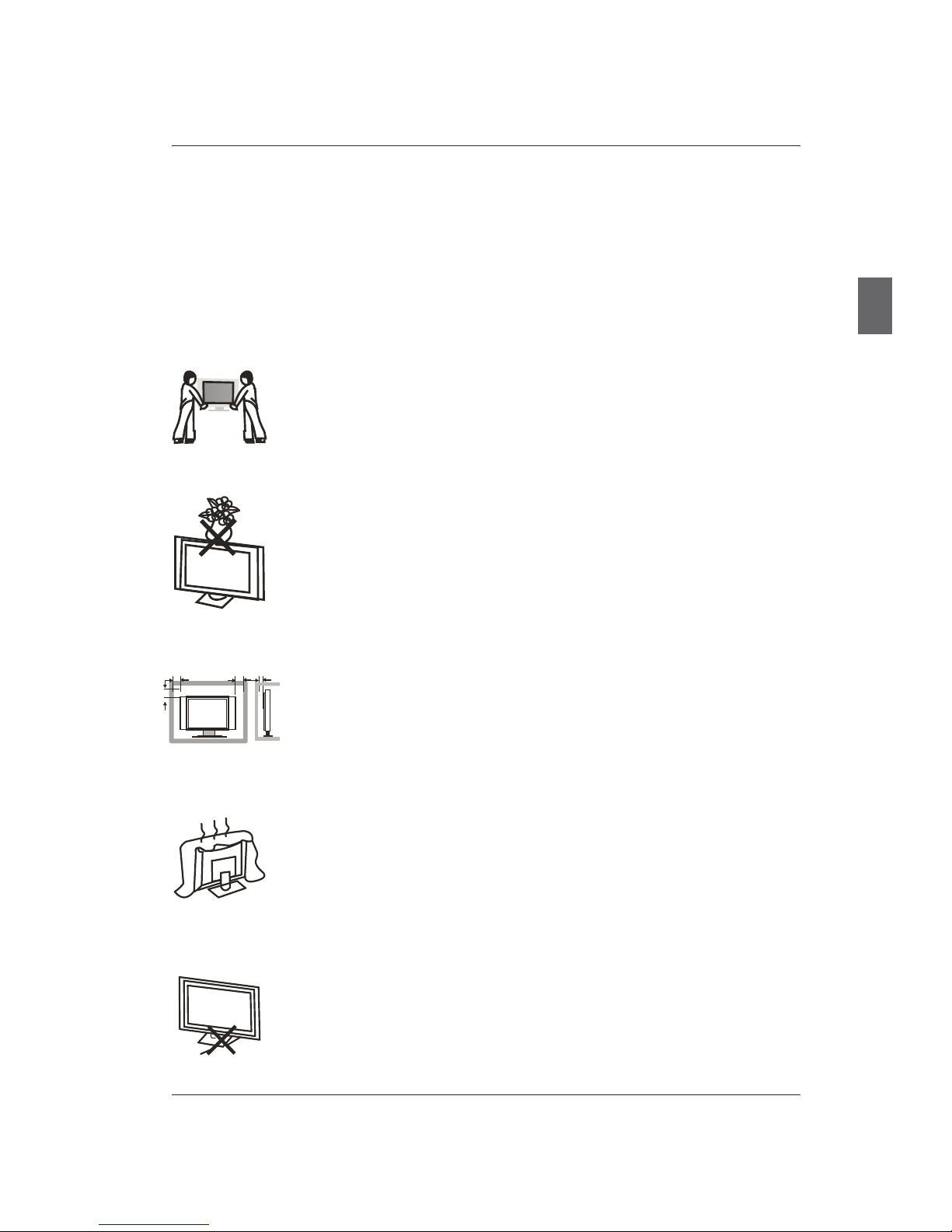

4. SAFETY PRECAUTIONS
Power cord and cables must be properly routed and protected to prevent
people from stepping on them and causing the TV to fall.
Minimumdistances
10cm
20cm
10cm 5cm
Put the TV on a stable surface.
Do not place any material on the TV.
Do not block or cover the ventilation openings on the TV.
If you have a wall mount, check that it is steady.
Do not use the TV with fixtures other than those provided or
suggested by the manufacturer.
English
PREFACE

6
Keep the TV dry and away from humidity.
Keep the TV away from heat sources.
Unplug the TV before cleaning it. Do not use solvent or liquid to clean
the TV.
Only clean the TV with a soft and dry cloth.
In case of troubleshooting, do not use spare parts other than those
suggested by the manufacturer. Using inadequate spare parts can
lead to electric shocks, short-circuits, fire or other incidents.
Unplug the TV during lightning storms or when unused for long periods
of time.
English
SAFETY PRECAUTIONS

7
5. CONTENTS
Remote Control
AAA Batteries
LCD TV SET
USER'S MANUAL
English
CONTENTS
Quick Connect Guide
Quick Connect Guide
Warranty Card
Warranty Card
1.5V
1.5V

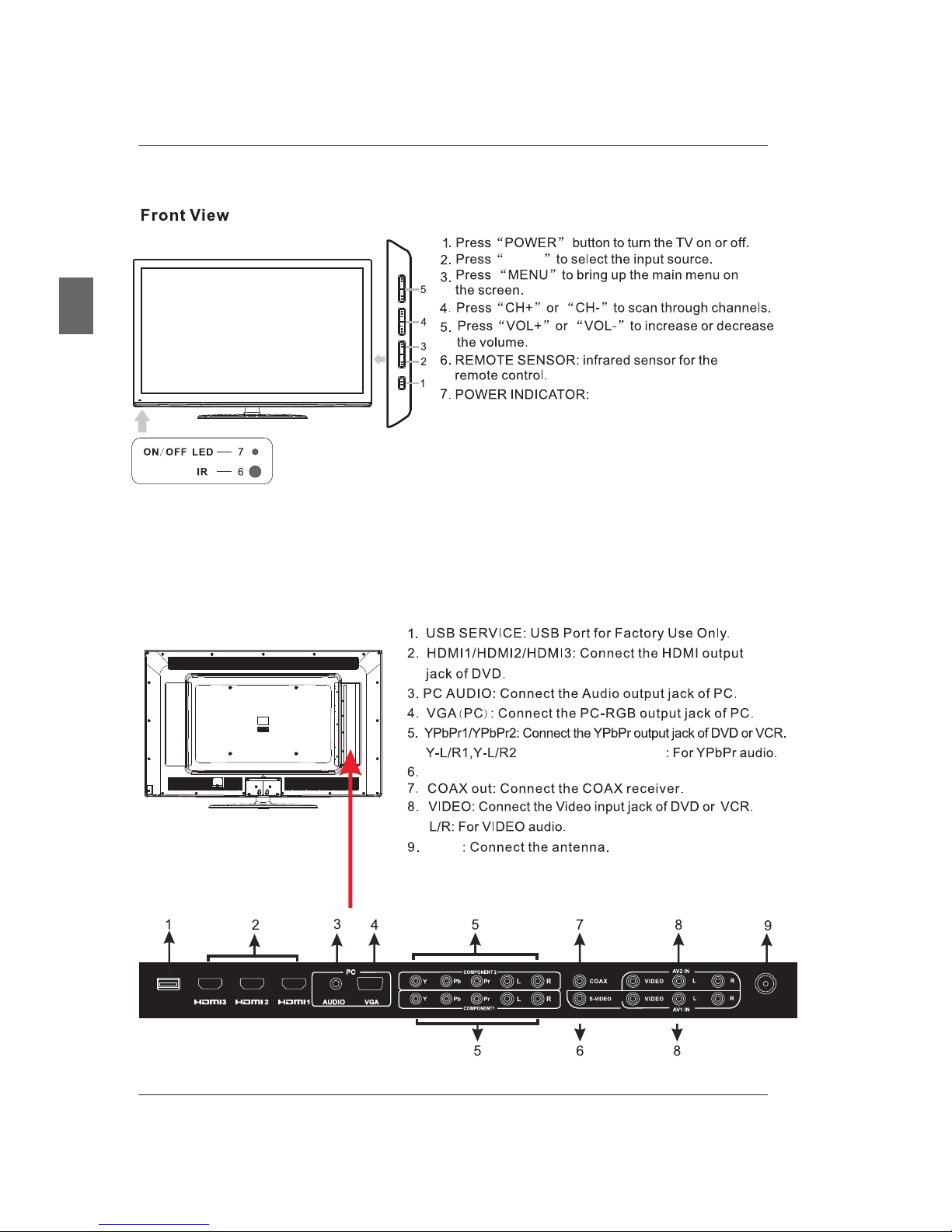

6. FRONT/BACK CONNECTIONS OF LCD TV
Back View and Control Connections
English
FRONT/BACK CONNECTIONS OF LCD TV
8
INPUT
Blue when TV is powered on.
POWER
VOL+
VOL-
CH+
CH-
MENU
INPUT
Red when TV is powered off. No color when power switch
is turned off.
RF IN
(Shared audio with AV IN)
S-VIDEO:S-VIDEO input.
SERVICE RF IN

9

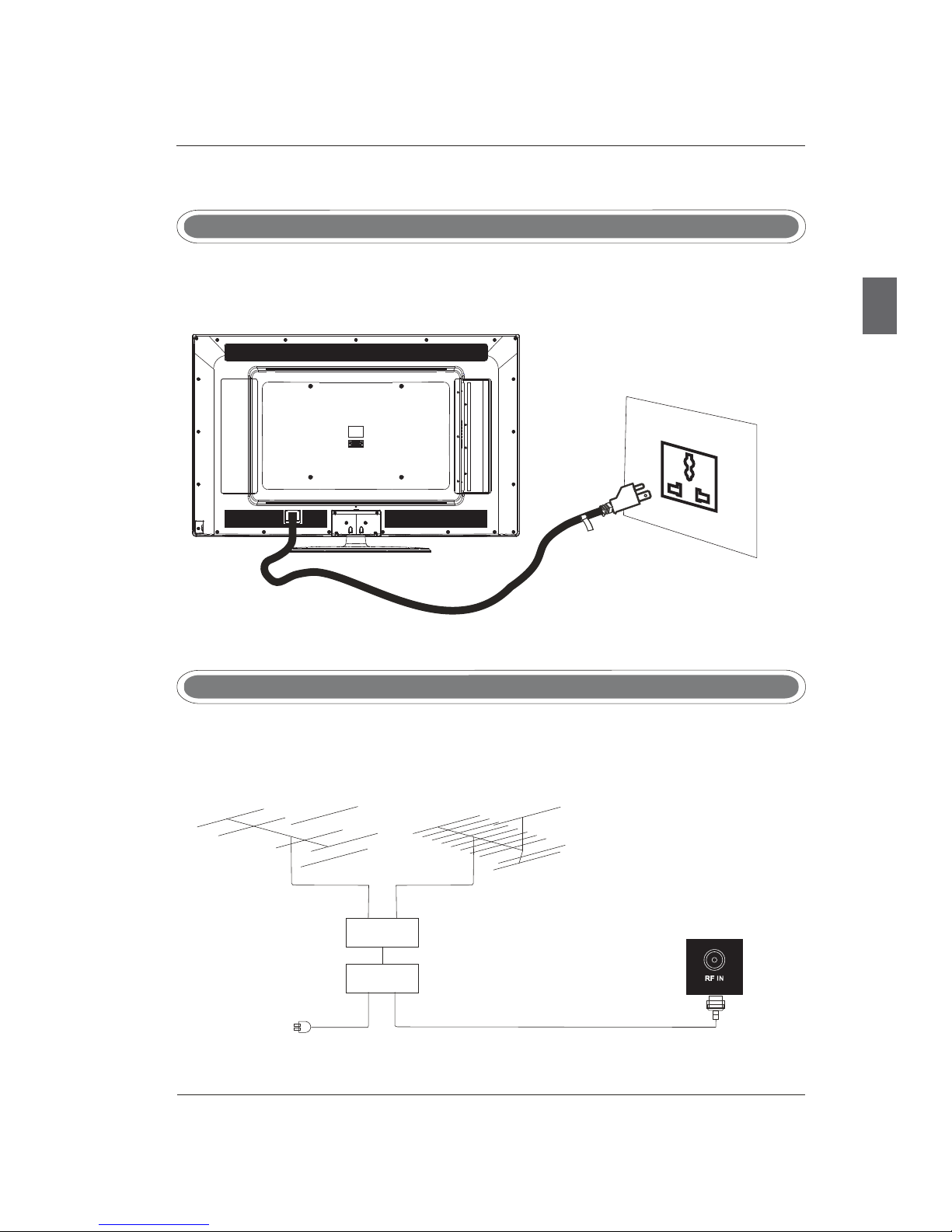

Power Cord Connection
7. TV INSTALL TION A
To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as
shown can be sourced from TV equipment shops, which will provide service for correct installation
and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.
Antenna Connection
75 OHM
ANTENNA
PLUG
POWER PLUG OF
ANTENNA
AMPLIFIER
OUTDOOR
ANTENNA
AMPLIFIER
VHF ANTENNA UHF ANTENNA
INDOOR
ANTENNA
AMPLIFIER
- Connect the power cord correctly as shown.
- Press the POWER switch of your LCD TV to switch on the LCD TV. The power indicator
on the front panel lights up in red or green.
English
TV INSTALL TION A

AC IN
10

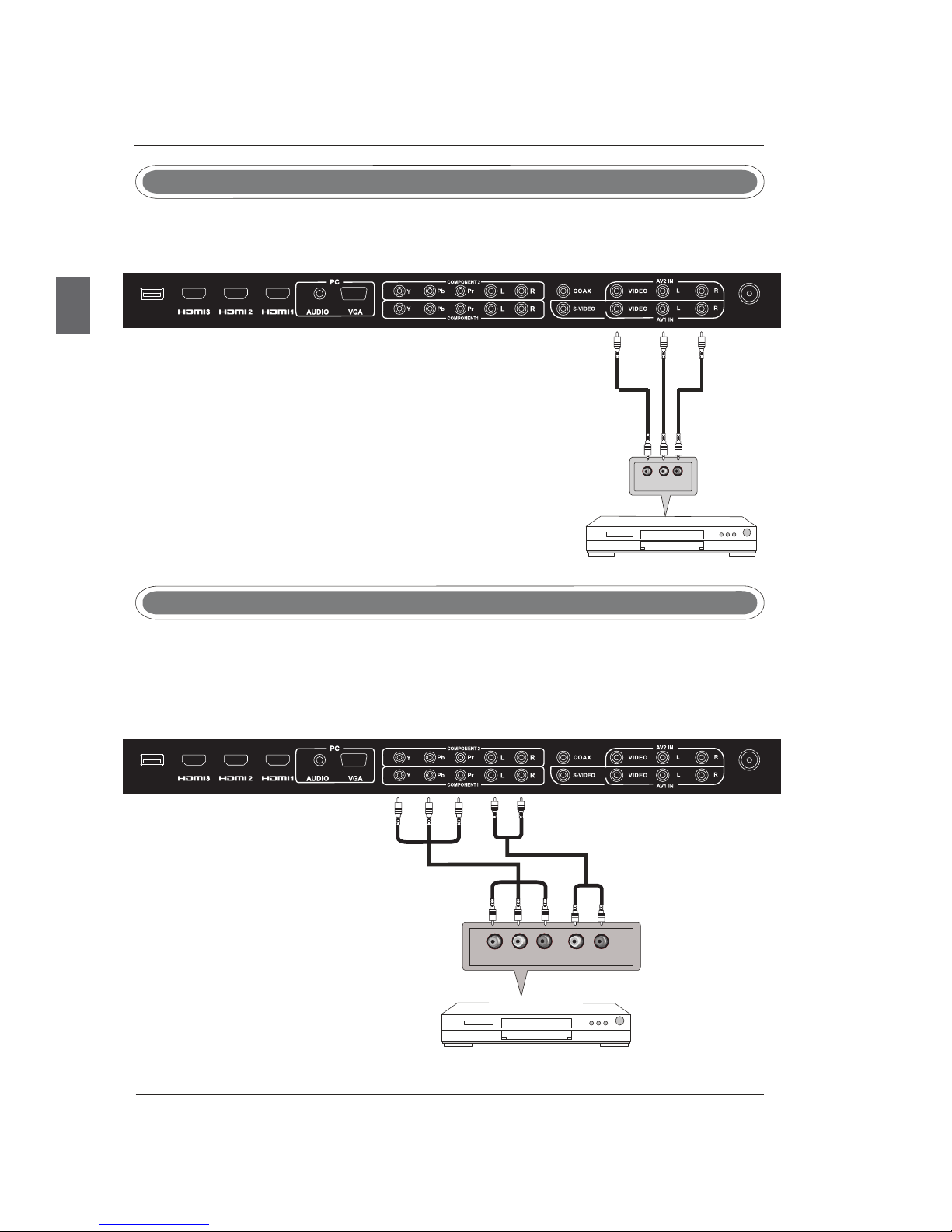

YPbPr Connection(Component)
Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture quality is
improved; compared to connecting a regular VCR to the video input. Connect the Audio output of
the DVD or VCR to the Audio input jacks on the set using the RCA cable.
Match the jacks colors :Y is green,Pb is blue,Pr is red,Audio left is white and Audio right in red.
Select component input source using the SOURCE button on the remote control.
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using
the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red.
Select the AV input source using the SOURCE button on the remote control.
AV Connection
Video Cable
VIDEO VIDEO R R LL
DVD or VCR
DVD or VCR Back
DVD or VCR
DVD or VCR Back
YPbPr cable
AUDIO cable
YPb Pr L R
TV Back
TV Back
English
TV INSTALL TION A
SERVICE RF IN
SERVICE RF IN

11
VGA(PC) Connection
Connect the RGB output of the PC to the jack on the set. Connect the AUDIO output ofVGA(PC)
The PC to the PC AUDIO jack on the set. Select the RGB input source with using SOURCE button
on the remote control.
VGA Cable
Audio Cable
AUDIO RGB-PC OUTPUT
TV Back
English
TV INSTALL TION A
Service port: (For factory uses only.)
TV Back
USB Cable
Service Port Function
SERVICE RF IN
SERVICE RF IN

12

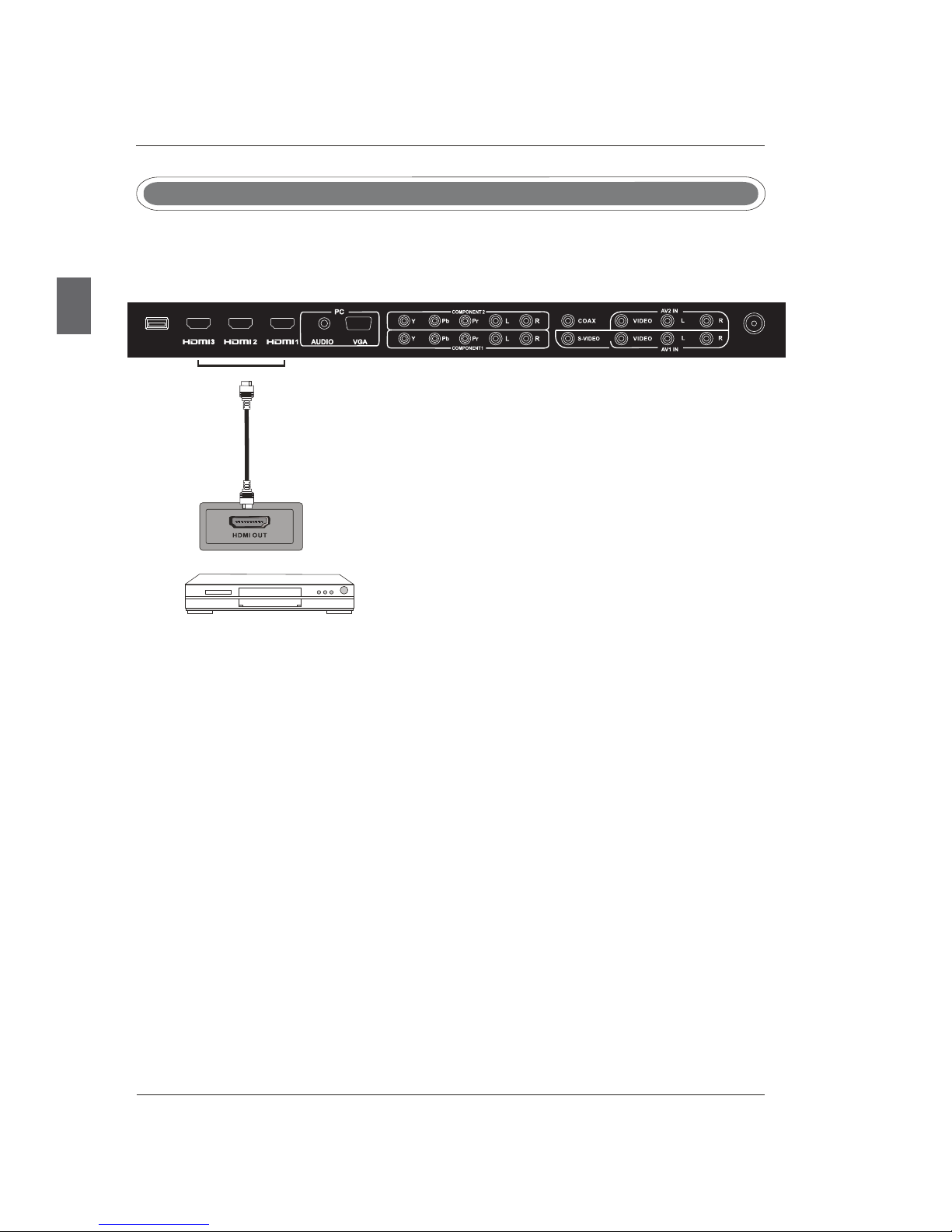

HDMI Connection
HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control
signals through one cable only. These signals are transferred in digital.
DVD Back
TV Back
HDMI Cable
English
TV INSTALL TION A
SERVICE RF IN

13
8 REMOTE CONTROL.

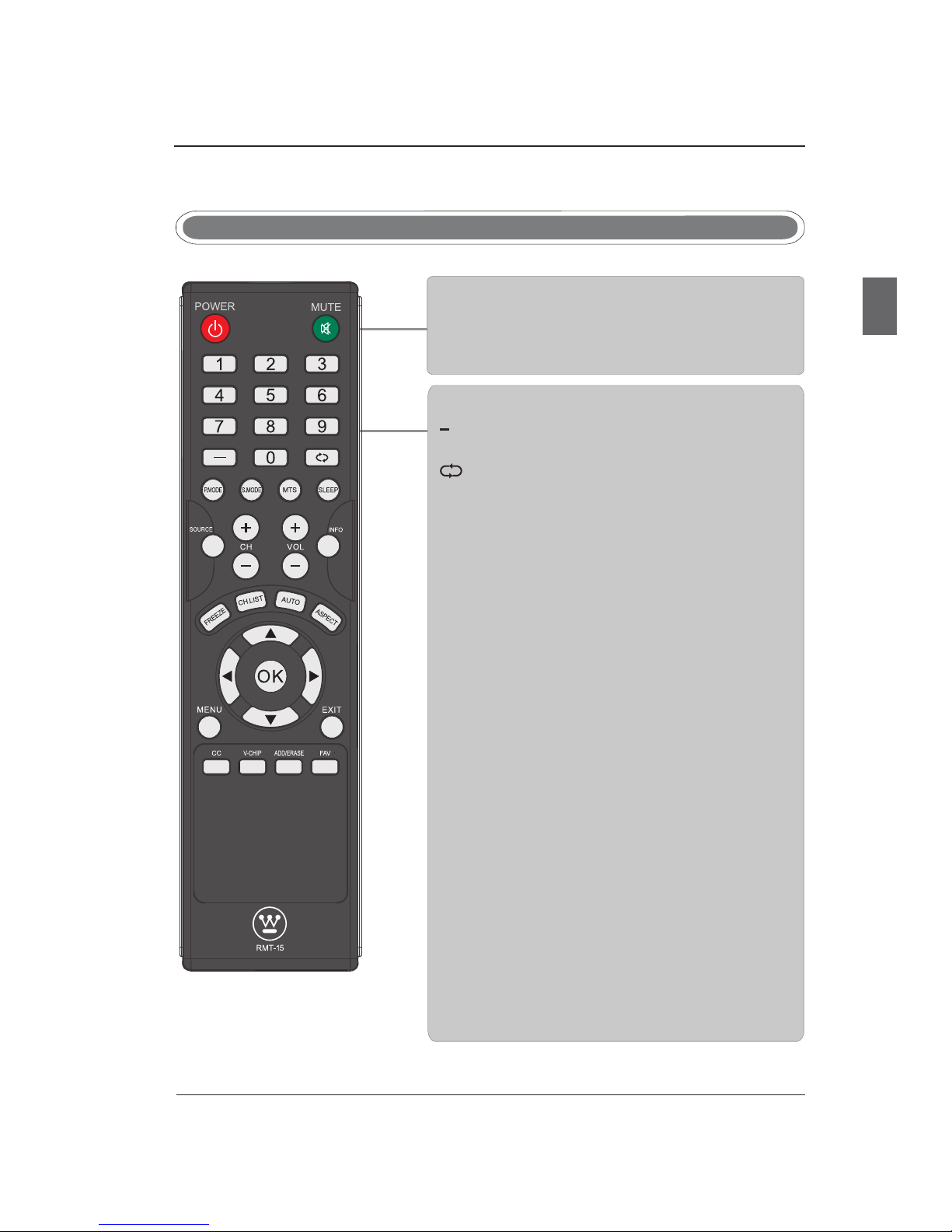

Remote control instructions in TV mode
Return to the previous channel viewed.
POWER
Turn the LCD TV ON or OFF.
MUTE
Press to mute the sound. Press again or press VOL+ to
un-mute the TV.
SOURCE
Press SOURCE to display the OSD input source,
press ▲▼to select an input source, and then press OK to confirm.
Press this button to enter a program number for
multiple program channel such as 2-1,etc.
NUMBER BUTTONS
Press 0-9 to directly change the TV channel.
EXIT
Exit the main TV menu to the screen.
MENU
Brings up the main TV menu to the screen.
ASPECT
Press to select Aspect Ratio.
THUMBSTICK( ▲/ ▼/◄ / ►/ OK )
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
VOL+/VOL-
Press to increase / decrease the sound level.
CH+/CH-
Press to scan through channels.
CC
Press to display the closed caption.
LIST
Press to display the TV program list.
FAV
Press to display the TV favourite program list.
English
REMOTE CONTROL
MTS
Press to adjust between available audio channel.
P.MODE
S.MODE
SLEEP
INFO
FREEZE
AUTO
V-CHP
Add or delete favorite channels.
ADD/ERASE
Display information about the current channel.Press again to release it.
Set the sleep timer.
Press to freeze the current screen button,press again to release it.
Select the sound mode.
Select the picture mode.
Auto adjust（only use in the VGA source）.
Setting up parental list.

14

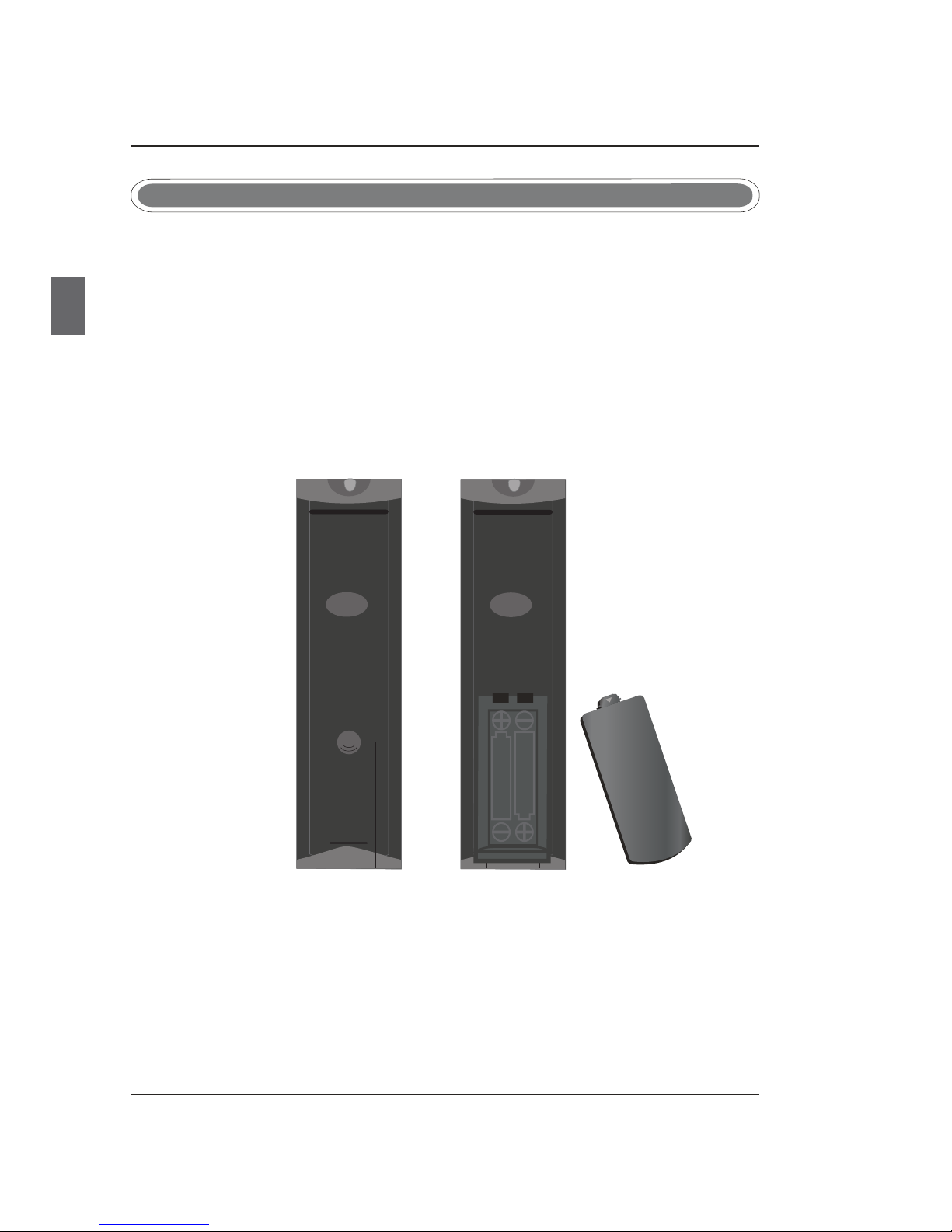

Remote control setup
1. Open the cover.
2. Uses AAA size batteries.When inserting the batteries, make sure correct polarities “+”and “-”
marks on the batteries line up correctly with compartment markings.
3. Replace the battery cover.
To prevent battery leakage which may result in bodily injury or damage to the remote:
1. Install all batteries correctly, and as marked on the remote control.
2. Do not mix batteries:(OLD and NEW or CARBON and ALKALINE, etc)
Remove batteries when the remote is not used for a long period of time.
.
English
REMOTE CONTROL

15
SETUP WIZARD
Time zone
Select Language
Setup Wizard
English
9.Menu Operation
MENU OPERATION
:Select
Select Language
English
Enter:Next
:Select
Time Zone
Use The Up and Down arrows
on your remote control to
select your local time Zone.
Hawail(UTC-10)
Alaskal(UTC-9)
Pacific(UTC-8)
Mountain(UTC-7)
Enter:Next
Go Back
Central(UTC-6)
Eastern(UTC-5)
:Select
Power Up Mode
Enter:Next
Go Back
Home
Showroom
Fllow this guide to help setup your
HDTV for Scanning channels or
accessing your external devices for
cable,satellite,Blu-ray,DVD,and
gaming.
use the up and Down arrows on your
remote control to select the language
to use for menus and message screens.
Use the up and Down arrows on your
remote control to select power on mode.
Home optimizes the video setting for
everyday use in a home setting.
:Select
Let’s Get Connected...
Enter:Next
Click Here To Connect A Cable Box Satellite Box
Click here to connect a Game,Blu-Ray,DVD,or other player
Click here to scan channels from the antenna or coaxial cable
Go Back
:Select
Cable or satellite source input
Enter:Next
Use the Left/Right arrows on your remote control to select the
type of connection are you using to connect the set top box?
For optimal vide quality,we recommend HDMI or component
(refer to Quick connect guide or user manual to help you
determine what connection you are using).
Go Back
HDMI1
Component1
Other Antenna
:Select
Let’s Get Connected...
Enter:Next
Click here to connect a cable box satellite box
Click here to connect a game,Blu-ray,dvd,or other player
Click here to scan channels from the antenna or coaxial cable
Go Back
INPUT SOURCE
TV
Av1
Welcome to the Westinghouse HDTV Setup Wizard.
Français
Español
Component1
HDMI2
HDMI1
VGA
S-VIDEO
Component2
HDMI3
Av2

16
Channel Scan
English
MENU OPERATION
0~9:Key in password
Enter Channel Access Code
Enter:Next
----------
Scanning channels
Menu:Quit
Cable
Antena
:Select Enter:Next
Go Back Next
Anten na[ATSC] channel access inform ati on
Model:
Serial no:xxxxxxxxxxxxx
To enable your Tv’s tuner you will need the following access
information:Model(see above),Channel scan Type:ATSC,
Serial Number(see above).
Provide these items to Westinghouse Digital’s Channel Access
Service by phone or web to obtain an access code,
then select next to enable your Tv’s tuner.
:Select Enter:Next
Go Back Next
Using your remote control to enter the 5 digit access code
provided by the channel access service.
Go Back Next
RF CH: 00
Found: 00
Antenna[ATSC] Channel Access
You can contact Westinghouse digital’s channel access
service by web or phone:
Web:www.westinghousedigital.com/support;
select channel access and enter access info.
phone:[phone] follow instructions
channel access is free and does not require any personal
information.
:Select
Scan Channels from the Antenna or coaxial cable input
Enter:Next
Use the Up and Down arrows on
your remote control to select the
channel scan type.
Go Back
Antenna[ATSC]
Cable
Scanning channels
Menu:Quit
RF CH: 00
Found: 00
:Select
Let’s Get Connected...
Enter:Next
Click here to connect a cable box satellite box
Click here to connect a game,Blu-ray,dvd,or other player
Click here to scan channels from the antenna or coaxial cable
Go Back
A
A

Setup Lock
12
6
Time
Picture Audio
Chann el
Picture Mode
Contrast
Brightness
Color
Standard
Sharpness
Color Temp.Neutral
Select Move Exit
MENU
TIME MENU:
Allows you to set up a variety of timer options.
SETUP MENU:
Allows you to set up a variety of setup options.
1.Press the POWER button to turn the LCD TV on.
2.Press the MENU button on the remote control, the on-screen menu will appear on the screen.
3.Use the LEFT and RIGHT buttons to select your main menu option.
PICTURE MENU:
Allows you to make adjustments to your picture
settings.(select TV source for example)
AUDIO MENU:
Allows you to customize the audio options
and effects.(select TV source for example)
Setup Lock
12
6
Time Picture Audio Channel
Air/Cable
Auto Scan
Favorite
Show/Hide
Channel No.
Channel Label
DTV Signal
Air
50-3
MBC DTV
Good
LOCK MENU:
Allows you to set up a variety of lock options.
(Select TV source for example)
CHANNEL MENU:
Allows you to search channels and set up a variety
of channel options.
Operating the Menu
Lock
k
12
6
Time Channel
Menu Language
Zoom Mode
Noise Reduction
PC Setup
Close Caption
DLC
Restore Default
Engli sh
Standard
Off
Setup
Audio
On
Setup Lock
12
6
Time
Picture Audio Channel
Change Password
System Lock
US
Canada
Reset RRT
RRT Setting
On
(Select TV source for example) (Select TV source for example)
Select Move Exit
MEN U
Select Move Exit
MEN U Select Move Exit
MEN U
(Select TV source for example)
17
English
MENU OPERATION
11-1
Sound Mode
Bass
Treble
Balance
Audio Language
Standrad
English
Select Move Exit
MEN U
Audio
Setup Lock
12
6
Time Chann el
Setup Lock Channel
Sleep
Time Zone
Daylight Saving Time
Off
Pacific
Off
12
6
Time
Audio
Select Move Exit
MEN U

4.Use the UP/DOWN buttons to select an option of the sub-menu, and press the RIGHT button.
While in adjustment mode, use the LEFT/RIGHT button to change the value of the item.
5.Press the MENU button to exit the menu.
Note:
Only when you input the suitable signal, the relevant items can be activated.
1.Press the POWER button to turn the LCD TV on.
2.Press the MENU button on the remote control, the on-screen menu will appear on the screen.
3.Use the LEFT and RIGHT buttons to select your main menu option.
PICTURE Menu
Select TV source for example.
1. Press the MENU button on the remote control to display
the Main menu, and use the LEFT and RIGHT
buttons to select the PICTURE.
2. Use the UP and DOWN buttons to highlight an individual
PICTURE option, use the LEFT and RIGHT buttons to change
the setting, and press the MENU to exit the menu.
The PICTURE menu includes the following options :
Picture Mode
Cycles among picture display modes: Standard, Dynamic, Mild, User.
Contrast
Controls the difference between the brightest and darkest regions of the picture.
Brightness
Controls the overall brightness of the picture
Color
Control the color.
Sharpness
Increase this setting to see crisp edges in the picture; decrease it for soft edges .
Color Temp.
Cycles among color temp: Neutral,Warm,Cool.
18
English
MENU OPERATION
Setup Lock
12
6
Time
Picture Audio
Chann el
Picture Mode
Contrast
Brightness
Color
Standard
Sharpness
Color Temp.Neutral
Select Move Exit
MENU
