Westinghouse CW39T8RW User manual

USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
CW39T8RW

1
Contents
Contents
Caution
Safety Information
Unit and Accessories
Product Feature
Introduction
1. Front View
2. Rear View
4. Remote Control
Basic Operation
OSD Menu
1. Picture menu
2. Sound menu
3. Channel menu
4. Parental Control menu
5. Setup menu
6. Others menu
Simple Troubleshooting
2
3
4
4
5-9
5
6
8-9
12
First Time Installation 10-11
13-21
13-14
15
16-17
18-19
20
21
22
23
3. Instruction for Wall Mount 7

2
Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE
RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR
FEDERALLAWS.
ENERGY STAR :
This Westinghouse product has earned the Energy Star for meeting U.S. Federal energy
efficiency guidelines as set by the Department of Energy and Environmental Protection agency.
The Energy Star program exists to provide energy saving guidelines and help promote
energy efficient products and practices. Changes to certain features, settings and functions of
this TV can change and/or increase its power consumption. Depending on how settings are
changed, power consumption may exceed the limits required for Energy Star qualification.
This Westinghouse TV will operate at optimal energy efficiency in “Home” mode.

3

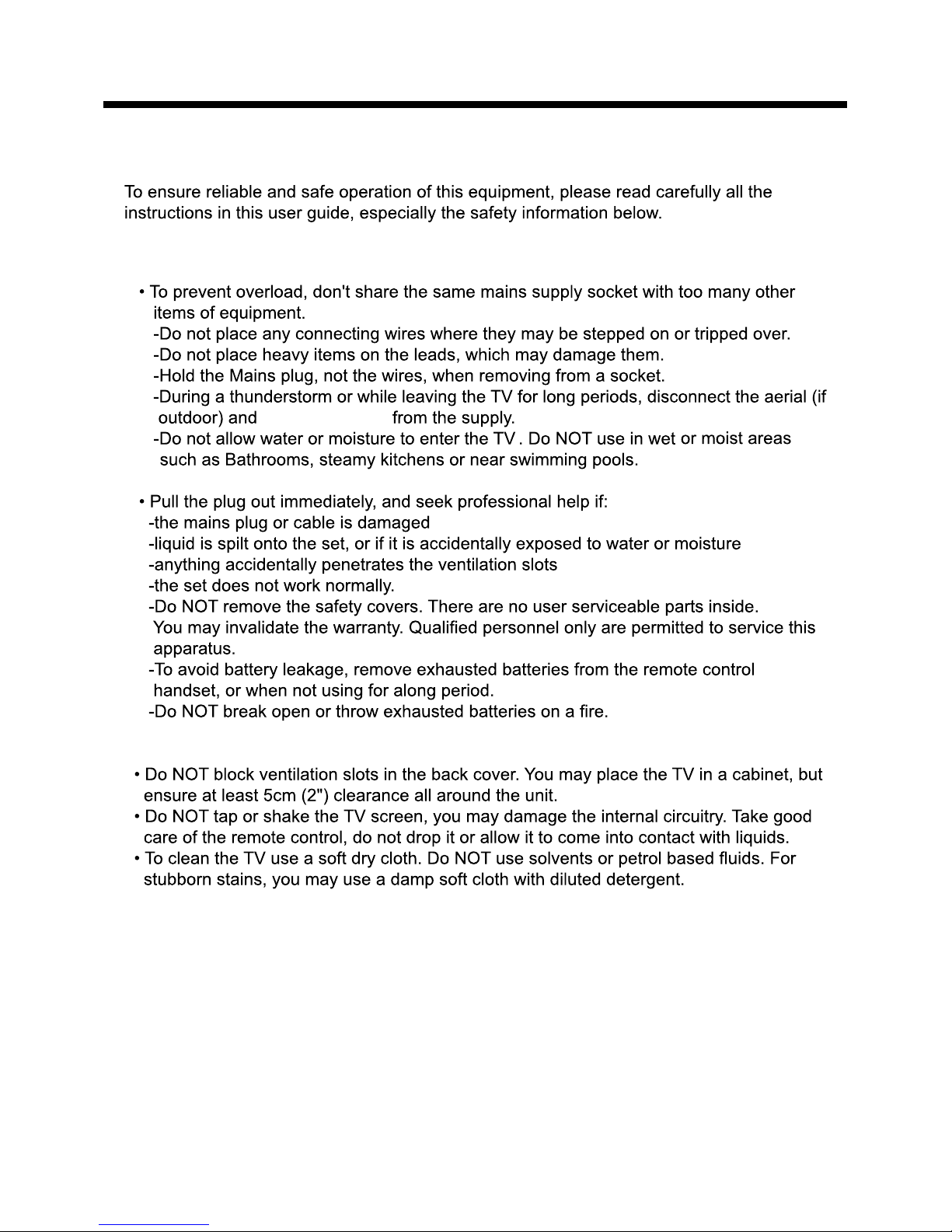

Safety Information
Safety Information
Electrical safety
Physical safety
the power cable

4
Unit and Accessories and Product Feature
Unit and Accessories
TV set
User's Manual Remote Control and
Batteries (AAA x2)
Product Feature
Warranty Card
39
Three HDMI inputs for true digital connections
HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.
Quick Connect Guide
®
1920 x 1080 native resolution for Full-HD(1080p) performance
Power Cord

5
Introduction
Introduction

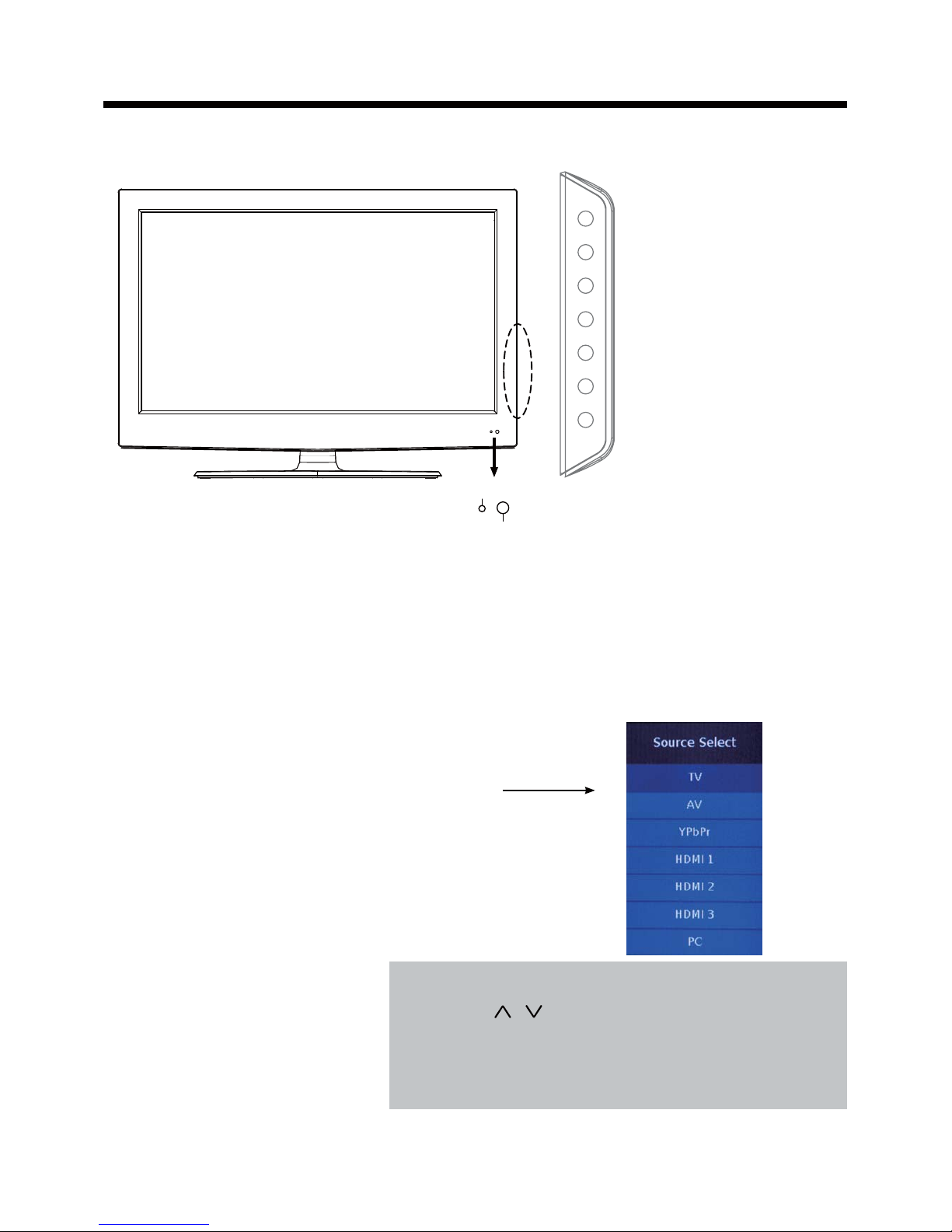

1. Front View
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
2). The functions of the buttons:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 300to the left or right side and 200above or below the remote control
window.
Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or / button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
Power Indicator
Remote Control window (Keep clear)
INPUT MENU CH+ CH- VOL+ VOL - POWER

6
Introduction
2. Rear View
10). Headphone out : Connect it to your headphone or audio equipments.
3).
2). RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
1). COAX : Digital audio output.
7). YPbPr : Connect them to the component video output of video device.
: Connect it to the HDMI output of video device.
5). HDMI1/2/3
L/R in : Connect them to audio output of video device.
L/R in : Connect them to audio output of video device.
9). L/R out : Connect them to audio equipments.
VIDEO : Connect it to video output of video device.
8).
6). Service : For service use only.
AC POWER IN: Connect to an earth 100-240V~ 50/60Hz outlet with the power cable.
11).
SWITCH: Switch on/off the power supply.
12).
4).
AC POWER IN SWITCH
COAX RF VGA HDMI 1 HDMI 2 HDMI 3 USB
(SERVICE)
PC-IN
YPbPr R L
RL
VIDEO R in L in AUDIO OUT HEADPHONE OUT
1 2 3 4 5 6 8 97 10 11 12

7
Introduction

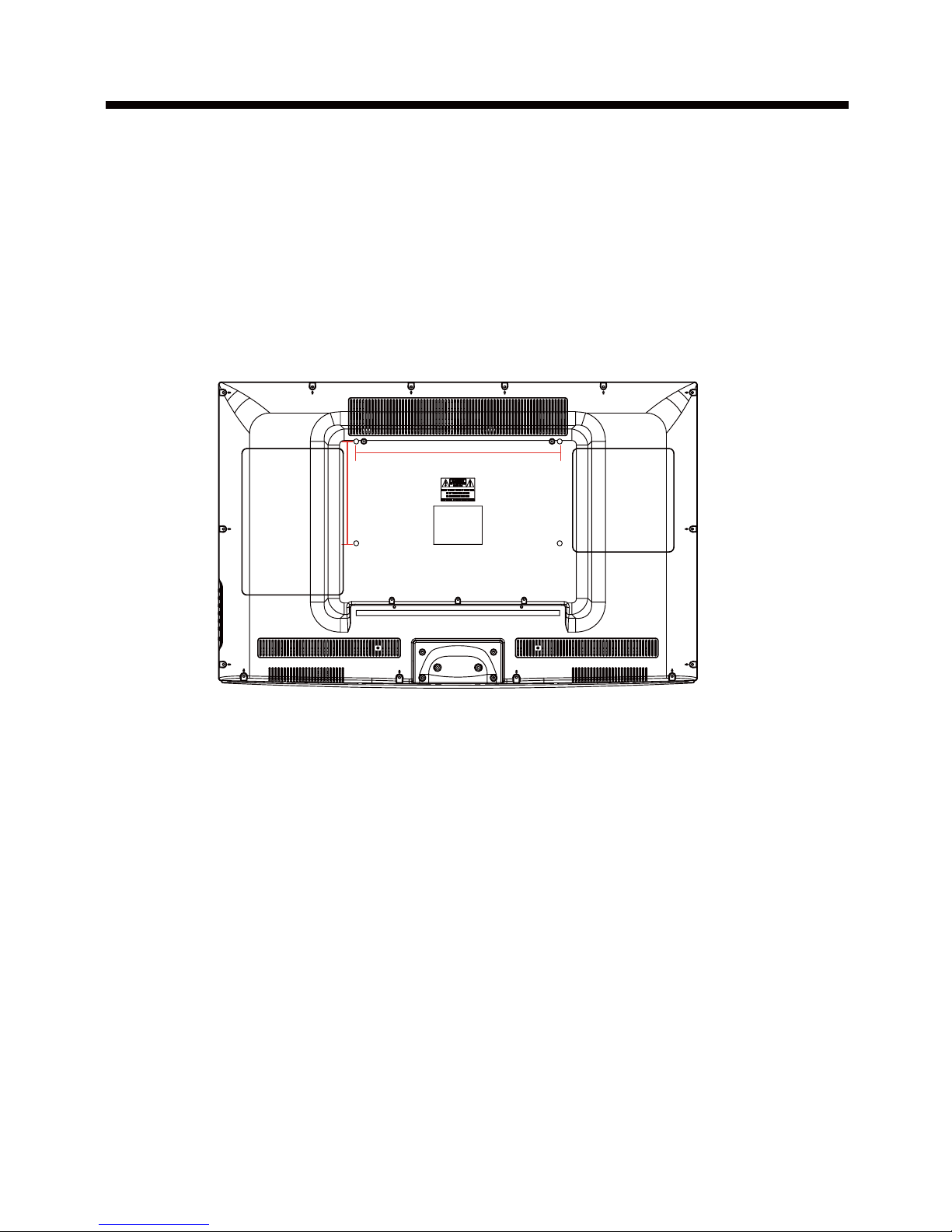

3. Instruction for Wall Mount
Dimensions for Mounting Hole Pattern
A wall mount kit (purchased separately) would allow you to mount your Westinghouse
TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. Westinghouse is not responsible for any damage to the product or injury
to yourself or others resulting from the wall-mounting.
-This Westinghouse TV is compatible with a 400mm x 200mm mounting hole
- Do not mount your Westinghouse TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
- 4 pcs of type M5 screws are required for installing the wall mount bracket to
your Westinghouse TV. Do not use screws that are longer than 15 mm. Screws
that are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. Westinghouse is not liable for these kinds
of incidents.
200mm
400mm
pattern.

8
Introduction

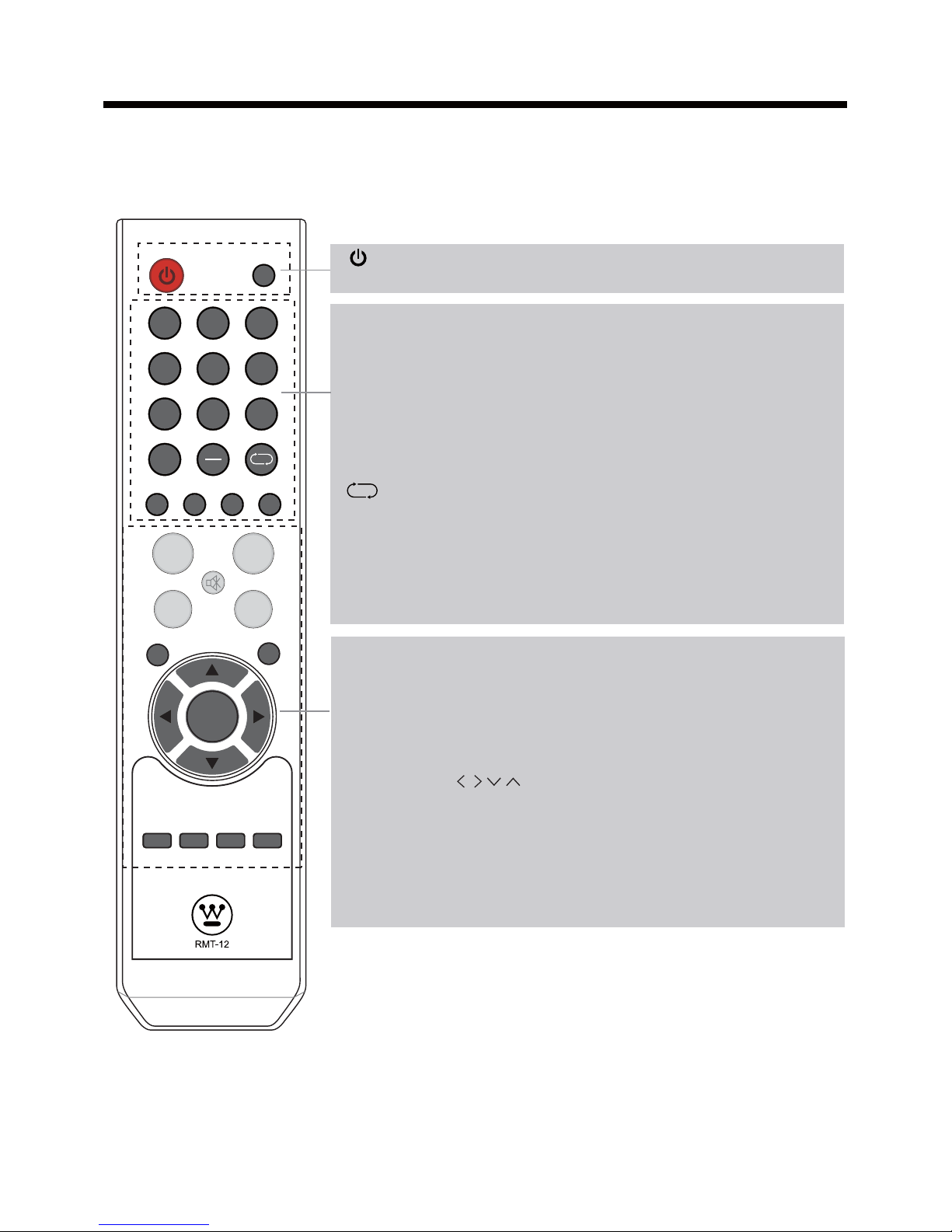

4. Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.
CC: Press to display the closed caption.
MTS: Press to select the audio channels.
FAV: Press to add or remove favorite channel.
ASPECT : Press to change the aspect for pictures on screen.
DISPLAY: Display the information of current mode.
Thumbstick( ): Allows you to navigate the on-screen
menus and adjust the system settings to your preference.
OK: CONFIRM button.
MENU: Press to display the OSD menu.
EXIT: Press to exit the OSD menu.
MUTE: Press to mute the sound, press again or press VOL+ to
unmute.
VOL+/-: Press to adjust the volume.
CH+/-: Press to scan through channels.
SLEEP : Shutdown timer.
Number Buttons: Choose channel directly.
Select channel 5, Press button "5";
Select channel 62, Press button "6", then press button "2" in 2
seconds;
Select channel 151, Press button "1", and press button "5" in 2
seconds, and press button "1" in 2 seconds;
Select channel 5-1, Press button "5", and press button "-"
in 2 seconds, and press button "1" in 2 seconds;
PICTURE: Press repeatedly to cycle through the available
video picture modes.
SOUND: Press to cycle through the different sound settings.
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
ENTER
CH+
CH-
123
456
789
0
FAV
CC ASPECT MTS
(RETURN): Return to the previous channel viewed.
POWER(red button): Turn the TV on/standby.
INPUT: Press to display the input source menu.

9
Introduction
Installing Batteries
1. Open the battery compartment cover on the back of the remote control.
2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery
compartment. Don’t mix different types or used batteries with new ones.
3. Close the cover.
- The remote control should be operated within 23 feet(7m) and 300to the left and right of the
IR Receiver on the front of the TV.
- Used batteries should be disposed properly.

10
First Time Installation
First Time Installation

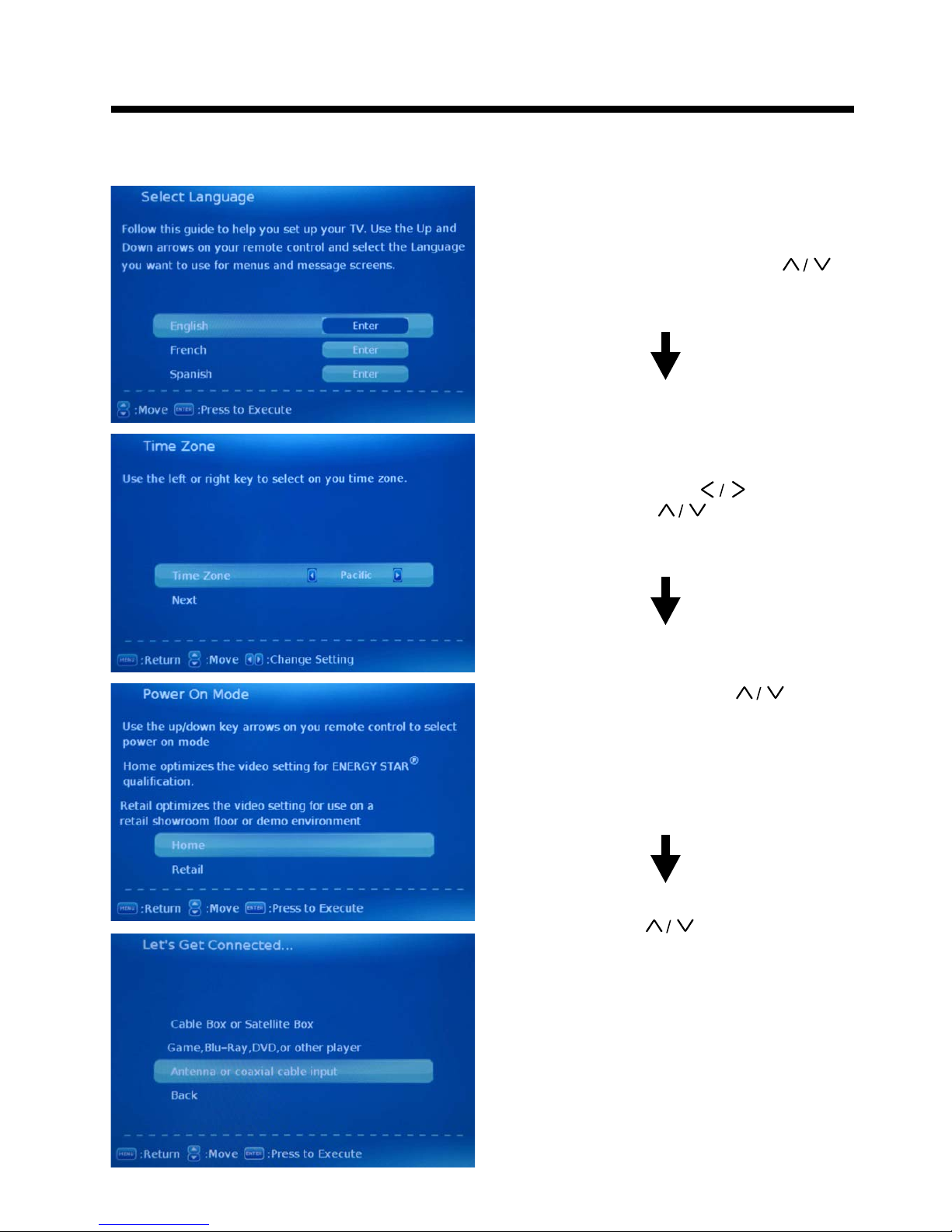

The following pictures will appear on the screen when the TV is turned on for the first time.
1. Select the OSD menu language by
buttton, and press OK/ENTER button to
enter the next menu.
2. Select the Time Zone by buttton, then
select Next item by button and press
OK/ENTER button to enter the next menu.
3. Select the power on mode by buttton,
and press OK/ENTER button to enter the
next menu.
4. Select the Antenna or coaxial cable input
connect mode by buttton, and press
OK/ENTER button to enter the next menu.
Note:
Home mode --- Power saving mode.
Retail mode --- Normal mode.
Note:
* Cable Box or Satellite Box--- If you want
using the signals from the cable box or
satellite box, please select this item and
press OK/ENTER button to setting.
* Game, Blu-Ray, DVD or other player ---
If you want using the signals from the
Game, Blu-Ray, DVD or other player,
please select this item and press OK/
ENTER button to setting.

11
First Time Installation
6. Select Next item by button and press
OK/ENTER button to enter the next menu.
7. Select Next item by button and press
OK/ENTER button to enter the next menu.
8. Enter the code by the number buttons on
the remote control to start the auto channel
search.

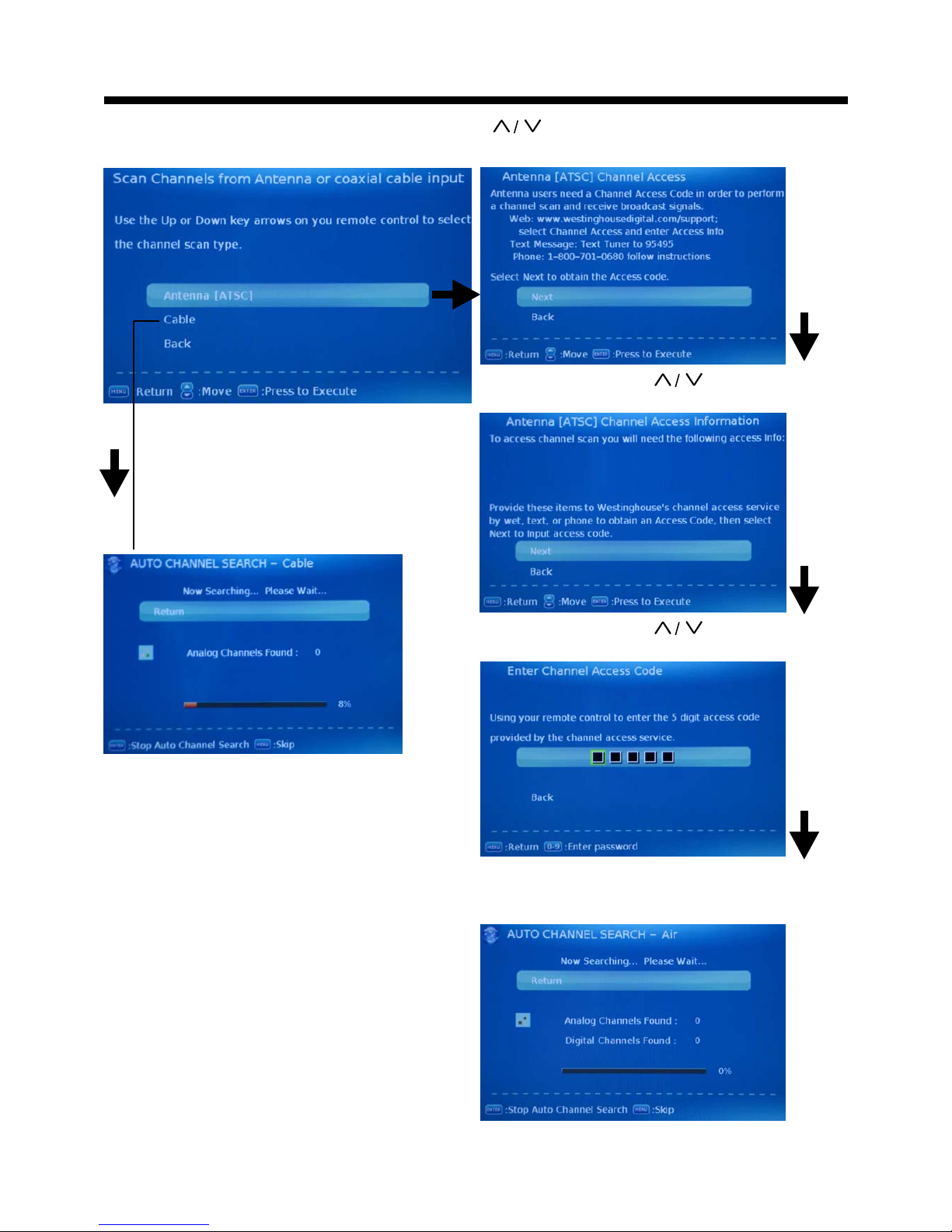

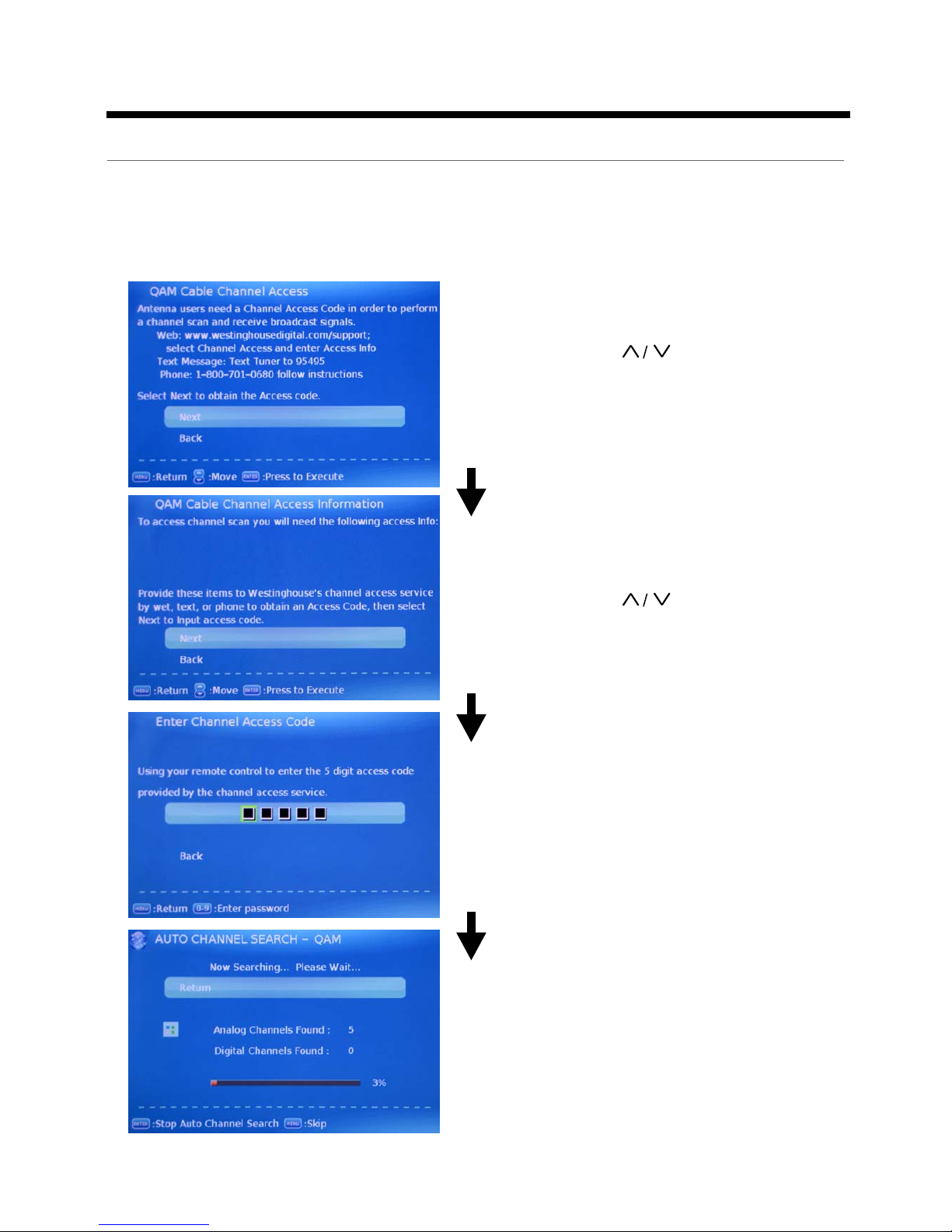

5. Select the Antenna [ATSC] or Cable mode by buttton, and press OK/ENTER button
to enter the next menu.
9. The auto searching may take a few minutes
to complete.
*6. The auto searching may take a few
minutes to complete.
Model: XXXXXXX
Serial No: XXXXXXXXXXX
Channel Scan Type: ATSC

button to select the function item, press button to adjust/setup,
12
Power on/off
1. Connect to the power supply with the power cord, and turn on the switch.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display input
source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Use /
Ĥ
/
ĥ
Ĥ ĥ
ĥ
button to select the main menu, and press OK button to enter the submenu.
Use /
Ĥ ĥ
button to select.
In the submenu, use /
Ĥĥ
or press button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Main menu
Sound
Channel
Parental
Setup
Others
Submenu
(Picture menu
for example)

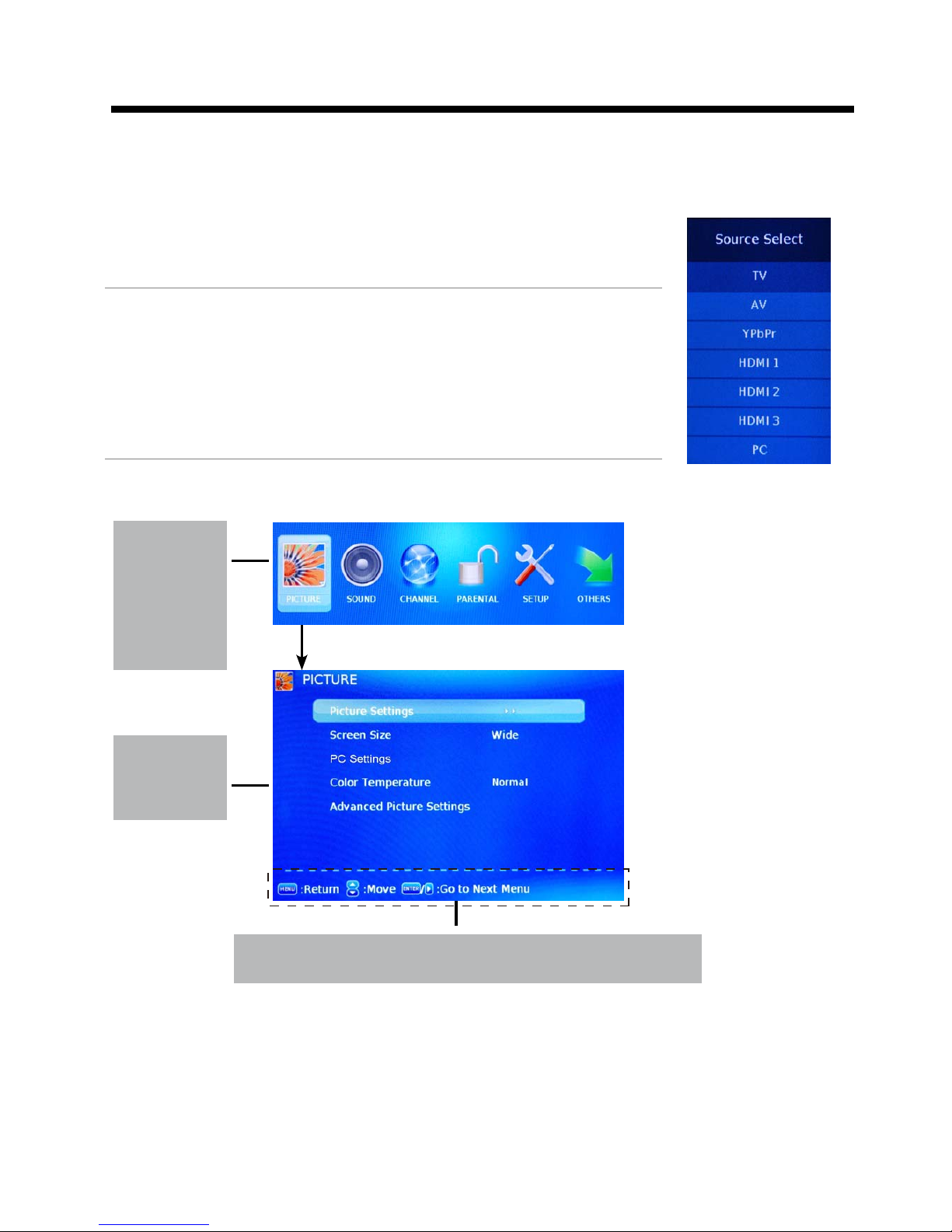

Guide - This guide shows the keys (buttons) on the remote
control for selecting the items to setup in the OSD menu.
Press MENU button to display the OSD menu as below:
Basic Operation
Basic Operation
Press OK button

OSD Menu
13

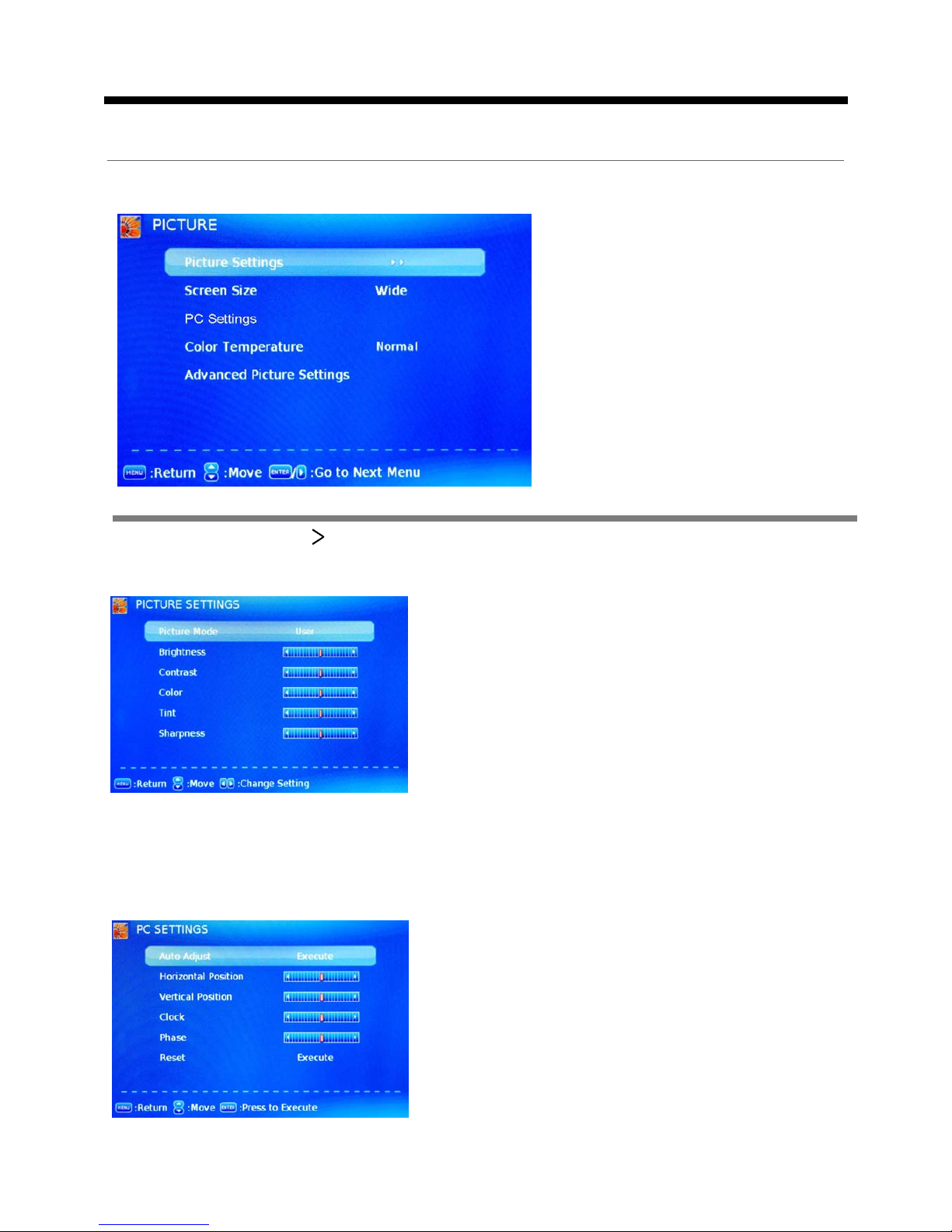

1. Picture menu
Description
Picture mode: Select between Dynamic, Standard,
Movie and User.
You may select the picture mode directly by pressing
the PICTURE button on the remote control.
Picture Settings: Press button to enter the Picture Settings menu.
Screen Size: Select the displaying mode of the picture between Wide, Cinema, Zoom, Normal,
Just Scan, Standard, Fill, and Over scan.
PC Settings: If the video input signal comes from your PC, you may adjust the Vertical Position,
Horizontal Position, Clock, Phase or even perform an Auto adjustment.
Contrast: Control the difference between the bright and
dark regions of the screen picture.
Brightness: Adjust brightness of the picture.
Color: Adjust color of the picture.
Tint: Control the fresh tones to make them appear natural.
Sharpness: Set the amount of fine detail in the picture.
Color Temp.: Select between Normal, Cool and Warm.
Note: when select the "Standard", the
machine is in energy-saving status.
OSD Menu
Auto Adjust: Press OK button to setup the parameter of
the screen automatically.
Clock: Adjust the pixel clock frequency, until the image
size is maximized for the screen.
H/V Position: Adjust the transverse/vertical position of
the screen.
Phase: Adjust the phase of the ADC sampling clock
relative to the sync signal, until a stable image is obtained.
Reset: Press OK button to reset the settings.

OSD Menu
14
Dynamic Contrast: Activate or deactivate the Dynamic.
Contrast funciton.
Film Mode: Activate or deactivate the Film Mode.
Noise Reduction: If the broadcast signal received is
weak, you can select the DNR option to reduce the video
noise level between Off, Low, Medium and High.
MPEG Noise Reduction: Select the MPEG Noise
Reduction option to reduce the picture noise level
between Off, Low, Medium and High.
Advanced Picture Settings: Press button to enter the Advanced Picture Settings.
OSD Menu

OSD Menu
15

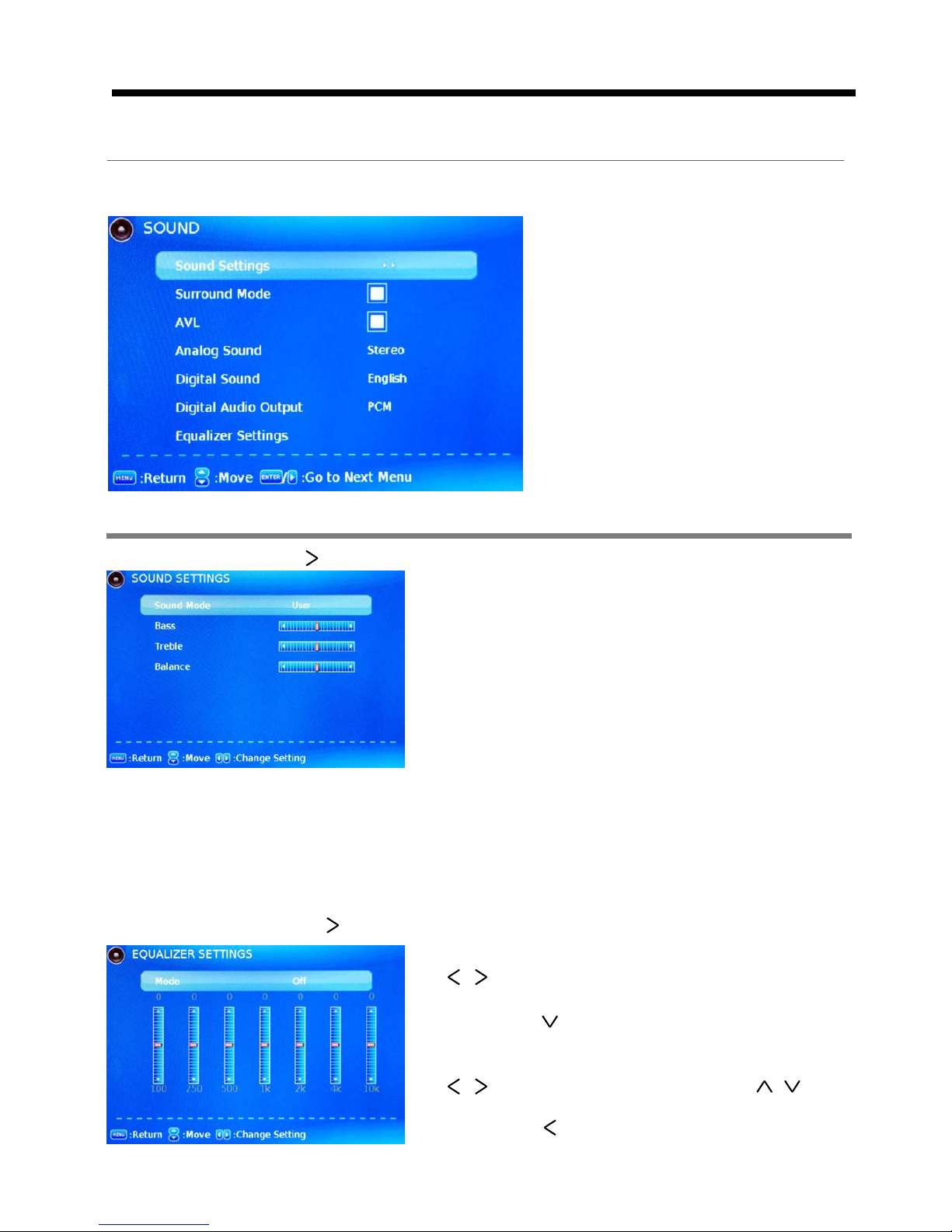

2. Sound menu
Description
Sound Mode: Select your desired picture mode as
follow: Dynamic, Standard, Soft and User.
You may select the sound mode directly by pressing
the SOUND button on the remote control.
Bass: Low frequency intensity.
Treble: High frequency intensity.
Balance: Left and right stereo audio channels balance.
Surround Mode: Activate or deactivate the Surround function.
OSD Menu
Sound Settings: Press button to enter the Sound Settings menu.
AVL: Activate or deactivate the Auto Volume Limited function.
Analog Sound: Select the Analog Sound mode between Stereo, Mono and SAP.
Digital Sound: Select the Digital Sound laguage.
Digital Audio Output: Select the Digital Audio Output mode between PCM, RAW and off.
Equalizer Settings: Press button to enter the Equalizer Settings menu.
Use / button to select the item, and use / button
Use / button to select the mode between User, Off,
Rock, Pop and Jazz.
You could press button to enter the bottom item to
adjust the equalizer bu yourself when you select
the User mode.
to adjust. You could come back to the Mode selecting
item by pressing button.

OSD Menu
16
Description

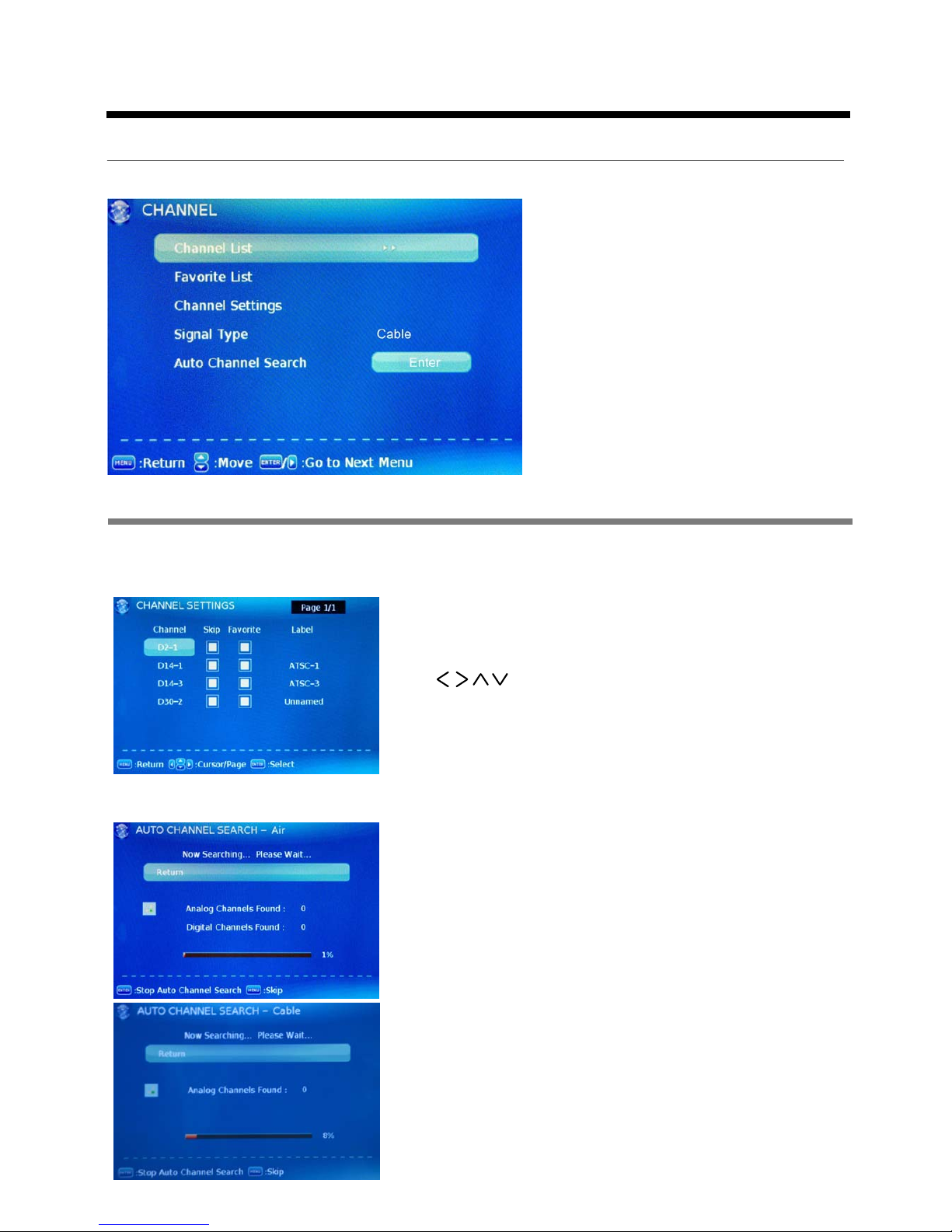

3. Channel menu
Channel List: Display the channel list.
Favorite List: Display the favorite channel list.
Channel Settings: Press > button to display the Channel Settings menu.
Signal Type: Allow you to select antenna between Air, Cable and QAM.
Auto Channel Search: Press OK button to start auto channel search.
Press button to select the item, and press OK
button to change the setting.
OSD Menu
If you select “Cable” as input signal in Signal Type item,
you can press button to search the analog channels
automatically. The receivable channels will be stored
automatically. When searching channels, press MENU
to stop.
µ
µ
ĥ
ĥ
If you select “Air” as input signal in Signal Type item, you
can press button to search the channels automatically.
The receivable channels will be stored automatically.
When searching channels, press MENU to stop.
NOTE: It will take a while to auto scan in NTSC or ATSC
mode, please wait patiently.

OSD Menu
17
OSD Menu
If you select “QAM” as input signal in Signal Type item, you can press button to search the
channels automatically. The receivable channels will be stored automatically.
When searching channels, press MENU to stop.
µ
ĥ
1. Select Next item by button and press
OK/ENTER button to enter the next menu.
2. Select Next item by button and press
OK/ENTER button to enter the next menu.
3. Enter the code by the number buttons on the
remote control to start the auto channel
search.
NOTE: It will take a while to auto scan in NTSC or ATSC mode, please wait patiently.
Model: XXXXXXX
Serial No: XXXXXXXXXXX
Channel Scan Type: QAM

OSD Menu
18

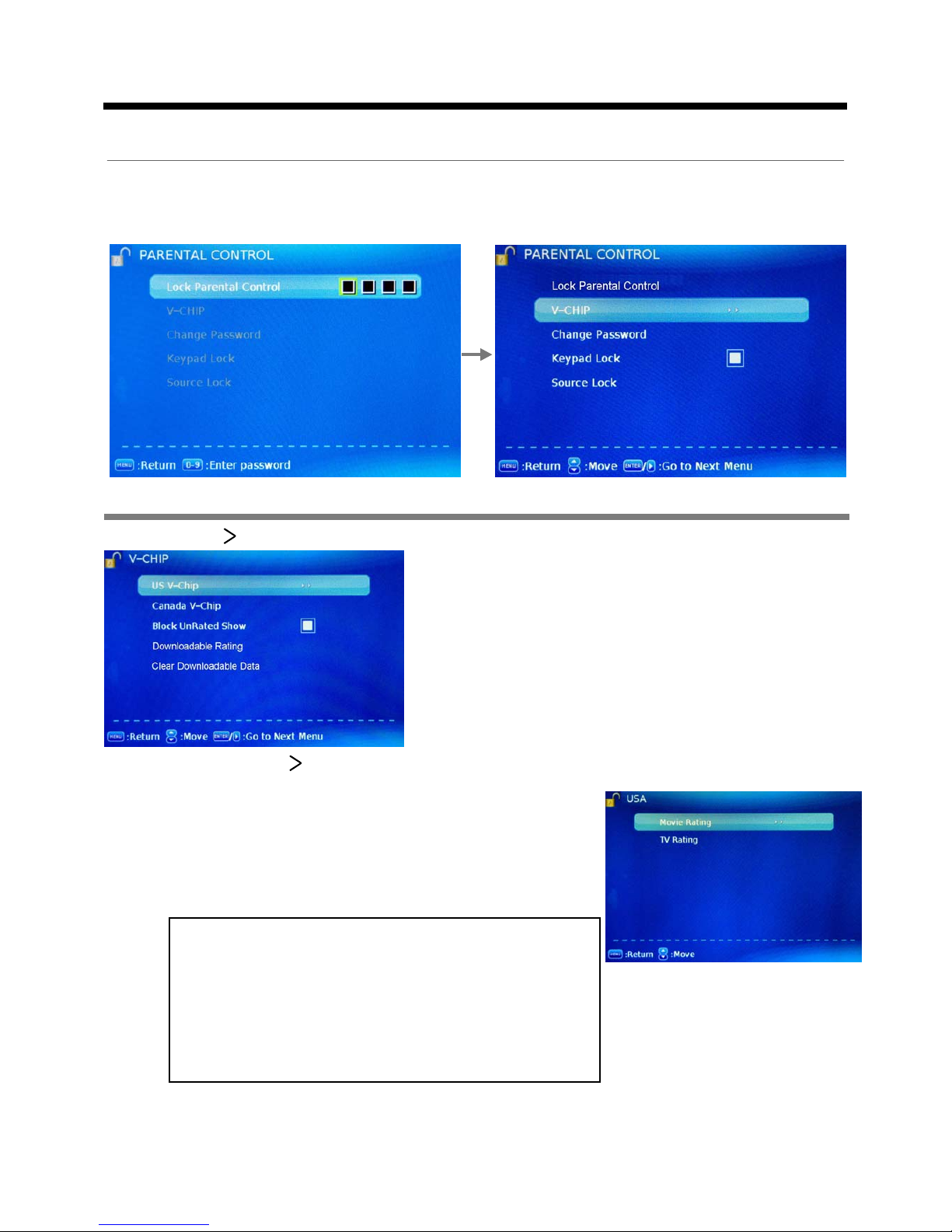

4. Parental Control menu
OSD Menu
Description
V-CHIP: Press button to enter the V-CHIP menu.
You must enter the password to gain access to the Parental Control menu. The default password
is 0000. You may modify the following options:
TV Rating: Use buttons to select the desired rating and press button to block
Movie Rating: The Movie rating (MPAA) is used for
original movies rated by the Motion Picture Association
of America (MPAA) as broadcasted on cable TV and
not edited for television.
Use button to select G, PG, PG-13, R, NC-17
or X.
Ĥ0ĥ
Ĥ0ĥ
ĥ
G: General Audiences. Movie is appropriate for all ages.
PG: Parental Guideance Suggested. May contain material not
suited for younger viewers.
PG-13: Contains content that may not be appropriate for viewers
under the age of 13.
R: Restricted. Contains adult content, no one under 17 admitted
without parent.
NC-17: No one 17 and under admintted.
X: Adults only.
US V-CHIP: Press button to enter the US V-CHIP menu.
or unblock rating.
