Westinghouse iGen1200 User manual

USER MANUAL
iGen1200
Digital Inverter Generator
1000 Running Watts | 1200 Peak Watts
FOR MODELS:

2 | Westinghouse Portable Power
DISCLAIMERS:
All information, illustrations and specications in this manual are based on the latest information available at the time of publishing.
The illustrations used in this manual are intended as representative reference views only. Moreover, because of our continuous prod-
uct improvement policy, we may modify information, illustrations and/or specications to explain and/or exemplify a product, service
or maintenance improvement. We reserve the right to make any change at any time without notice. Some images may vary depending
upon which model is shown.
ALL RIGHTS RESERVED:
No part of this publication may be reproduced or used in any form by any means – graphic, electronic or mechanical, including photo-
copying, recording, taping or information storage and retrieval systems – without the written permission of MWE Investments LLC.
DANGER
This manual contains important instructions for operating this inverter generator. For your safety
and the safety of others, be sure to read this manual thoroughly before operating the
generator. Failure to properly follow all instructions and precautions can cause you and
others to be seriously hurt or killed.
Model
Number
Running
Watts
Peak
Watts
Fuel Tank
Size (L/G)
Rated
Speed
(RPM)
Ignition
Type
Spark
plug
Engine
Disp (cc)
Stroke X
Bore
Oil
Capacity
(L) Oil Type THD
iGen1200 1000 1200 3/0.8 5000 CDI A5RTC 54 36X43.5 0.25 10W30 <3%
iGen1200 SPECIFICATIONS
HAVE QUESTIONS? Email us at [e-mail]
or call 1-855-944-3571
Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust,
carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth
defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine
except as necessary, service your equipment in a well-ventilated area and wear gloves or wash your hands
frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov.
WARNING
NOTICE
This inverter does not require an altitude carburetor modication to operate at altitude. However, engine horsepower will decrease about
3.5% for each 300 meter (1,000 foot) increase in altitude. A decrease in engine horsepower will decrease the power output of the generator.
FOR YOUR RECORDS:
Date of Purchase:
Inverter Model Number:
Purchased from Store/Dealer:
Inverter Serial Number:

Westinghouse Portable Power | 3
IMPORTANT: KEEP YOUR PURCHASE RECEIPT TO ENSURE
TROUBLE-FREE WARRANTY COVERAGE.
PRODUCT REGISTRATION
To ensure trouble-free warranty coverage, it is important you register your Westinghouse inverter.
You can register your generator by either:
1. Filling in the product registration form below and mailing to:
Product Registration
MWE Investments LLC
777 Manor Park Drive
Columbus, Ohio 43228
2. Registering your product Online at www.westinghouseportablepower.com/register-your-product/
To register your generator you will need to locate the following information:
WESTINGHOUSE PRODUCT REGISTRATION FORM
PERSONAL INFORMATION INVERTER INFORMATION
First Name: _______________________________________ Model Number: _____________________________________
Last Name: _______________________________________ Serial Number:______________________________________
Street Address: ___________________________________ Date Purchased: ____________________________________
Street Address: ___________________________________ Purchased From:____________________________________
City, State, ZIP:____________________________________
Country: __________________________________________
Phone Number: ___________________________________
E-Mail: ___________________________________________
Serial Number which is located on
bottom of muer cover.
WHERE IS MY SERIAL NUMBER?

4 | Westinghouse Portable Power
TABLE OF CONTENTS
IGEN TECHNICAL SPECIFICATIONS .............2
PRODUCT REGISTRATION .....................3
For Your Records: ..........................3
Find Serial Number .........................3
Product Registration .......................3
Product Registration Form ...................3
SAFETY .....................................5
Safety Denitions ...........................5
Safety Symbol Denitions ....................5
General Safety Rules ........................6
UNPACKING .................................7
FEATURES ..................................8
Basic Inverter Features iGen1200 ..............8
Control Panel Features iGen1200 ..............9
OPERATION .................................10
Before Starting the Inverter ...................10
Location Selection .......................10
Weather ................................10
Dry Surface .............................10
No Connected Loads .....................10
Grounding the iGen1200 Inverter ............10
Powercord ................................11
Inverter Paralleling Operation .................11
Power Output and Demand ...................12
Initial Oil Fill ...............................13
Adding/Checking Engine Fluids and Fuel ........14
Checking and/or Adding Engine Oil. . . . . . . . . . . . . 14
Adding Gasoline to the Fuel Tank ..............14
Starting iGen1200 ..........................15
Stopping the Inverter ........................16
Using Eciency Mode .......................16
Resetting the Reset Breaker ..................16
MAINTENANCE ..............................17
Maintenance Schedule ......................17
Engine Oil Maintenance ......................18
Checking Engine Oil. . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding Engine Oil ..........................18
Changing Engine Oil ........................19
Air Filter Maintenance .......................19
Cleaning the Air Filter ........................19
Draining the Float Bowl ......................20
Spark Plug Maintenance .....................21
Cleaning the Spark Arrestor ...................22
Checking and Adjusting Valve Lash. . . . . . . . . . . . . 22
Cleaning the Inverter ........................23
Storage ..................................23
TROUBLESHOOTING .........................24
EXPLODED AND ENGINE VIEWS ................25
iGen1200 Schematic ........................25
iGen1200 Exploded View .....................26
iGen1200 Engine View .......................28
FULL GENERATOR SPECIFICATIONS ............30

Westinghouse Portable Power | 5
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION and
NOTICE are used throughout this manual to highlight
important information. Be certain that the meanings of
these alerts are known to all who work on or near the
equipment.
This safety alert symbol appears
with most safety statements. It
means attention, become alert, your
safety is involved! Please read and
abide by the message that follows
the safety alerts symbol.
DANGER
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation which can cause damage
to the generator, personal property and/or the
environment, or cause the equipment to operate
improperly.
NOTE: Indicates a procedure, practice or condition
that should be followed in order for the
generator to function in the manner
intended.
SAFETY
SAFETY SYMBOL DEFINITIONS
Explosion Hazard
Fire Hazard
Electrical Shock Hazard
Lifting Hazard
Pinch-Point Hazard
Read Manufacturer’s Instructions
Read Safety Messages
Before Proceeding
Wear Personal Protective
Equipment (PPE)
Safety Alert Symbol
Asphyxiation Hazard
Burn Hazard
Burst/Pressure Hazard
Don’t leave tools in the area
Symbol Description

6 | Westinghouse Portable Power
DANGER
Never use the inverter in a location that is wet or damp. Never expose the inverter to rain, snow,
water spray or standing water while in use. Protect the inverter from all hazardous weather conditions.
Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.
Never operate the inverter in an enclosed area. Engine exhaust contains carbon monoxide. Only
operate the inverter outside and away from windows, doors and vents.
WARNING
Voltage produced by the inverter could result in death or serious injury.
• Never operate the inverter in rain or a ood plain unless proper precautions are taken to avoid being
subject to rain or a ood.
• Never use worn or damaged extension cords.
• Always have a licensed electrician connect the inverter to the utility circuit.
• Never touch an operating inverter if the inverter is wet or if you have wet hands.
• Never operate the inverter in highly conductive areas such as around metal decking or steel works.
• Always use grounded extension cords. Always use three-wire or double-insulated power tools.
• Never touch live terminals or bare wires while the inverter is operating.
• Be sure the inverter is properly grounded before operating.
WARNING
Gasoline and gasoline vapors are extremely ammable and explosive under certain conditions.
• Always refuel the generator outdoors, in a well-ventilated area.
• Never remove the fuel cap with the engine running.
• Never refuel the inverter while the engine is running. Always turn engine o and allow the generator
to cool before refueling.
• Only ll fuel tank with gasoline.
• Keep sparks, open ames or other form of ignition (such as match, cigarette, static electric source)
away when refueling.
• Never overll the fuel tank. Leave room for fuel to expand. Overlling the fuel tank can result in a
sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
Spilled fuel can ignite. If fuel is spilled on the inverter, wipe up any spills immediately. Dispose of rag
properly. Allow area of spilled fuel to dry before operating the inverter.
• Wear eye protection while refueling.
• Never use gasoline as a cleaning agent.
• Store any containers containing gasoline in a well-ventilated area, away from any combustibles or
source of ignition.
• Check for fuel leaks after refueling. Never operate the engine if a fuel leak is discovered.
WARNING
Never operate the inverter if powered items overheat,
electrical output drops, there is sparking, ames or smoke
coming from the inverter, or if the receptacles are damaged.
Never use the inverter to power medical support equipment.
Always remove any tools or other service equipment used
during maintenance from the inverter before operating.
NOTICE
Never modify the inverter.
Never operate the inverter if it
vibrates at high levels, if engine
speed changes greatly or if the
engine misres often. Always
disconnect tools or appliances
from the inverter before starting.
GENERAL SAFETY RULES
SAFETY

Westinghouse Portable Power | 7
CAUTION
Always have assistance when lifting
the inverter. The inverter is heavy;
lifting it could cause bodily harm.
Avoid cutting on or near staples
to prevent personal injury.
UNPACKING
Tools required – box cutter or similar device.
1. Carefully cut the packing tape on top of the carton.
2. Remove socket wrench, oil and funnel and
save for later.
3. Carefully cut two sides of the carton to
remove the inverter.
WHAT COMES IN THE BOX
Spark Plug Socket Wrench (1)
Owner Manual (1)
Quick Start Guide (1)
Warranty Information (1)
Funnel (1)
.37 QT/.35 L Bottle of 10W-30 Oil (1)

8 | Westinghouse Portable Power
FEATURES
BASIC INVERTER FEATURES IGEN1200
Fuel Cap and Vent: Open the vent to run the
engine and close the vent when the engine is o.

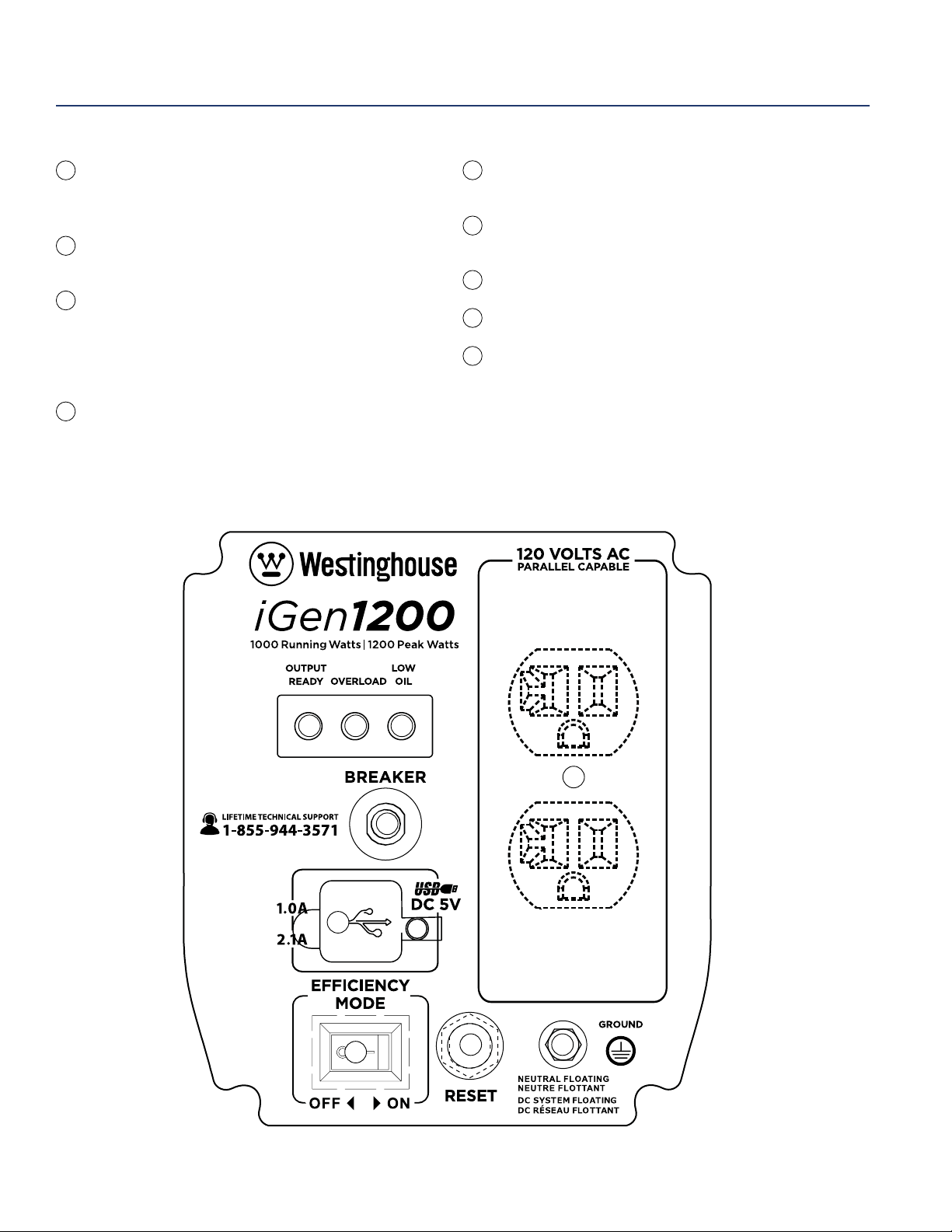

Control Panel: Contains the reset breaker,
outlets and warning lights.
Spark Plug Access Cover: Remove the cover
to service the spark plug.
Recoil Handle: Pull to start the engine.
Engine Control Switch: Turns the fuel on and
o.
1
5
6
7
8
9
2
3
4
2
1
3
4
5
6
7
8
9
Engine Service Panel: Remove the panel to access
the engine and oil for maintenance.
Muer and Spark Arrestor: Avoid contact until the
engine is cooled down. The spark arrestor prevents
sparks from exiting the muer. It must be removed for
servicing.
Engine Cooling Vents: Helps move airow in unit to
regulate engine temperatures.
Choke Lever Switch: Opens and closes choke for
starting.

Westinghouse Portable Power | 9

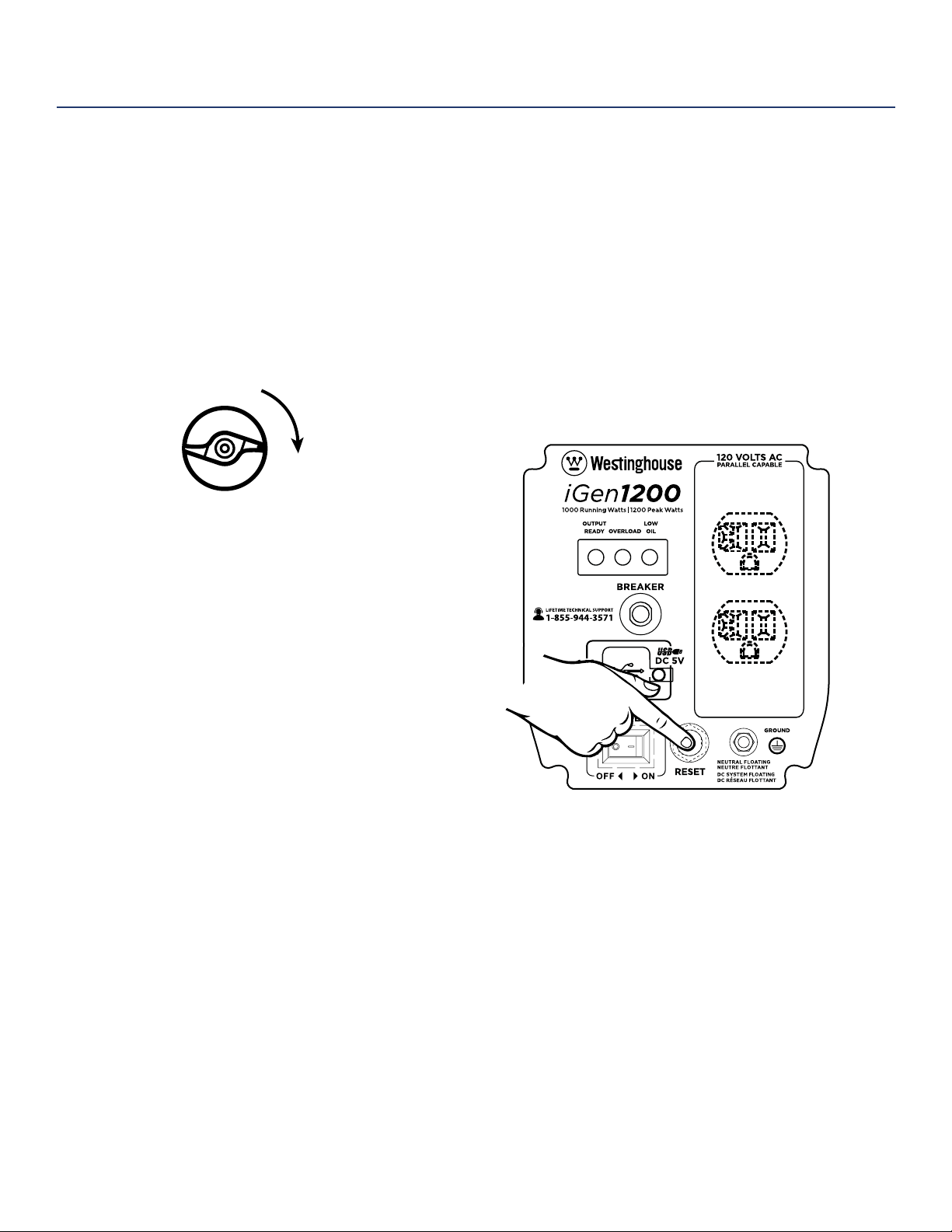

CONTROL PANEL FEATURES IGEN1200
120-Volt, 20-Amp Duplex Outlet (NEMA 5-20R):
The outlet is capable of carrying a maximum of
20 amps.
USB Duplex: 5V DC that come in 1 amps and
2.1 amps.
Reset Breaker: If the inverter is overloaded, the
reset breaker will trip. The engine will continue to
run, but there will be no output from the inverter.
Unplug the devices and reduce the load. Push in
the reset breaker to reset it.
Eciency Mode Switch: When turned to the ON
position, the engine will sense the load needed
and run at a slower RPM to save fuel.
1
2
3
4
5
6
7
8
9
Ground Terminal: The ground terminal is used to
externally ground the inverter.
Output Ready LED: Indicates the inverter is ready to
be used.
Overload LED: Indicates that the inverter is overloaded.
Low Oil LED: Indicates low oil level.
20-Amp Circuit Breaker: Each circuit breaker limits
the current that can be delivered through the 120-volt
duplex outlets to 20amps.
1
2
3
45
7 8
9
6
FEATURES

10 | Westinghouse Portable Power
Weather – Never operate your inverter outdoors during rain,
snow or any combination of weather conditions that could
lead to moisture collecting on, in or around the generator.
Dry Surface – Always operate the inverter on a dry surface
free of any moisture.
No Connected Loads – Make sure the inverter has no
connected loads before starting it. To ensure there are no
connected loads, unplug any electrical extension cords that
are plugged into the control panel receptacles.
NOTICE
Starting the inverter with loads already applied to
it could result in damage to any appliance being
powered o the inverter during the brief start-up
period.
Grounding the iGen1200 Inverter
Consult with your local municipalities for your
grounding codes.
WARNING
Be sure the inverter is properly
connected to earth ground before
operating.
NOTICE
During the rst ve hours of operating the generator
make sure to not exceed 50% of the rated running
watts until the unit is broken in properly. Make sure to
vary to load occasionally to allow stator windings to
heat and cool. Adjusting the load will also help seat
piston rings. Check oil more often during the rst
couple times of operating the generator.
NOTICE
Weather will aect engine oil performance. Change
the type of engine oil used based on weather
conditions to suit the engine needs.
BEFORE STARTING THE INVERTER
BEFORE STARTING THE INVERTER,
REVIEW SAFETY SECTION STARTING ON
PAGE 5.
Location Selection – Before starting the inverter, avoid
exhaust and location hazards by verifying:
• You have selected a location to operate the inverter
that is outdoors and well ventilated.
• You have selected a location with a level and solid
surface on which to place the inverter.
• You have selected a location that is at least 6 feet
(1.8 m) away from any building, other equipment or
combustible material.
• If the inverter is located close to a building, make sure
it is not located near any windows, doors and/or vents.
WARNING
Always operate the inverter on a level
surface. Placing the inverter on non
level surfaces can cause the inverter
to tip over, causing fuel and oil to spill.
Spilled fuel can ignite if it comes in
contact with an ignition source such
as a very hot surface.
NOTICE
Only operate the inverter on a solid, level surface.
Operating the inverter on a surface with loose
material such as sand or grass clippings can cause
debris to be ingested by the inverter that could:
• Block cooling vents
• Block air intake system
OPERATION

Westinghouse Portable Power | 11
POWER CORD

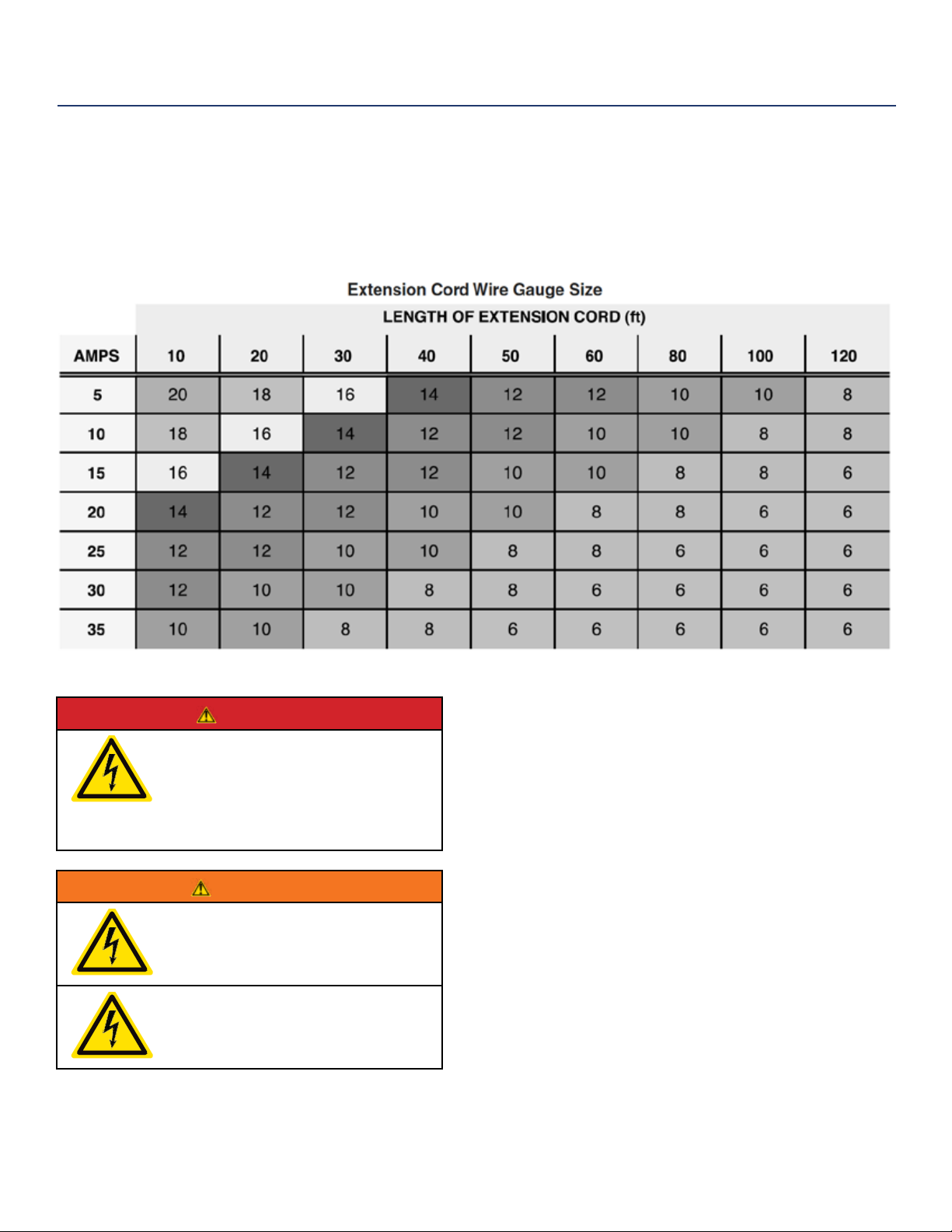

Using Extension Cords
Westinghouse Portable Power assumes no responsibility for the content within this table. The use of this table is the
responsibility of the user only. This table is intended for reference only. The results produced by using this table are not
guaranteed to be correct or applicable in all situations as the type and construction of cords are highly variable. Always
check with local regulations and a licensed electrician prior to installing or connecting an electrical appliance.
OPERATION
INVERTER PARALLELING OPERATION
DANGER
Never connect the paralleling cord
to the inverters with the inverters
running. The inverters must not be
running and both the paralleling cord
switches must be o when connecting
the cords.
WARNING
Do not use the paralleling cord for
any application other than inverter
paralleling. Do not use this cord on
other manufacturers’ inverters.
Always ensure that both ends of
the paralleling cord are switched o
before connecting the inverters.
INVERTER PARALLELING OPERATION
1. Using only the Westinghouse paralleling cord (Part
No. 260041) with both red cord switches set to
OFF (O), connect one male plug to one inverter and
connect the remaining plug into the other inverter.
Either of the receptacles on the inverters can be
used.
2. Start one of the inverters and wait until the output
ready light is on.
3. Turn both red cord switches to ON (I).
4. Start the remaining inverter; wait until the output
ready light is on before connecting the load.
5. When power is present, a light will illuminate in the
three-prong plug that is plugged into the inverter.
6. To stop the inverters, unplug all connected loads,
turn both cord switches to OFF (O) and unplug the
cord on each inverter.
7. If during operation the inverters’ output is stopped
due to overloading, reduce the connected load by
unplugging appliances, and then push the reset
button and restart the inverter. When the ready light
is on, the load can be reconnected.

12 | Westinghouse Portable Power
OPERATION
POWER OUTPUT AND DEMAND
The generator should not be run completely unloaded for extended periods otherwise the engine may be damaged. It
is recommended that the generator should always be operated with at least one-third of its rated 120-Volt AC power
output. 120-Volt AC devices have two dierent electric power demands that must be taken into consideration, namely
the running power and the starting/peak power. Both are measured in Watts (typically abbreviated as “W”).
The steady state continuous load is the running power demand and this is often marked on the device near its model number
or serial number. Sometimes the device might only be marked with its voltage (i.e. 120 V) and current draw (e.g. 6 Amp or 6 A),
in which case the running power demand in Watts can be obtained by multiplying the voltage times the current, e.g. 120 V ×
20 A = 2,400 W.
Simple resistive 120-Volt AC devices such as incandescent bulbs, toasters, heaters, etc. have no extra power demand when
starting, and so their starting power demands are the same as their running power demands.
More complex120-Volt AC devices containing inductive or capacitive elements such as electric motors have a momentary
extra power demand when starting, which can be up to seven times the running power demand or more. Manufacturers of
such devices rarely publish this starting power demand and so it’s often necessary to estimate it. A rule of thumb for devices
tted with an electric motor is to apply a starting power multiplier of 1.2 for small hand-held or portable devices and a value
of 3.5 for larger stationary devices. For example, a 900 W angle grinder can be assumed to have a starting power demand
of at least 1.2 × 900 W, which equals 1,080 W. Similarly, a 1,650 W air compressor can be assumed to have a starting power
demand of at least 3.5 × 1,650 W, which equals 5,775 W.
To prevent overloading of the generator’s 120-Volt AC system:
1. Add up the running power demand of all the 120-Volt AC devices that will be connected to the generator at one time. This
total must not be greater than the generator’s specied running power output.
2. Add up the running power demand again, but for the largest motor-driven device use the value of its starting power
demand instead of its running power demand. This total must not be greater than the generator’s specied starting power
output.
3. The total running power demand of all the devices that will be connected to any one of the generator’s outlets must not
exceed the generator’s specied running power output or 3,700 W, whichever is the lesser.
TRANSPORTING THE GENERATOR
The generator should be stopped and both the fuel control switch and fuel cap vent should be turned to the OFF
position before transporting the generator. Keep the unit level during transport to minimize the possibility of fuel leakage
or, if possible, drain out the fuel prior to transport.
If the generator has been operating, allow the unit to cool down before loading it onto the transport vehicle.

Westinghouse Portable Power | 13

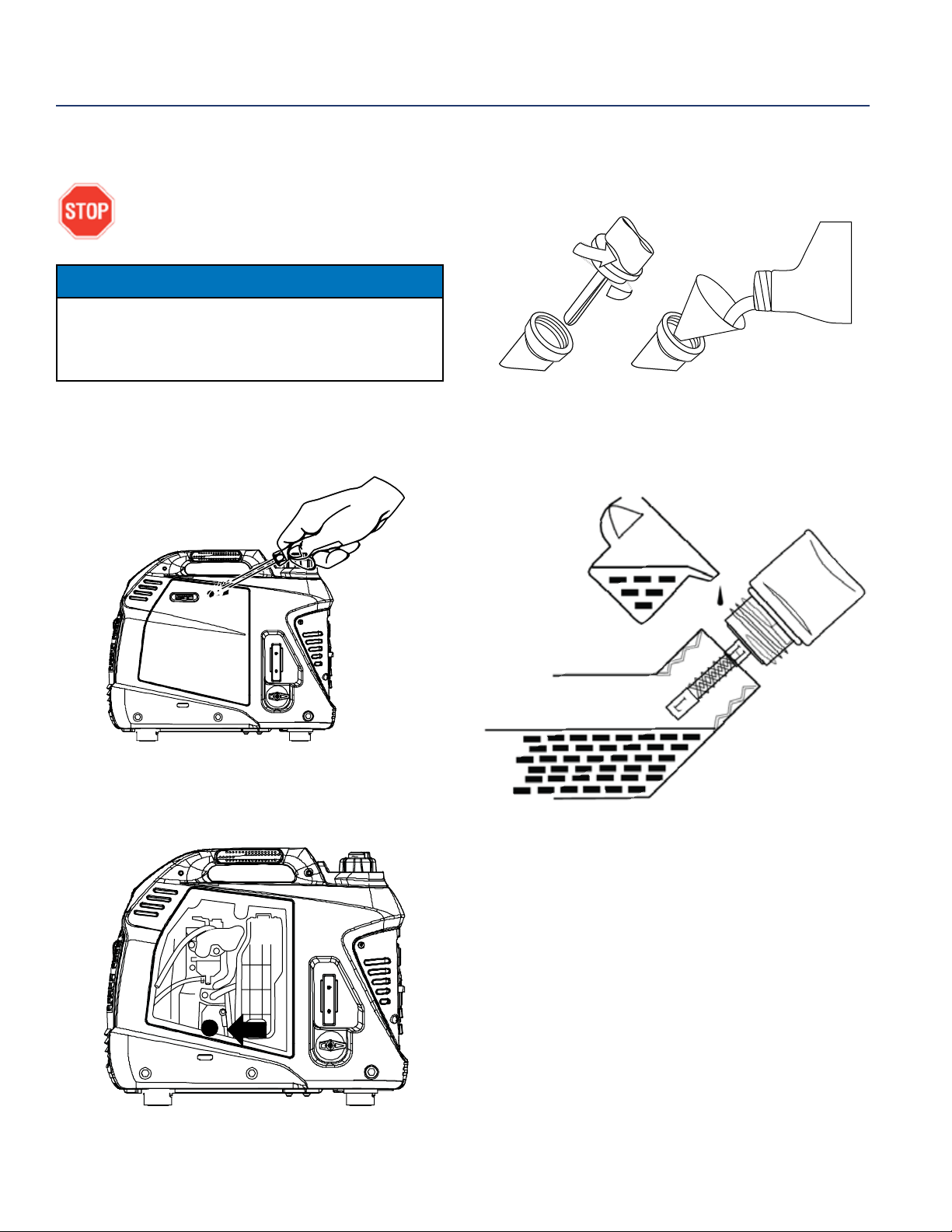

3. Using the supplied funnel and oil, pour the entire
bottle of oil into the engine (see Figure 3).
Figure 3: Oil Funnel
4. Do not overll, if oil level is too high, oil will drain
out through the ll plug. See correct oil level in
Figure 4.
Figure 4: Engine Oil Correct Level
INITIAL OIL FILL
BEFORE ADDING ENGINE OIL, REVIEW
SAFETY SECTION STARTING ON PAGE 5.
NOTICE
Engine oil must be added when the inverter is on a
at, level surface, or an inaccurate reading may result.
Do not overll. If the engine is overlled with oil, it can
cause serious engine damage.
1. Loosen the screw and remove the engine oil ll/ drain
plug service panel to access the oil ll/drain plug (see
Figure 1).
Figure 1: Engine Service Panel
2. Clean the area around the oil ll/drain plug and re-
move plug (See Figure 2).
Figure 2: Oil Fill/Drain Plug
OPERATION

14 | Westinghouse Portable Power
ADDING/CHECKING ENGINE
FLUIDS AND FUEL
BEFORE ADDING/CHECKING ENGINE
FLUIDS AND FUEL, REVIEW SAFETY
SECTION STARTING ON PAGE 5.
DANGER
Filling the fuel tank with gasoline while
the inverter is running can cause
gasoline to leak and come in contact
with hot surfaces that can ignite the
gasoline.
Before starting the inverter, always check the level of:
• Engine oil
• Gasoline in the fuel tank
Once the inverter is started and the engine gets warm, it
is not safe to add gasoline to the fuel tank or engine oil to
the engine while the engine is running or the engine and
muer are hot.
CHECKING AND / OR ADDING ENGINE OIL
WARNING
Internal pressure can build in the
engine crankcase while the engine
is running. Removing the oil ll plug/
dipstick while the engine is hot can
cause extremely hot oil to spray out of
the crankcase and can severely
burn skin. Allow engine oil to cool for
several minutes before removing the
oil ll plug/dipstick.
The unit as shipped does not contain oil in the engine.
You must add engine oil before starting the inverter for
the rst time. See Initial Oil Fill on page 13 for instructions
on checking engine oil level and the procedure for adding
engine oil.
NOTICE
The engine does not contain engine oil as shipped.
Attempting to start the engine without adding engine oil will
permanently damage internal engine components.
The engine is equipped with a low oil shutdown switch. If
the oil level becomes low, the engine may shut down and
not start until the oil is lled to the proper level.
The owner of the inverter is responsible to ensure the
proper oil level is maintained during the operation of the
generator. Failure to maintain the proper oil level can result
in engine damage.
ADDING GASOLINE TO THE FUEL TANK
WARNING
Never refuel the inverter while the
engine is running.
Always turn the engine o and allow
the inverter to cool before refueling.
CAUTION
Avoid prolonged skin contact with
gasoline. Avoid prolonged breathing of
gasoline vapors.
Required Gasoline – Only use gasoline that meets the
following requirements:
• Unleaded gasoline only
• Gasoline with maximum 10% ethanol added
• Gasoline with an 87 octane rating or higher
Filling the Fuel Tank – Follow the steps below to ll the fuel
tank:
1. Shut o the inverter.
2. Allow the inverter to cool down so all surface areas of
the muer and engine are cool to the touch.
3. Move the inverter to a at surface.
4. Clean area around the fuel cap.
5. Remove the fuel cap by rotating counterclockwise.
NOTICE
Do not overll the fuel tank. Spilled fuel will damage
some plastic parts.
6. Slowly add gasoline into the fuel tank. Be very careful
not to overll the tank. The gasoline level should NOT
be higher than the red ring (see Figure 5).
7. Install the fuel cap by rotating clockwise.
Figure 5: Maximum Gasoline Fill Level
OPERATION

Westinghouse Portable Power | 15
STARTING THE INVERTER
BEFORE STARTING THE INVERTER,
REVIEW SAFETY SECTION STARTING ON
PAGE 5.
For proper starting and operation of the inverter,
make sure you review the inverter features and their
descriptions starting on page 8.
Before attempting to start the inverter, verify the
following:
• The engine is lled with engine oil (see Figure 4: Engine
Oil Correct Level on page 13).
• The inverter is situated in a proper location (see
Location Selection on page 10).
• The inverter is on a dry surface (see Weather and Dry
Surface on page 10).
• All loads are disconnected from the inverter (see No
Connected Loads on page 10).
• The inverter is properly grounded (see Grounding the
Inverter on page 10).
DANGER
Never use the inverter in a location that is
wet or damp. Never expose the inverter to
rain, snow, water spray or standing water
while in use. Protect the inverter from all
hazardous weather conditions. Moisture
or ice can cause a short circuit or other
malfunction in the electrical circuit.
Never operate the inverter in an enclosed
area. Engine exhaust contains carbon
monoxide. Only operate the inverter
outside and away from windows, doors
and vents.
Starting the iGen1200
Be sure to check oil levels before starting. If it is the rst
time starting make sure to add oil (see Initial Oil Fill on
page 13).
1. Make sure nothing is plugged into the outlets.
2. Turn the fuel tank vent on top of the gas cap to the
ON position (see Figure 6).
Figure 6: fuel tank vent
OPERATION
3. Turn the engine/fuel control switch to the ON position
(see Figure 7).
ON
OFF
ENGINE SW./FUEL VALVE
Figure 7: Turn Engine/Fuel Switch to ON Position
4. Move the choke lever to the CHOKE position. NOTE:
If the engine is already warm keep the choke in
the RUN position to start. (see Figure 8)
Figure 8: Move choke lever to CHOKE position
5. Firmly grasp and pull the recoil handle slowly until
you feel increased resistance. At this point, apply
a rapid pull while pulling out from the inverter (see
Figure 9).
Figure 9: Pull the Recoil Handle out from Inverter
6. As the engine starts and stabilizes, turn the choke
switch back in to the RUN position (see Figure 10).
Figure 10: Move choke lever to RUN
7. Plug in electronic devices.

16 | Westinghouse Portable Power
OPERATION
STOPPING THE INVERTER
Normal Operation
During normal operation, use the following steps to stop
your inverter:
1. Remove any connected loads from the control panel
receptacles.
2. Allow the inverter to run at “no load” to reduce and
stabilize engine and alternator temperatures.
3. Move the engine/fuel control switch to the OFF posi-
tion (see Figure 11).
ON
OFF
ENGINE SW./FUEL VALVE
Figure 11: Turn Engine/Fuel Switch to OFF Position
4. Turn the fuel tank vent to the OFF position.
During an Emergency
If there is an emergency and the inverter must be
stopped quickly, move the engine/fuel control switch to
the OFF position immediately (see Figure 11).
USING EFFICIENCY MODE
The inverter is equipped with an eciency mode switch
to minimize fuel consumption. In eciency mode, the
inverter will sense the load and adjust the engine RPM
to the current load requirements. Eciency mode should
be used only after the inverter has been warmed up to
operating temperature.
1. To turn on the eciency mode, press the switch to
the ON position).
2. If no load is present, the inverter RPM will drop down
to an idle speed.
3. As a load is applied, the inverter will sense the load
and engine RPM will increase according to the load
applied.
4. To run the inverter at maximum power and RPM,
press the eciency mode switch to the OFF position.
RESETTING THE RESET BREAKER
The inverter will trip the breaker and automatically
disconnect from the load when the controls sense a
predetermined overload condition. The inverter engine
will continue to run, but there will not be any electrical
output.
1. Turn o all devices and unplug them from the inverter.
2. Determine the wattage required from the devices
being powered by the inverter. Make sure the wattage
required does not exceed the maximum output of the
inverter.
3. Press in the reset breaker to reset it (see Figure 12).
Figure 12: Press in reset breaker
4. Plug the devices in to the inverter.
5. Turn on the devices as needed.

Westinghouse Portable Power | 17
CAUTION
Avoid skin contact with engine oil or
gasoline. Prolonged skin contact with
engine oil or gasoline can be harmful.
Frequent and prolonged contact with
engine oil may cause skin cancer. Take
protective measures and wear protective
clothing and equipment. Wash all exposed
skin with soap and water.
WARNING
Failure to perform periodic maintenance
or not following maintenance procedures
can cause the inverter to malfunction and
could result in death or serious injury.
NOTICE
Periodic maintenance intervals vary depending on
inverter operating conditions. Operating the inverter
under severe conditions, such as sustained high-
load, high-temperature, or unusually wet or dusty
environments, will require more frequent periodic
maintenance. The intervals listed in the maintenance
schedule should be treated only as a general guideline.
WARNING
Avoid accidentally starting the inverter
during maintenance by removing the
spark plug boot from the spark plug. For
electric start inverters, also disconnect
the battery cables from the battery
(disconnect the black negative (-) cable
rst) and place the cables away from
the battery posts to avoid arcing.
Allow hot components to cool to
the touch prior to performing any
maintenance procedure.
Internal pressure can build in the engine
crankcase while the engine is running.
Removing the oil ll plug/ dipstick while
the engine is hot can cause extremely
hot oil to spray out of the crankcase and
can severely burn skin. Allow engine
oil to cool for several minutes before
removing the oil ll plug/dipstick.
Always perform maintenance in a well-
ventilated area. Gasoline fuel and fuel
vapors are extremely ammable and
can ignite under certain conditions.
MAINTENANCE
BEFORE PERFORMING MAINTENANCE ON THE INVERTER, REVIEW THE
SAFETY SECTION STARTING ON PAGE 5, AS WELL AS THE FOLLOWING
SAFETY MESSAGES.
Following the maintenance schedule is important to keep the inverter in good operating condition. The
following is a summary of maintenance items by periodic maintenance intervals.
TABLE 1: MAINTENANCE SCHEDULE - OWNER PERFORMED
Maintenance Item
Before Every
Use
After First 20
Hours or First
Month of Use
After 50 Hours
of Use or Every
6 Months
After 100 Hour
of Use or Every
6 Months
After 300 Hours of
Use or Every Year
Engine Oil Check Level Change Change - -
Cooling Features Check/Clean - - - -
Air Filter Check -Clean* - Replace
Spark Plug - - - Check/Clean Replace
Spark Arrestor - - - Check/Clean -
Valve Clearance** - - - Check/Adjust
*Service more frequently if operating in dry and dusty conditions
**Recommend to have service done by authorized Westinghouse service dealer

18 | Westinghouse Portable Power
7. Check oil level: When checking the engine oil,
remove the oil ll plug/dipstick and wipe it clean.
Thread the oil ll plug/dipstick all the way back in and
then remove and check the oil level on the oil ll plug/
dipstick.
• Acceptable Oil Level – Oil is visible on the
crosshatches between the H and L lines on the oil
ll plug/dipstick (see Figure 14).
• Low Oil – Oil is below the L line on the oil ll plug/
dipstick.
If oil level is below
this line it is too
low to operate.
Figure 14: Low oil
NOTICE
Engine oil must always be checked and added when
the inverter is on a at, level surface, or an inaccurate
reading may result, causing serious engine damage.
ADDING ENGINE OIL
1. Always operate or maintain the inverter on a at
surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. Remove the engine service panel to gain access to
the oil ll/drain plug.
5. Thoroughly clean around the oil ll/drain plug.
6. Remove the oil ll/drain plug.
7. Select the proper engine oil as specied in
Figure 13.
8. Using the supplied oil funnel, slowly add engine oil to
the engine. Stop frequently to check the oil level and
avoid overlling.
9. Continue to add oil until the oil is at the
correct level.
10. Replace oil ll/drain plug when you have nished.
ENGINE OIL MAINTENANCE
Engine Oil Specication
1. Only use the engine oil specied in Figure 13.
2. Only use 4-stroke/cycle engine oil. NEVER USE
2-STROKE/CYCLE OIL. Synthetic oil is an
acceptable substitute for conventional oil.
Figure 13: Recommended Oil
CHECKING ENGINE OIL
NOTICE
Always maintain proper engine oil level. Failure to
maintain proper engine oil level could result in severe
damage to the engine and/or shorten the life of the
engine.
Always use the specied engine oil. Failure to use the
specied engine oil can cause accelerated wear and/
or shorten the life of the engine.
Engine oil level should be checked before every use.
1. Always operate or maintain the inverter on a at
surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. Remove the engine service panel to access the oil ll/
drain plug.
5. With a damp rag, clean around the oil ll/drain plug.
6. Remove the oil ll/drain plug.
MAINTENANCE

Westinghouse Portable Power | 19
CHANGING ENGINE OIL
1. Stop the engine.
2. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
3. Remove the engine service panel to gain access to
the oil ll/drain plug.
4. Place oil pan (or suitable container) under the oil ll/
drain plug (see Figure 15).
oil pan
Figure 15: Place oil pan under oil ll/drain plug
5. With a damp rag, thoroughly clean around the oil ll/
drain plug.
6. Tilt the inverter so the oil drains down through into
the container. (see Figure 16)
Figure 16: Carefully tip inverter so oil ows into oil pan
7. Allow oil to completely drain.
8. Fill crankcase with oil following the steps outlined in
Adding Engine Oil on page 18.
9. Dispose of used engine oil properly.
MAINTENANCE
NOTICE
Never dispose of used engine oil by dumping the
oil into a sewer, on the ground, or into groundwater
or waterways. Always be environmentally
responsible. Follow the guidelines of the EPA or
other governmental agencies for proper disposal
of hazardous materials. Consult local authorities or
reclamation facility.
AIR FILTER MAINTENANCE
WARNING
Never use gasoline or other ammable
solvents to clean the air lter. Use only
household detergent soap to clean the
air lter.
Cleaning the Air Filter
The air lter must be cleaned after every 50 hours of use
or 3 months (frequency should be increased if inverter is
operated in a dusty environment).
1. Turn o the inverter and let it cool for several
minutes if running.
2. Remove the engine service panel to gain access to
the air lter.
3. Unlip the air lter cover at the top and bottom and
place nger in bottom hole to pull o. (see Figure 17)
4. Remove the foam element from the air cleaner hous-
ing.
Figure 17: Unclip air cleaner cover

20 | Westinghouse Portable Power
5. Wash the foam air lter element by submerging the
element in a solution of household detergent soap
and warm water. Slowly squeeze the foam to thor-
oughly clean.
NOTICE
NEVER twist or tear the foam air lter element
during cleaning or drying. Only apply slow but rm
squeezing action.
6. Rinse in clean water by submerging the air lter
element in fresh water and applying a slow
squeezing action (see Figure 18).
Figure 18
NOTICE
Never dispose of soap cleaning solution used to
clean the air lter by dumping the solution into
a sewer, on the ground, or into ground water or
waterways. Always be environmentally responsible.
Follow the guidelines of the EPA or other
governmental agencies for proper disposal of
hazardous materials. Consult local authorities or
reclamation facility.
7. Dispose of used soap cleaning solution properly.
8. Dry the air lter element by again applying a slow rm
squeezing action.
9. Return the air lter element to its position in the air
cleaner housing.
10. Install the air cleaner cover, making sure the tabs lock
into place.
11. Install the engine service panel.
MAINTENANCE
DRAINING THE FLOAT BOWL
1. Remove the engine service panel to access the
carburetor.
2. Locate the clear plastic hose from the oat and place
a suitable container under it to catch the drained fuel
(see Figure 19).
3. Loosen the oat bowl drain screw (see Figure 19)
until fuel is seen draining from the oat bowl.
fuel pan
Fuel Drain Hose
Float Bowl Drain Screw
Figure 19: Loosen oat bowl screw
4. Allow fuel to drain into the container, and then tighten
the oat bowl drain screw.
NOTICE
Never dispose of fuel by dumping fuel into a sewer,
on the ground, or into groundwater or waterways.
Always be environmentally responsible. Follow the
guidelines of the EPA or other governmental agencies
for proper disposal of hazardous materials. Consult
local authorities or reclamation facility.
5. Install the engine service panel.
