OPERATING
INSTRUCTIONS
TWO DOOR
FROST FREE
REFRIGERATOR-FREEZER
Before operating this appliance, please read this owner's manual careful.

CONTENTS
INSTALLATION ............................................................................................ 3
FEATURE CHART ....................................................................................... 4
OPERATION ................................................................................................ 5
Starting
Temperature Control
Ice Making
Chilled Compariment
Deodorizer(option)
F. I. R. Lamp(option)
SUGGESTIONS ON FOOD STORAGE ....................................................... 9
CLEANING ................................................................................................... 10
GENERAL INFORMATION .......................................................................... 10
LAMP REPLACEMENT ............................................................................... 11
IMPORTANT WARNINGS ............................................................................ 12

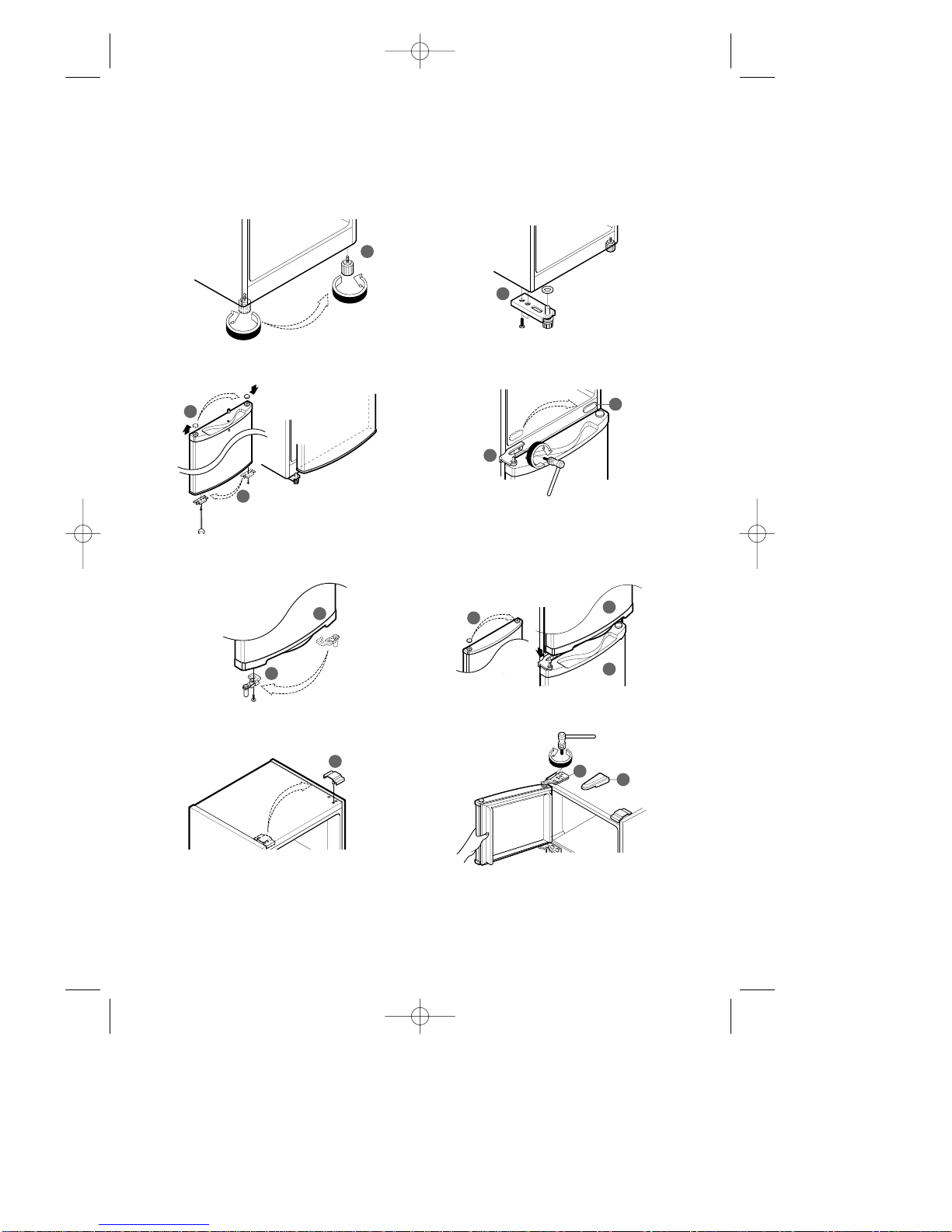

CHANGING FROM RIGHT HAND DOOR TO LEFT HAND DOOR ............. 13
BEFORE CALLING FOR SERVICE ............................................................. 15
2
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`2

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND
UTILIZES THE LATEST IN TECHNOLOGY. WE ARE CONFIDENT THAT
YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND
RELIABILITY. BEFORE YOU START YOUR REFRIGERATOR, PLEASE
READ THIS BOOKLET CAREFULLY. IT PROVIDES EXACT INSTRUCTIONS
FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO
SUPPLIES SOME USEFUL HINTS.
INSTALLATION
1. Select a good location.Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. There must be proper air circulation around your refrigerator to keep it operating
efficiently. If your refrigerator is placed in a recessed area in the wall, allow at
least 10 inches or greater clearance above the refrigerator and 2 inches or more
from the wall. The refrigerator should be elevated 1 inch from the floor,
especially if it is carpeted.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws
to compensate for unevenness of the floor. The front should be slightly higher
than the rear to aid in door closing. Leveling screws can be turned easily by
tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the
unit, counterclockwise( ) to lower it.
5. Install this appliance between 10˚C and 43˚C. If the temperature around the
appliance is too low or high, cooling ability may lessen.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust accumulated during
shipping.
2. Install accessories such as ice cube box, etc., in their proper places.
They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet.
Don't double up with other appliances on the same outlet.
4. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
Check the flow of cold air in the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
3
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`3

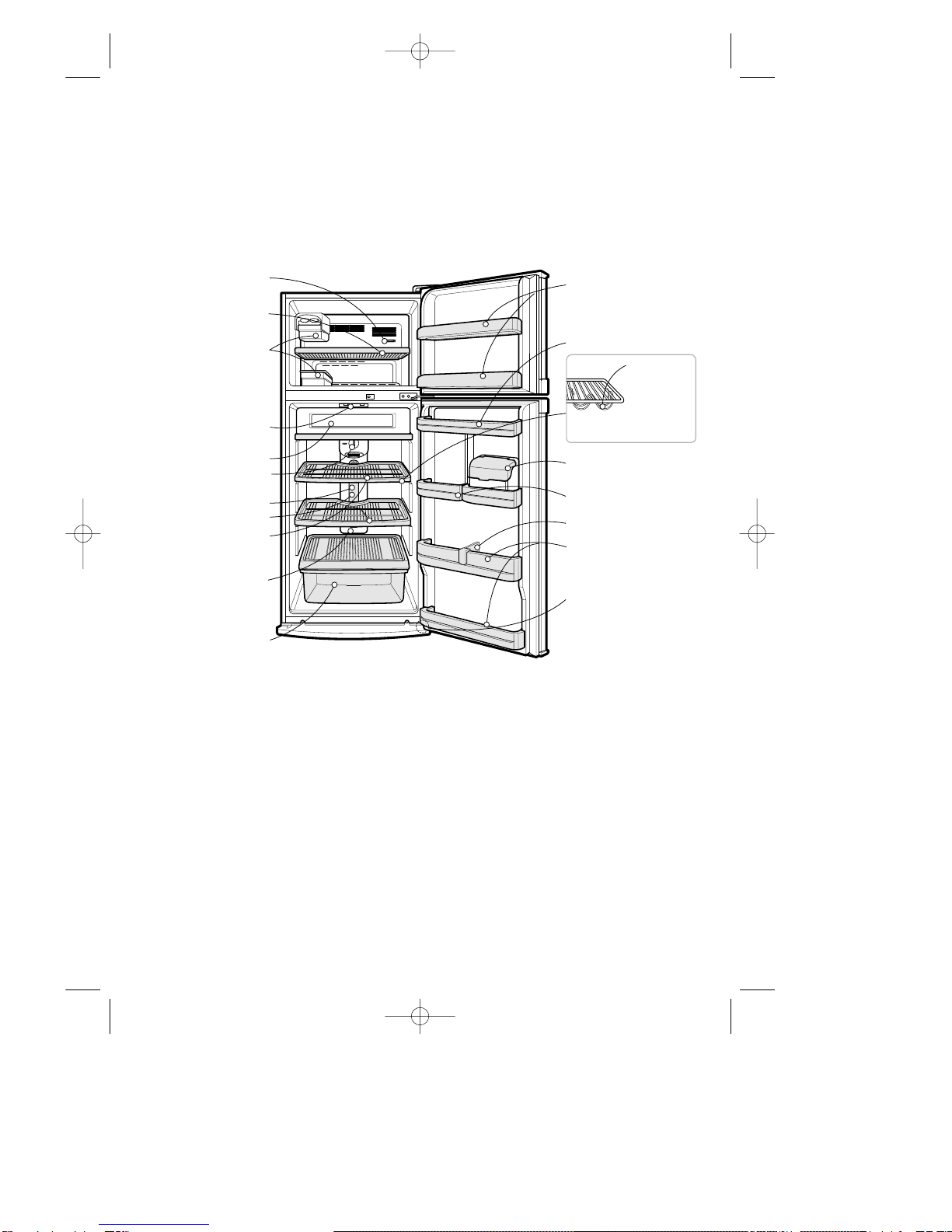

FEATURE CHART
NOTE : • If you found some parts missing from your unit, they may be parts only
used in other models.
4
FREEZER
COMPARTMENT
Freezer Temperature
Control Dial
Twisting Ice Serve
(Option) or General
Type Ice Making
Freezer Shelf
(Plastic or Steel)
Deodorizer
(Option)
Chilled Compariment
Temperature
Control Dial
Lamp
F.I.R Lamp (Option)
Shelves
(Plastic or Steel or
Tempered Glass)
Multi Flow Duct
Distributes cold air to
each part of refrigerator
compartment.
Vegetable Drawer
Used to keep fruits
and vegetables, etc.
fresh and crisp.
Egg Storage Rack
Freezer Door Rack
Refrigerator Door
Rack
Leveling Screw
Dairy Corner
(Option)
Bottle Guide
Movable Rack
Wine Rack
(Option
if steel shelf)
You can use
this as
Vodka rack
in the Freezer.
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`4

STARTING
when your refrigerator is first installed, allow it 2-3 hours to stabilize at normal
operating temperatures prior to filling it with fresh or frozen foods.
If operation is interrupted, allow 5 minutes delay before restarting.

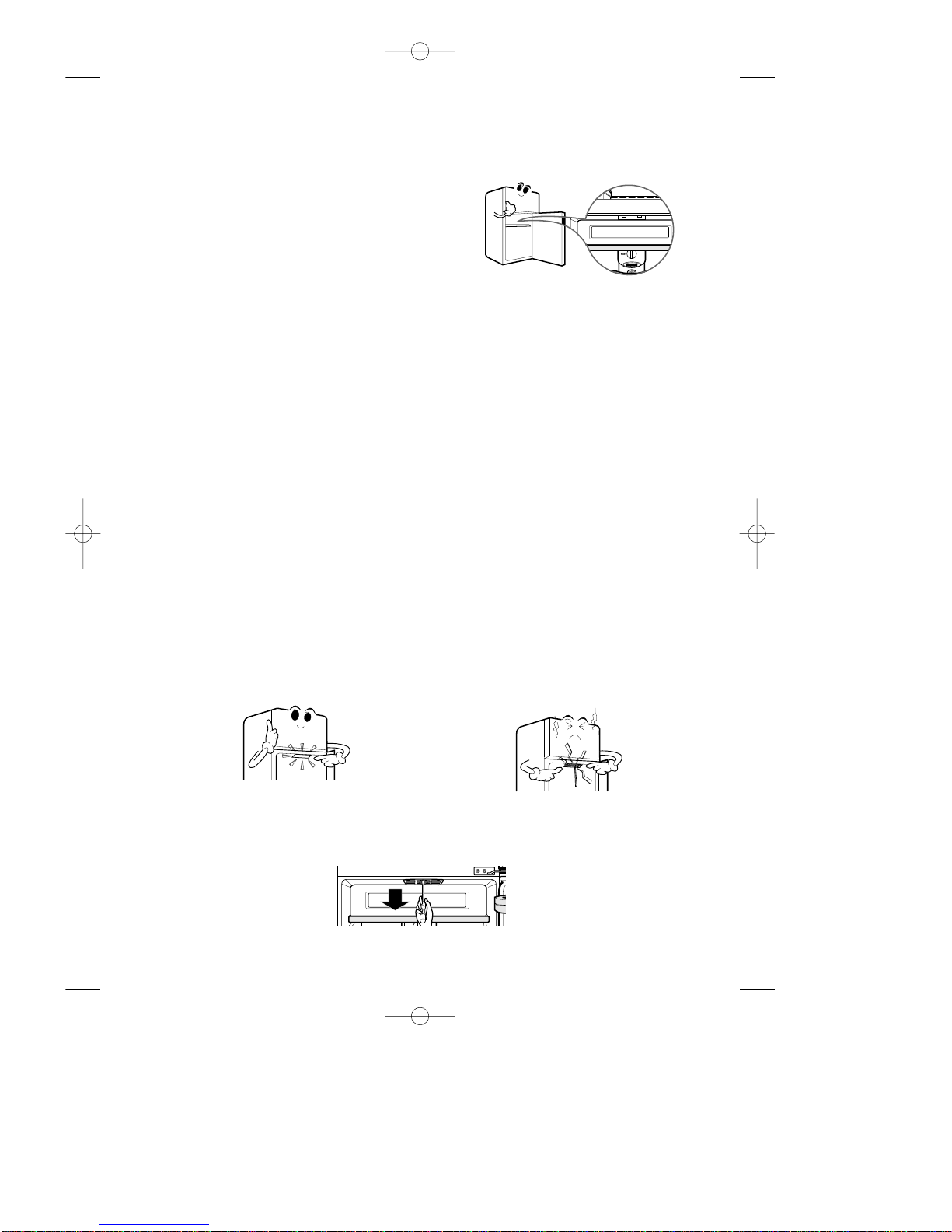

TEMPERATURE CONTROL
• Your refrigerator has two controls that let you regulate the temperature in the
freezer and refrigerator compartments.
• Initially set the TEMP. CONTROL at "5" and the COLD AIR CONTROL at "7".
Leave it operating for 24 hours(one day) to stabilize.
Then adjust the compartment temperature according to your desire.
• TEMP. CONTROL - 1, 2, 3, 4, 5, 6, 7, 8, 9. The higher the number setting, the
colder the refrigerator compartment will become.
• COLD AIR CONTROL - 1, 2, 3, 4, 5, 6, 7, 8, 9. Setting at "9", the freezer
compartment becomes colder. But the refrigerator compartment becomes
warmer because less cold air flows into the refrigerator compartment.
• In cold weather the unit operates less and the freezer compartment has a
tendency to warm up.
For colder freezer, turn the COLD AIR CONTROL to "8"~"9".
• If you take a lot of foods in the freezer or open its door frequently, its temperature
is apt to be somewhat higher. In this case, set the COLD AIR CONTROL dial
between 7 and 9 to cool it. Return the COLD AIR CONTROL dial to the original
position to cut down the consumption of energy.
• In hot weather or to put much foods in the refrigerator compartment, the
refrigerator compartment has a tendency to warm up. For colder refrigerator, turn
the COLD AIR CONTROL to "2"~"4" to direct more cold air into the refrigerator
compartment, and the TEMP. CONTROL to "7"~"9". Setting at "8"~"9" of the
COLD AIR CONTROL, the refrigerator compartment will not be cold enough.
5
REFRIGERATOR
COLD AIR CONTROL
REFRIG. MAX
NORMAL
FREEZER. MAX
1
9
7
95876
FREEZER
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`5

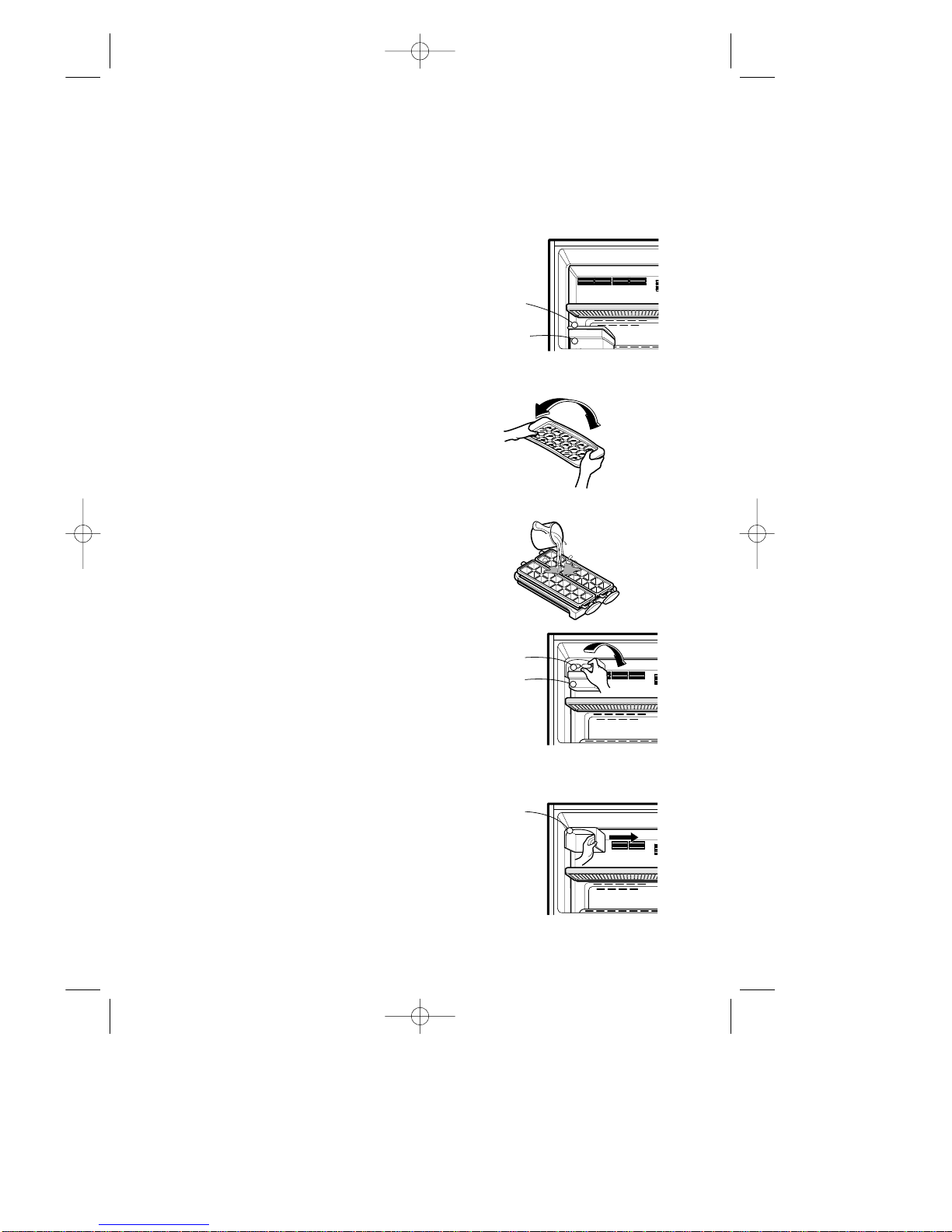

ICE MAKING
Kindly, Find your appliance is using General type or Twisting ice serve type.
GENERAL TYPE
• To make ice cubes, fill the ice tray with
water and place it on the Ice cube box.
Then insert the ice cube box in the freezer
compartment.
• To remove ice cubes, hold the tray at its
ends and twist gently.
TWISTING ICE SERVE TYPE
• To make ice cubes, fill the ice tray with
water and insert in its position.
• To remove ice cubes, hold the knob of the
tray and turn gently. Then, ice cubes drop
in the ice cube box.
• (In case of a steel shelf)
To place a shelf at a higher position,
remove the ice cube box, and place the
shelf, and then replace the ice cube box.
• You can remove Twisting Ice Serve to use
freezer compartment larger.
• You should remove Ice Trays and Ice
Cube Box first then pull the frame out right
side.
6
Ice Trays
Ice Cube Box
Ice Trays
Ice Cube Box
Frame
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`6

CHILLED COMPARIMENT
When the door is opened, the warmer air
doesn't influence in the fresh meat.
So you can keep food fresher in it.
DEFROSTING
• Defrosting takes place automatically.
• The defrosted water flows down to the evaporating tray which is located in the
lower back side of the refrigerator and is evaporated automatically.
DEODORIZER(OPTIONAL)
• By using a catalyst, deodorizing performance is guaranteed.
• Unpleasant odor of food in fresh food compartment is deodorized with no harm to
you and the food.
HOW TO USE
• As the catalyst is located in cooling air outlet for circulating air in fresh food
compartment, there is no need for any handling.
• Do not prick the cooling air outlet with a sharp tip because the deodorizing
catalyst may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid
because odor may be passed on to other foods.

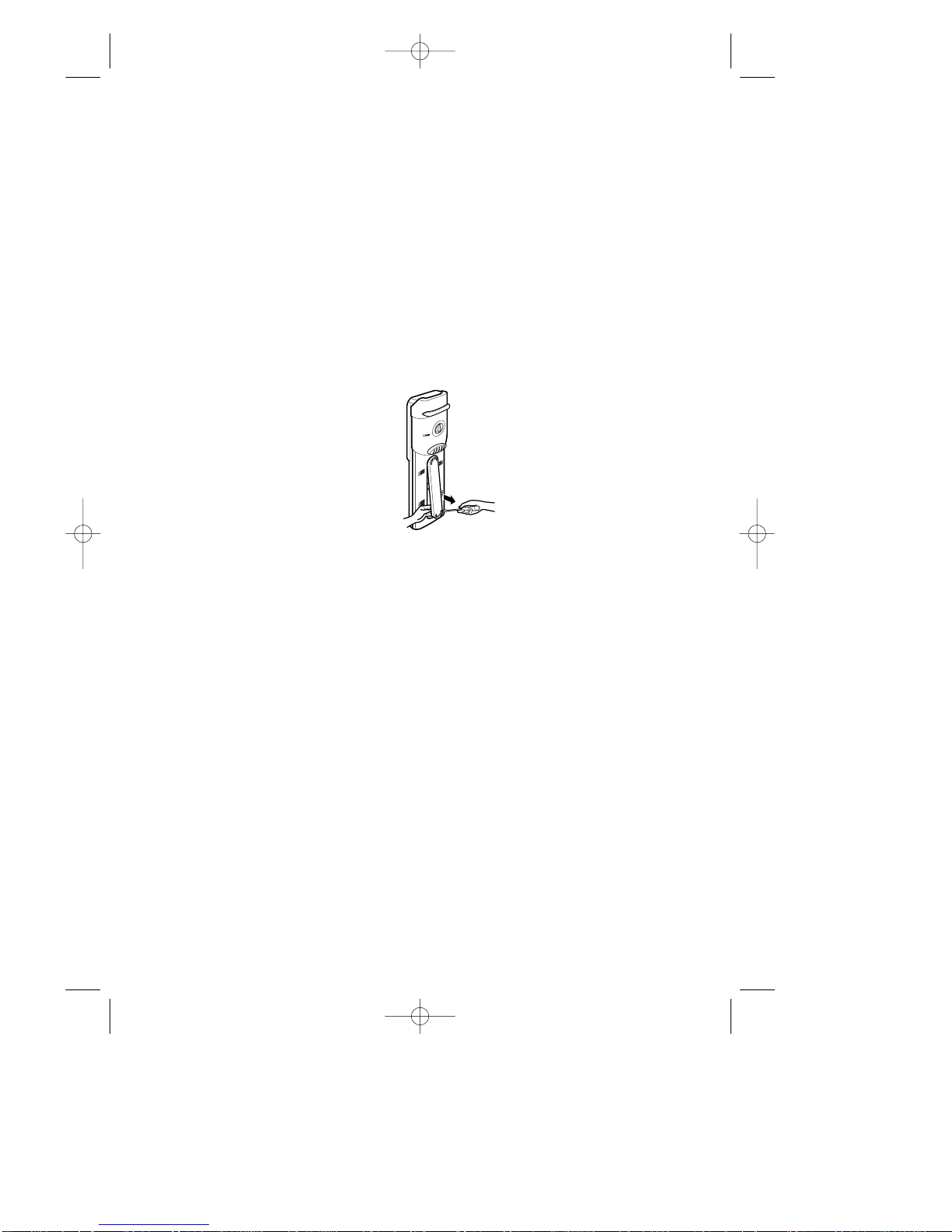

• To remove the deodorizer, take down while pulling it forward after inserting §^
type driver into the inside hole as shown
7
Catalyst
Catalyst
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`7

F.I.R LAMP(OPTION)
FEATURE
• Far Infrared Rays emitted from Far Infrared Ray Lamp restrains the dryness of
the foods and keeps its original form without transforming.
• By increasing the nucleic acid, Far Infrared Rays also keeps the aroma and the
smell of the food for a long time.
MORE EFFECTIVE FOOD STORAGE.
• It is useful to store the food without seasoning
such as salt or sugar, and the food needed to
keep as low temperature with the raw food
uncooked heating or no disinfecting. - (Sliced)
: Raw Fish, Meat, Poultry and so on
• It is useful to keep the original taste of the food
by F.I.R's the restraining excessive
fermentation and overripe of the foods.
- Vegetable with spices, Yogurt, and so on
• It is useful to store the unsuited foods in the
Freezer among the cooked foods or that go bad easily.
- Boiled Egg, Bamboo Shoots, Vegetable for seasoning, and so on
OPERATING
• When the refrigerator begins to operate,
F.I.R Lamp turns on. During the
refrigerator's operating, the on and off of
the F. I. R Lamp is automatically controlled
by the refrigerator inner temperature.
Therefore it is not necessary to handle
F.I.R Lamp.
• F.I.R Lamp is coated with special materials
for the vest results of F.I.R Lamp's effect decreases.
• If F.I.R Lamp is veiled or covered, the F.I.R Lamp's effect decreases.
• If you store the foods wrapped in the vinyl or wrapper, not in the vessel with lid,
the foods will get more effective F.I.R results.
• If you want to check the F.I.R Lamp operation, don't touch F.I.R Lamp because
you may burn your fingers with the high temperature of its surface.
CAUTION : During F.I.R Lamp operation, don't touch F.I.R Lamp because you may
burn your fingers with the high temperature of its surface.
8
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`8

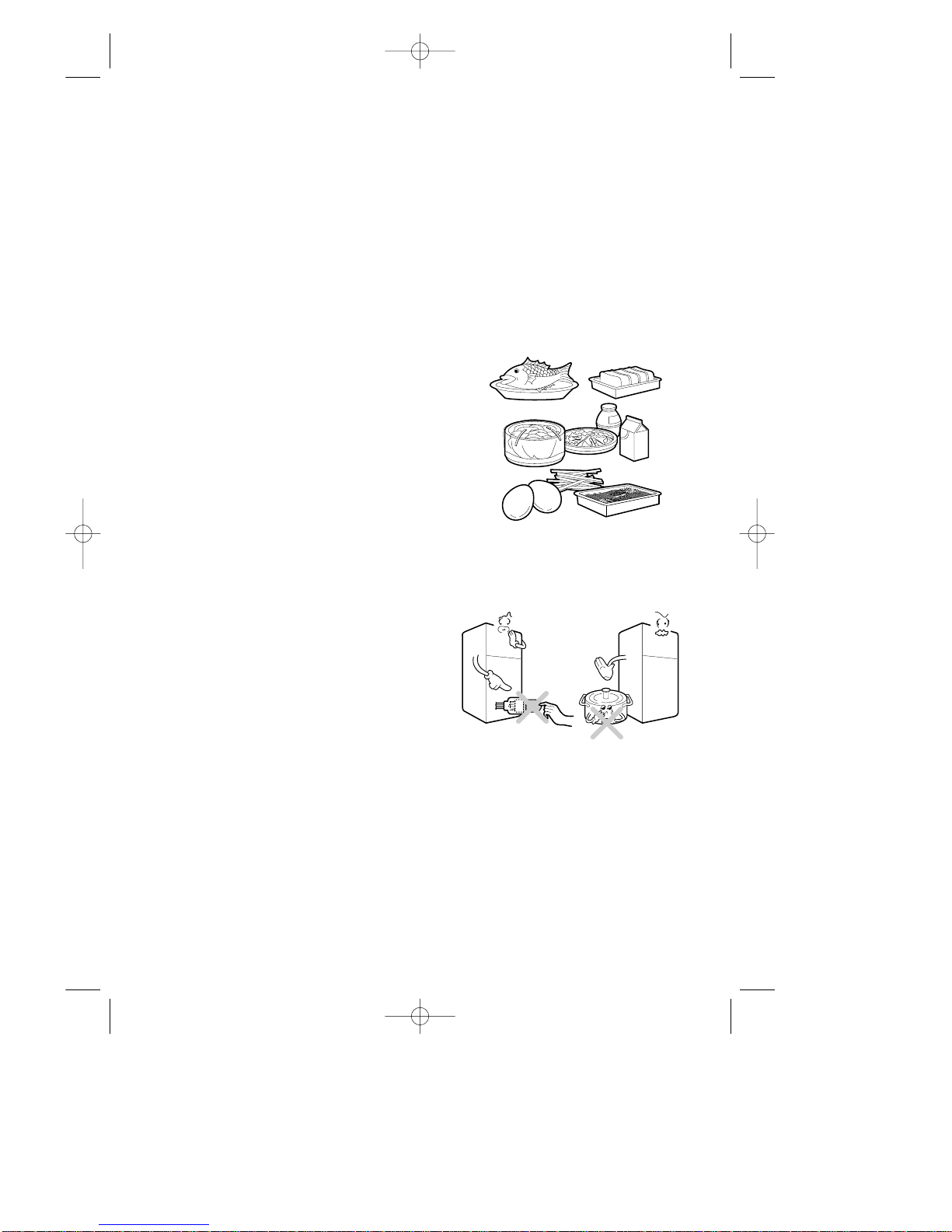

STORING FOOD
• Store fresh food in the refrigerator compartment. How food is frozen and
defrosted is an important factor in maintaining freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas,
pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could
spoil other food, and lead to high electric bills!
• When storing, wrap food in vinyl, or place in a covered container. This prevents
moisture from evaporating, and helps food to keep its taste and nutritional valve.
• Do not block air vents with food. Smooth circulation of chilled air keeps
refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the
refrigerator, causing temperatures to rise.
• To adjust the temperature control easily, do not store food near the temperature
control dial.
FREEZER COMPARTMENT
• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been defrosted. This causes loss of taste and
nutritional valve.
• When storing frozen food like ice cream for a long period, place it on the freezer
shelf, not in the door rack.
REFRIGERATOR COMPARTMENT
• Avoid placing moist food on deep interior refrigerator shelves, it could freeze
upon direct contact with chilled air. To avoid this it is better to store food in the
covered container.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed
and wiped, and packed food should be wiped clean, to prevent adjacent food
from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh, and always
store them in a up-right position, which keeps them fresh longer.
NOTE : • If you keep the refrigerator in a hot, and humid place, frequently open its
door or put a lot of vegetables in it, dew may form in it, which has no
effect on its performance. Remove the dew with dust cloth free from care.
• If droplets form beneath the cover of the vegetable drawer, keep
vegetables or fruits wrapped by plastic wrap.
9
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`9

CLEANING
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should
be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.
Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions
on any surface.
Before you clean, however, remember that damp objects will stick or adhere to extremely cold
surfaces. Do not touch frozen surfaces with wet or damp hands.
EXTERIOR - Use a lukewarm solution of mild soap or detergent to clean the durable finish of your
refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR - Regular cleaning of the interior and interior parts is recommended. If you have the
Wash all compartments with a baking soda solution. Rinse and dry.
INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door
seals etc. with a baking soda solution or a mild detergent and warm water. Rinse and dry.
GENERAL INFORMATION
VACATION TIME
During average length vacations, you will probably find it best to leave the refrigerator in operation.
Place freezable items in freezer for longer life. When you plan to be away for an extended period,
remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door
OPEN to prevent odor formation.
POWER FAILURE
Most power failures are corrected in an hour or two and will not affect your refrigerator
temperatures. However, you should minimize the number of door openings while the power is off.
During power failures of longer duration, place a block of dry ice on top of your frozen packages.
IF YOU MOVE
Remove or securely fasten down all loose items inside the refrigerator.To avoid damaging the
leveling screws, turn them all the way into the base.
ANTI-CONDENSATION PIPE
The outside wall of the refrigerator cabinet may sometimes get warm,
especially just after installation. Don't be alarmed. This is due to the anti-
condensation pipe, which pumps hot refrigerant to prevent "sweating" on the
outer cabinet wall.
10
WARNING
Always remove power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps, switches, controls, etc.). Wipe up excess moisture with a
sponge or cloth to prevent water or liquid from getting into any electrical part and
causing a electric short circuit. Do not use flammable or toxic cleaning liquids.
Anti-Condensation
Pipe
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`10

LAMP REPLACEMENT
1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. To remove the lamp cover, insert §^type driver at the one of under hole of the
lamp cover and pull it out forwards.
4. Turn the lamp counterclockwise.
5. Assemble in reverse order of disassembly. Replacement bulb must be the same
specification as original.
11
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`11

IMPORTANT WARNINGS
DO NOT USE AN EXTENSION CORD
If possible, connect the refrigerator to its own individual electrical outlet to prevent
it and other appliances or household lights from causing an overload that could
cause a power outage.
POWER CORD REPLACEMENT
If the supply cord is damaged, it must be replaced by a special cord or assembly
from the manufacturer or its service agent.
ABOUT GROUNDING(EARTHING)
In the event of an electric short circuit, grounding (earthing) reduces the risk of
electric shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in an electric shock. Consult a
qualified electrician or service person if the grounding instructions are not
completely understood, or if you have doubts on whether the appliance is properly
grounded.
12
VERY DANGEROUS ATTRACTION
An empty refrigerator can be a dangerous attraction to children. Remove
gaskets, latches, lids or the entire door from your unused appliance,or take
some other action to make it harmless.
This appliance must be grounded(earthed).
DON'T WAIT! DO IT NOW!
Never store explosives and chemicals
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`12

CHANGING FROM RIGHT HAND DOOR TO LEFT HAND DOOR
- Converting Door is Optional
PRECAUTION
1. Remove all food and fixtures from fridge
including shelves.
2. One 10mm ring spanner and one phillips head
screw driver required.
3. Keep refrigerator in upright position.
4. Care to be taken not to drop freezer or fridge
doors during conversion.
INSTRUCTIONS FOR CONVERTING FROM RIGHT HAND DOOR
TO LEFT HAND DOOR.
13
1
Remove hinge cap ➊
Remove upper hinge ➋. 2
Remove freezer door ➌.
3
Remove middle hinge ➍Fridge
door ➎.
CAUTION : Please ensure to re-fit
spacing washers correctly as key may
dislodge when hinge is removed.
4
Remove lower hinge ➏ by telting
back fridge and unscrewing bolts.
2
1
45
6
3
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`13

CHANGING FROM RIGHT HAND DOOR TO LEFT HAND DOOR
5
Remove adjustable leg assembly
➐.
7
Swap cap ➑and refrigerator stopper
bracket ➒to left hand side of door.
9
Prepare freezer door stopper ééfor
left hand opening then fit fridge
door.
11
Swap plug cap êêto opposite
side.
6
Re-fit lower hinge to left hand side
➏.
8
Swap the plug cap ➓Re-fit middle
hinge ➍and washer.
10
Swap cap èèand Re-fit freezer
door.
12
Re-fit hinge cover ➊.
7
9
8
11
3
13
21
3
12
5
4
10
6
14
13
Carefully and without force, check door opening functions to determine
propper conversion. If freezer or refrigerator door do not open fully please
check that door stopper brackets éé& ““have been fitted correctly.
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`14

BEFORE CALLING FOR SERVICE
service calls can often be avoided!
If you feel your refrigerator is not operating properly, check these possible causes
first :
15
PROBLEM POSSIBLE CAUSES
REFRIGERATOR DOES ●Has a house fuse blown or circuit breaker tripped?
NOT OPERATE ●Has the power cord plug been removed or
loosened from the electrical wall outlet?
REFRIGERATOR OR ●Temperature control not set on proper position.
FREEZER ●Appliance is placed close to wall or heat source.
COMPARTMENT ●Warm weather-frequent door openings.
TEMPERATURE ●Door is not closed entirely.
TOO WARM ●Door left open for a long time.
●Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S) ●Refrigerator is installed in a weak or uneven place
or leveling screw needs adjusting.
●Unnecessary objects placed in the back side of
the refrigerator.
REFRIGERATOR ●Foods with strong odors should be tightly covered
HAS ODOR or wrapped.
●Interior needs cleaning.
DEW FORMS ON THE ●Not unusual during periods of high humidity.
CABINET SURFACE ●Door may have been left ajar.
3828JD8152K(O/M)‡»` 01.9.1211:3AM ˘`15
