WESTMINSTER FLAME200-123 User manual

ASSEMBLY INSTRUCTIONS
IMPORTANT NOTICE
THIS BOOKLET CONTAINS USEFUL INFORMATION
ABOUT WARRANTY & CARE INSTRUCTIONS.
PLEASE KEEP FOR FUTURE REFERENCE.
2M X 1M RECTANGULAR ALUMINIUM FIREPIT TABLE
SKU: FLAME200-123 / FLAME200-124
2021 V1.0

ASSEMBLY INSTRUCTIONS
2

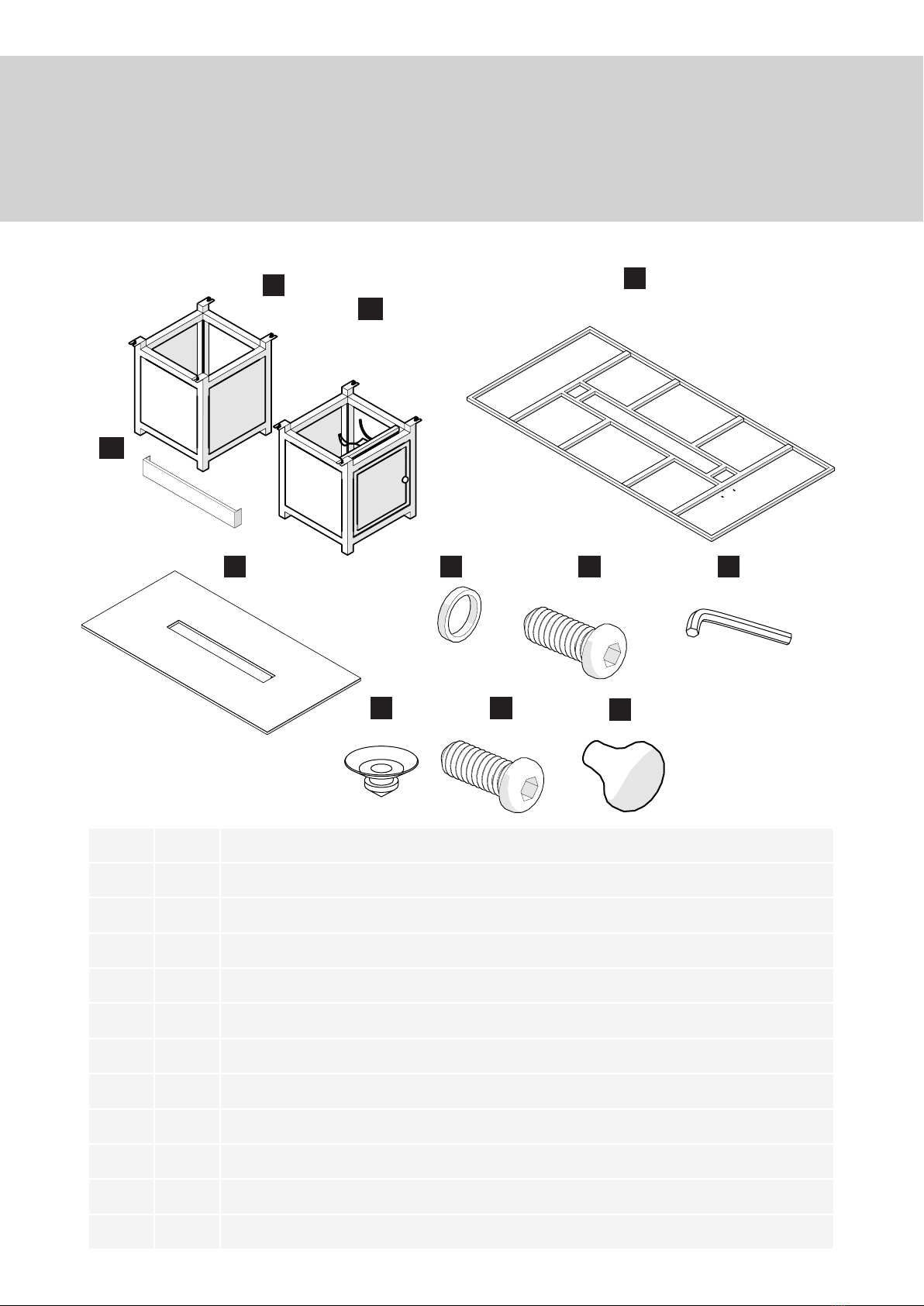

PARTS LIST
A
A1
A2
B
D E F
C
Table Box
Z
YX
Part Qty Part Name
A 1 Table Base
A1 1 Table Base With Door
A2 2 Support Bar
B 1 Table Top
C 1 Glass
D 4 Washer
E16 M6 x 20mm Screw
F 1 Allen Key
X 22 Suction Ring
Y 1 M6 x 40mm Screw
Z 1 Door Handle

ASSEMBLY INSTRUCTIONS
3

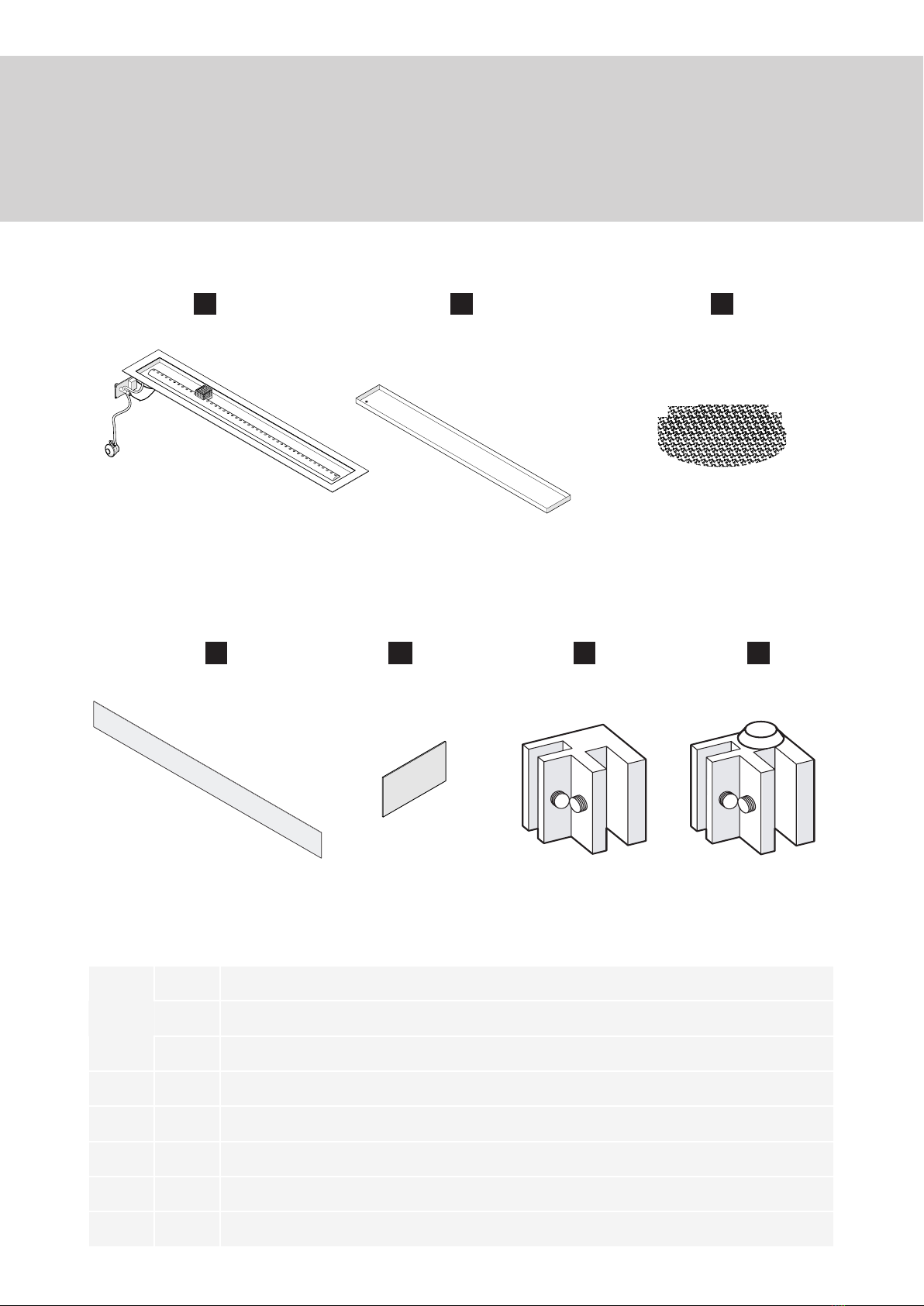

PARTS LIST
Part Qty Part Name
G 1 Firepit System
H 1 Stainless Steel Lid Cover
I 1 Onyx Coloured Fireglass
J 2 Long Winguard Panel
J1 2 Short Winguard Panel
K 4 Top Connector For Rectangular Windguard
L 4 Bottom Connector For Rectangular Windguard
J1
G H I
J LK
Firepit System Box
Windguard Box

4
ASSEMBLY INSTRUCTIONS
SAFETY ADVICE
BEFORE YOU START:
• Ensure that you read this manual before starting to assemble your item(s).
• Check that you have all parts from the above part list. Do not throw away
any packaging until you are confident that you have all parts.
• Assemble this product on a soft/flat surface. Put any glass safely to one
side until it is required and keep any plastic bags, tools and fittings away from
children.
• Throughout the assembly process, make sure all fittings are only finger tight.
Upon completion, securely tighten all fittings.
• After prolonged use we recommended to you check all the fittings are
tightened securely.
• Please do not modify this product, use other tools or substitute parts to build
your item(s), this will void your warranty.
• 1 x AAA battery (not supplied) is required for the fire pit system.
• The firepit system requires a 5kg patio gas propane bottle.

5
ASSEMBLY INSTRUCTIONS
SAFETY ADVICE
FAMILIARISE YOURSELF WITH THE FOLLOWING SAFETY ADVICE:
• To avoid danger, please keep all plastic bags away from children and do not
leave tools unattended during the assembly.
• Depending on the item(s) you have ordered, there may be heavy parts with-
in this packaging. Ensure you lift with the correct posture & technique. Please
get help moving and/or lifting if necessary.
• Please only use this product for its intended purpose as outdoor furniture
within a residential environment. Failure to do so will void your warranty.
• Westminster Outdoor Living holds no responsibility for any damages caused
due to normal wear and tear, incorrect assembly, misuse and/or negligence
• We reserve the right to make changes for product improvements.
• Please recycle packaging where possible.
• Firepit tables must be used OUTDOORS only
• The wind guard is purely that and will not prevent the surrounding area from
heating up. It prevents the flame from being blown across the table, only and
will get hot.
• The crushed glass is heat resistant and is for decoration to cover the pan
and fire pit system. The ring burner can be covered in crushed glass, however,
the pilot cover cannot be covered or the flame will fail to ignite.
• The pan area should be kept clean at all times and can be cleaned with a
damp cloth.
• To release the gas bottle you press the button under the regulator. This will
only work if the gas is switched off.
• Never move the firepit table whilst in use.
• Make sure the firepit table is cool down before applying any protective cover.

ASSEMBLY INSTRUCTIONS
TABLE ASSEMBLY
6 7
E
Z
D
ABDE
A1
A2 E

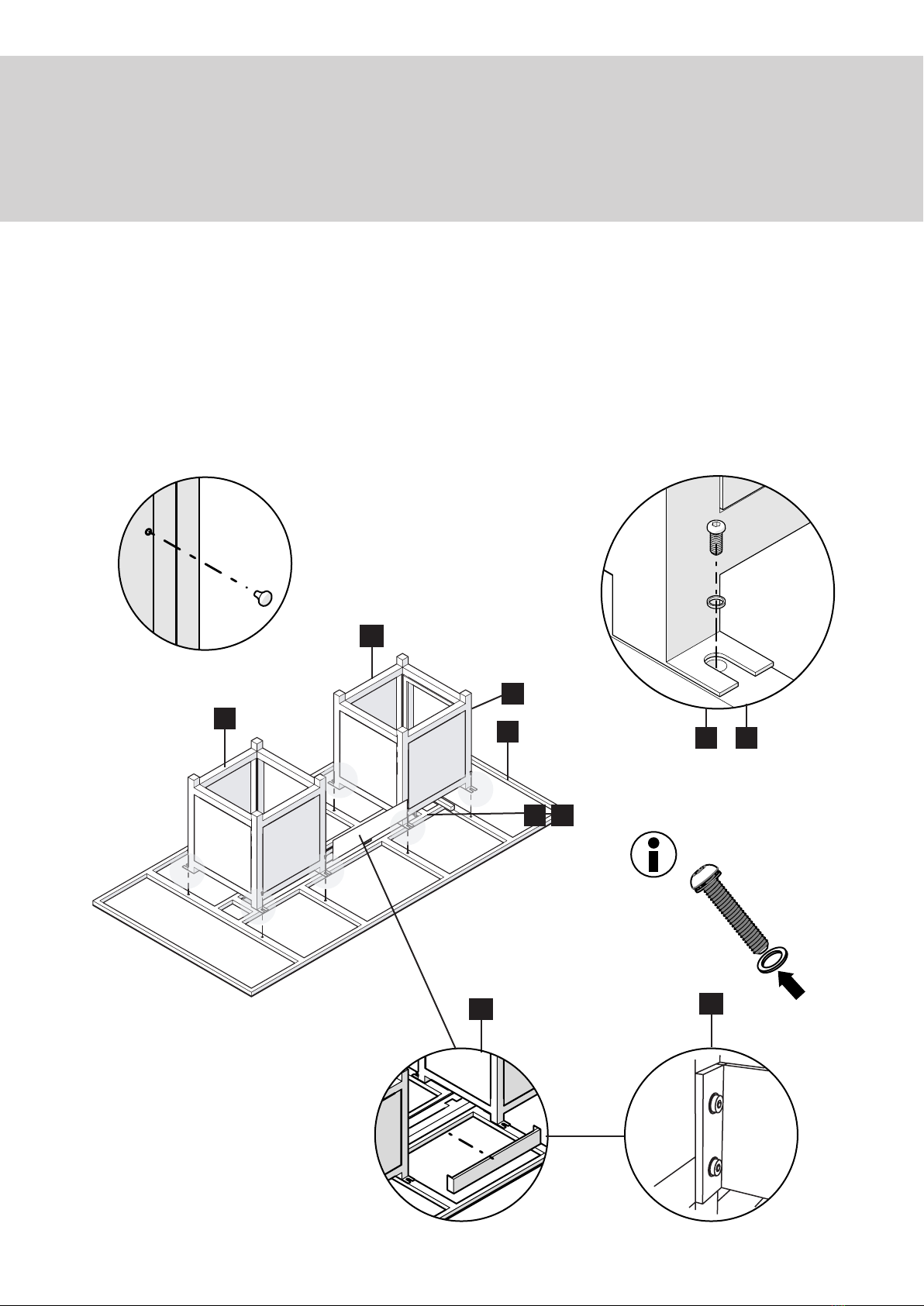

STEP 1
Secure the handle (Z) with the M6 x 40mm screw (Y) to the door found on the table
base (A1). Loosely secure the table base (A + A1) onto the table top (B) using 8 x
M6 x 20mm screws (E), 8 x washers (D). Lastly secure the 2 x support bars (A2) with
8 x M6 x 20mm screws (E) using the allen key (F).

TABLE ASSEMBLY
ASSEMBLY INSTRUCTIONS
7
C
B
X

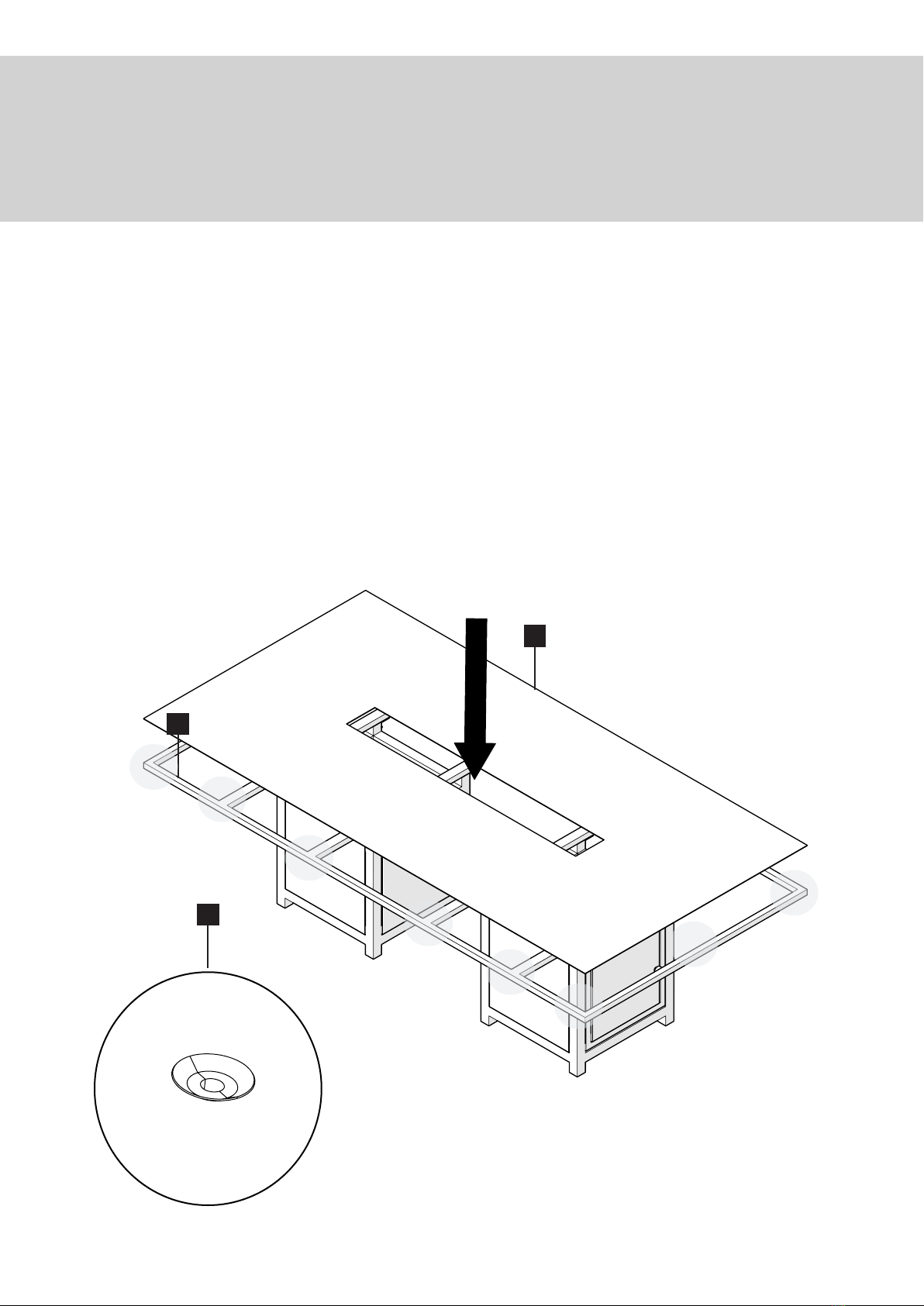

STEP 2
Turn the table top (B) and legs (A+A1) over. Add the suctions cups (X) Secure the
glass (C) onto the table top frame (B), ensuring the suctions cups are flat.

ASSEMBLY INSTRUCTIONS
8
FIREPIT SYSTEM ASSEMBLY
9
G

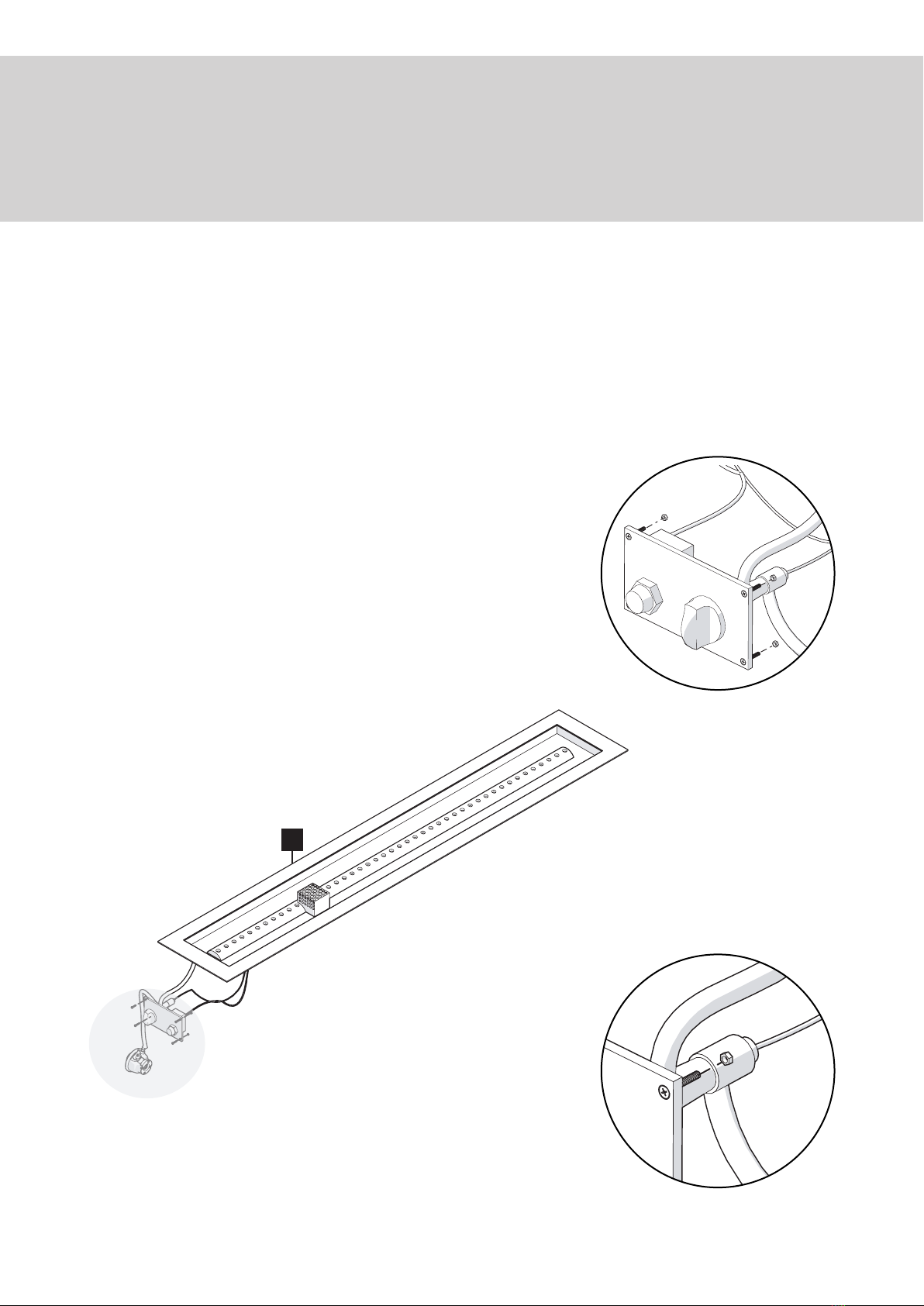

STEP 3
Unscrew the firepit system control panel nuts. Keep the nuts to one side.

ASSEMBLY INSTRUCTIONS
FIREPIT SYSTEM ASSEMBLY
9
C
G

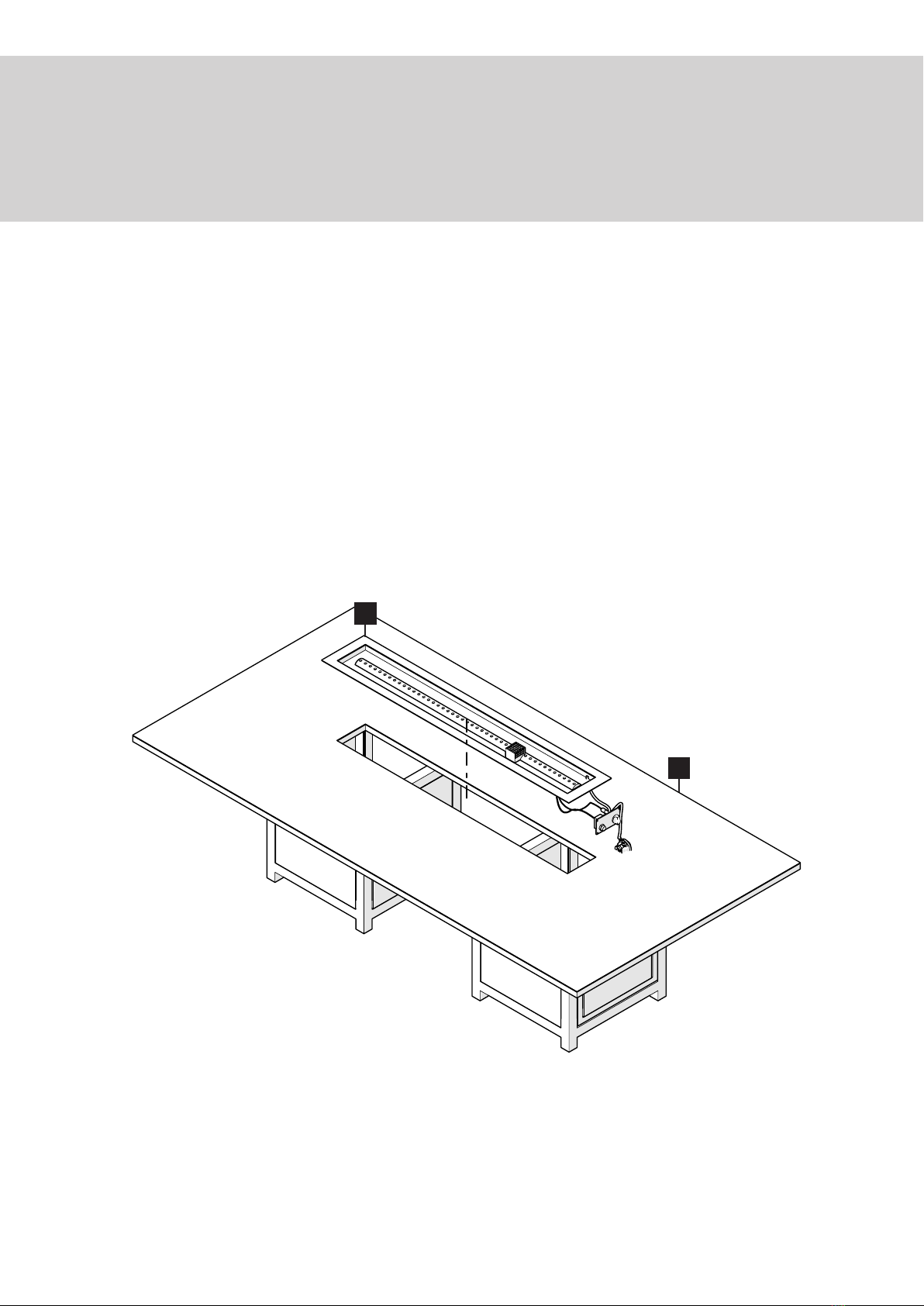

STEP 4
Lower the gas firepit system (G) into the centre of the table, positioning the regulator,
hose and control panel through the table hole before lowering the system into place.

ASSEMBLY INSTRUCTIONS
10 11
FIREPIT SYSTEM ASSEMBLY
STEP 5
Attach the firepit control panel to the table base (A1). Tighten the control panel onto
the frame using the nuts previously removed from the control panel.
A1

ASSEMBLY INSTRUCTIONS
11
FIREPIT SYSTEM ASSEMBLY
I

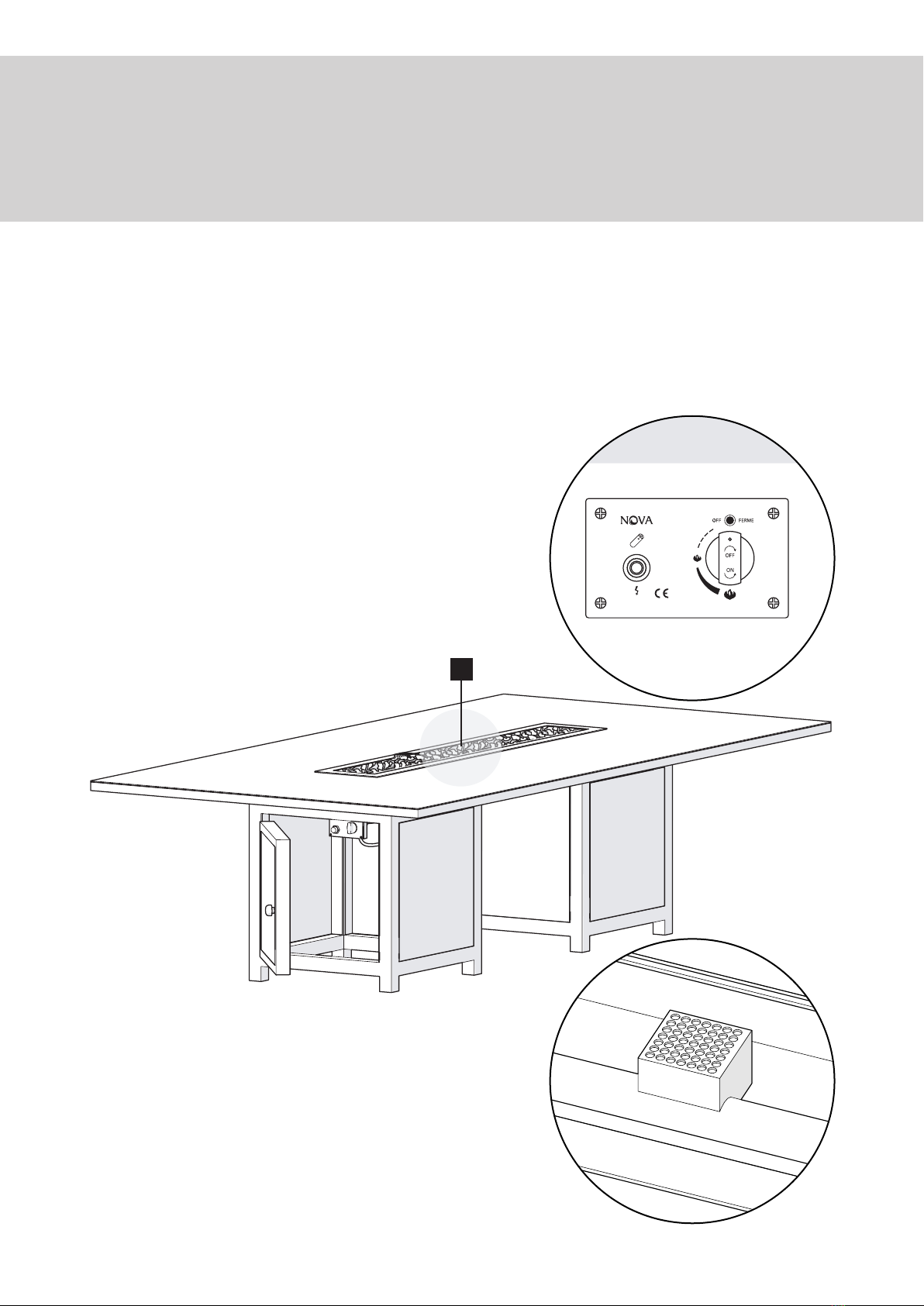

STEP 6
Carefully fill the firepit system with the fireglass (I) ensuring the pilot cover is not
obstructed. Ensure the gas pipes under the table are not kinked and all wiring is
connected.
PIN: 0359CT03837

ASSEMBLY INSTRUCTIONS
12 13
FIREPIT SYSTEM ASSEMBLY
STEP 7
Remove the battary cover. Place 1 x AAA battery into the ignition, ensuring the
negative side is inserted first.

ASSEMBLY INSTRUCTIONS
WINDGUARD ASSEMBLY
13
SAFETY ADVICE
We recommend tightening the
grub-screws occasionally after
use.
J
K
L
STEP 8
Loosen all the grub-screws in the 8 x connectors (K + L) with a phillips screwdriver
(not supplied). Loosely secure each windguard panel (J +J1), one at a time, using
the top and bottom connectors (K + L) until a rectangular windguard is formed. Do
not tighten any screws until the windguard is formed.
J1

ASSEMBLY INSTRUCTIONS
14
TROUBLESHOOTING
• Ensure the black wire from the system is
connected to the igniter.
• 1 x AAA battery must be inserted into the
ignition, position within the control panel.
• Ensure the pilot cover is free from the Onyx
glass.
• Ensure all gas pipes are not bent or kinked.
• Ensure the regulator is facing down.

ASSEMBLY INSTRUCTIONS
CARE, MAINTENANCE & WARRANTY INFORMATION
15
Our range of aluminium furniture is designed for continual outdoor use. The
aluminium frame ensures that you can leave it outside all year round.
ALUMINIUM CARE
The aluminium framework is incredibly low maintenance and is resistant to UV
rays, salt water, frost and snow and requires only basic care to keep it clean.
To clean, simply use warm soapy water and a damp cloth wipe down. This
framwork can be left outside all year round.
WARRANTY INFORMATION
We regret to inform you that warranty claims cannot be accepted without
proof of purchase. Warranties are valid from date of purchase, to the original
purchaser only. For us to help you, please ensure all warranty terms have
been adhered to.
The warranty applies to residential domestic use within the UK only. It does
not cover commercial use, misuse, accidental damage or normal wear and
tear. We reserve the right to repair and/or replace parts rather than a complete
item at our discretion.
