w e t s o u n d s
a link plus
owner’s manual
rev 1.0
Thank You for purchasing the
Wet Sounds a link plus kit!
Wet Sounds products represent the ultimate
in high performance, element-proof audio.
Wet Sounds products are specically
designed and engineered to withstand the
rigorous marine and outdoor environments.
The Wet Sounds a link plus is a wireless
audio link that allows broadcasting from one
audio system to another. Each a link plus
can be set to either send or receive audio as
needed.
Up to four (4) a link plus units can be
bonded to receive the same audio from one
(1) broadcasting a link plus, allowing for a
shared experience through multiple audio
systems.
Please take a moment to look over this
owners manual before enjoying the product.
Congratulations!
controls / indicators
Power Button
Status LED
Bond LED
Battery LED
Bond Button
Volume Down Volume Up
RED
•Transmit Mode
GREEN
•Receive Mode
Power ON
Hold 1 sec
Power OFF
Hold until LEDs go off
Switch Modes
(Transmit/Receive)
Tap once while ON
Orange Flashing
(1 sec on, 1 sec off)
•Low Battery
Orange Flashing Burst
(3 quick ashes)
•Critically Low Battery
Orange Solid
•Charging
Add / Delete Favorite
Hold a few seconds
Rotate thru Favorites
Click one (1) time
Enter Explore Mode
Click two (2) times
Multi-Color - See
essential functions
page for more info.
3.5mm aux cable
3.5mm aux y-cable
TransmitterReceiver
connection harness
(audio system)
phone or other
audio source
(audio system)
red 3.5mm
(female)
black 3.5mm
(female)
micro USB charge
connector (female)
connectors / cables

The SKAA Compatible Badge as well as the graphics-
only version of it, the SKAA Icon, both found on the
Product itself, certify that this Product has been tested
and is fully compliant with all of the requirements
of the SKAA Standard and has been granted SKAA
Certication. This Product will work seamlessly with
other products in the SKAA ecosystem of audio
transmitting and receiving devices. For more
information on the SKAA Standard, please visit
www.SKAA.com. The SKAA® name as well as its
associated marks, logos and icons are trademarks
or registered trademarks of Eleven Engineering
Incorporated.
installation
In order to ensure optimal performance and range,
a link plus should be mounted with the top half of
the housing placed above all body panels,
windows, roll bars etc.
housing top
above red line
body panels,
windows, roll
bars, etc.
essential functions other features
a link plus features an integrated cradle, which is
attached with a slide-lock feature.
dock / cradle
grip point
suction cups
LED indicators
powering on and off
To power on a link plus, simply press and hold the
Power Button for about one (1) second.
To power off a link plus, press and hold the Power
Button until LEDs turn off.
Low Battery
(ashing)
Battery Indicator
Charging
(solid)
Transmit
Receive / Transmit 1 click
Receive
For permanent mounting or mounting
to rough surfaces, the cradle can be
hard-mounted using M6 or #10 screws (not
included) in the red indicated locations.
lightly hand tighten hardware, so as not to
crack the cradle.
a link plus comes with two (2) suction
cups for each unit that can be installed in
the cradle for easy mounting to glass or
other smooth, glossy surfaces.
To install, insert suction cup head into
larger, top hole of cradle and slide up.
suction cup will lock into place when
seated properly. repeat for lower suction
cup, sliding down to lock.
(verify both the mounting surface and
suction cups are clean before mounting
to ensure proper adhesion).
1
2
pull up on a link plus
while cradle is secured
Receive Mode
Favorites Mode
Searching
Next Favorite
Bonded to Favorite
(bright)(dim)
(ashing)
1 click
Searching
Explore Mode
Bonded
(bright)(dim)
2 clicks
Added to Favorites
Add / Delete
Favorite Manually
Favorite Deleted
(ashing)
hold a few
seconds
Bonded
(bright)
(bright)
bonding your a link plus
Each a link plus will be set to Receive when initially
powered on. To use a link plus, one (1) of the units
must rst be set to Transmit.
To set one (1) a link plus to Transmit, simply tap the
Power Button after the unit is powered on.
The Status LED will change from green to red.
Your a link plus units will automatically Bond, and are
now ready to broadcast audio.*
Tapping the Power Button one (1) time will switch
a link plus between Transmit and Receive at any time.
*If your a link plus units do not automatically Bond,
the Transmitting a link plus is already a Favorite on
your Receiver’s Favorites List. In this case, switch the
Receiving unit to Favorites Mode ( 1 click), and it
should automatically nd the Favorite Transmitter and
Bond to it.

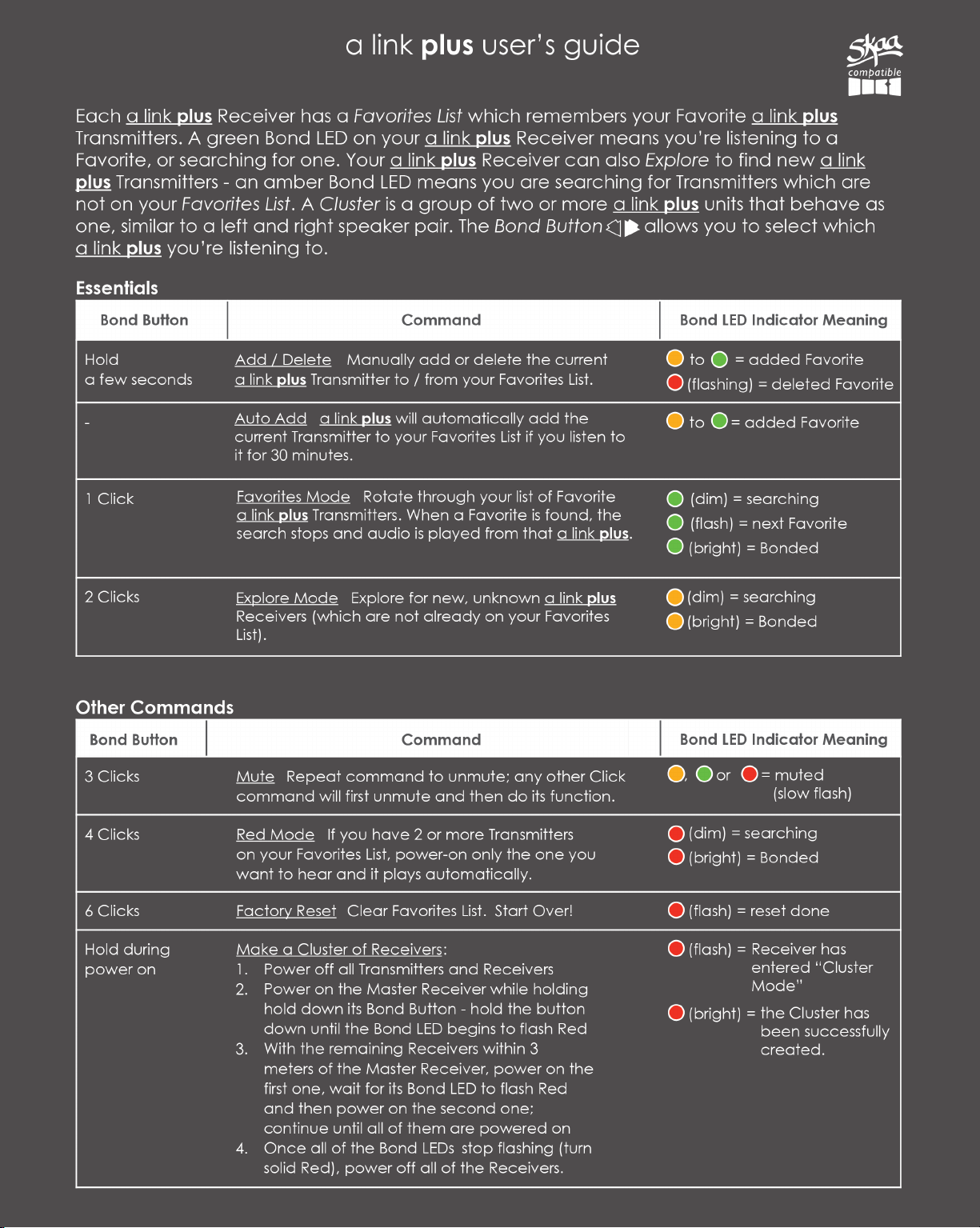

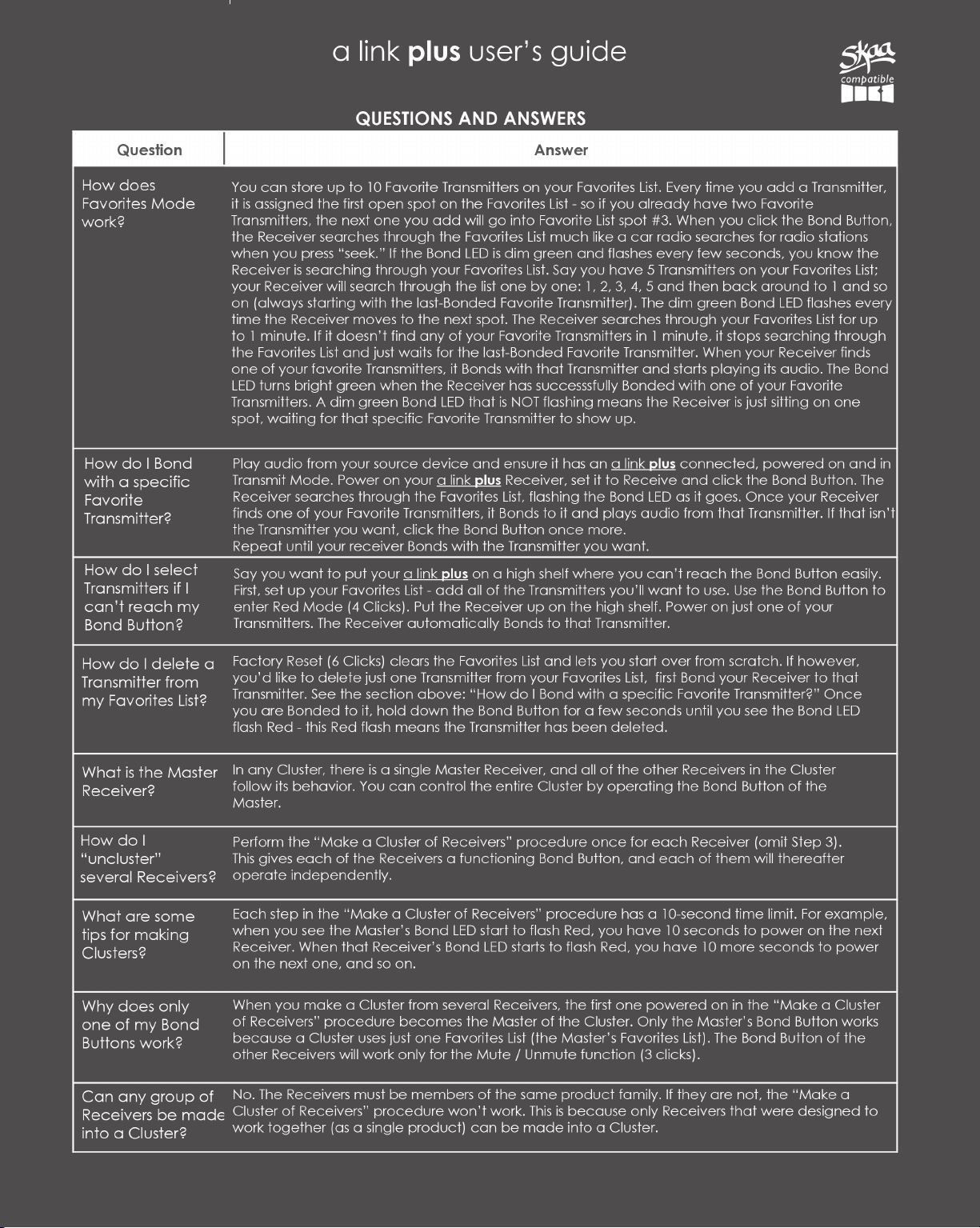

favorites list and explore mode
While Receiving, a link plus uses a Favorites List for
storing Transmitters you have Bonded to before.
a link plus will automatically add any Transmitter to
your Favorites List if Bonded to it for 30 minutes.
To access your Favorites List, switch the Receiving
unit to Favorites Mode at any time by clicking the
button one (1) time.
To manually add or delete the Transmitter you’re
currently Bonded with to/from your Favorites List,
simply hold the button for a few seconds.
To rotate through your Favorites List, click the
button one (1) time to go to your next Favorite.
a link plus can also be set to Explore Mode, to search
for new, unknown Transmitters. To enter Explore, click
the button two (2) times.

other features limited warranty
WET SOUNDS, INC.
www.wetsounds.com • 877-938-7757
10621 S Sam Houston PKWY W • Suite 100
Houston, Texas 77071
USA
What This Warranty Covers This is a “limited” warranty. This warranty covers any defect in materials and workmanship. This warranty only covers the original purchaser and is not transferable. This warranty is also only valid if the original purchase was made from an authorized Wet Sounds TM dealer. How Long Coverage Lasts This warranty extends for 2 years from the date of purchase. It is recommended to REGISTER your warranty online within 45 days of purchase at www.wetsounds.com – click on “warranty registration”. What Is Not Covered This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. Wet Sounds, Inc. does not cover the expense for removal or reinstallation. Additionally, shipping TO Wet Sounds, Inc. must be paid for by the purchaser. This warranty is void and inapplicable is Wet Sounds deems that the product was abused or misused; including but not limited to damage caused by accident, mishandling, improper installation, removing the inline fuse on the power connection, negligence, normal; wear and tear, excessive water or heat damage, freight/shipping damage, or products that have been disassembled by anyone other than Wet Sounds technical staff. Wet Sounds will not be responsible for any incidental or consequential damages, except to the extent provided (or prohibited) by applicable law. This warranty gives you specic rights, and you may also have other rights which vary from state to state. What Wet Sounds, Inc. Will Do Wet Sounds, Inc. will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price is that model is no longer available. Labor costs and materials needed to complete this service will be at No Charge to the purchaser. Additionally, return shipping FROM Wet Sounds, Inc. to the purchaser will be paid for by Wet Sounds. How To Get Service Contact Wet Sounds, Inc. either by phone [phone]) or by email ([email protected]). A service representative will assist you in conrming that the problem you are experiencing is caused by a defective product and if that product is covered under warranty. The service representative will issue you a Return Manufacturer’s Authorization (RMA) and other details to obtain service for your product.
DO NOT RETURN YOUR PRODUCT WITHOUT THE PROPER
RETURN AUTHORIZATION (RMA)!
Internet Warning Wet Sounds, Inc. products sold on any non-authorized web site or internet auction site are void of any and all manufacturer’s warranty. Please contact Wet Sounds (877-938-7757) or visit our web site (www. wetsounds.com) for a list of authorized online sellers or to nd an authorized installing retailer near you.

Not for use in an Airplane. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC Statement: This Class B digital apparatus complies with Canadian ICES- 003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC RSS_102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
The SKAA Compatible Badge as well as the graphics- only version of it, the SKAA Icon, both found on the Product itself, certify that this Product has been tested and is fully compliant with all of the requirements of the SKAA Standard and has been granted SKAA Certication. This Product will work seamlessly with other products in the SKAA ecosystem of audio transmitting and receiving devices. For more information on the SKAA Standard, please visit www.SKAA.com. The SKAA® name as well as its associated marks, logos and icons are trademarks or registered trademarks of Eleven Engineering Incorporated.
