Whirlpool LDE7800W1 User manual

ill_'h.lllilliIDll ill,_'h'ntliIDllS
ElectricDryer

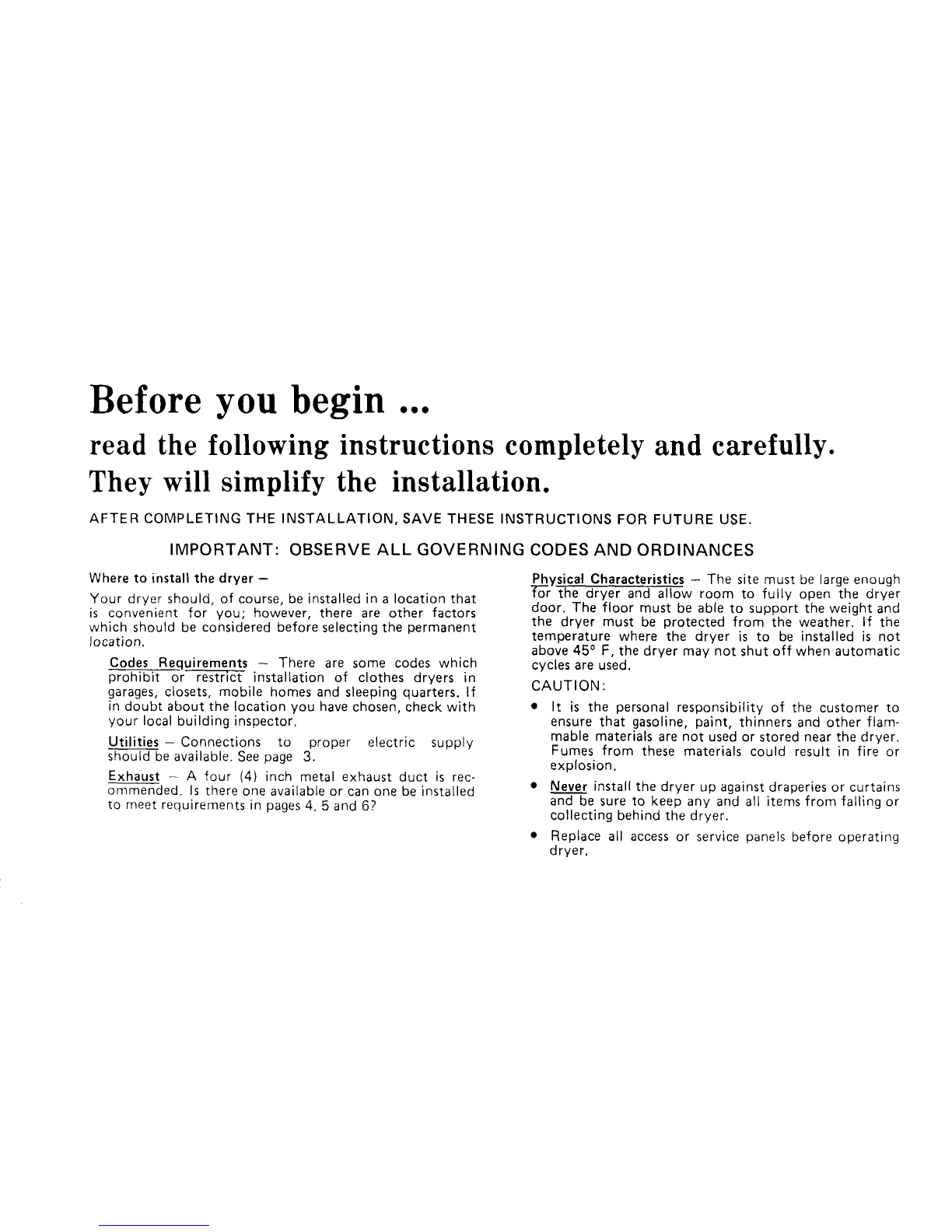

Before you begin ...
read the following instructions completely and carefully.
They will simplify the installation.
AFTER COMPLETING THE INSTALLATION, SAVE THESE INSTRUCTIONS FOR FUTURE USE.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES
Where to install the dryer -
Your dryer should, of course, be installed in a location that
is convenient for you; however, there are other factors
which should be considered before selecting the permanent
location.
Codes Requirements -There are some codes which
prohibit or restrict installation of clothes dryers in
garages, closets, mobile homes and sleeping quarters. If
m doubt about the location you have chosen, check with
your local building inspector.
Utilities - Connections to proper electric supply
should be available. See page 3.
Exhaust - A four (4) inch metal exhaust duct is rec-
ommended. Is there one available or can one be installed
to meet requirements in pages 4, 5 and 6?
Physical Characteristics - The site must be large enough
_o--r_ dr--_ _ a-T_-w room to fulLy open the dryer
door. The floor must be able to support the weight and
the dryer must be protected from the weather. If the
temperature where the dryer is to be installed is not
above 45 o F, the dryer may not shut off when automatic
cycles are used.
CAUTION:
•It is the personal responsibility of the customer to
ensure that gasoline, paint, thinners and other flam-
mable materials are not used or stored near the dryer.
Fumes from these materials could result in fire or
explosion.
• Never install the dryer up against draperies or curtains
and be sure to keep any and all items from falling or
collecting behind the dryer.
• Replace all access or service panels before operating
dryer.

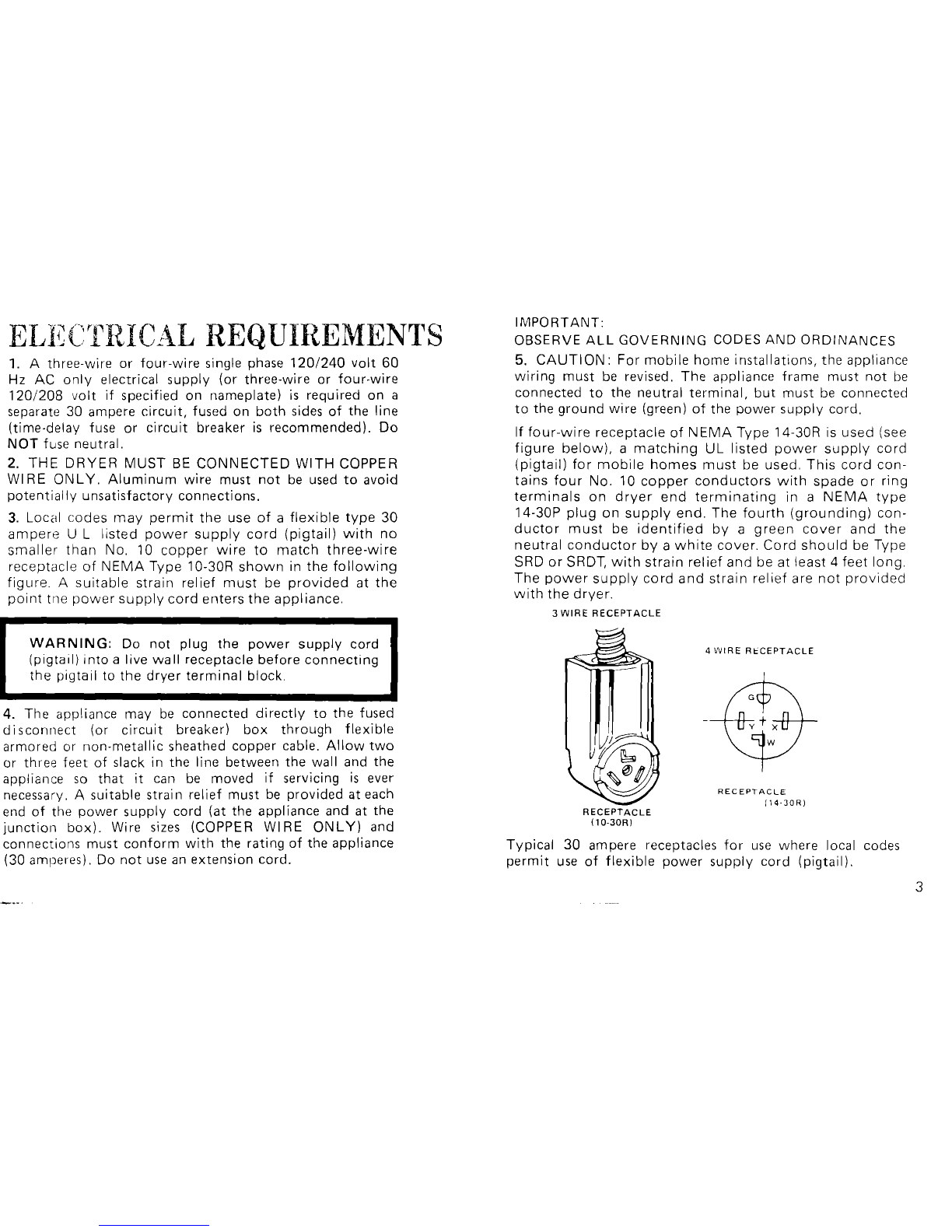

ELI CT£ICAL REQUIREMENTS
1. A three-wire or four-wire single phase 120/240 volt 60
Hz AC only electrical supply (or three-wire or four-wire
120/208 volt if specified on nameplate) is required on a
separate 30 ampere circuit, fused on both sides of the line
(time-delay fuse or circuit breaker is recommended). Do
NOT fuse neutral.
2. THE DRYER MUST BE CONNECTED WITH COPPER
WIRE ONLY. Aluminum wire must not be used to avoid
potentially unsatisfactory connections.
3. Local codes may permit the use of a flexible type 30
ampere U L listed power supply cord (pigtail) with no
smaller than No. 10 copper wire to match three-wire
receptacle of NEMA Type 10-30R shown in the following
figure. A suitable strain relief must be provided at the
point the power supply cord enters the appliance.
IMPORTANT:
OBSERVE ALL GOVERNING CODES AND ORDINANCES
5. CAUTION: For mobile home installations, the appliance
wiring must be revised. The appliance frame must not be
connected to the neutral terminal, but must be connected
to the ground wire (green) of the power supply cord.
If four-wire receptacle of NEMA Type 14-30R is used (see
figure below), a matching UL listed power supply cord
(pigtail) for mobile homes must be used. This cord con-
tains four No. 10 copper conductors with spade or ring
terminals on dryer end terminating in a NEMA type
14-30P plug on supply end. The fourth (grounding) con-
ductor must be identified by a green cover and the
neutral conductor by a white cover. Cord should be Type
SRD or SRDT, with strain relief and be at least 4 feet long.
The power supply cord and strain relief are not provided
with the dryer.
3WIRE RECEPTACLE
WARNING: Do not plug the power supply cord 4WIRERI:CEPTACL_
I
(pigtail) into a live wall receptacle before connectingefusb_d
the pigtail to the dryer terminal block
• The appliance may be connected directly to the
isconnect (or circuit breaker) box through fl "
armored or non-metallic sheathed copper cable. Allow two
or three feet of slack in the line between the wall and the
appliance so that it can be moved if servicing is ever
necessary. A suitable strain relief must be provided at each RECEPTACLE
114-30R)
end of the power supply cord (at the appliance and at the RECEPTACLE
junction box). Wire sizes (COPPER WIRE ONLY) and 11o-3om
connections must conform with the rating of the appliance Typical 30 ampere receptacles for use where local codes
(30amperes). Do not use an extension cord. permit use of flexible power supply cord (pigtail),
3

.... T r_

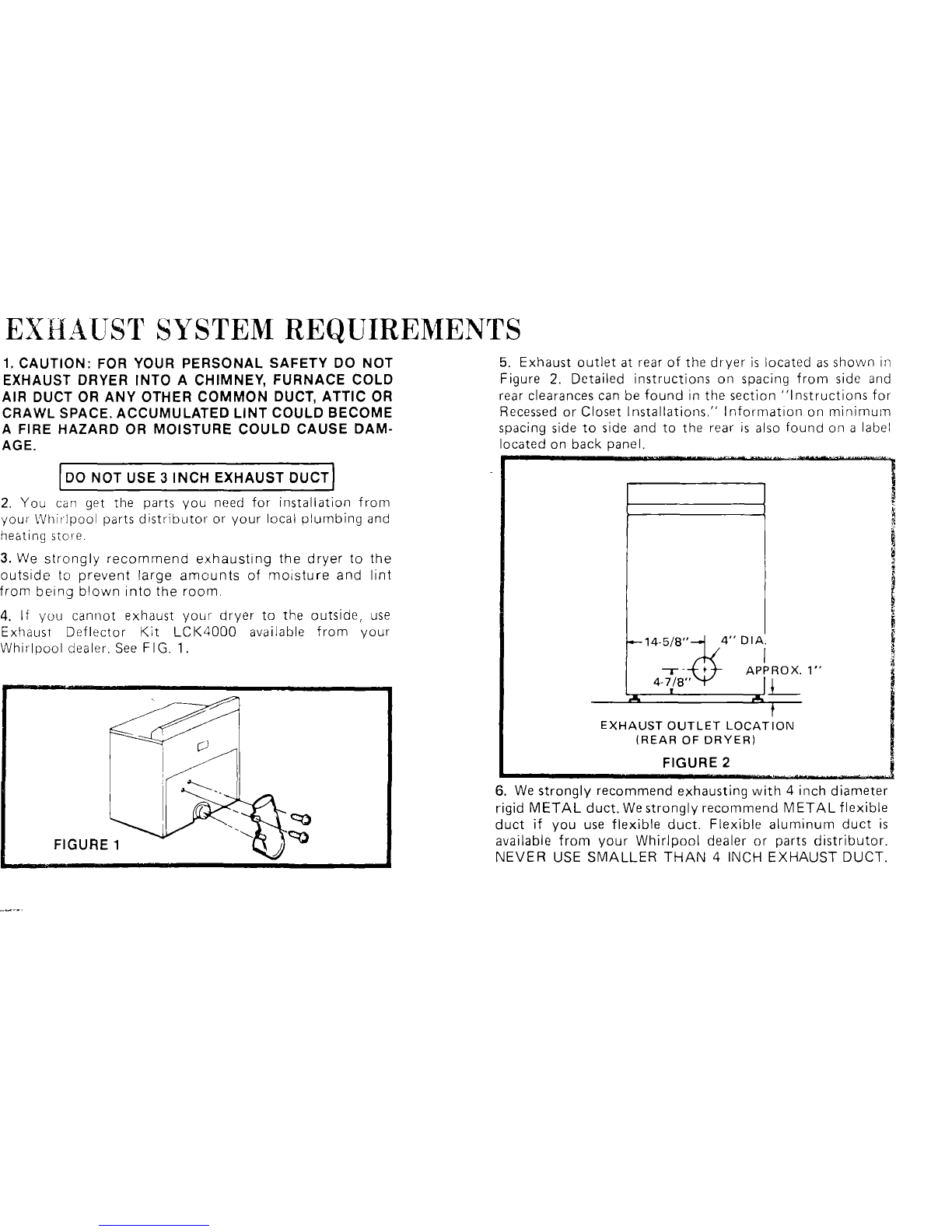

EXitA[ S I SYSTEM REQUIREMENTS
1. CAUTION: FOR YOUR PERSONAL SAFETY DO NOT
EXHAUST DRYER INTO A CHIMNEY, FURNACE COLD
AIR DUCT OR ANY OTHER COMMON DUCT, ATTIC OR
CRAWL SPACE. ACCUMULATED LINT COULD BECOME
A FIRE HAZARD OR MOISTURE COULD CAUSE DAM-
AGE.
DO NOT USE 3INCH EXHAUST DUCT I
2. You can get the parts you need for installation from
your Whirlpool parts distributor or your local plumbing and
heating store.
3. We strongly recommend exhausting the dryer to the
outside to prevent large amounts of moisture and lint
from being blown into the room.
4. If you cannot exhaust your- dryer to the outside, use
Exhaust Deflector Kit LCK4000 available from your
Whirlpool dealer. See FIG. 1.
FIGURE 1
i
5, Exhaust outlet at rear of the dryer is located as shown in
Figure 2. Detailed instructions on spacing from side and

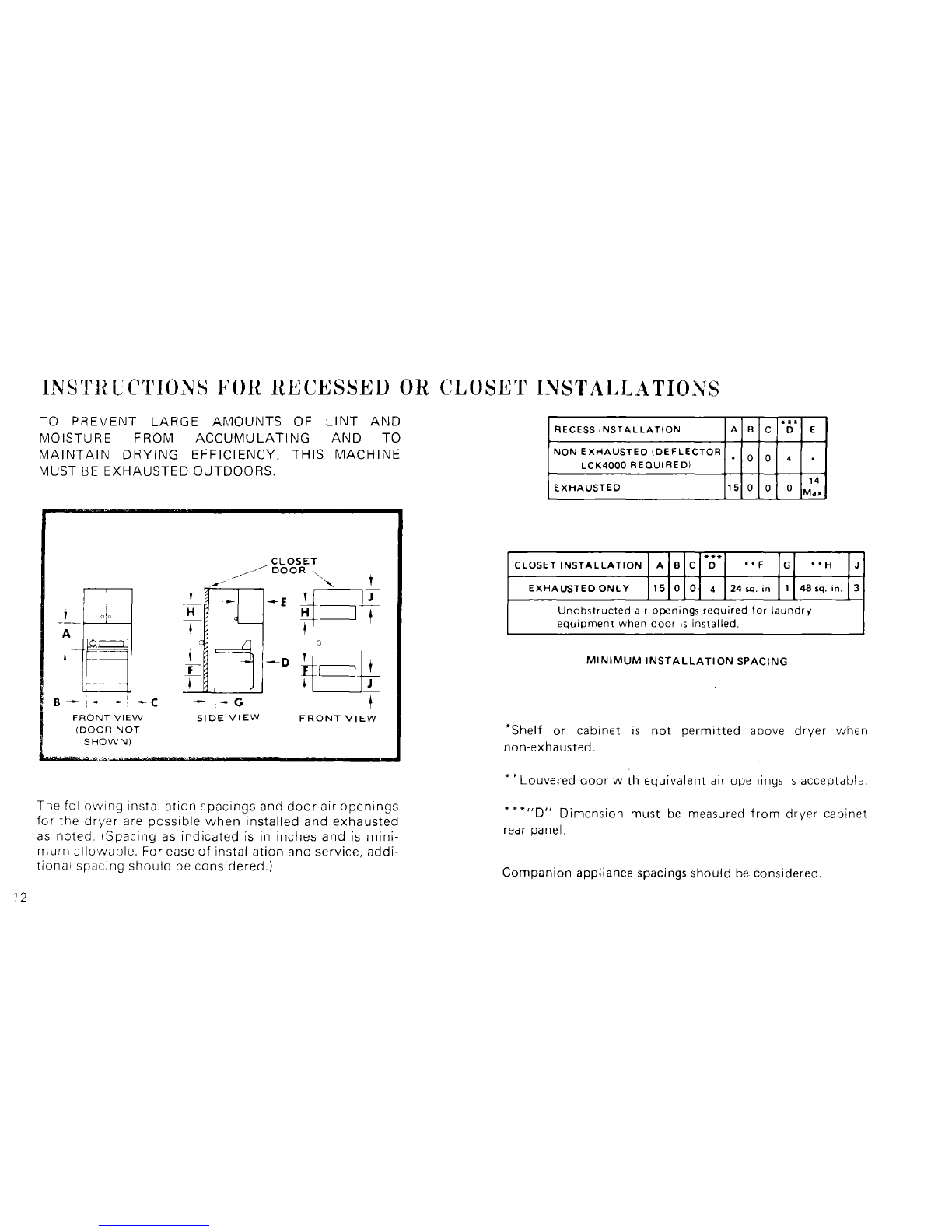

rear clearances can be found in the section "Instructions for
Recessed or Closet Installations," Information on minimum
spacing side to side and to the rear is also found on a label
located on back panel,
_4
l
_14-5_____/8'_4" DIA.I
4-7/-"8 "1"/ APPROX. 1"
,l!
A _
EXHAUST OUTLET LOCATION
(REAR OF DRYER)
FIGURE 2
6. We strongly recommend exhausting with 4 inch diameter
rigid METAL duct. We strongly recommend METAL flexible
duct if you use flexible duct. Flexible aluminum duct is
available from your Whirlpool dealer or parts distributor.
NEVER USE SMALLER THAN 4 INCH EXHAUST DUCT.

7.Theexhaustmayberoutedup,down,left,rightor
straightthroughthewall.
8.Theexhaustductshouldterminatewith anexhaust
hoodtopreventbackdrafts.Theoutletofthehoodmust
beatleast12inchesfromthegroundoranyobstruction.A
Iouveredexhausthood,PartNumber279399isavailable
fromyourWhirlpooldealerorpartsdistributor.Anexhaust
hoodwitha2!/,inchoutletcreatesmorebackpressure,but
maybeusedwithshortersystems.Neveruseanexhaust
hoodwithamagneticlatch.
9.Themaximumlengthoftheexhaustsystemdepends
uponthetypeofductused,thenumberofelbowsandthe
typeofexhausthood.Themaximumlengthforbothrigid
andflexibleductisshowninthechart,FIG.3.
NUMBER OF
90 TURNS
0
1
2
0
1
2
EXHAUST HOOD TYPE
.L
43FT.
33FT.
23 FT.
30 FT.
24 FT,
16FT.
41 FT. 36 FT.
31 FT. 26 FT.
21 FT. 16FT.
29 FT. 24 FT.
23FT. 18FT.
15 FT. 10FT.
MAXIMUM
LENGTH OF
4" DIA.
RIGID METAL
DUCT.
MAXIMUM
LENGTH OF
4" DIA.
FLEXIBLE
METAL DUCT.
Figure 3
10, Use duct tape to seal all joints. Never use screws to
assemble the ductwork, screws can catch lint.
11. Exhaust systems longer than specified will shorten
the life of the dryer and result in reduction of perform-
ance such as longer drying time and increased use of
energy. Lint may also accumulate creating a possible
safety hazard. The exhaust system should be cleaned
periodically, at least every two years.
12. We do NOT RECOMMEND non-metallic flexible duct.
If you use non-metallic flexible duct you must connect a
METAL elbow and at least 2 feet of METAL duct to the
dryer outlet. The length of the non-metallic flexible duct
should not exceed 7 feet, and it must be adequately
supported to prevent sagging or kinking. See FIG. 6.
NEVER INSTALL ANY TYPE OF FLEXIBLE DUCT CON-
CEALED IN VVALLS OR CEILING
13. There are exhaust kits available that allow the filtered
exhaust air to be directed inside to conserve energy during
winter months. These devices may be used with Whirlpool
dryers providing their use does not violate national or local
codes and providing the device does not restrict exhaust air
flow. If you use one of these kits, be aware that excessive
moisture in the home can cause many problems and that
you may see an increase in the time required to dry a toad.
Also, if you use one of these kits, you must maintain it
properly to avoid excessive lint build-up, which can affect
the dryers's performance.

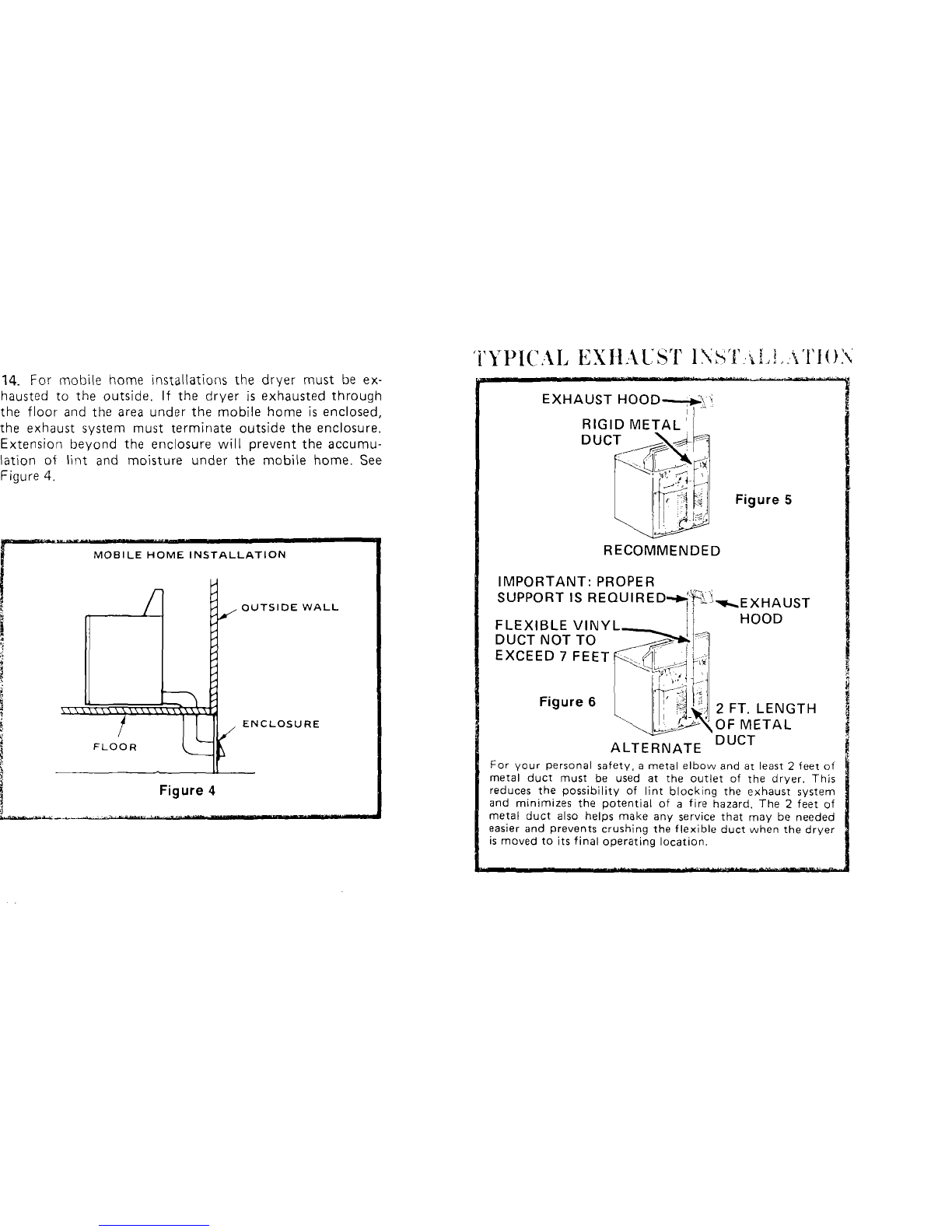

14.Formobilehomeinstallationsthedryermustbeex-
haustedtotheoutside. If the dryer is exhausted through
the floor and the area under the mobile home is enclosed,
the exhaust system must terminate outside the enclosure.
Extension beyond the enclosure will prevent the accumu-
lation of lint and moisture under the mobile home. See
Figure 4.
MOBILE HOME INSTALLATION
\\ \\\\x',, \\\\\\ \_\
FLOOR
OUTSIDE WALL
ENCLOSURE
¢
Figure 4
'i'YPICAL EXIlAUS 1 lN_ I ,_,[_]__.\'I'!()X
I R,G,DMETAL'I
|D UCT j_---.-_
I F'gure
iRECOMMENDED
| IMPORTANT: PROPER
I SUPPORT IS REQUIRED'-'i_'_£1,,,I,,,_EXHAUST
| FLEXIBLE VINYL } HOOD
| DUCT NOT TO _
EXCEED7 FEET_ !!_;r{
!Figure 6 [I_i_l 2 FT.LENGTH
"__wX_ OF METAL
| ALTERNATE DUCT
For your personal safety, a metal elbow and at least 2 feet of
| metal duct must be used at the outlet of the dryer. This
Ireduces the possibility of lint blocking the exhaust system
| and minimizes the potential of a fire hazard. The 2 feet of
|metal duct also helps make any service that may be needed
| easier ancl prevents crushing the flexible duct when the dryer
Iis moved to its final opi_i;ting Iocili_n_" ................................

IN TALLATION INSTRUCTIONS
DO NOT GRASP APPLIANCE BY THE CONSOLE
DO NOT MOVE APPLIANCE INTO ITS EXACT
LOCATION UNTIL THE FOLLOWING STEPS HAVE
BEEN PERFORMED
A. REMOVE LITERATURE AND
MISCELLANEOUS PARTS
After removing the literature package and miscellaneous
parts bag from the dryer drum, place the Operation
Instructions and Dryer Guide in a convenient place as
both pieces of literature should be read,
B, REMOVE TAPE FROM DRUM
On some models tape is used to secure the drum during
shipping. Remove the tape that holds the drum to the
cabinet. Move the drum by hand to make certain all tape
has been removed.
Next wipe the interior of the drum thoroughly with a damp
cloth before using the dryer.
C. INSTALL DRYER LEVELING FEET
Block up the front of the dryer about four inches using a
block of wood as shown in illustration "A", Install the
leveling feet in the front corners of the dryer using a
1" wrench or socket to turn in the leveling feet. See
illustration "B". All feet should extend approximately
one inch. Remove the block and repeat the procedure at
the rear of the dryer.
For mobile home installations all floor mounted dryers
must be fastened to the floor during transit using Kit No.
346765. The dryer does not need to be fastened to the
floor while the mobile home is not in transit,
\
ILLUSTRATION A ILLUSTRATION B

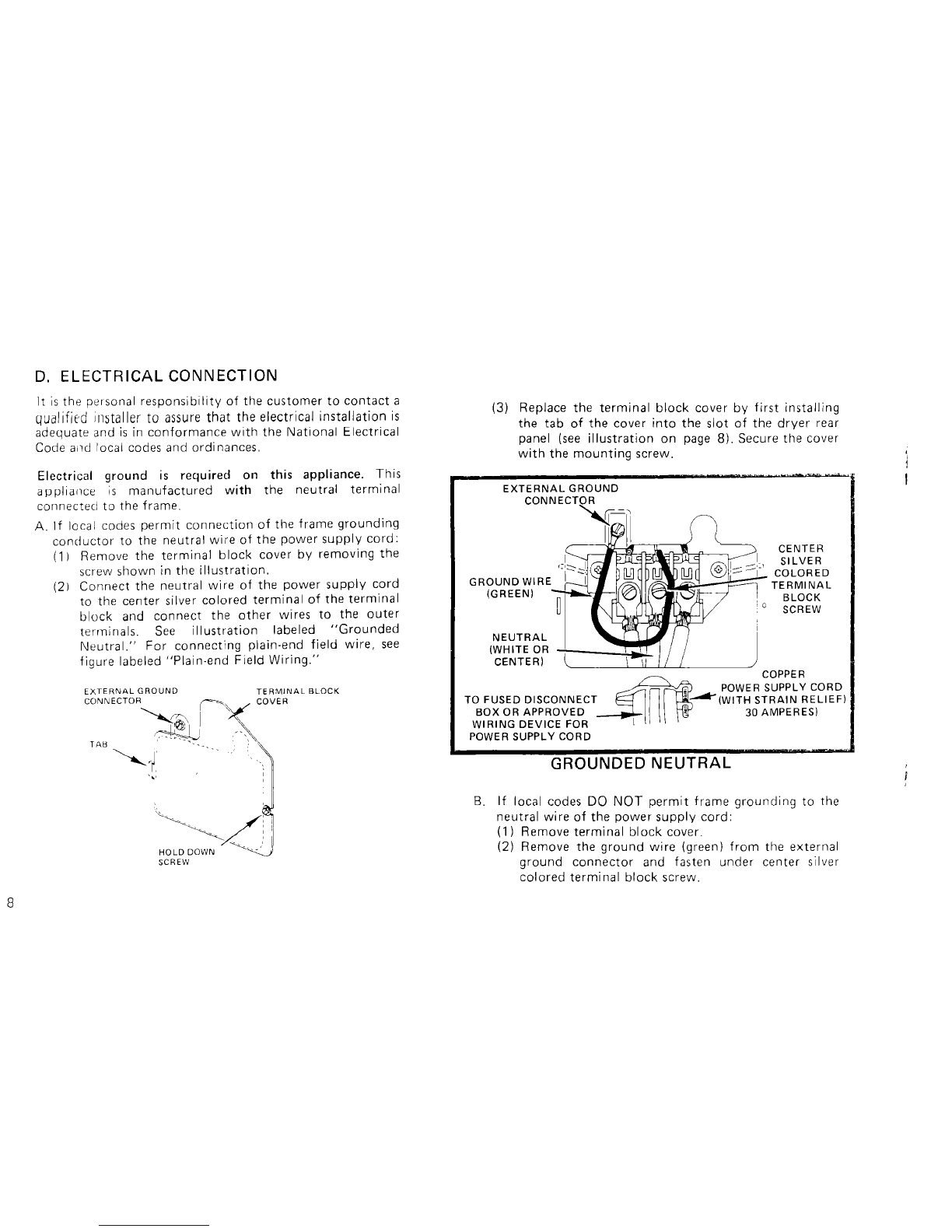

D, ELECTRICALCONNECTION
It is the personal responsibility of the customer to contact a
qualific'd installer to assure that the electrical installation is
adequate and is in conformance with the National Electrical
Code and focal codes and ordinances,
Electrical ground is required on this appliance. This
appliance is manufactured with the neutral terminal
connected to the frame,
A. If local codes permit connection of the frame grounding
conductor to the neutral wire of the power supply cord:
(1) Remove the terminal block cover by removing the
screw shown in the illustration.
(2) Connect the neutral wire of the power supply cord
to the center silver colored terminal of the terminal
block and connect the other wires to the outer
terminals. See illustration labeled "Grounded
Neutral." For connecting plain-end field wire, see
figure labeled "Plain-end Field Wiring."
EXTERNAL GROUND TERMINAL BLOCK
CONNECTOR _'_ .COVER
TAB _ "-
SCREW
(3) Replace the terminal block cover by first installing
the tab of the cover into the slot of the dryer rear
panel (see illustration on page 8). Secure the cover
with the mounting screw.
EXTERNALGROUND
CONNECTOR
GROUND WIRE
(GREEN)
NEUTRAL
(WHITE OR
CENTER)
TO FUSED DISCONNECT _--_,d_"
oxo22 ,Rov oR II
POWER SUPPLY CORD
CENTER
SILVER
COLORED
TERMINAL
BLOCK
io SCREW
COPPER
POWER SUPPLY CORD
(WITH STRAIN RELIEF)
30 AMPERES)
GROUNDED NEUTRAL
B. If local codes DO NOT permit frame grounding to the
neutral wire of the power supply cord:
(1) Remove terminal block cover.
(2) Remove the ground wire (green} from the external
ground connector and fasten under center silver
colored terminal block screw.
i'
I

!'J} £_OII[IU_L LII_ II_Ut. lul wl,c o_ t_O power cupp! V cnrd
to _he center silver colored terminal of the terminal
block and connect the other wires to the outer
terminals. See illustration labeled "Ungrounded
Neutral." For connecting plain-end field wire see
illustration labeled "Plain-end Field Wiring.'"
111111m | im
CONNECT SEPARATE COPPER GROUND WIRE
FROM EXTERNAL GROUND CQNNECTOR
TO APPROVED GROUND
EXTERNAL GROUND
CONNECTOR
,, II
j_
GROUNDWIRE ;
{GREEN)
CENTER
SILVER
COLORED
! TERMINAL
BLOCK
SCREW
/COPPER
NEUTRAL --- POWER SUPPLY CORD
(WHITE OR _X___ __ _& (WITH STRAIN RELIEF)
CENTEr) _:_j' 1'-'_7_" 30AMPERES_
-o&ggg OoN gC z
WIRING DEVICE FOR
POWER SUPPLY CORD
UNGROUNDED NEUTRAL
| ........
(4) Connect a separate co_)per grou'nd wire (No. 10
minimum) to a grounded cold water pipe* by
means of a clamp and then to the frame of the
appliance at the external ground connector. Use,
Part No. 685463 ground wire and clamp assembly.
Do not ground to a gas supply pipe. Do not connect
tine power supply cord to electric power supply
until appliance is permanently grounded. See
following illustration.
(5) Replace terminal block cover.
*Cold water pipe must have metal continuity to electrical ground
and not be interrupted by plastic, rubber or other electrically
insula[]ng connectors (including water meter or pump) without
adding a jumper wire at these connections.
EXTERNAL GROUND
iWATER PIPE
,I/ _(REMOVE PAINT, ETC)
COPPER GROUND WIREL_j/" /
(NO. 10 MINIMUMI \GROUND CLAMP
\ MUST BE TIGHT
._N PIPE
liT{if 1 , I I
C, If connecting to a four-wire electrical system (mobile
home):
(1) Remove the terminal block cover by removing the
screw shown in the illustration on page 8.
(2) Remove ground wire (green) from the external
ground connector and fasten under center silver
colored terminal block screw,
(3) Connect the ground wire (green) of the power
supply cord to the external ground connector.
(4) Connect the neutral wire {white) of the power
supply cord to the center silver colored terminal of
the terminal block and connect the other wires to
the outer terminals. See illustration labeled "4-Wire
Ungrounded Neutral." For connecting plain-end
field wire, see illustration labeled "Plain-end Field
Wiring."
(5) Replace the terminal block cover by first installing
the tab of the cover into the slot of the dryer rear
panel (see illustration on page 8), Secure the cover
with the mounting screw.

10

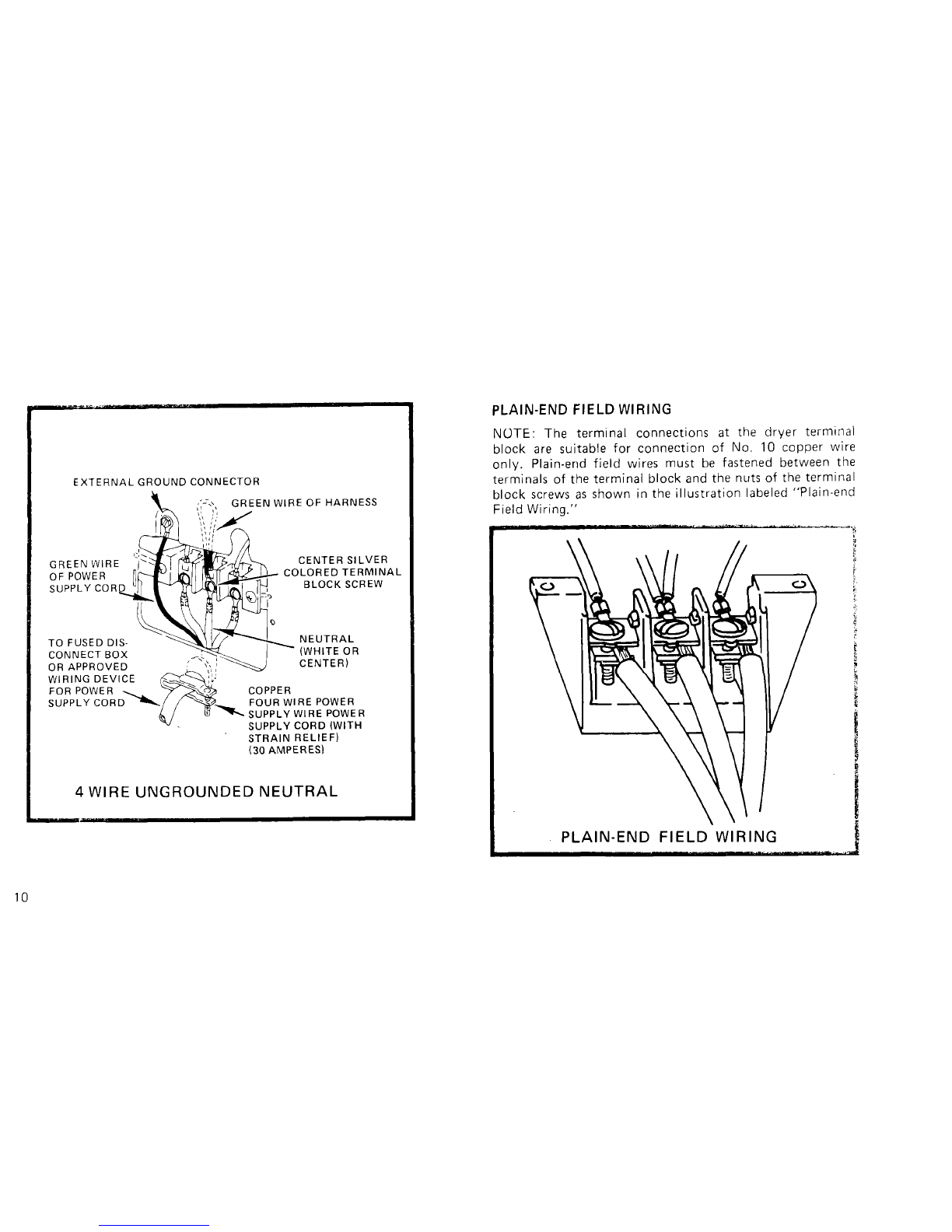

EXTERNAL GROUND CONNECTOR
,'--.. GREEN WIRE OF HARNESS
GREEN WIRE CENTER SILVER
OF POWER COLORED TERMINAL
SUPPLY CORD BLOCK SCREW
TO FUSED DIS- NEUTRAL
CONNECT BOX _. (WHITE OR
OR APPROVED ' _, CENTER)
WIRING DEVICE
FOR POWER _ COPPER
SUPPLY CORD _ FOUR WIRE POWER
SUPPLY WIRE POWE R
SUPPLY CORD (WITH
STRAIN RELIEF)
(30 AMPERES)
4 WIRE UNGROUNDED NEUTRAL
PLAIN-END FIELD WIRING
NOTE: The terminal connections at the dryer terminal
block are suitable for connection of No. 10 copper wire
only. Plain-end field wires must be fastened between the
terminals of the terminal block and the nuts of the terminal
block screws as shown in the illustration labeled "Plain-end
Field Wiring."
!
S
i
PLAIN-END FIELD WIRING
_ Ill I .............. ii ,i r

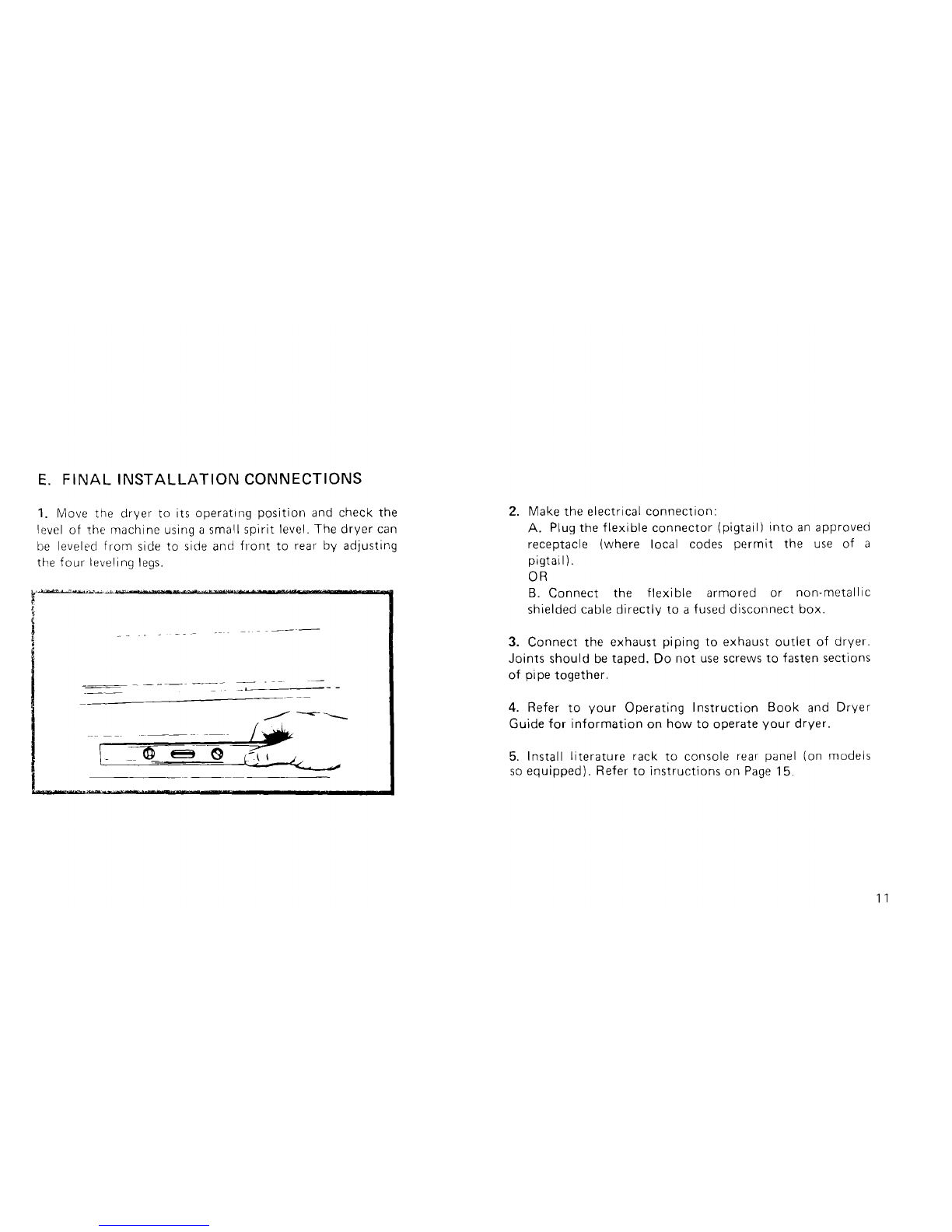

E. FINAL INSTALLATION CONNECTIONS
1. Move the dryer to its operating position and check the
level of the machine using a small spirit level. The dryer can
be leveled from side to side and front to rear by adjusting
the four leveling legs.
2, Make the electrical connection:
A. Plug the flexible connector (pigtail) into an approved
receptacle (where local codes permit the use of a
pigtail).
OR
B. Connect the flexible armored or non-metallic
shielded cable directly to a fused disconnect box.
3. Connect the exhaust piping to exhaust outlet of dryer,
Joints should be taped. Do not use screws to fasten sections
of pipe together.
4. Refer to your Operating Instruction Book and Dryer
Guide for information on how to operate your dryer.
5. Install literature rack to console rear panel (on models
so equipped). Refer to instructions on Page 15,
11

INSTRUCTIONS FOR RECESSED OR CLOSET INSTALLATIONS
TO PREVENT LARGE AMOUNTS OF LINT AND
MOISTURE FROM ACCUMULATING AND TO
MAINTAIN DRYING EFFICIENCY, THIS MACHINE
MUST BE EXHAUSTED OUTDOORS.
____ °i°
Y
FRONT VIEW
(DOOR NOT
SHOWN)
CLOSET
./ DOOR \\
SIDE VIEW FRONT VIEW
The foliowing installation spacings and door air openings
for the dryer are possible when installed and exhausted
as noted. (Spacing as indicated is in inches and is mini-
mum allowable. For ease of installation and service, addi-
tional spacing should be considered.)
RECESS INSTALLATION A B C *D**' E
NON-EXHAUSTED (DEFLECTOR 0 0 4
LCK4000 REQUIRED)
14
EXHAUSTED 15 00 0Max
CLOSET INSTALLATION A B C *1_* ''F G "'H J
EXHAUSTED ONLY 15 0 0 4 24sq. in. 1 485q. in. 3
Unobstructed air openings required for laundry
equipmen_ when door is installed.
MINIMUM INSTALLATION SPACING
*Shelf or cabinet is not permitted above dryer when
non-exhausted.
**Louvered door with equivalent air openings is acceptable.
***"D" Dimension must be measured from dryer cabinet
rear panel.
Companion appliance spacings should be considered.

1.ReadOperatinginstructionsBookandDryerGuide.
2. Dryerwillnotoperatewiththedooropen.
3. Keeplint screenandexhaustsystemclearof lint.A
blockedscreenor exhaustwillcauseslowdryingand/or
othermalfunctions.
DonotoperatedryerwithoutLintscreen.Usingthedryer
withthelint screenremovedmaycauseoverheatingand
possibledamageto fabrics.Lintscreenmustbepushed
firmlyintoplace.
4. Besuretodryonlyclothesormaterialswashedinwater
inyourdryer.Undernocircumstancesshoulditemsthat
havebeencleanedwithflammablecleaningfluidsbeplaced
inthedryer.Plasticandrubberitemsmustbedriedonthe
"Air"setting.
5. If
that:
A.
B,
C.
D.
E.
dryerwi!lnotoperate,checkthefolLow_ngtobesure
Electricsupplyisconnected,
Botl_fusesaregoodandtight,
Doorisclosed,
Controlsaresetinarunningor"On"position.
PushstartbuttonfirmlyorthePowerControllever
r_o_/edupwardtostart.
TYPICAL INSTAI,I,.\TiON
EXHAUST DUCT_-___
EXTERNAL
GROUNDCONNECTOR
FUSED
DISCONNECT BOX
GROUND WIRE
(ALTERNATEFOR
UNGROUNDED
NEUTRAL)
GROUNDCLAMP }
(GROUNDED)
COLD WATER PIPE
ao AMP RECEPTACLE
P
13

i ,l() i[NG OPERATIONS PROCEDURE
1. Shul off electric supply _o dryer by opening circuit
breaker or fused disconnect. 4. Apply filament tape from inside drum, out the door
opening to the front panel to prevent drum movement.
2. Remove p,gtail (if used) from 30 Amp receptacle, or
disconnect from box (by licensed electrician), then remove
armored came from dryer at the dryer or disconnect box.
3. Make sure leveling legs are secure in dryer base.
5. Use tape to secure clothes door and lint screen.
6. WARNING: Before having your electric dryer connected
in your new residence, be sure your licensed electrician
confirms that the supply voltage matches the voltage
specified on the nameplate.
14

LITEI{ATURE RACK INSTALLATION
1. Insert the 4 side tabs (2 on each side) of
the rack into the back panel. (See FigureA)
2. Push downward until all 4 tabs bottom
out, locking the sides of the rack in place.
3. Insert the 2 bottom tabs into the slots at
the base of the rear panel, until they lock
in place. (See Figure B.)
4. Put all the literature in the Laundry
Information Center folder and then put the
folder in the rack.
i
m
RACK
FIGURE A
F,GUREB _ i
,_
15

In [he event your WHIRLPOOL appliance should need service, call the dealer from whom you
purchased the appliance or a WHIRLPOOL franchised TECH-CARE®service company He is in the
Yellow Pages of your telephone directory listed under Washers, Dryers-Repairing or Servicing.
You can also obtain his name and number by dialing, free, wi[hin the continental United States
(except Alaskal the Whirlpool COOL-LINE®Service [phone] [when calling from Michigan,
dial [phone]; from Alaska or Hawaii, dial [phone]] Dial just as you normally dial
long dislance. A special operator will lell you the name and number of your nearest Whirlpool
TECH-CARE service ou[let, Dunng normal working hours, Whirlpool consultanls a[ this same
nu tuber will also a nswer any questions about operating or main[aining your appliance no[ covered
in your Operating Instructions.
Learn [he benefits of using TECH-CARE service for main[aining the quality originally built into
your WHIRLPOOL appliance.
WHIRLPOOL CORPORATION BENTON HARBOR, MICHIGAN 49022
Printed in U,S.A. Part No, 688643 Rev. K
