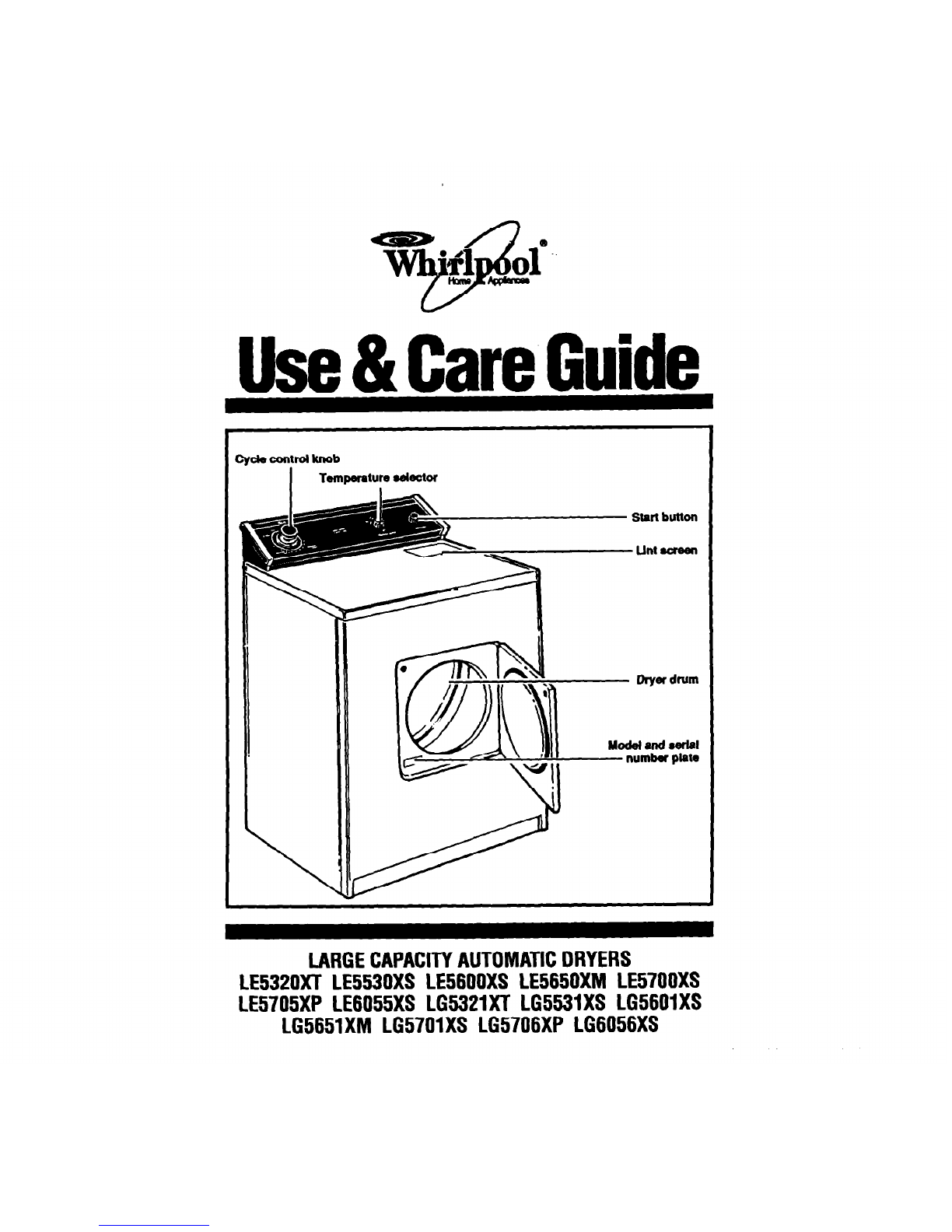

Use& CareGuide
Cycte control knob
I
Temperature selector
Start bution
LARGECAPACITYAUTOMATICDRYERS
LE5320XTLE5530XSLE5600XSLE5650XMLE5700XS
LE5705XPLE6055XSLG5321XTLG5531XSLG5601XS
LG5651XM LG57OlXS LG5706XPLG6056XS

Contents
Page
lmp4xtant Safety Instructha
Additional safety instructions
and your responsibilities.. .............. .3
Operatlng Instructlons
Starting your dryer.. ....................... .4
The regular cydes ......................... .6
The permanent press cycle ........... .7
Using fluff air ................................. .7
Using TUMBLE PRESS@. .............. 6
Using damp dry ............................. .9
Lint signal ...................................... .9
Carlng For Your Dryer

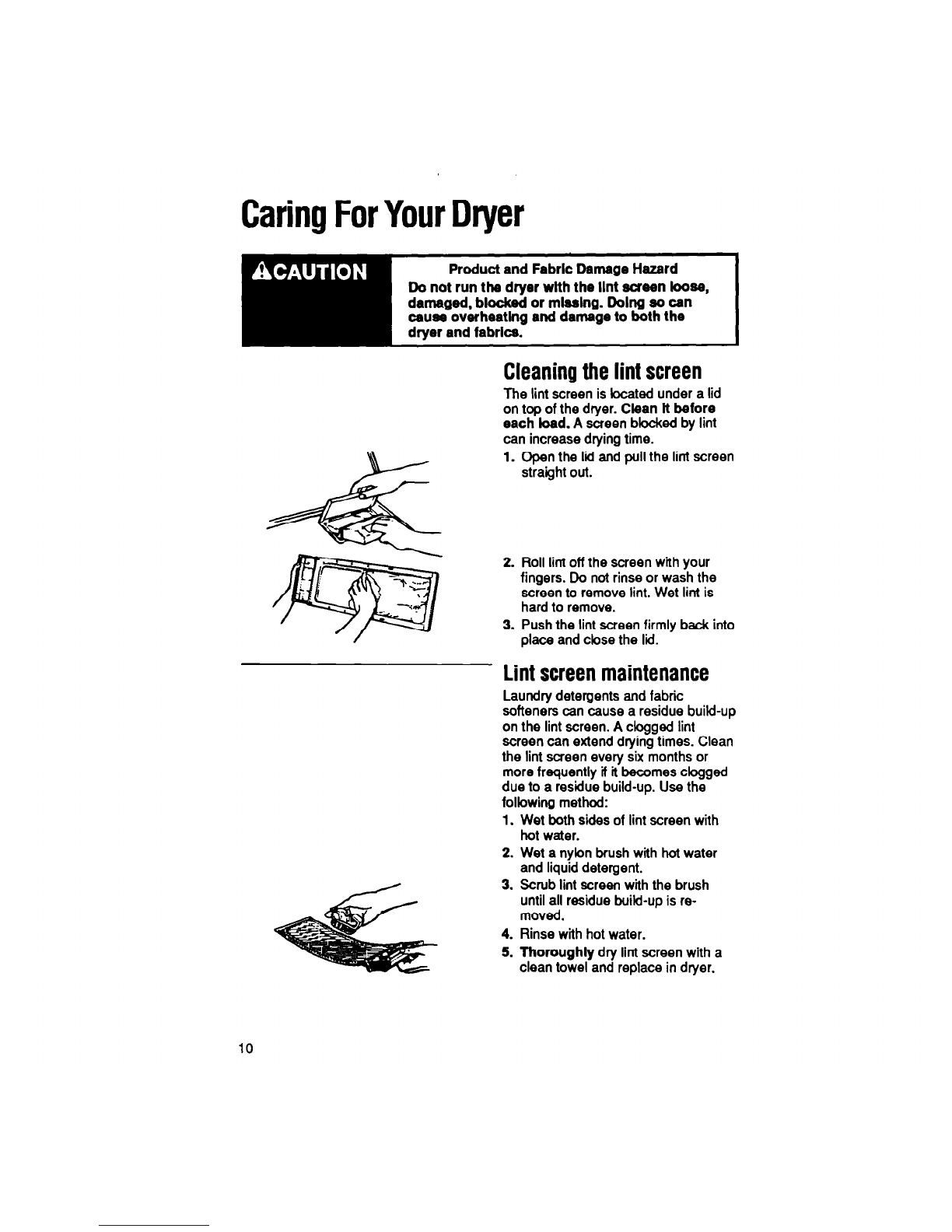

Cleaning the lint screen.. .............. 10
Lint screen maintenance
.............. 10

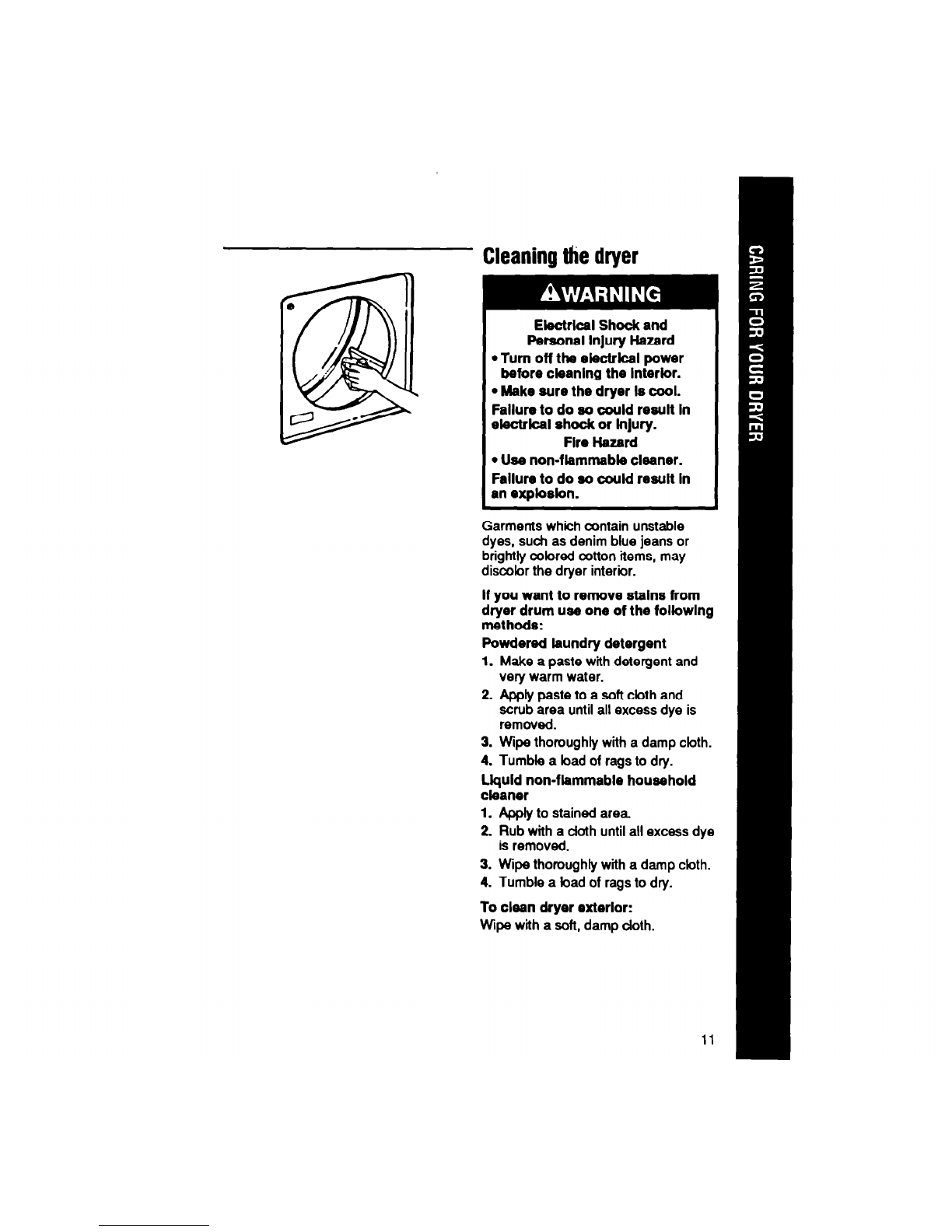

Cleaning the dryer..
...................... 11
Lint removal.. ............................... .12

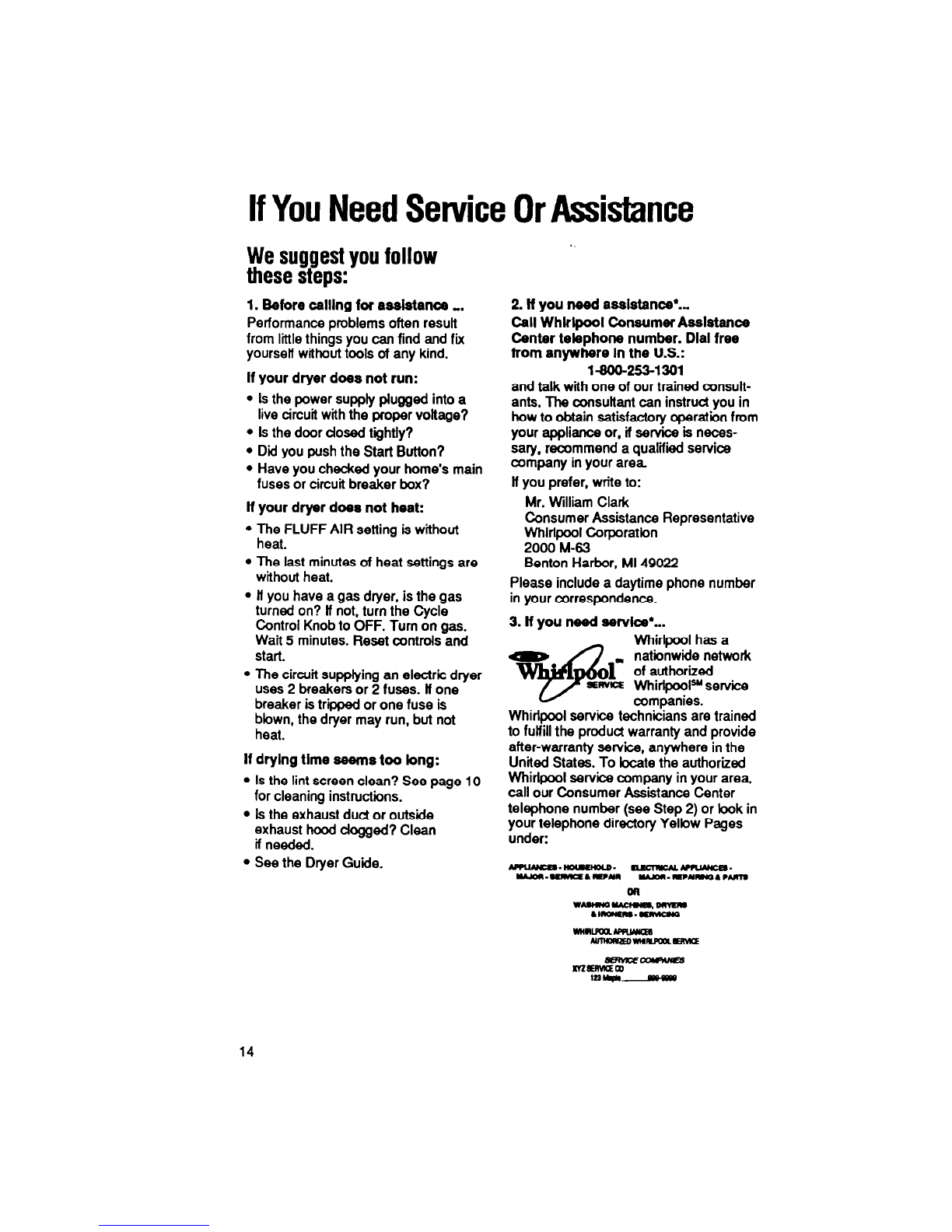

If You Need Service Or
Assistance .................................... .I4
Whlrlpool Automatic Drpr
Warranty ....................................... .16
01992 Whirlprxrl Corporation
The drawings in this book may vary
slightly from your dryer model. They are
designed to show the different features
of all models covered by this book.
NOTE: Your model may not include all
the features shown.
lf your dryer has a Consumer Buy
Guide label, remove it. ft will be easier
to remove before the dryer is used. To
remove any remaining glue:
l Rub briskly with thumb to make a ball,
then remove.
or
l Soak area with liquid hand
dishwashing detergent before
removing glue as described above.
Do not use sharp instruments, rubbing
alcohol, flammable fluids or abrasive
cleaners. These can damage the finish.
See ‘Important Safety Instructions’ on
paw 3.
NOTE: Do not remove any permanent
instruction labels inside the dryer.
You should wipe out the dryer drum
with a damp doth before using to
remove dust from storing or shipping.
2
Thank you for buying a Whirlpool
appliance. Please complete and mail
the Owner Registration Card provided
with this product. Then complete the
form below. Have this information ready
if you need service or call with a
question.
l Copy model and serial numbers from
plate (on the frame behind the door)
and purchase date from sales slip.
l Keep this book, the Dryer Guide and
the sales slip together in a handy
place.
Model Numb
Sdal Number
PurchaseDate
tavica Company PhoneNumber
FOR YOUR SAFETY
If you smell gas:
1. Open wlndows.
2. Don’t touch electrical
switches.
3.li;gulsh any open
.
4. lmmedlately call your gas
suppller.
FOR YOUR SAFETY
Do not store or use gasollne
or other flammable vapors
and llqulds In the vlclnlty of
thls or any other appliance.
The fumes can create a fire
hazard or exploslon.

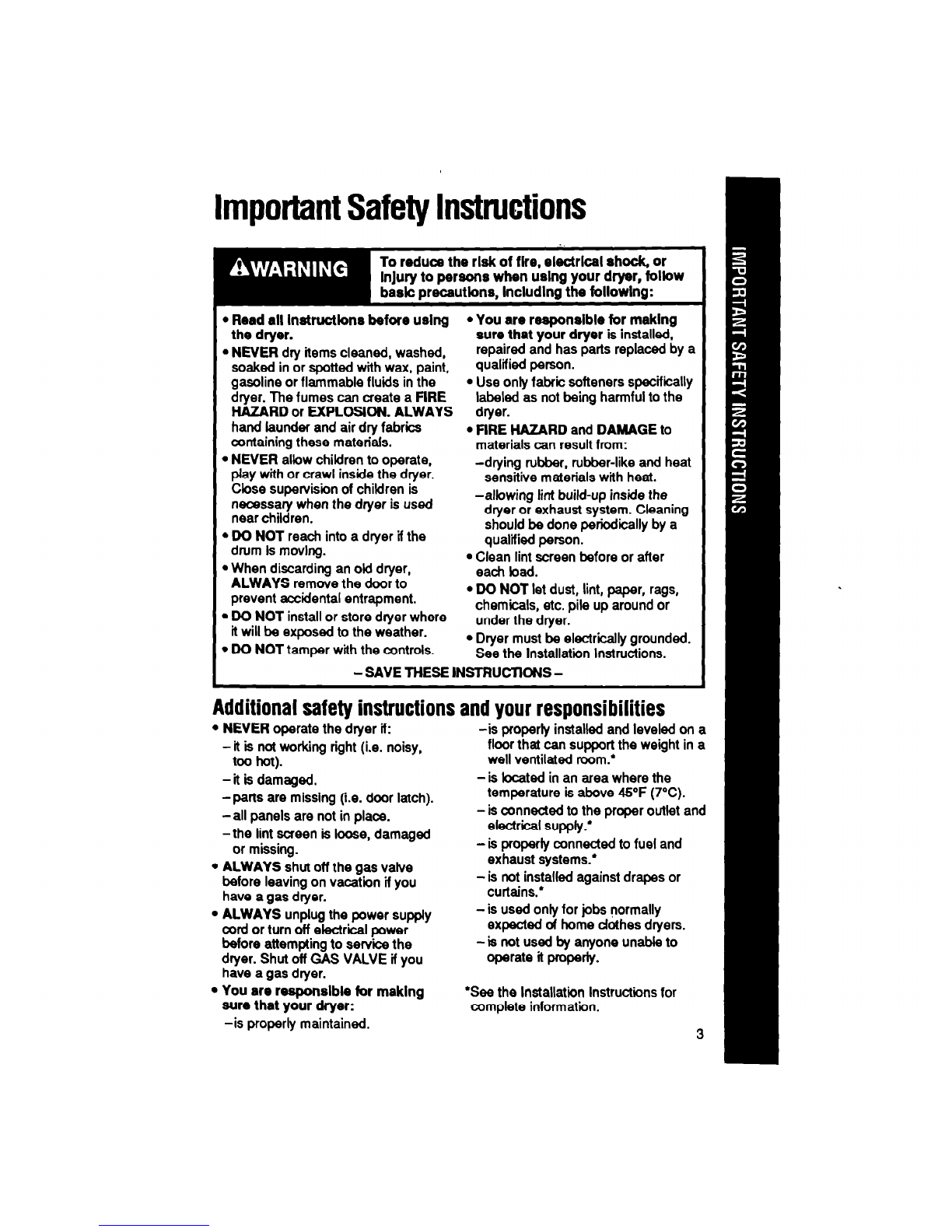

ImportantSafetyInstructions
To reduce the risk of fire, electrlcal shock, or
Injury to persons when using your dryer, follow
bask precautkns, lncludlng the following:
l Read all lnsttuctkns before using l You are responsible for maklng
the dryer. sure that your dryer
is installed,
l NEVER dry items cleaned, washed, repaired and has parts replaced by a
soaked in or spotted with wax, paint, qualified person.
gasoline or flammable fluids in the
l Use only fabrii softeners specifically
dryer. The fumes can create a FIRE
labeled as not being harmful to the
HAZARD or EXPLOSION. ALWAYS
dryer.
hand launder and air dry fabrics
l FlRE HAZARD and DAMAGE to
containing these materials. materials can result from:
l NEVER allow children to operate,
play with or crawl inside the dryer. -drying rubber, rubber-like and heat
sensitive materials with heat.
Close supervision of children is
necessary when the dryer is used -allowing lint build-up inside the
near children. dryer or exhaust system. Cleaning
l DO NOT reach into a dryer if the should be done periodically by a
drum is moving. qualified person.
l Clean lint screen before or after
l When discarding an OM dryer, each bad.
ALWAYS remove the door to
prevent accidental entrapment.
l DC NOT let dust, lint, paper, rags,
l DO NOT install or store dryer where chemicals, etc. pile up around or
it will be exposed to the weather. under the dryer.
l DO NOT tamper with the controls.
l Dryer must be electrically grounded.
See the Installation Instructions.
- SAVE THESE INSTRUCTIONS -
Additionalsafetyinstructionsandyourresponsibilities
l NEVER operate the dryer if:
- it is not working right (i.e. noisy,
too hot).
-it is damaged.
-parts are missing (i.e. door latch).
-all panels are not in place.
-the lint screen is loose, damaged
or missing.
-is properly installed and leveled on
floor that can support the weight in
well ventilated room:
-is bcated in an area where the
temperature is above 45°F (7°C).
-is connected to the proper outlet ar
electrical supply.’
-is property connected to fuel and
exhaust systems.’
- is not installed against drapes or
curtains.*
. ALWAYS shut off the gas valve
before leaving on vacation if you
have a gas dryer.
l ALWAYS unplug the power supply
cord or turn off electrical power
before attempting to service the
dryer. Shut off GAS VALVE if you
have a gas dryer.
l You are responsible for maklng
sure that your dryer:
-is properly maintained.
-is used only for jobs normally
expected of home clothes dryers.
-is not used by anyone unable to
operate it properly.
a
a
ld
‘See the Installation Instructions for
complete information.

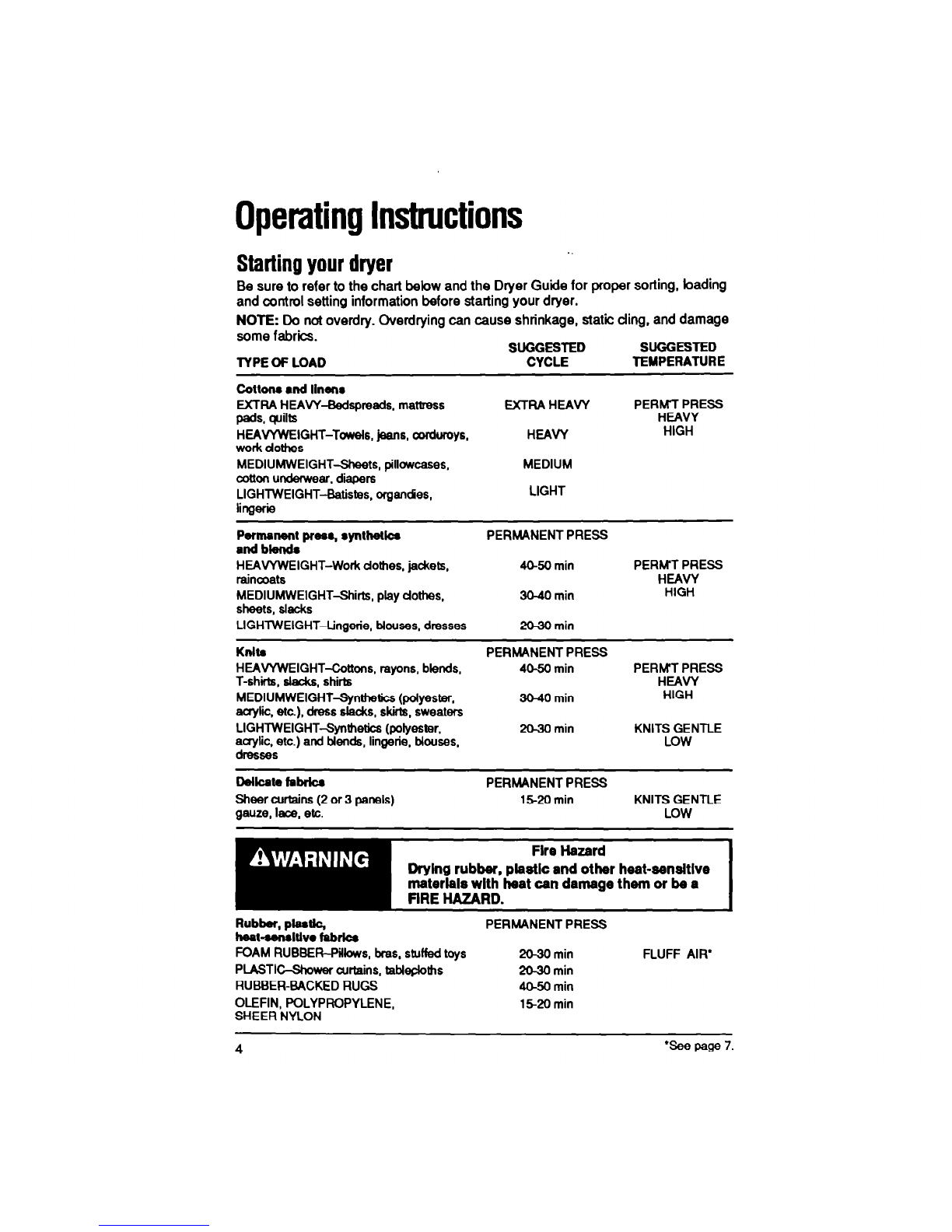

Operatinginstructions
Startingyourdryer .
Be sure to refer to the chart below and the Dryer Guide for Proper sorting, bading
and oontrol setting information before starting your dryer.
NOTE: Do not overdry. Overdrying oan cause shrinkage, static ding, and damage
some fabrics. SUGGESTED SUGGESTED
TYPE OF LOAD CYCLE TEMPERATURE
Cottona and linam
EXTRA HEAVY-Bedspraads. matkess EXTRA HEAVY PERMT PRESS
pads. quilts HEAVY
HEAVYWEIGHT-Towels, bans, corduroys, HEAVY HIGH
work dothas
MEDIUMWEIGHTSheets, pillowcases. MEDIUM
cotton underwear, diapers
LIGHTWEIGHT-Batistes, organdies, LIGHT
lingerie
Pem&ulent prwq synthetla PERMANENT PRESS
and blends
HEAVYWEIGHT-Work dothes. jackets, *SO min PERM’T PRESS
raincoat6
HEAVY
MEDIUMWEIGHTShirts, play dothes, W-40 min HIGH
sheets. slacks
LIGHTWEIGHT-Lingerie, bbuses. dresses 20-30 min
KnlW PERMANENT PRESS
HEAVYWEIGHT-Cottons, rayons, blends, 40-!3 min PERM’T PRESS
T-shirts, slacks, shirts HEAVY
MEDIUMWEIGHTSynthetics (potyester, 30-40 min HIGH
auylic. etc.), dress stadq skirts, sweaters
LIGHTWEIGHTSynthetics (polyester, 20-30 min KNITS GENTLE
acqlic. etc.) and bbnds. lingerie, blouses, LOW
dresses
Ddkete kbrks
Sheer curtains (2 or 3 panels)
gauze, lace. etc.
PERMANENT PRESS
15-20 min KNITS GENTLE
LOW
Rubber, pltutk, PERMANENT PRESS
heat-sensltlvo fabrka
FOAM RUBBER-Pillcws, bras, stuffed toys 20-30 min FLUFF AIR
PLASTICShower curtains, tab&loths 20-30 min
RUBBER-SACKED RUGS 4MO min
OLEFIN, POLYPROPYLENE, 1520 min
SHEER NYLON
4 ‘see page 7.

1. Select a cyole by turning the Cycle
Control Knob either way. Stop
when the indicator on the knob’s
outer ring points to the cycle and
time you want. See pages 6-9 for
further cycle information.
2. Set the Temperature Selector on
the desired temperature setting.
3. Push the Start Button to start the
dryer.
4. To stop and restart the dryer:
l Open the door or turn the Cycle
Control Knob to OFF to stop the
dryer.
l Cbse the door, select a cycle (if
necessary) and push the Start
Button to restart the dryer.
The Cycle Control Knob should point
to an OFF area when the dryer is not
in use. lf the dryer is stopped before
the cycle is finished, turn the Cycle
Control Knob to an OFF area
5

Operating lnstructluns
Continued
Mom drying Urna L#r drytng time

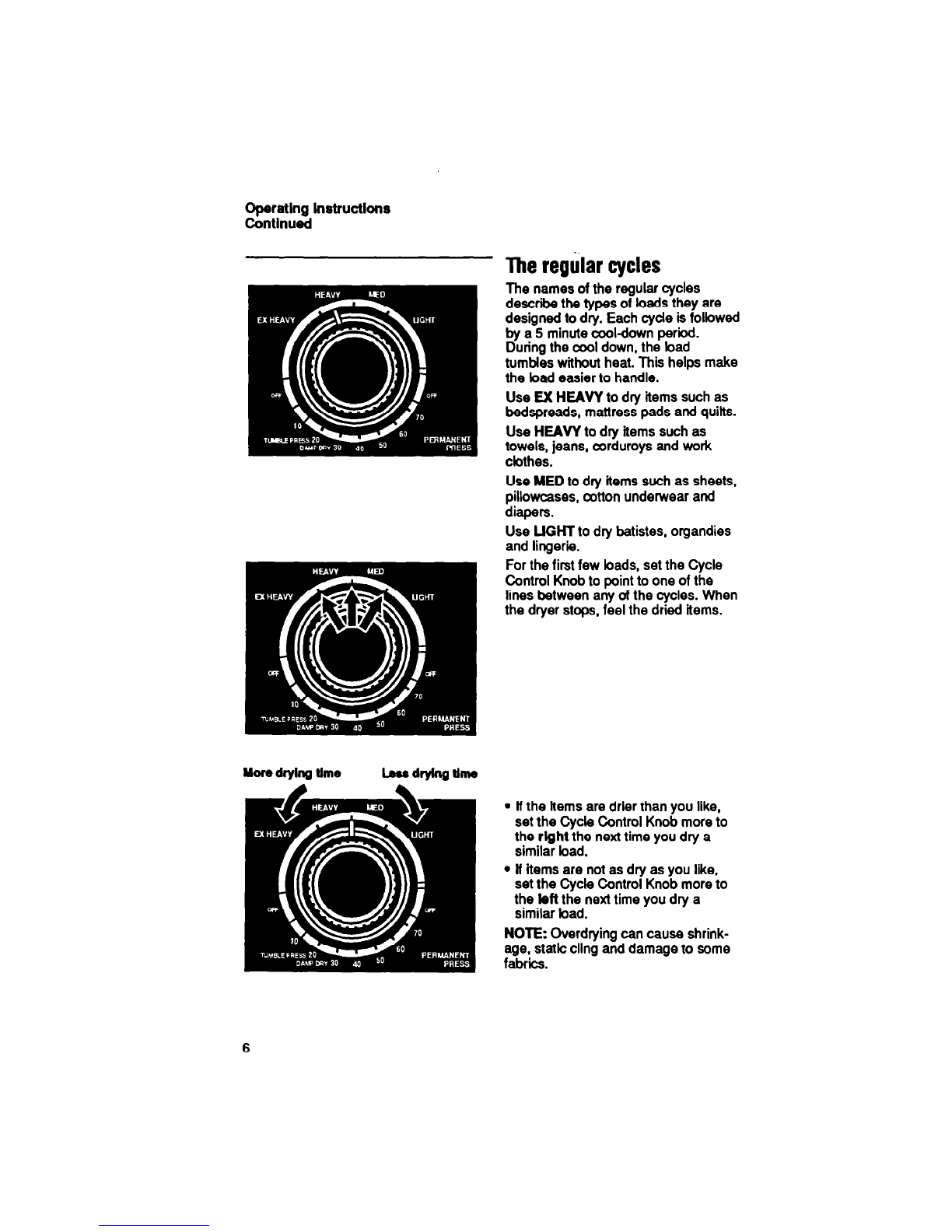

Theregularcycles
The names of the regular cycles
describe the types of loads they are
designed to dry. Each cyde ls followed
by a 5 minute cool-down period.
During the cool down, the bad
tumbles without heat. This helps make
the bad easier to handle.
Use EX HEAVY to dry items such as
bedspreads, mattress pads and quilts.
Use HEAVY to dry items such as
towels, jeans, corduroys and work
clothes.
Use MED to dry items such as sheets,
pillowcases, cotton underwear and
diapers.
Use LIGHT to dry batistes, organdies
and lingerie.
For the first few bads, set the Cycle
Control Knob to point to one of the
lines between any of the cycles. When
the dryer stops, feel the dried items.
l ll the items are drier than you like,
set the Cycle Control Knob more to
the right the next time you dry a
similar bad.
l fl items are not as dry as you like,
set the Cycle Control Knob more to
the left the next time you dry a
similar bad.
NOTE: Overdrying can cause shrink-
age, static cling and damage to some
fabrics.
6

T$;ERMANENT PRESS
The PERMANENT PRESS cycle helps
provide the special care that psrma-
nent press and synthetic fabrfcs need.
The cyde consists of a timed period of
heated drying and a 10 minute cool-
down period. During the cool down,
the bad tumbles without heat. This
helps keep wrinkles from setting and
makes the bad easier to handle.
NOTE: To help reduce wrinkling,
remove the bad from the dryer as
soon as tumbling stops. This is
important for permanent press, knits
and synthetic fabrii.
UsingFLUFFAIR
The dryer doss not heat when the
Temperature Selector is set on FLUFF
AIR. This setting can be used to flufl or
air dry bedding, plastic tablecloths,
foam rubber pillows, stuffed toys,
sneakers, etc.
1. Turn the Temperature Selector to
FLUFF AIR.
2. Turn the Cycle Control Knob to the
desired number of minutes you
want in the PERMANENT PRESS
cycle.
3. Push the Start Button.
NOTE Repeat steps above if more
time is needed to dry items.
7

Operating Instnrctbna
Continued
UsingTUMBLEPREW
The TUMBLE PRESS setting removes
wrinkles from cbthing that has been
packed in a suitcase or closet, and
from items not removed from the dryer
at the end of a cycle.
1. Set the Cycle Gontrol Knob on
TUMBLE PRESS.
2. Set the Temperature Selector on
PERM’T PRESS HEAVY HIGH.
3. Push the Start Button.
For best results, put only a few items
at a time in this cycle. As soon as the
dryer stops, put the items on hangers
or fold them.
All models (excepl LE565oXM,
LG!xslXM, LE5mXP, LGs706XP)
For models LWxy LG5651xM,
LE5705XP, LG5706XP:
The bad will tumble in heated air for
5 minutes. Then the dryer will tumble
the clothes for 10 minutes without
heat.

UsingUAMPDRY
Use this setting to dry damp items that
do not require an entire drying cycle,
or to dry items to damp level. (Two
examples are heavy cottons, such as
jeans, which you do not want to
become stiff, or cotton clothes which
are easier to press when damp.)
1. Set the Cycle Control Knob on
DAMP DRY.
2. Push the Start Button.
For all modeb (except LE565OXy
LG5651XM LE!5705XP, LGs706XP):
The bad will tumble in heated air for
20 minutes. Then the dryer will tumble
the clothes for 10 minutes without
heat.
All models (excspt LESSOXW,
LGs651XY, LE!m5XP, LG5706XP)
For models LESSSOXM,LGkWilXM,
LE5705XP, LGs706XP:
The bad will tumble in heated air for
15 minutes. Then the dryer will tumble
the clothes for 10 minutes without
heat.
Model8 LE565oxM, LGSWXM,
LE5705XP, LGmMXP
3
P
‘/
/ =-
\
\
Lint signal
For modek LES705XP and
LG5706XP:
Clean the lint ecreen before eech
bed. A signal will sound if you neglect
to dean your lint screen. The signal
(a whistle tone) lets you know the
airflow .s restricted. Restricted airflow
reduces drying efficiency.
Turn off the dryer and clean the lint
screen as shown on page 10.
9

CaringForYourDryer
Product and Fabric Damage Hazard
Do not run the dryer with the llnt ecreen loose,
damaged, blocked or mfeslng. Dolng 80 can
ceuse overheatlng and damage to both the
dryer and fabrics.
Cleaningthe lint screen
The lint screen is located under a lid
on top of the dryer. Clean lt before
each load. A screen blocked by lint
can increase drying time.
1. Open the lii and pull the lint screen
straight out.
2. Roll lint off the screen with your
fingers. Do not rinse or wash the
screen to remove lint. Wet lint is
hard to remove.
3. Push the lint screen firmly back into
place and close the lid.
Lint screenmaintenance
Laundry detergents and fabric
softeners can cause a residue build-up
on the lint screen. A clogged lint
screen can extend drying times. Clean
the lint screen every six months or
more frequently if it becomes clogged
due to a residue build-up. Use the
following method:
1. Wet both sides of lint screen with
hot water.
2. Wet a nylon brush with hot water
and liquid detergent.
3. Scrub lint screen with the brush
until all residue build-up is re-
moved.
4. Rinse with hot water.
5. Thoroughly dry lint screen with a
clean towel and replace in dryer.
10

Cleaningthe dryer
Electrlcal Shock and
Personal Injury Hazard
l Turn off the electrical power
before cteanlng the Interior.
l Make sure the dryer ls cool.
Failure to do so could result ln
electrical shock or Injury.
Fire Hazsrd
l Use non-flammable cleaner.
Failure to do so could result In
an explosion.
Garments which contain unstable
dyes, such as denim blue jeans or
brightly cobred cotton items, may
discolor the dryer interior.
lf you want to remove stains from
dryer drum use one of the followlng
methods:
Powdered laundry detergent
1. Make a paste with detergent and
very warm water.
2. Apply paste to a soft cloth and
scrub area until all excess dye is
removed.
3. Wipe thoroughly with a damp cloth.
4. Tumble a bad of rags to dry.
Llquld non-flammable household
cleaner
1. Apply to stained area
2. Rub with a doth until all excess dye
Is removed.
3. Wipe thoroughly with a damp cloth.
4. Tumble a bad of rags to dry.
To clean dryer exterlor:
Wipe with a soft, damp doth.
11

Carlng For Your Dryer
Continued
Lint removal
Lint can gather inside the dryer and be
a fuel for fire. ft is recommended the
lint ba removed every 2 to 3 years, or
more often, depending on dryer
usage. Cleaning shoukl be done by a
qualified person. lf you have any
questions, please call our Consumer
Assktance Center at I-800-2!53-1301.
Elodrk dryer with baclt panel removed
bnb
I II
Fu:nd
12 Gas dryer wlth lower honl
acces8 panel mfnoved
Electrical Bhock and
Personal injury Hazard
l Unplug the power suppty cord
or turn off the electrlcol power
before removlng dryer panels.
l Make sure the dryer Is cool.
l Dryer parts can have sharp
edgea Use care when han-
dllng.
l When mplaclng front panel
after lint removal, the wire clips
holding the door switch wires
must be anchored to top of
front and side panels. Wires
Ml&T NOT touch rotating
dNITI. (See page 12, step 7.)
Failure to do so could result ln
elect&al shock or personal
WV.
If your dryer Is elect&z, or ls gas
and has a lower front access panel:
1. Unplug the power supply oord or
turn off the elactrical power.
2. Remove bade panel (elsctric) or
bwer front accsss panel (gas). See
Installation Instructions.
3. Remove lint from shaded area in
illustration with a soft brush or
vacuum deanar. Avoid damaging
wires, thermostats (elsctric). funnel
(gas) or igniter (gas).
4. Replace panel; reconnect and
level dryer again, if necessary.
NOTE: See page 13 if your dryer is
gas and has a full front panel.

llomove-0
bdorm opmlng top
Wire dip-
bold8 door
l wlIoh wtrcm
Vlew D
tfyokuchyefk’&sandhamaWIfront
pfld#-fNlltpcuwl~kl~
1. Unplug the power supply cord or turn
off the electrbal power.
2. Cpen lint screen lb. Remove two
screws in lint screen area.
3. Open top by pulling forward and up
at each front corner (see view A).
Rest raised top against wall behind
dryer (top is hinged at rear).
4. Remove two internal screws from
front panel flanges (near top front
comers). Lii front panel slightly,
lifting off bwer clips (see view B).
Slowly pull front panel forward,
disengaging panel from drum. (Drum
will drop slightly.)
5. Move front panel aside and rest edge
against side of dryer. Avoid discon-
necting wire clips (see view C) or
damaging wires.
6. Remove lint from area shown in -gas
dryer illustration on page 12 with soft
brush or vacuum deaner. Avoid
damaging wires, funnel or igniter.
7. Reassemble in reverse order. Before
closing the top, check the following:
- Drum seal must be flared out (see
view D) and properly positioned
against panel at back of drum.
Rotate drum counterclockwise one
full turn to chedc drum seal.
- Belt should be centered and tight
on dryer drum.
- wire clips which hold the door
switch wires must be anchored in
slot in top of front panel (see
view C) and along top edge of side
panel. Door wires must not touch
drum when dryer ls operating.
See Warnlng, page 12.
8. Replace top panel and lint screen
screws. Top and front panels must
be securely in place before operating
dryer.
9. Reconnect power and level dryer
again (if necessary).
NOTE: Call Consumer Assistance at
1-800-253-l 301 for assistance or
more information. 13

IfYouNeedService OrAssistance
Wesuggestyoufollow
thesesteps:
1. Before calling for assistance “.
Performance problems often result
from little things you can find and fix
yoursefl without tools of any kind.
If your dryer does not run:
l ls the power supply plugged into a
live circuit with the proper voltage?
l ls the door dosed tightly?
l D’d you push the Start Button?
l Have you checked your home’s main
fuses or circuit breaker box?
Hyour dryer doss not heat:
l The FLUFF AIR setting ls without
heat.
l The last minutes of heat settings are
without heat.
l II you have a gas dryer, is the gas
turned on? lf not, turn the Cycle
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l The circuit supplying an electric dryer
uses 2 breakers or 2 fuses. ff one
breaker is tripped or one fuse is
blown, the dryer may run, but not
heat.
If drylng time ssems too kng:
l Is the lint screen clean? See page 10
for cleaning instructions.
l ls the exhaust duct or outside
exhaust hood dogged? Clean
if needed.
l See the Dryer Guide.
2. tf you need asslstancs*.,
Call WhIrlpool Consumer Assistance
Center telephone number. Dlal free
from anywhere In the U.S.:
1400-253-1301
and talk with one of our trained consult-
ants. The consukant can instruct you in
how to obtain satisfactory operation from
your appliance or, if service is neces-
sary, recommend a qualiii service
company in your area
lf you prefer, write to:
Mr. William Clark
Consumer Assistance Representative
Whirlpool Corporation
2000 M-63
Benton Harbor, MI 49022
Please include a daytime phone number
in your correspondence.
3. If you need servke’...
T!@
Whirlpool has a
T
nationwide network
of authorized
~~~ Whirtpoolsy service
companies.
Whirlpool service technicians are trained
to fulfill the product warranty and provide
after-warranty service, anywhere in the
United States. To locate the authorized
Whirlpool service company in your area,
call our Consumer Assistance Center
telephone number (see Step 2) or bok in
your telephone directory Yelbw Pages
under:
14

4. If you need FSP
replacement parts*...
FSP is a registered trademark of
Whirlpool Corporation for quality parts.
Look for this symbol of quality
whenever you need a replacement part
for your Whirlpool appliance. FSP
replacement parts will fit right and work
right, because they are made to the
same exading specifiitions used to
buikf every new Whirlpool appliance.
To locate FSP replacement parts in
your area, refer to Step 3 or call the
Whirlpool Consumer Assistance Center
number in Step 2.
..
5. If vou are not satlsfled wlth how
the probbm was solved’...
l Contact the Major Appliance
Consumer Action Panel (MACAP).
MACAP is a group of independent
consumer experts that voices
consumer views at the highest levels
of the major appliance industry.
l Contact MACAP only when the
dealer, authorized servicer and
Whirlpool have failed to resolve
your problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
l MACAP will in turn inform us of your
action.
*When requesting assistance, please
provide: model number, serial
number, date of purchase, and a
complete description of the problem.
This information is needed in order
to better respond to your request.

WHIRLPOOL’=
Automatic Dryer Warranty
DROOl
LENGTH OF WARRANTY WHIRLPOOL WlLL PAY FOR
FULL ONE-YEAR
FSP replacement parts and repair labor to
WARRANTY
correct defects in materials or workmanship.
From Date of Purchase Service must be provided by an authorized
WhirlpoolSM service company.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the dryer.
2. Instruct you how to use the dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
B. Repairs when dryer is used in other than normal, single-family
househoki use.
C. Pickup and delivery. This product is designed to be repaired in the
home.
D. Damage to dryer caused by accident, misuse, fire, flood, acts of God
or use of products not approved by Whirlpool.
L Repairs to parts or systems caused by unauthorized modifications
made to the appliance.
WHIRLPOOL CORPORATlON SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation or exdusion may
not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please
contact your authorized Whirlpool distributor or military exchange.
lf you need service, first see the “Service and Assistance’ section of this book.
After checking “Service and Assistance,’ additional help can be found by calling
our Consumer Assistance Center telephone number, 1-800-253-1301, from
anywhere in the U.S.
@ Registered Trademark / SM Service Mark of Whirlpool Corporation
Part No. 3395411
01992 Whirlpool Corporation Printed in U.S.A.
