I
AUTOMATIC
DRYERS
Electric Model
LE5535XP
and
Gas Model
LG5536XP
Ive Ovens. Trash Compactors. Room AH Condltloners. Dehumldlhers, Aulomatlc Washers, Clothes Dryers, Freezers, Refrigerator-Freezers

b/A ,DRVER DRUM
LOADING DOOR
MODEL
AND SERIAL
NUMBER PLATE

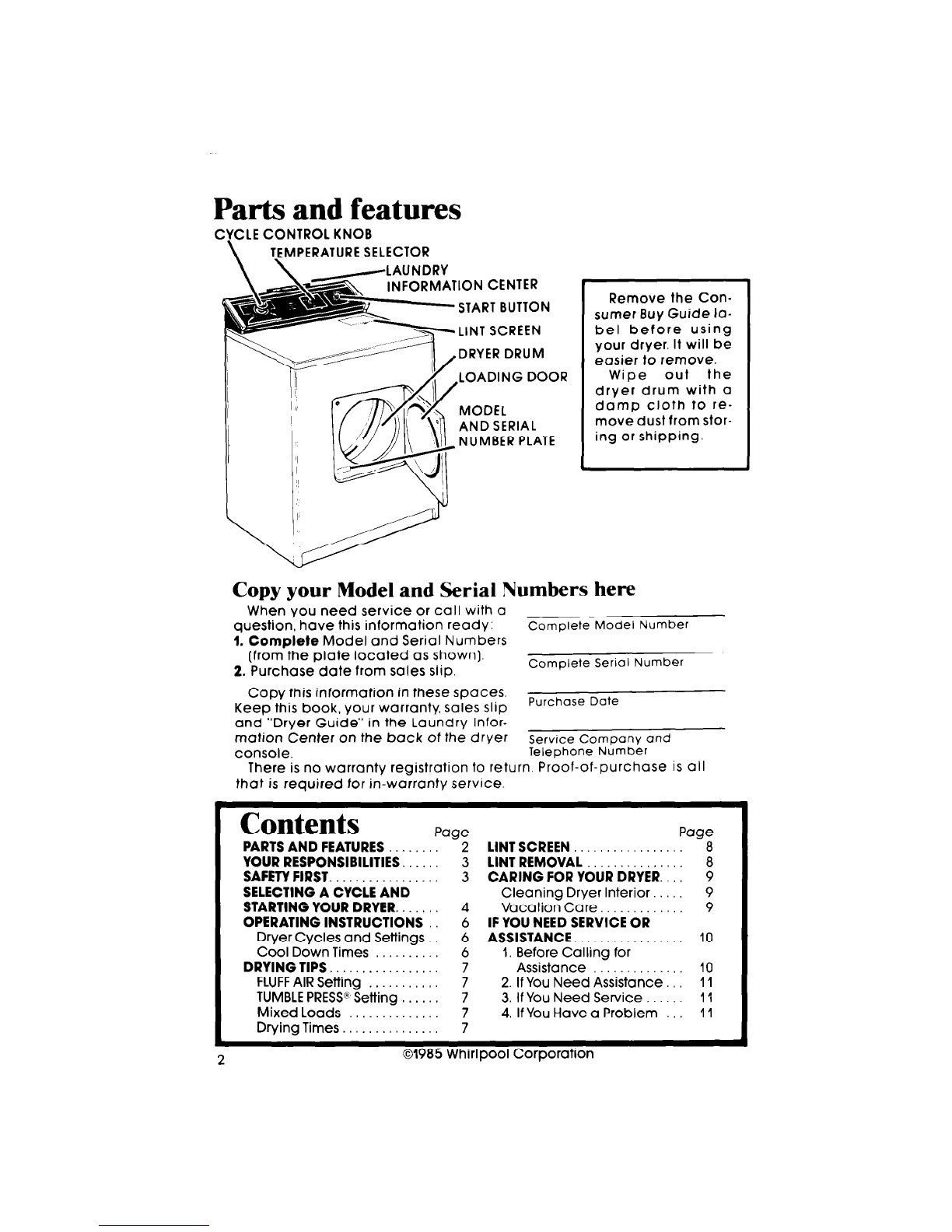

Parts and features
CYCLE CONTROL KNOB
TURE SELECTOR
ION CENTER
START BUTTON
LINT SCREEN your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from StOr-
ing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Complete Model Number
1. Complete Model and Serial Numbers
(from-the plate located as shown].
2. Purchase date from sales slip.
Complete Serial Number
Copy this information in these spaces.
Keep this book, your warranty, sales slip
Purchase Date
and “Dryer Guide” in the Laundry Infor-
mation Center on the back of the dryer
Servrce Company and
console. Telephone Number
There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
Contents
Page
PARTS AND FEATURES 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST. 3
SELECTING A CYCLE AND
STARTING YOUR DRYER.
OPERATING INSTRUCTIONS
Dryer Cycles and Settings
Cool Down Times .
DRYING TIPS. .
FLUFFAIR Setting .
TUMBLE PRESS@Setting , , , , . 7
Mixed Loads 7
Drying Times. 7
LINT SCREEN
LINT REMOVAL
CARING FOR YOUR DRYER.
Cleaning Dryer Interior..
Vacation Care.
IF YOU NEED SERVICE OR
ASSISTANCE.
1. Before Calling for
Assistance
2. If You Need Assistance
3. If You Need Service
4. IfYou Have a Problem
2 01985 Whirlpool Corporation
Page
i
9
9
9
10
10
11
11
11

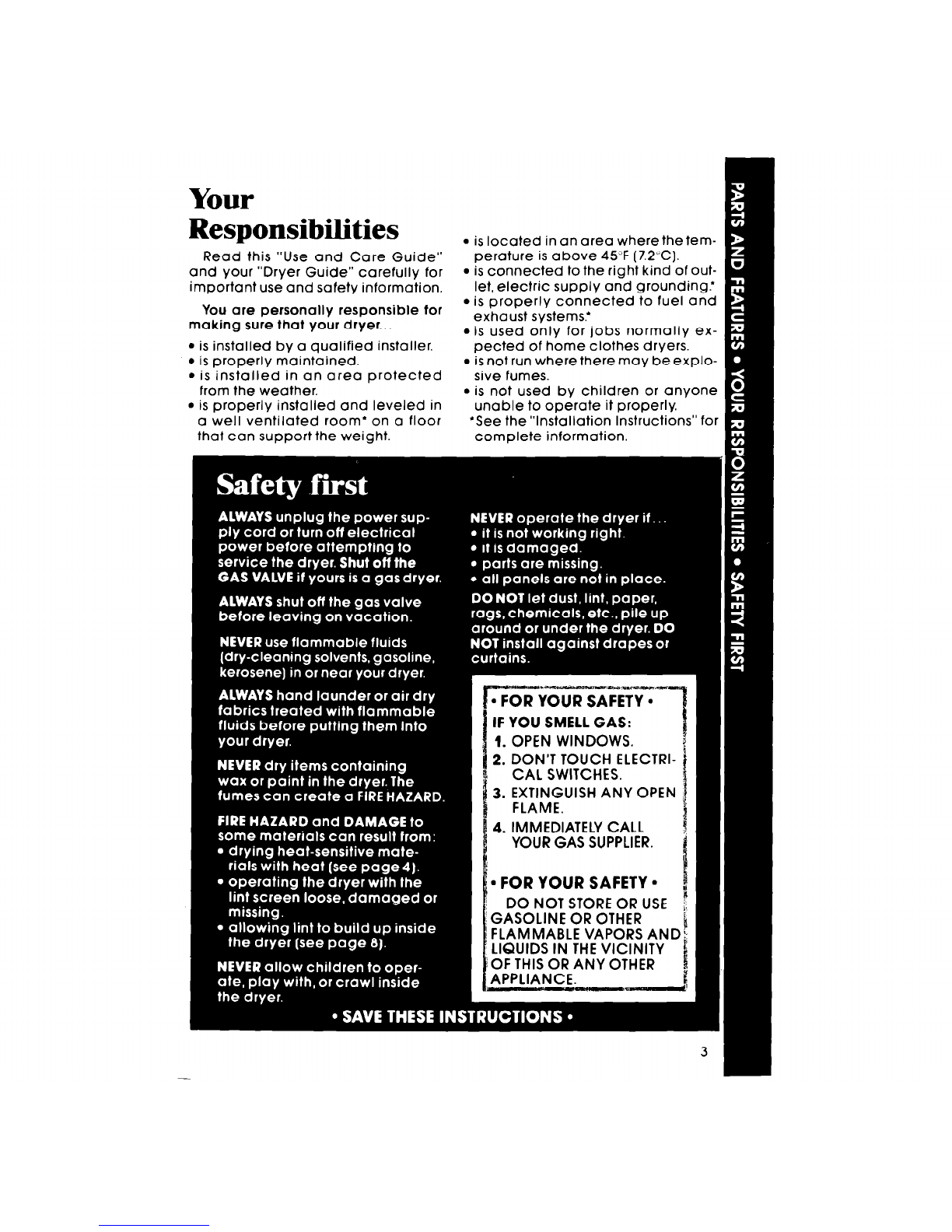

Your
Respons ibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room* on a floor
that can support the weight.
l is located in an area where the tem-
perature is above 45°F (7.2”CJ.
l is connected to the right kind of out-
let, electric supply and grounding.’
l is properly connected to fuel and
exhaust systems:
l is used only for jobs normally ex- 1 .:
petted of home clothes dryers.
l is not run where there may t:
sive fumes.
l is not used by children or anyone l
unable to operate it properly.
I!
.
*See the “Installation Instructions” for
complete information.
. FOR YOUR SAFETY l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
9FOR YOUR SAFETY.
DO NOT STOREOR USE t
GASOLINE OR OTHER k
FLAMMABLE VAPORS ANDi
LIQUIDS IN THEVICINITY
OF THIS OR ANY OTHER

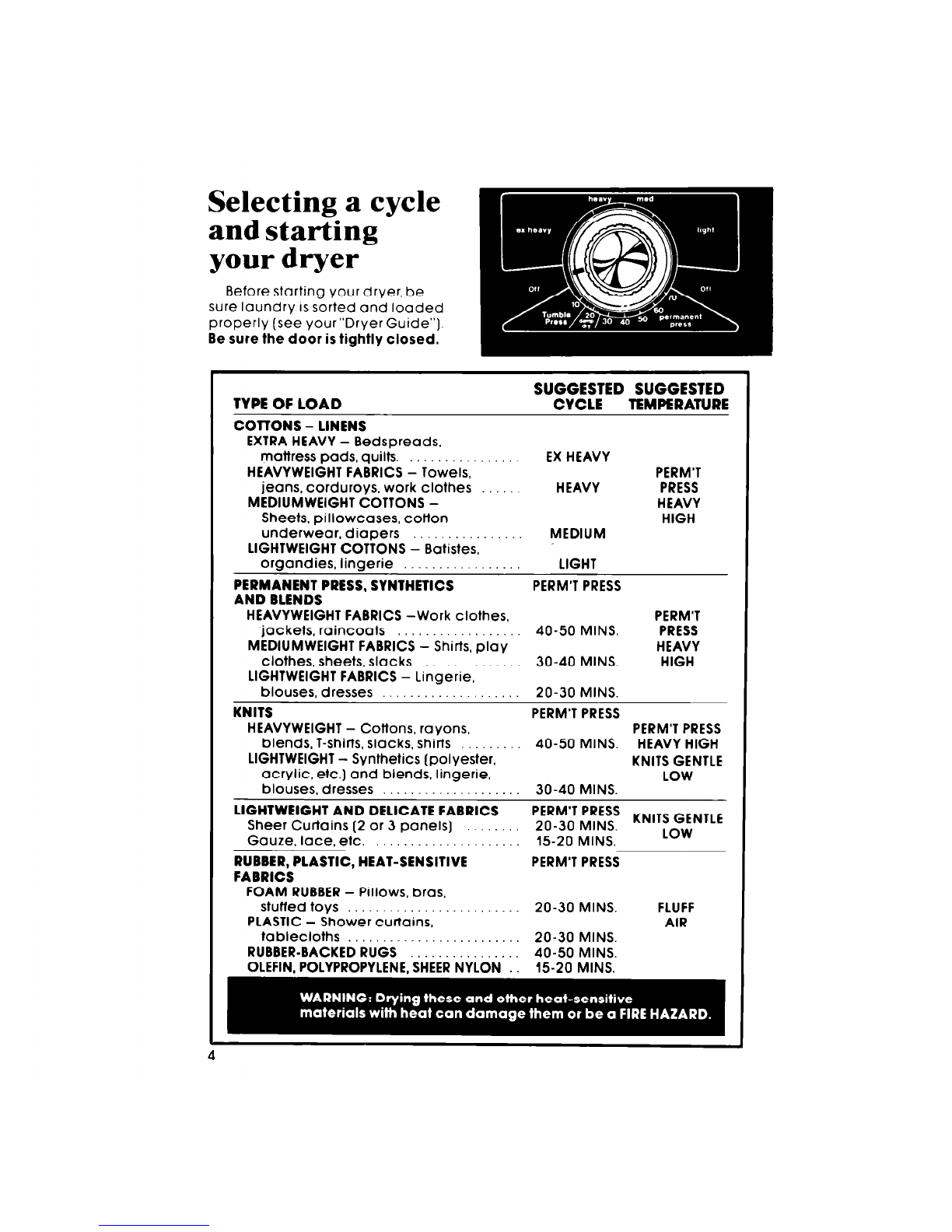

Selecting a cycle
and starting
your dryer
Before starting your dryer, be
sure laundry ISsorted and loaded
properly (see your”Dryer Guide”).
Be sure the door is tightly closed.
TYPE OF LOAD SUgF%;ED SUGGESTED
TEMPERATURE
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress pads, quilts. EX HEAVY
HEAVYWEIGHT FABRICS - Towels, PERMIT
jeans, corduroys. work clothes HEAVY PRESS
MEDIUMWEIGHT COTTONS - HEAVY
Sheets, pillowcases, cotton HIGH
underwear, diapers MEDIUM
LIGHTWEIGHT COTTONS - Batistes,
organdies, lingerie LIGHT
PERMANENT PRESS, SYNTHETICS PERMIT PRESS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes, PERMIT
jackets, raincoats 40-50 MINS. PRESS
MEDIUMWEIGHT FABRICS - Shirts, play HEAVY
clothes, sheets,slacks _. 30-40 MINS. HIGH
LIGHTWEIGHT FABRICS - Lingerie,
blouses, dresses 20-30 MINS.
KNITS PERM’T PRESS
HEAVYWEIGHT - Cottons, rayons, PERMIT PRESS
blend&T-shirts. slacks,shirts 40-50 MINS. HEAVY HIGH
LIGHTWEIGHT - Synthetics (polyester, KNITS GENTLE
acrylic, etc.) and blends, lingerie, LOW
blouses, dresses _, _. _. 30-40 MINS.
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels] PERM’T PRESS KNITS GENTLE
20-30 MINS.
Gauze, lace.etc. 15-20 MINS. LOW
RUBBER, PLASTIC, HEAT-SENSITIVE PERMIT PRESS
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys 20-30 MINS. FLUFF
PLASTIC - Shower curtains, AIR
tablecloths _. 20-30 MINS.
RUBBER-BACKED RUGS 40-50 MINS.
4

Select a
1. CYCLE
Turn the Control Knob either way to
point to the cycle and setting you
want. See page 6 for information on
the cycles.
Push the
3. START Button
The dryer will start tumbling when
you push the START Button
Set TEMPERATURE
2. SELECTOR
Turn the Temperature Selector to the
needed drying temperature.
To stop and restart
the dryer
To stop the dryer. open the door (or
turn the Control Knob to OFF).
To restart the dryer. close the door,
select cycle, if necessary, and push
START.
The Cycle Control Knob should point to OFF when the dryer is not in use.

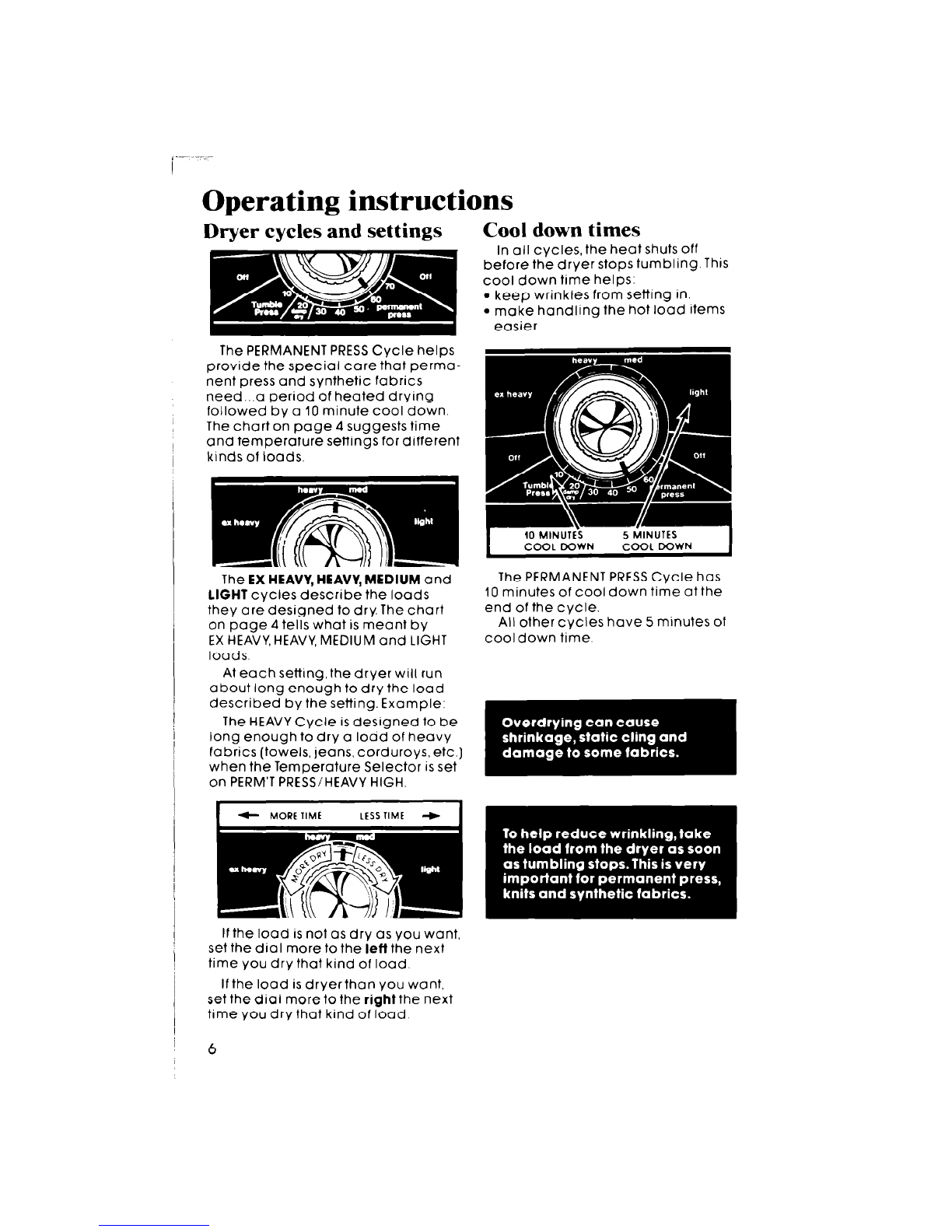

Operating instructions
Dryer cycles and settings
The PERMANENT PRESS Cycle helps
provide the special care that perma-
nent press and synthetic fabrics
need...a period of heated drying
followed by a 10 minute cool down.
The chart on page 4 suggests time
and temperature settings for different
kinds of loads.
The EX HEAVY, HEAVY, MEDIUM and
LIGHT cycles describe the loads
they are designed to dry. The chart
on page 4 tells what is meant by
EX HEAVY, HEAVY, MEDIUM and LIGHT
loads.
At each setting, the dryer will run
about long enough to dry the load
described by the setting. Example:
The HEAVY Cycle is designed to be
longenoughtodryaloddofheavy
fabrics (towels, jeans, corduroys. etc.]
when the Temperature Selector is set
on PERM’T PRESS/HEAVY HIGH.
c MORETIME LESSTIME +
If the load is not as dry as you want,
Set the dial more to the left the next
time You dry that kind of load.
If the load is dryer than You want,
set the dial more to the right the next
time You dry that kind of load.
Cool down times
In all cycles, the heat shuts off
before the dryer stops tumbling This
cool down time helps:
l keep wrinkles from setting in.
l make handling the hot load items
easier.
The PERMANENT PRESS Cycle has
10 minutes of cool down time at the
end of the cycle.
All other cycles have 5 minutes of
cool down time.
6

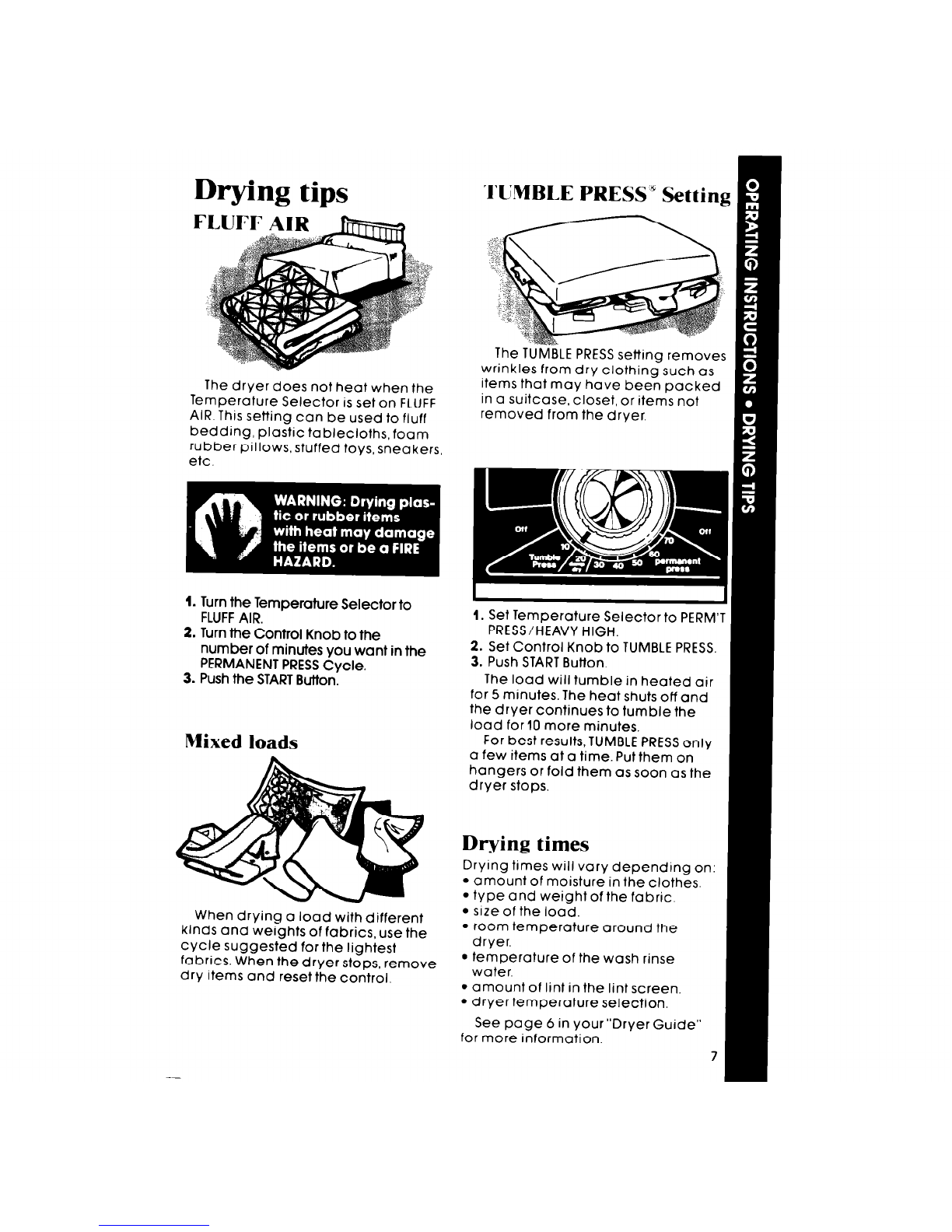

Drying tips
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR This setting can be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys, sneakers,
etc.
1. Turn the Temperature Selector to
FLUFFAIR.
2. Turn the Control Knob to the
number of minutes you want in the
PERMANENT PRESSCycle.
3. Push the STARTButton.
Mixed loads
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest
fabrics. When the dryer stops, remove
dry items and reset the control.
TUMBLE tESS” Setting I
The TUMBLE PRESSsetting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase, closet, or items not
removed from the dryer.
1. Set Temperature Selector to PERM’T
PRESS/HEAVY HIGH.
2. Set Control Knob to TUMBLE PRESS.
3. Push START Button.
The load will tumble in heated air
for 5 minutes. The heat shuts off and
the dryer continues to tumble the
load for IO more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.
Drying times
water.
l amount of lint in the lint screen.
l dryer temperature selection.
See page 6 in your”Dryer Guide”
L- _
ror more rnrormarron.
Drying times will vary depending on:
l amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
. room temperature around the
dryer.
l temperature of the wash rinse

Lint screen
Open the lid and pull the lint screen
straight out.
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIRE HAZARD. ,~~~.
ROLL the lint off the screen
with your fingers.
DO NOT rinse or wash the screen
Push the screen firmly back into
place.
Lint removal
Lint can gather inside the dryer and create a fire hazard. This lint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
a
WARNING:
l Avoid electrical shock
hazard - unplug power
supply cord or turn off
electrical power.
l Avoid injury or damage-do not
put hands inside cabinet.
l Make sure dryer is cool,
1. Remove back panel (electric]
or lower access panel (gas).
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art- with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.

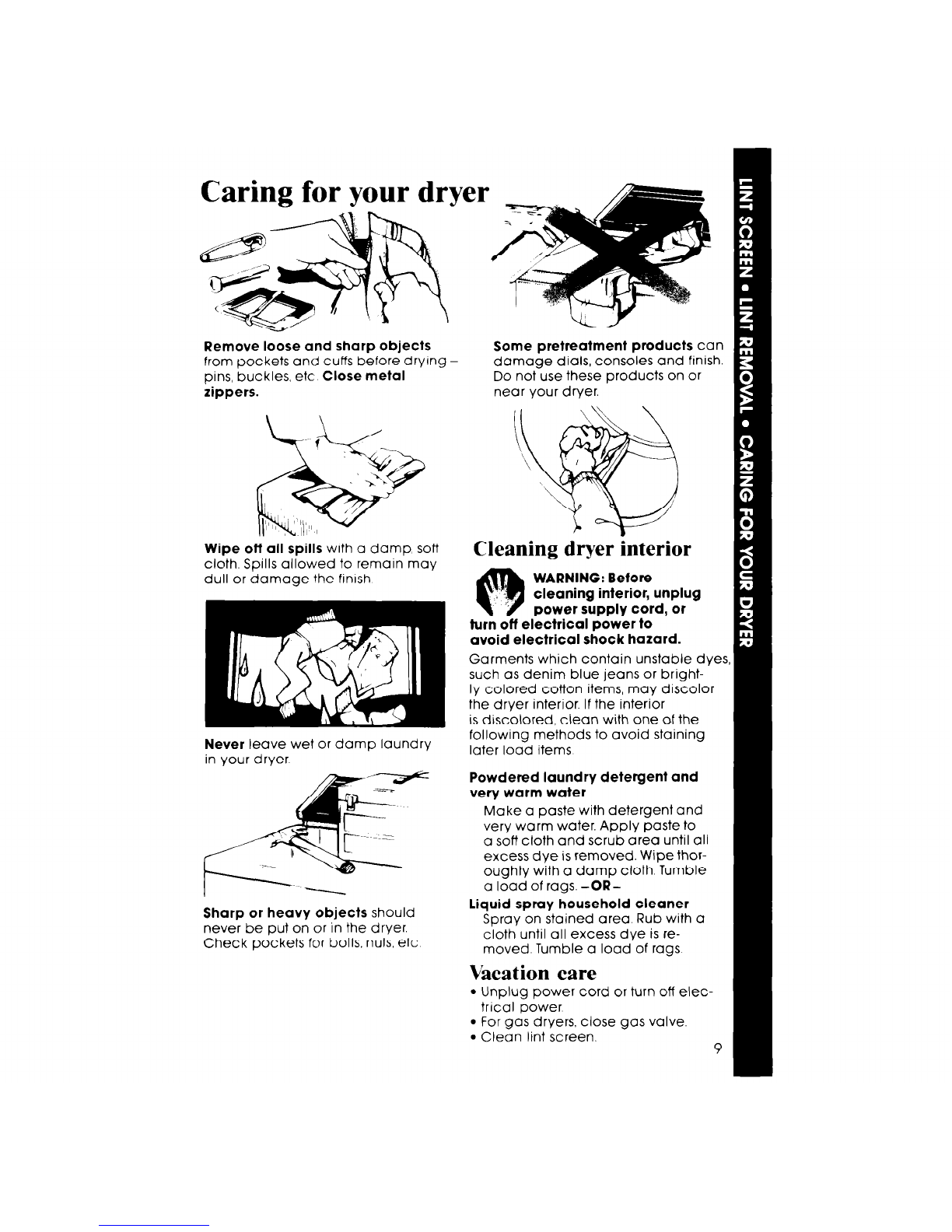

Remove loose and sharp objects
from pockets and cuffs before drying
pins, buckles, etc Close metal
zippers.
Wipe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish
-
Never leave wet or damp laundry
in your dryer
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or
near your dryer.
Cleaning dryer interior
@
WARNING: Before
,‘- cleaning interior, unplug
power supply cord, or
turn off electrical power to
avoid electrical shock hazard.
Garments which contain unstable dyes
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughty with a damp cloth. Tumble
a load of rags. -OR-
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags
Vacation care
l Unplug power cord or turn off elec-
trlcal power
l For gas dryers. close gas valve.
0 Clean lint screen. 9

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l If the power supply cord plugged
into a live circuit with the propervolt-
age?
l Is the door closed tightly?
l Did you push the STARTButton?
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric drver uses a circuit
breaker or 2 f&es. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems long:
l Have you checked your home’s
main fuses or circuit breaker box?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat
10
l Is the lint screen clean?
l See page 7 of this book and page 6
of your “Dryer Guide:’

2. If you need
assistance*...
Call Whirlpool COOL-LINE” serv-
ice assistance telephone number.
Dial tree from:
Continental U.S. . [phone]
Michigan . . . . . . . . [phone]
Alaska 81 Hawaii [phone]
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
4d^
Whirlpool has
. I
rrl
a nationwide
network of fran-
chised TECH-CARE 5
TECff-CARE Service Compa-
FRANCHISED SERVICE
nies. TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
4. If you havea
problem*...
Call our COOL-LINE service as-
sistance telephone number [see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
‘If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.
0
FSP
@
FSP is a registered trademark
at Whirlpool Corporation for
quality parts. look tar this
symbol ot quality whenever
you need a replacement part
for your Whirlpool appliance.
FSP replacement parts
will tit right and work right, because they ore
made to the same exacting specifications
used to build every new Whirlpool appliance. ’

whirlpool
Home L Appliances
Making your world a little easier
Part No. 696758
01985 Whirlpool Corporation Printed in U.S.A.
i’ / : z: .t<y> .y .$-;r$ ‘:,. -) j, -1. j I’<
nallc Washers. Clothes Dryers, Freezers. Refrlgeralor-Freezers, Ice Makers, Dishwashers. Bud-In Ovens and Surface lJnlts, Ranges, MIC
