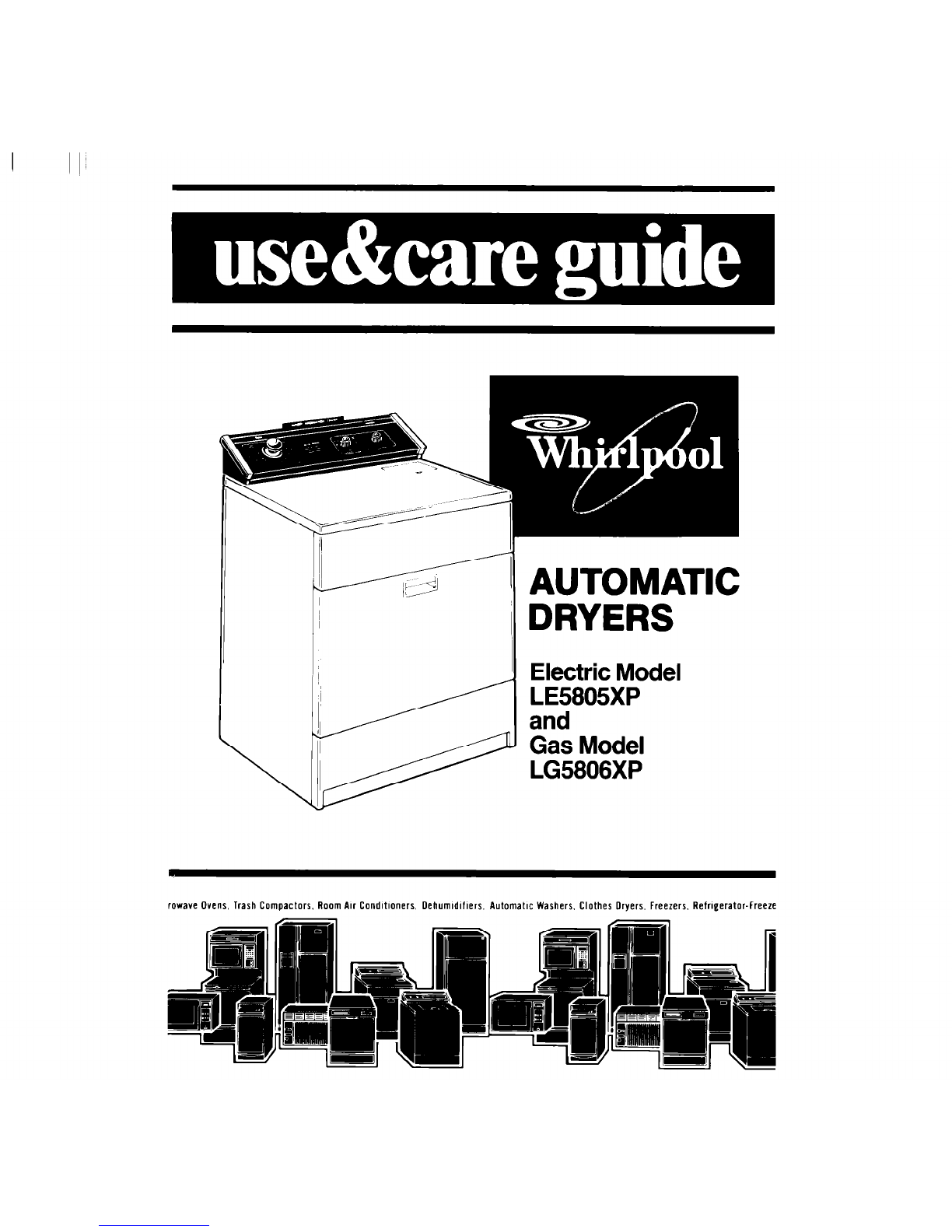

Whirlpool LE5805XP User manual

\
\
AUTOMATIC
DRYERS
Electric Model
LE5805XP
and
Gas Model
LG5806XP
rowave Ovens. Trash Compactors, Room AM Candltloners, Oehum~d~f~ers. Automatic Washers, Clothes Dryers, Freezers. Refrigerator-Freeze

Parts and features
CYCLE CONTROL LAUNDRY
KNOB I INFORMATION CENTER
/
-TEMPERATURE SELECTOR
START BUTTON
LINT SCREEN
DRYER DRUM
AND SERIAL
NUMBER PLATE
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready
Complete Model Number
1. Comdete Model and Serial Numbers
(from-the plate located as shown]
2. Purchase date from sales slop
Complete Serial Number
Copy this information tn these spaces
Keep this book, your warranty. sales slop
Purchase Date
and “Dryer Guide” in the Laundry Infor-
mation Center on the back of the dryer Service Company and
console
Telephone Number
There IS no warranty registration to return Proof-of-purchase is all
that is required for in-warranty service.
Contents
PARTS AND FEATURES
YOUR RESPONSIBILITIES.
SAFETY FIRST.
SELECTING A CYCLE AND
STARTING YOUR DRYER.
OPERATING INSTRUCTIONS
The Automatic Cycles
Timed Drying
DRYINGTIPS
FLUFFAIR Setting
TUMBLE PRESS8Setting
Mixed Loads
Drying Times
End-of-Cycle Signal
Page
2
3
3
Lint Signal
LINT SCREEN
LINT REMOVAL
CARING FOR YOUR DRYER.
Cleaning Dryer Interior..
Vacation Care.
IF YOU NEED SERVICE OR
ASSISTANCE.
1. Before Calling for
Assistance
2. If You Need Assistance
3. You Need Service
4. If You Have a Problem
Page
i
9
10
10
10
11
11
11
11
11

I
I I

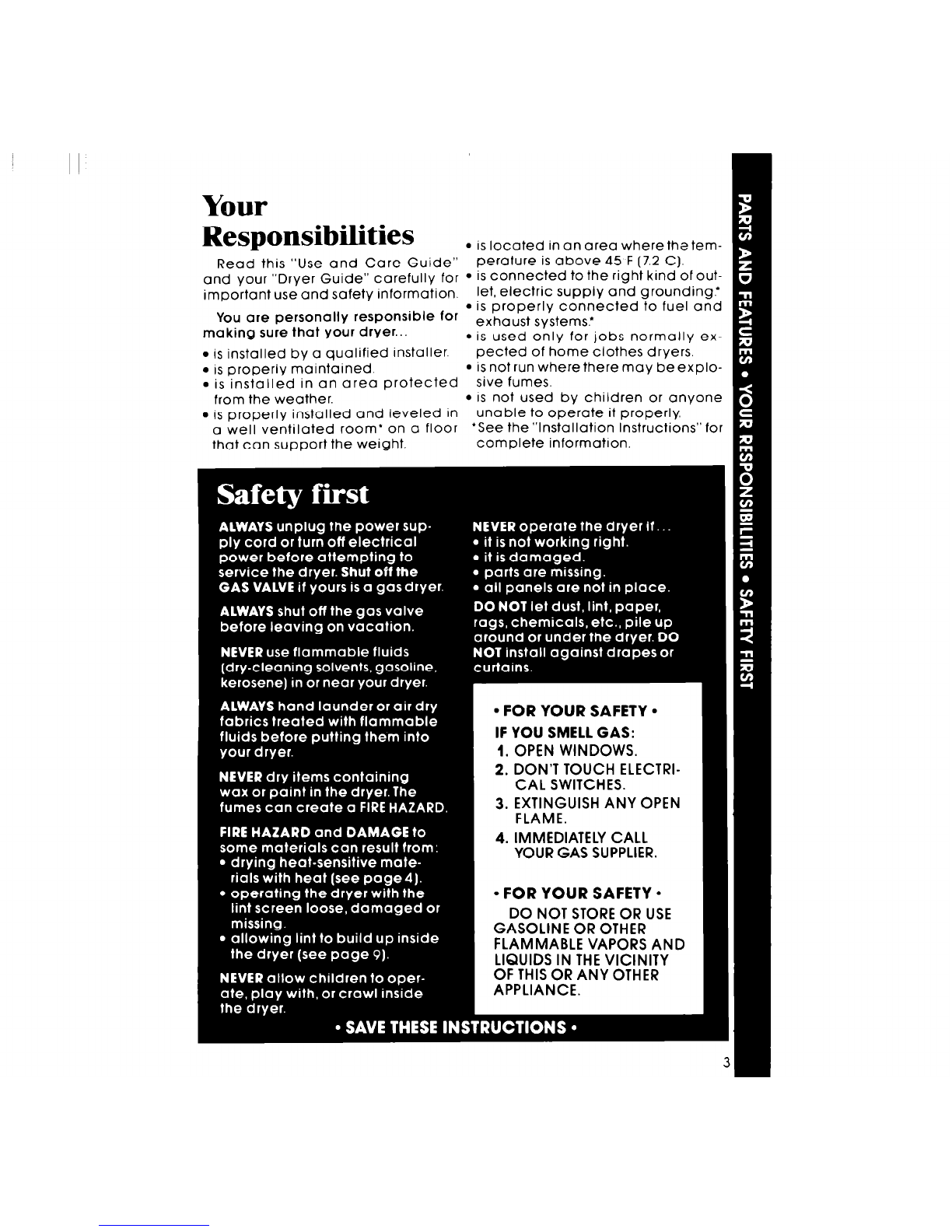

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer..
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled In
a well ventilated room* on a floor
that can support the weight.
. is located in an area where the tem-
perature is above 45 F (7.2 C).
l is connected to the right kind of out-
let, electric supply and grounding.’
l is properly connected to fuel and
exhaust systems.*
l is used only for jobs normally ex-
pected of home clothes dryers.
l is not run where there may be explo-
sive fumes.
l IS not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
complete informatlon.
9FOR YOUR SAFETY l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
l FOR YOUR SAFETY l
.-. -.-..- -.. -
GASOLINE OR OTHER

TYPE OF LOAD SUGGESTED SUGGESTED
CYCLE TEMPERATURE
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress pad&quilts.
HEAVYWEIGHT FABRICS -Towels,
jeans, corduroys, work clothes AUTOMATIC HEAVY
MEDIUMWEIGHT COTTONS - REGULAR HIGH
Sheets, pillowcases, cotton
underwear, diapers
LIGHTWEIGHT COTTONS - Batistes,
organdies, lingerie
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes,
jackets, raincoats AUTOMATIC PERMIT
MEDIUMWEIGHT FABRICS - Shirts, play PERMANENT PRESS
clothes,sheets,slacks PRESS MED
LIGHTWEIGHT FABRICS - Lingerie.
blousesdresses
KNITS
HEAVYWEIGHT - Cottons, rayons,
blend&T-shirtsslacksshirts
LIGHTWEIGHT - Synthetics (polyester,
acrylic, etc.] and blends, lingerie,
blousesdresses
PERM’T PRESS
AUTOMATIC MED
PERMANENT
PRESS KNITS GENTLE
LOW
LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC KNITS
Sheer Curtains (2 or 3 panels) PERMANENT GENTLE
Gauze,lace,etc. _.._ _, PRESS LOW
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys
PLASTIC - Shower curtains,
tablecloths _._..,,._.._...........
RUBBER-BACKED RUGS
OLEFIN, POLYPROPYLENE, SHEERNYLON
TIMED FLUFF
DRYING AIR

I
I’
Select a
1. Ck’CLE
Turn the Control Knob either way to
point to the cycle and set-lng you
want See page 6 for InformatIon on
the cycles
Push the
3. ST.4RT Button
The Cycle Control Knob should point to OFF when the dryer is not in use.
5
The dryer will start tumbling when
you push the START Button
Set TEMPERATl‘RE
2. SELECTOR
To stop and restart
the dryer
To stop the dryer, open the door (or
turn the Control Knob to OFF)
To restart the dryer. close the door,
select Cycle, If necessary, and push
START

Operating instructions
The automatic cycles
The automatic cycles allow you
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected. Then
the knob automatically moves to
OFF and tumbling stops.
weight cotton items. The load tum-
bles without heat during the last 5
minutes. This helps make the load
easier to handle.
press, knits and other synthetic fab-
rics. The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in
For the first few loads, set the Control
Knob to point to an* in either auto-
matic cycle. When the dryer stops,
feel the dried items.
l If items are drier than you like, use
a setting to the right of the* the next
time you dry a similar load.
l If Items are not as dry as you like,
use a setting to the left of the *the
next time you dry a similar load
Timed drying
Use the TIMED DRYING Cycle for
any load you want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted with
the FLUFFAIR heat setting.
l Turn the Control Knob to the number
of minutes you want - from 10 to 60.
l The last 10 minutes of this cycle are
without heat - a cool-down time.
This helps make the load easier to
handle.
6

I
I I
Drying tips
FLUFF AIR
The dryer does not heat when the
Temperature Selector ISset on FLUFF
AIR This setting can be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys. :snea kers,
etc
Turn the Temperature Selector to
FLUFFAIR.
Turn the Control Knob to the num-
ber of minutes you want in the
TIMED DRYING Cycle.
Push the STARTButton.
TUMBLE PRESS ‘(Setting
The TUMBLE PRESS setting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase, closet, or items not
removed from the dryer
1. Set Control Knob to TUMBLE PRESS.
2. Set Temperature Selector to HEAVY
HIGH.
3. Push STARTButton.
The load will tumble in heated air
for 5 minutes. The heat shuts off and
the dryer continues to tumble the
load for 10 more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.

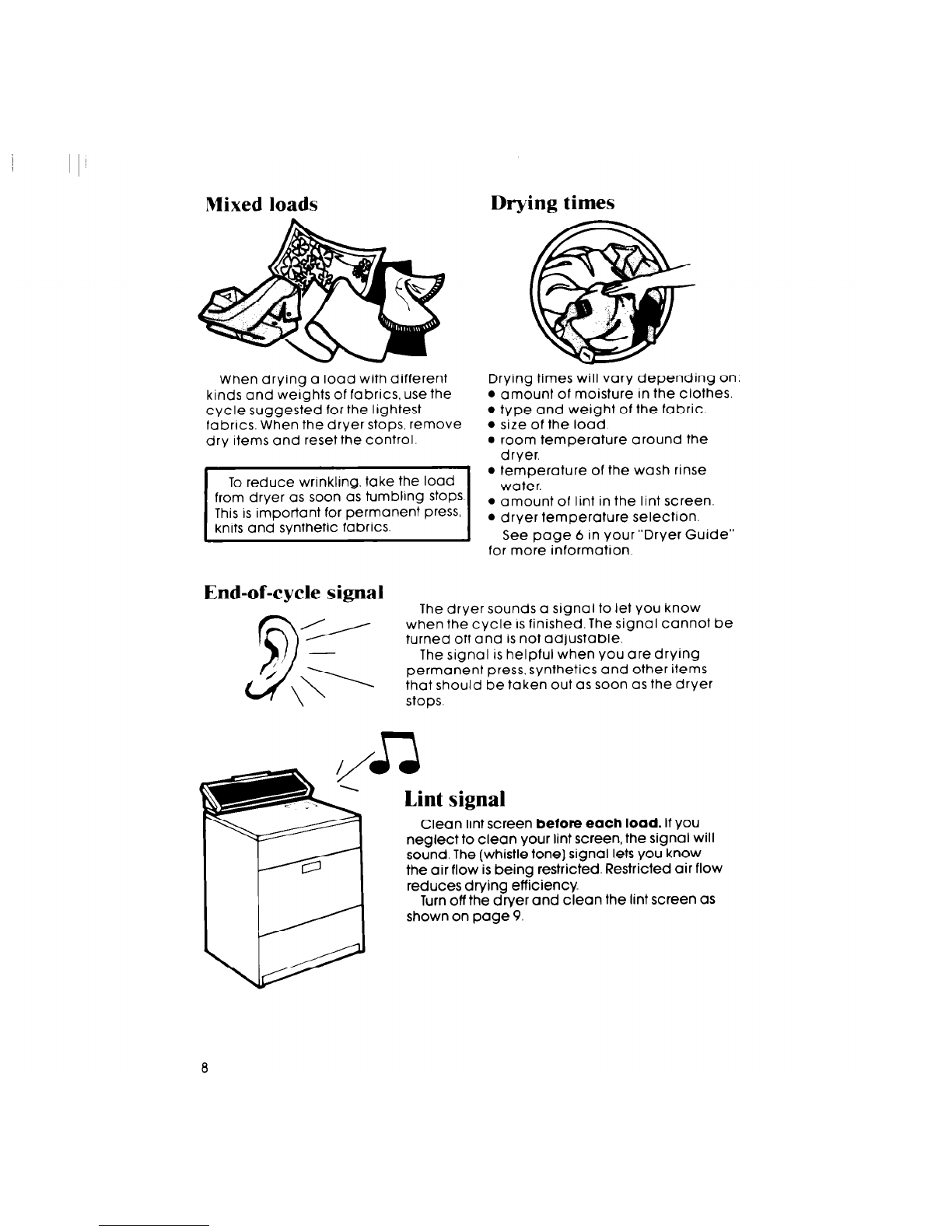

Mixed loads Drying times
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest
fabrics. When the dryer stops, remove
dry items and reset the control.
To reduce wrinkling, take the load
from dryer as soon as tumbling stops.
This is important for permanent press,
knits and synthetic fabrics.
Drying times will vary depending on:
l amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
l room temperature around the
dryer.
l temperature of the wash rinse
water.
l amount of lint in the lint screen.
0 dryer temperature selection.
See page 6 in your “Dryer Guide”
for more informatron.
End-of-cycle signal The dryer sounds a signal to let you know
when the cycle ISfinished.The signal cannot be
turned off and is not adjustable.
The signal is helpful when you are drying
permanent press, synthetics and other items
that should be taken out as soon as the dryer
stops.
Lint signal
Clean lint screen before each load. If you
neglect to clean your lint screen, the signal will
sound. The (whistle tone] signal lets you know
the air flow is being restricted. Restricted air flow
reduces drying efficiency.
Turn off the dryer and clean the lint screen as
shown on page 9.

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIRE HAZARD.
Lint removal
Lint can gather InsIde the dryer and create a fire hazard.This lint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
Heater Box
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
0
WARNING:
l Avoid electrical shock
hazard - unplug power
supply cord or turn off
electrical power.
l Avold Injury or damage-do not
put hands Inside cabinet.
l Make sure dryer is cool.
1. Remove back panel (electric]
or lower access panel (gas].
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art - with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.
9

Remove loose and sharp objects
from pockets and cuffs before drying -
pins, buckles, etc. Close metal
zippers.
Wipe off all spills with a damp, soH
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
10
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or
near your dryer.
Cleaning dryer interior
0
WARNING: Before
cleaning interior, unplug
power supply cord, or
turn off electrical power to
avoid electrical shock hazard.
Garments which contain unstable dyes,
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble
a load of rags. -OR-
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.
Vacation care
l Unplug power cord or turn off elec-
trical power.
l For gas dryers, close gas valve.
0 Clean lint screen.

If you need service or
we suggest YOU follow
1. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l Is the power supply cord plugged
into a live circuit with the proper volt-
age?
l Is the door closed tightly?
l Did you push the STARTButton?
l Have you checked your home’s
main fuses or circuit breaker box?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat,
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems long:
l Is the lint screen clean?
l See page 8 of this book and page 6
of your “Dryer Guide:’
2. If you need
assistance*...
Call Whirlpool COOL-LINER serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
assistance,
these four steps:
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE n
Service Compa-
nies. TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
4. If you have a
problem*...
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
‘If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.
11

Whirlnool
Home 5 Appliances
Making your world a little easier
Pari No. 696761
01985 Whirlpool Corporation Printed in U.S.A.
lmatlc Washers, Clothes Dryers. Freezers. Aelrlgetator-Freezers. Ice Makers. Dishwashers. Built-In Ovens and Surlace Units, Ranges. MIC
